Samsung Galaxy S5 Screen Replacement and Removal

In this guide, I’ll explain how to disassemble Samsung Galaxy S5 to remove the back cover, battery, front glass, screen and motherboard. Refer to this guide, you can remove, replace screen, front glass of your Samsung S5.

Looking for more guides? Follow us on Facebook for all the latest repair news.

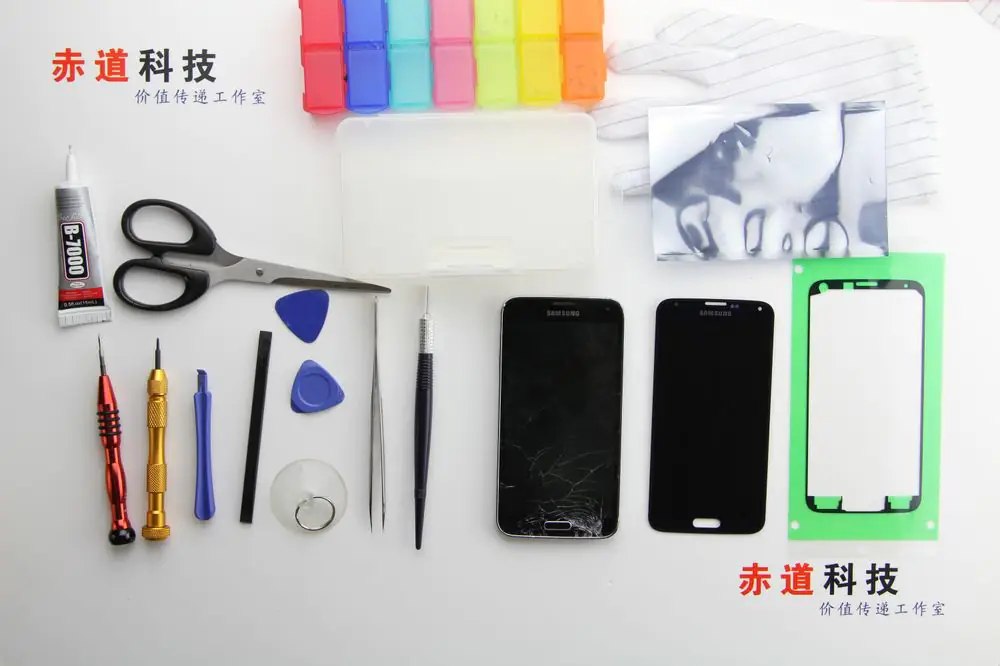

Tools need.

Samsung Galaxy S5 Screen Replacement

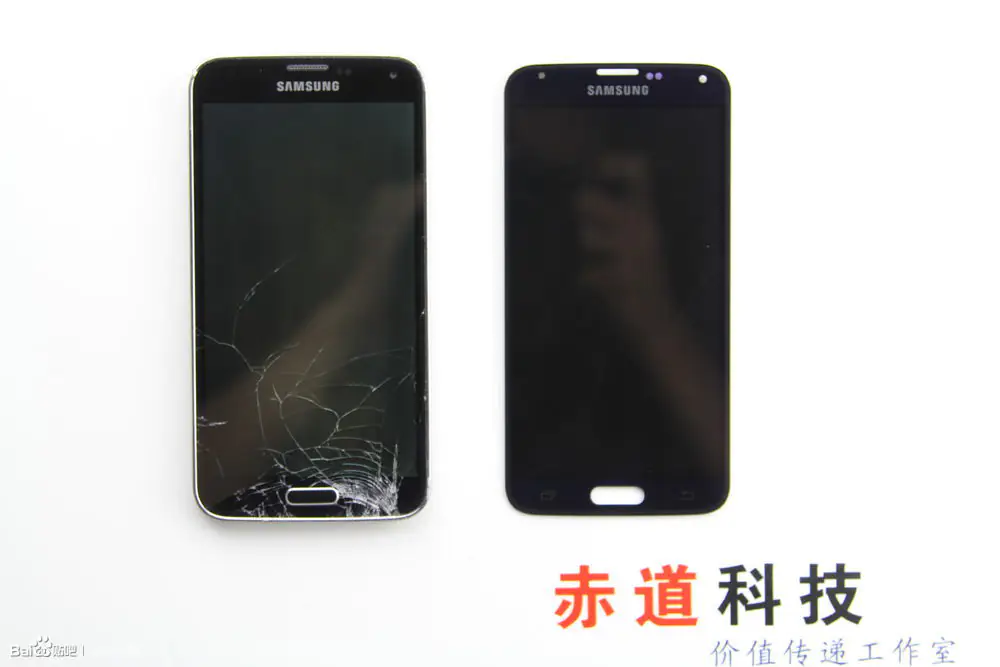

This is broken front glass and new front glass.

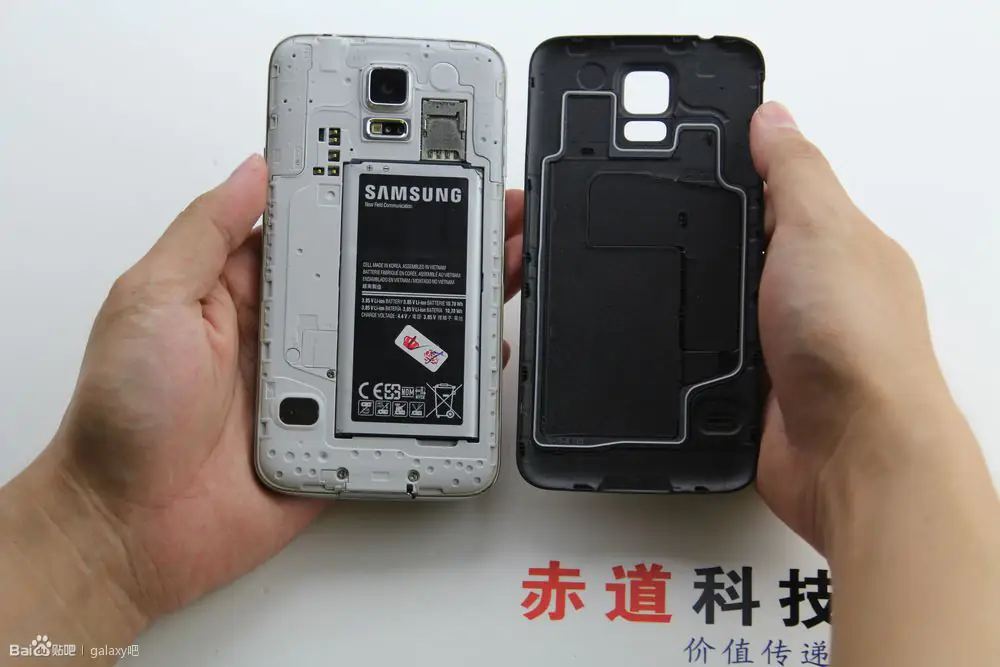

First step, remove the back cover and battery.

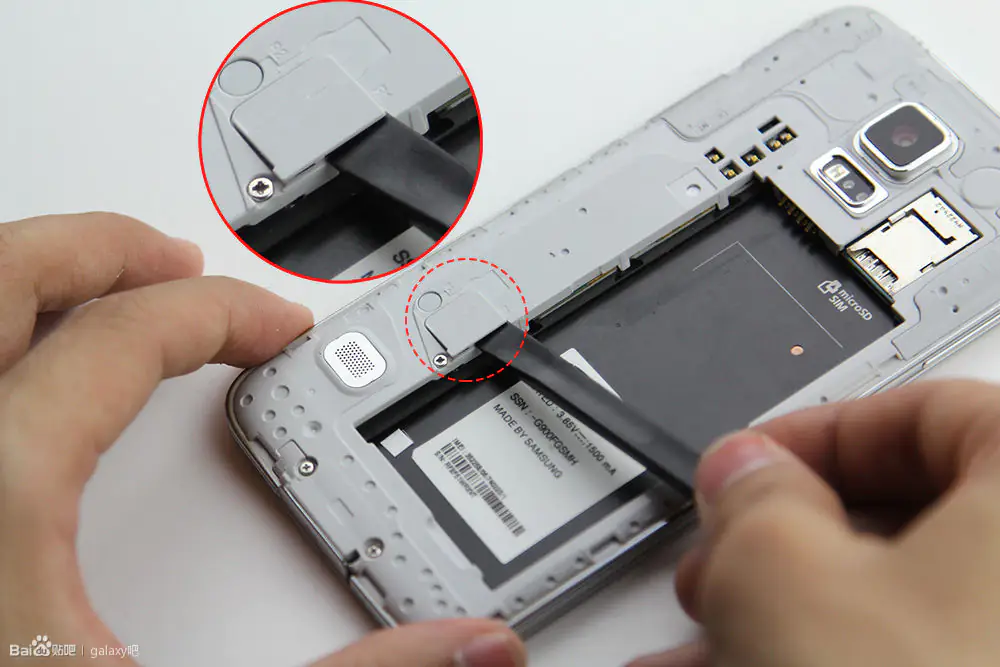

Remove the cover, under the cover is home button’s touch cable.

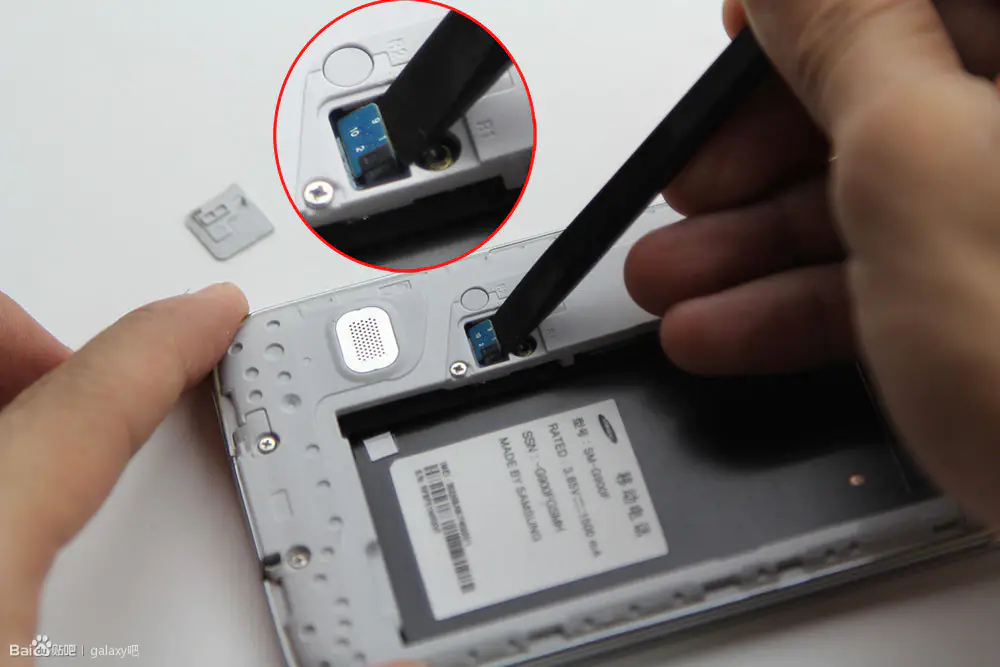

Disconnect the touch cable.

Heat up the edge of the display assembly for 3-5 minutes.

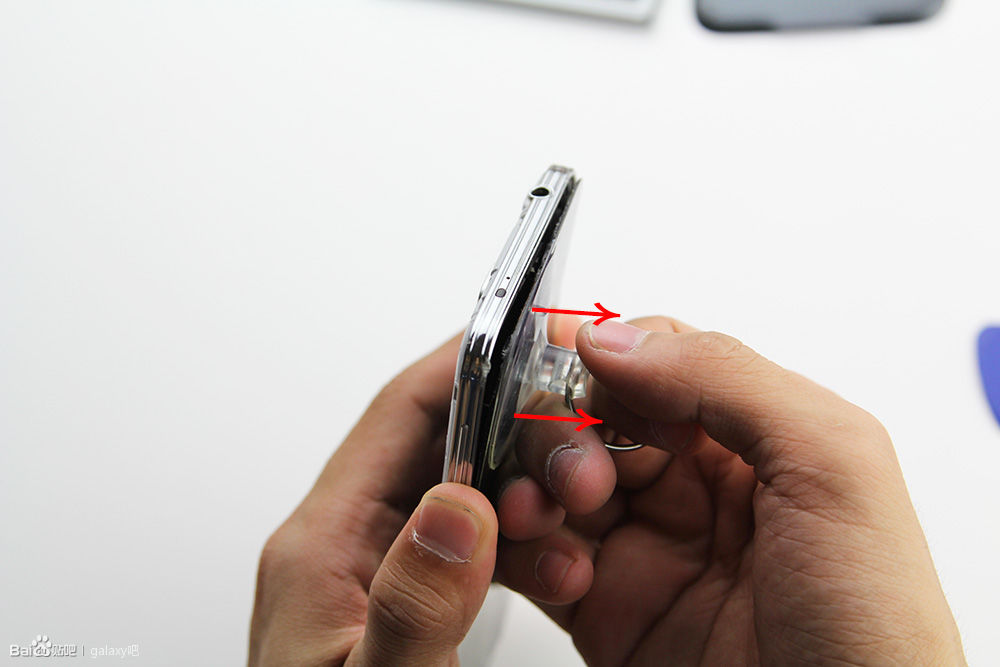

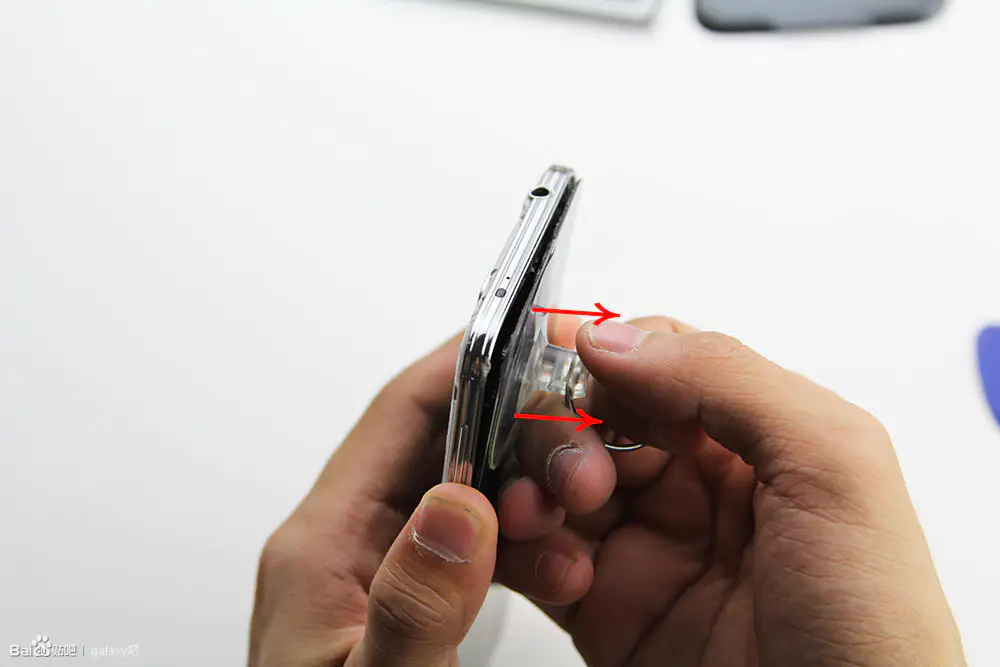

Open the display assembly a little bit with a suction cup.

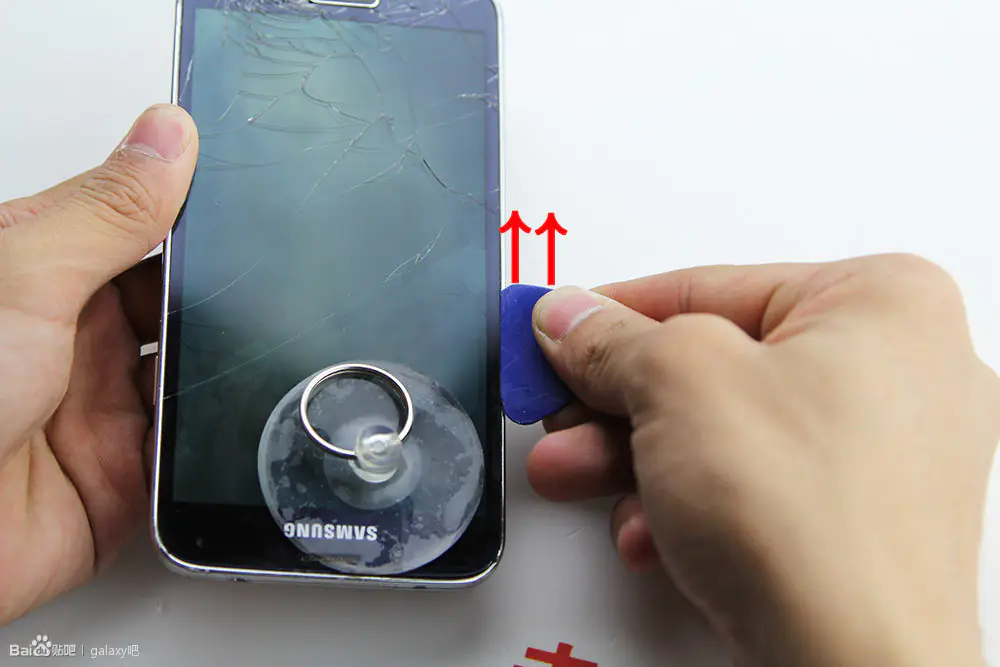

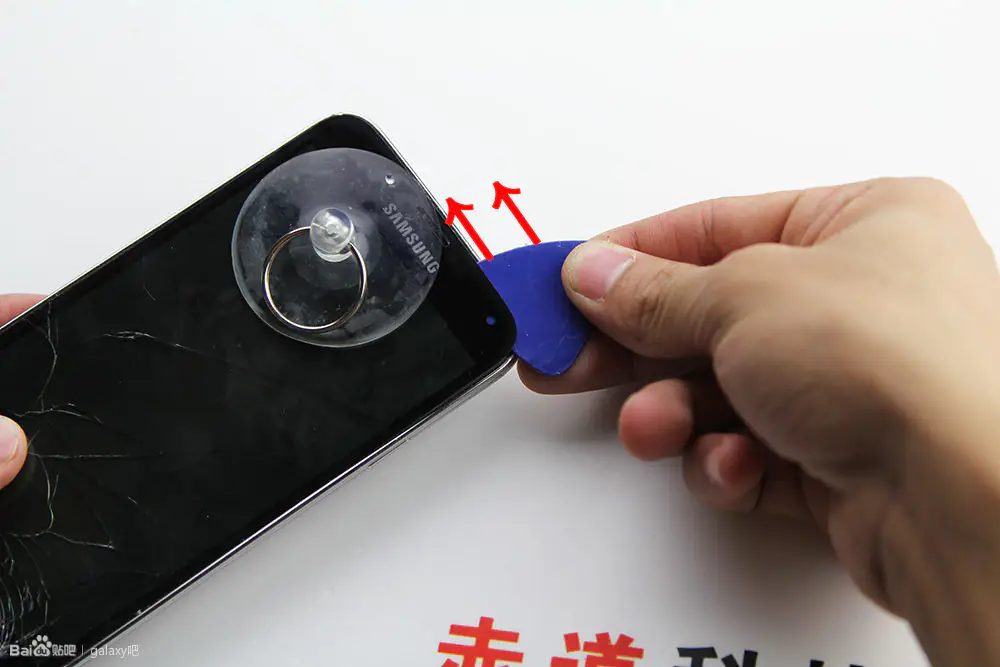

Insert the guitar pick, slide the pick by the arrows to open the display assembly.

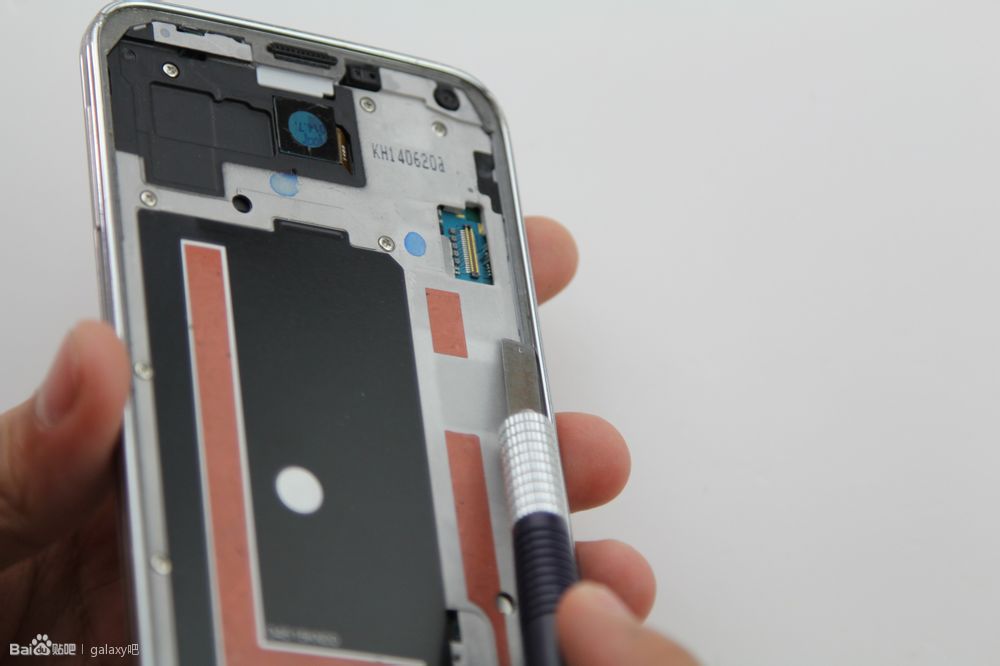

Now the old display assembly was removed, cleaning the residue on the body.

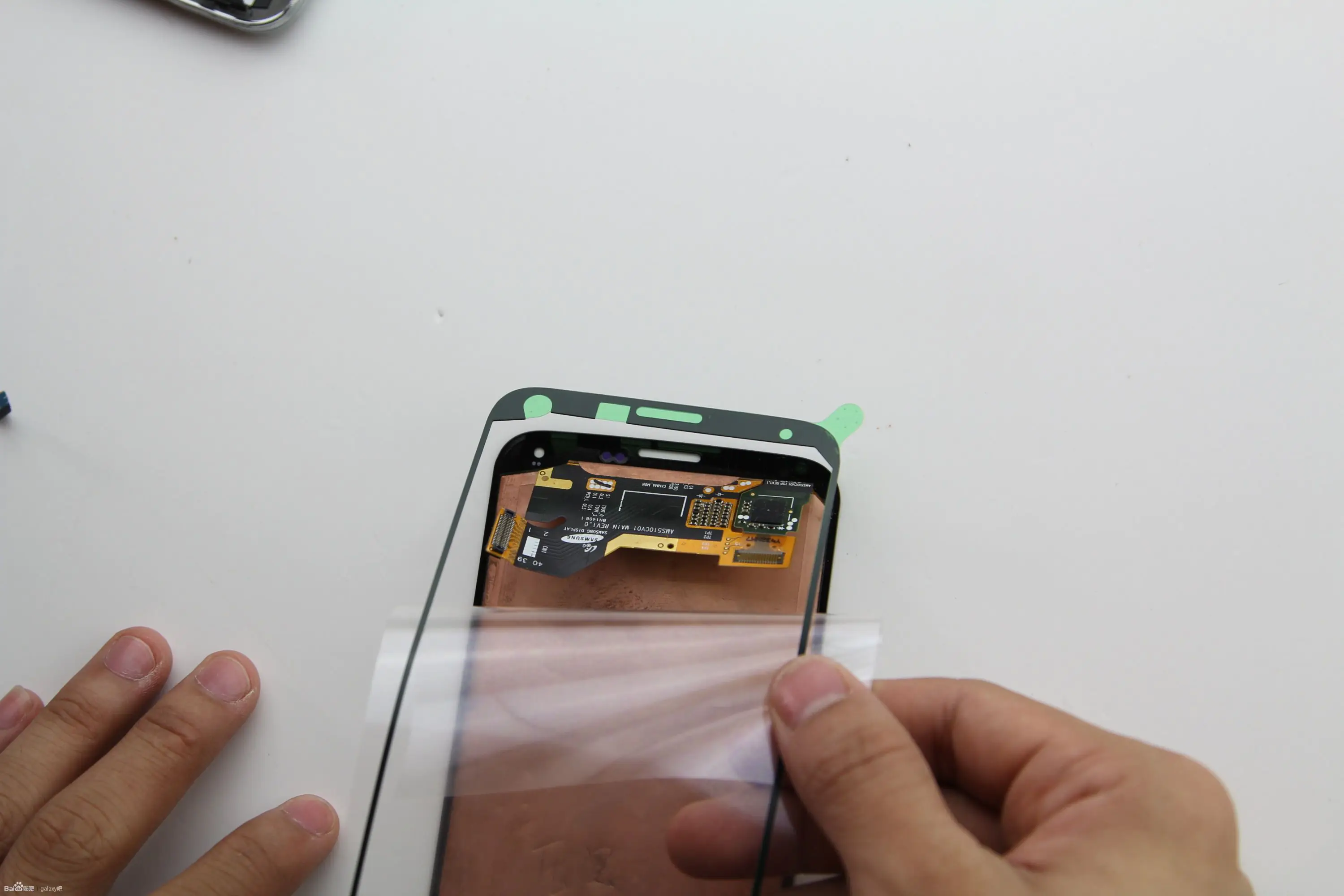

Install the new double-sided adhesive film, and remove the protective film from the new display assembly.

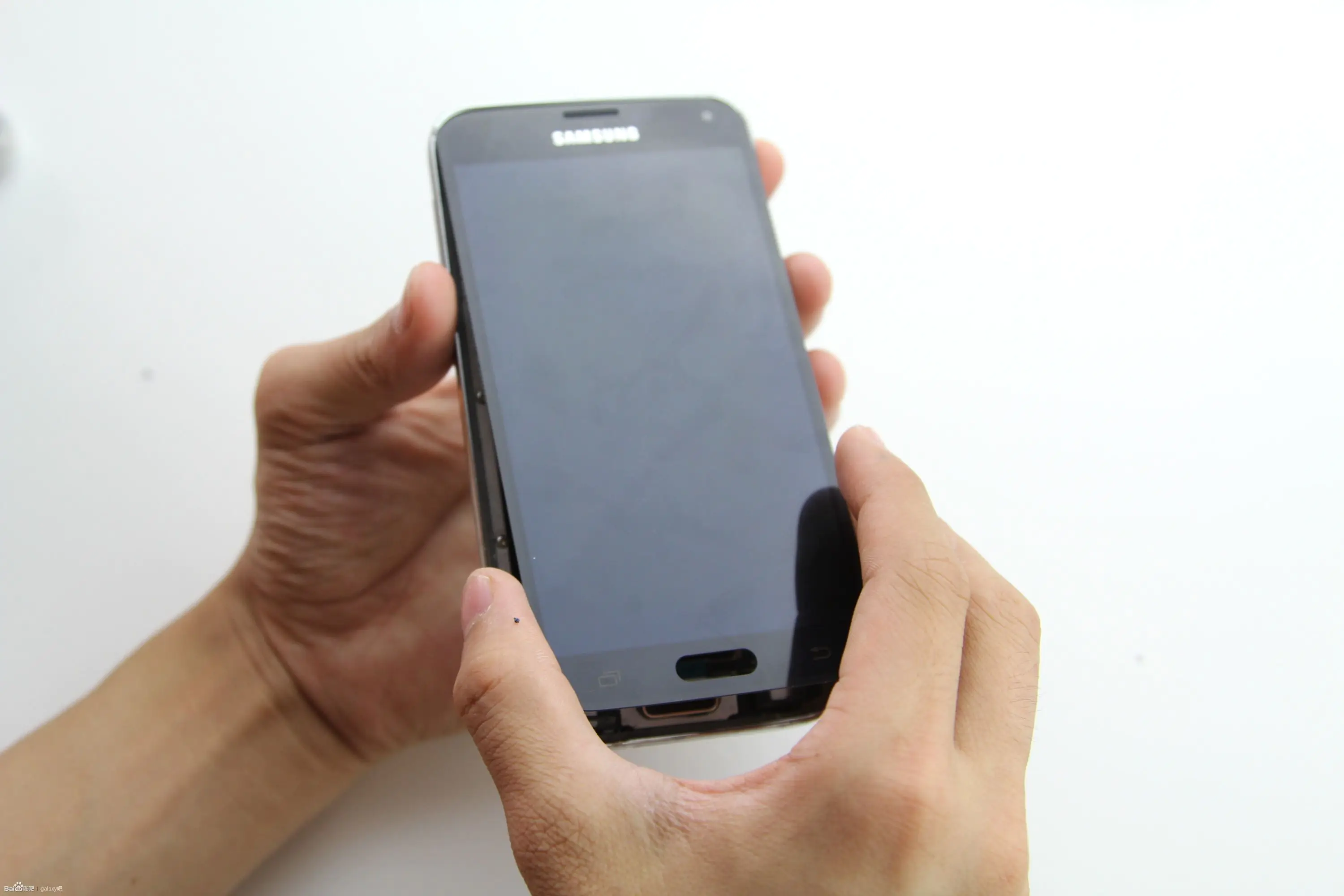

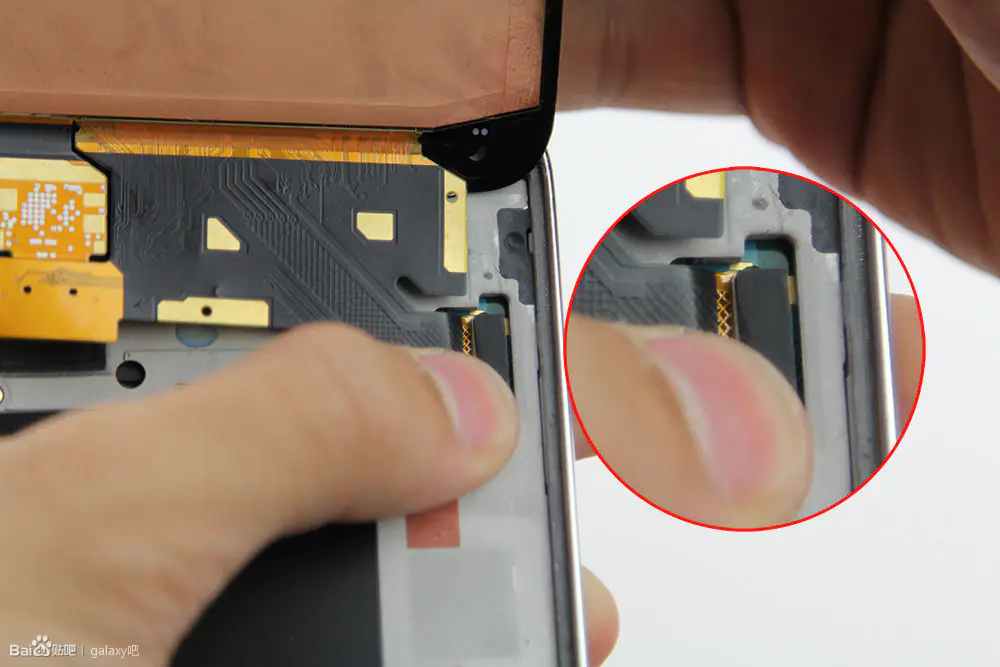

Install the new display assembly.

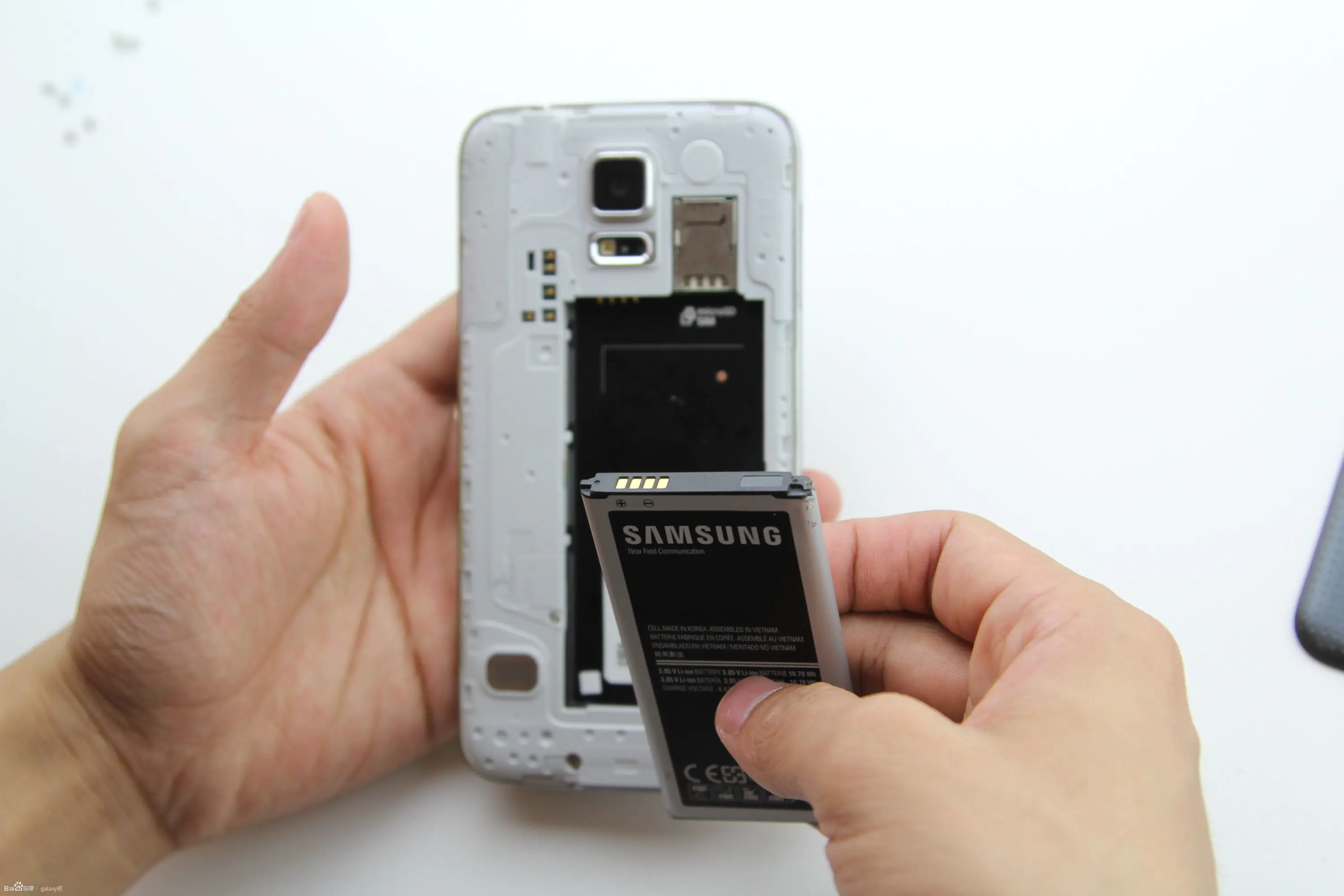

Installed the battery

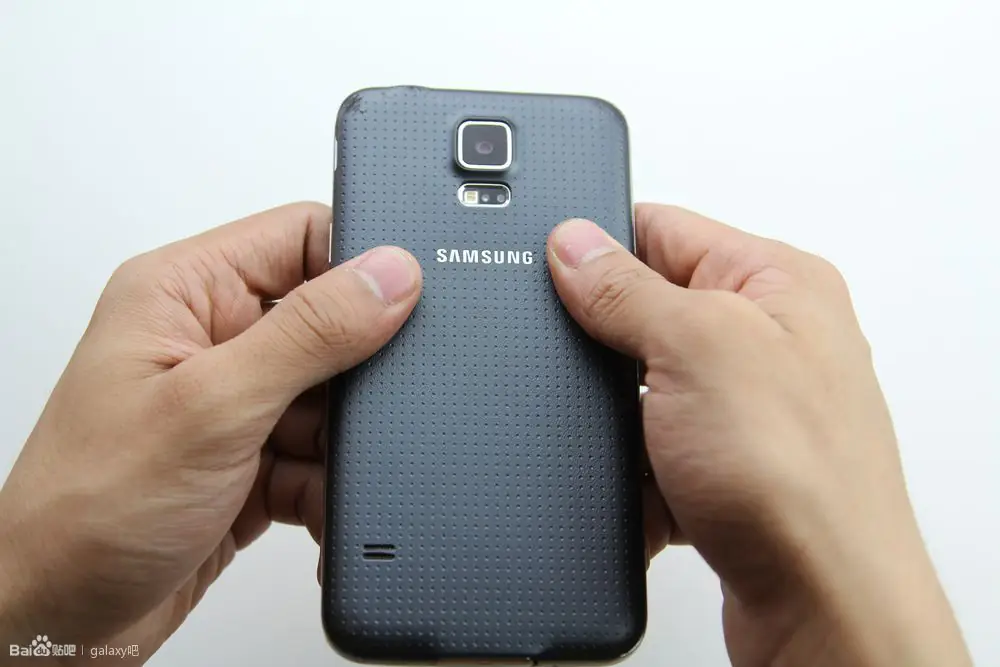

Installed the back cover

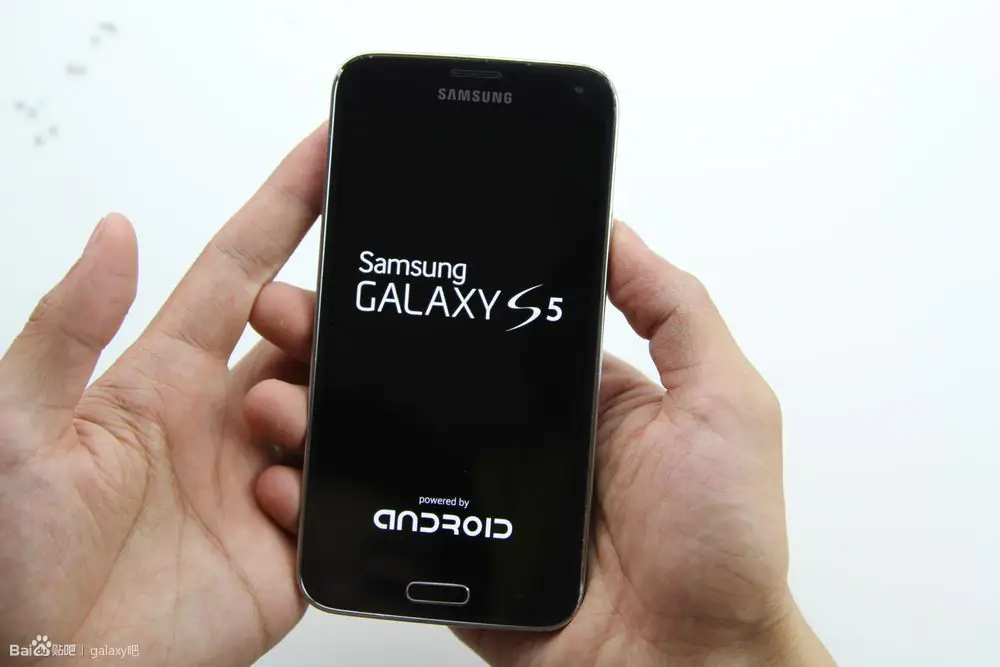

It’s done!

Now the Samsung Galaxy S5 screen replacement process is completed, for more guides, please go to Samsung Galaxy S5 device page.
