HP EliteBook Revolve 810 G1 disassembly and SSD, RAM upgrade options

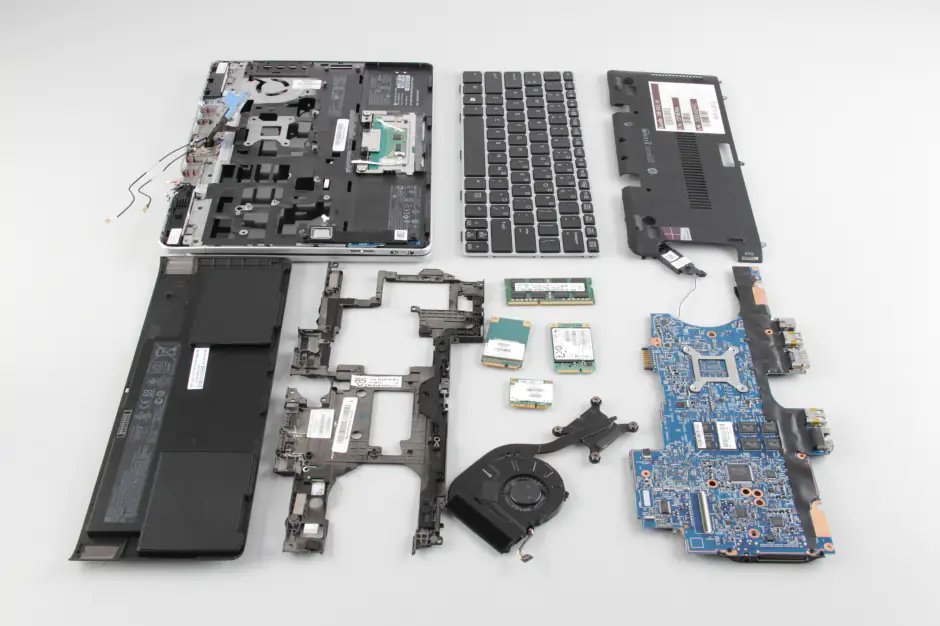

In the post, I will show you how to disassemble HP EliteBook Revolve 810 G1 to remove and replace the keyboard, SSD, RAM, palm rest, wireless card, heat sink, cooling fan, bottom case, and motherboard.

Want to be the first to see inside of the latest smartphone and laptop? Follow us on Facebook for the latest teardown news.

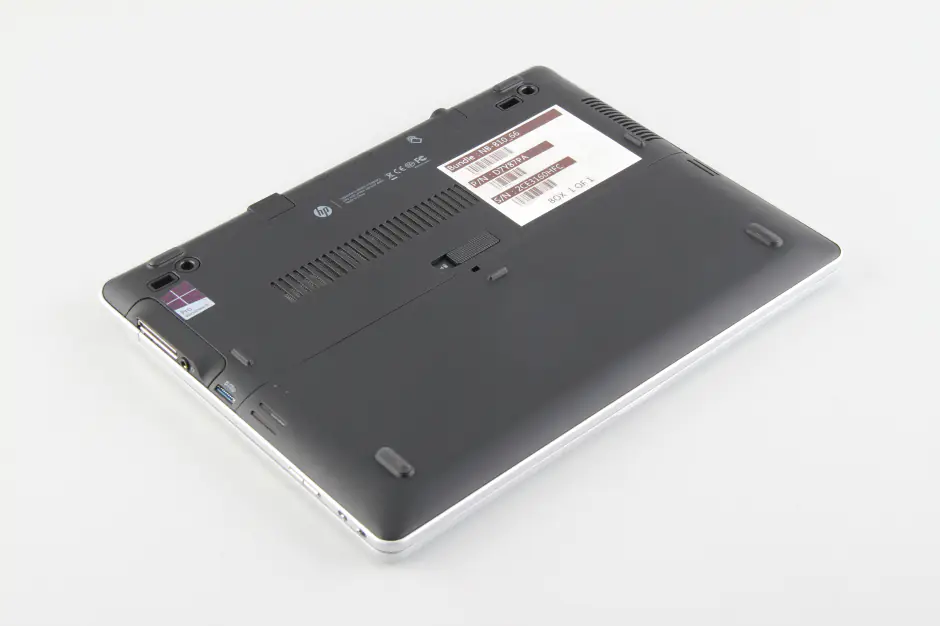

Unlock and remove the battery.

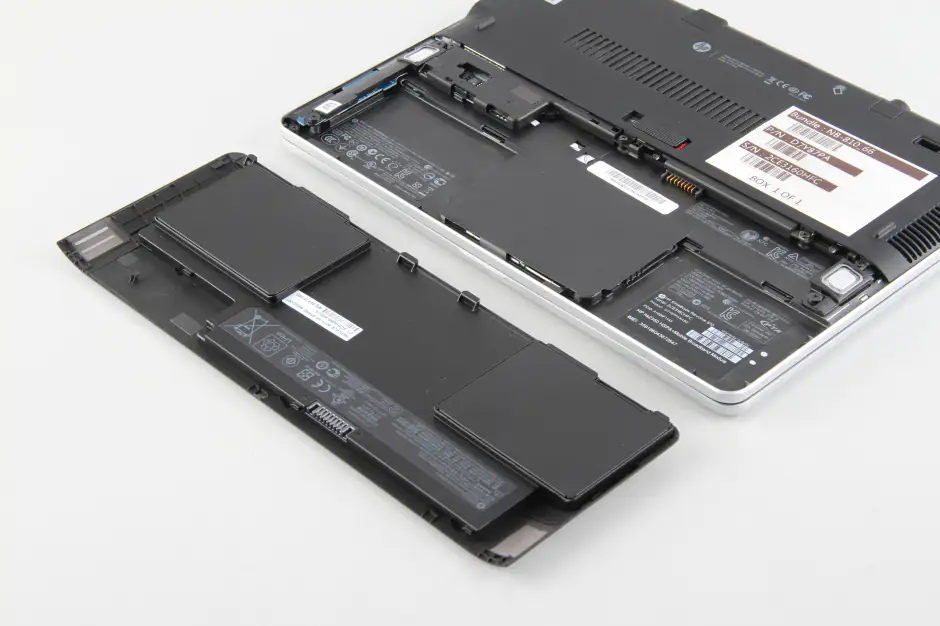

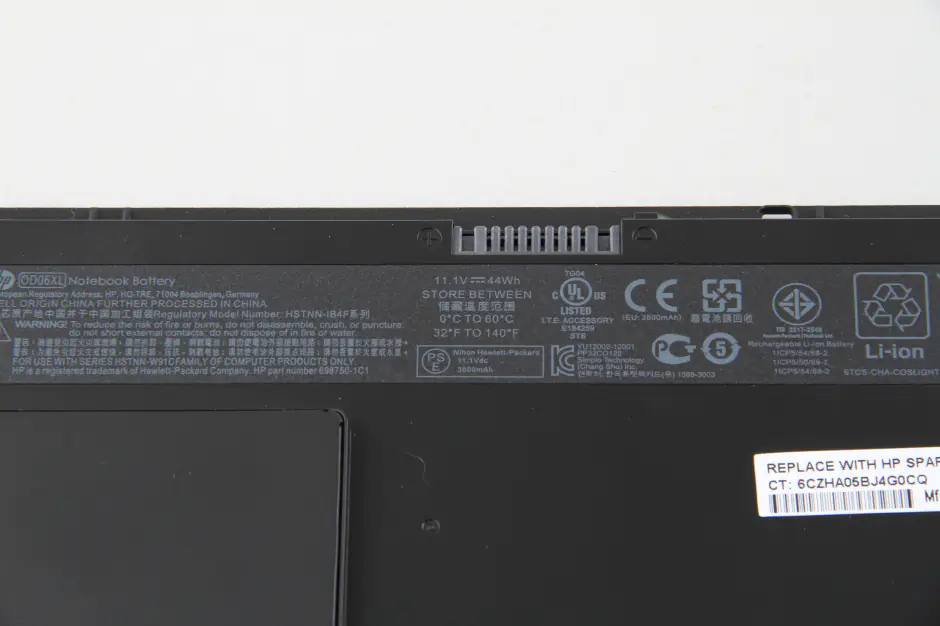

HP EliteBook Revolve 810 G1 comes with a Li-ion battery, 11.1v, 44wh, HP P/N: HSTNN-1B4F.

There are four hidden screws on the bottom case.

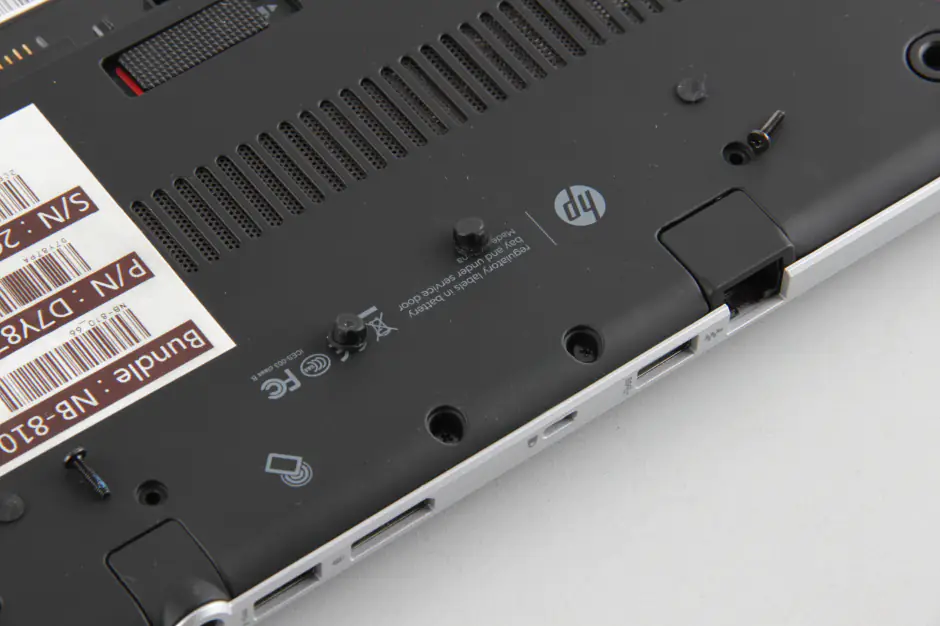

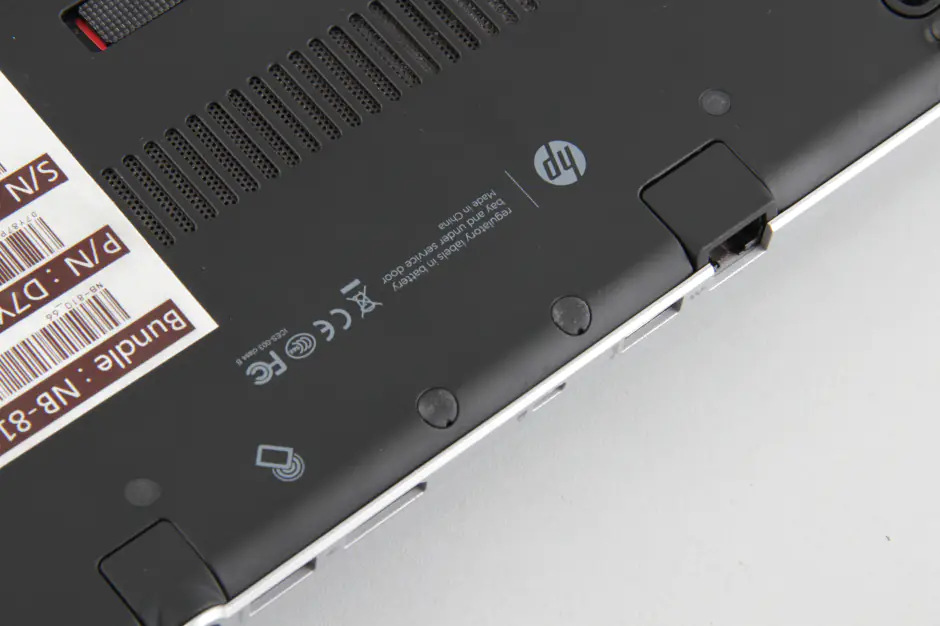

Remove four rubber mats. You can find the screw under the rubber mats.

Remove four hidden screws and other screws on the bottom case. You can remove the bottom cover.

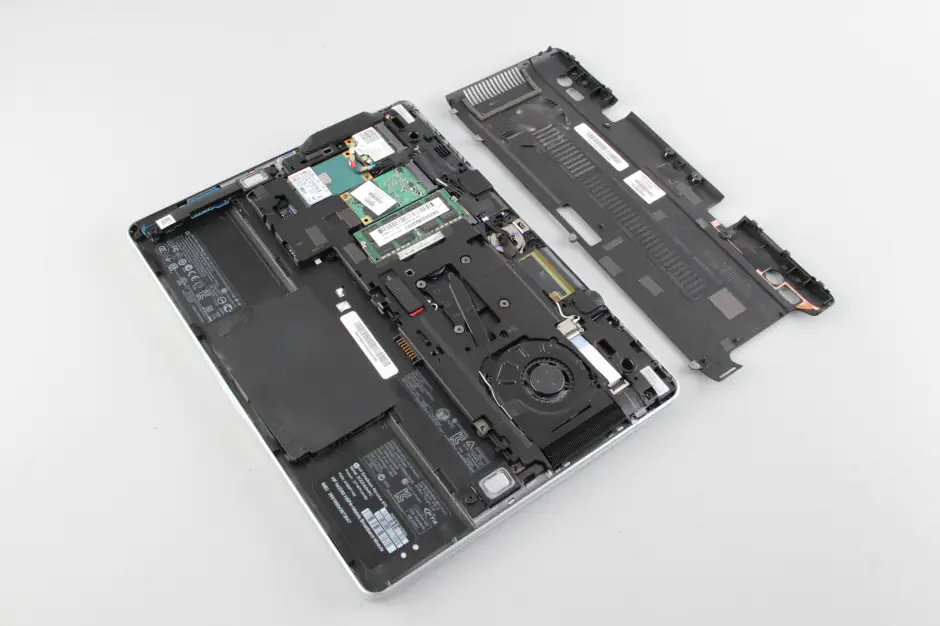

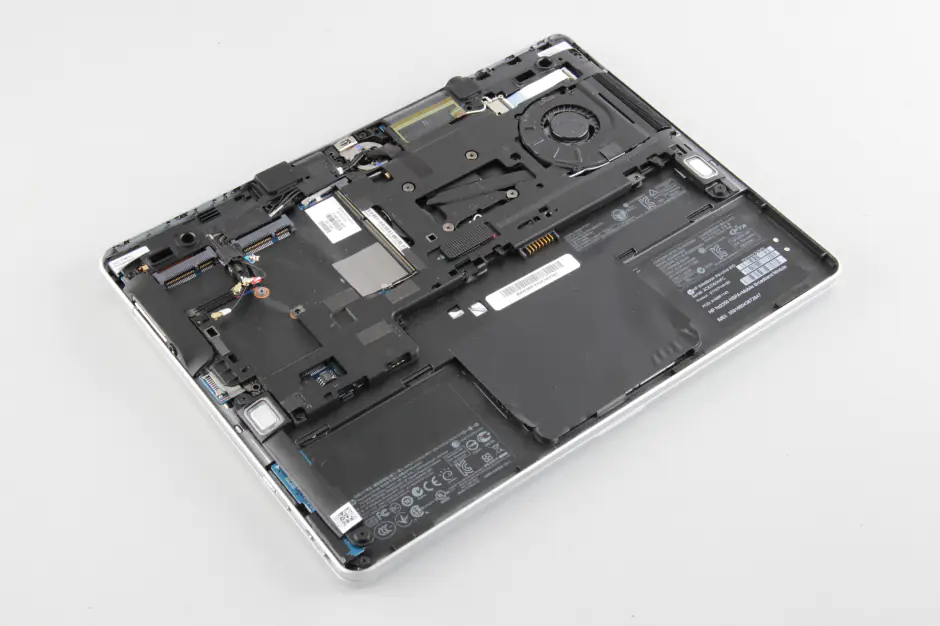

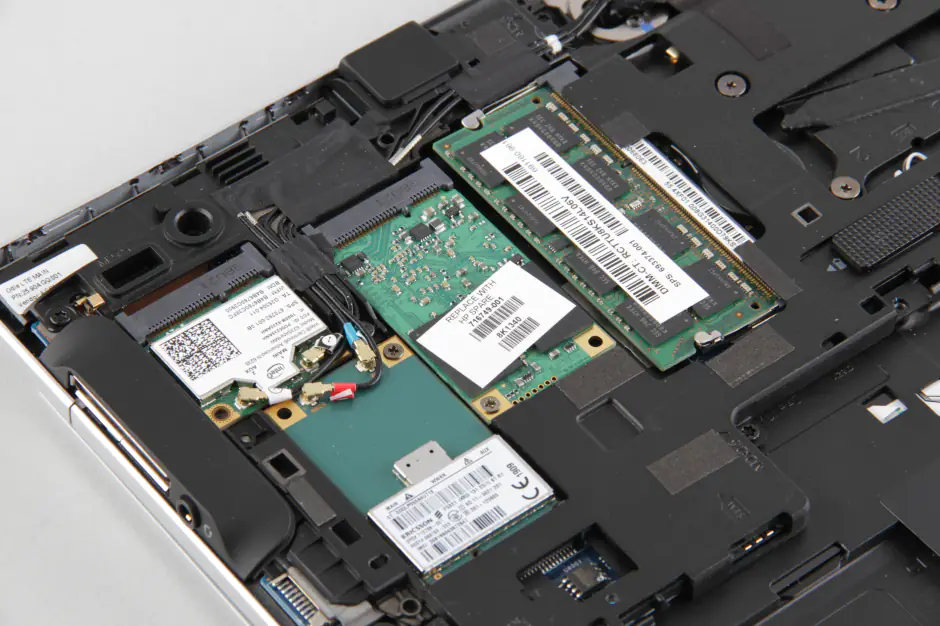

When bottom cover removed, you can get access to the RAM, wireless card and SSD.

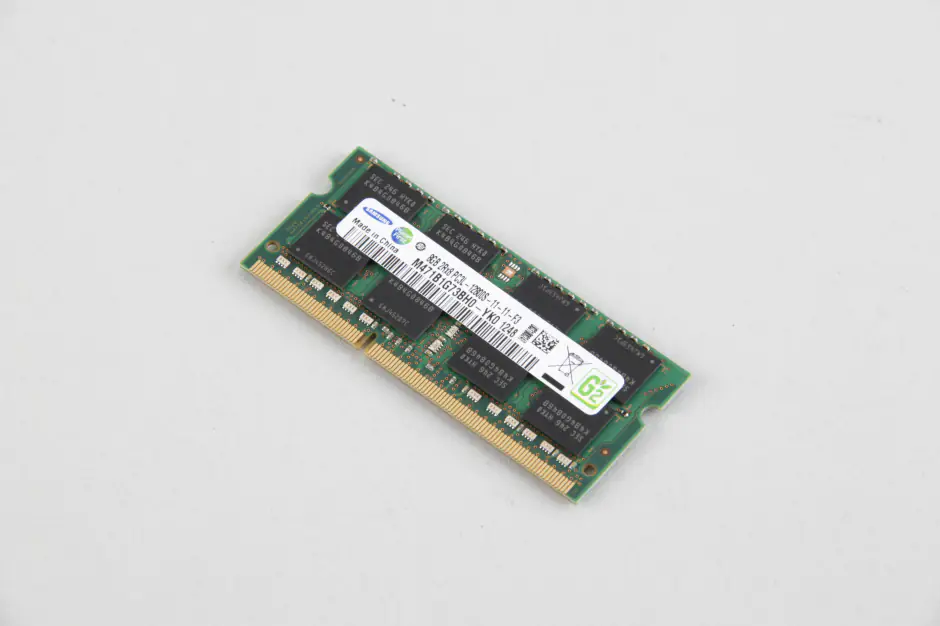

The HP EliteBook Revolve 810 G1 comes with a Samsung 8GB DDR3L-1600MHz memory, HP P/N: 693374-001.

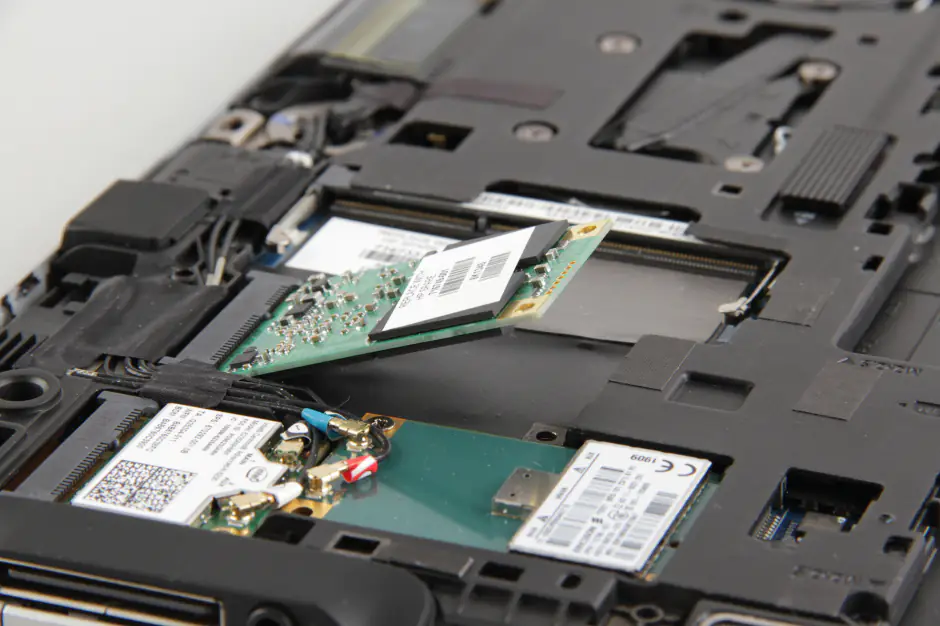

Remove one screw securing the SSD and take it out from its slot.

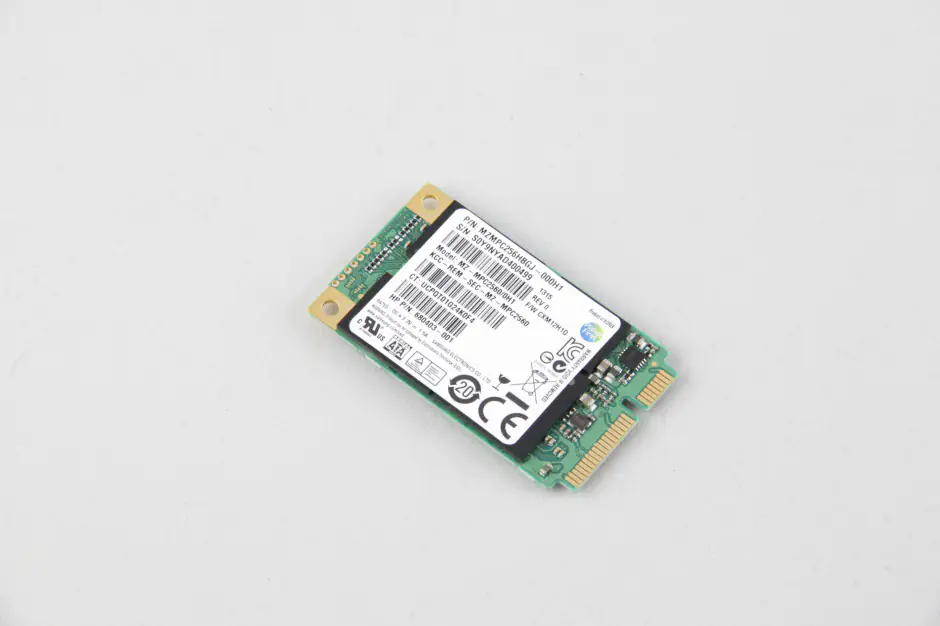

The laptop features a Samsung 256GB SSD, HP model: 680403-001.

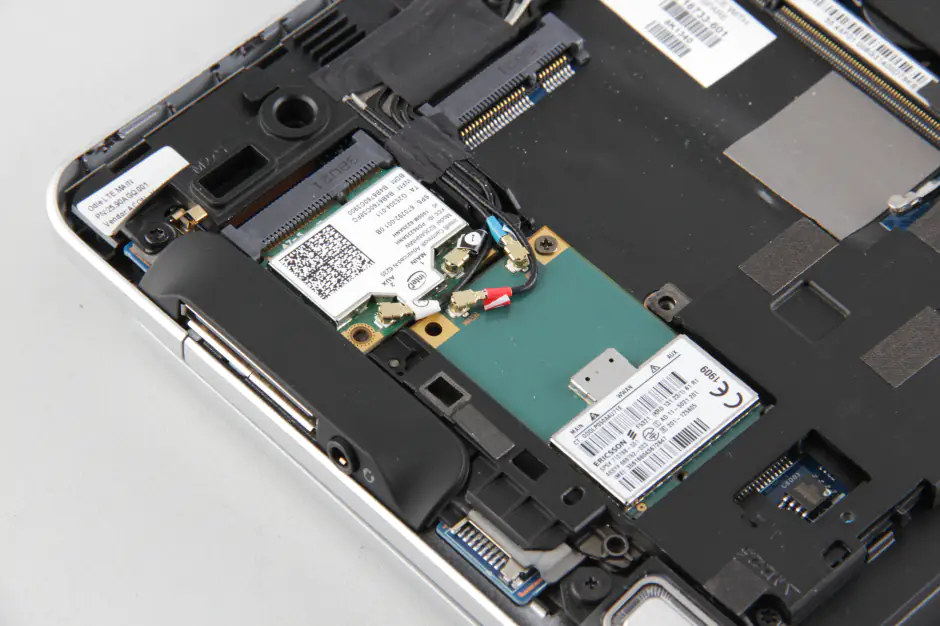

Remove one screw securing the mobile WWAN broadband module.
Unplug two antenna cables.

Mobile WWAN Broadband, HP P/N: 710788-001.

Remove one screw securing the wireless card and unplug two antennas. You can remove the wireless card.
HP P/N: 670292-001

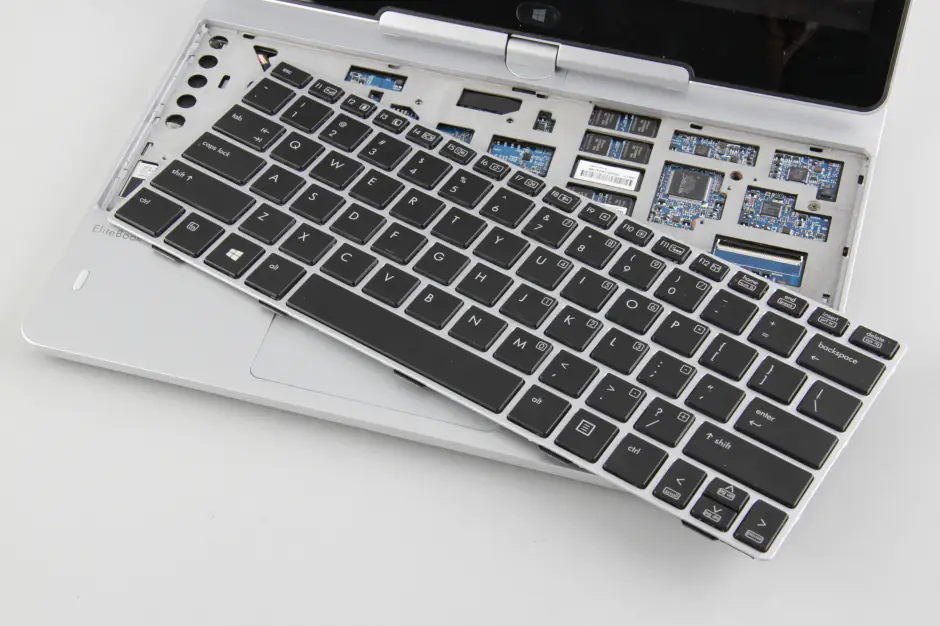

Turn over the laptop. Lift up the keyboard and disconnect the keyboard cable, you can remove the keyboard.

Now remove all visible screws under the keyboard.

Flip over the laptop.

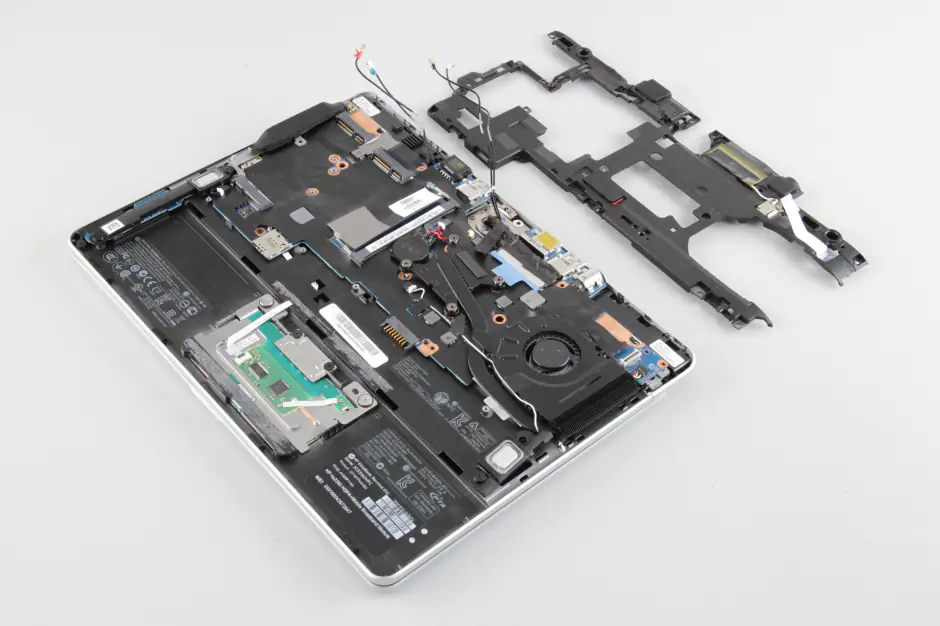

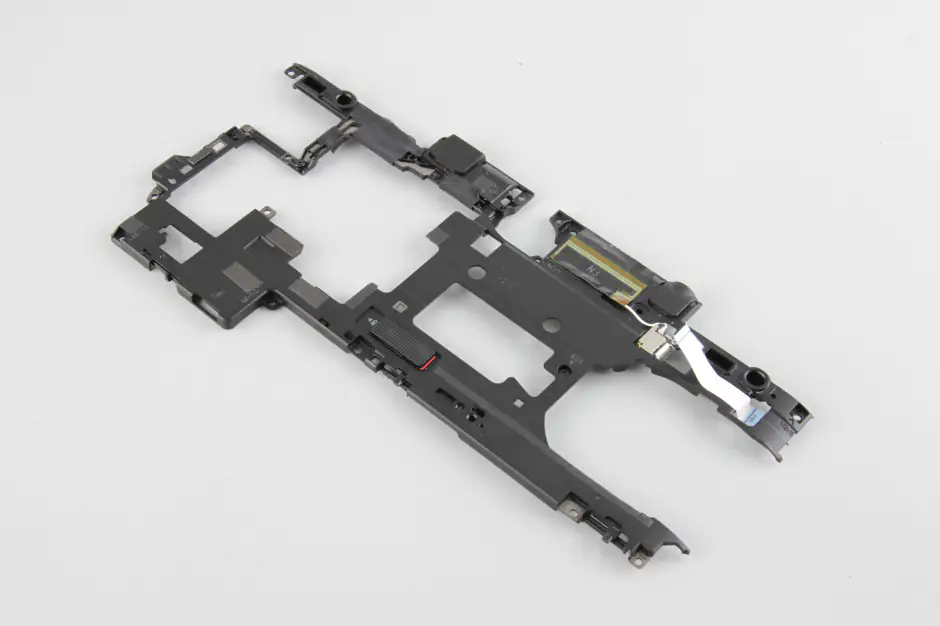

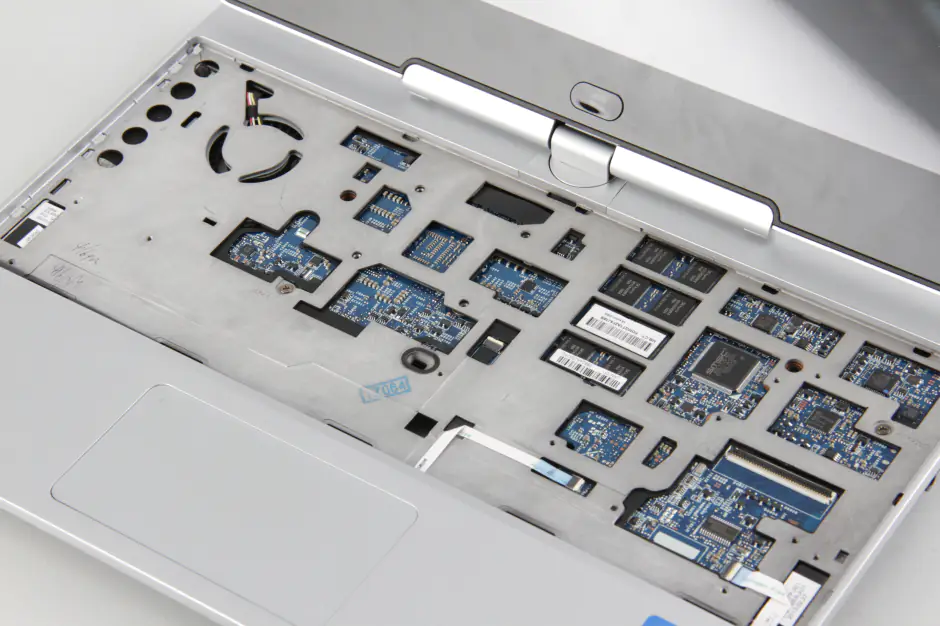

Remove the middle frame covered the motherboard.

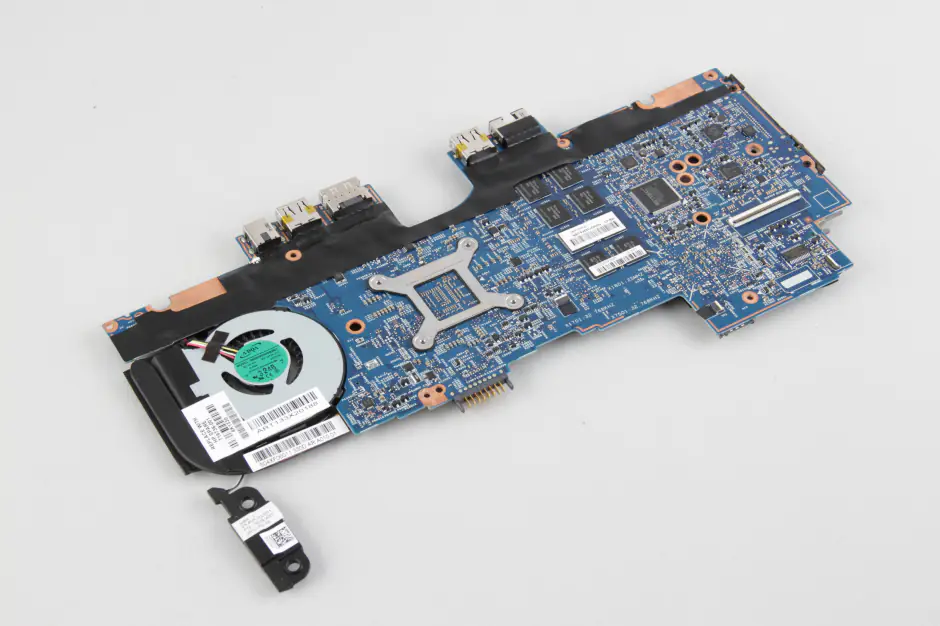

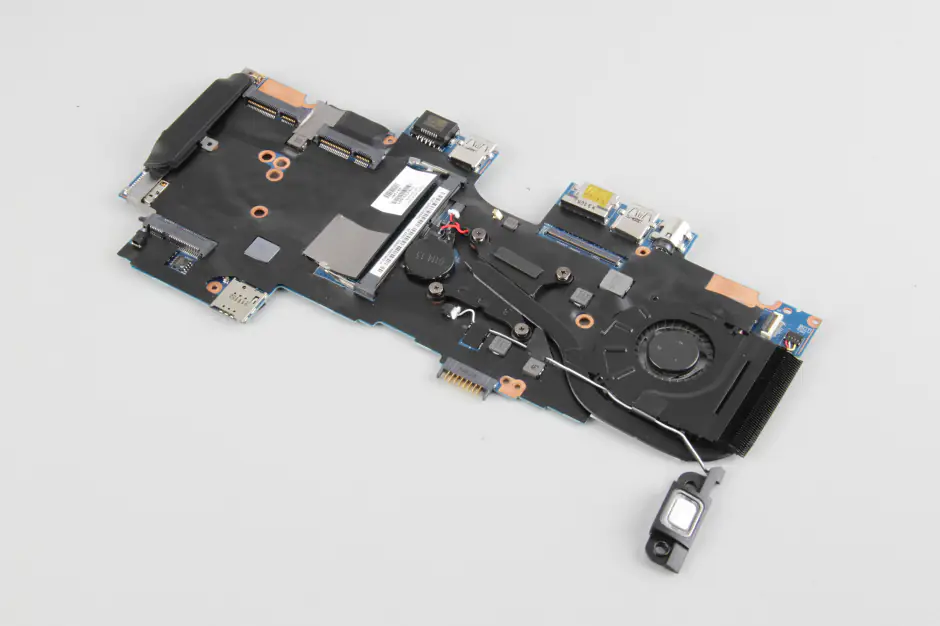

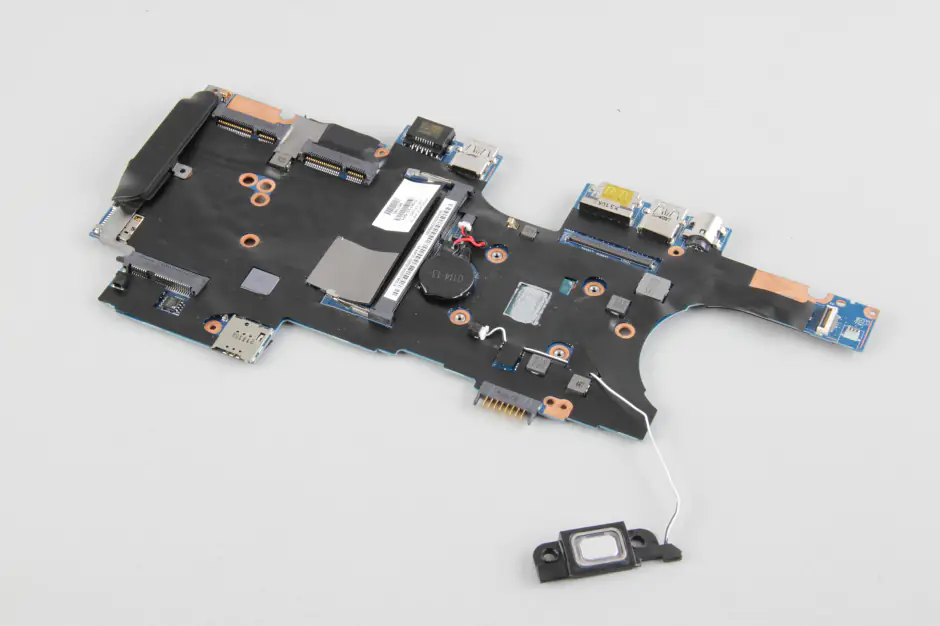

The motherboard was removed.

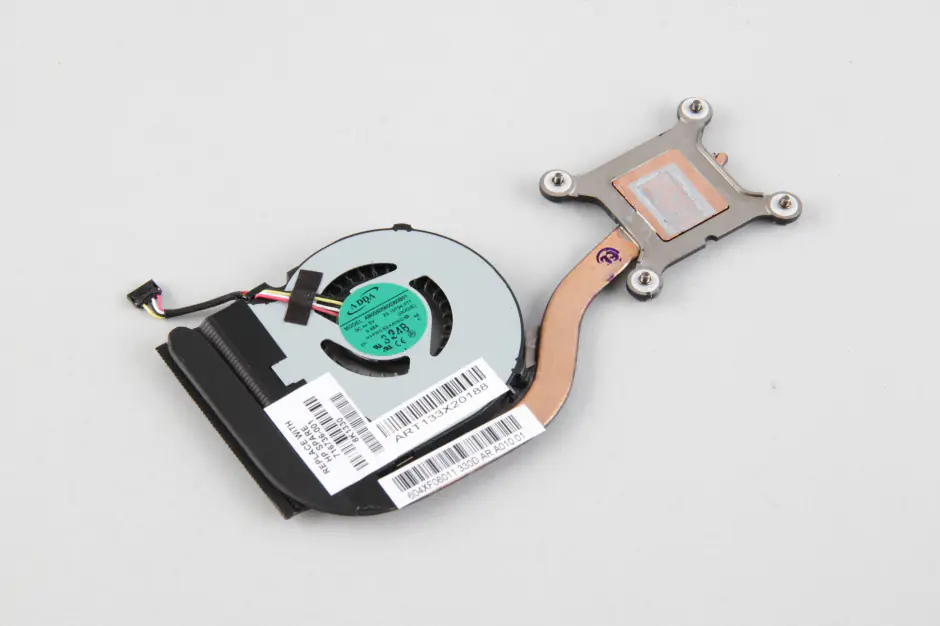

Heat sink and cooling fan

Join our plan to get a free laptop part, such as battery, keyboard and more.

Related Articles

13 Comments

      1. Usually, the WWAN slot (mSATA or M.2) do support SSD, you can remove the your SSD and install it on the WWAN slot, and enter BOIS, if you can find the SSD in the BOIS, that mean you can add another SSD on the WWAN slot.

        1. OK so i did this, put a 2nd Msata into the WWAN slot and sure enough it was detected in windows and BIOS as there is now Notebook HDD and MSata hard disk in boot options.

  1. Hi,

    How to upgrade HP Elitebook Revolve 810 G3 to a bigger RAM? Is it the same as G1? Is it possible?
    Will I need to solder it or it’s a socket?

    Ty

    1. HP Elitebook Revolve 810 G3 also only have one RAM slot, please just remove the old RAM and replace it with a big capacity RAM.

  2. For some reason the caps lock light keeps flashing constantly once I power up my Revolve 810, once I replaced the ram I was able to see the HP logo but once I hit the ESC key nothing happened….

    Any suggestions would be very helpful…

  3. You should try to remove RAM and install it again properly. Try to clear pins with air or soft fabric when installation won’t help
