Dell Latitude E6430u disassembly and SSD, RAM, HDD upgrade options

In this guide, I will explain how to disassemble the Dell Latitude E6430u to remove the battery, SSD, palm rest, keyboard, memory, wireless card, cooling fan, and motherboard.

Want to be the first to see the latest smartphone and laptop inside? Follow us on Facebook for the latest teardown news.

Slide the battery switch, then slide the battery downward.

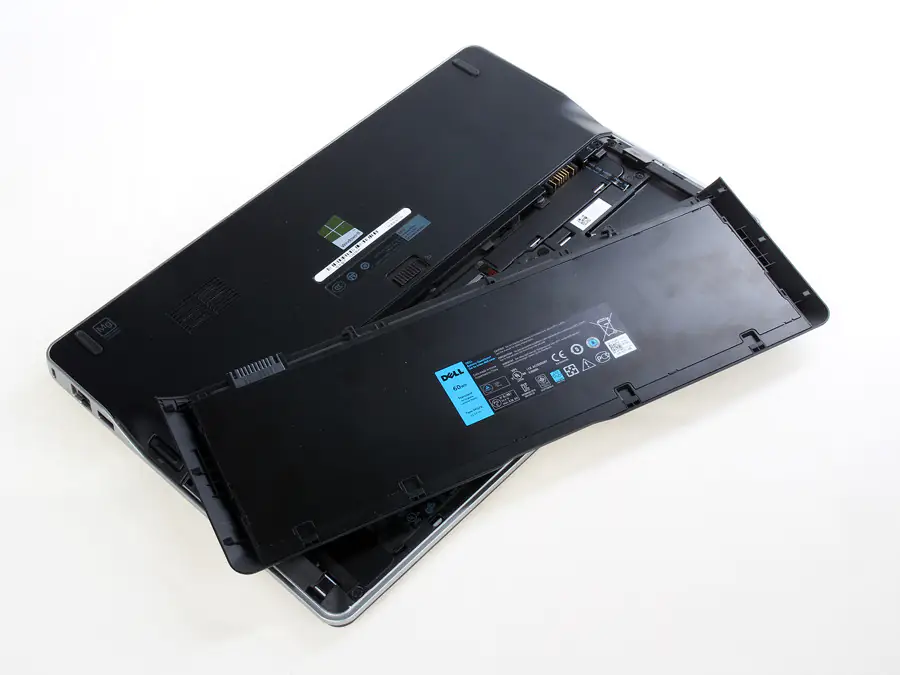

Remove the battery

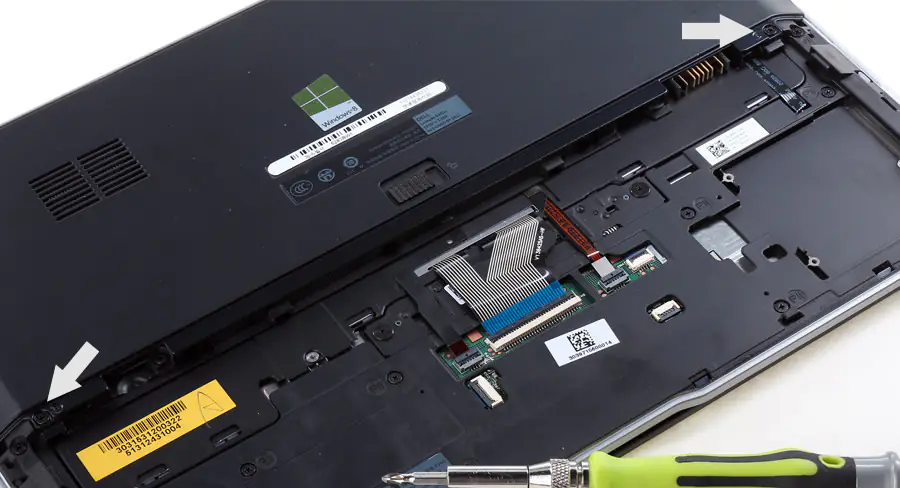

Remove the two screws securing the back cover.
Remove the two screws

Remove the SD card. Press the SD card slightly, and it will pop out automatically.

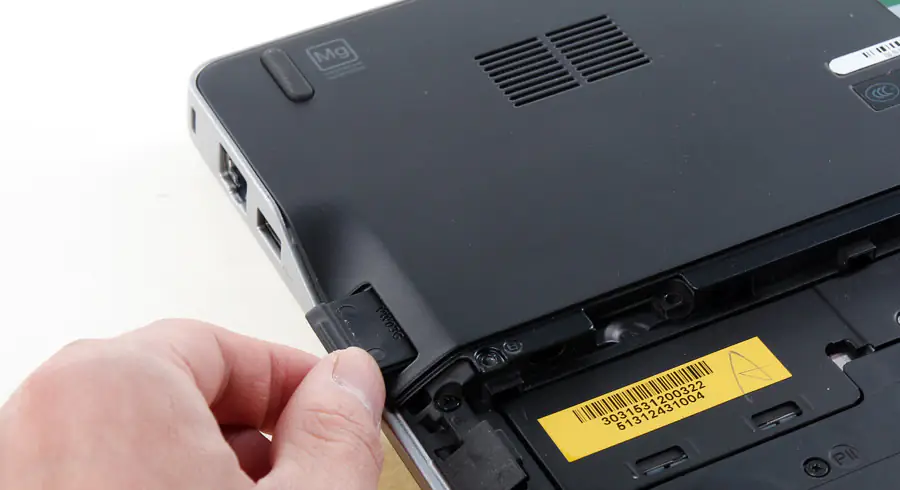

Remove the SD card

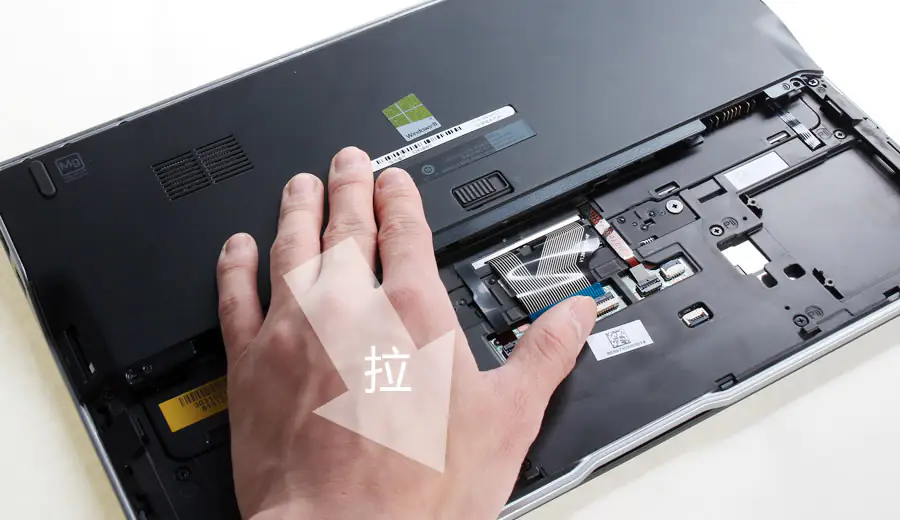

Slide the back cover by the arrow to remove it.
Remove the bottom cover

With the back cover removed, you can access the memory, SSD, and wireless card.

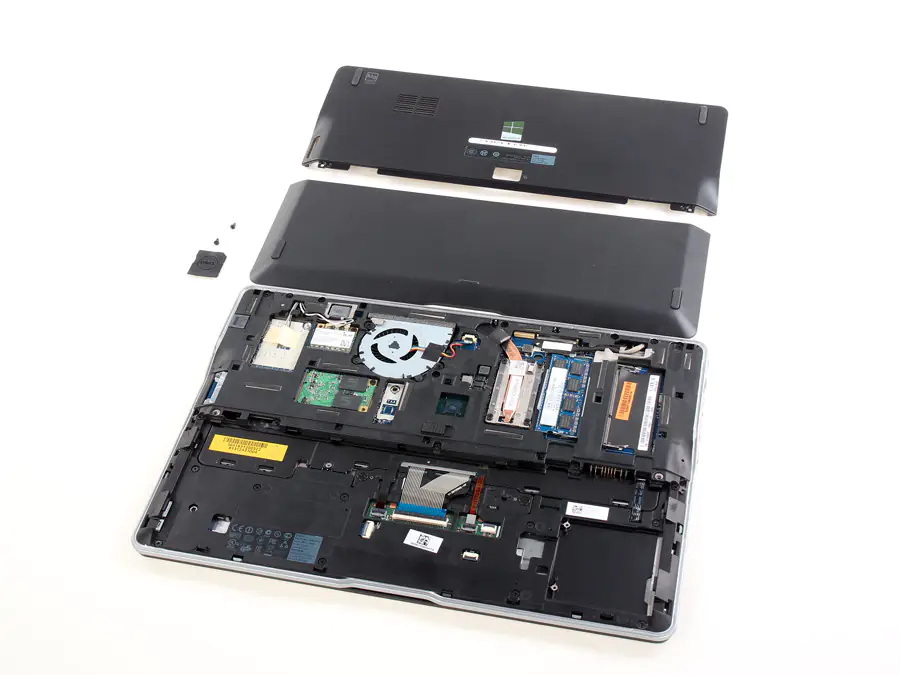

Internal Structure

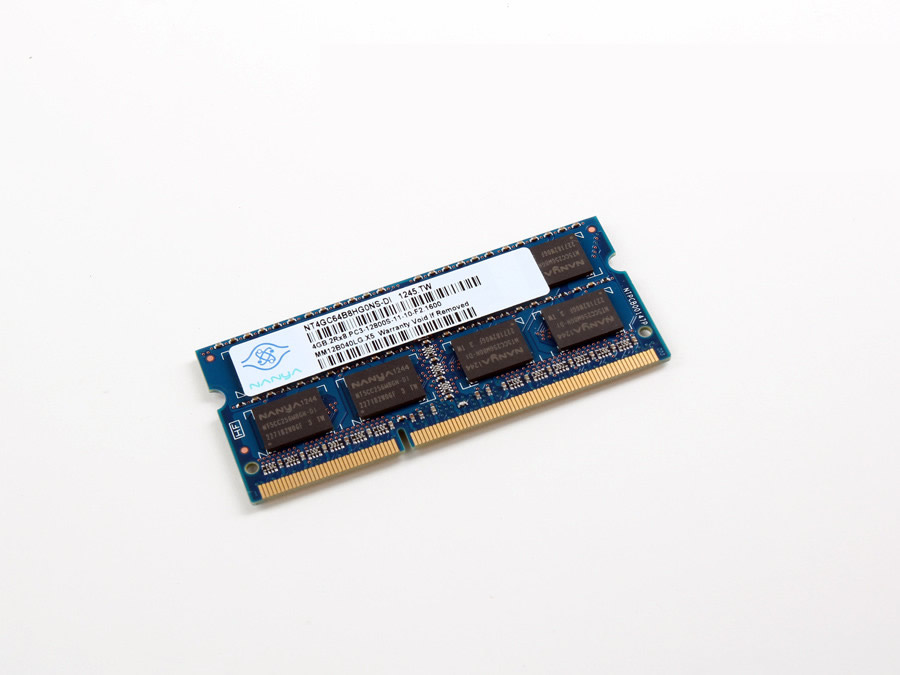

The Dell Latitude E6430u comes with an Elixir 4GB memory module. This laptop has two memory slots, but it only comes with one memory module pre-installed. You can add another memory module to upgrade the memory.
Dell Latitude E6430u memory module

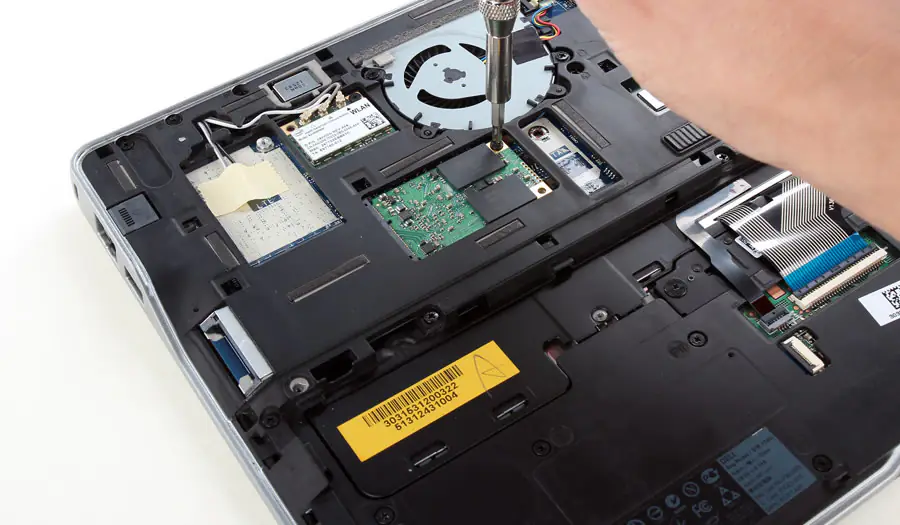

Remove the screw securing the SSD and carefully remove it from the mSATA slot.
Remove the SSD

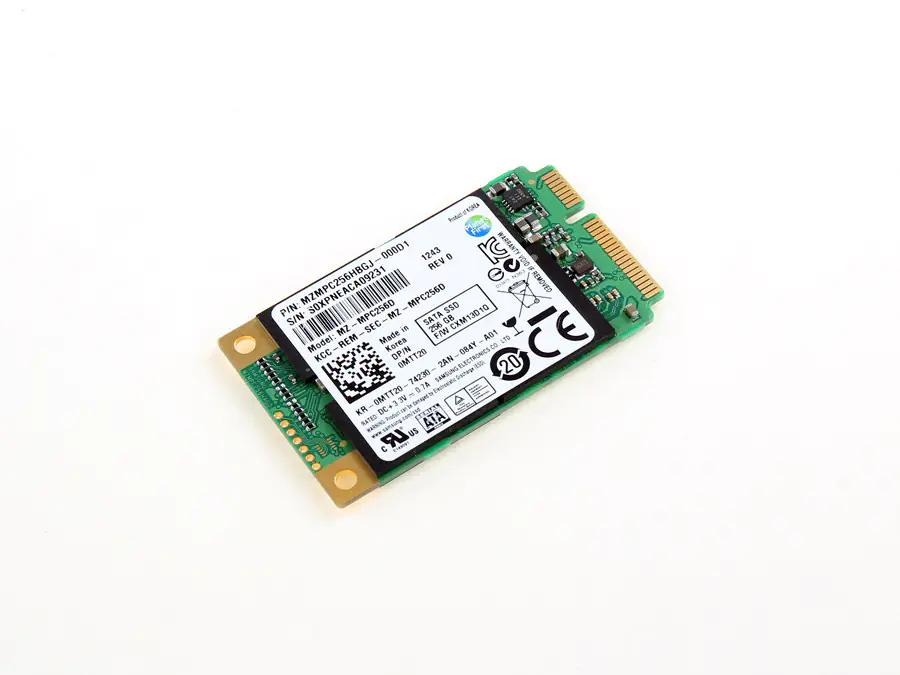

The laptop comes with a Samsung MZ-MPC256D 256GB mSATA SSD.
Samsung MZ-MPC256D

Remove the four screws securing the keyboard. The letters “K” are marked next to the screws.

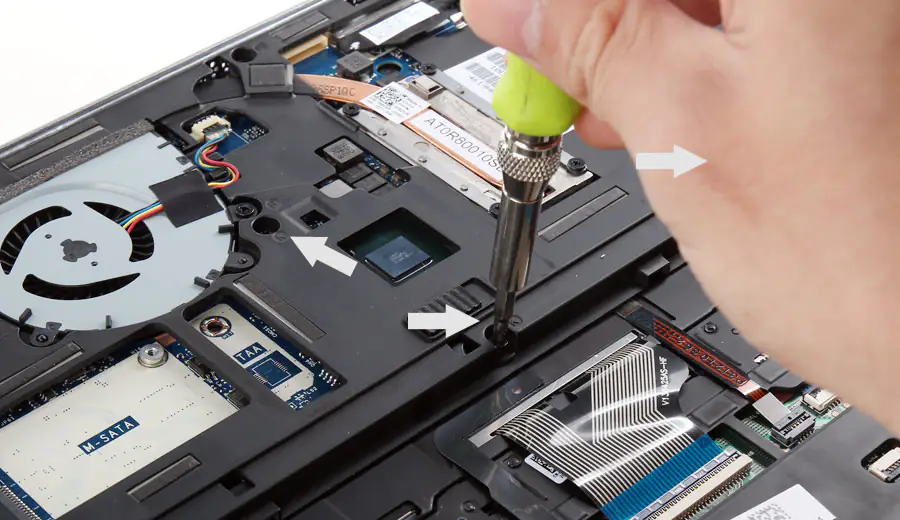

Remove the four screws

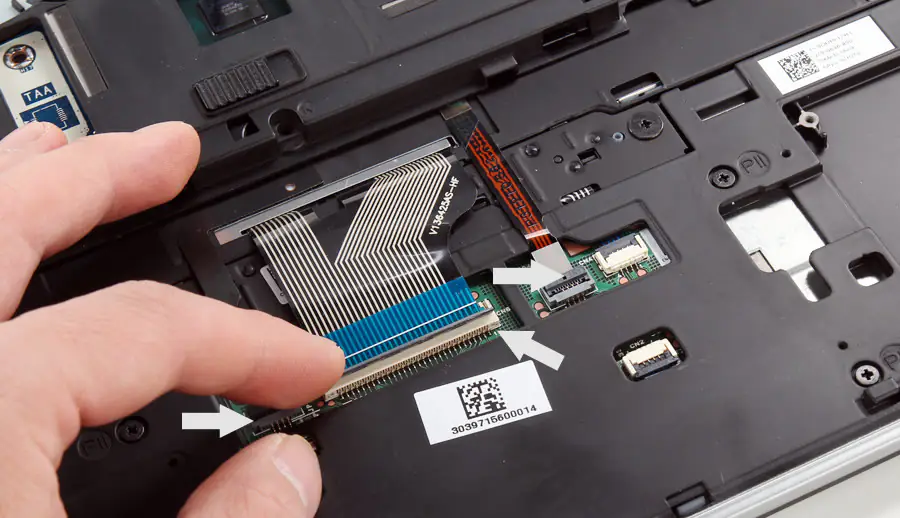

Disconnect the keyboard cable and the backlit cable from the motherboard. To remove the keyboard ribbon cable, simply lift the black retaining clip to pull out the cable. Use the same method to disconnect the backlight ribbon cable.
Disconnect the keyboard cable

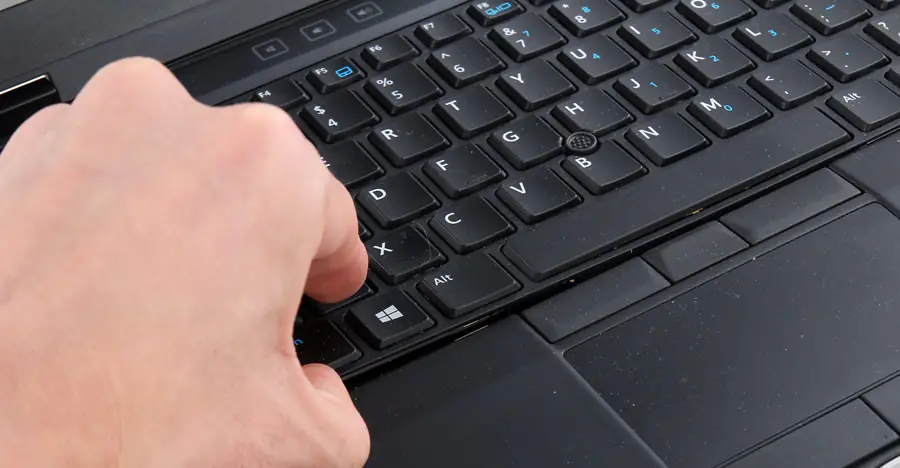

Lift and remove the keyboard. There are several latches at the top of the keyboard to secure the keyboard to the wrist rest. You can insert a plastic tool under the keyboard to slowly release the latches.
Remove the keyboard

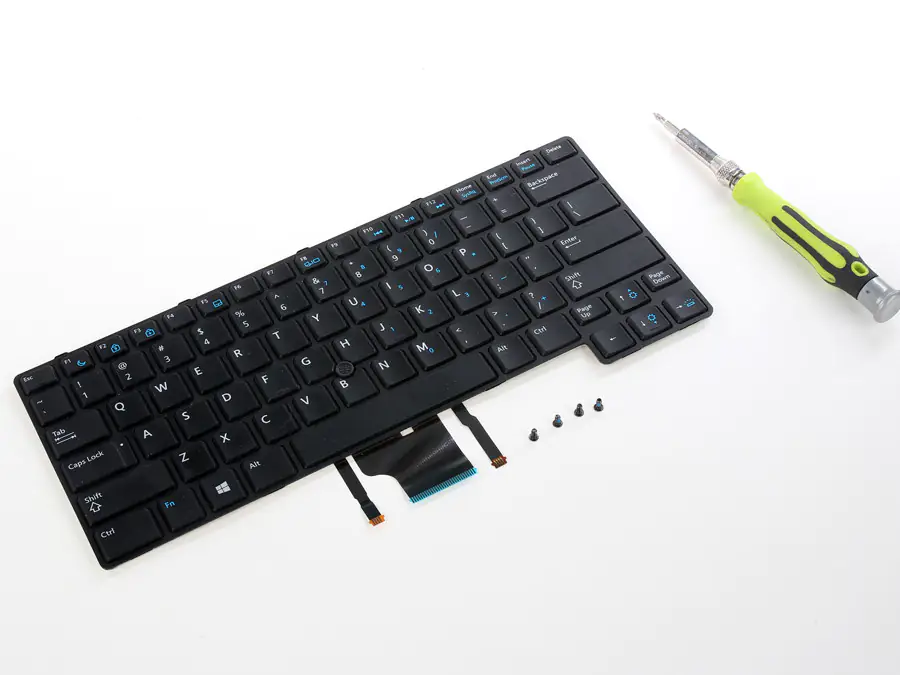

Dell Latitude E6430u keyboard
Keyboard

This laptop features a backlit keyboard and includes a pointing stick.

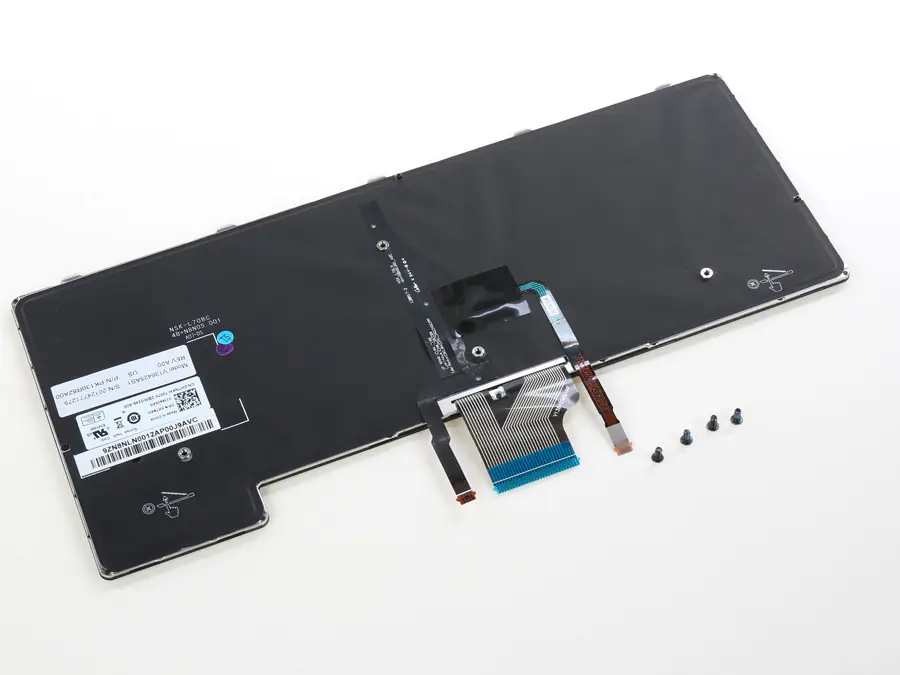

The back of the keyboard

Remove the three screws securing the palm rest and disconnect four cables from the motherboard.

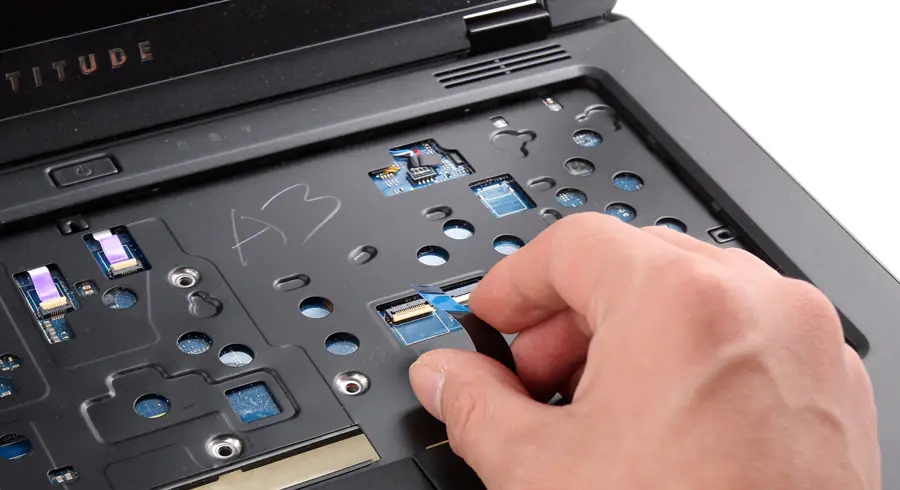

Remove the screws securing the palm rest

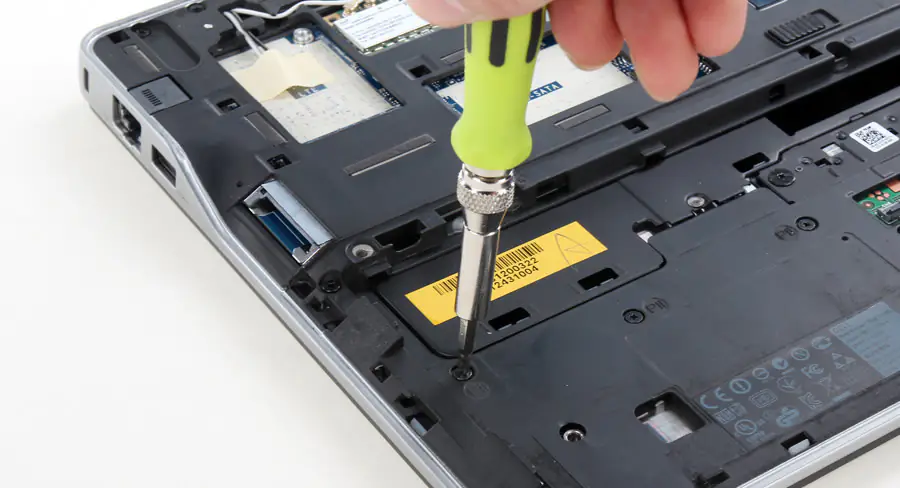

Remove all screws securing the palm rest.
Remove the screws

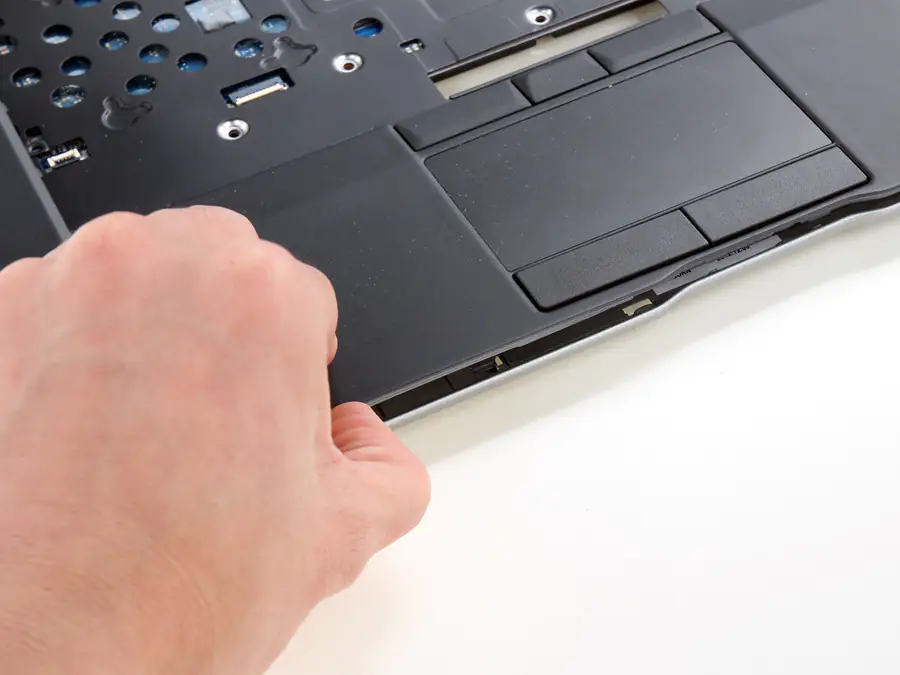

Insert a plastic pry tool near the hinge between the palm rest and the bottom cover. Slide the pry tool to separate the palm rest from the laptop.
The palm rest has clips that secure it to the bottom cover. Do not damage these clips.

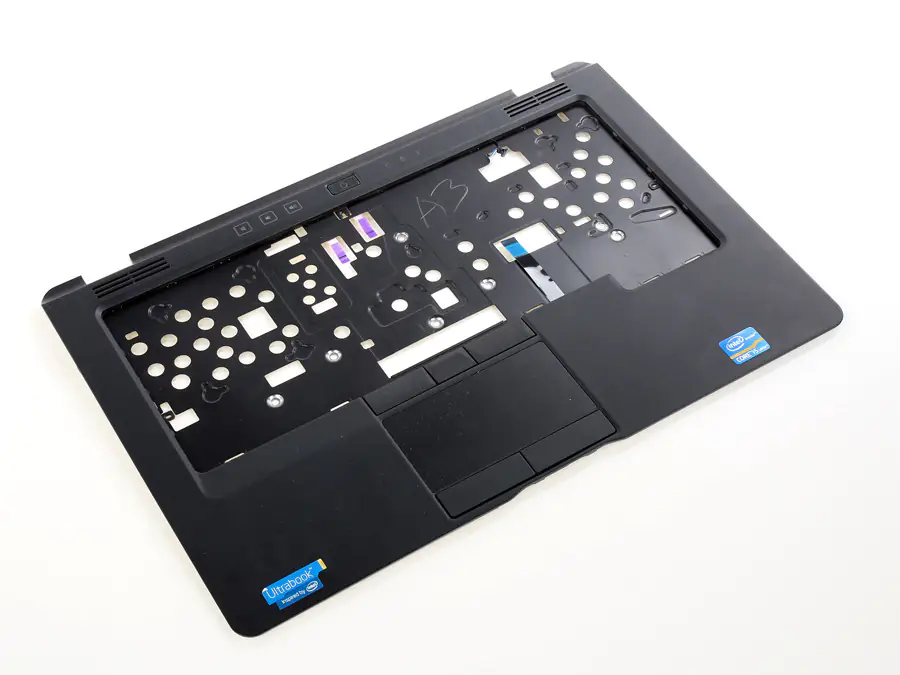

Remove the palm rest

Palm rest
Palm rest

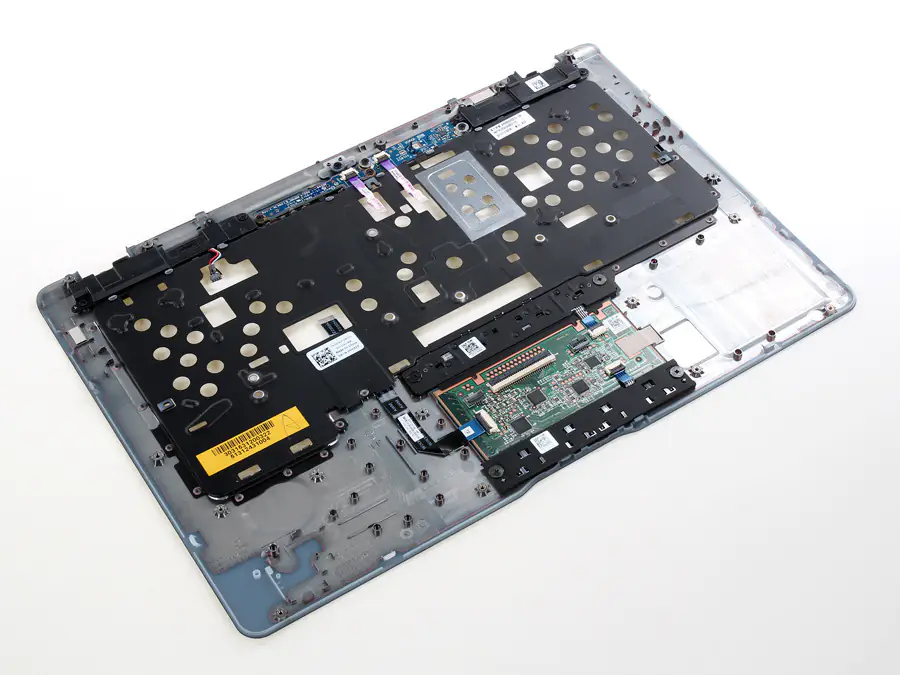

You can access the touchpad module on the back of the palm rest.
The back of the palm rest

After removing the palm rest, we can access the motherboard, CMOS battery, fan, and some small components.

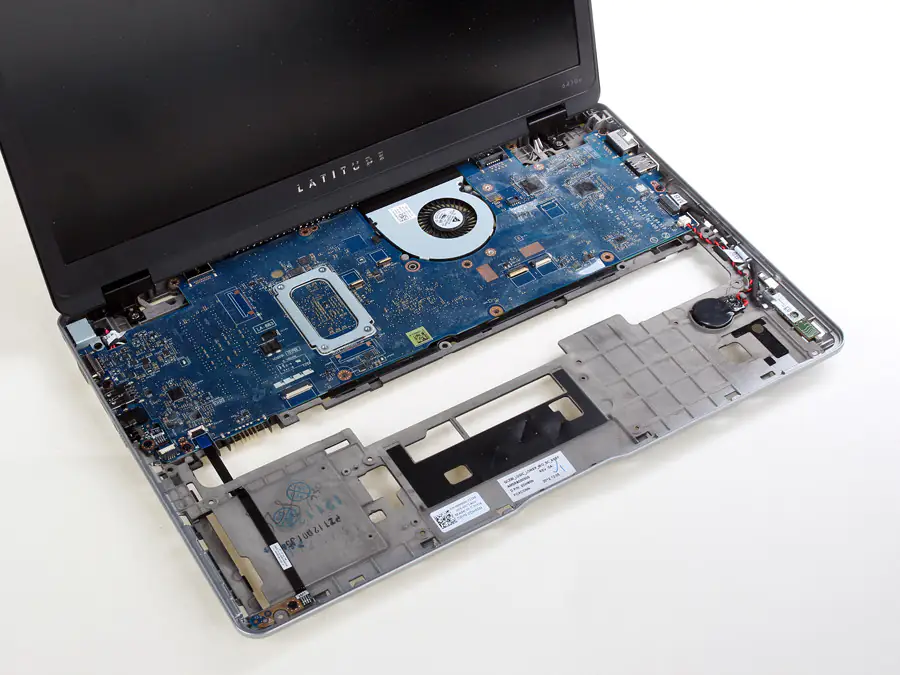

Close-up of the laptop after removing the palm rest

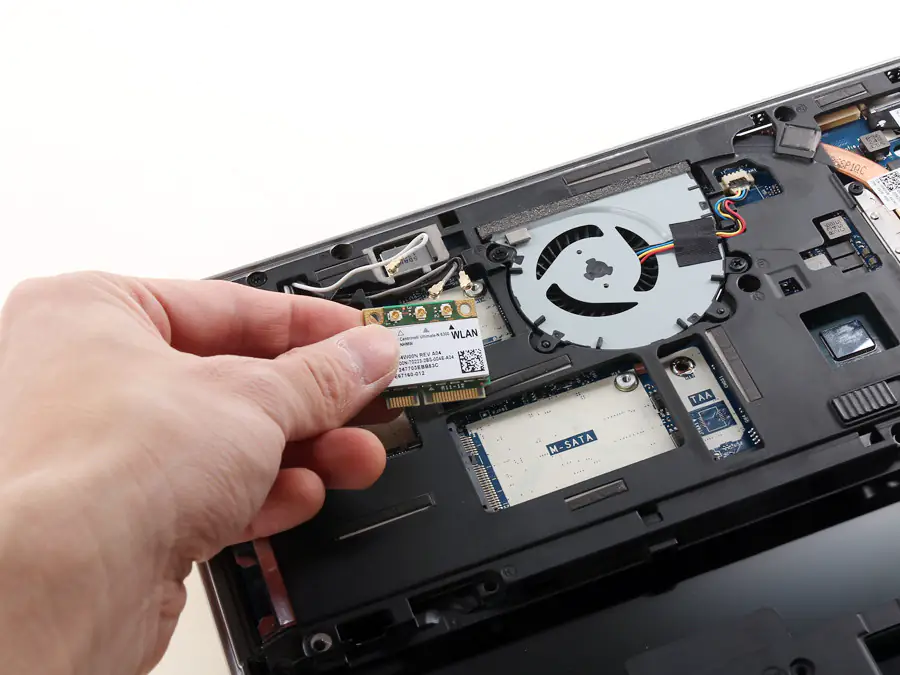

Remove the screw securing the wireless card and unplug the two antenna cables.
Remove the wireless card

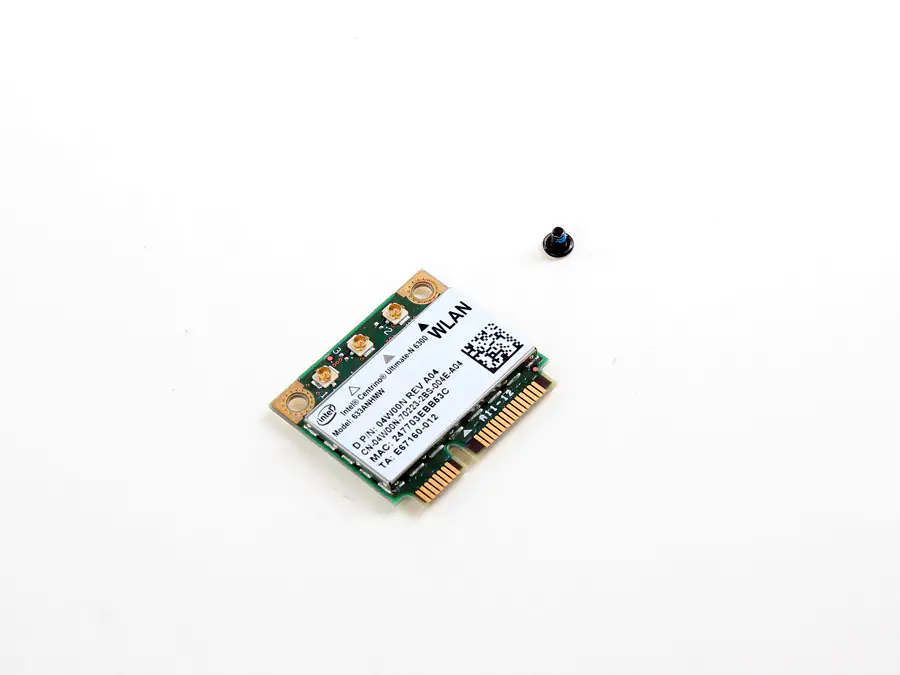

The Dell Latitude E6430u features an Intel Centrino Ultimate-N 6300 wireless card.
Intel Centrino Ultimate-N 6300

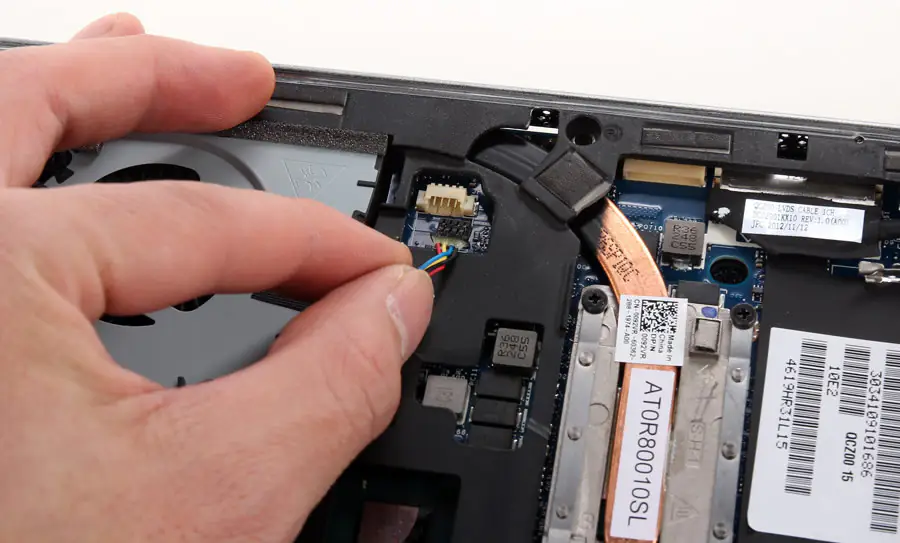

Disconnect the cooling fan cable from the motherboard.
Disconnect the cooling fan cable

Remove the two screws securing the cooling fan. You can remove the cooling fan.

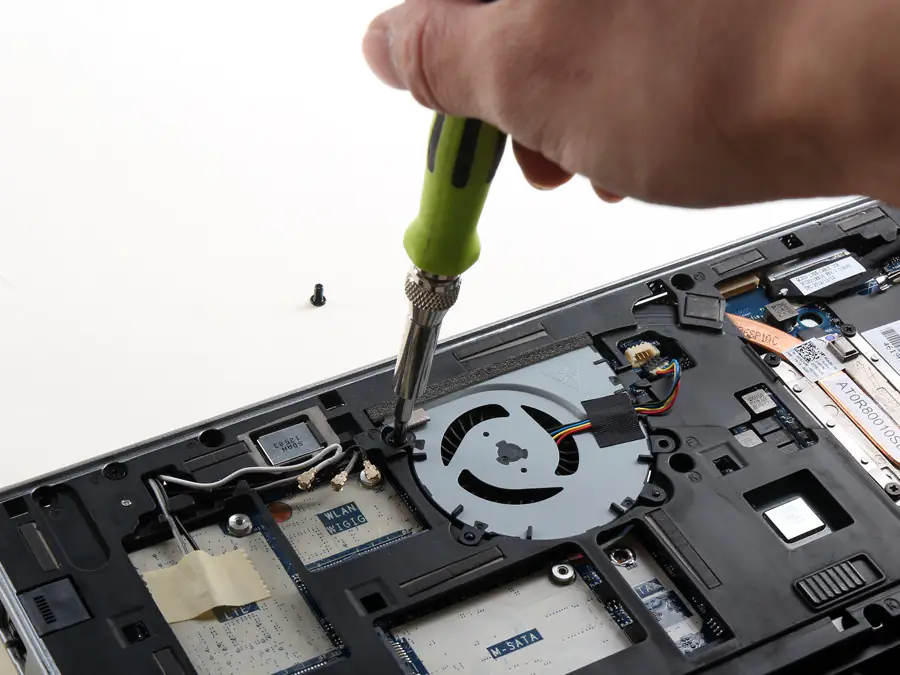

Remove the two screws

Dell Latitude E6430u cooling fan

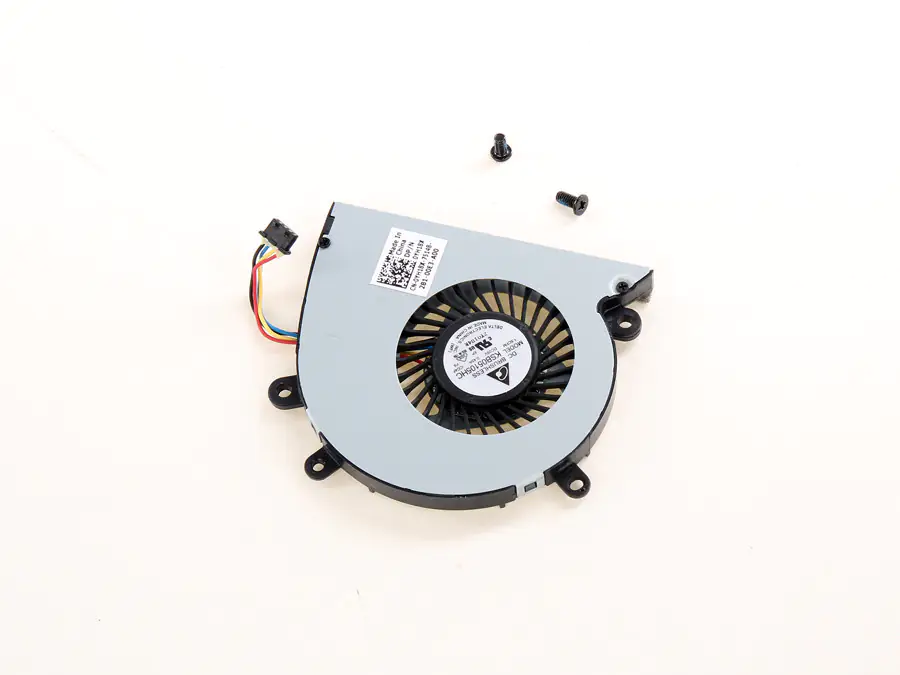

CPU fan

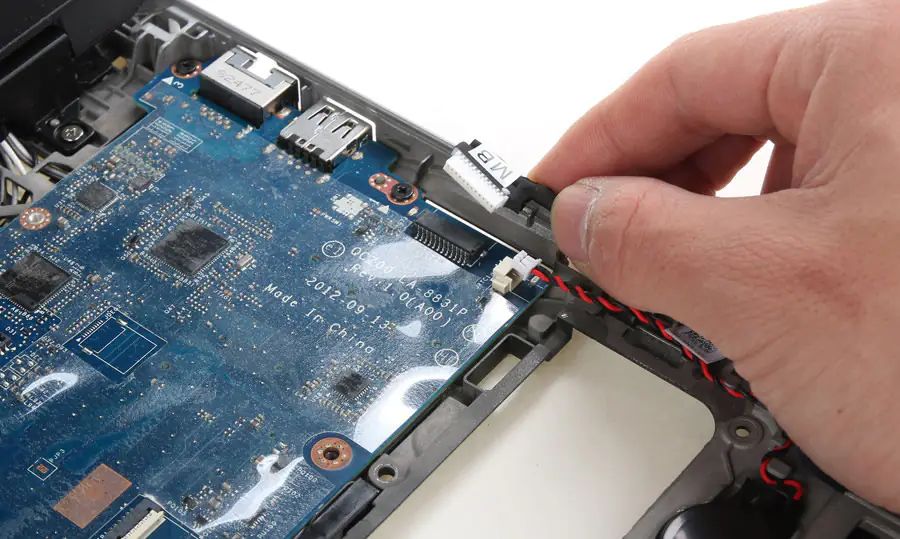

Unplug the LCD cable from the motherboard and the other two cables. Remove the screws securing the motherboard.
Unplug the LCD cable

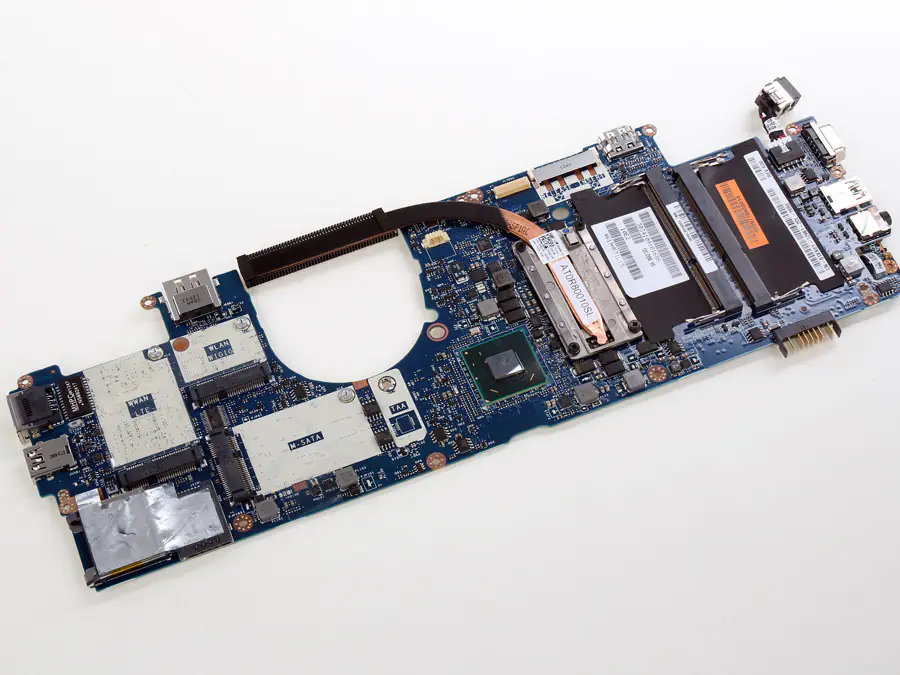

Lift the motherboard from one side with your hand and gently wiggle it until it completely detaches from the laptop.
Motherboard

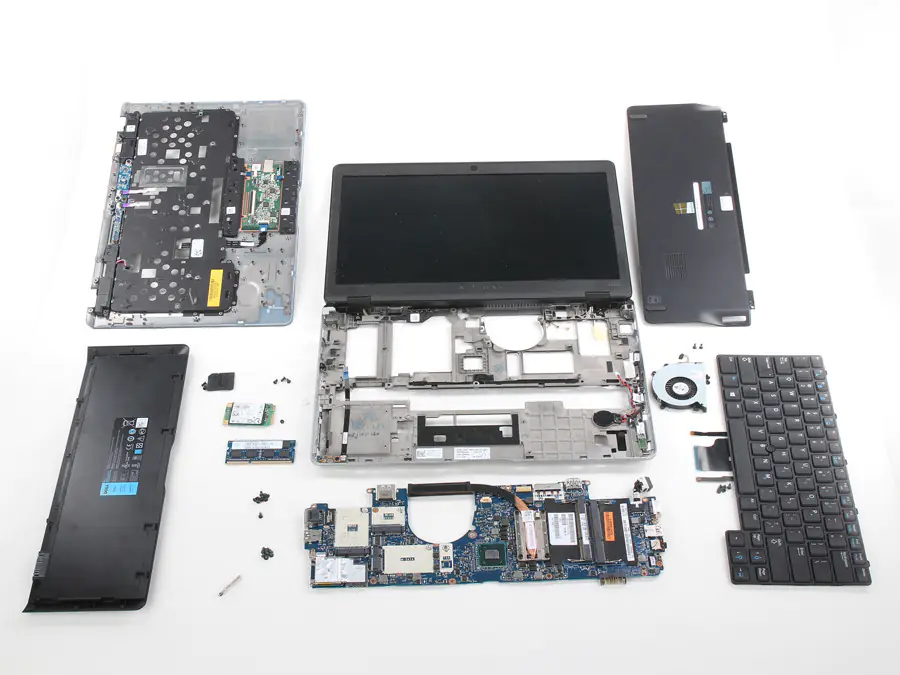

Dell Latitude E6430u internal parts
Internal parts
