Toshiba Portégé Z30-A Disassembly

In this guide, I will explain how to disassemble the Toshiba Portégé Z30-A to remove the battery, SSD, keyboard, wireless card, RAM, heat sink, cooling fan, speakers, and motherboard.

Looking for more guides? Follow us on Facebook for all the latest repair news.

Remove all screws from the bottom cover.
Remove all screws

There is a rubber pad at each of the four corners on the bottom cover. Remove the rubber pads and then remove the screws underneath.
Remove the rubber pads

Insert a plastic pry tool near the hinge, then slide the tool to separate the bottom cover from the laptop.
Remove the palm rest

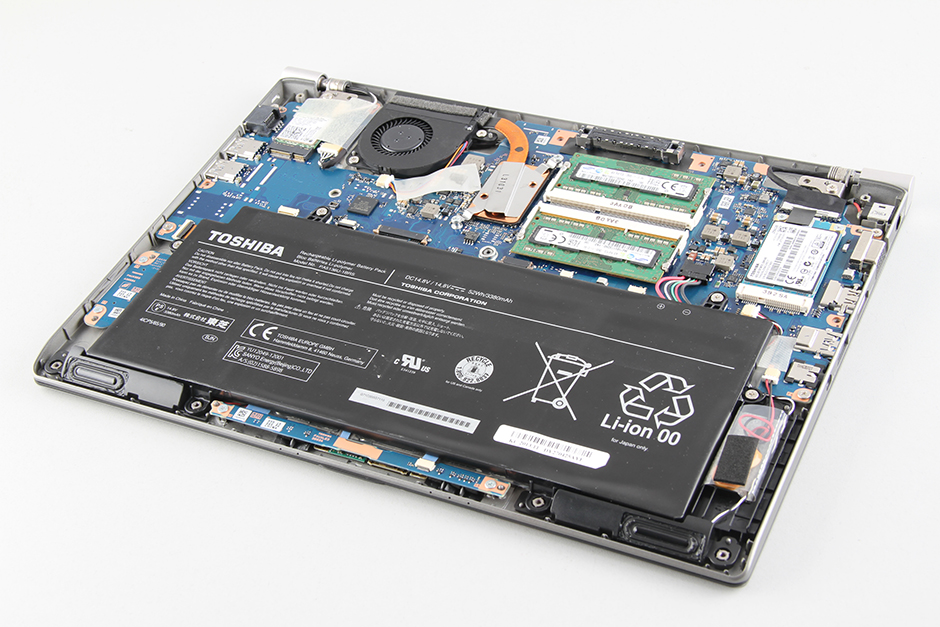

The Toshiba Portégé Z30-A bottom case was removed.
Bottom cover

Now you can get access to the battery, wireless card, RAM, SSD, DC jack, speakers, heat sink, cooling fan, and motherboard.
Remove the four screws securing the battery, disconnect the battery connector from the motherboard, and you can remove the battery.
Remove the battery

The Toshiba Portégé Z30-A comes with a 14.8V, 52Wh Li-ion battery.Toshiba Portégé Z30-A battery

Battery

Use your nails to separate the clips on both sides of the memory module, and the memory module will pop out automatically. This laptop has two memory slots with two memory modules installed. If you need to upgrade the memory, you will need to replace the existing memory modules.

Remove the RAM module

It has two Samsung 4GB PC3L-12800S 1600MHz RAM modules, and the Toshiba part number is G4BC000207S0.
RAM modules

Remove the two screws securing the SSD, and take it away from its slot.
Remove the SSD

The Toshiba Portégé Z30-A comes with a Toshiba 256GB SSD.
Toshiba 256GB SSD

Disconnect the two antenna cables, remove the screw securing the wireless card, and you can remove the wireless card.
Remove the wireless card

The laptop comes with an Intel Dual Band Wireless-AC 7260 wireless card with Bluetooth 4.0.
Wireless card

Remove the two screws securing the heat sink.
Remove the two screws securing the cooling fan and unplug the fan cable. Now, the heat sink and cooling fan can be removed.
Remove the cooling system

Toshiba Portégé Z30-A heat sink and cooling fan
Cooling system

Cooling system

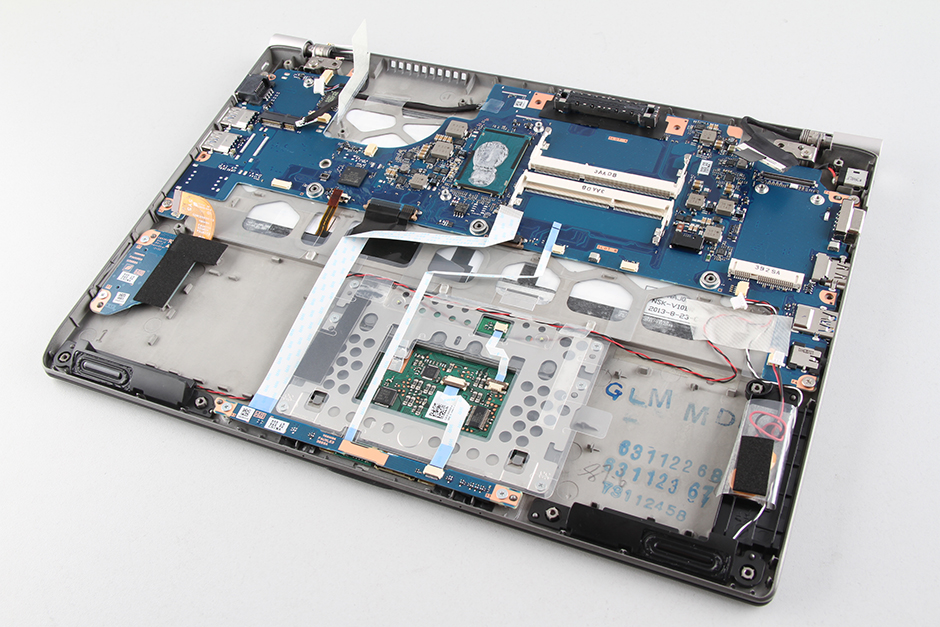

In the next step, we will remove the motherboard.
Disconnect all cables connecting to the motherboard and remove the screws securing the motherboard.
Remove the motherboard

Lift the motherboard with one hand from one side and wiggle it until it completely detaches from the laptop.
Motherboard

The back of the motherboard
Motherboard

The processor of the Toshiba Portégé Z30-A is soldered directly onto the motherboard, so the processor cannot be upgraded or replaced.
Toshiba Portégé Z30-A processor

Ports

Ports

Toshiba Portégé Z30-A internal parts
Internal parts

Related Articles

27 Comments

  1. Hi David,

    Got a hint for this website regarding a Z30 Satellite.

    Many thanks for your work and good documentation + pictures!

    Keep on working, M

  2. Hi

    A brilliant and crystal clear tear-down. Incredibly useful. Ten out of ten.

    One question. My Z30 is still under warranty, and I might be tempted to upgrade some parts, especially the SSD.

    Are there any obvious security/tamper features on the laptop that might indicate I’d opened the case and swapped out the SSD, thus allowing Toshiba to tell me my warranty was invalid?

    It would be really helpful to know. Thanks.

    1. Hello, have you been able to upgrade the SSD?
      I want to do the same (with a Samsung 500GB).
      Did you have any issues?
      kr.

  3. Hi,

    Fantastic guide. The photography skills are also quite impressive.

    If I only want to change the keyboard (I want to change a Scandinavian keyboard to a US keyboard), do I have to disassemble the entire laptop, or is it possible to replace the keyboard without removing the back covers?

    Thanks
    Bryan

    1. Hi Bryan,

      It’s very hard to change the keyboard because it is glued with adhesive on almost all the surfaces of the keyboard.
      I am an informatician, and we did this operation last month to replace the Azerty keyboard with a QWERTY keyboard.
      We have been lucky to succeed, but there is still a part of this keyboard.
      We used super-glue to attach the new keyboard because when we removed the keyboard, some adhesive detached and couldn’t be reused.
      You need four hands to do this.

      Best regards
      Paul (Fr)

      1. Hi,

        Just a quick question. Was it necessary to remove the back cover of the laptop to replace the keyboard, or did you just remove it from the top?

        Thanks
        Bryan

        1. Hi,

          It is necessary to remove the back cover to replace the keyboard since it is connected to the motherboard (2 cables you can see at the top of the battery near the screw on the left)

          Regards

  4. Hello, David, this guide has helped a lot, but I need to figure out something, and I don’t want to break it, so I thought you might have an answer:
    I need to replace the back cover of the LCD. I opened it up and removed everything, including the screen, but I cannot seem to reach the hinges, as they are covered in plastic.
    Any clues on how to remove those?

  5. Hello, I would like to replace a speaker set. Do you know the exact name of the spare part? How is the procedure? Thank you in advance. This website is so helpful.

      1. Really? There are loads of different ones. I’m a bit confused. Is any speaker set for a Toshiba Portégé Z30-A? Or is there a specific speaker set for a laptop with a specific part number? Thank you so much.

  6. Hi, I need to reset the BIOS by removing the CMOS battery. Is it the yellow enclosure item next to the main battery?

  7. Hi, everyone,

    I tried to replace my Z30’s keyboard today, and I must say that the adhesive was so strong that I damaged the old one. The new keyboard needs some new adhesive to stick down to the base. I tried to find one on eBay, but it is far too expensive and not worth it.

    I decided to buy some thin double-sided adhesive film and put it where needed.

    Will send updates on how it went as soon as I complete the installation.

  8. Hello
    I’d have a used Z30 with some missing screws on the bottom cover. Does anyone know what the correct size is to look for a replacement?
