Lenovo ThinkPad Edge E40 RAM Memory Removal and Installation

In this guide, I will show you how to install and replace the RAM on Lenovo ThinkPad Edge E40 laptop.

Step 1: Remove the battery

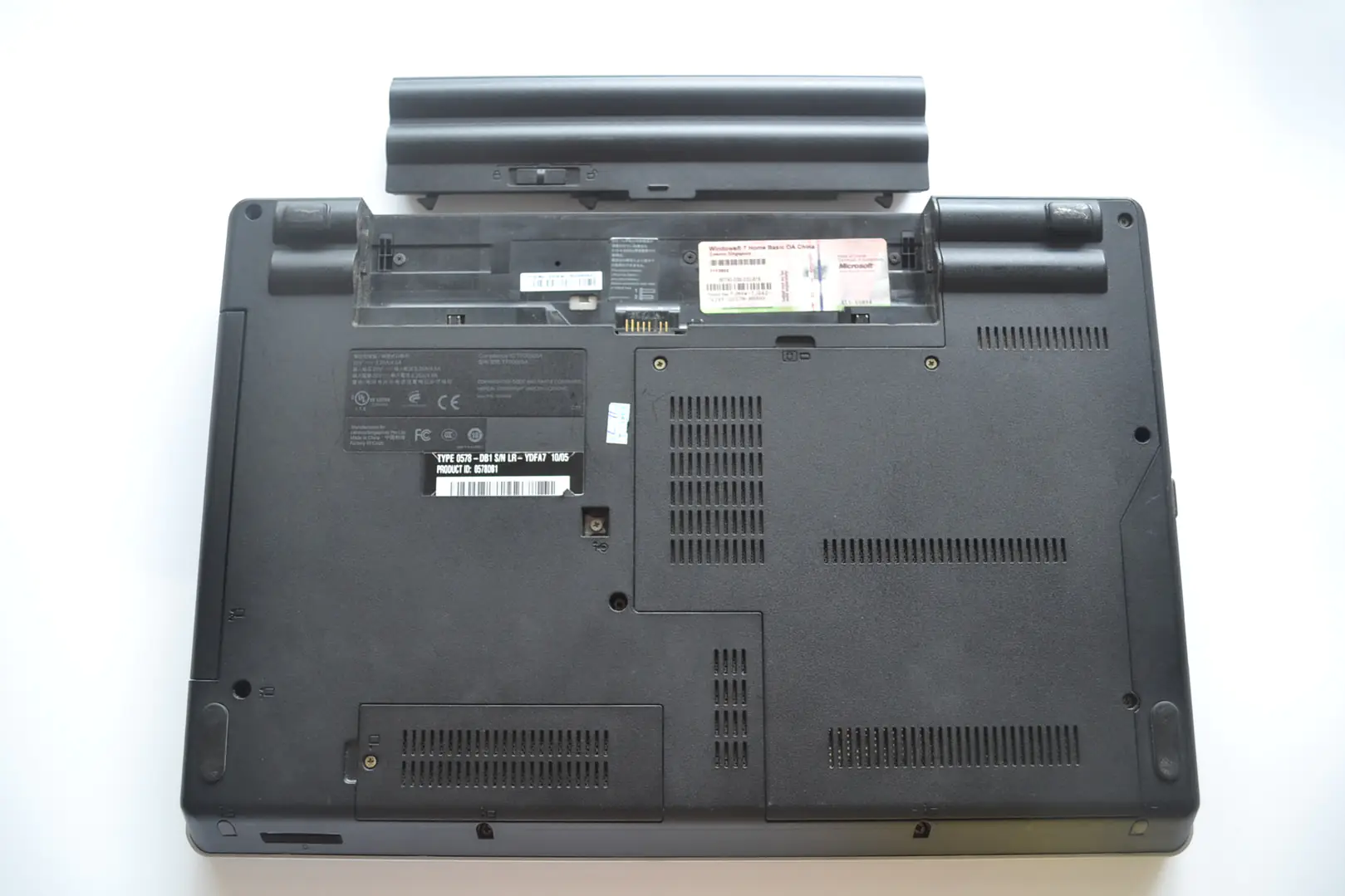

    • Unlock and remove the battery.

Lenovo-ThinkPad-Edge-E40-Disassembly-1

Step 2: Remove the service cover.

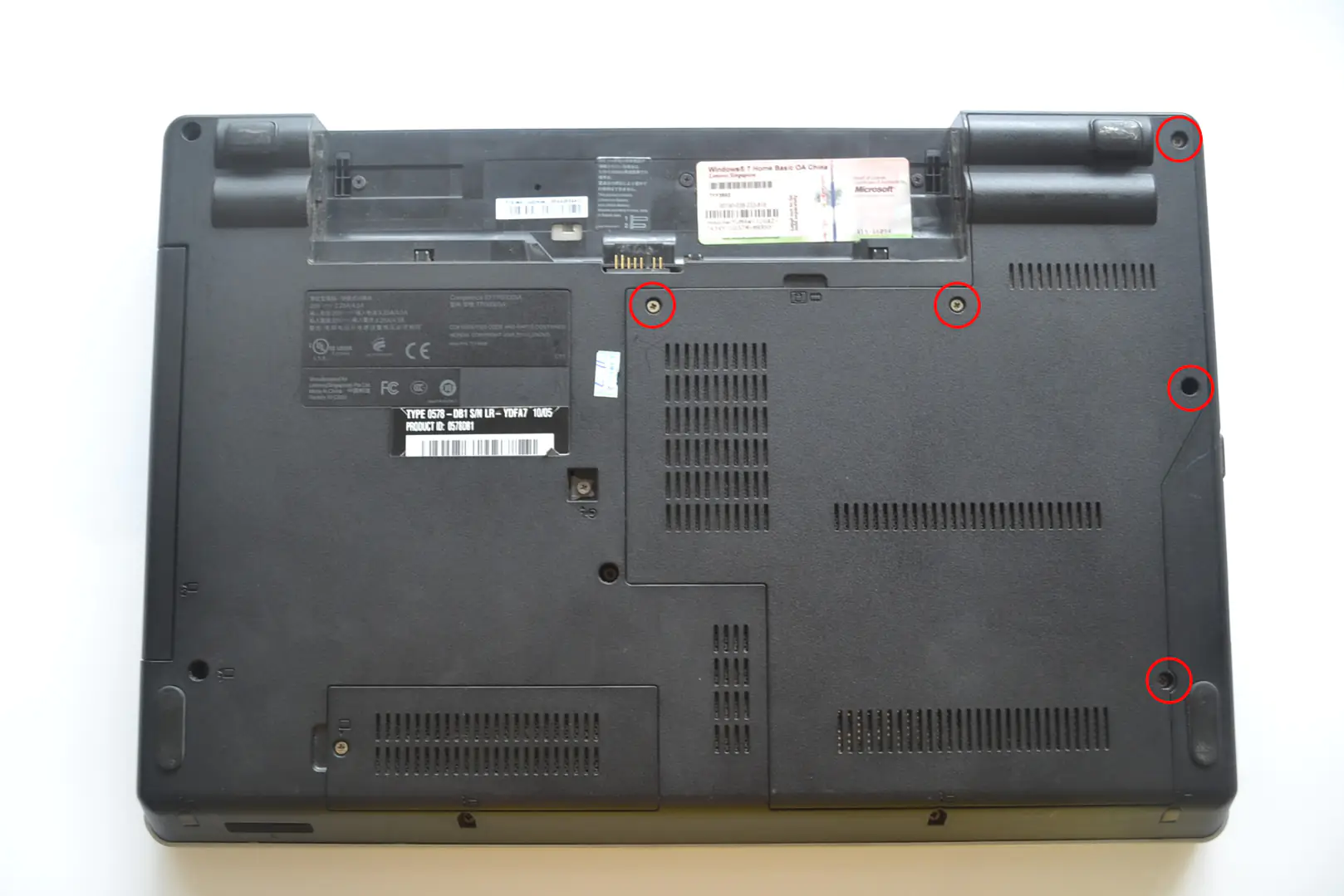

    • Remove five screws securing the service cover. You can remove the service cover.

Lenovo-ThinkPad-Edge-E40-Disassembly-2

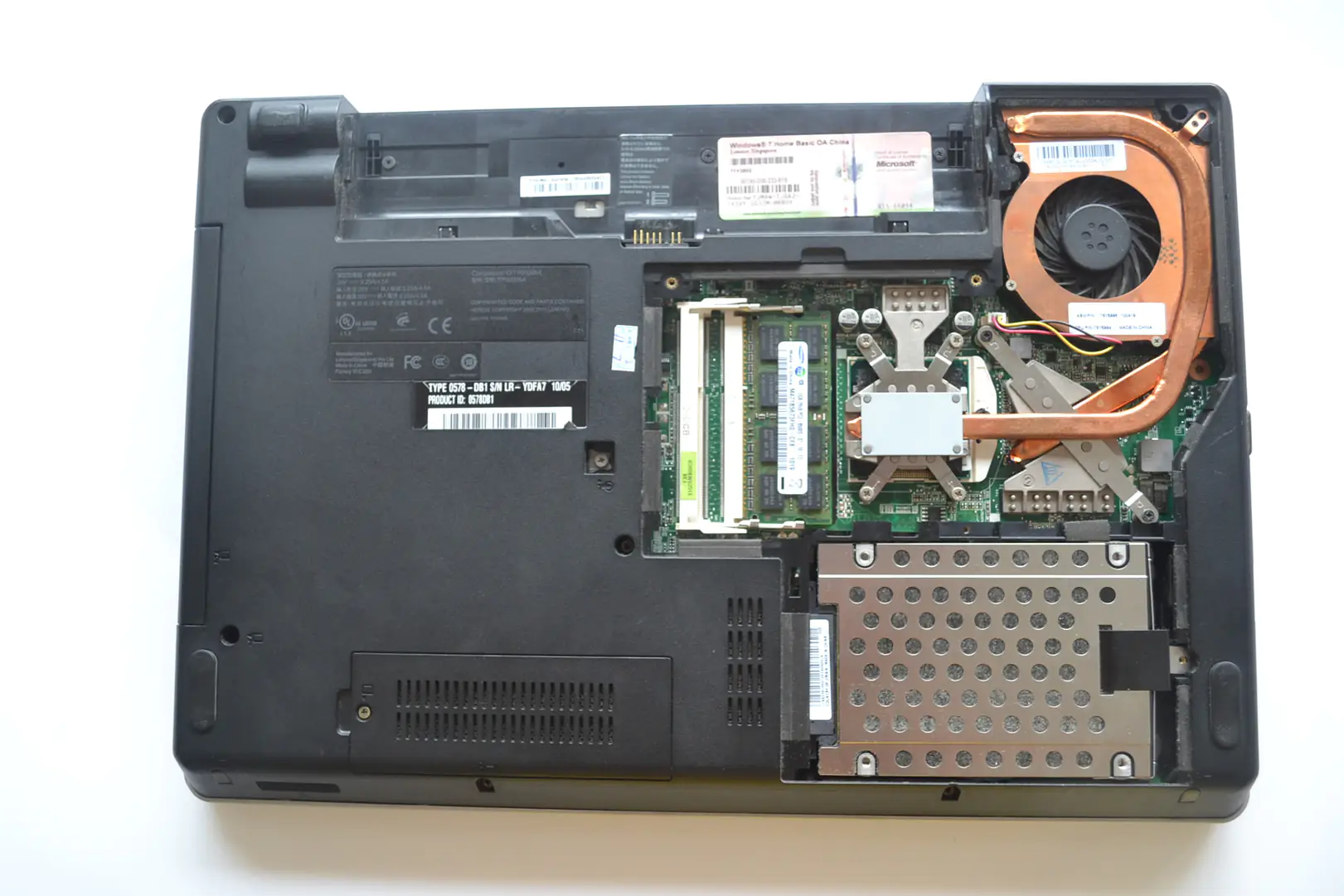

    • The service cover has been removed. Now you can see the memory. The laptop has two memory slots. In my laptop only one memory installed.

Lenovo-ThinkPad-Edge-E40-Disassembly-3

Step 3: Remove the memory

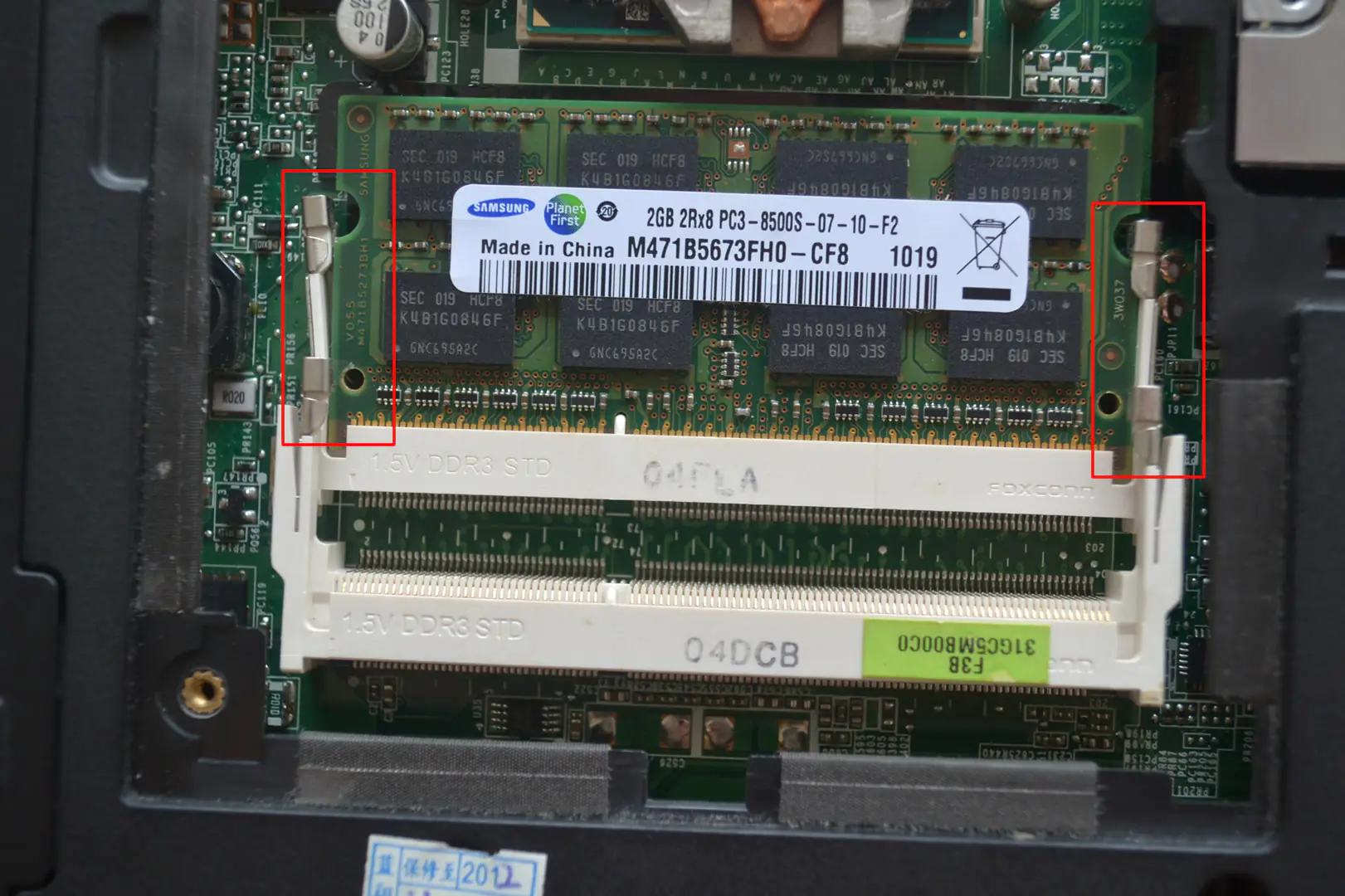

    • Separate the clips.

Lenovo-ThinkPad-Edge-E40-RAM-Memory-Removal-1

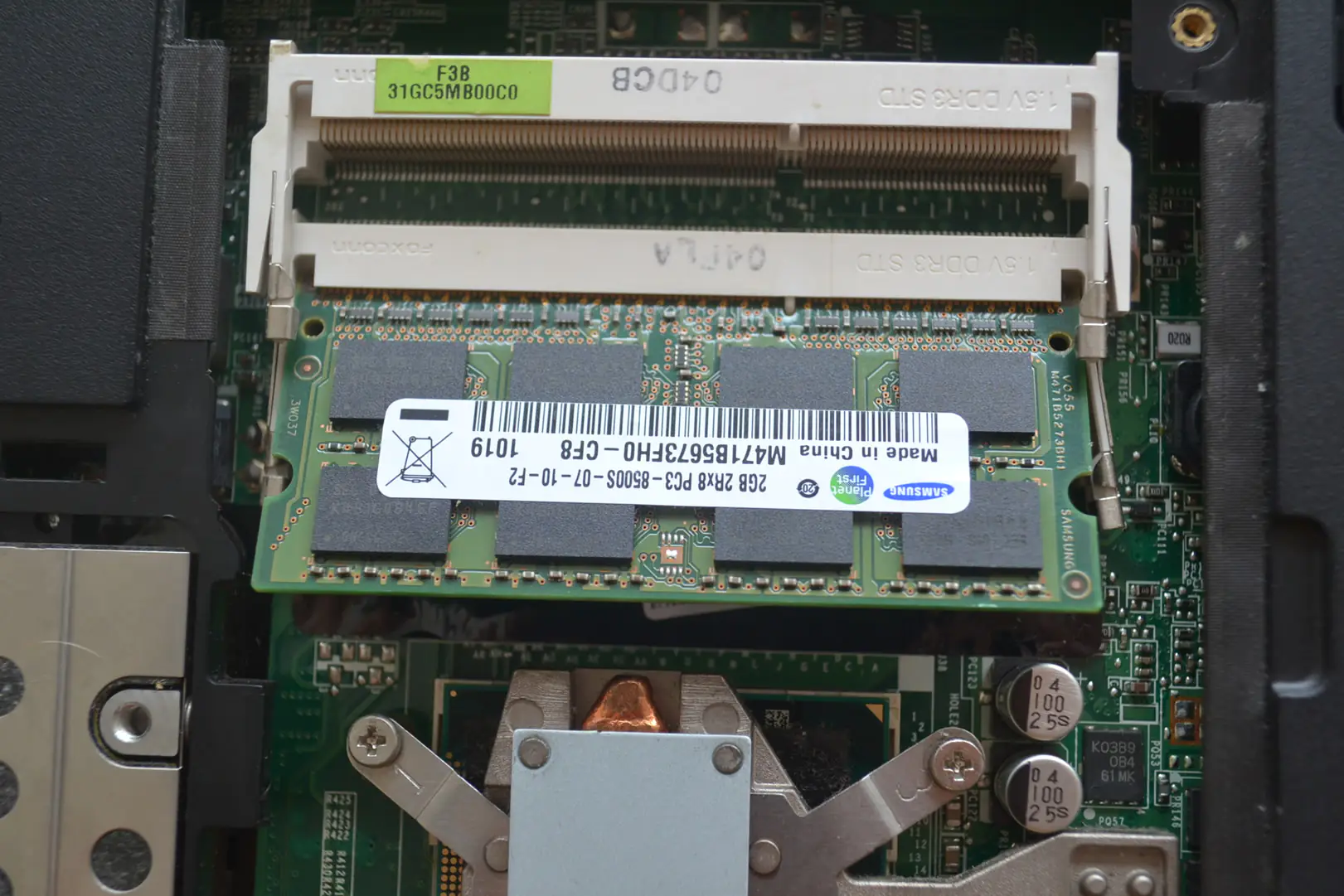

    • Memory will automatically pop up. Now you can remove it.

Lenovo-ThinkPad-Edge-E40-RAM-Memory-Removal-2
