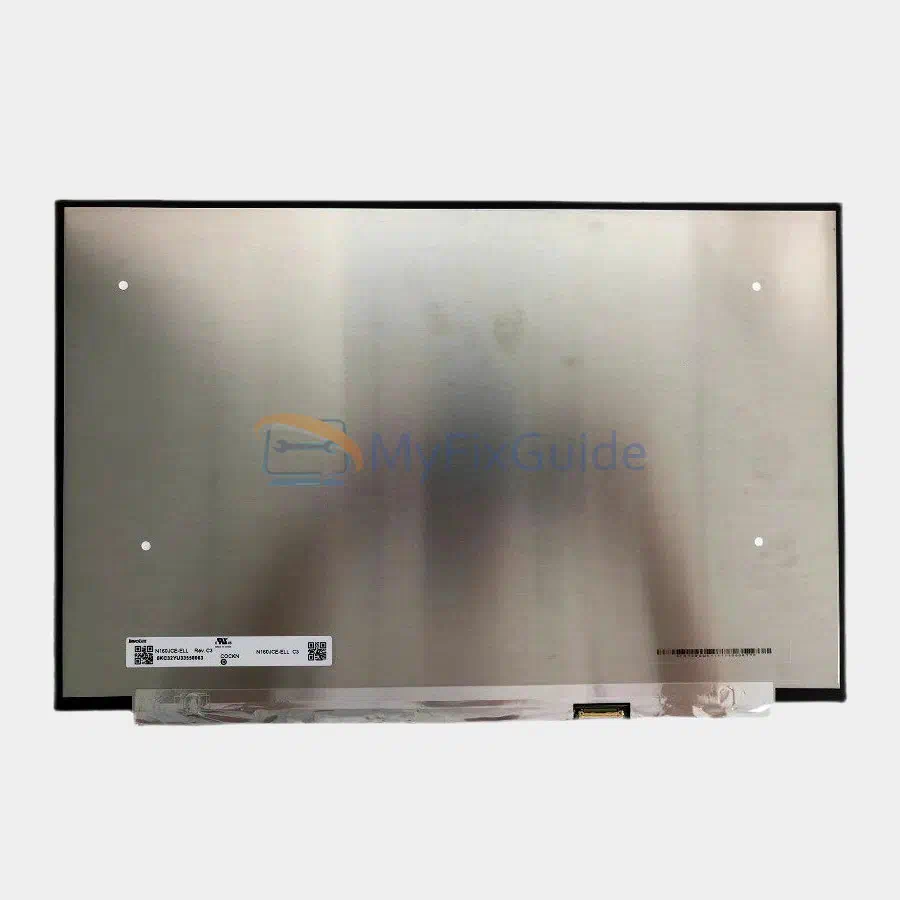

New screen for Lenovo 5D11K06180, 5D11K06193, and 5D11K06176. The screen has a resolution of WUXGA (1920 x 1200), 45% NTSC color gamut coverage, 300-nit brightness, and a 60 Hz refresh rate.
Features:
1. It is an original screen. It has the same specifications and model number as your original screen.
2. Each screen is rigorously tested to ensure that it works fine and has no dead pixels
3. Each screen will come with two double-sided tapes.
Specifications:
Size: 16-inch IPS Screen
Resolution: WUXGA (1920 x 1200)
Touch: Non-Touch
Connector: 30 pins
Refresh Rate: 60Hz
Backlight Type: LED
Brightness: 300 nits
Contrast Ratio: 1000:1
Aspect Ratio: 16:10
Color Gamut: 45% NTSC
Surface Type: Matte, Anti-Glare
Condition: New, Original
Dead Pixel Policy: No Dead Pixel
Warranty: One Year
Part Number:
5D11K06176
Compatible Part Numbers:
5D11K06180
5D11K06193
5D11U65844
5D11K06181
Compatible Laptops:
IdeaPad Slim 3 16AHP10
IdeaPad Slim 3 16ARP10
IdeaPad Slim 3 16IRH10
IdeaPad Slim 3 16IRH10R
IdeaPad Slim 3 16IRU9
IdeaPad Slim 5 16AHP9
IdeaPad Slim 5 16AKP10
IdeaPad Slim 5 16IMH10
IdeaPad Slim 5 16IMH9
IdeaPad Slim 5 16IRH10R
ThinkBook 16 G8 IAL
ThinkBook 16 G8 IRL
ThinkPad E16 Gen 3
Replacement Tips:
1. Make sure the specifications, description, and image match the original screen on your laptop.
2. To replace your screen, you must remove the battery or disconnect the battery cable from the motherboard. This protects your laptop from damage by static electricity.
3. The LCD bezel is fixed on the LCD back cover with easy-stretch adhesive. Slowly pull out the adhesive to easily remove the screen.
4. Place the LCD screen on the keyboard, disconnect the display cable from the LCD screen to remove the old LCD screen, and then you can install the new screen on your laptop.
