HP Pavilion 15-ck000 Disassembly and RAM, SSD and HDD upgrade options

Today’s young people’s computer needs are beginning to develop thin and light, and they want the laptop while thin and also take into account the strong performance. Although we have seen many of the available light gaming laptops on the market with MAX-Q graphics card, the price cannot afford for many friends. However, with the recent popularity of Intel eighth-generation Core processor and the GeForce MX150 graphics card, so that the thin gaming laptop has become possible. This time we disassemble the HP Pavilion 15-ck000 is such a product.

Teardown is what we do! Follow us on Facebook for the latest repair news.

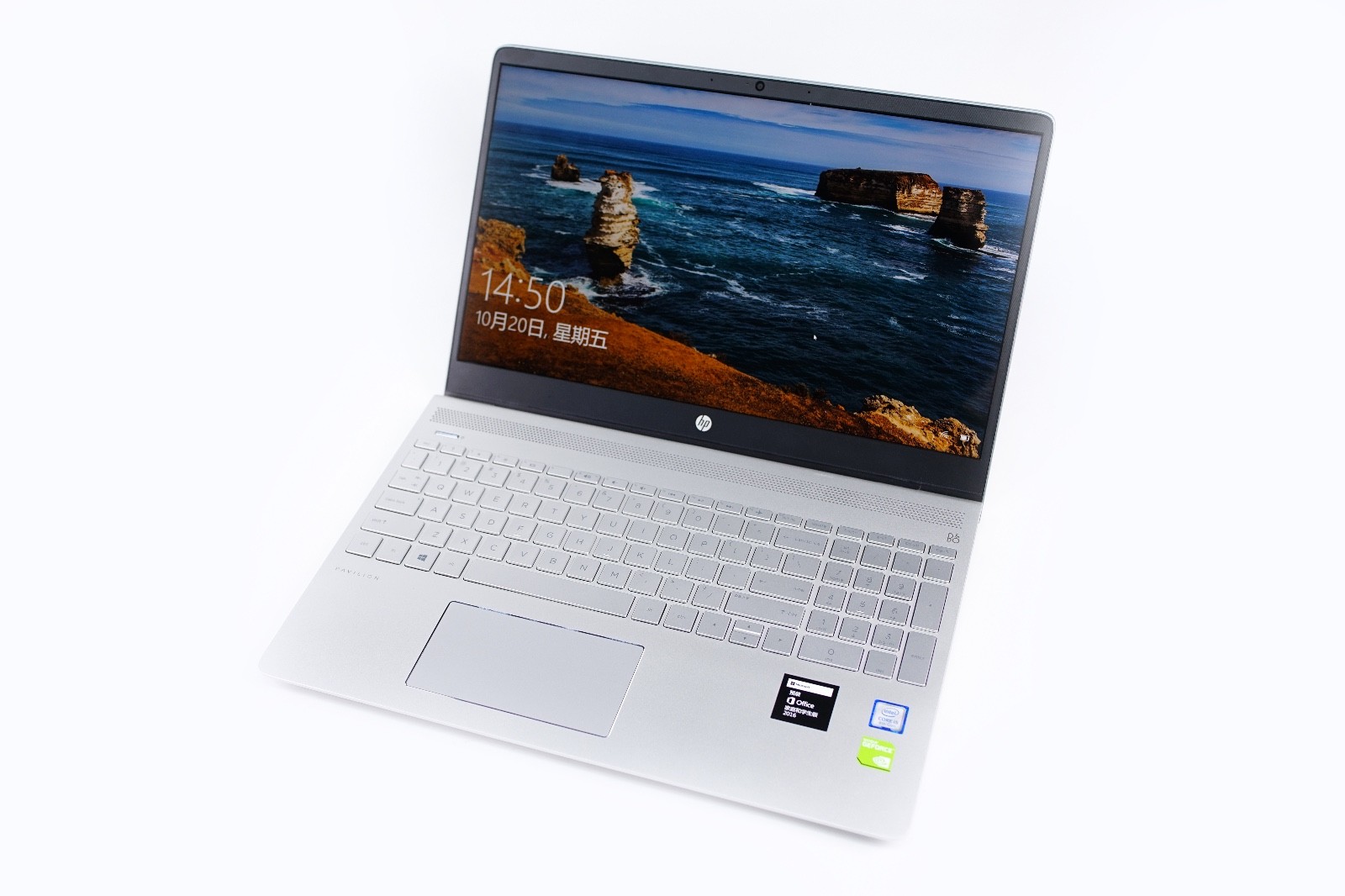

HP Pavilion 15-ck000

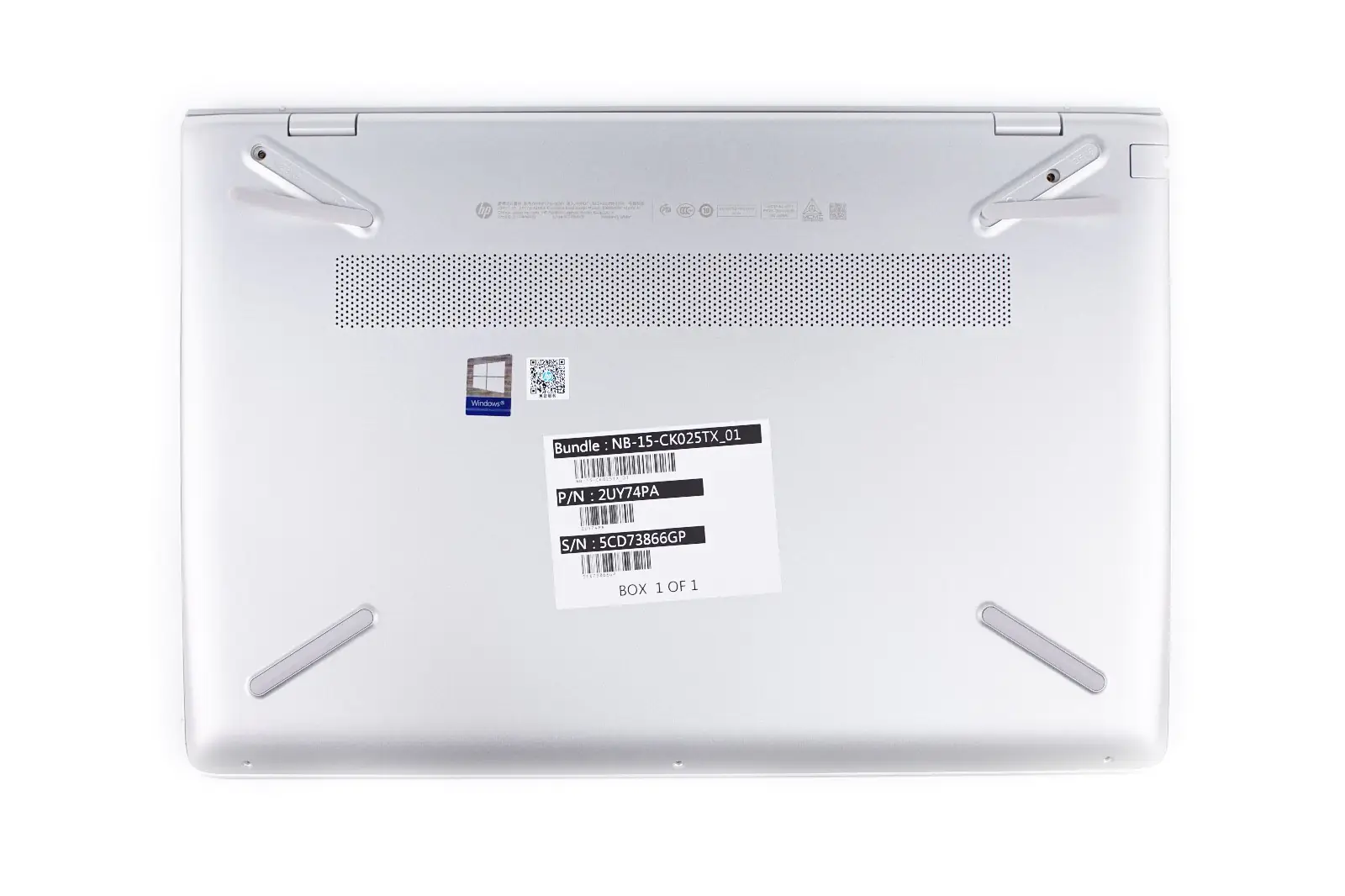

Its bottom cover is made of plastic material, and it has an air inlet, which makes it easy for cold air to enter into the fuselage. In addition to visible three screws securing the bottom cover, there are two hidden screws under two foot pads on the top of the bottom cover.
After unscrewing the screws on the back cover, carefully pry open all the fasteners along the edge. It should be noted that the fixed fasteners are more and tight, you need a little bit of patience to pry open them.
HP Pavilion 15-ck000 bottom cover

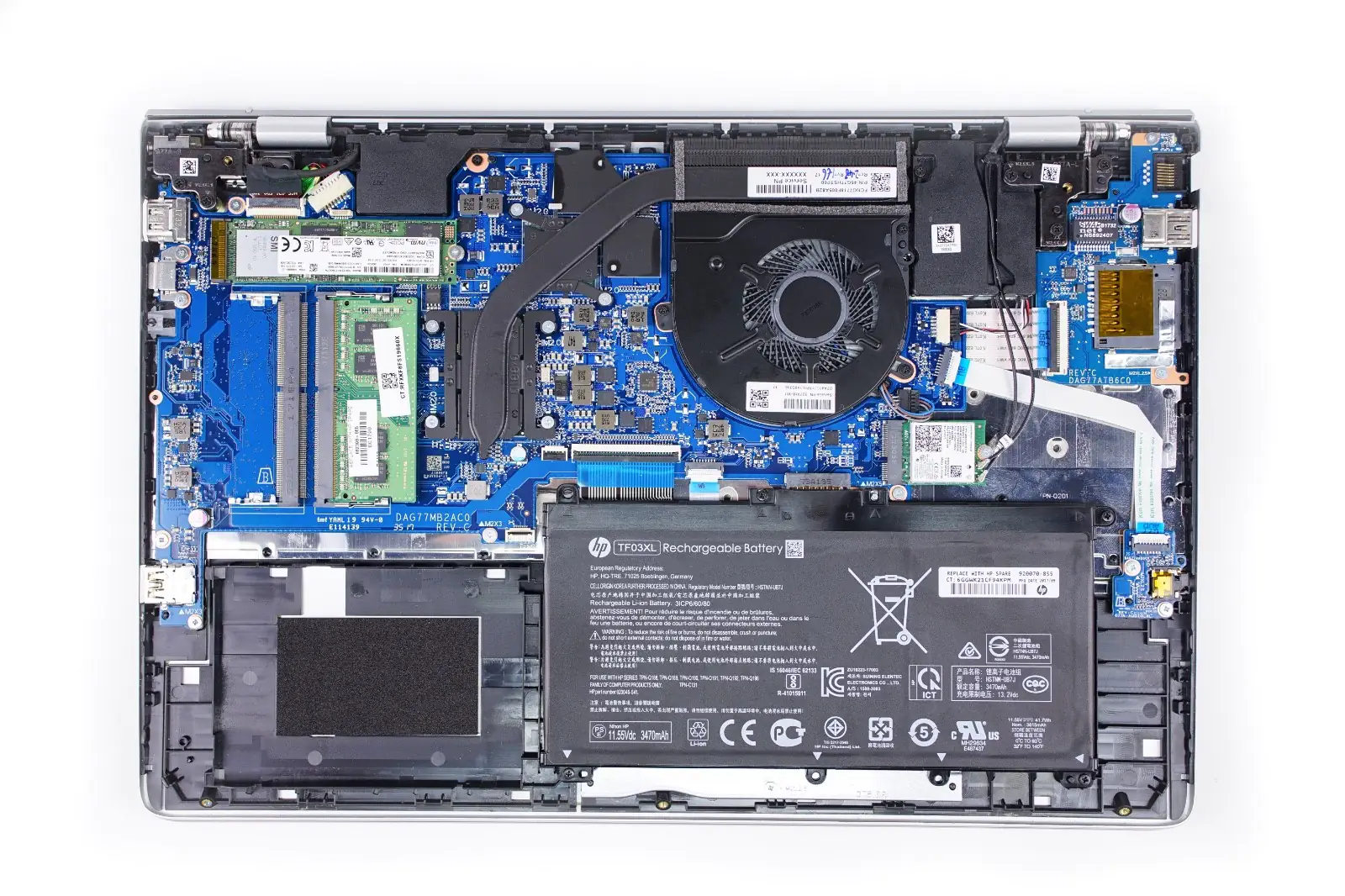

After opening the bottom cover, you can see the Pavilion 15 uses a single fan and single copper tube design. With two memory slots and maximum support for 16GB memory, it comes with an M.2 SSD and a 2.5″ HDD. Unlike most thin and light ultrabook, the Pavilion 15 allows users to easily upgrade the memory, SSD, and hard drives.
HP Pavilion 15-ck000 internal picture

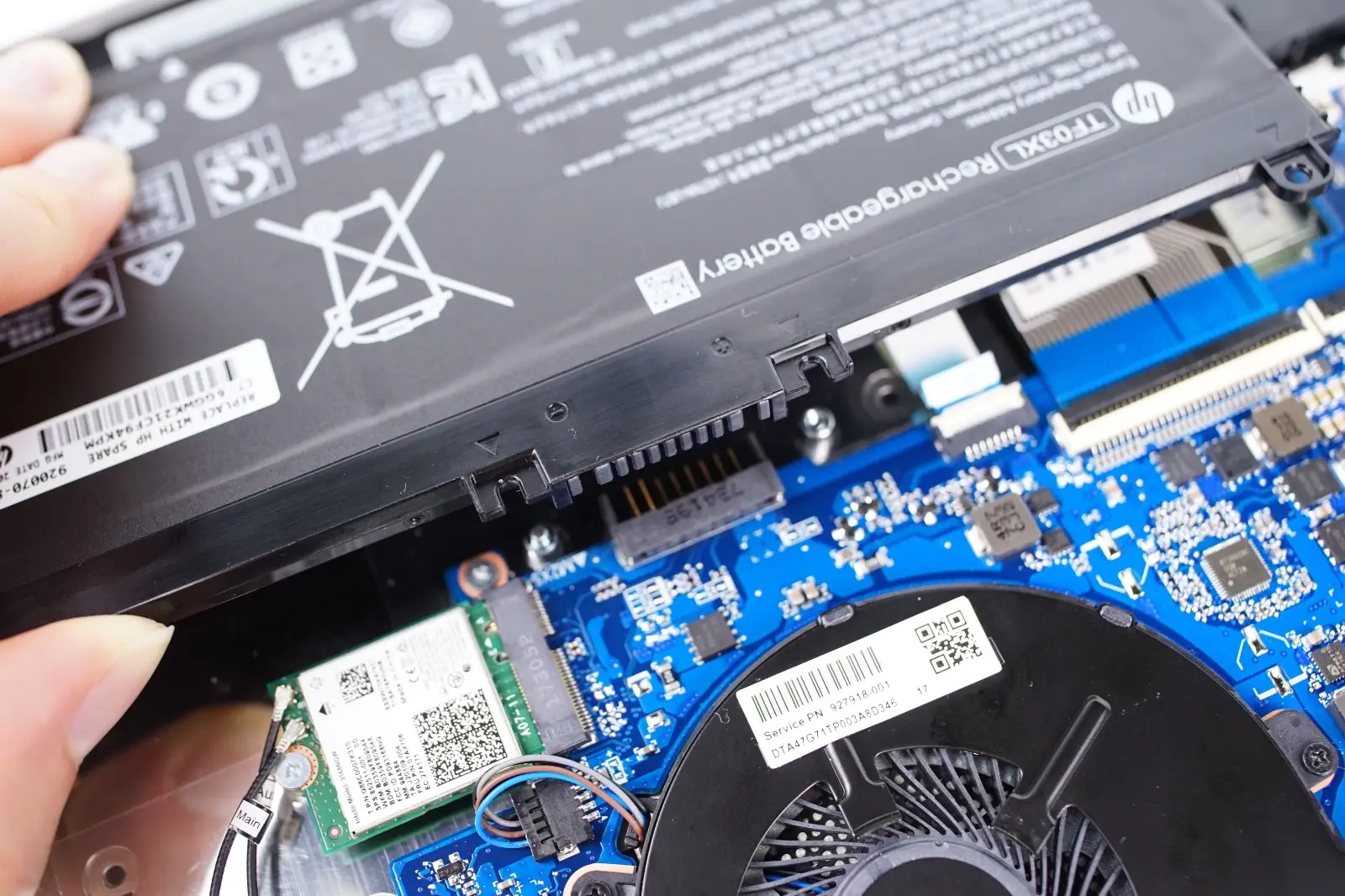

Different from the traditional ultrabook’s battery connector, the built-in battery is connected to the motherboard with metal contacts.
remove HP Pavilion 15-ck000 battery

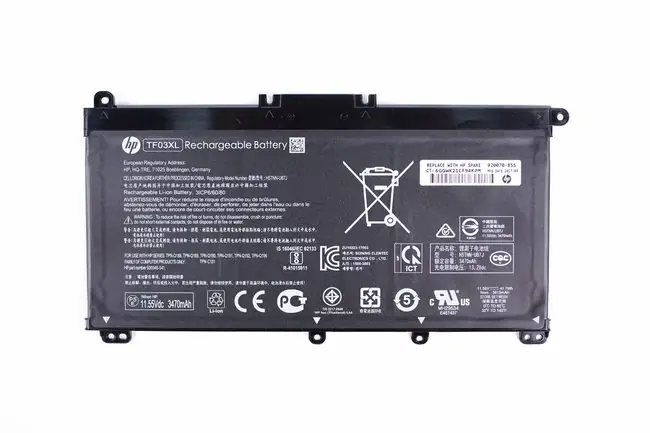

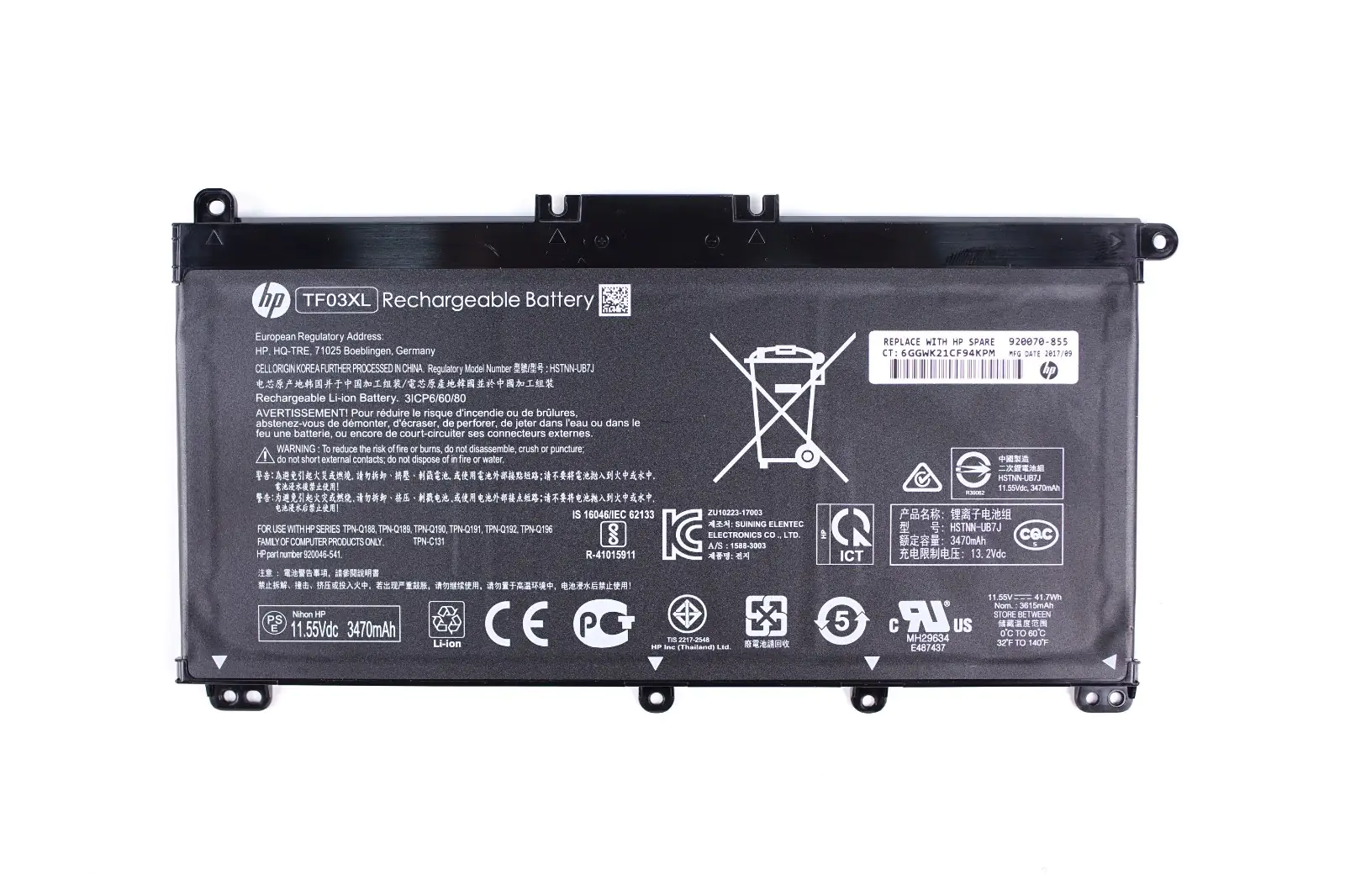

HP Pavilion 15-ck000 comes with a 11.55V, 3470mAh Li-polymer battery, HP P/N: 920046-541, HSTNN-UB7J.
As a 15-inch notebook, its battery capacity is still a little smaller.
HP Pavilion 15-ck000 battery

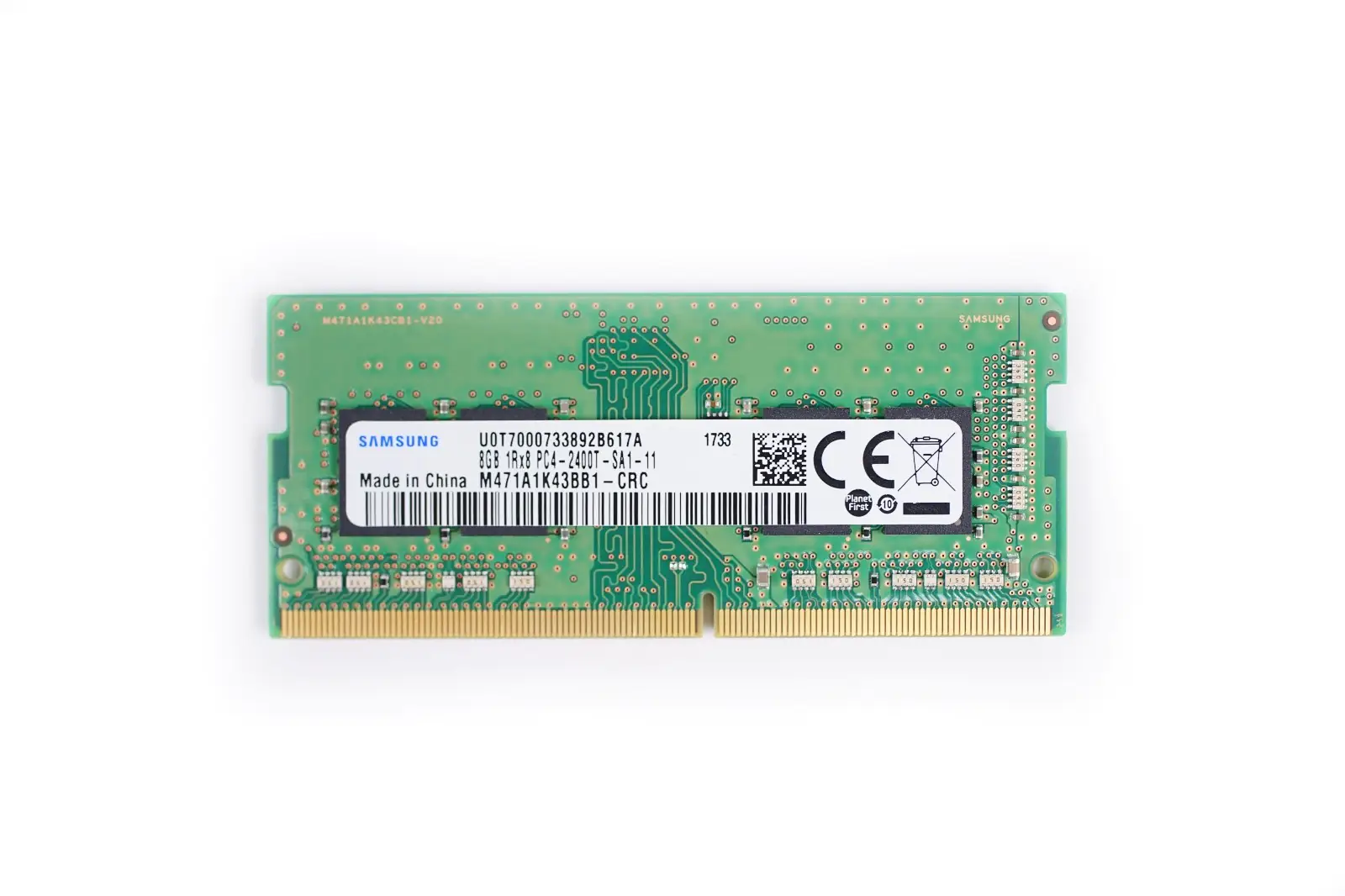

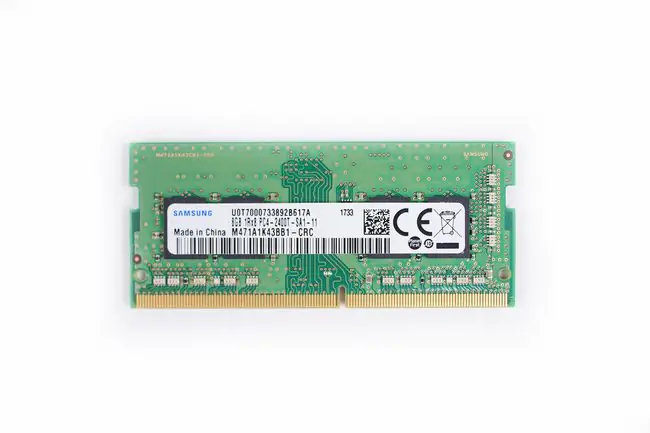

It comes with a Samsung 8GB DDR4 2400MHz memory, and users can add an 8GB memory to constitute 16GB dual channel memory, running large programs can be more rapid.
HP Pavilion 15-ck000 RAM

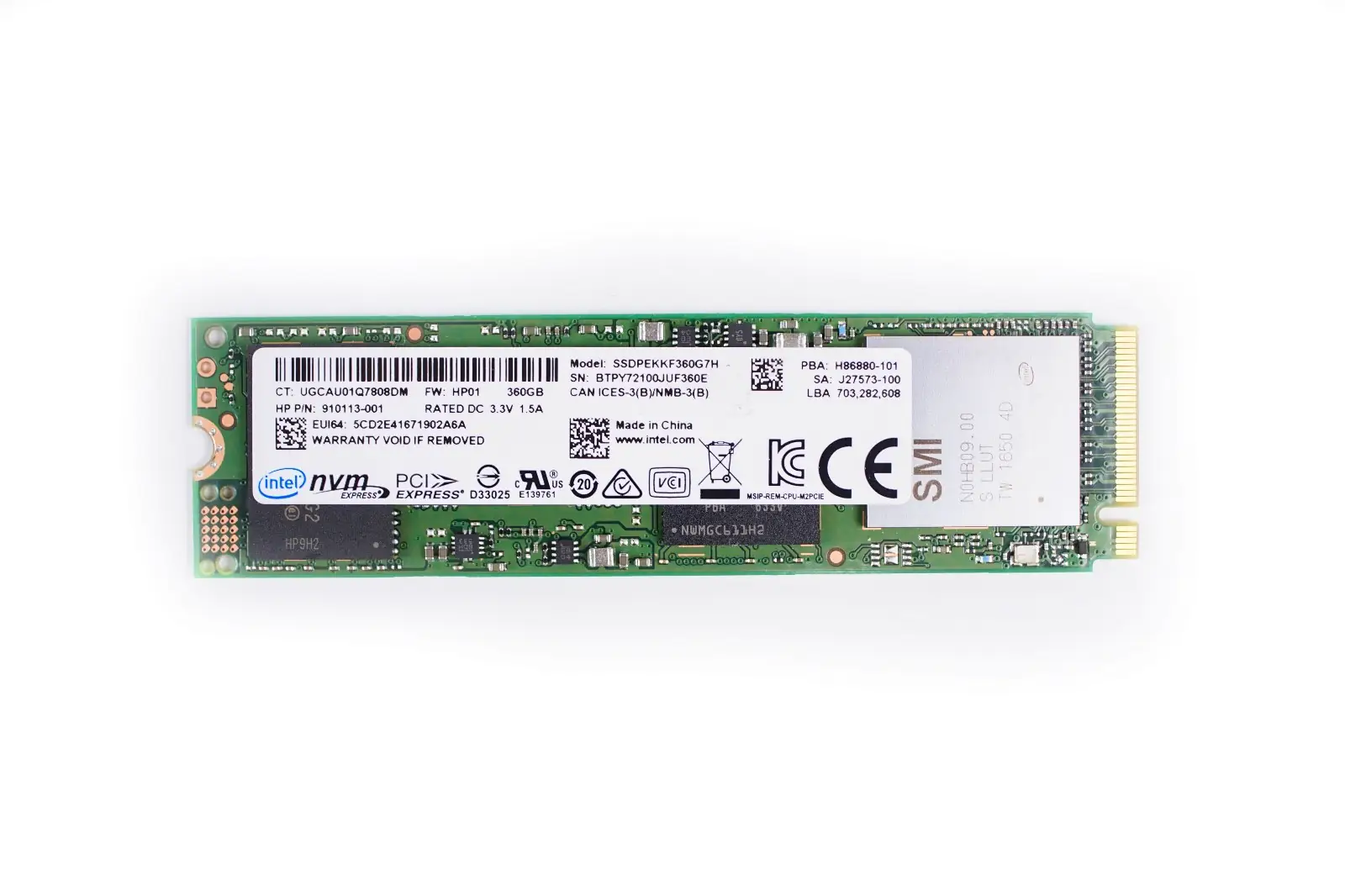

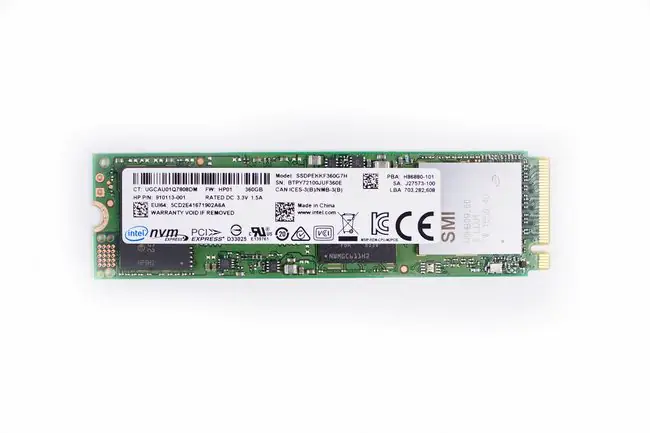

The Intel 360GB M.2 PCIe SSD is most often found on HP’s laptops recently. The M.2 SSD + HDD combination of hard drive compared with single drive solutions, users do not need to spend more cost to buy large capacity SSD. The mechanical hard drives can be upgraded to 2TB, so users do not need to worry about capacity problems.
HP Pavilion 15-ck000 SSD

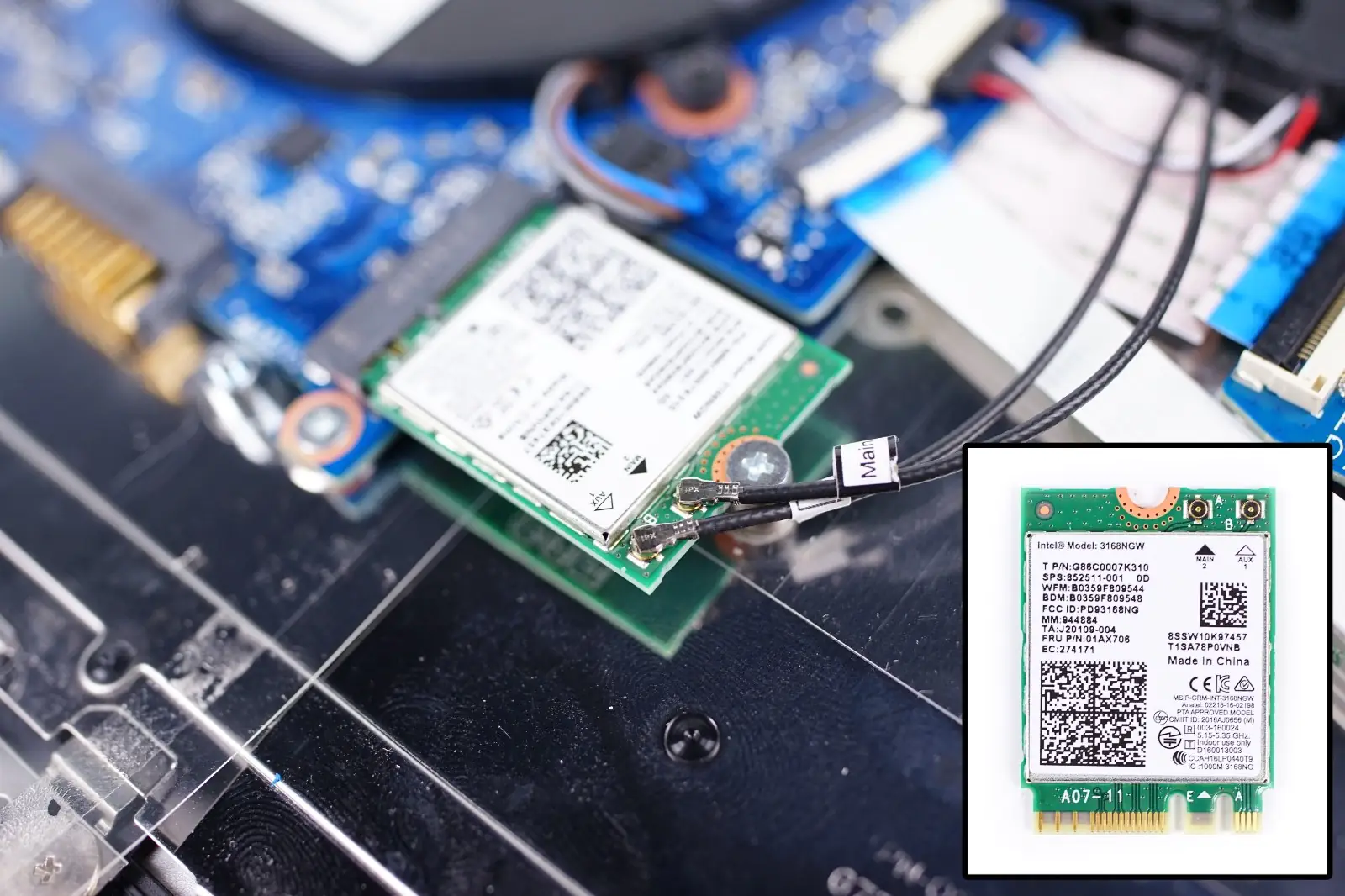

The HP Pavilion 15-ck000 features an Intel Dual Band Wireless-AC 3168 Wi-Fi adapter. It supports 802.11ac, dual-band and Bluetooth 4.2.
HP Pavilion 15-ck000 Wi-Fi card

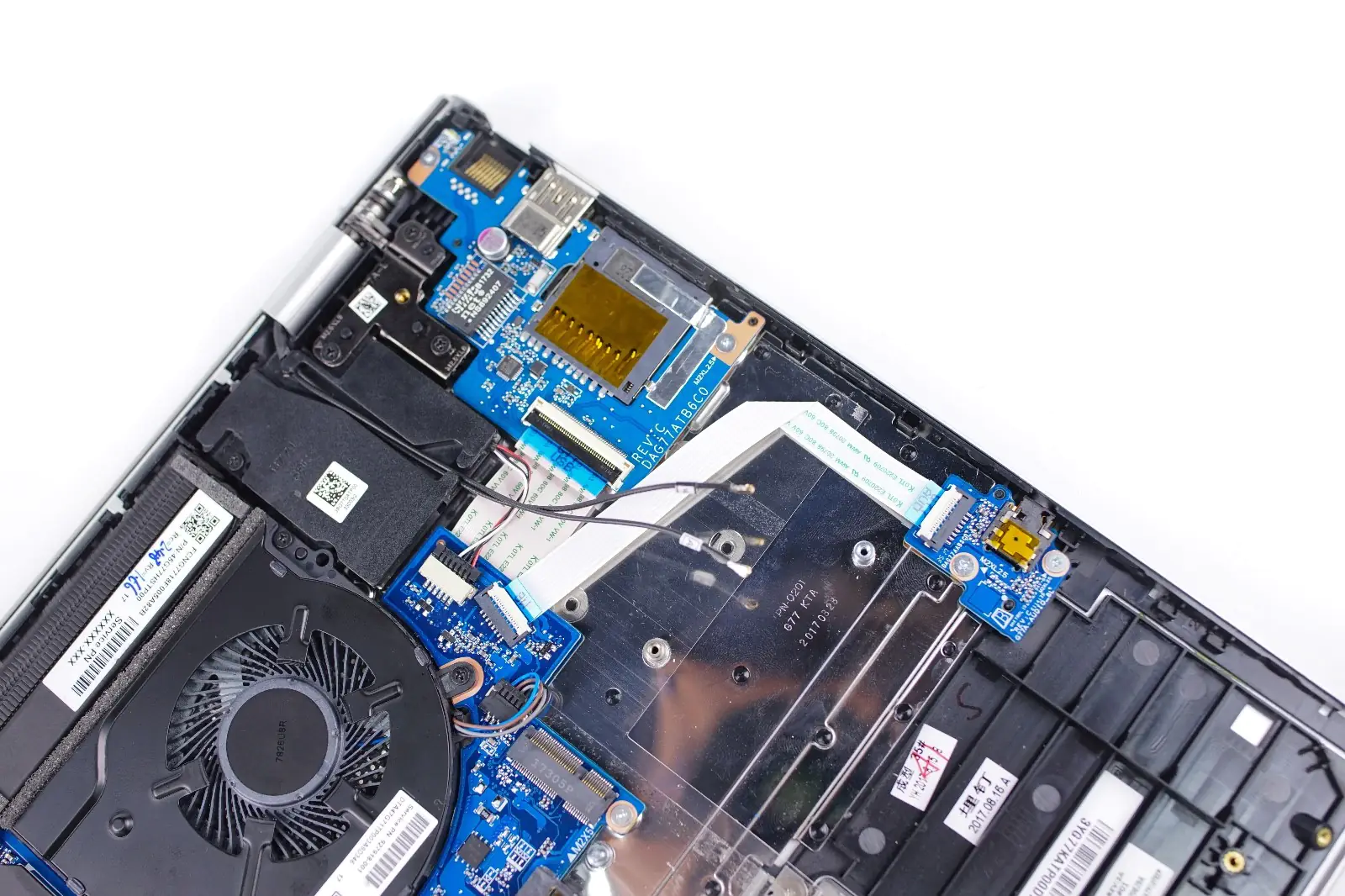

After removing the wireless network card, you can see the internal structure of the left I/O board. The I/O board is connected to the motherboard by the cable.
HP Pavilion 15-ck000 I/O board

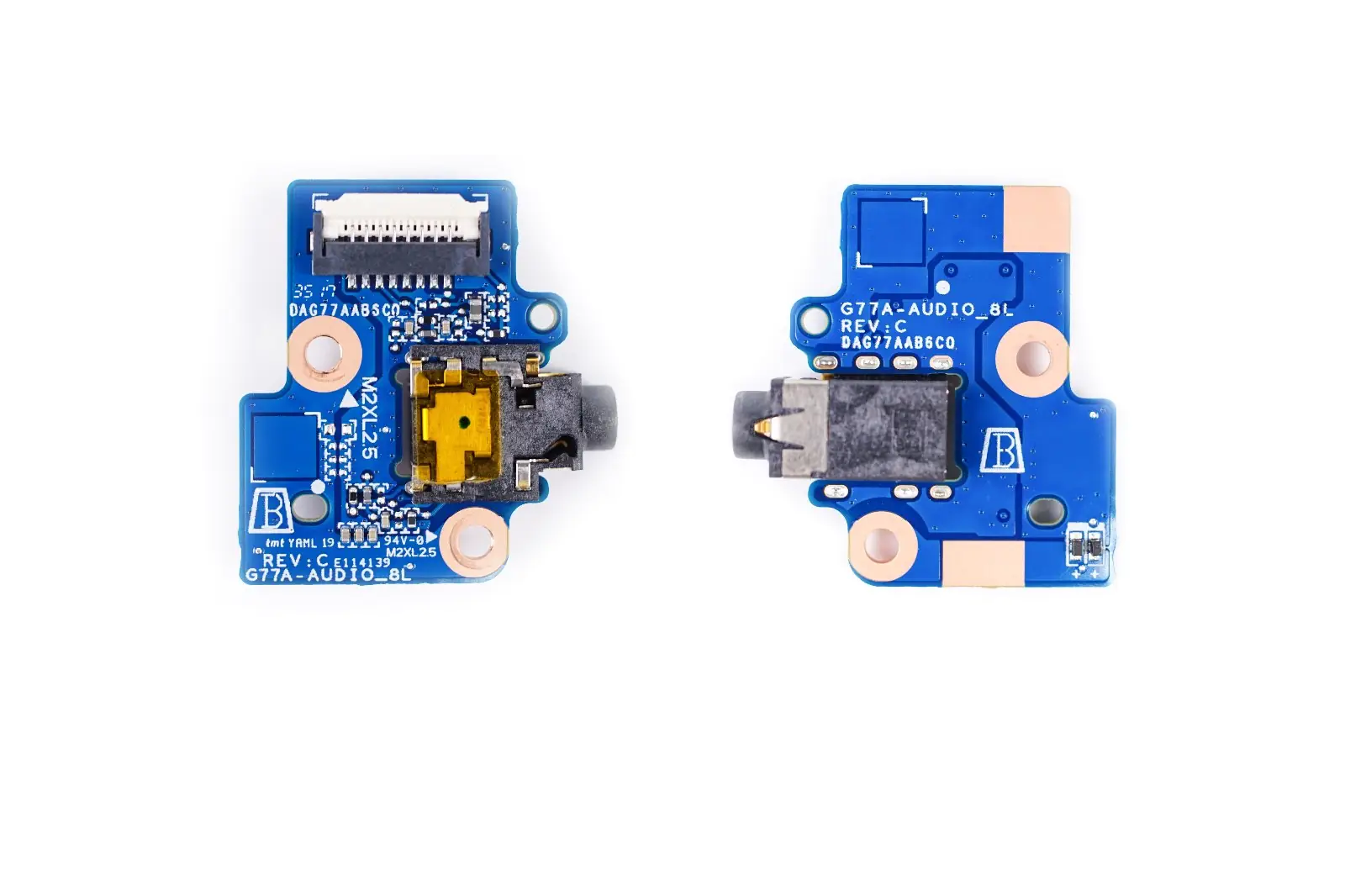

This small board integrates a 3.5mm headphone jack.
3.5mm headphone jack

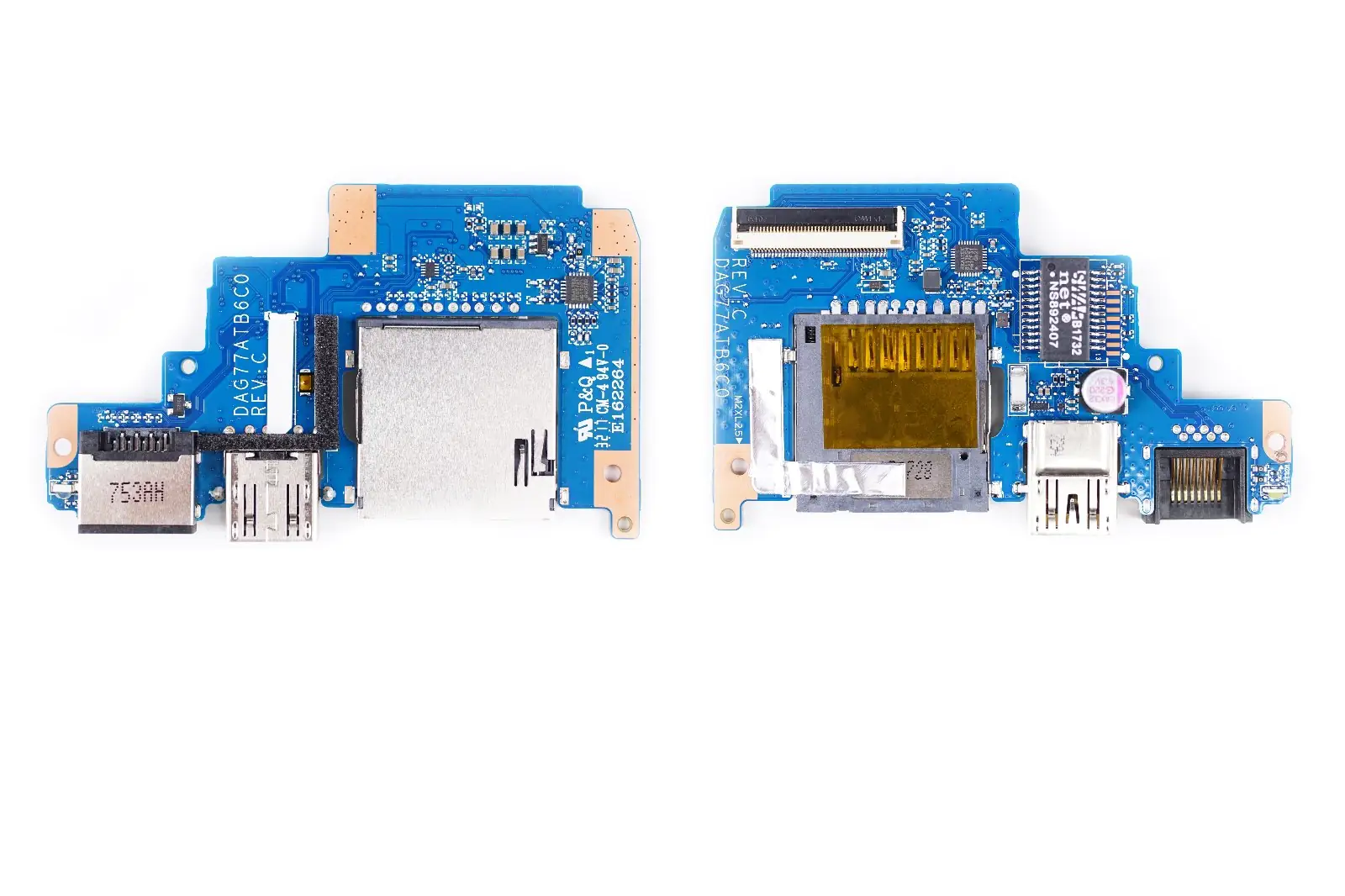

The I/O board, it is worth noting that the power button is also integrated here, in case the power button is damaged, you can easily repair and replace.
HP Pavilion 15-ck000 I/O board

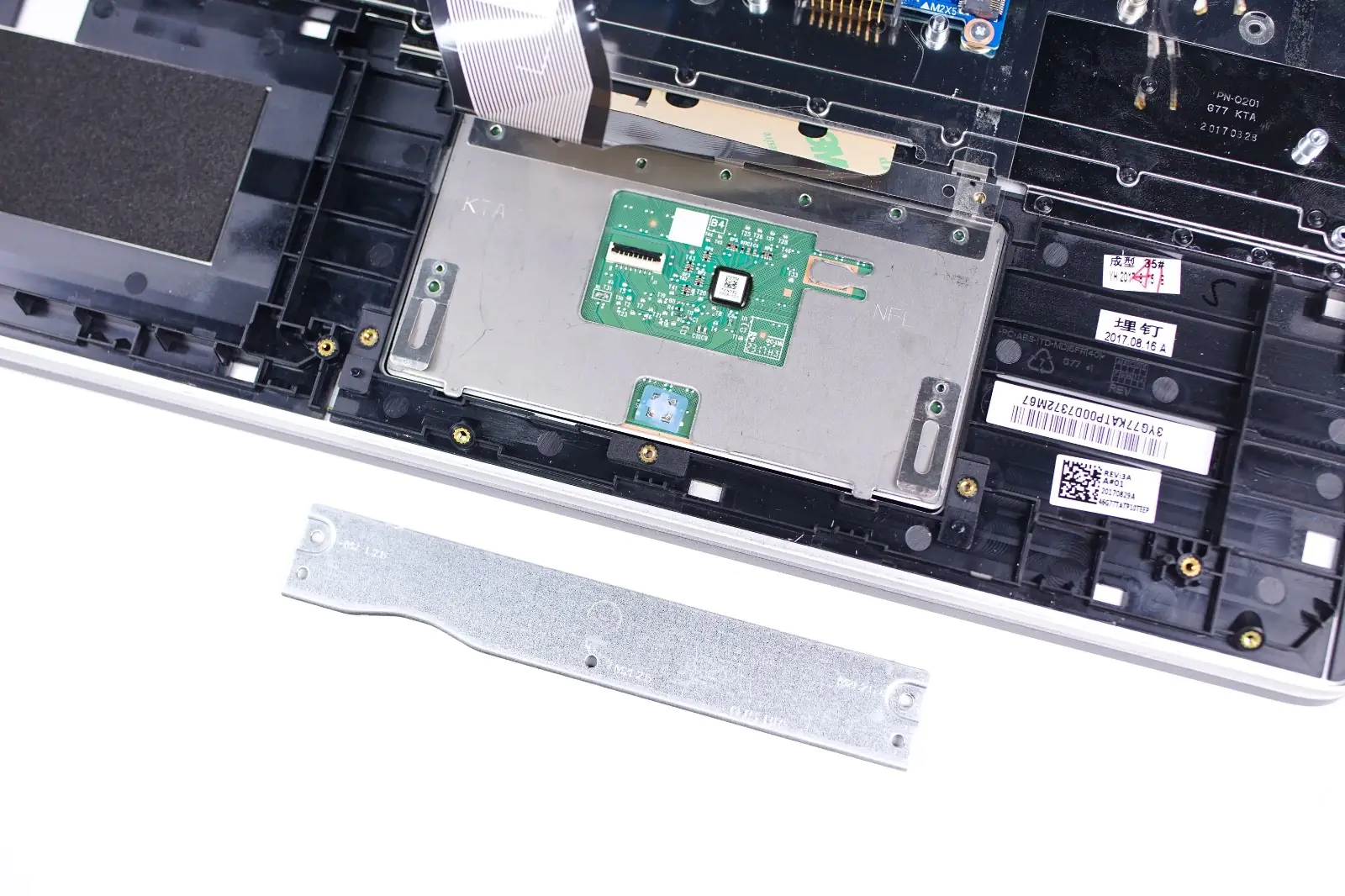

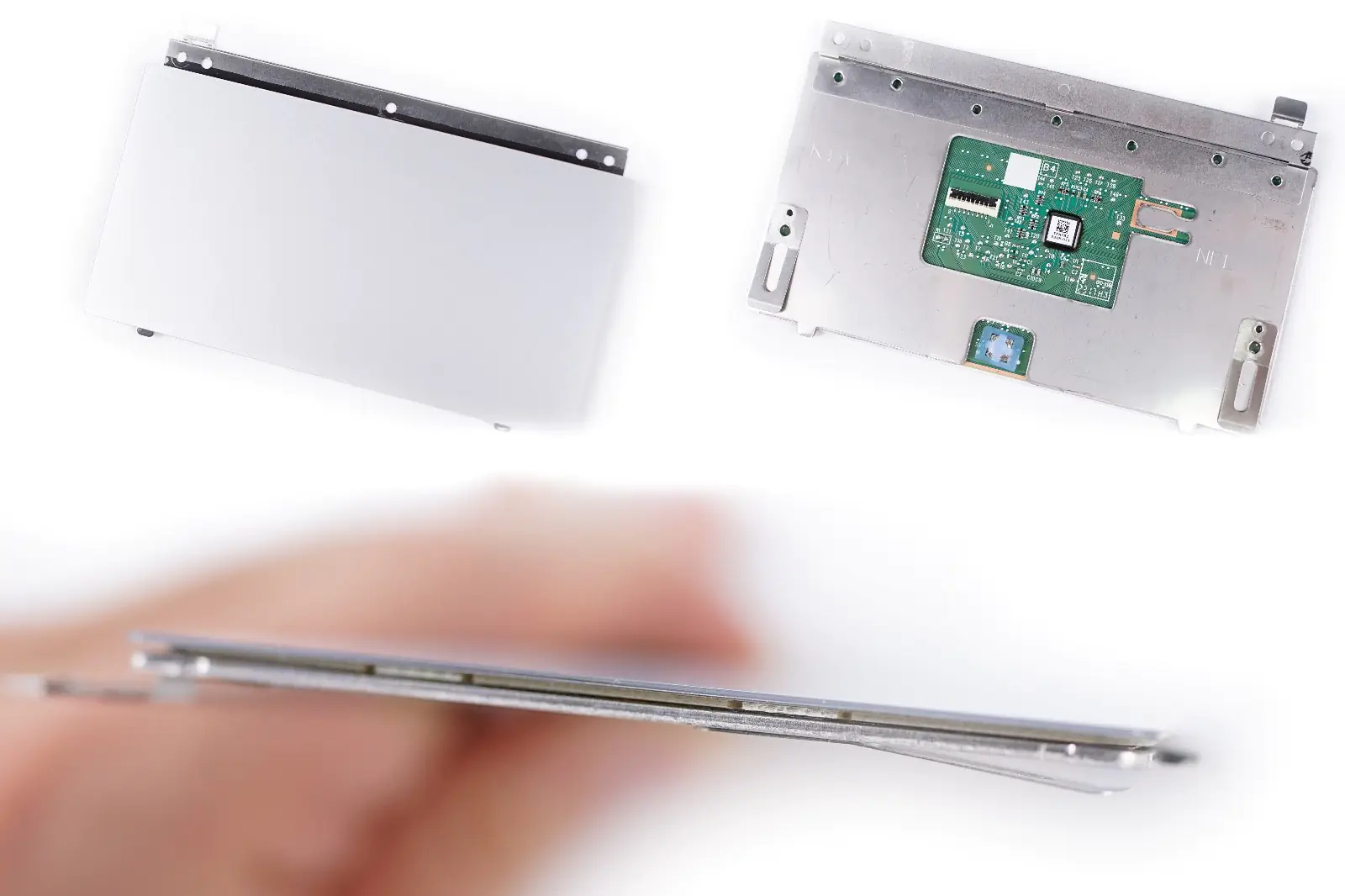

The touch pad has a special metal baffle to ensure that it doesn’t collapse when pressed.
HP Pavilion 15-ck000 touch pad

The surface of the touchpad is covered with a layer of glass to ensure a smooth touch feel.
HP Pavilion 15-ck000 touch pad

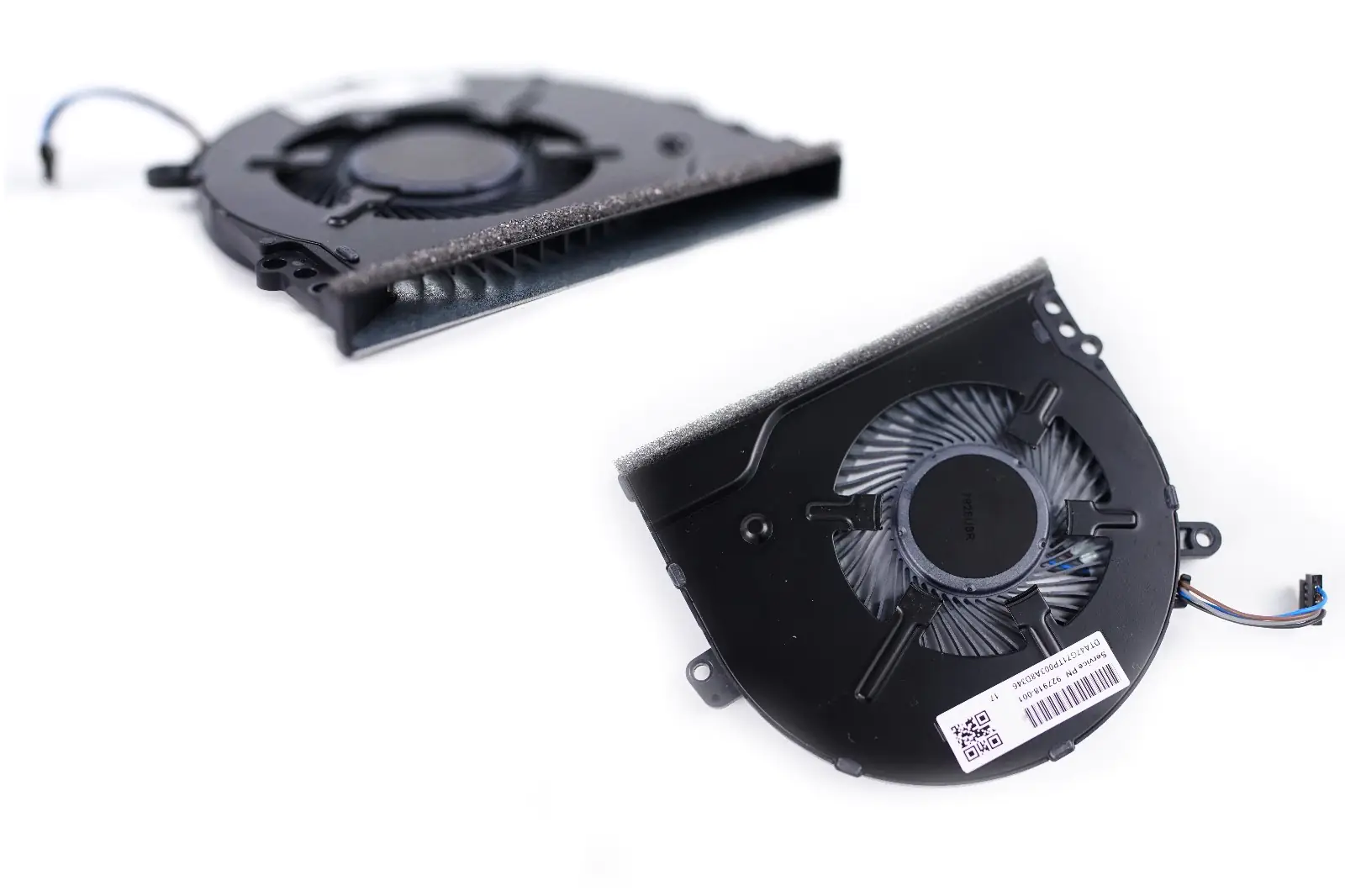

Although the Pavilion 15 uses a single fan design, but fortunately the fan size is larger, but also to ensure adequate air output. And with HP CoolSense can automatically adjust the computer performance and fan speed, to ensure that the computer in comfortable user experience.
HP Pavilion 15-ck000 cooling fan

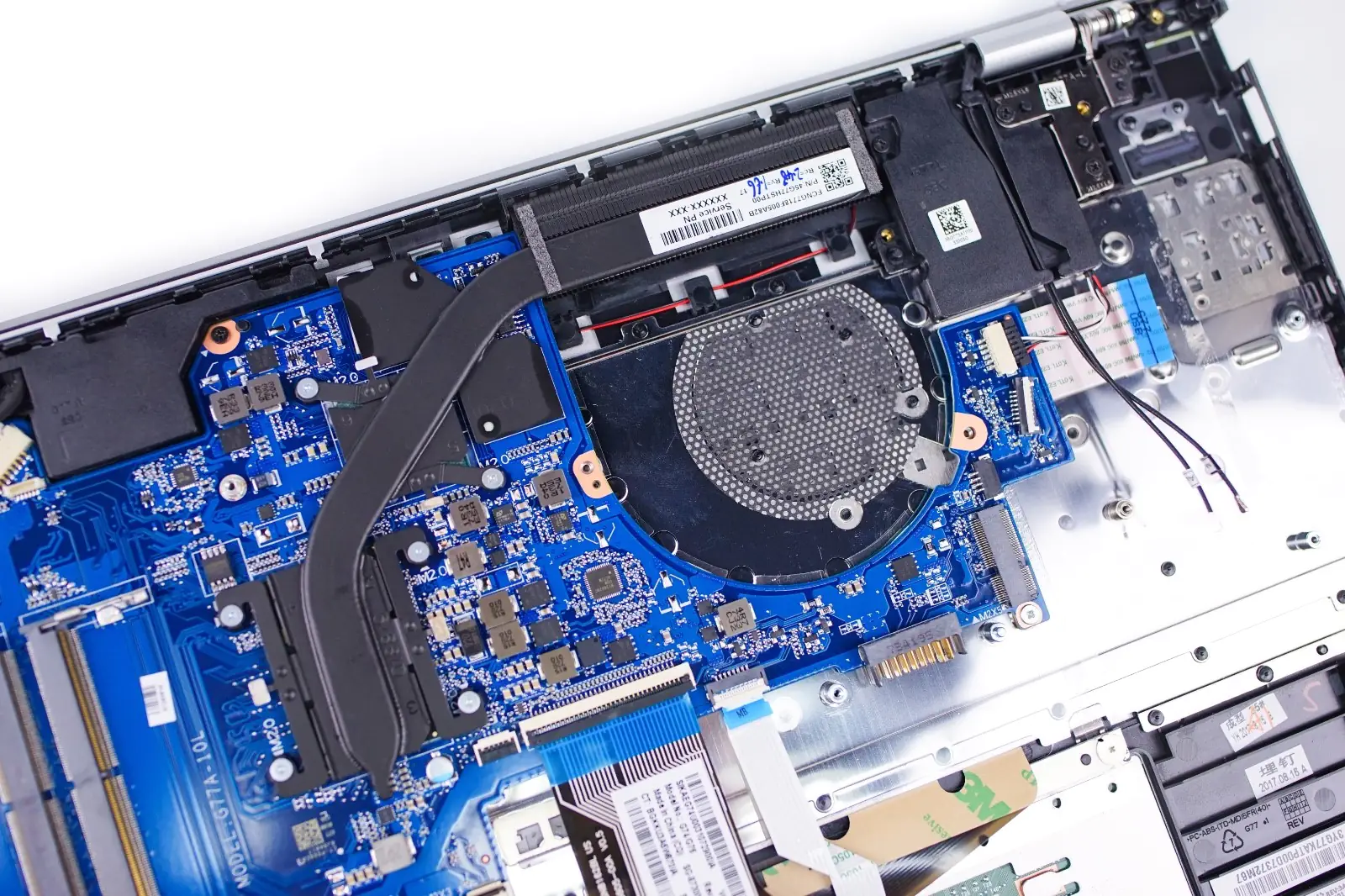

After taking off the fan, you can see that the palm rest is also designed with the air inlet to ensure adequate intake air volume.
HP Pavilion 15-ck000 fan

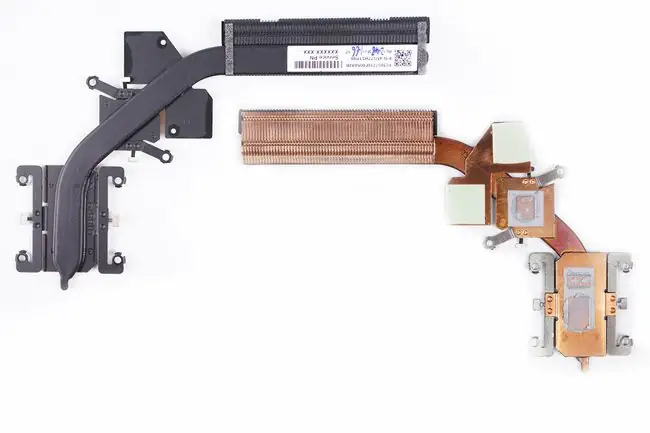

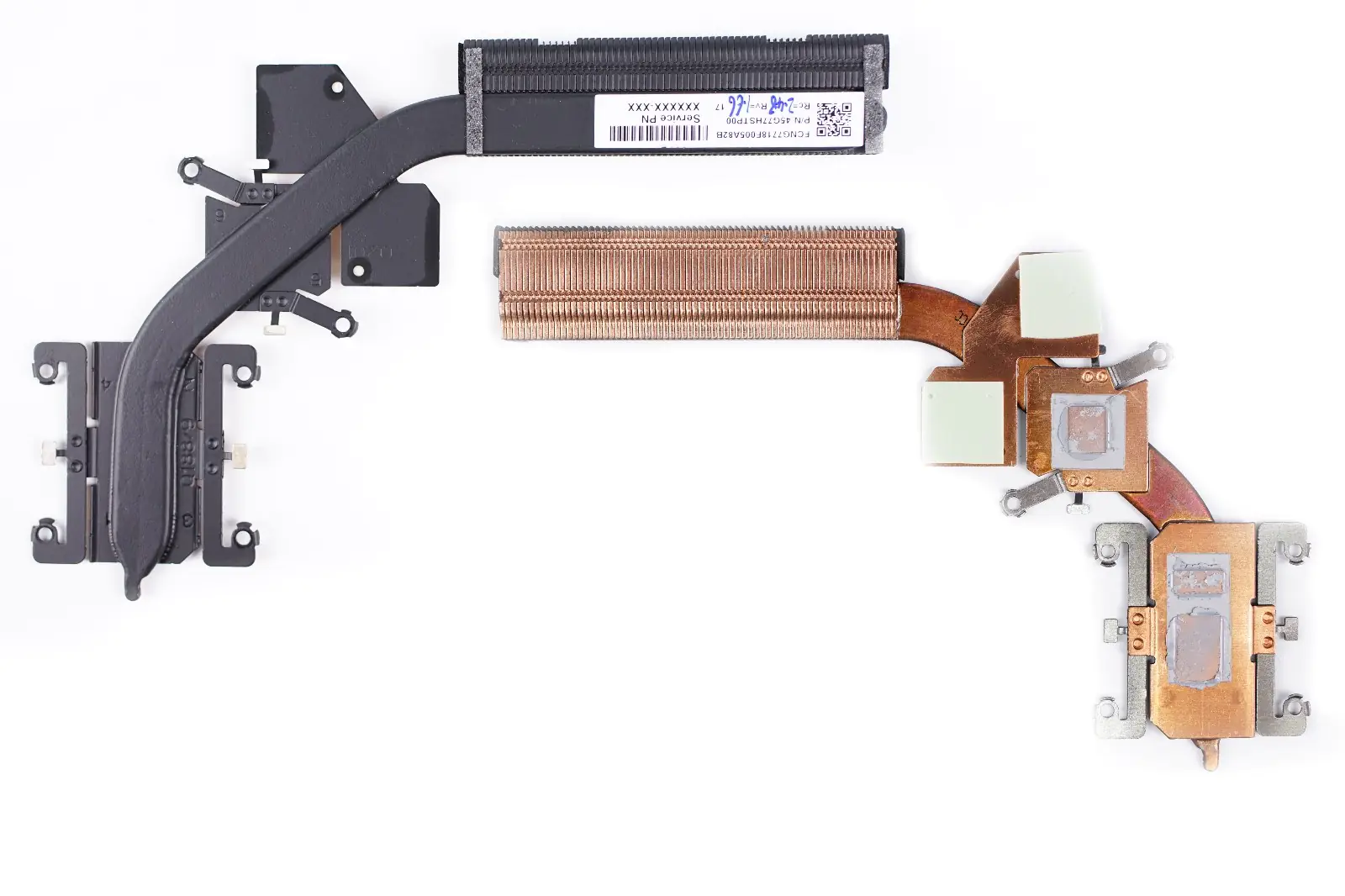

Although the cooling module only one copper tube covering CPU and GPU at the same time, but the copper tube has larger cross-section area and shorter length, which can ensure excellent thermal efficiency.
HP Pavilion 15-ck000 heat sink

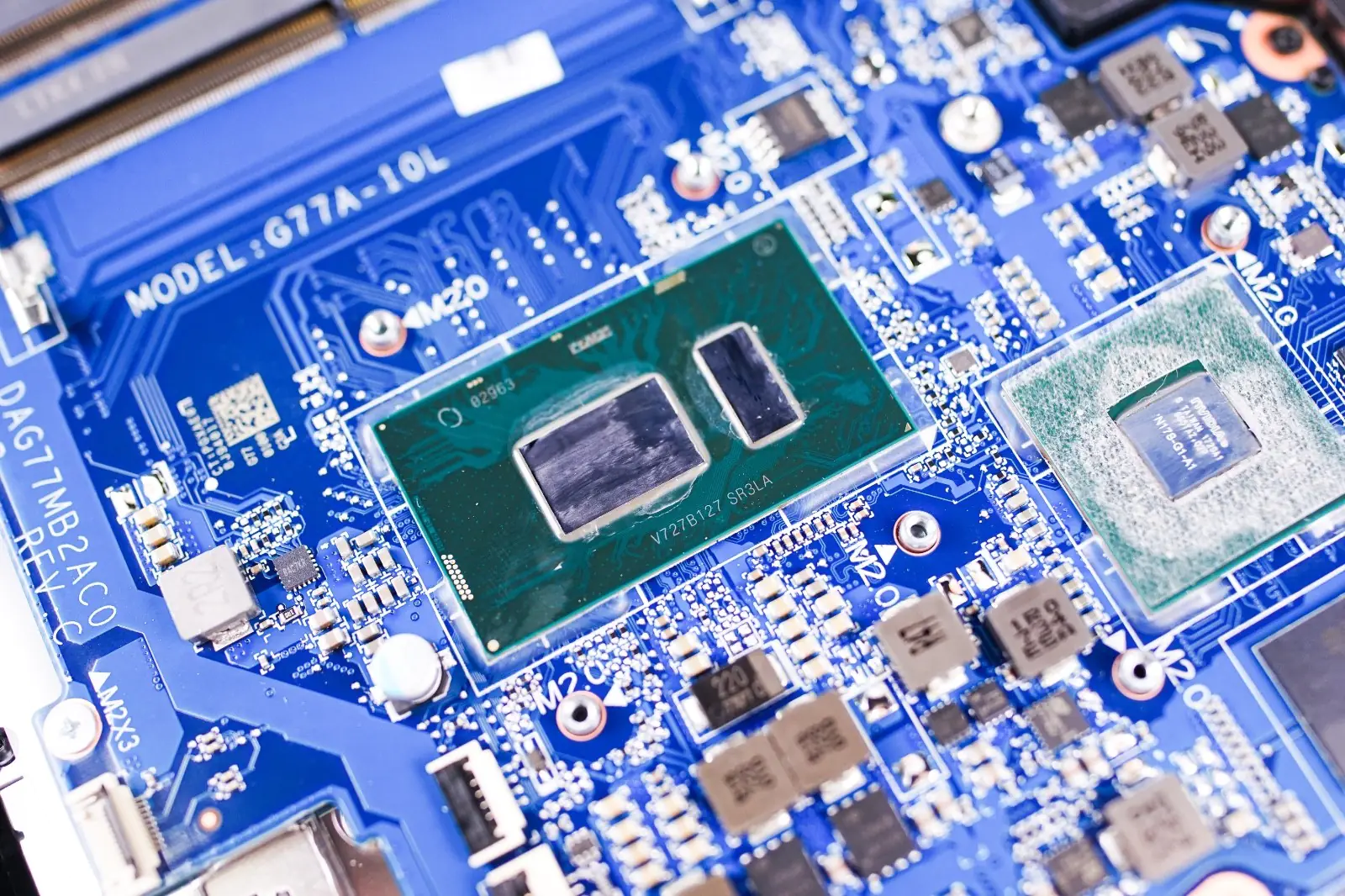

After removing the cooling module, you can see the Intel’s eighth-generation i5-8250U processor.
HP Pavilion 15-ck000 i5-8250U processor

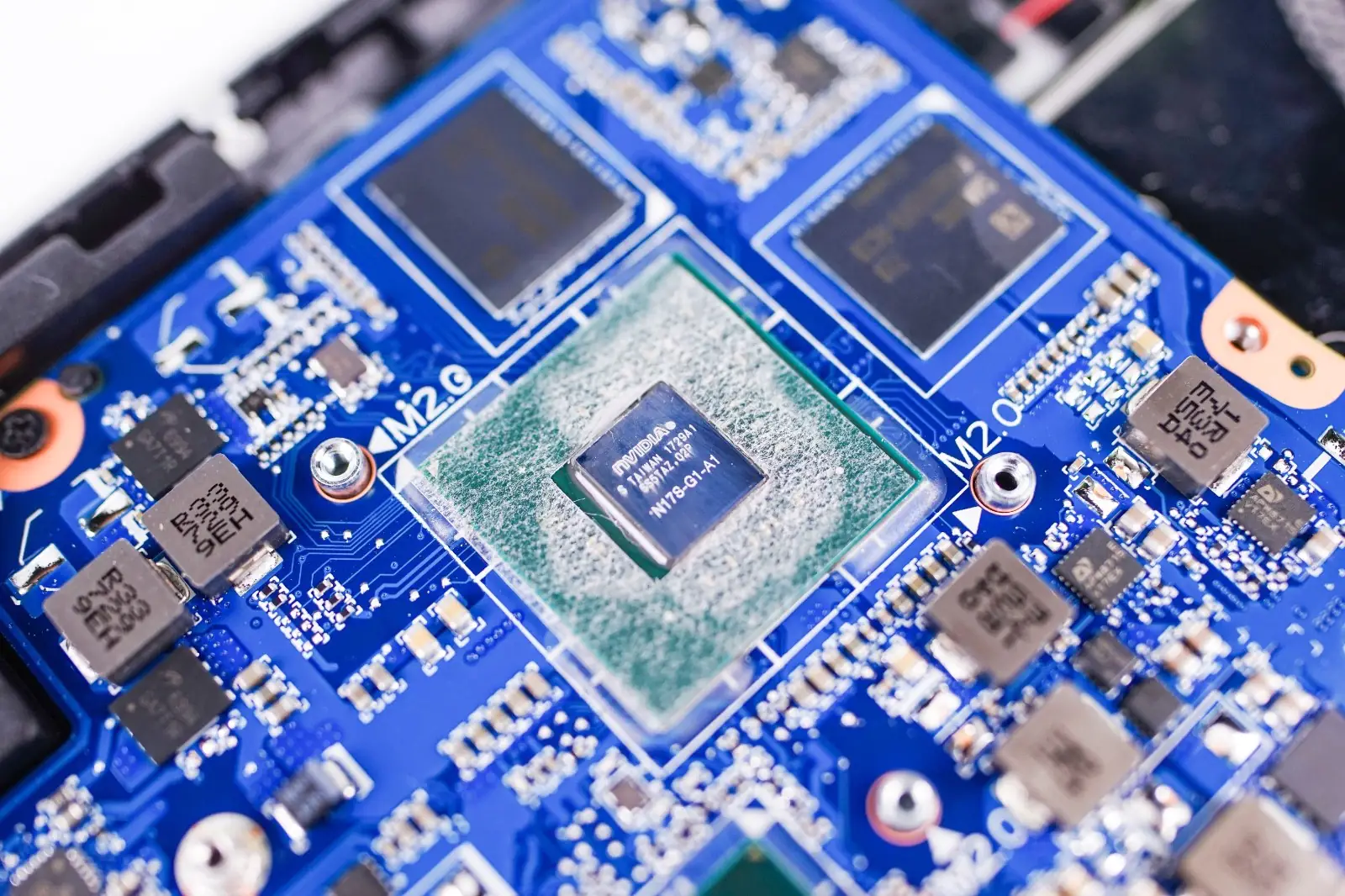

NVIDIA GeForce MX150 TDP25W graphics cards, the two black cubes above are two 1GB memory chips. The performance of this MX150 discrete graphics has significantly surpassed the previous generation GeForce 940MX.
HP Pavilion 15-ck000 GeForce MX150 TDP25W graphics cards

The two memory slots on the motherboard, because of the fuselage internal space constraints in the ultrabook, which resulting the RAM have to integrate on the motherboard, but the 15-inch large-size body will not exist this problem.
HP Pavilion 15-ck000 ram slots

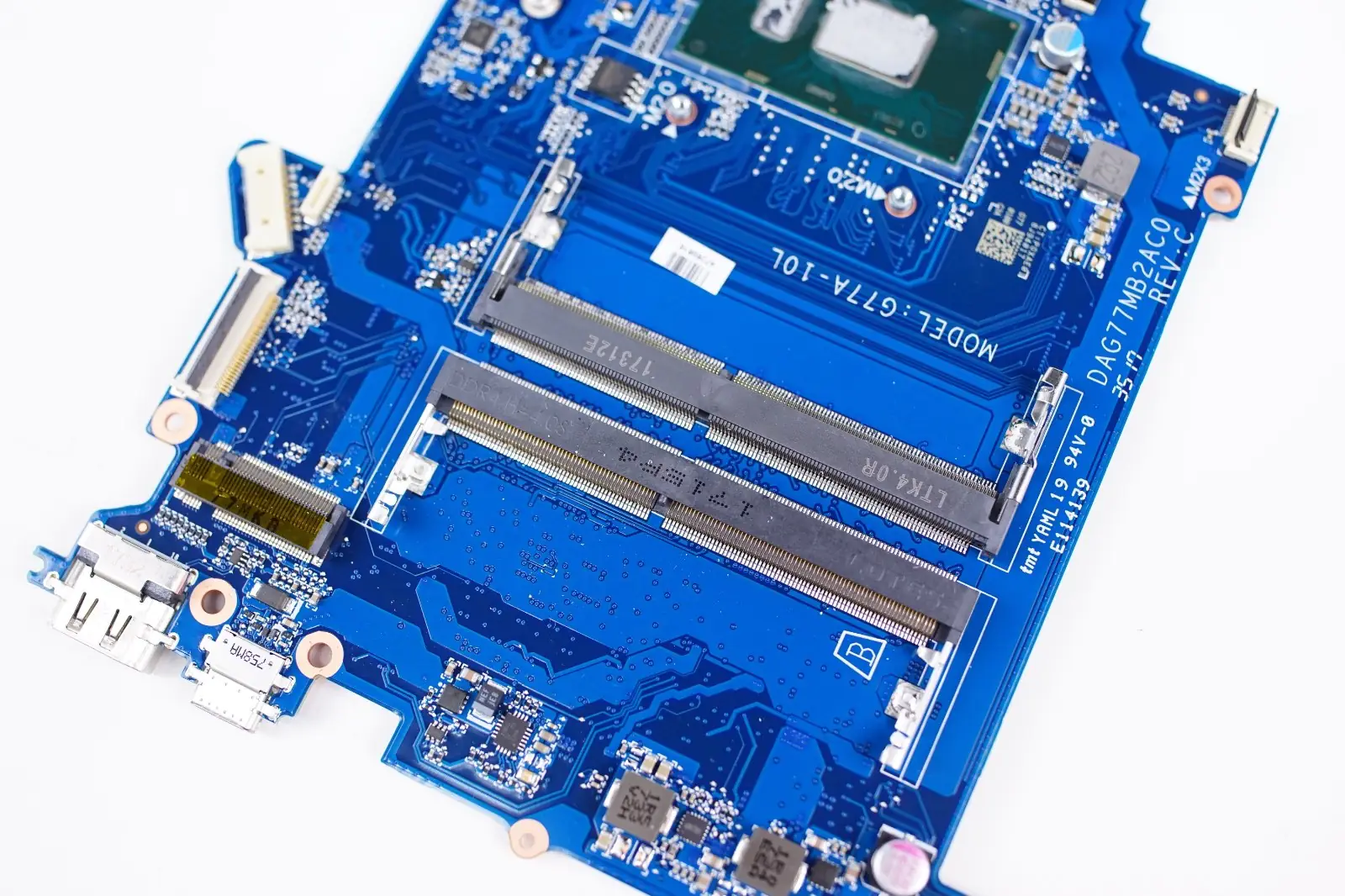

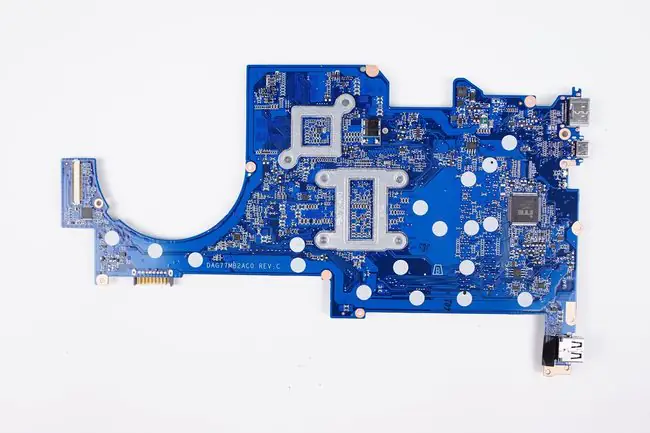

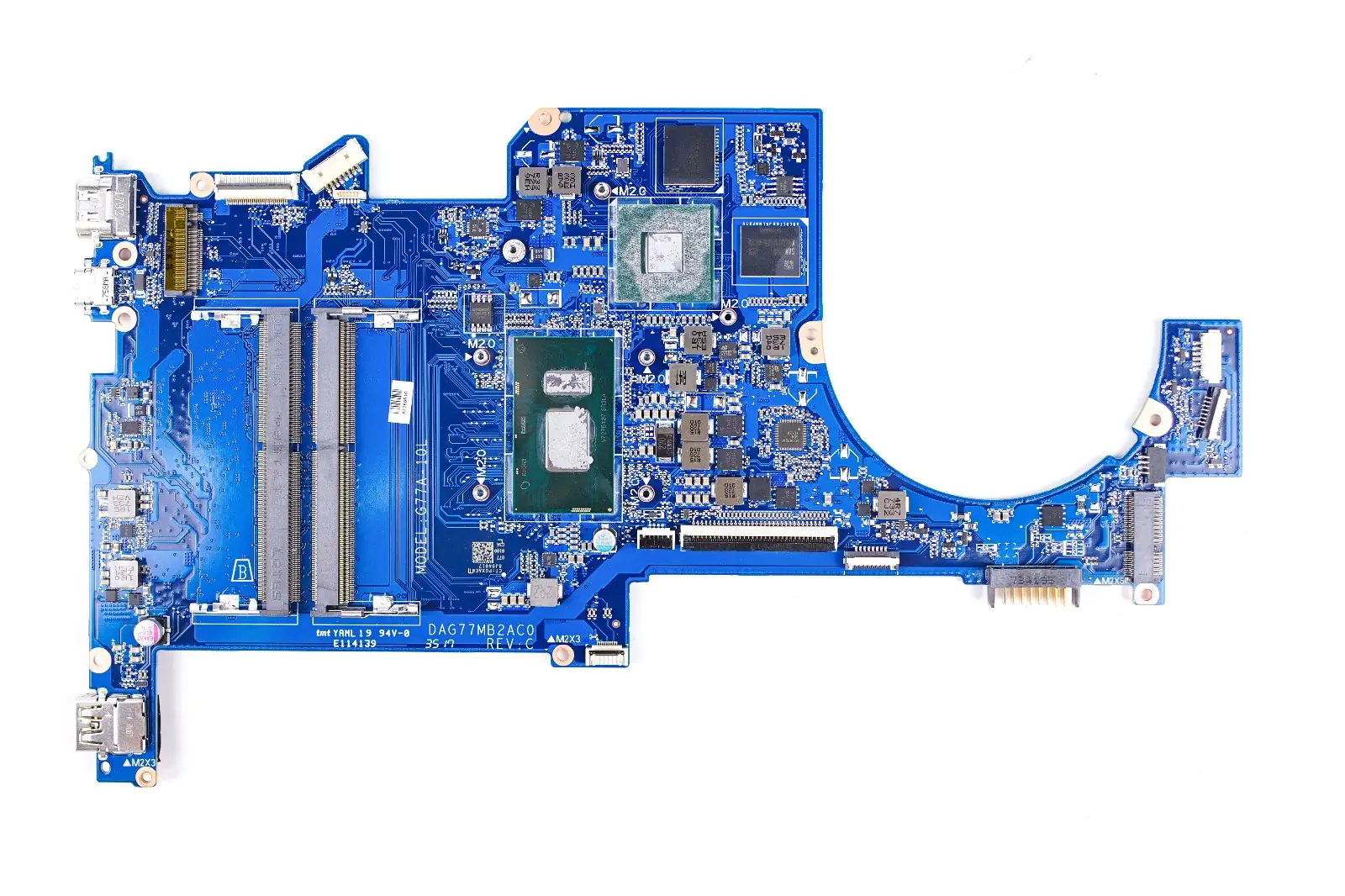

The front of the motherboard, you can see two memory slots occupy a lot of board space.
HP Pavilion 15-ck000 motherboard

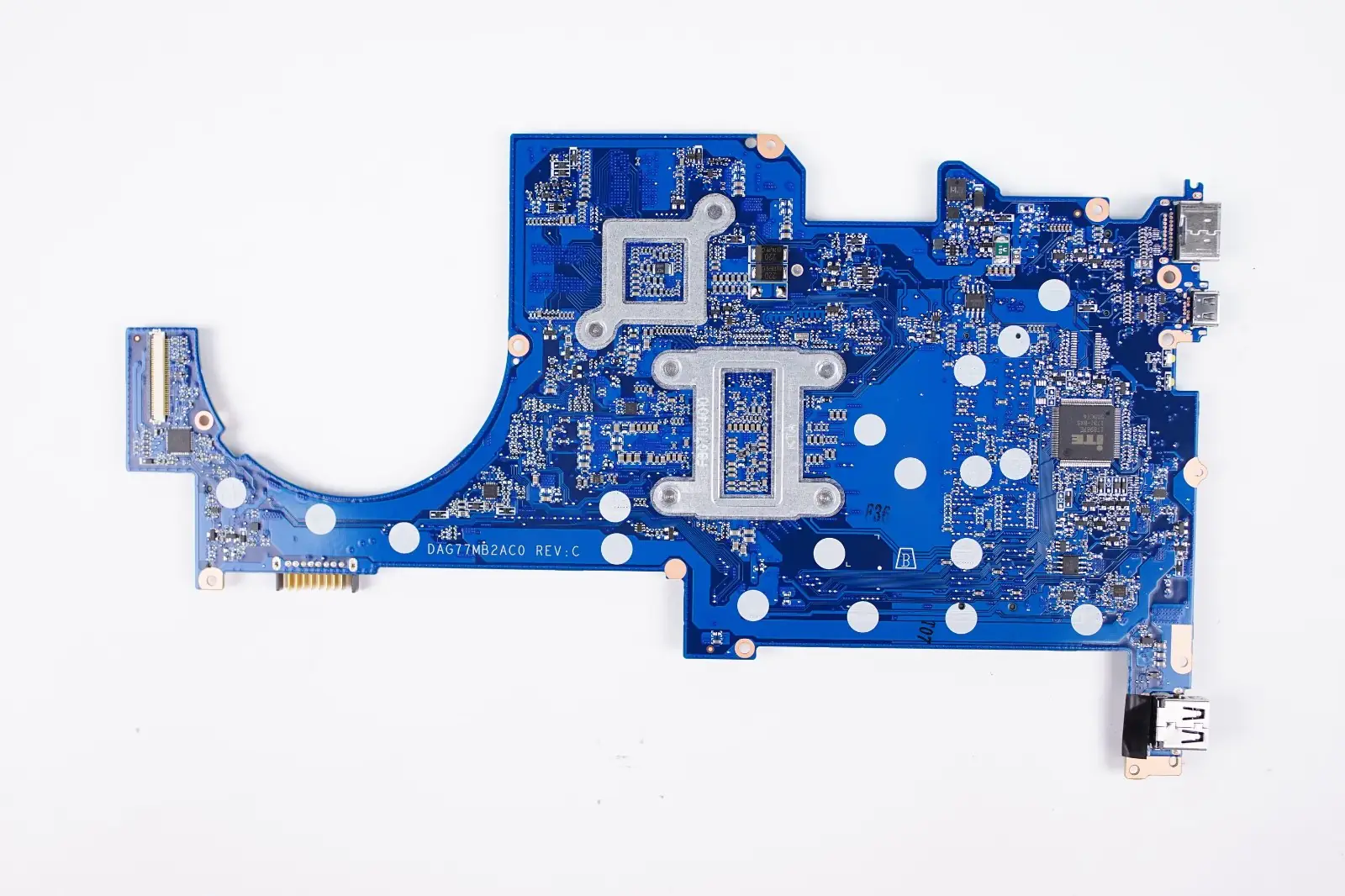

HP Pavilion 15-ck000 motherboard

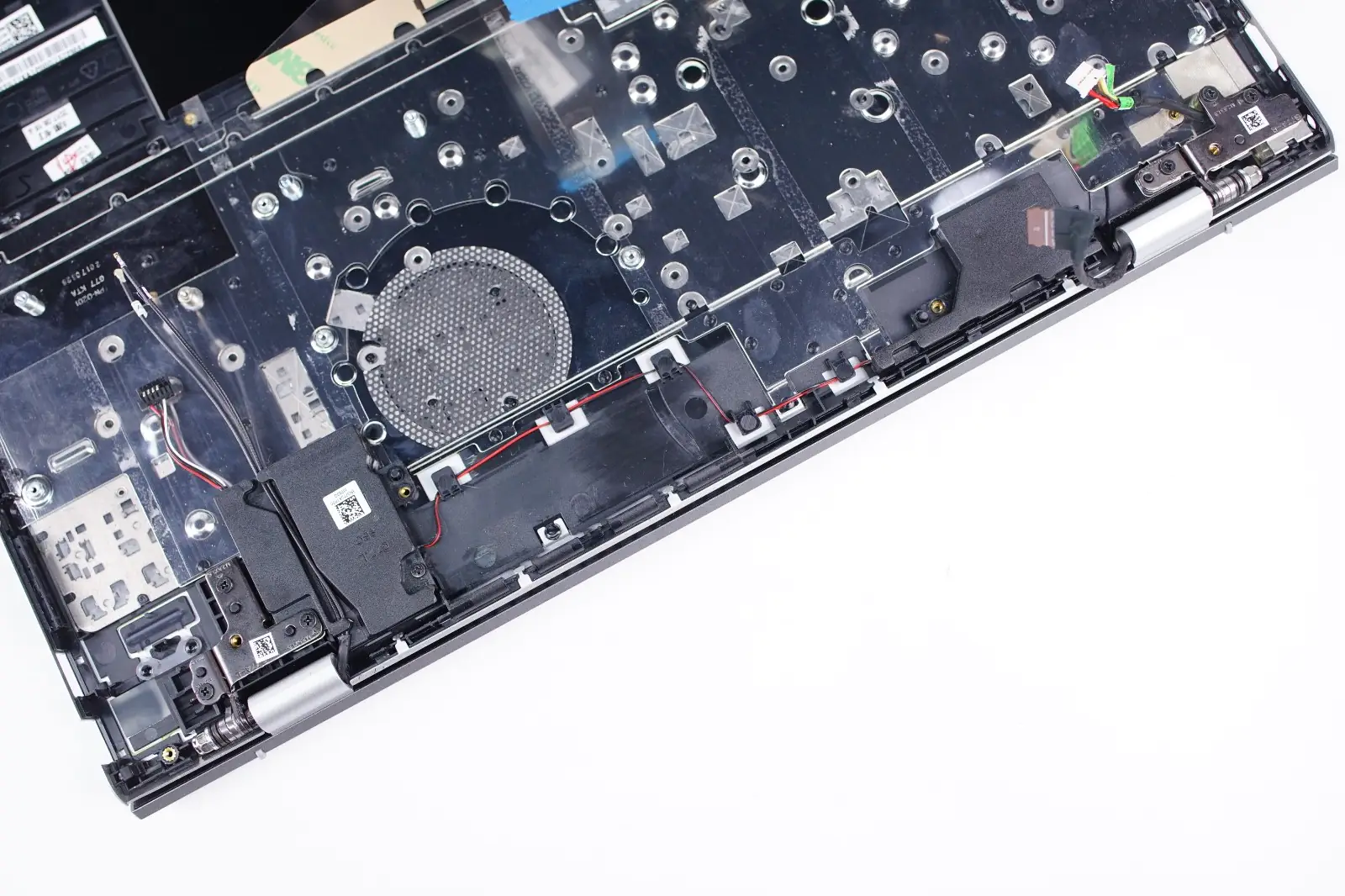

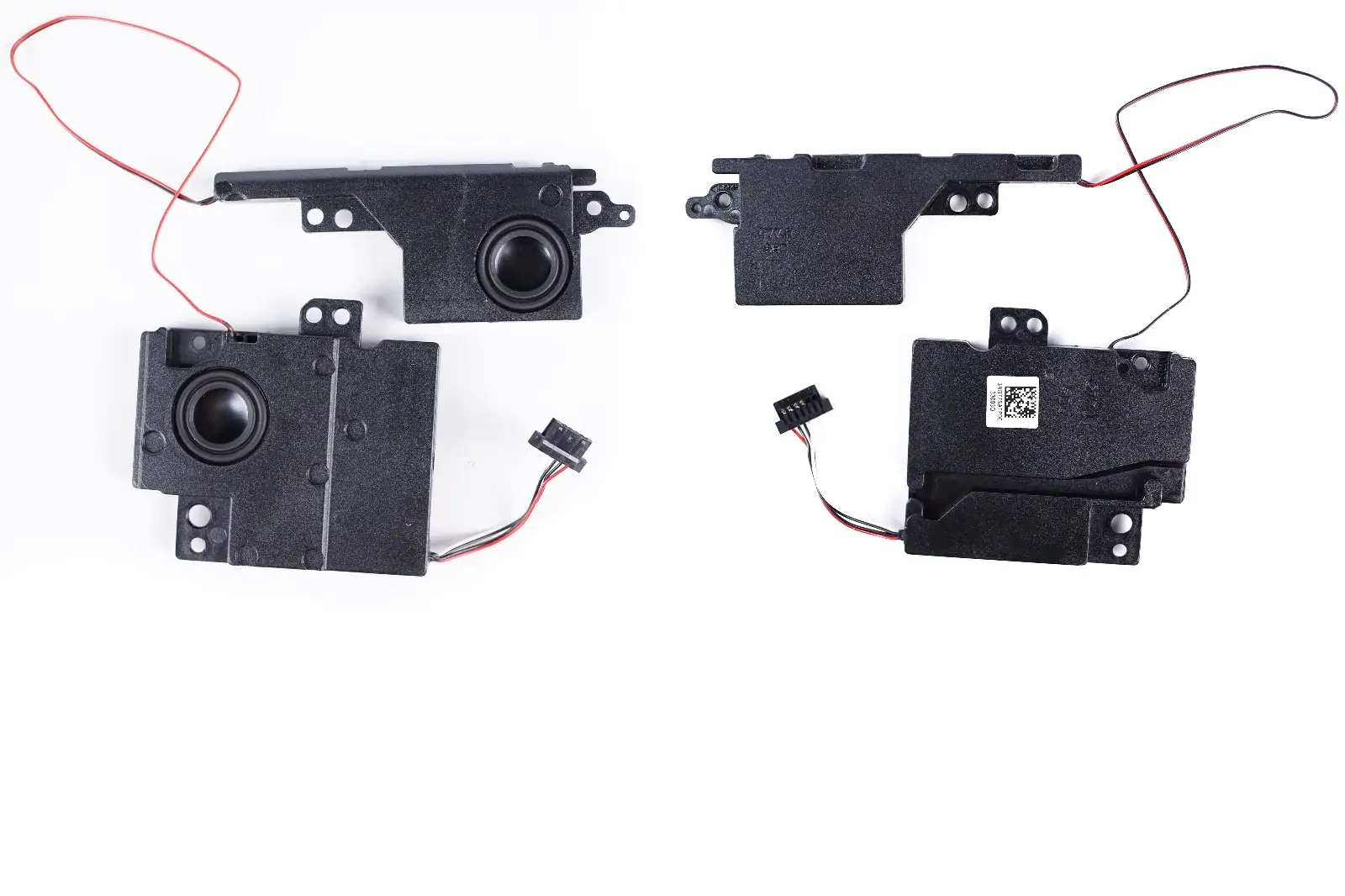

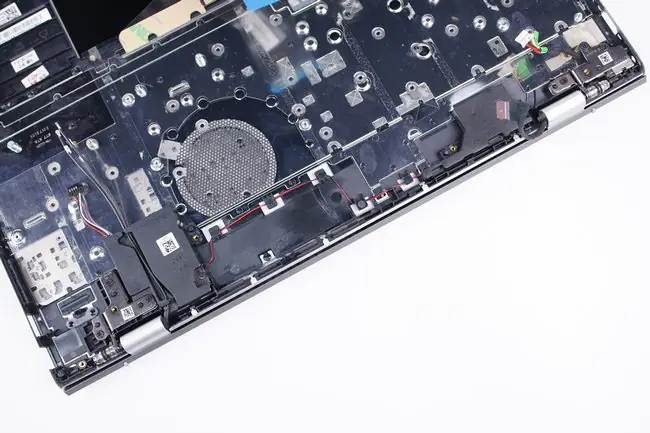

After removing the motherboard, you can clearly see the distribution of the two speakers. The connection between the two speakers is neatly fastened by a snap.
HP Pavilion 15-ck000 speaker

The speakers are relatively bulky and provide good hardware support for B&O sound.
HP Pavilion 15-ck000 speaker

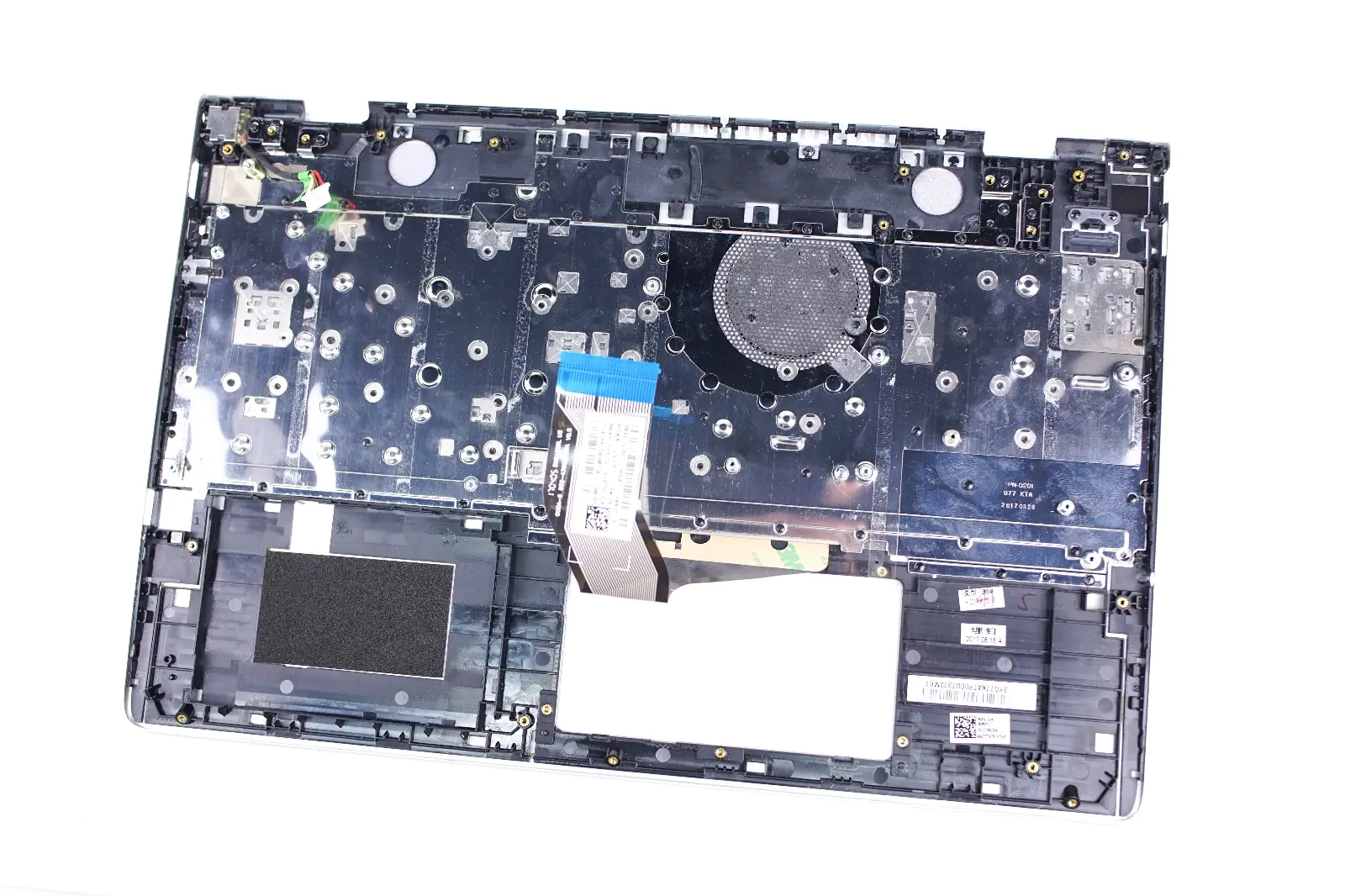

The back of the keyboard has a large piece of insulating paper to protect the motherboard will not touch the metal and affect the stability.
HP Pavilion 15-ck000 palm rest

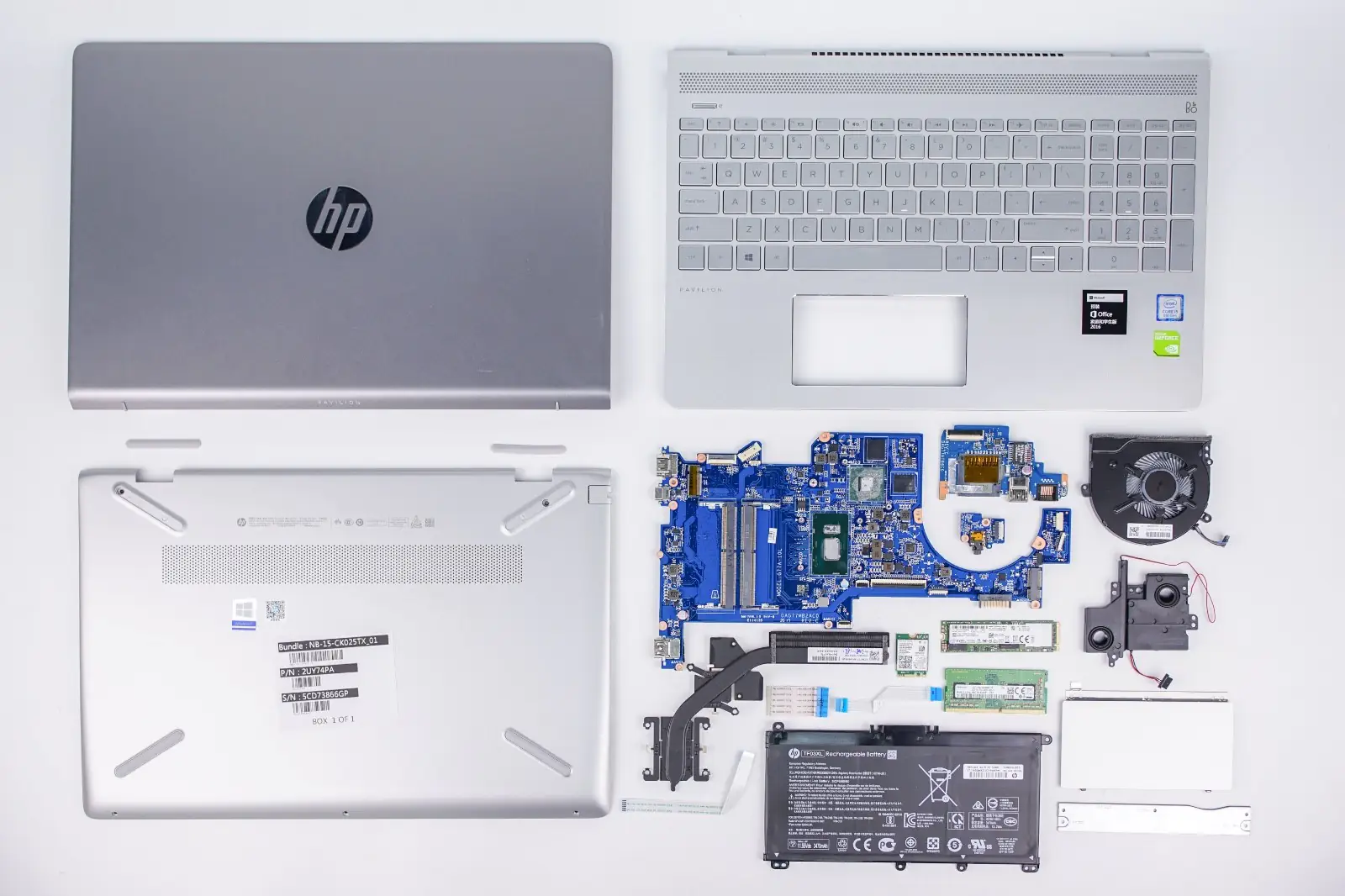

HP Pavilion 15-ck000 internal picture
