Lenovo IdeaPad Yoga 2 11 Disassembly

In the following guide, I will disassemble a Lenovo IdeaPad Yoga 2 11. Most internal components in this laptop can be replaced after you remove the top cover assembly. I will remove the battery, hard drive, bottom case, wireless card, speakers, and motherboard.

Please ensure that the laptop is turned off before disassembly. Remove all screws from the bottom case.
Remove all screws from the bottom case

Insert a pry tool between the bottom cover and the palm rest, and slide the pry tool to separate the bottom cover from the palm rest.
There are some black electromagnetic shielding stickers distributed on the bottom cover.

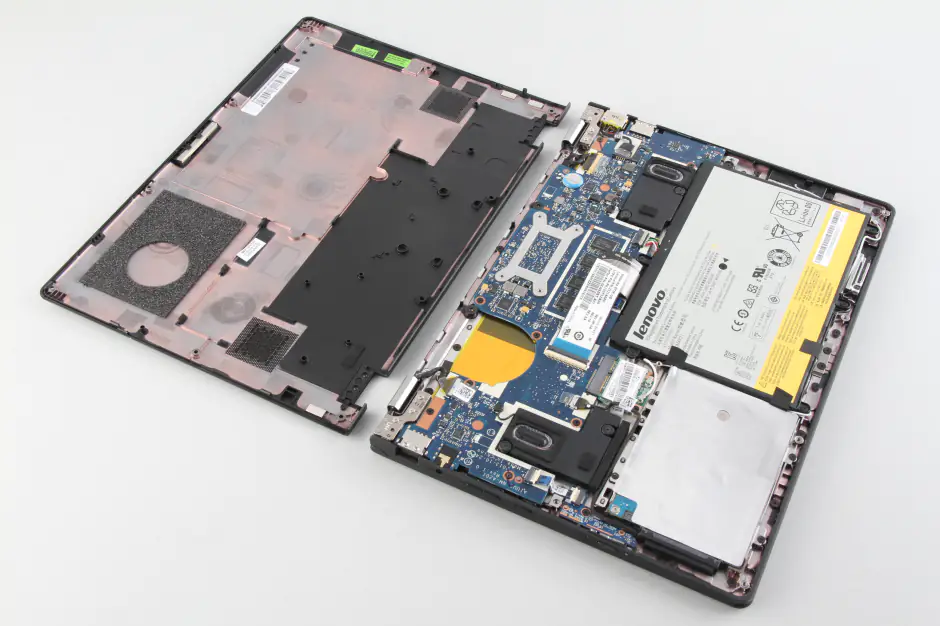

Remove the bottom case

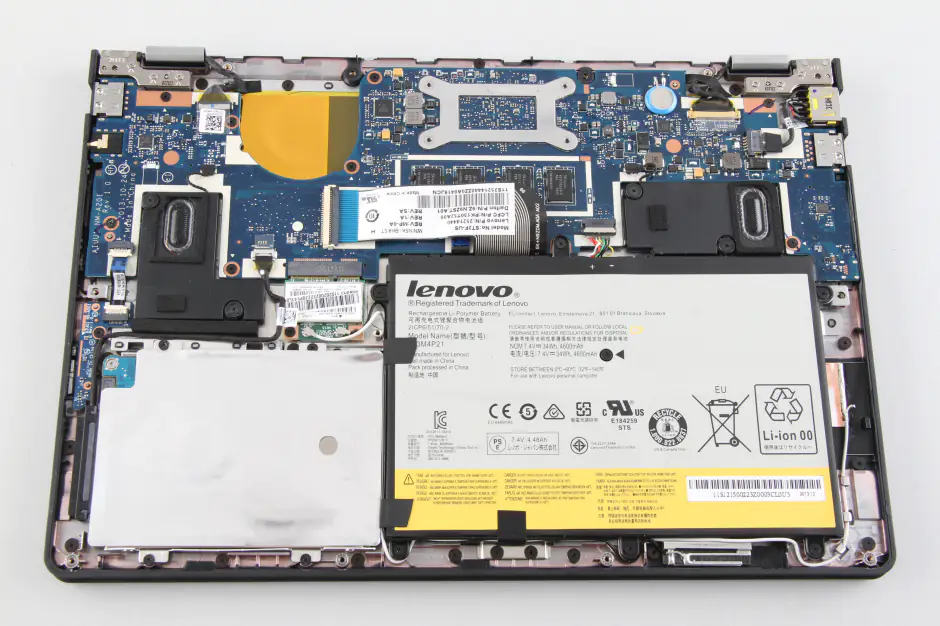

Under the bottom case, you can access the battery, hard drive, wireless card, speakers, and motherboard.
Close-up of the laptop after removing the bottom cover

Remove the six screws securing the battery.

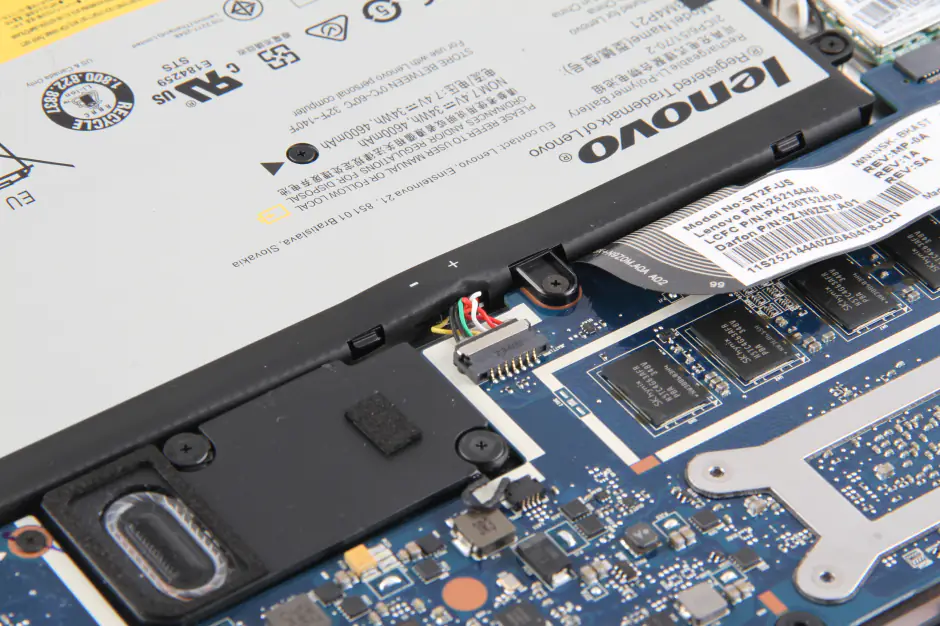

Disconnect the battery power cable from the motherboard. The battery can be removed.
Disconnect the battery connector

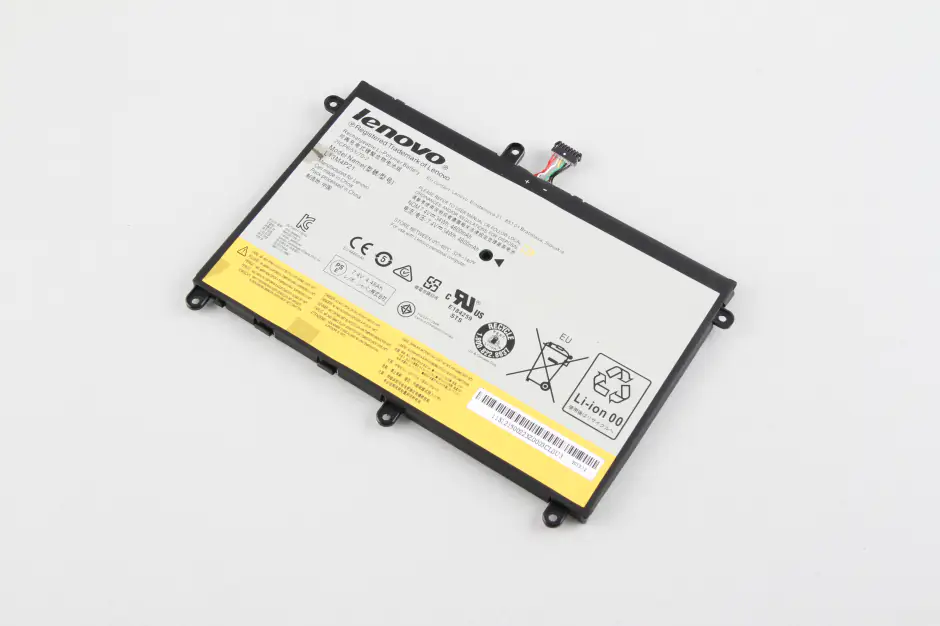

The laptop comes with a 7.4V, 34Wh Li-polymer battery.
Lenovo IdeaPad Yoga 2 11 battery

Lenovo IdeaPad Yoga 2 11 battery

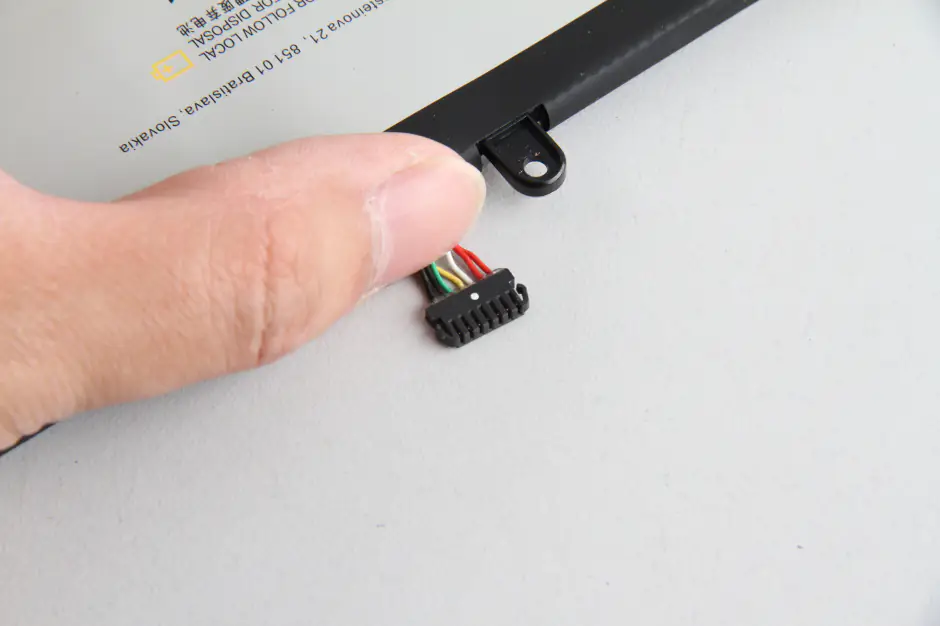

Battery connector

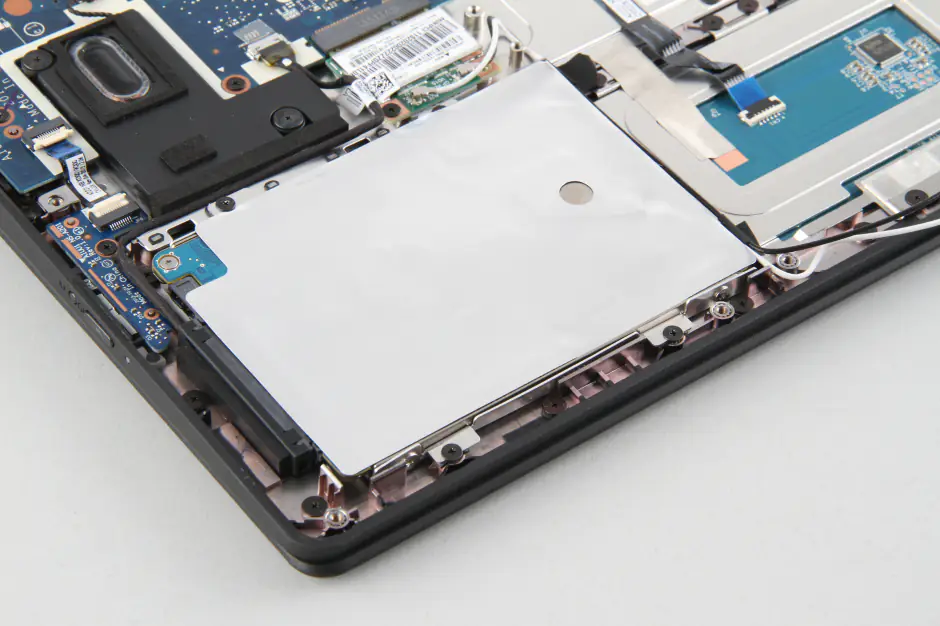

Remove the four screws securing the hard drive module.
Remove the hard drive

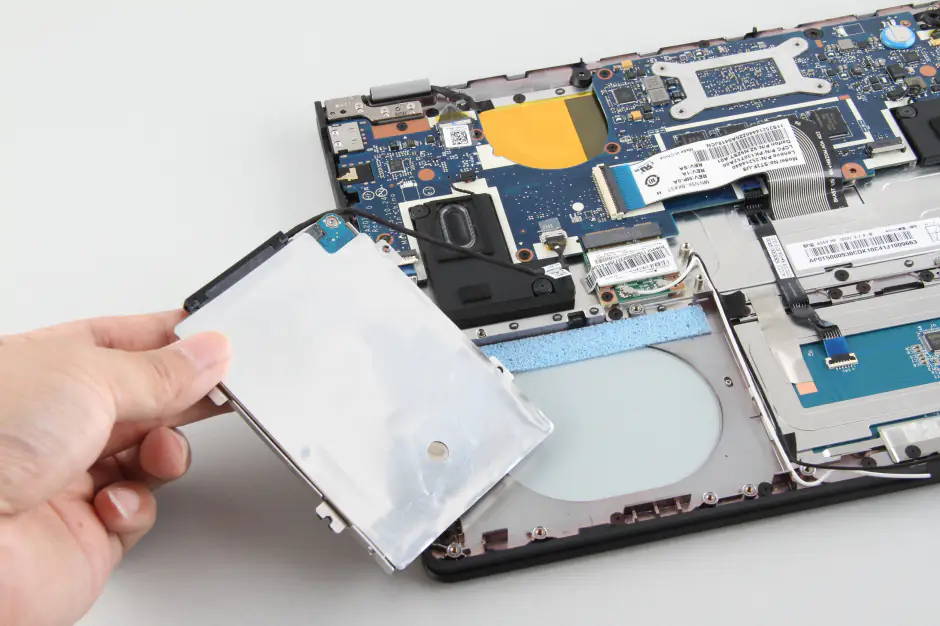

Lift up the hard drive module. You can see the HDD cable still connected to the motherboard.
Disconnect the HDD cable

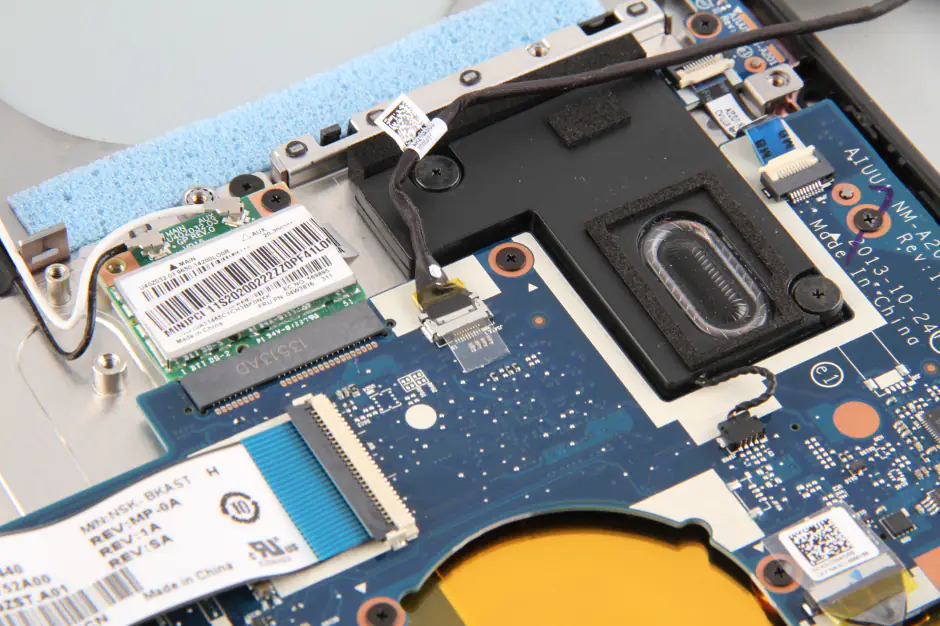

Lift up the scotch tape and disconnect the HDD cable from the motherboard.
Disconnect the HDD cable

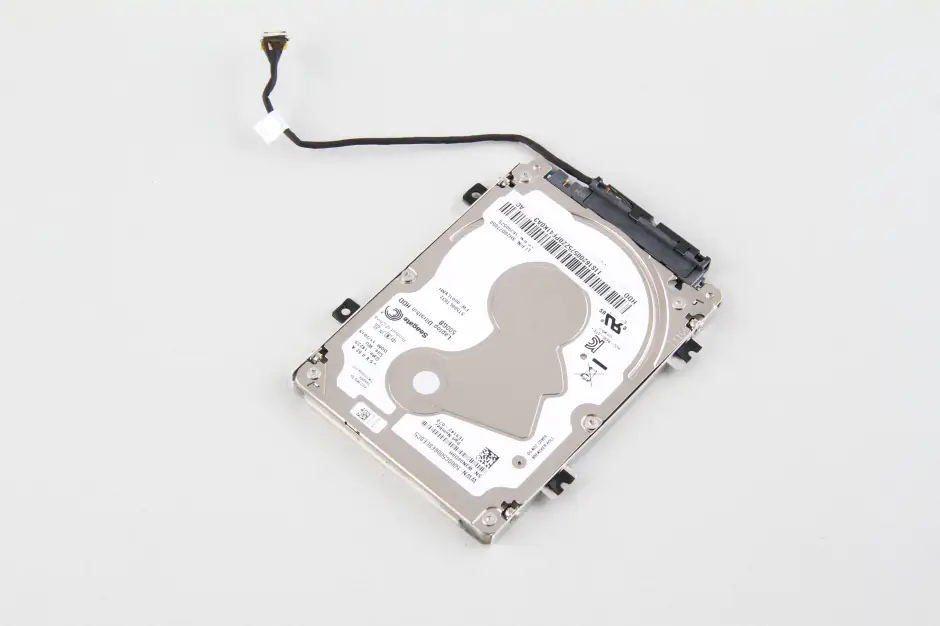

The Lenovo IdeaPad Yoga 2 11 features a Seagate 500GB 5400 RPM hard drive.
Lenovo IdeaPad Yoga 2 11 hard drive

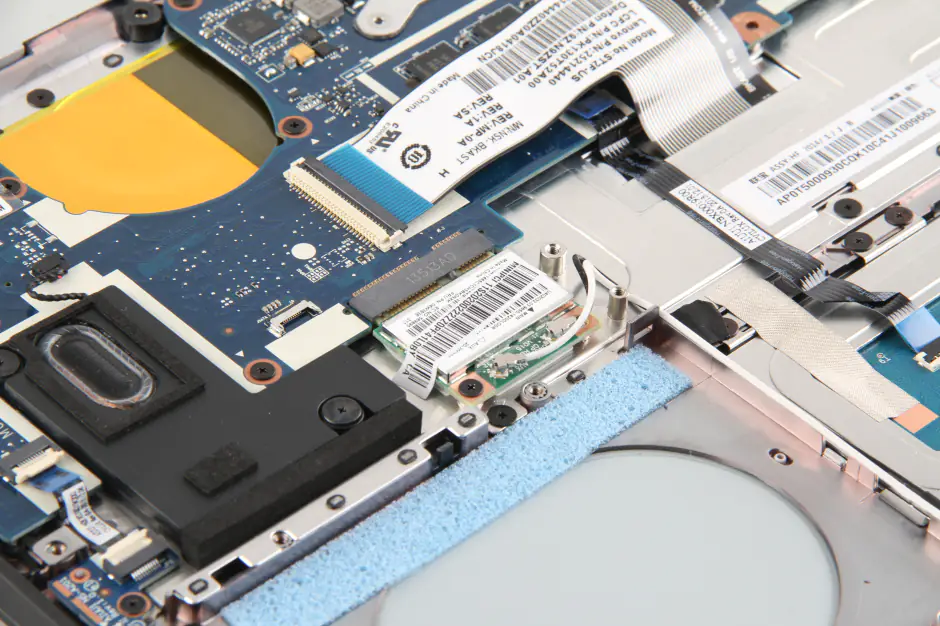

Remove the screw securing the wireless network card.
Disconnect the two antenna cables. You can now remove the wireless network card.
Remove the wireless card

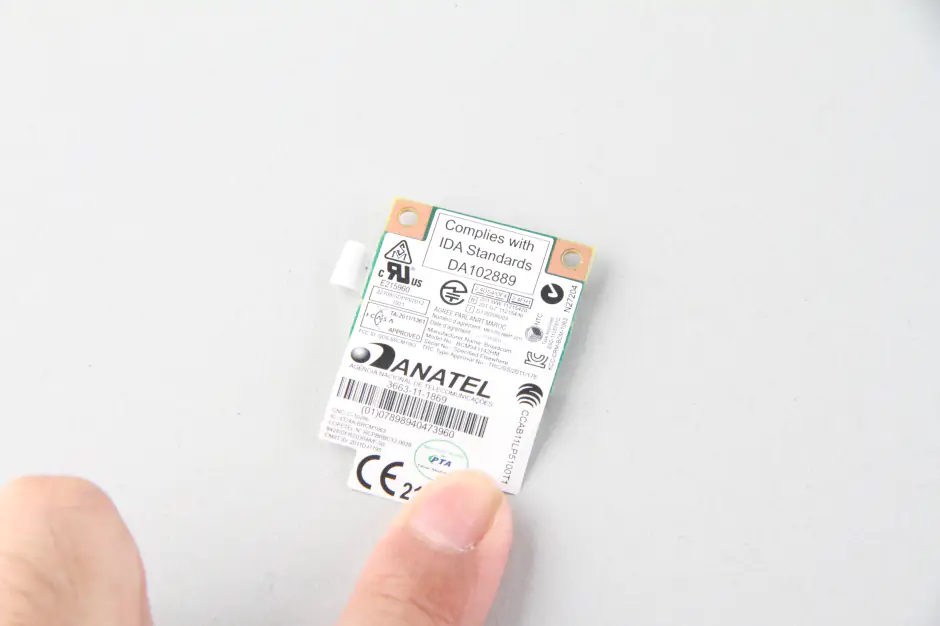

Lenovo IdeaPad Yoga 2 11 wireless card
Wireless card

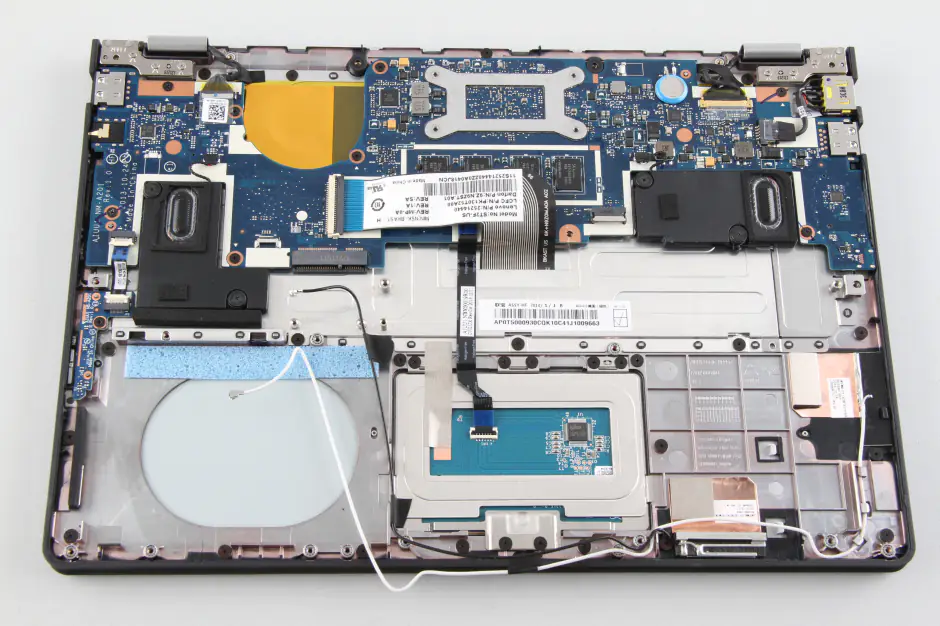

Remove all screws securing the speaker modules (left and right).
Disconnect the speaker cables from the motherboard.
Remove the speakers

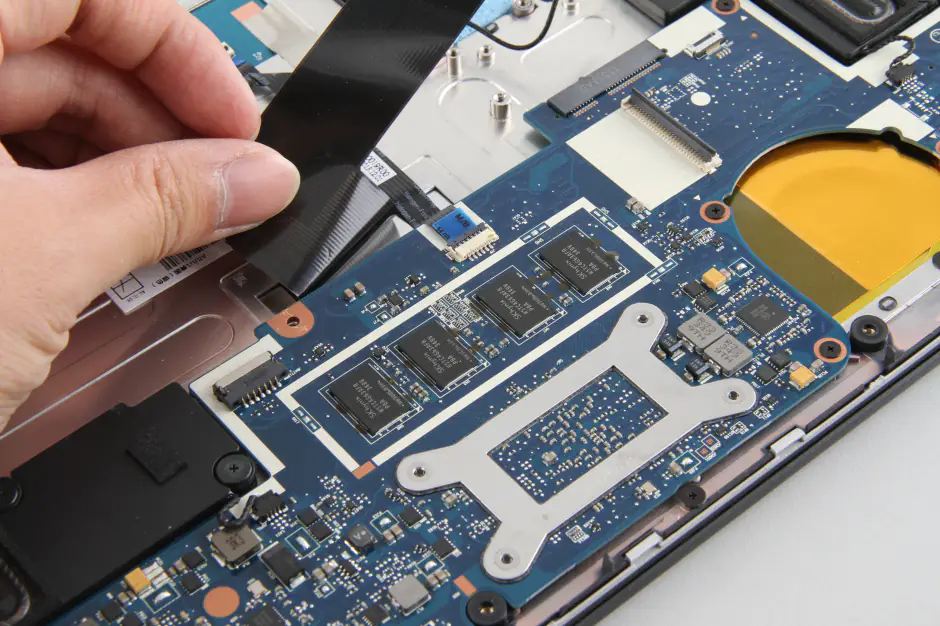

Disconnect the keyboard ribbon cable from the motherboard.
Disconnect the keyboard ribbon cable

Two speakers
Two speakers

Speakers

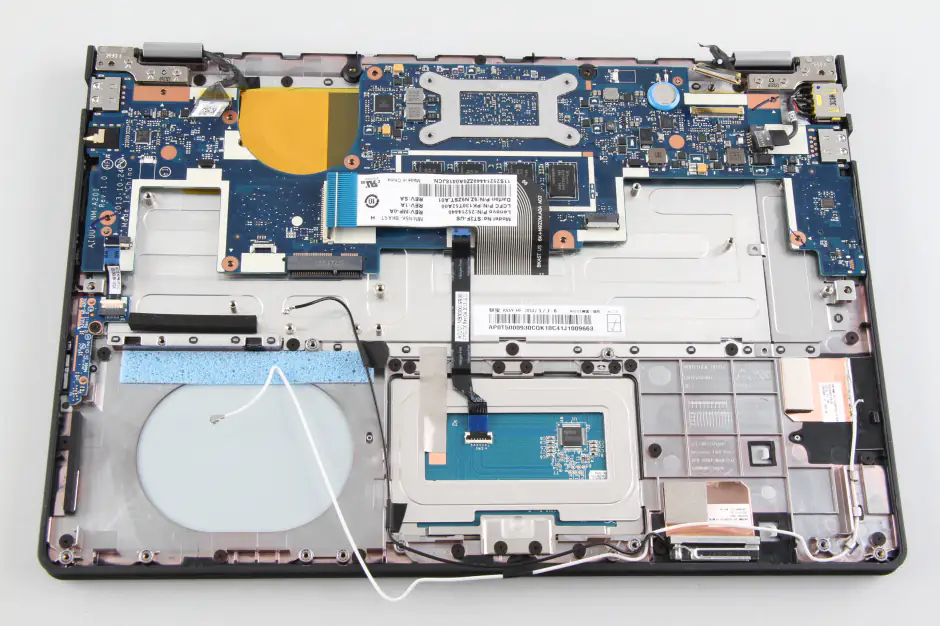

In the next step, I will remove the motherboard.
Internal picture

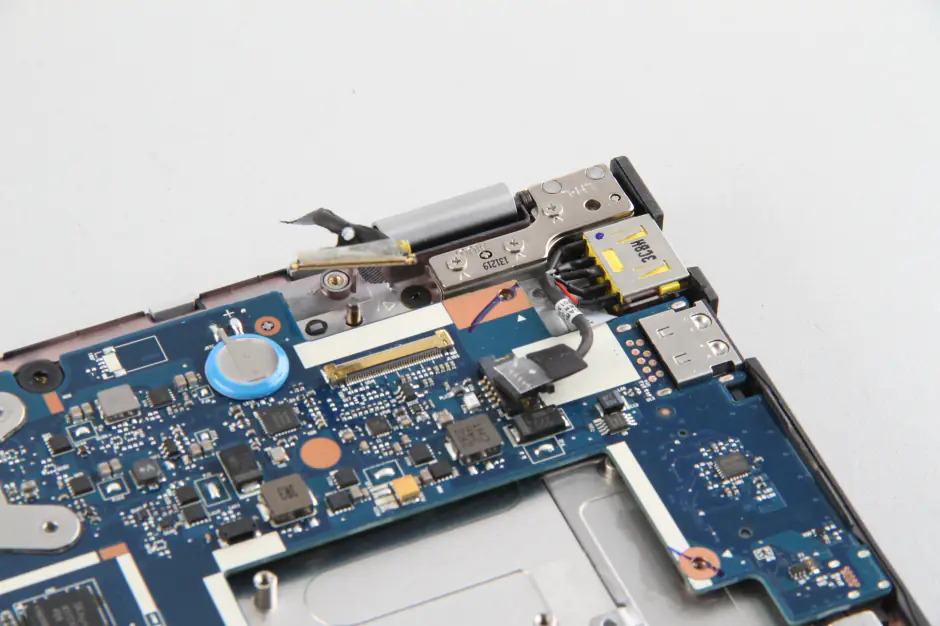

Disconnect the DC power jack cable.
Disconnect the DC power jack cable

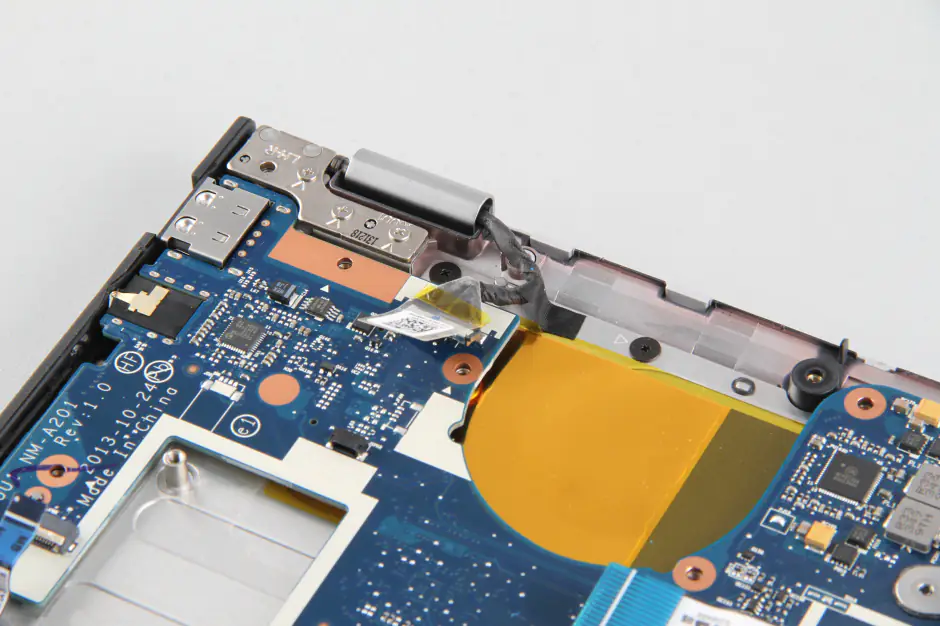

Disconnect the LCD cable and remove the screws securing the motherboard.
Disconnect the LCD cable

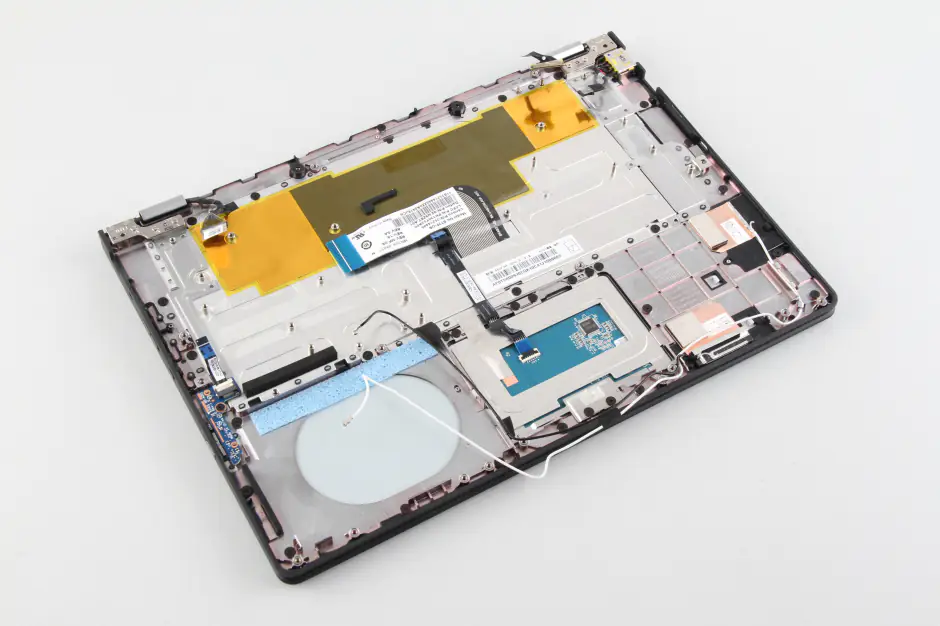

The Lenovo Yoga 2 11 motherboard has been removed.
Close-up of the laptop after removing the motherboard

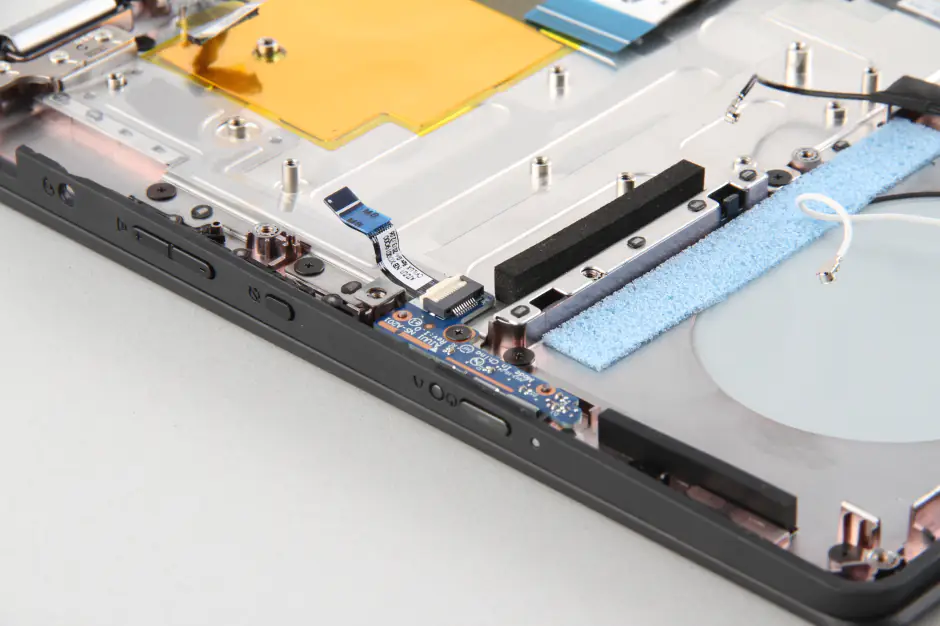

Button board
Button board

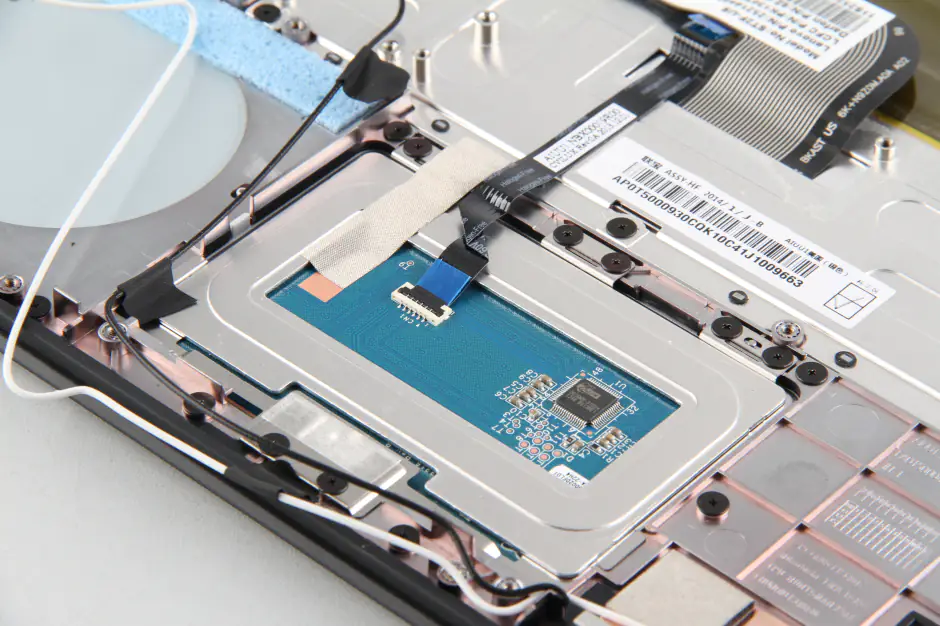

Lenovo Yoga 2 11 touchpad
Touchpad

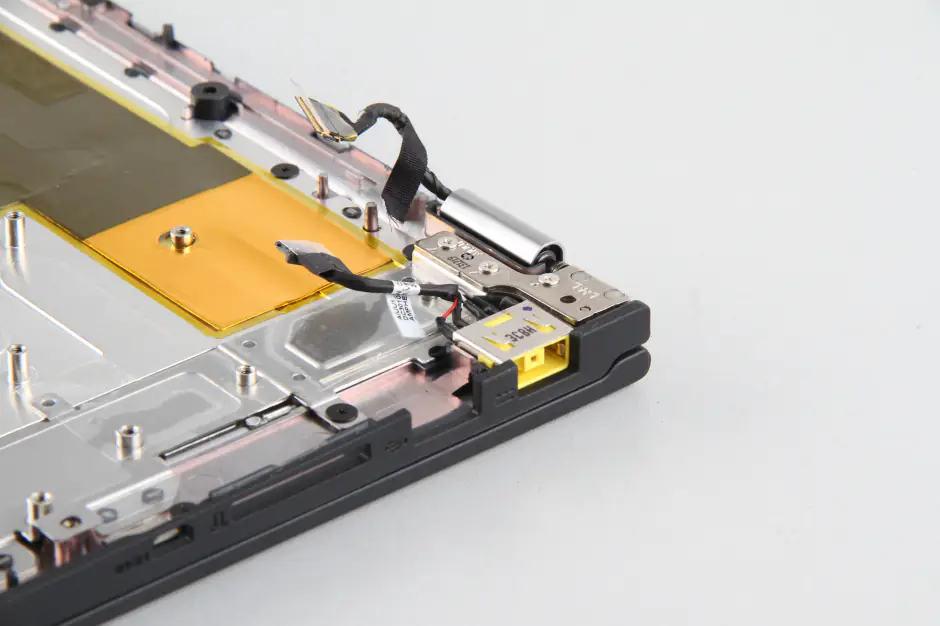

Close-up of the DC power jack
DC power jack

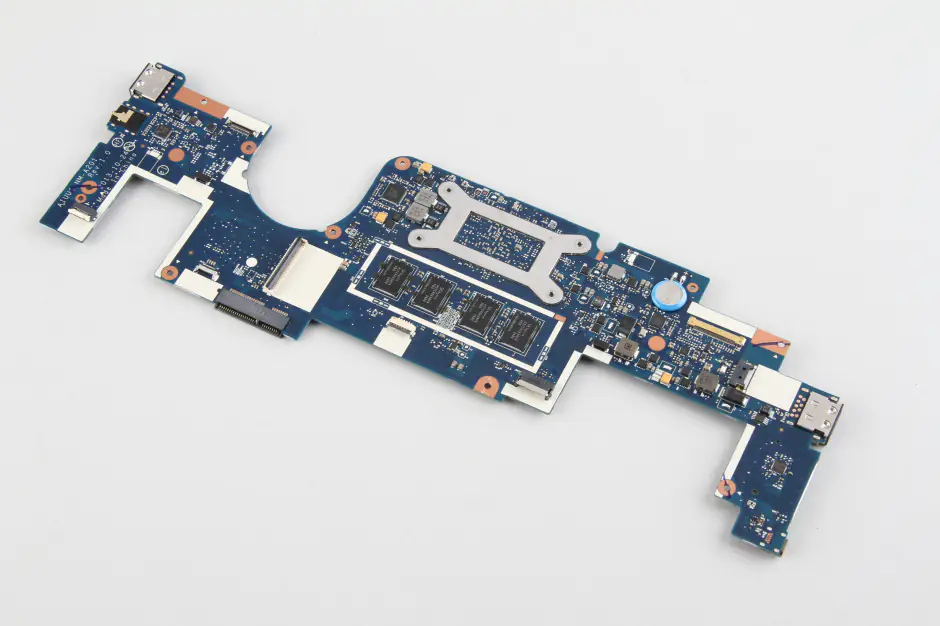

Lenovo Yoga 2 11 motherboard
Motherboard

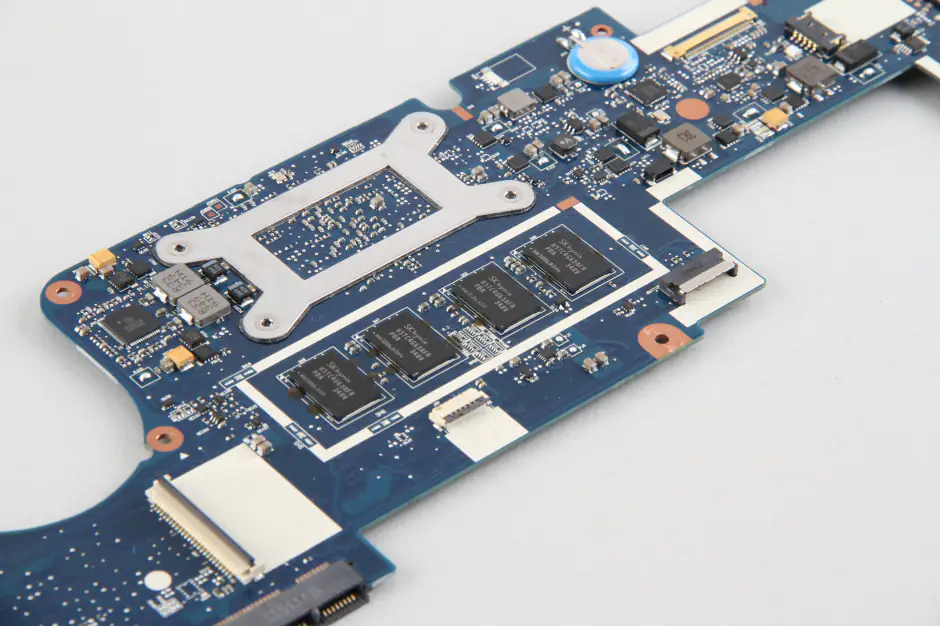

The memory chip in the Lenovo IdeaPad Yoga 2 11 is soldered onto the motherboard.
Memory chips

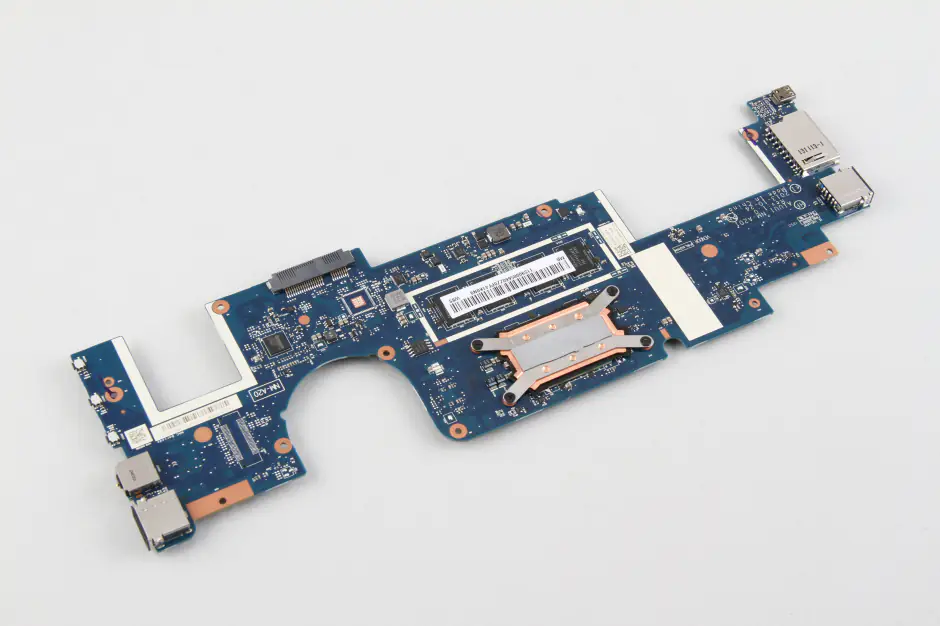

The back of the motherboard. This laptop only has a heat sink, but no CPU fan.
The back of the motherboard

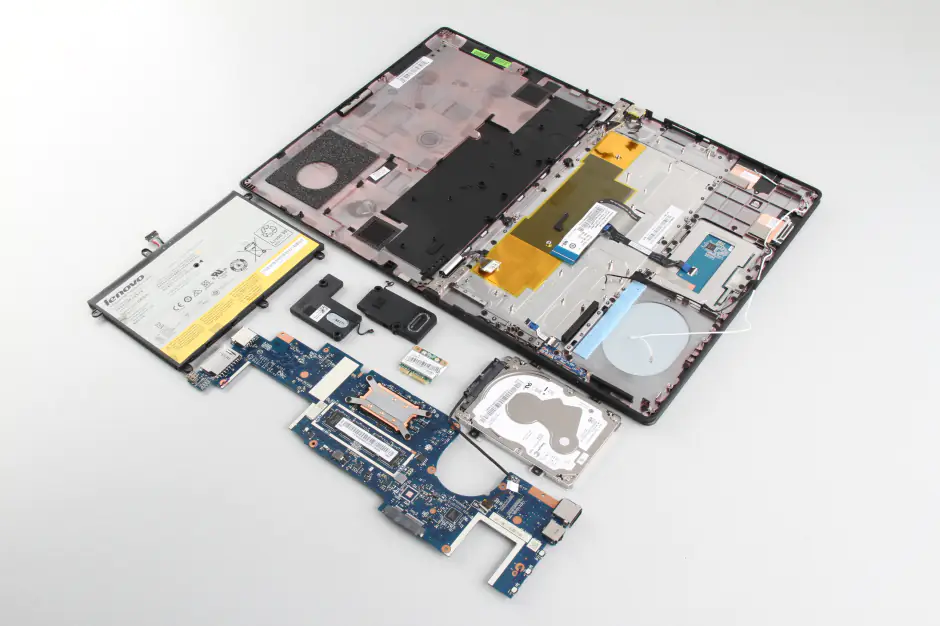

Close-up of all removed parts
Internal parts
