How To Remove, Replace Huawei Ascend P7 Screen

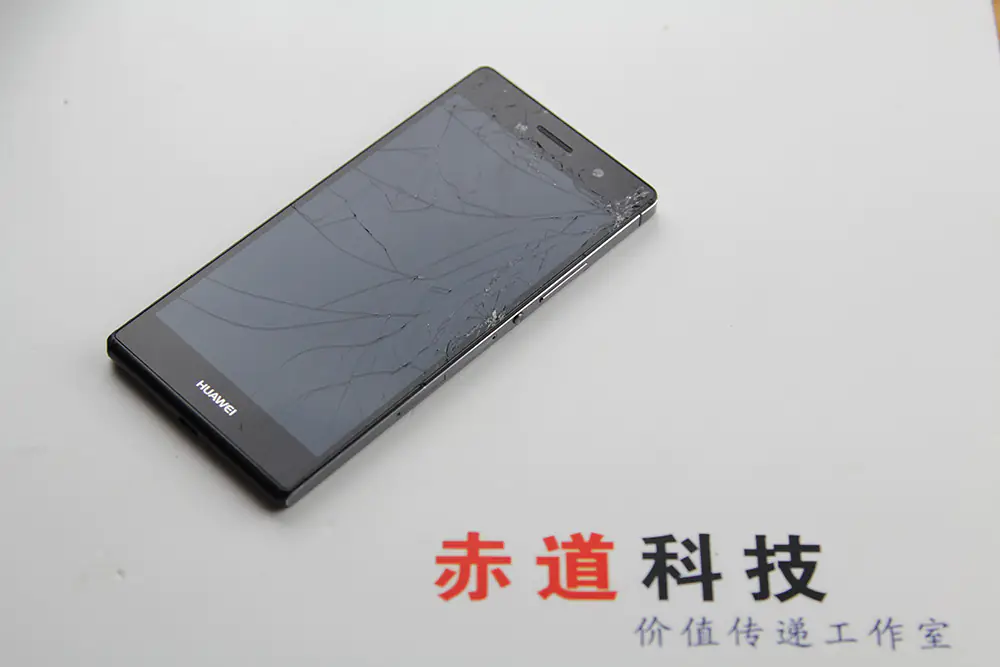

In this guide, I’ll explain how to remove, replace the screen of your Huawei P7. I will remove the damaged screen and install a new display assembly.

Follow us on Facebook for the latest updates from the MyFixGuide.com.

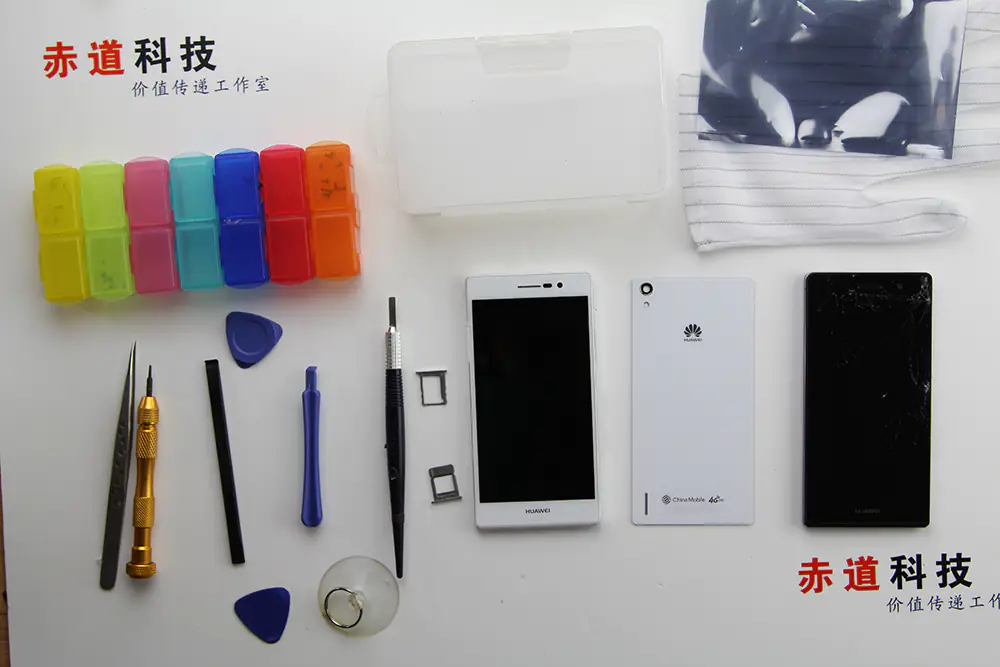

Tools are needed.

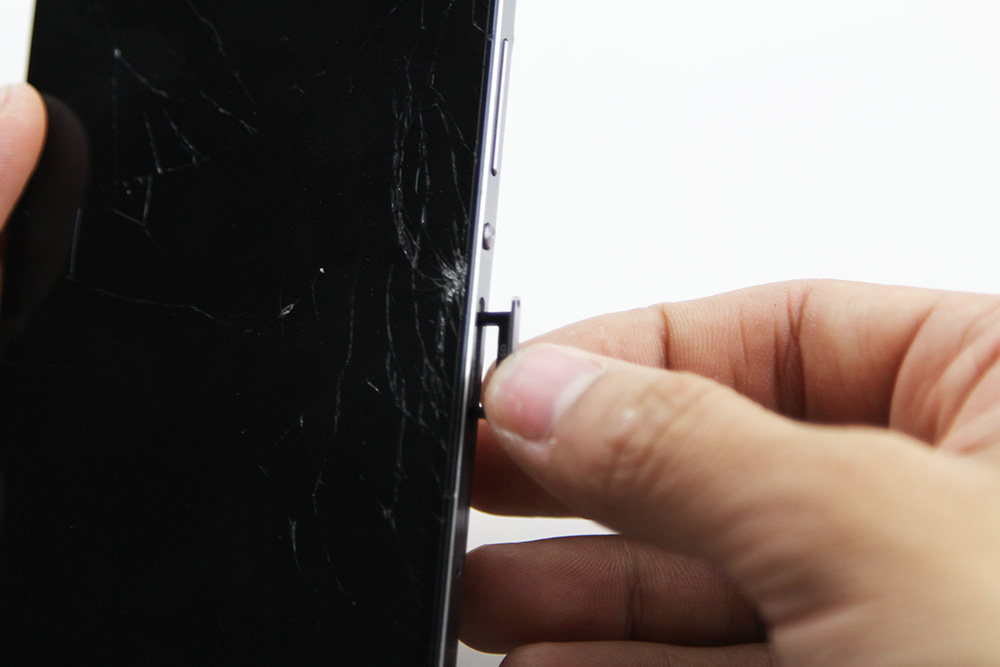

Remove the SIM card tray.

In the next step, we will remove the back cover.

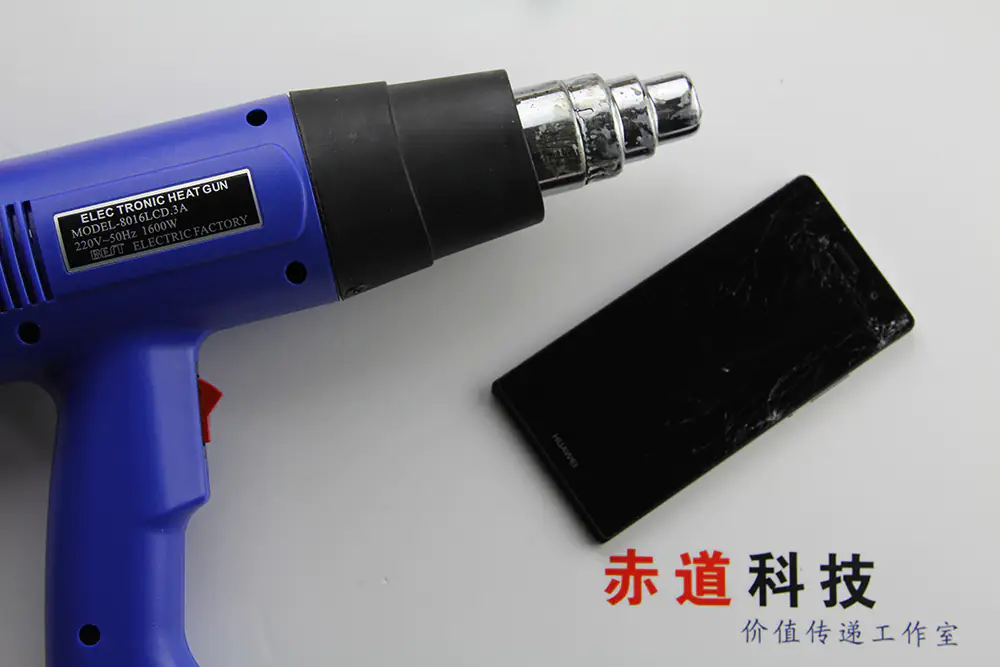

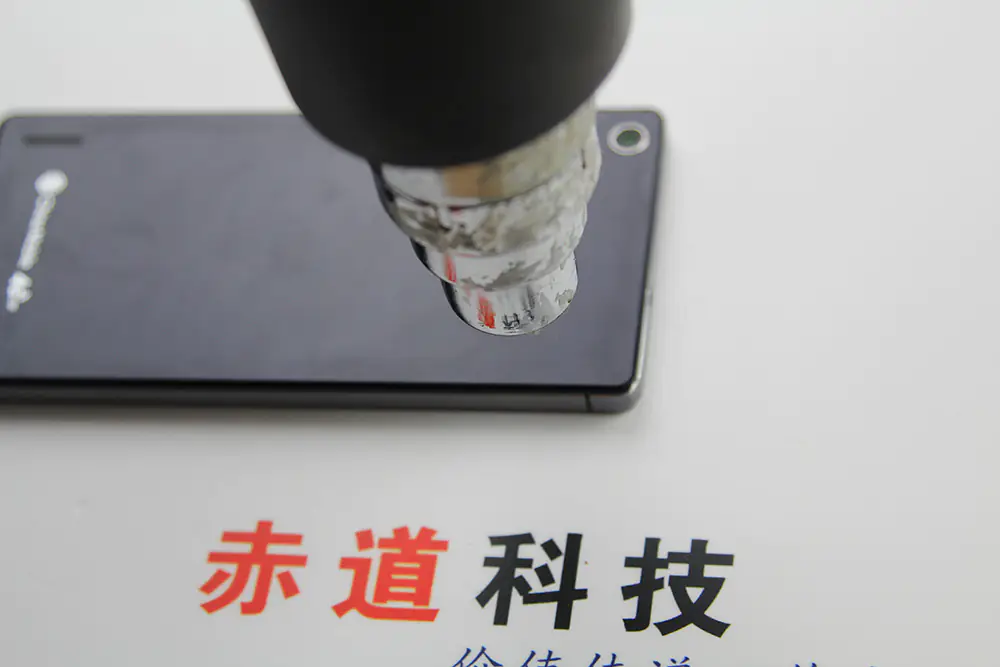

Heat up the back cover with a heat gun for 3-4 minutes.

Slowly separate the cover with suction cups.

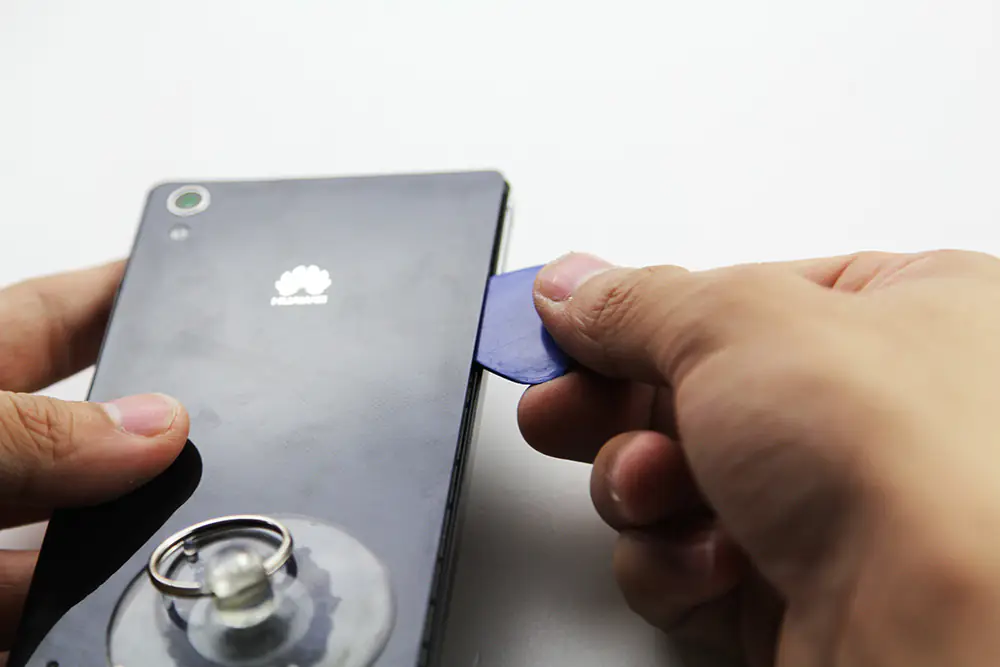

Now insert a guitar pick, pry up the back cover.

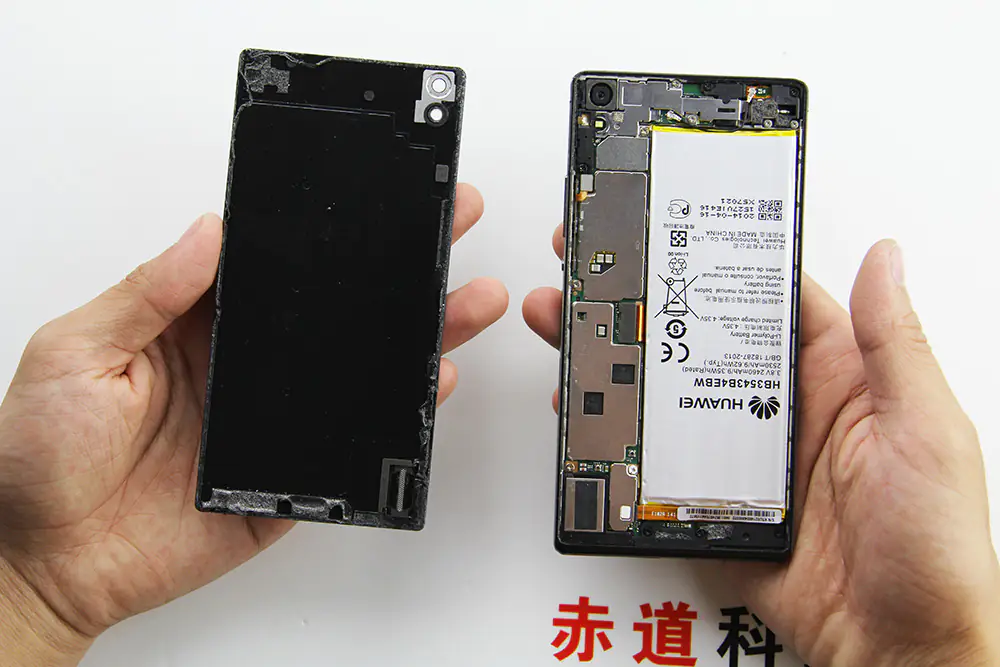

The back cover was removed.

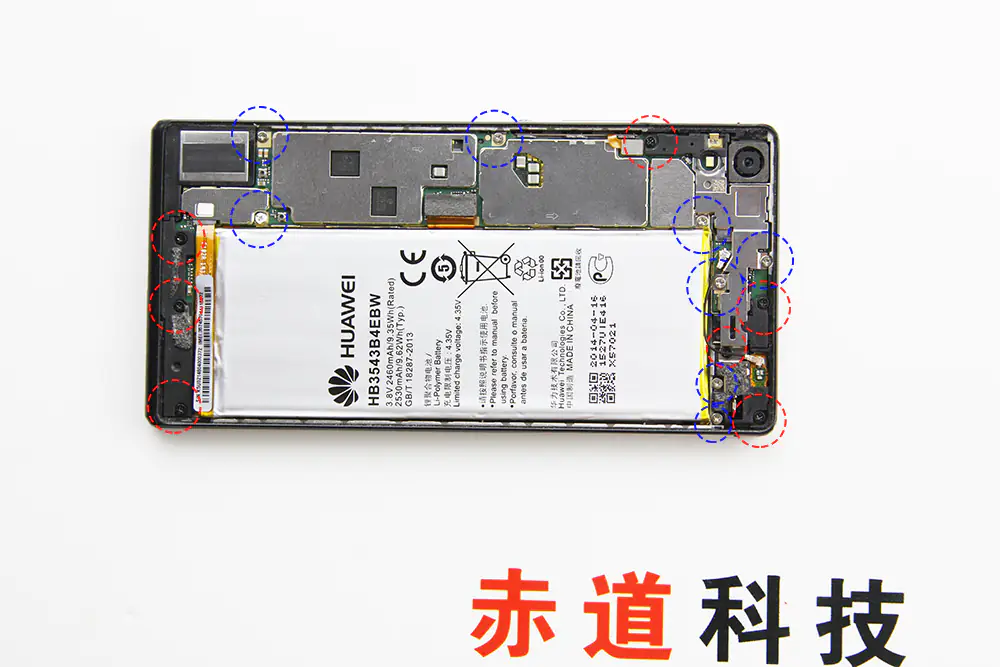

Now you can find fifteen screws securing the motherboard.

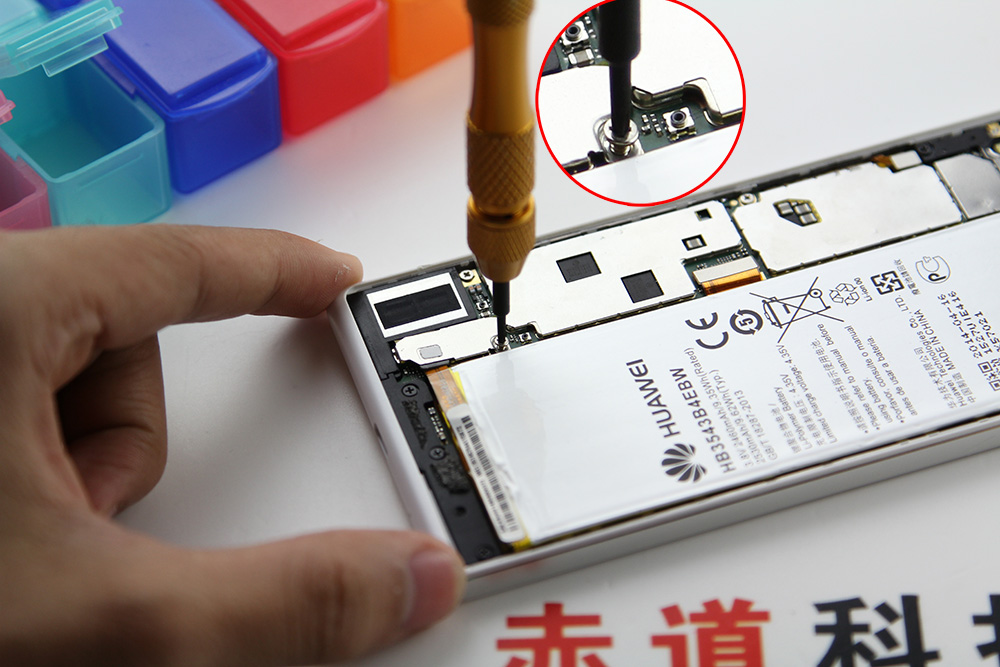

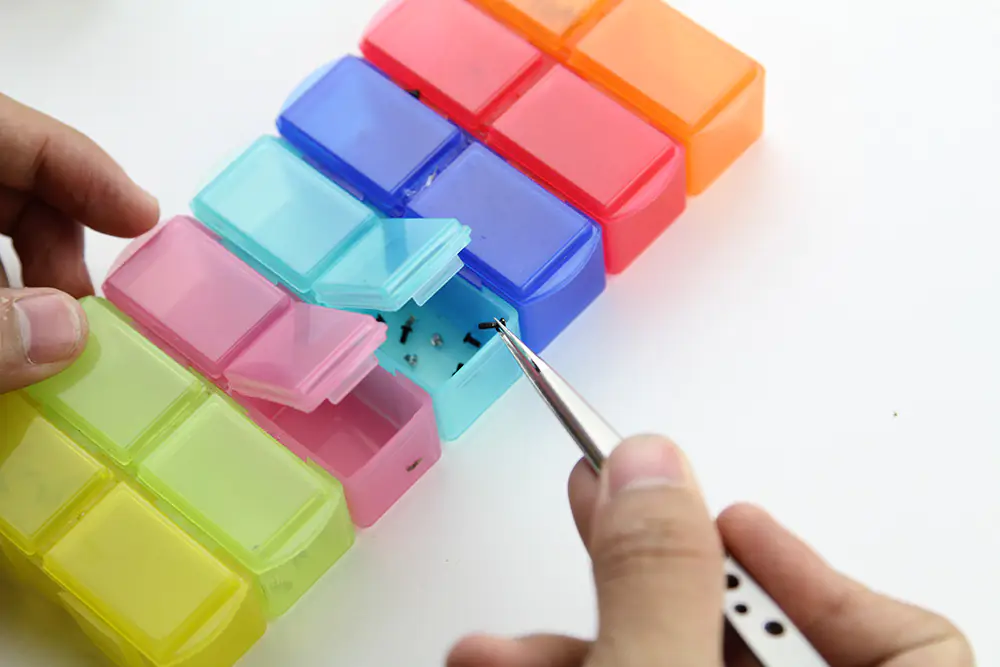

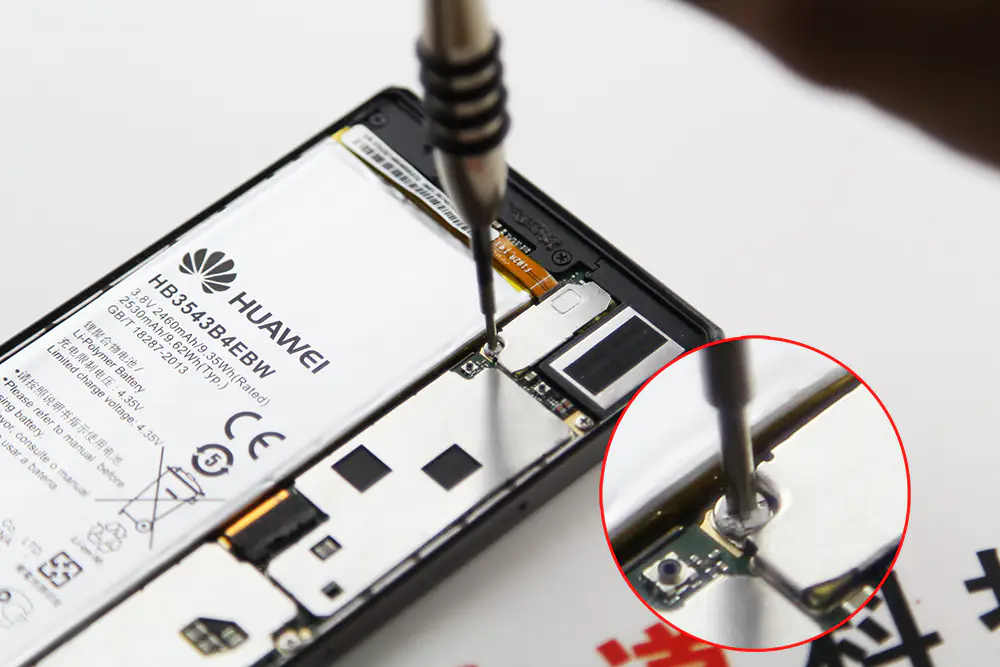

Remove all screws.

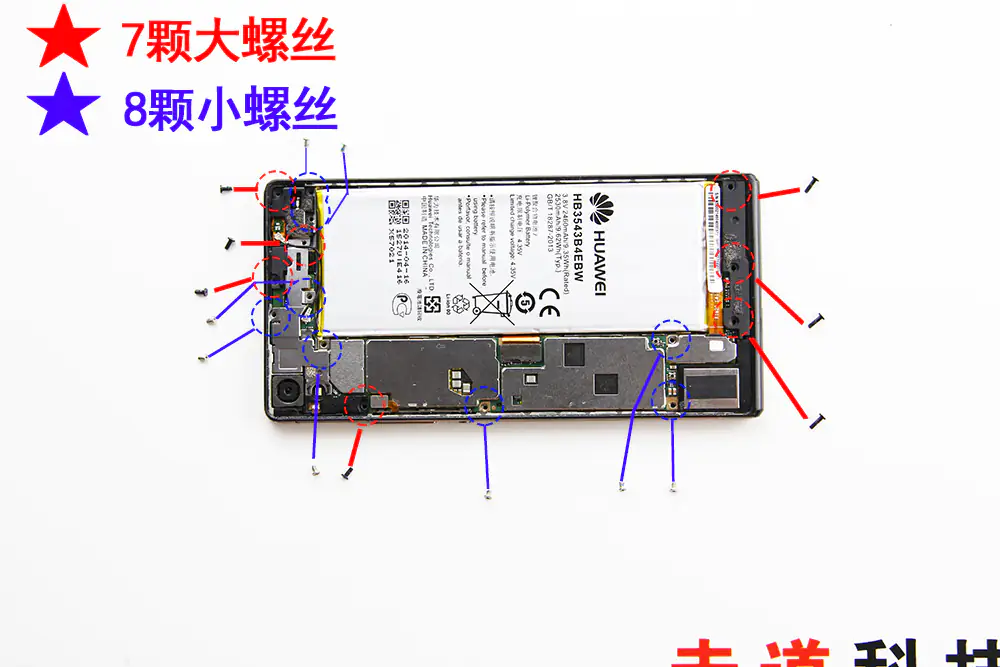

There are seven black screws and eight silver screws.

Remove the little cover.

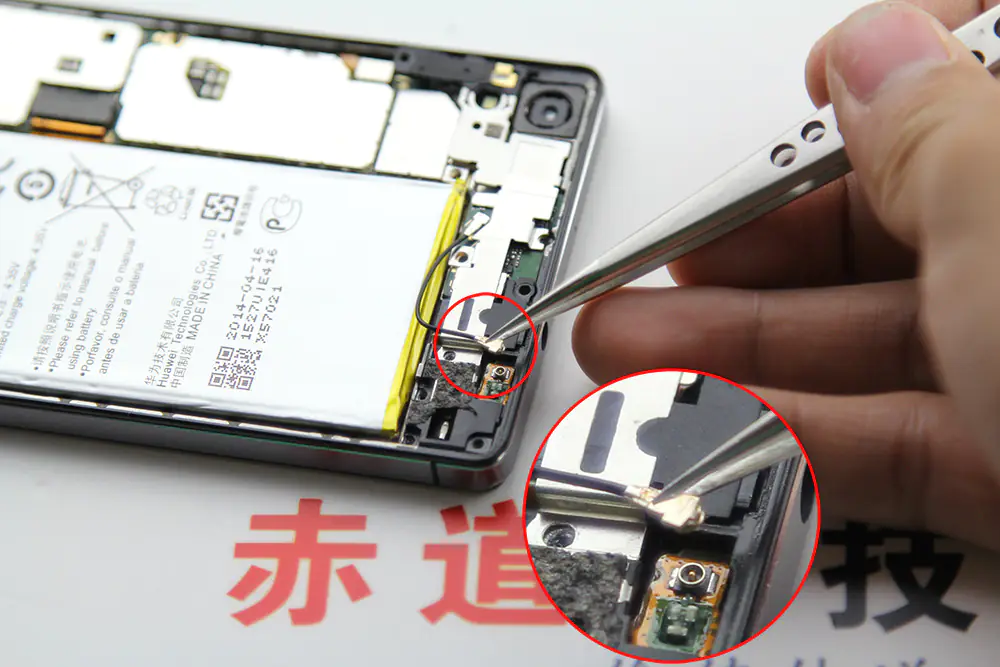

Disconnect the antenna.

Remove the iron sheet.

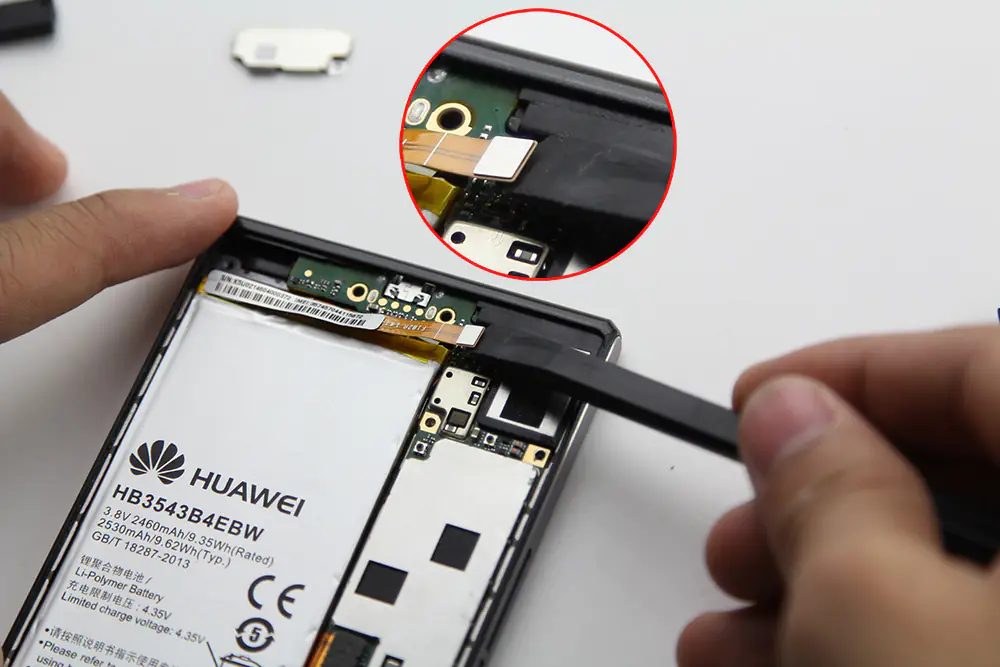

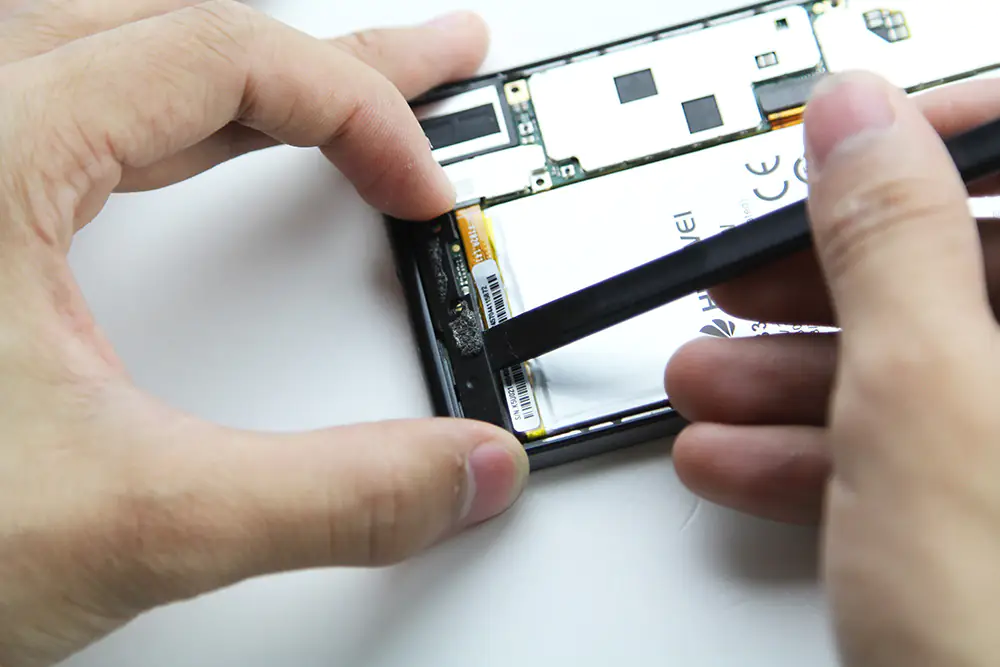

Disconnect the battery power cable.

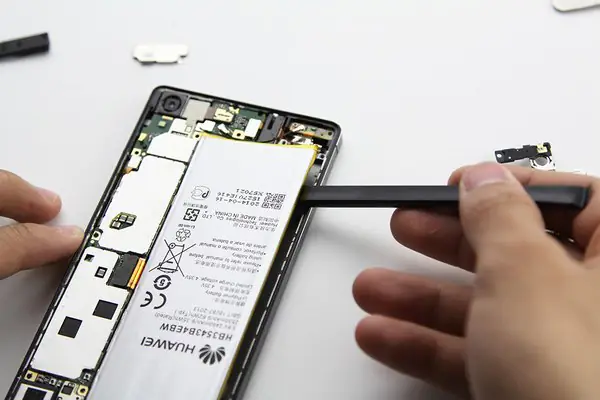

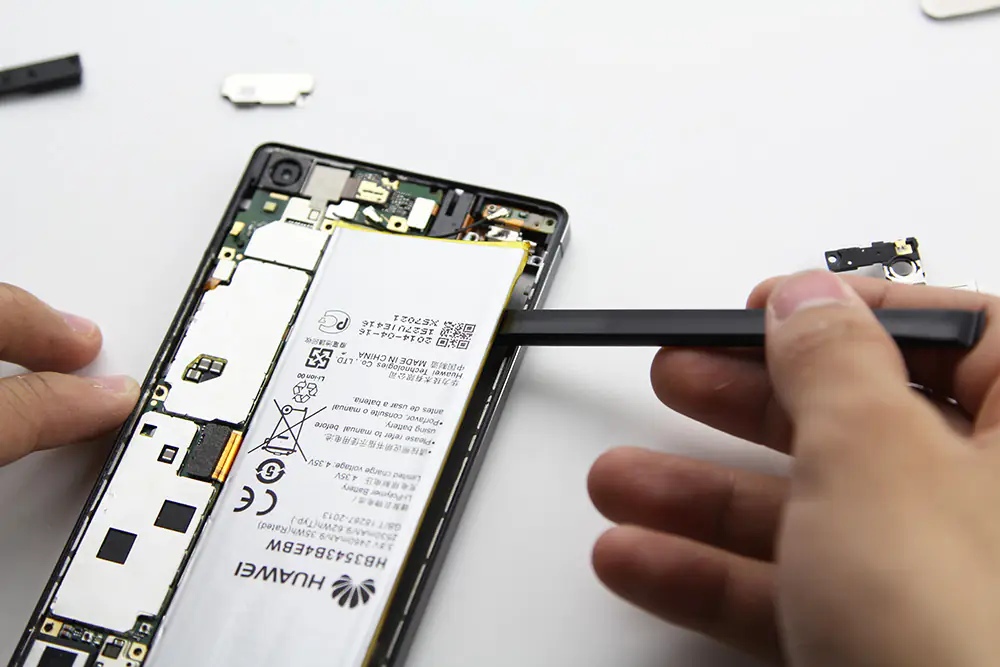

Remove the battery.

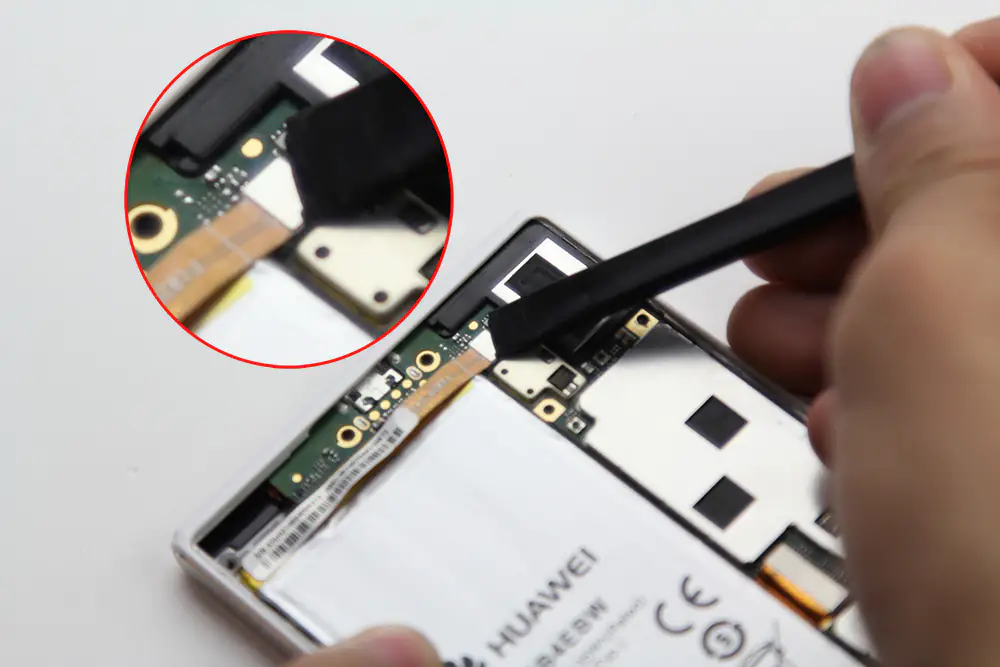

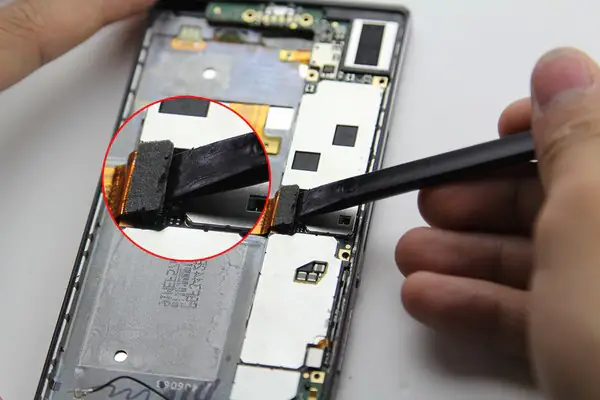

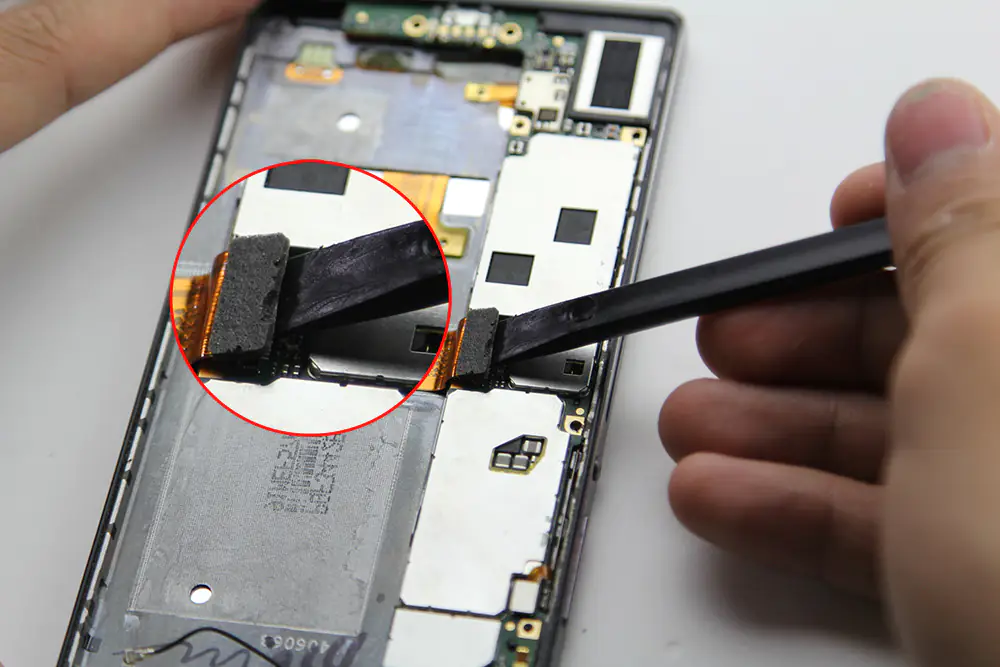

Disconnect the LCD cable.

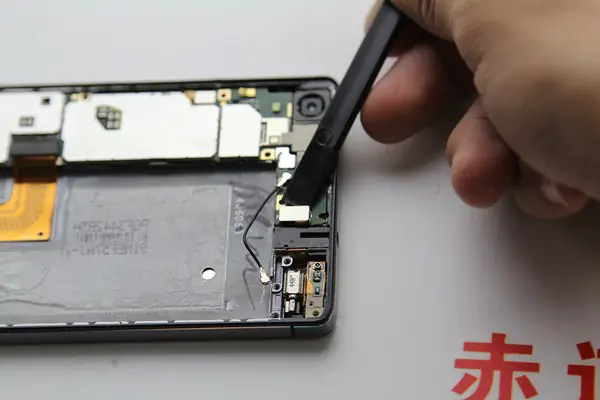

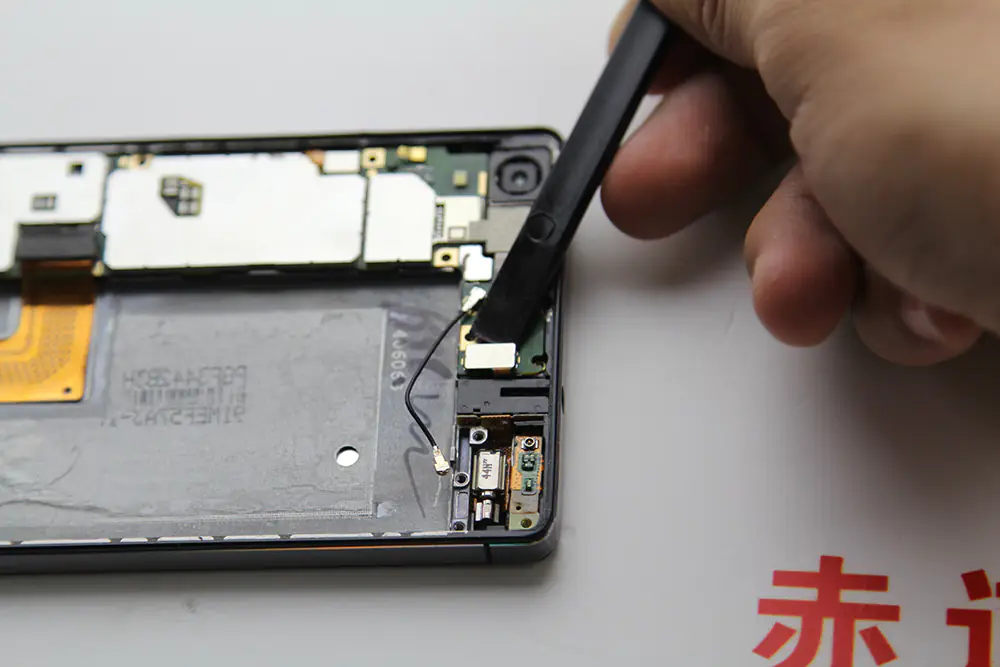

Disconnect all cables connected to the motherboard.

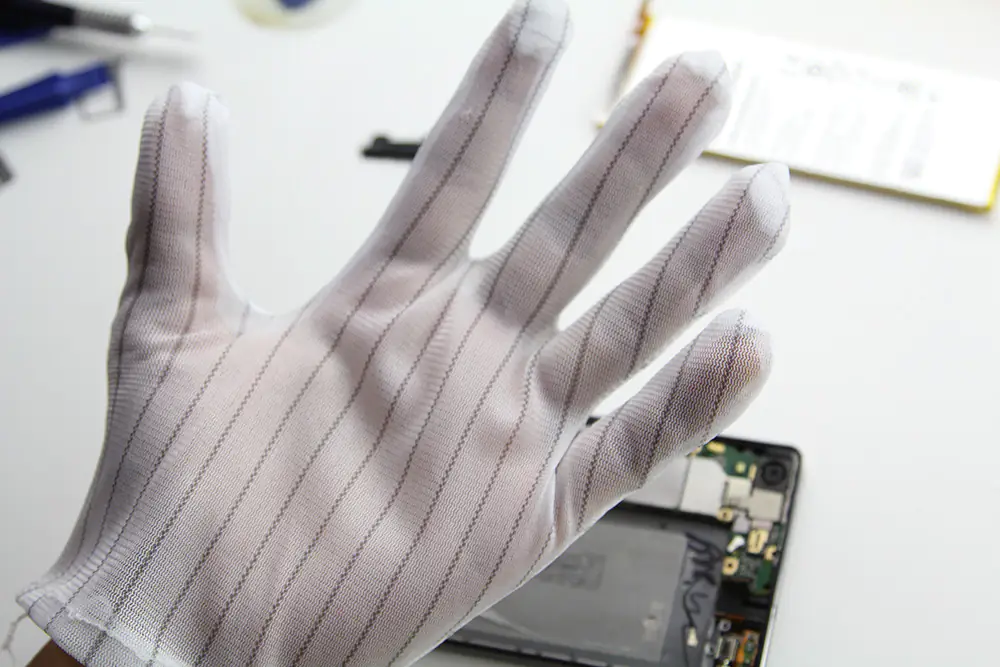

Now we need to wear an antistatic glove.

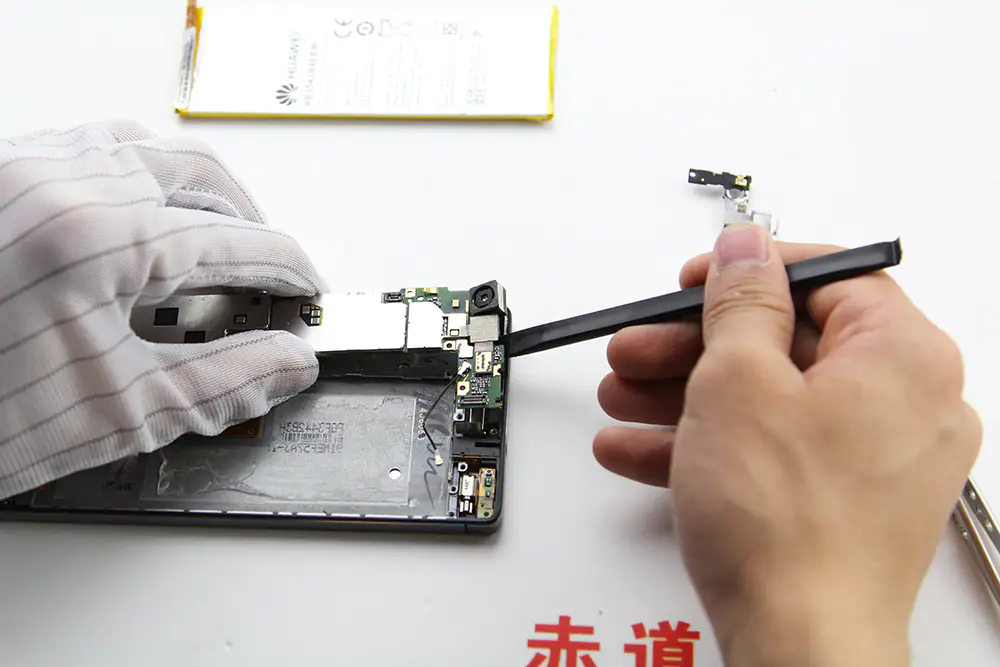

Remove the motherboard.

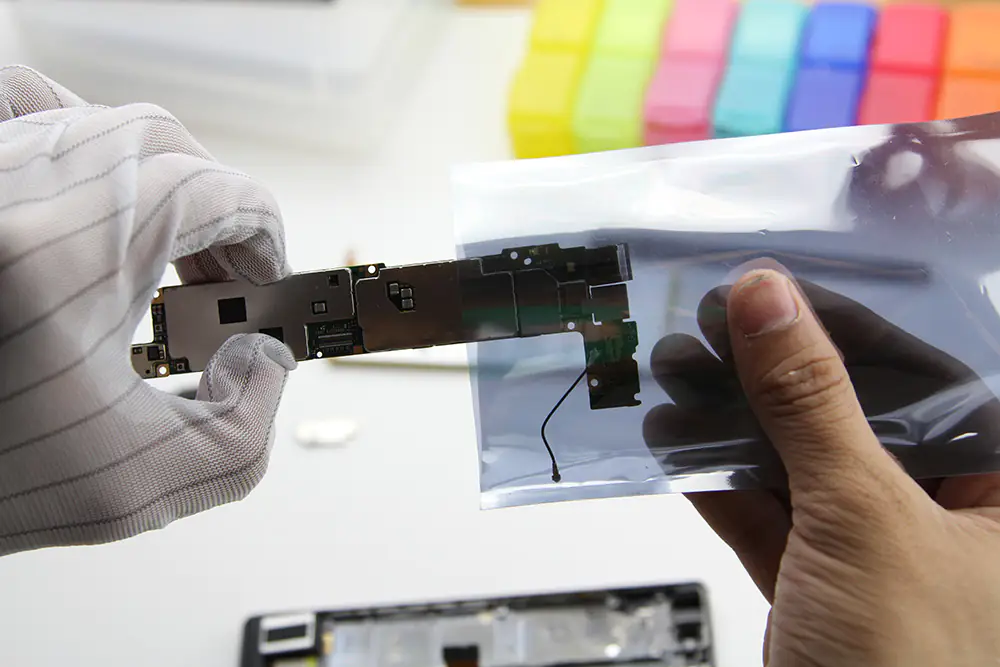

Put the motherboard into an antistatic bag.

Remove the camera.

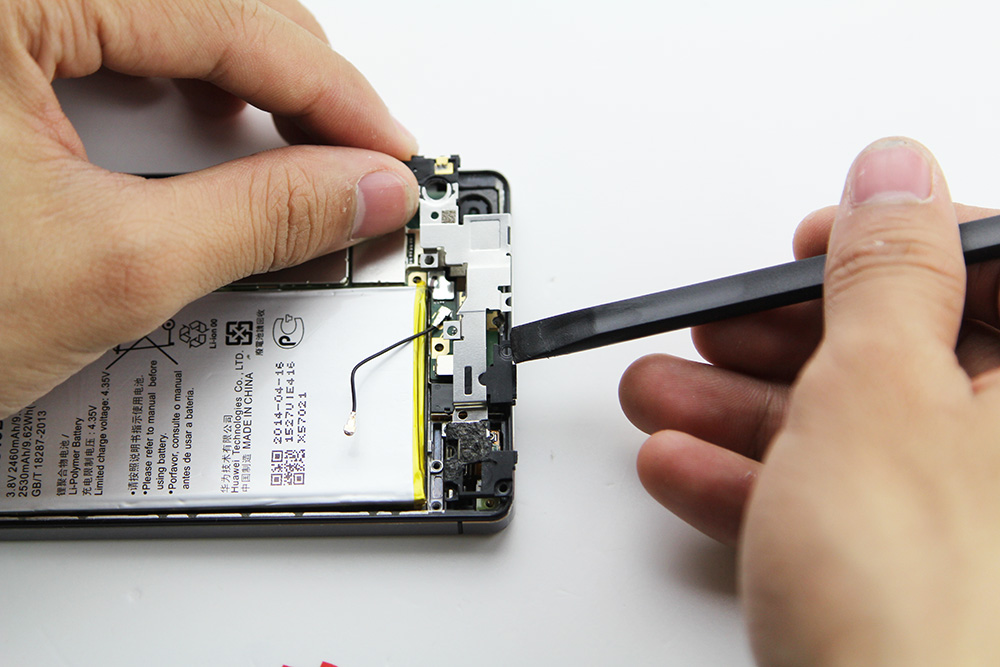

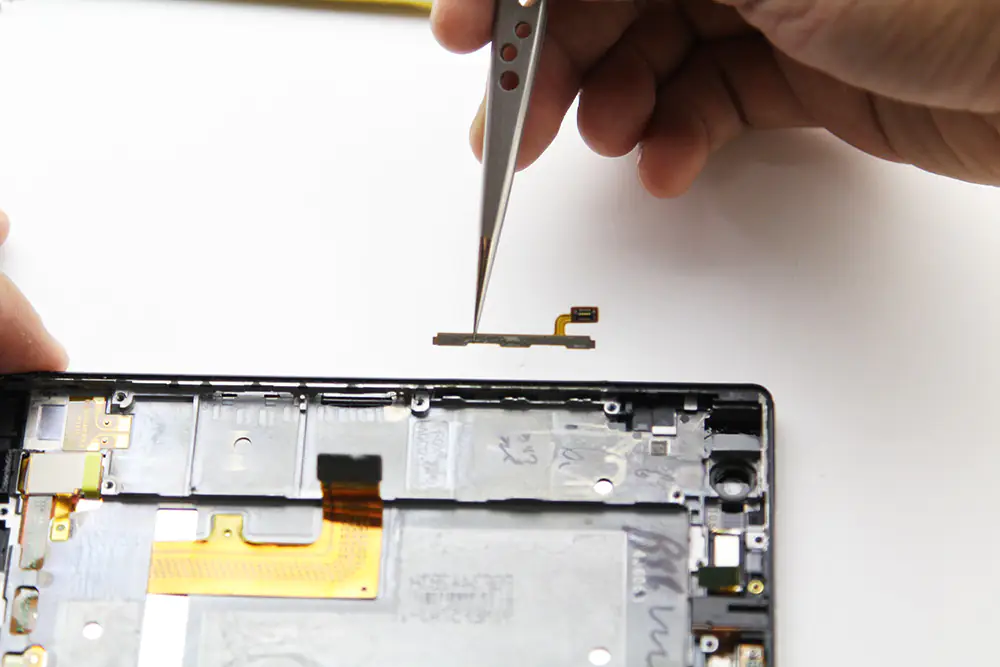

Remove the button board.

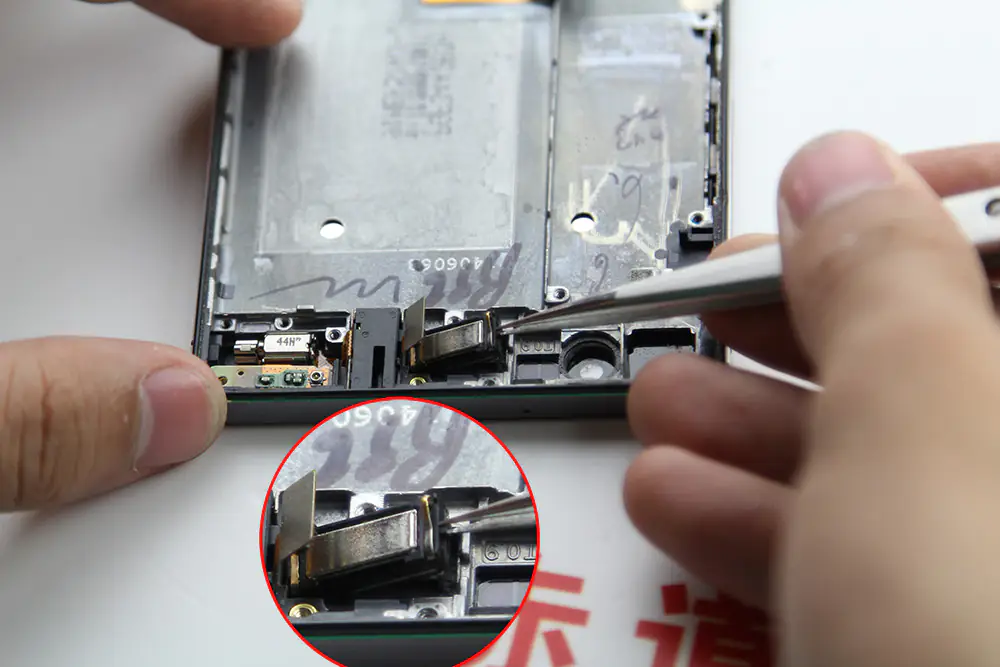

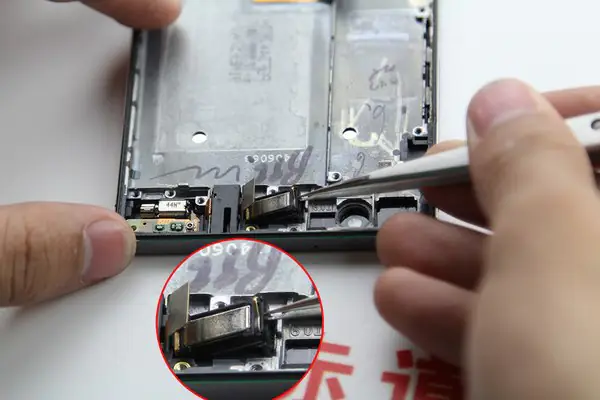

Remove the earpiece.

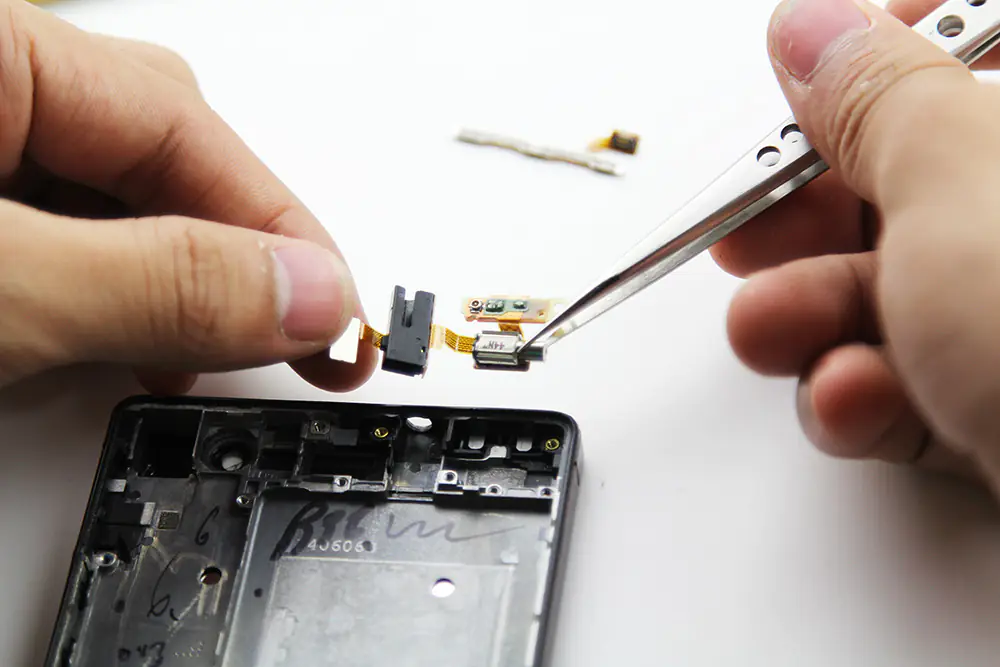

Remove this cable. It’s integrated a 3.5mm jack and a vibrator.

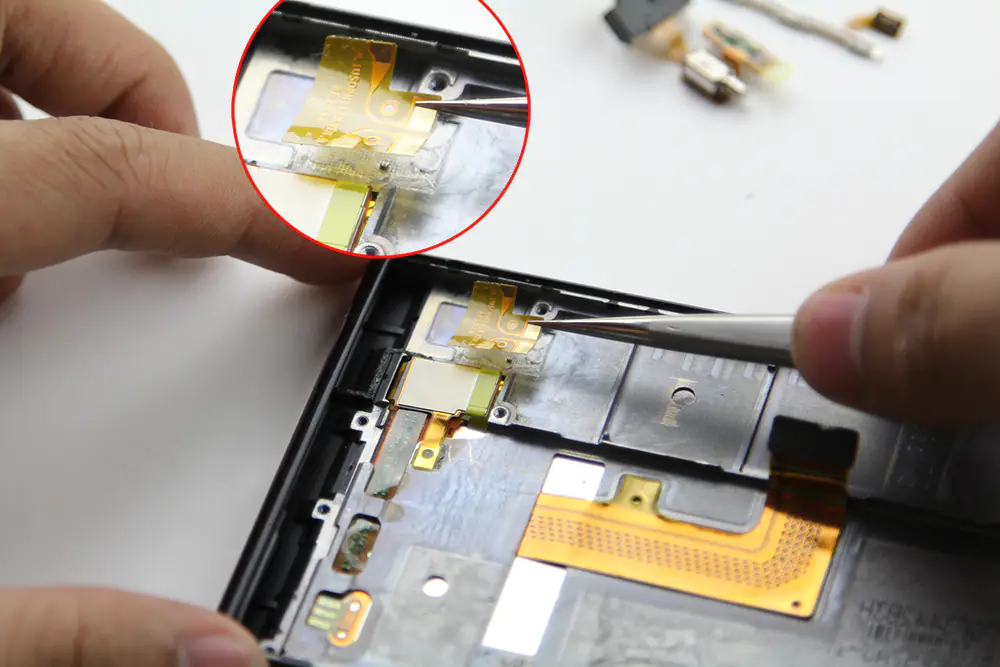

Remove the sticker.

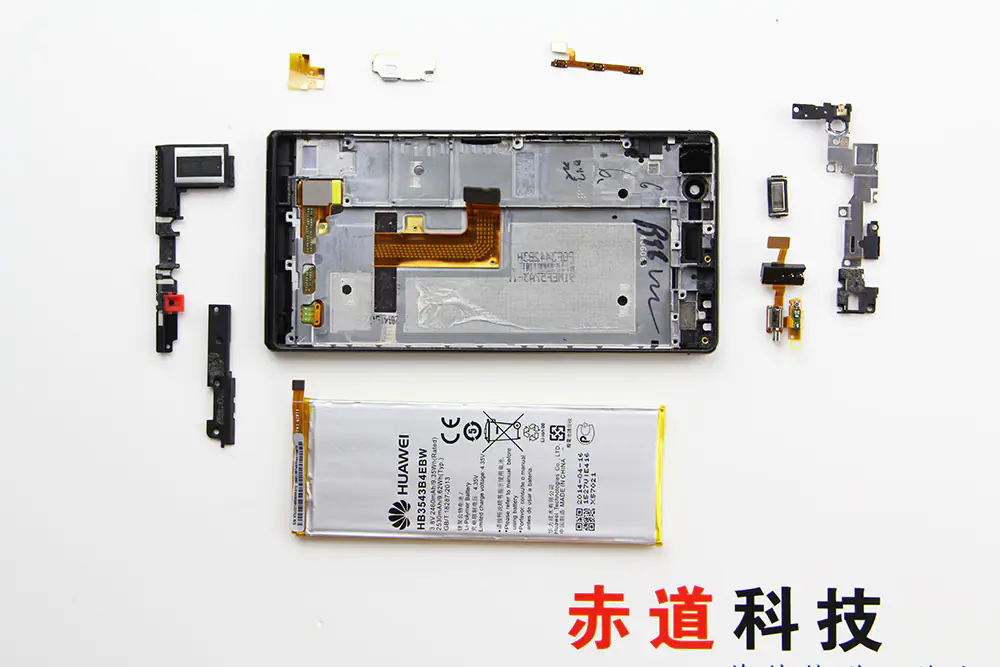

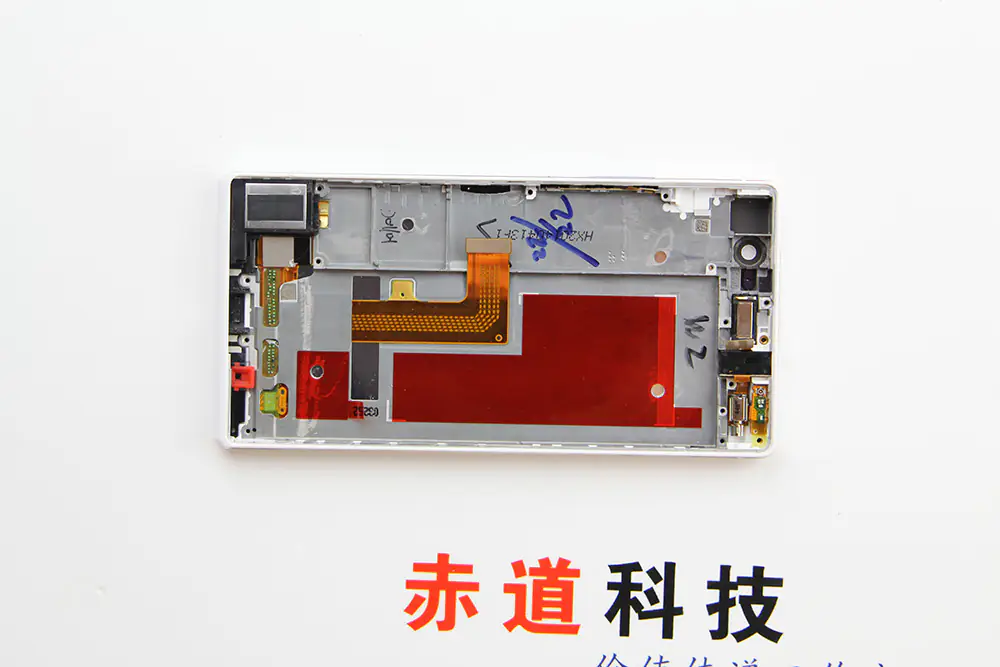

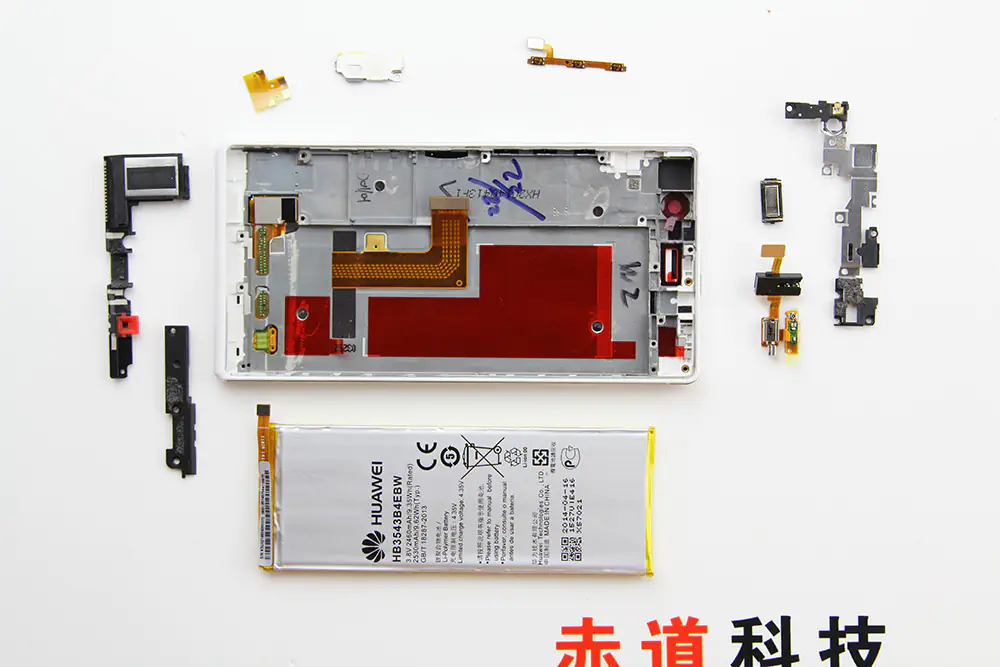

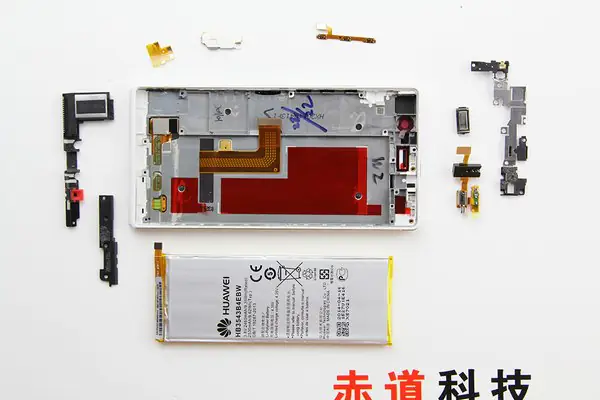

All the parts were removed from the display assembly.

Replace Huawei Ascend P7 Screen

This is the new display assembly.

Now install all the parts into the new display assembly.

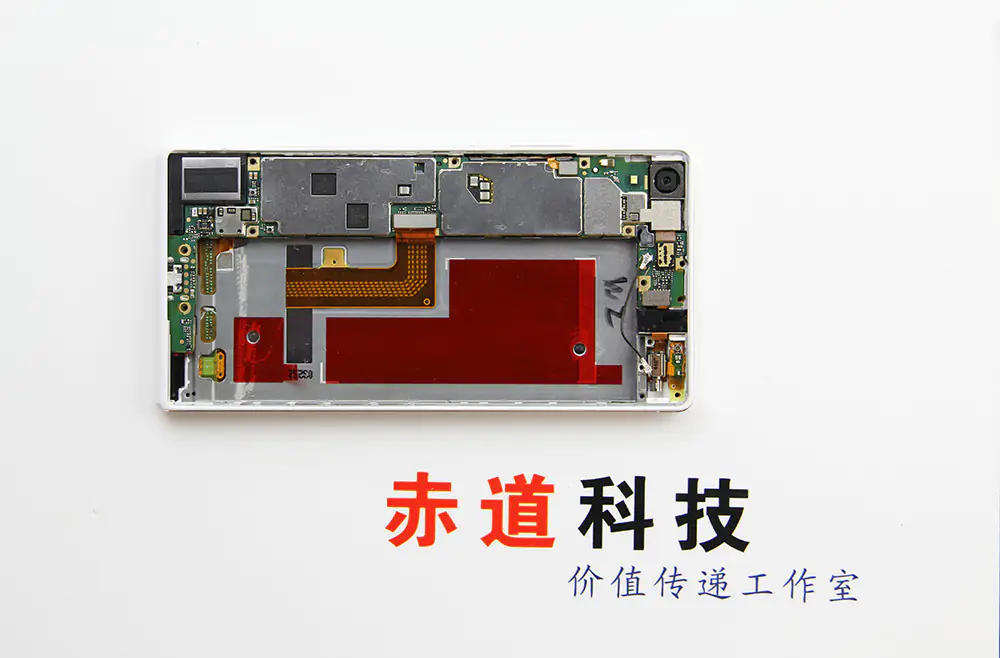

Install the motherboard.

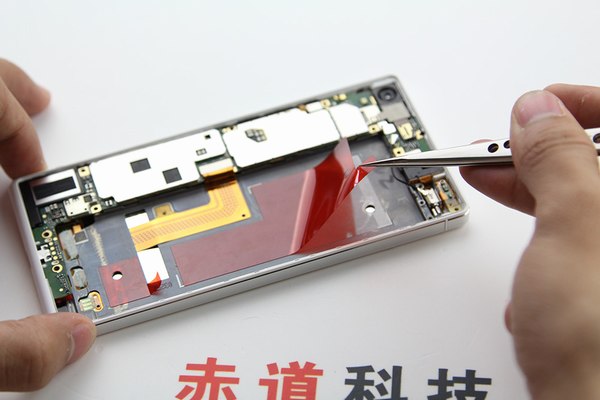

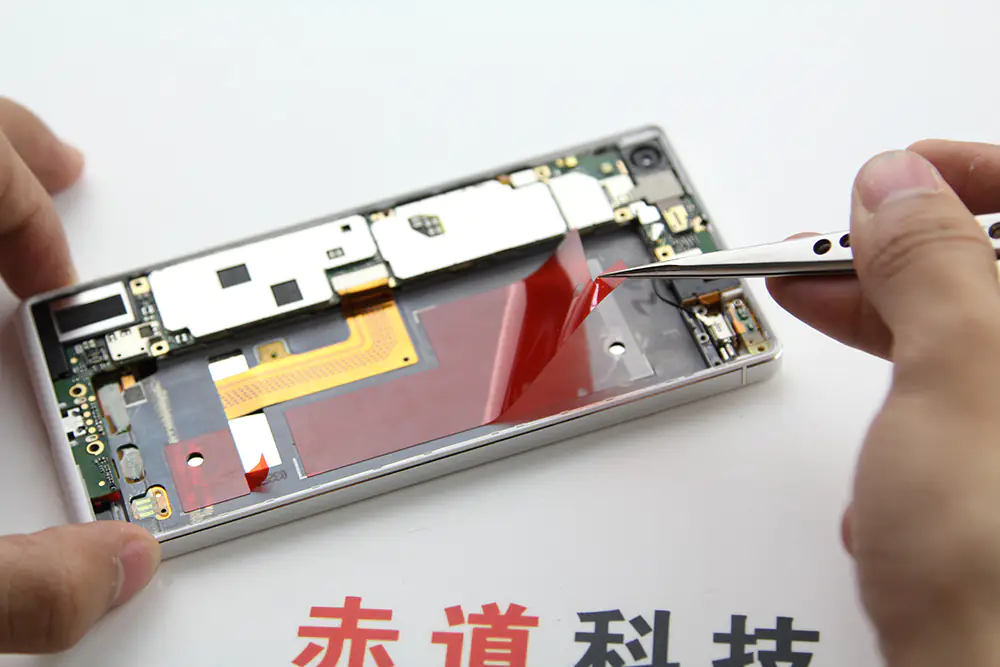

Remove the red sticker.

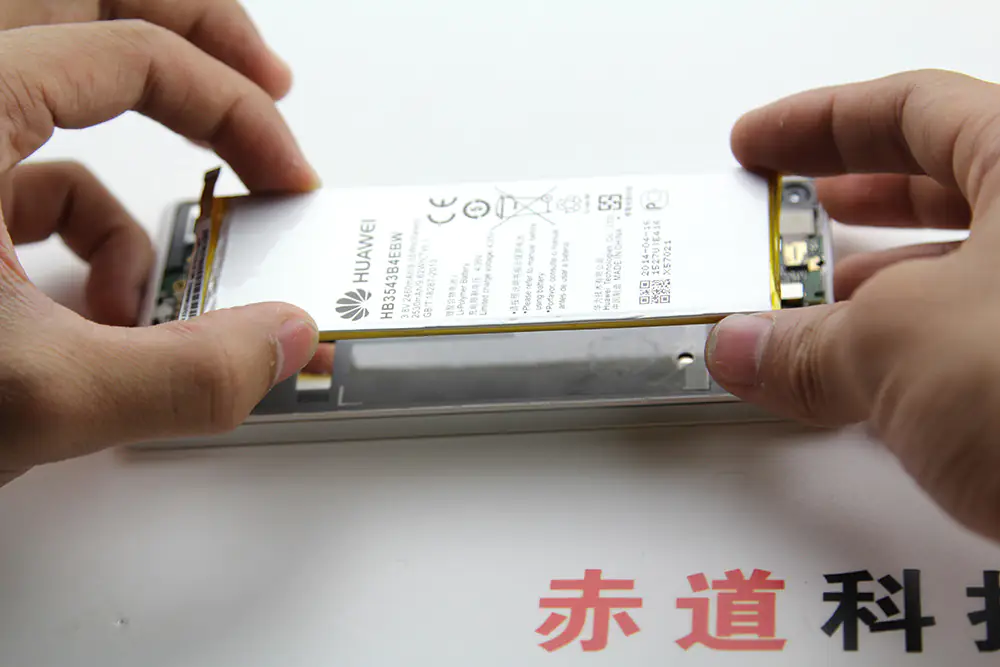

Install the battery.

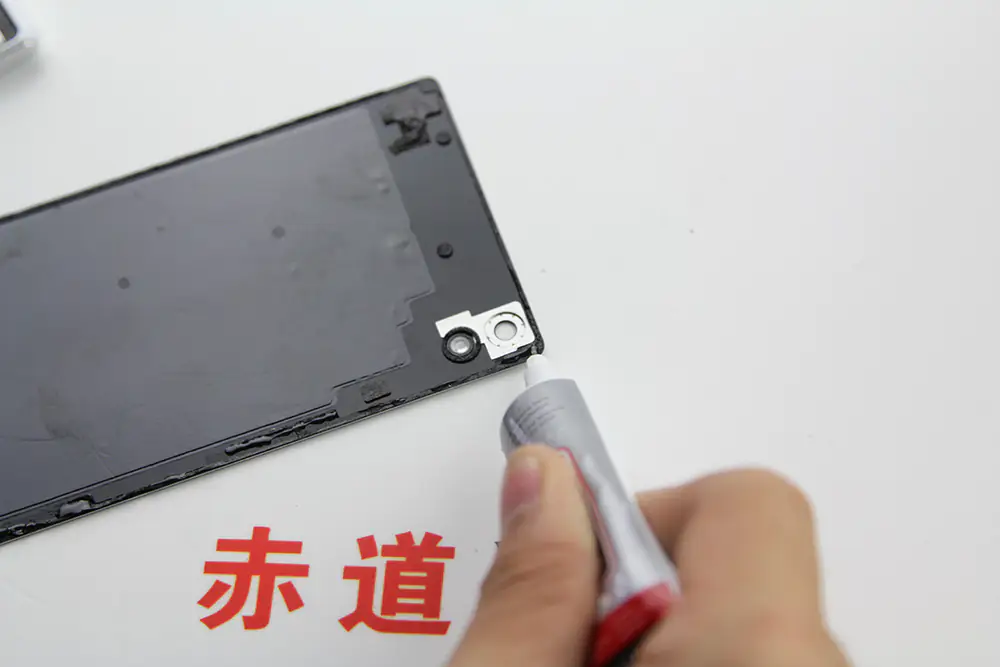

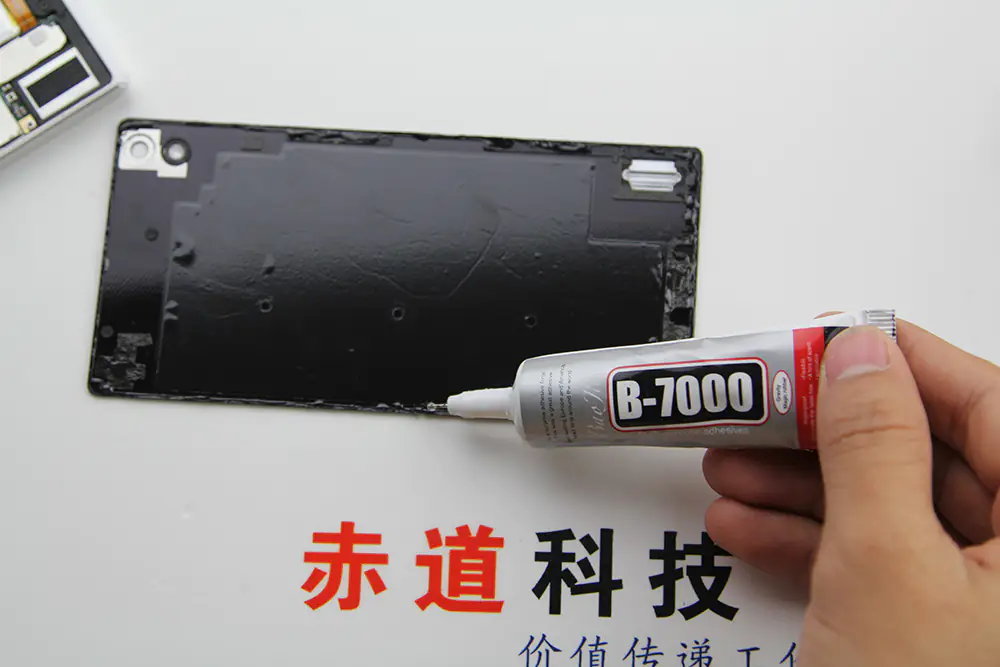

Apply glue along the edge of the back cover, must be applied evenly and not too much, so as not to stick to the motherboard.

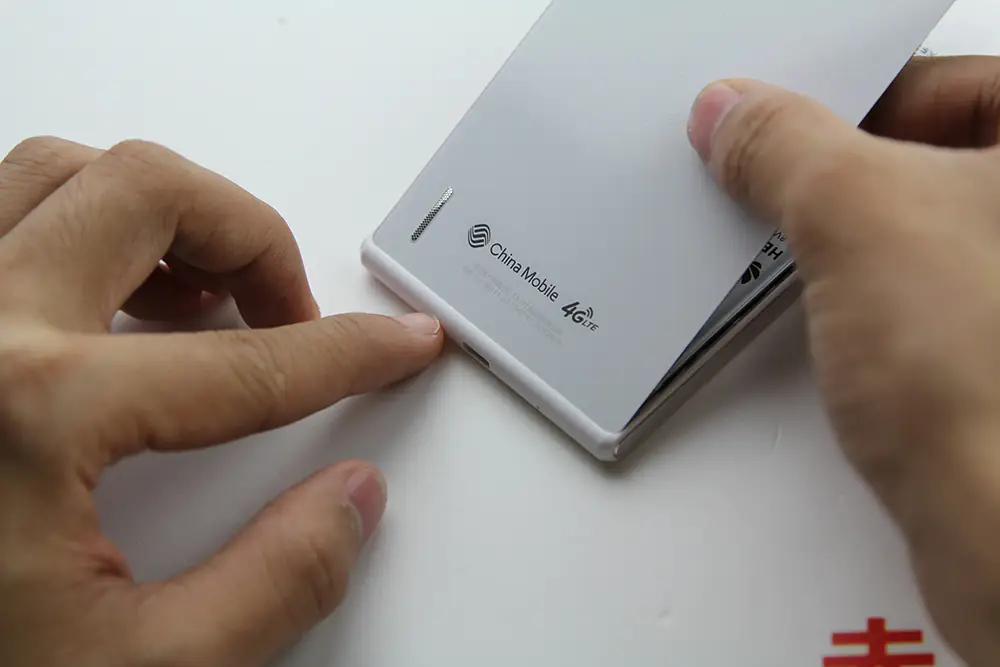

Install the back cover.

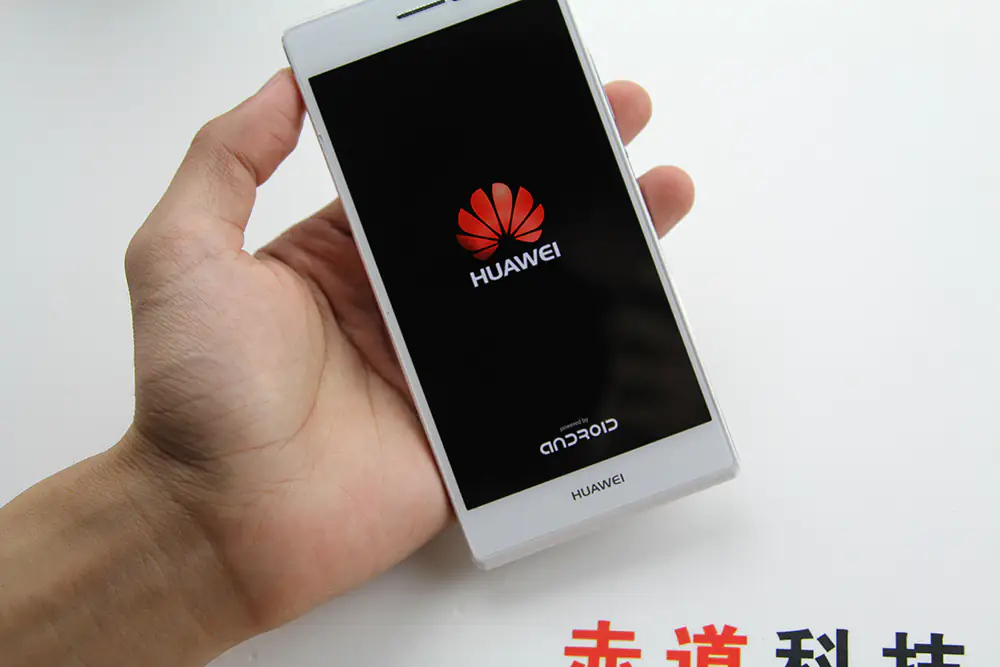

It’s done!

For more guides, check out the Huawei Ascend P7 device page.
