Asus Transformer Pad TF701T Teardown

In this guide, I will explain how to disassemble the Asus Transformer Pad TF701T to remove the LCD screen assembly, battery, rear camera, front camera, speaker, and motherboard.

Want to keep in touch with us? Follow us on Facebook for more repair news.

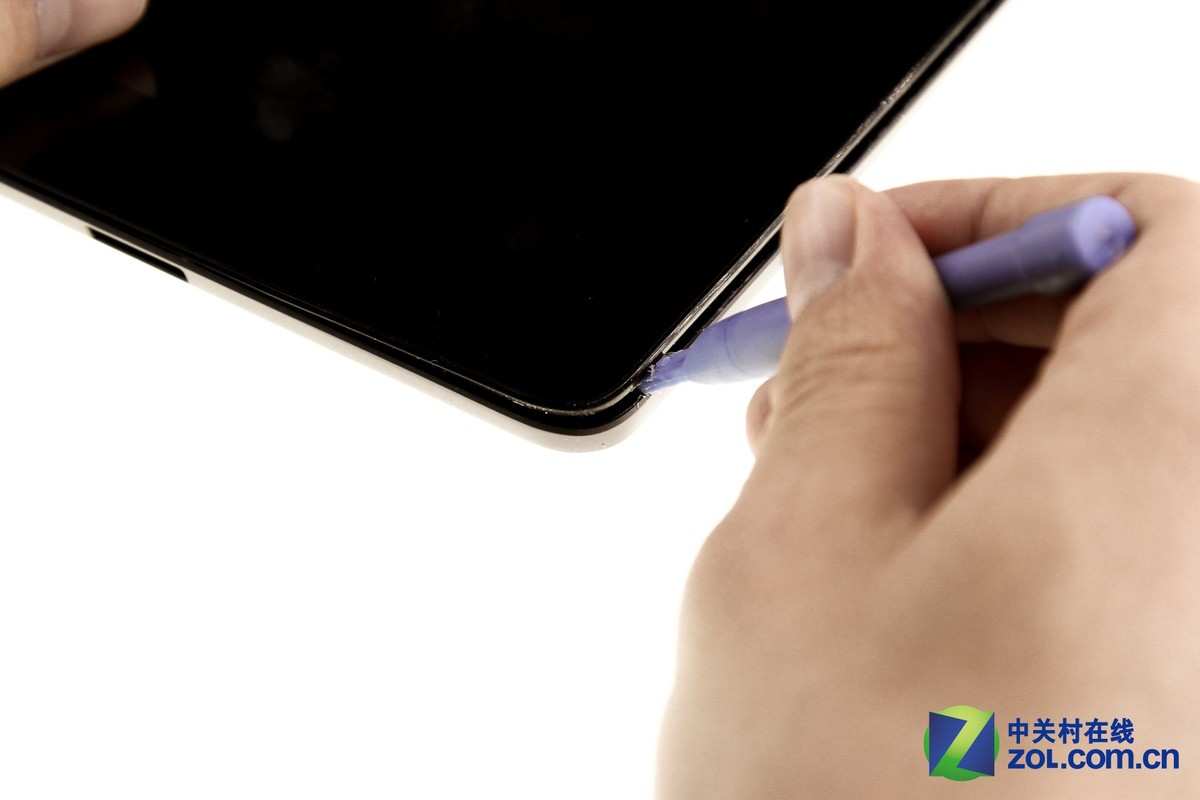

Insert a plastic pry tool beneath the screen assembly. Slide the pry tool along the screen edge to separate the screen from the tablet.
Separate the screen

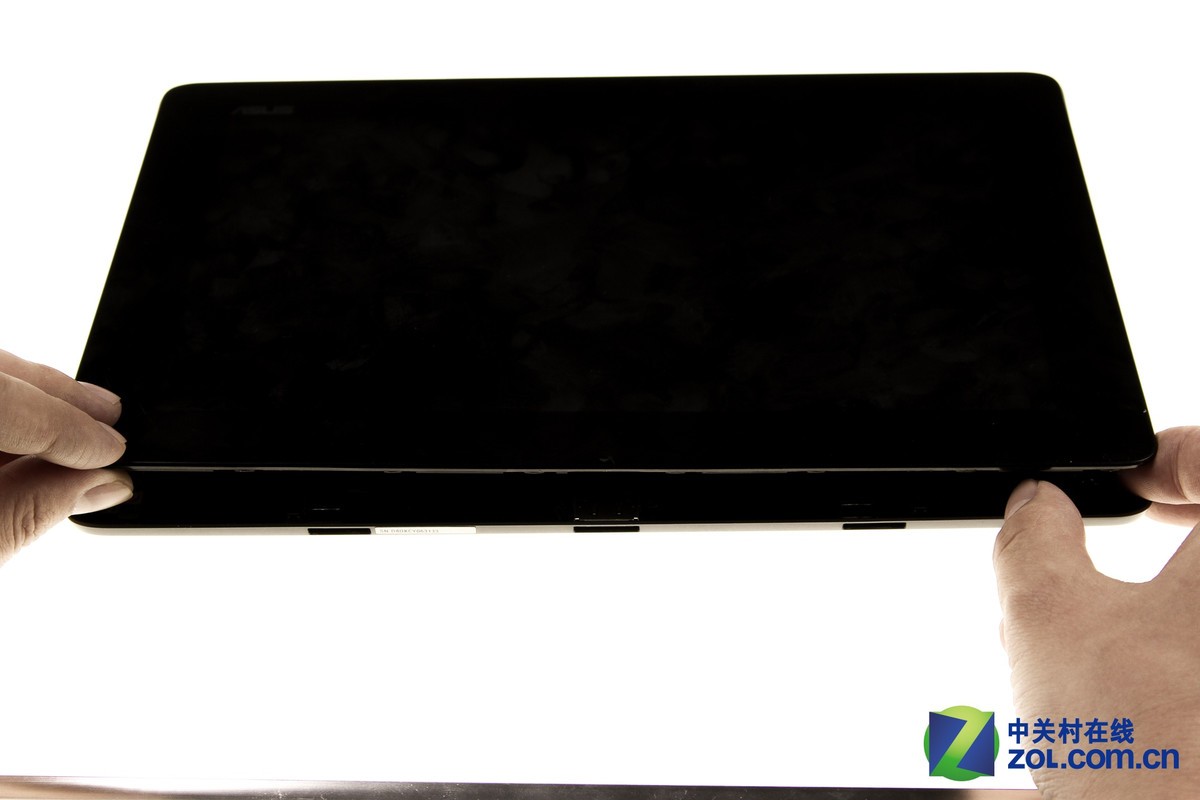

When the screen opens a small gap, you can use your hands to continue separating the screen assembly.
Continue separating the screen assembly

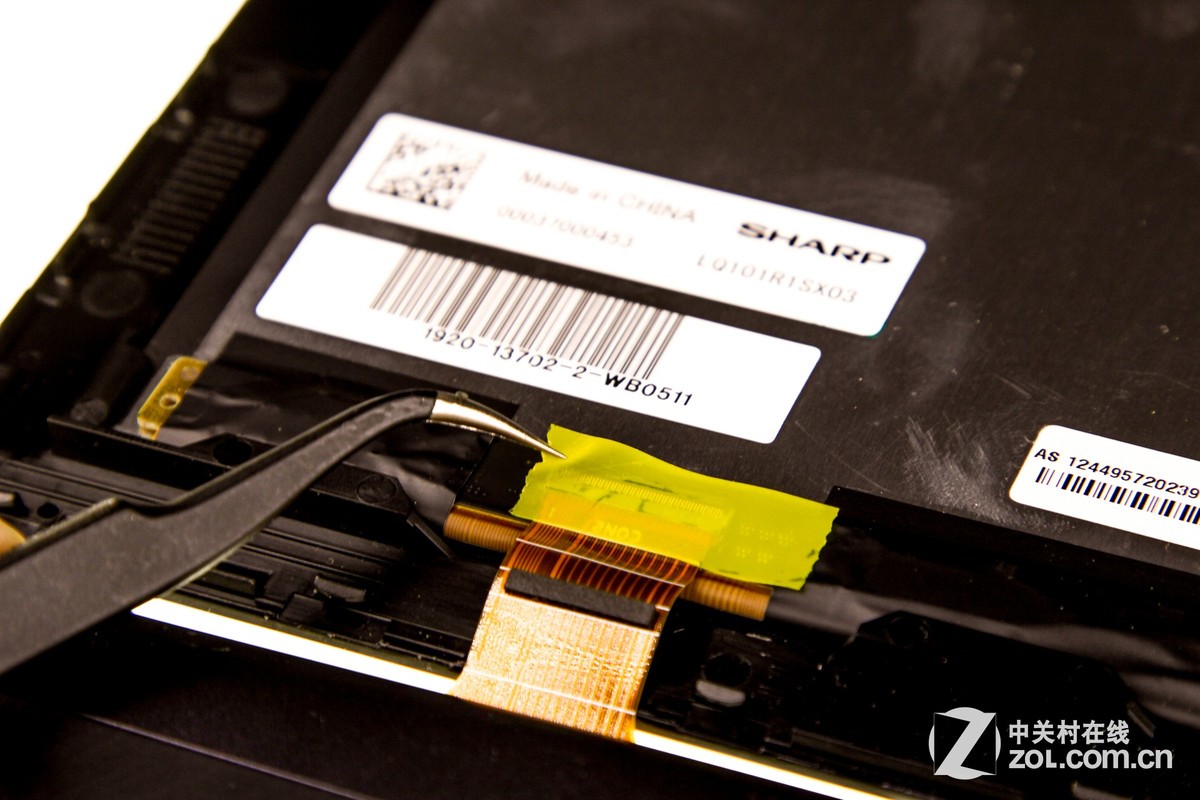

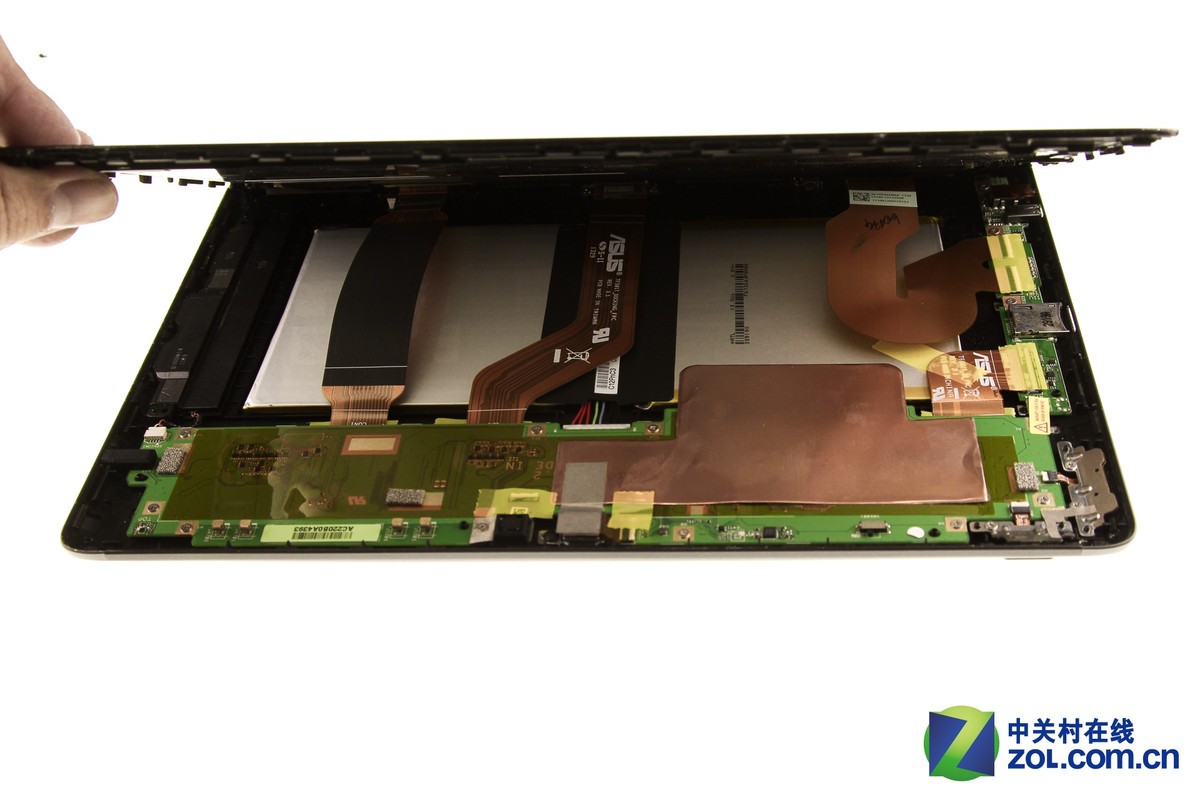

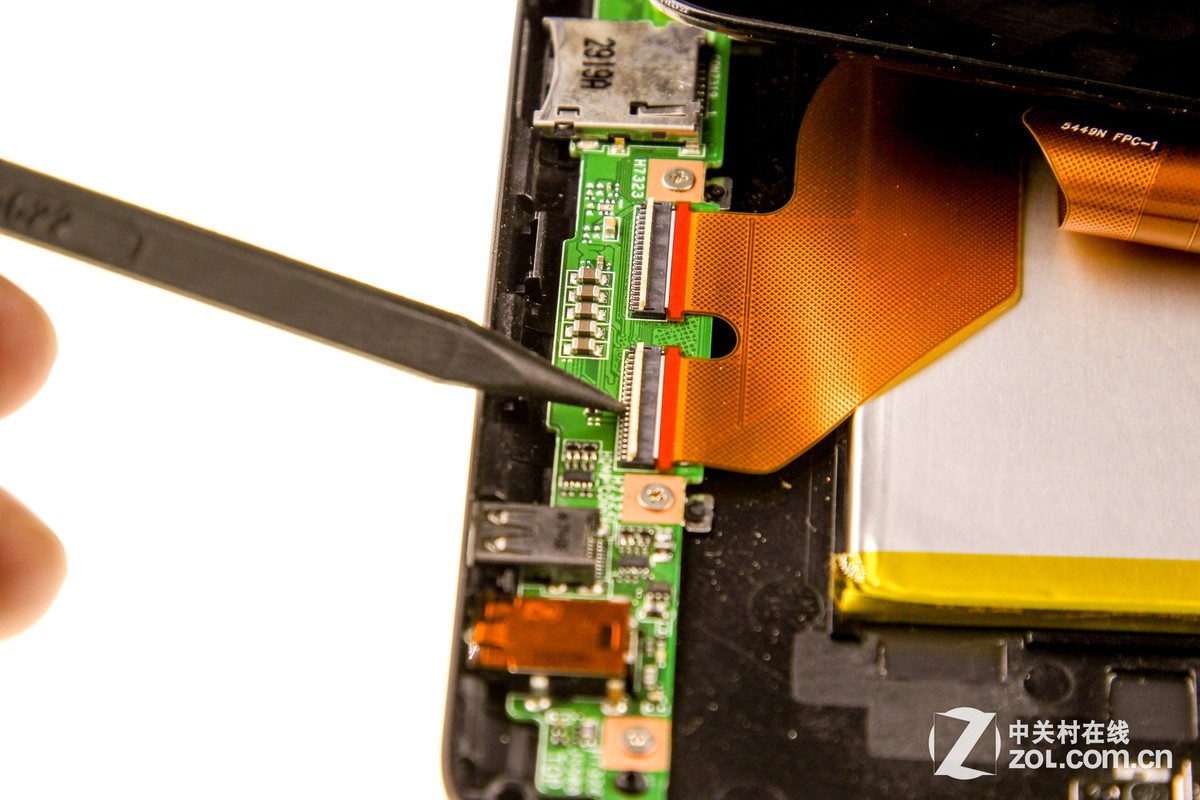

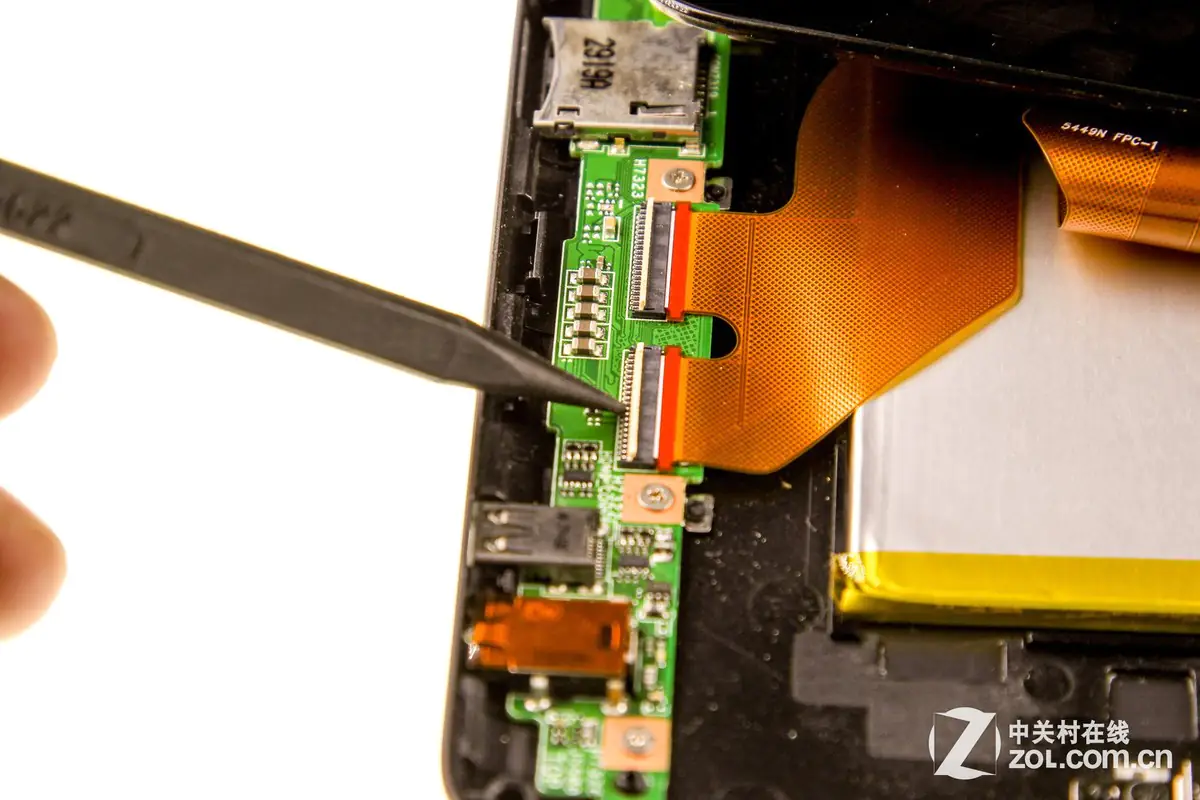

Lift the screen assembly with your hand, disconnect the screen cable and touch cable from the motherboard, and then you can remove the screen assembly.
Disconnect the screen cable and touch cable

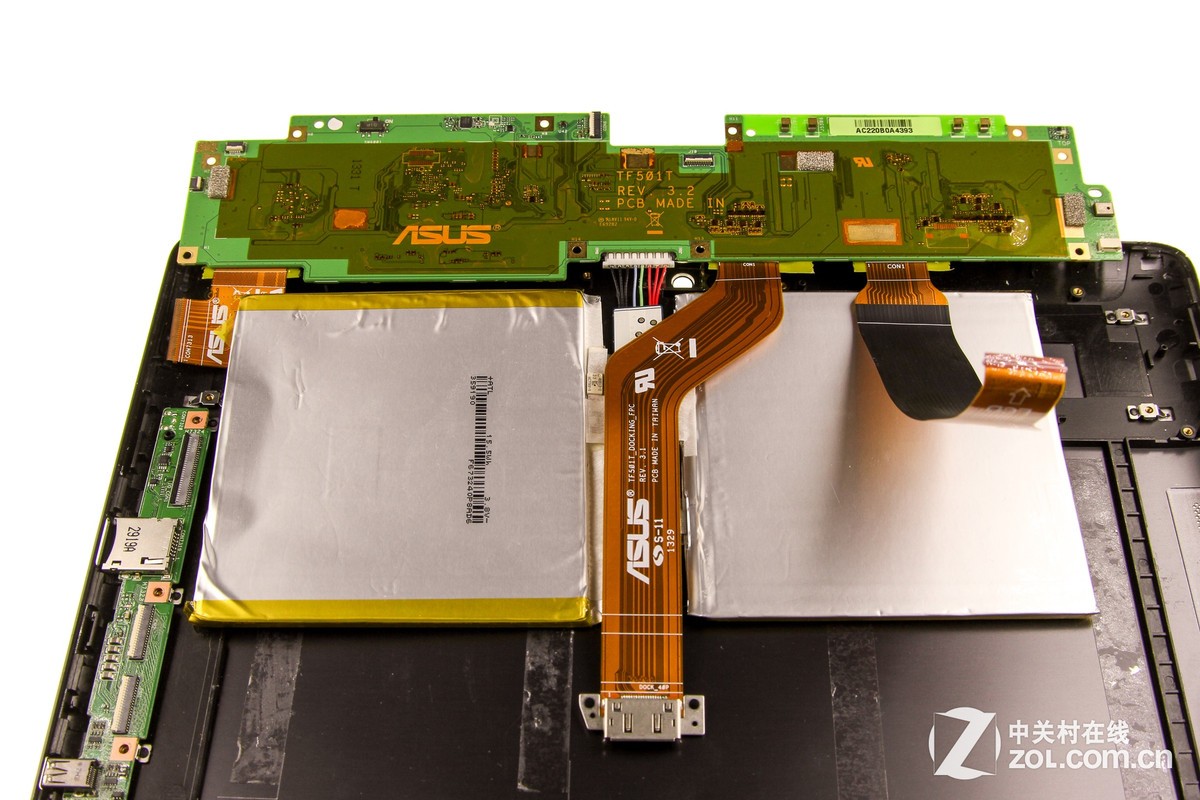

Once the screen is removed, you can access the battery, motherboard, speaker, and other internal components.

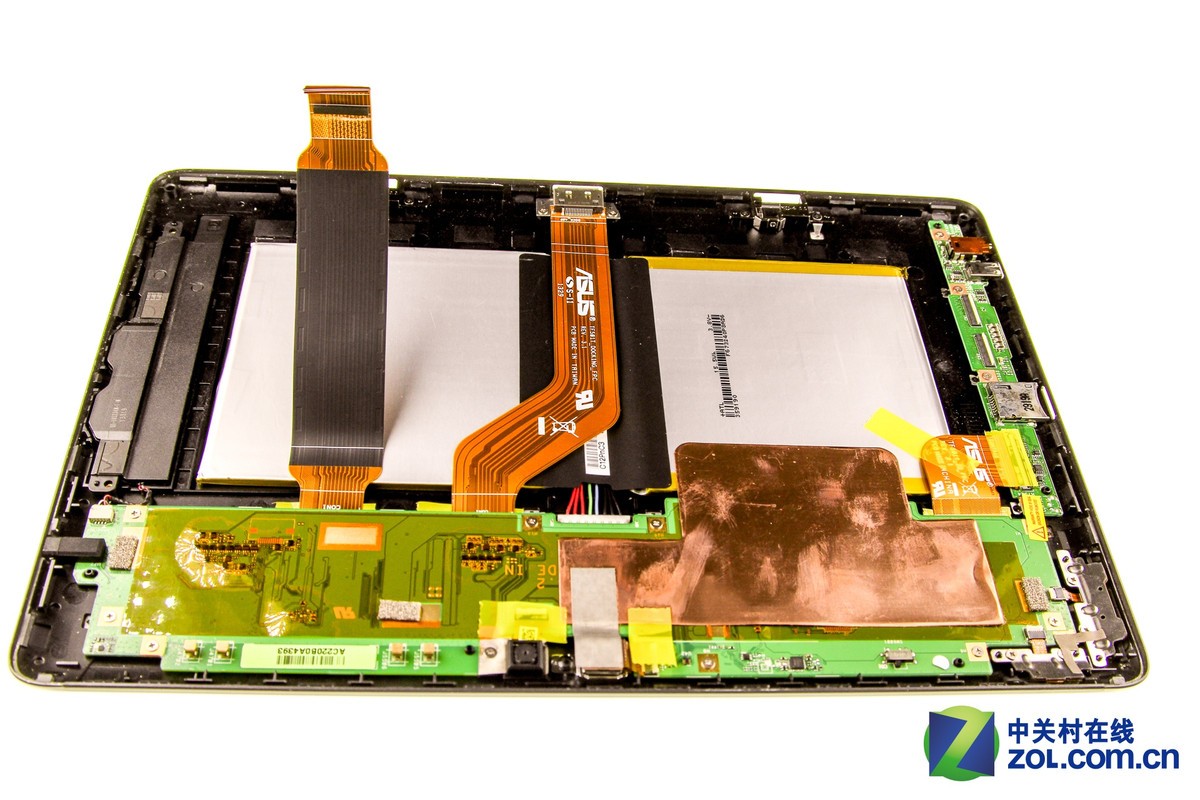

Asus Transformer Pad TF701T Internal Structure

Disconnect the speaker cable from the motherboard.
Disconnect the speaker cable

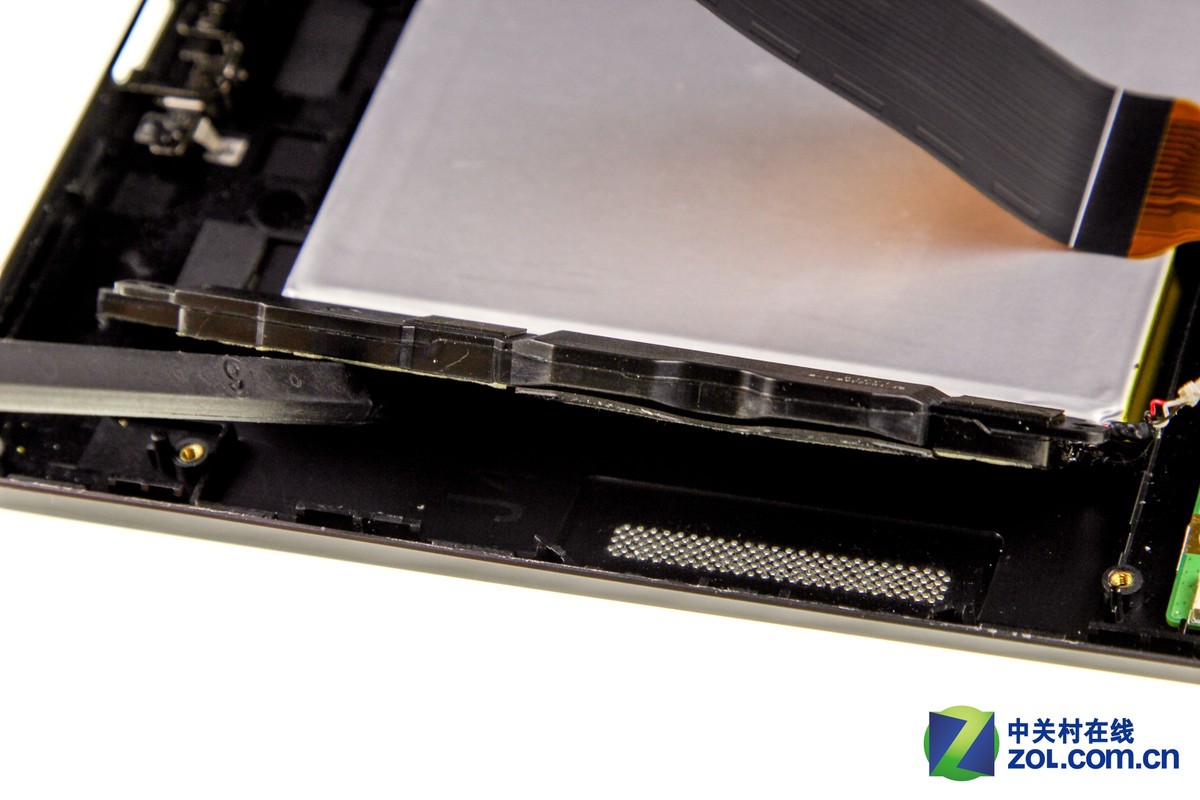

Use a screwdriver to pry up the speaker and remove it.
Remove the speaker

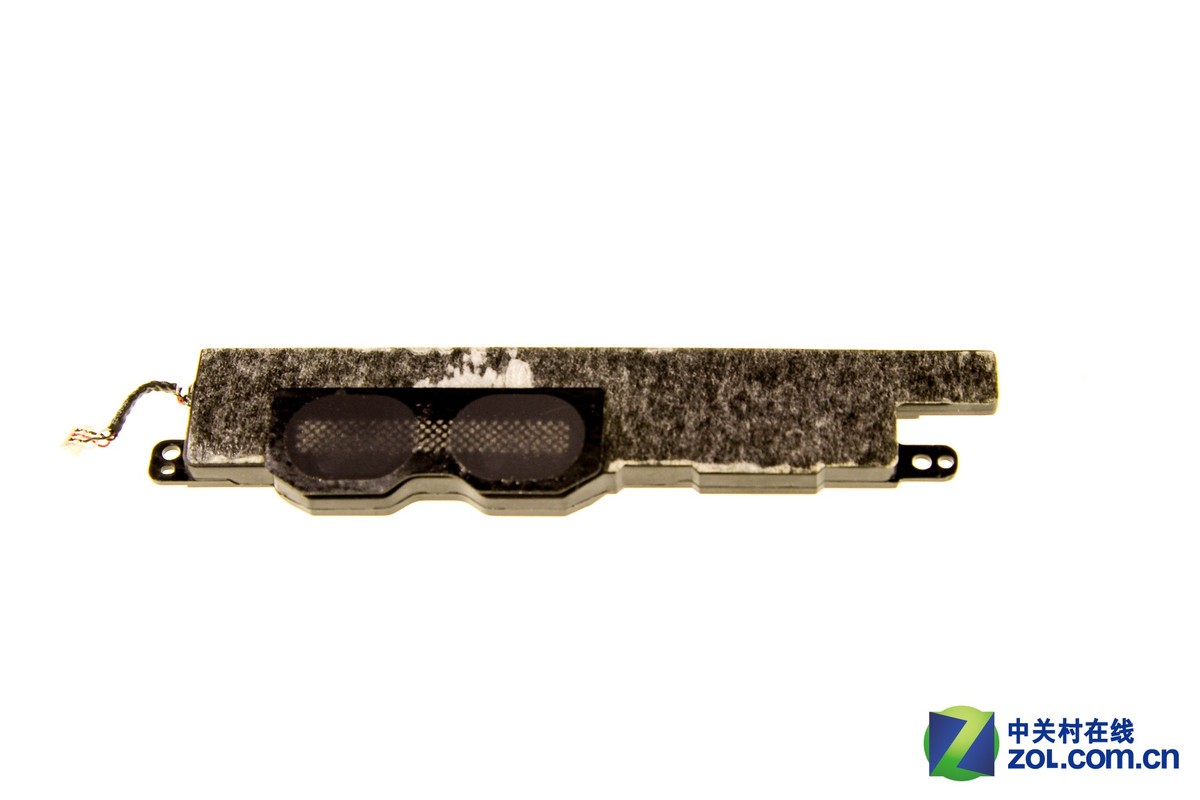

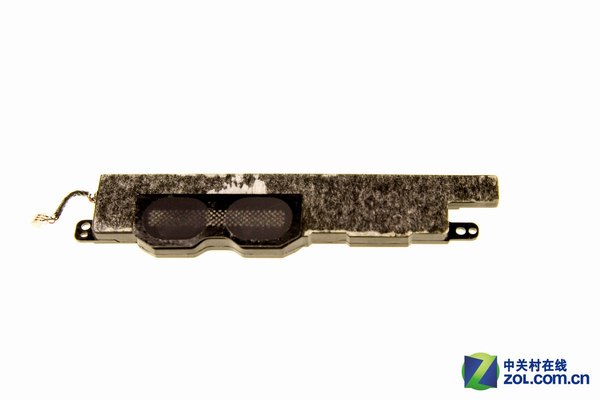

Speaker module
Speaker module

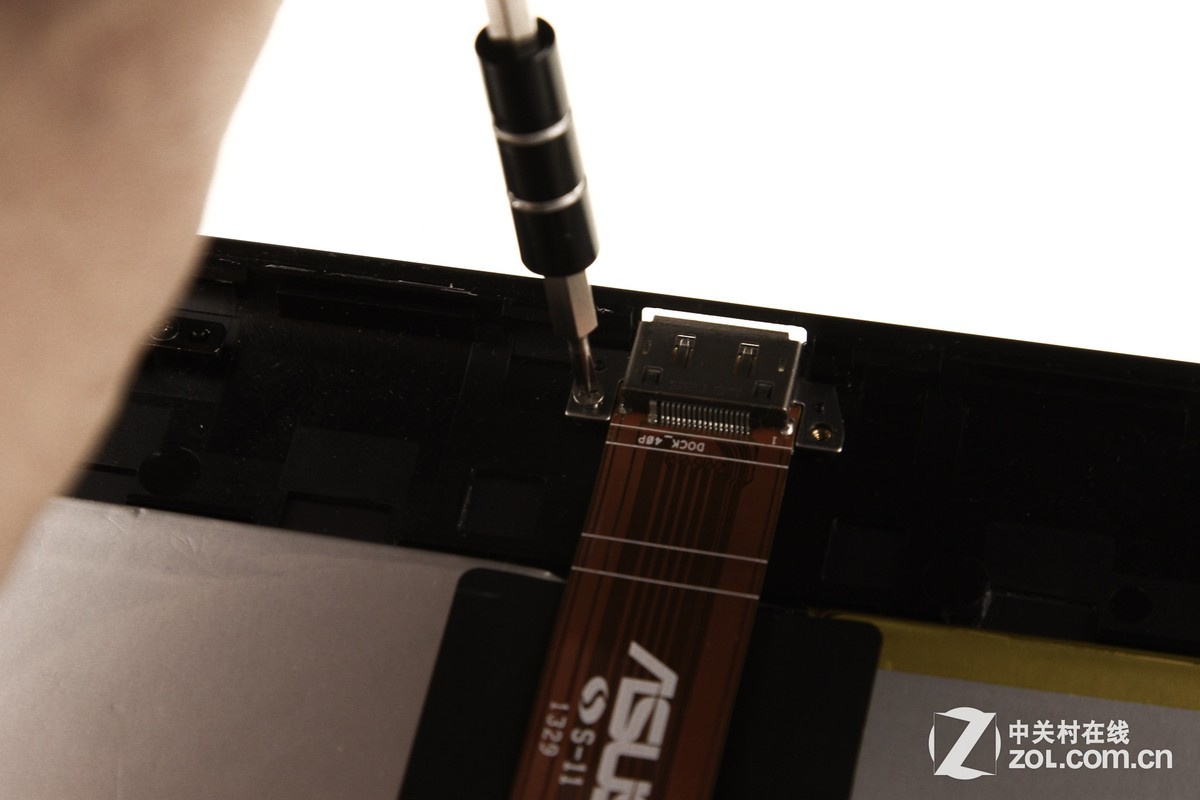

Remove two screws securing the cable.
Remove two screws securing the cable

Use tweezers to remove this small circuit board, which has a charging port and a 3.5mm headphone jack.
Remove this small circuit board

Disconnect the camera cable.
Disconnect the camera cable

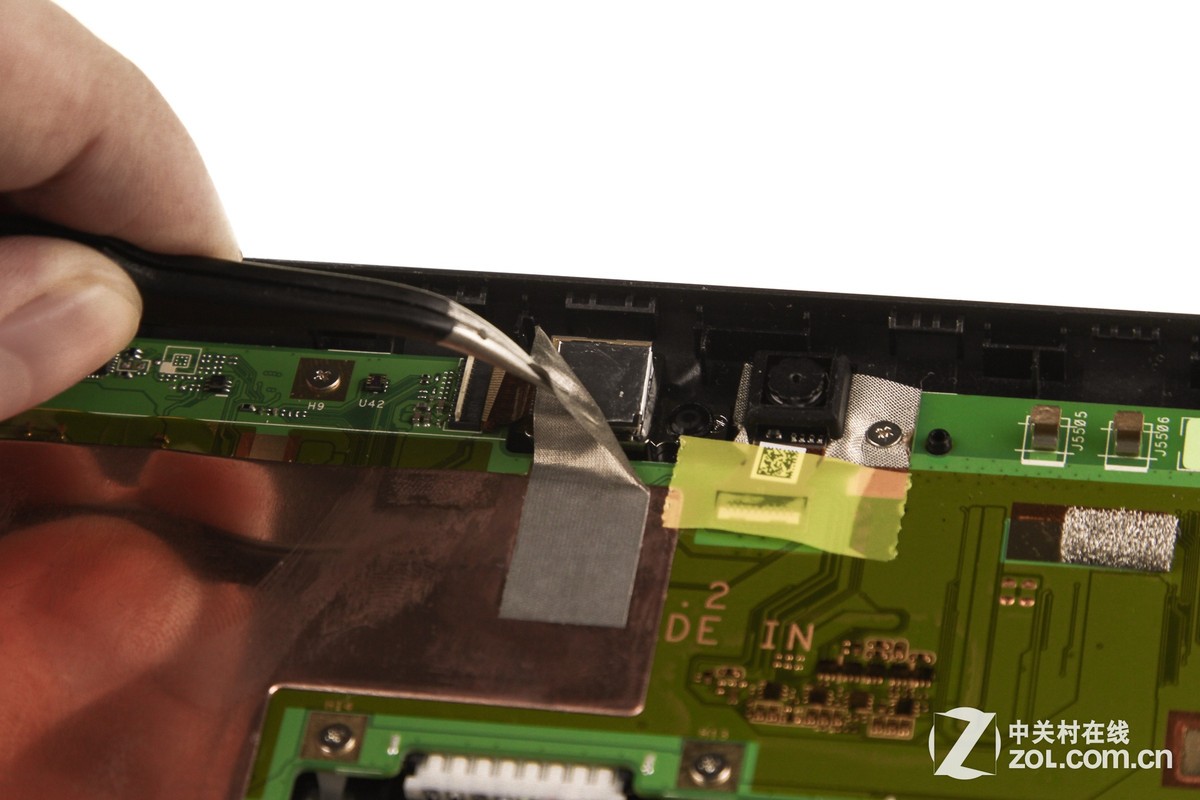

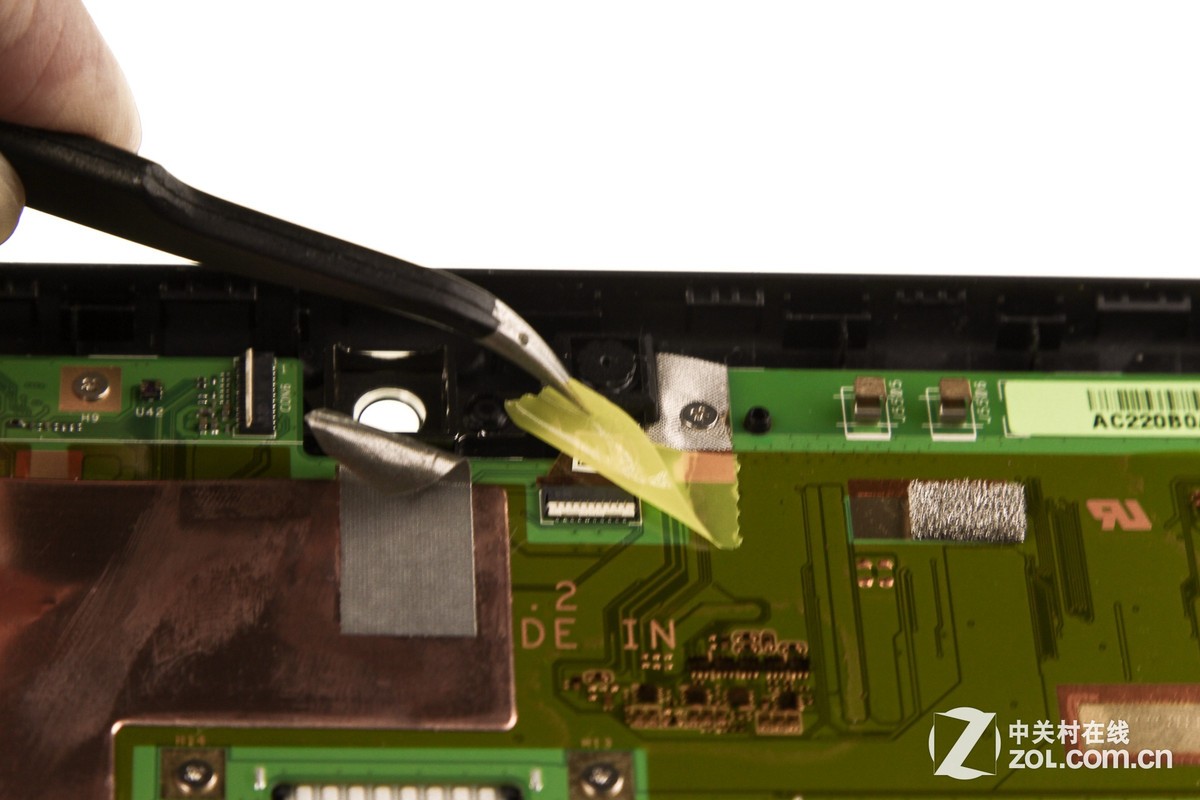

Peel off the tape that secures it to remove the camera module.
Remove the camera module

Peel off the tape

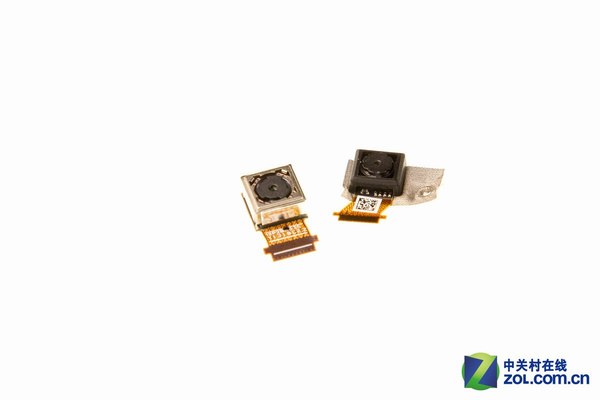

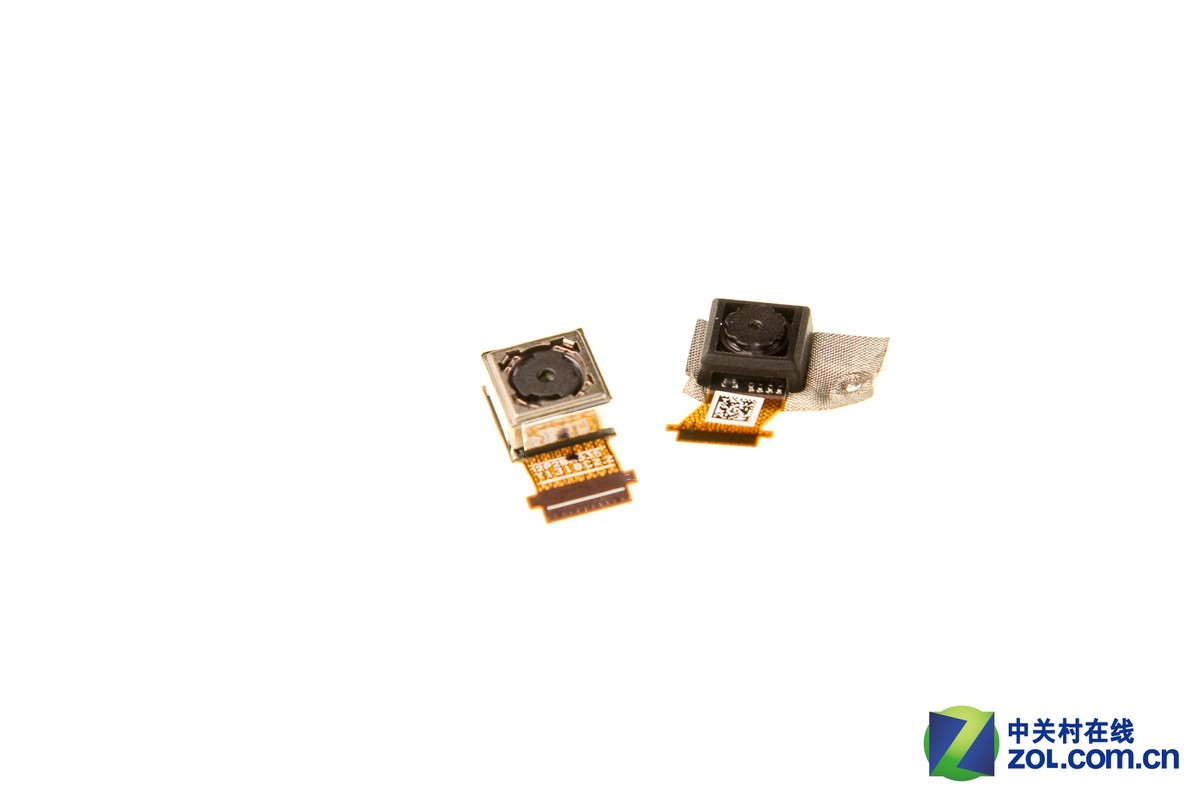

Rear camera and front camera
Rear camera and front camera

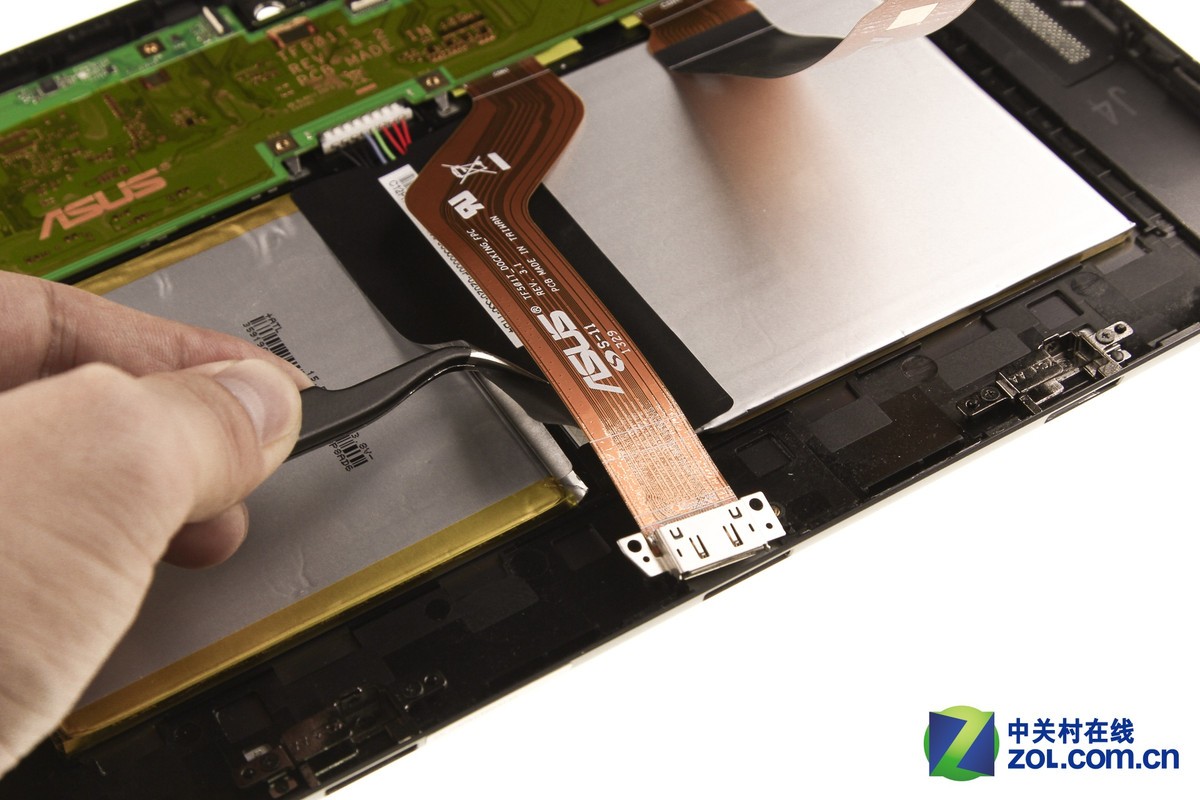

Remove the black tape.
Remove the black tape

The Asus Transformer Pad TF701T comes with two batteries.
Asus Transformer Pad TF701T battery

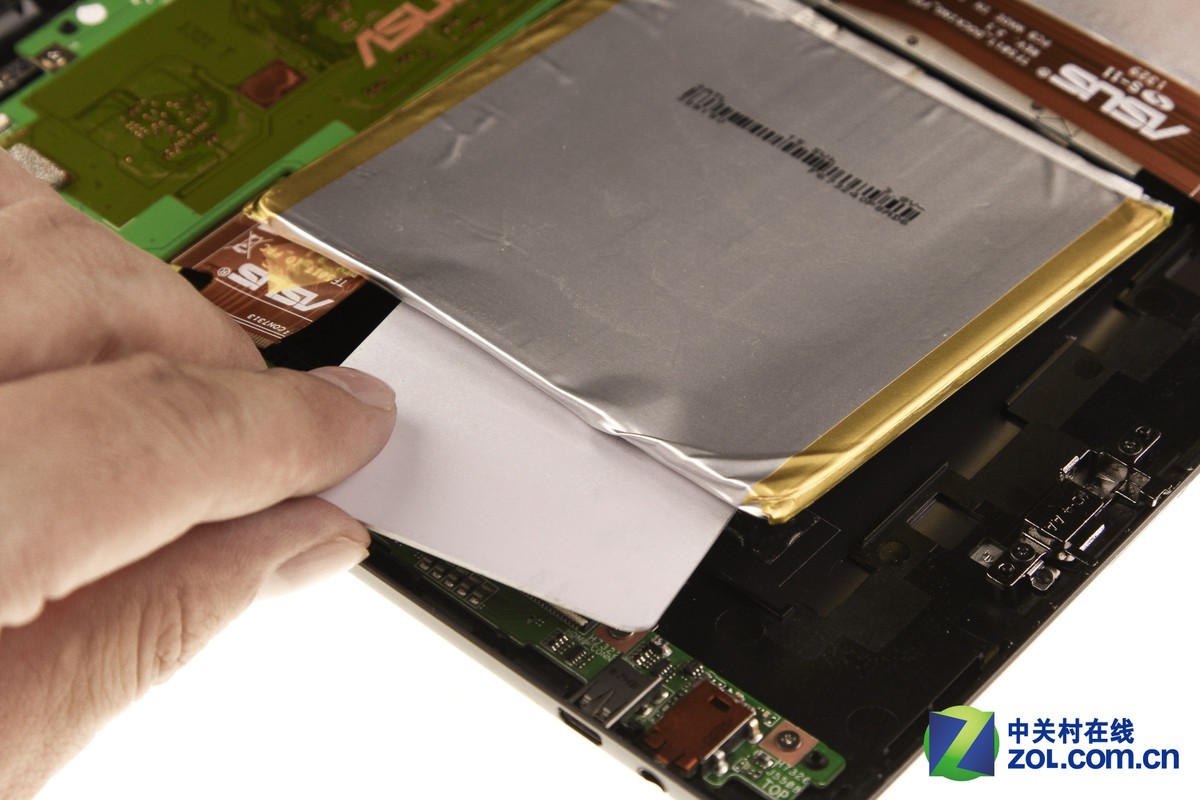

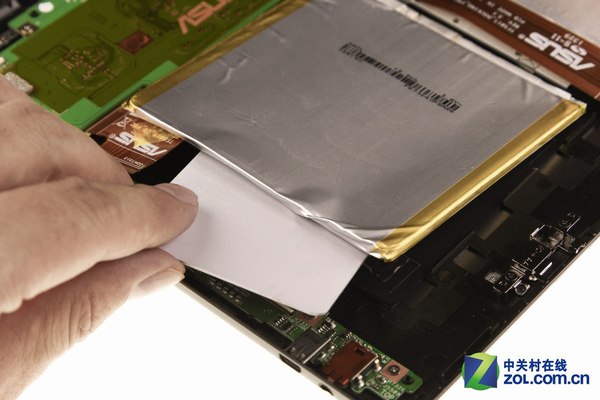

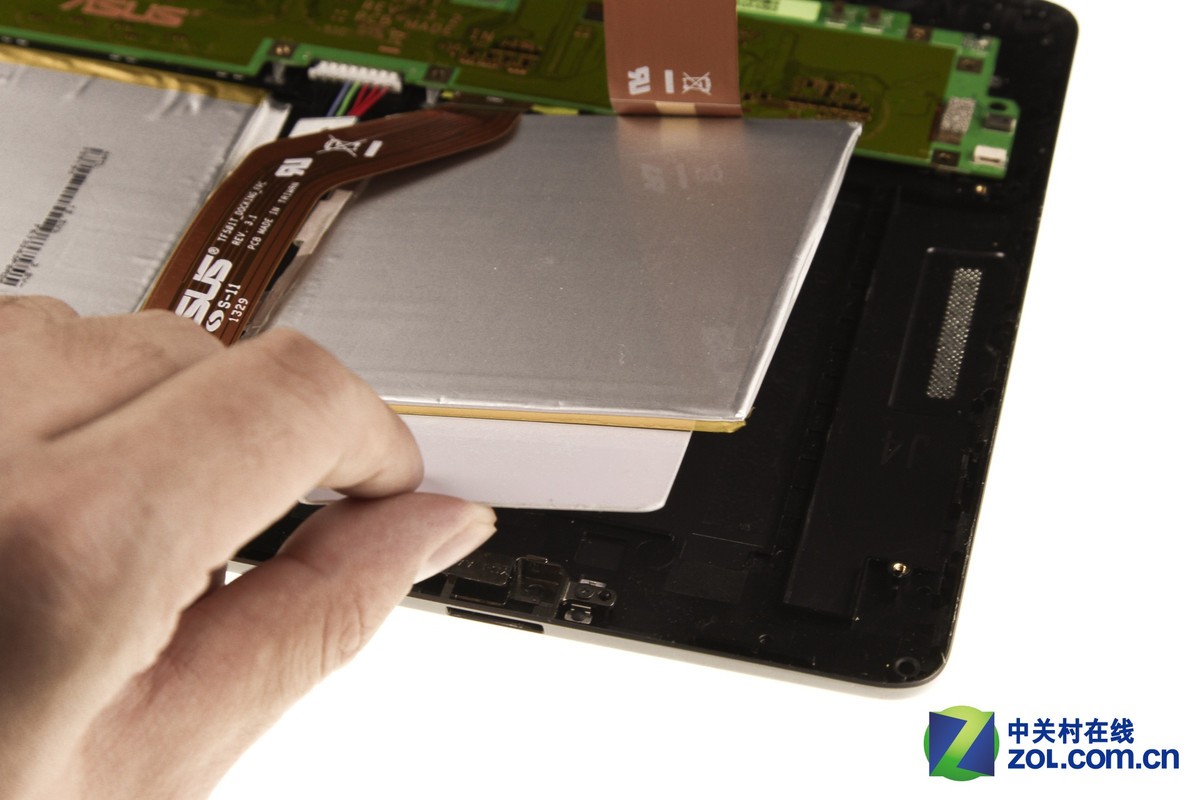

Insert an old card under the battery and pry the battery upwards with a little force.
Remove the battery

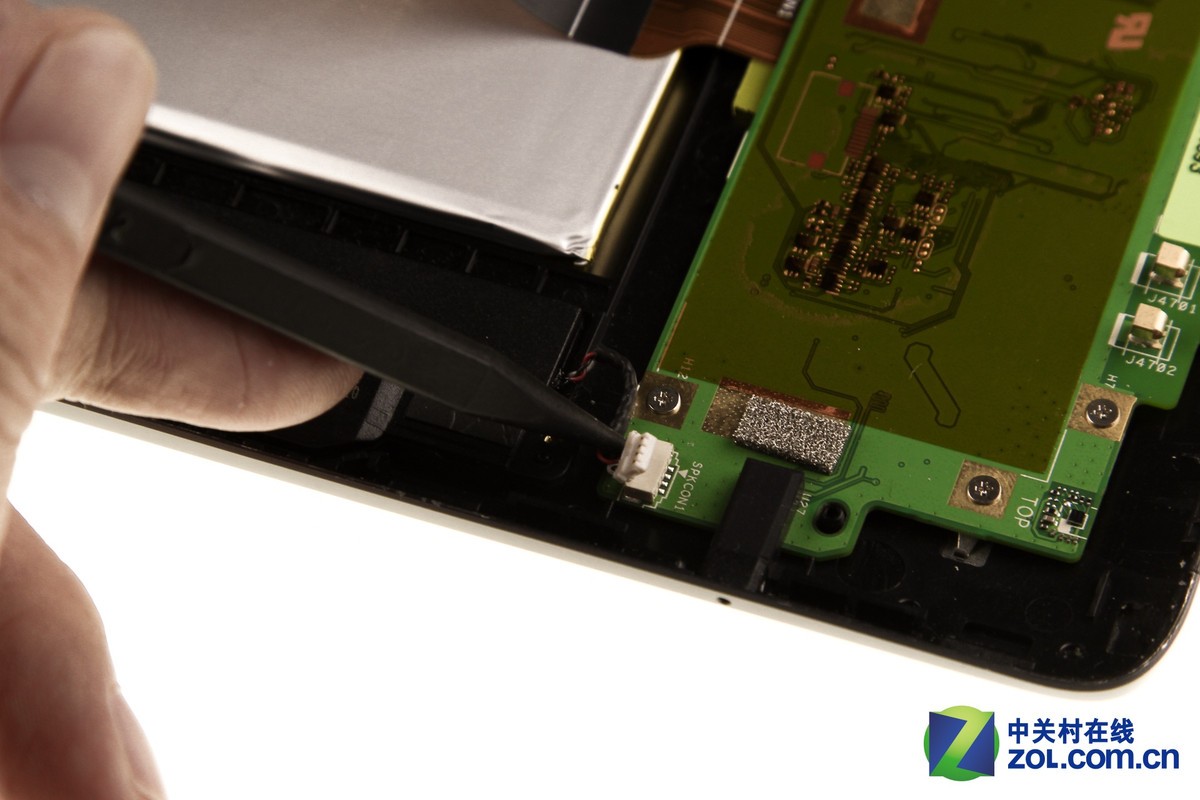

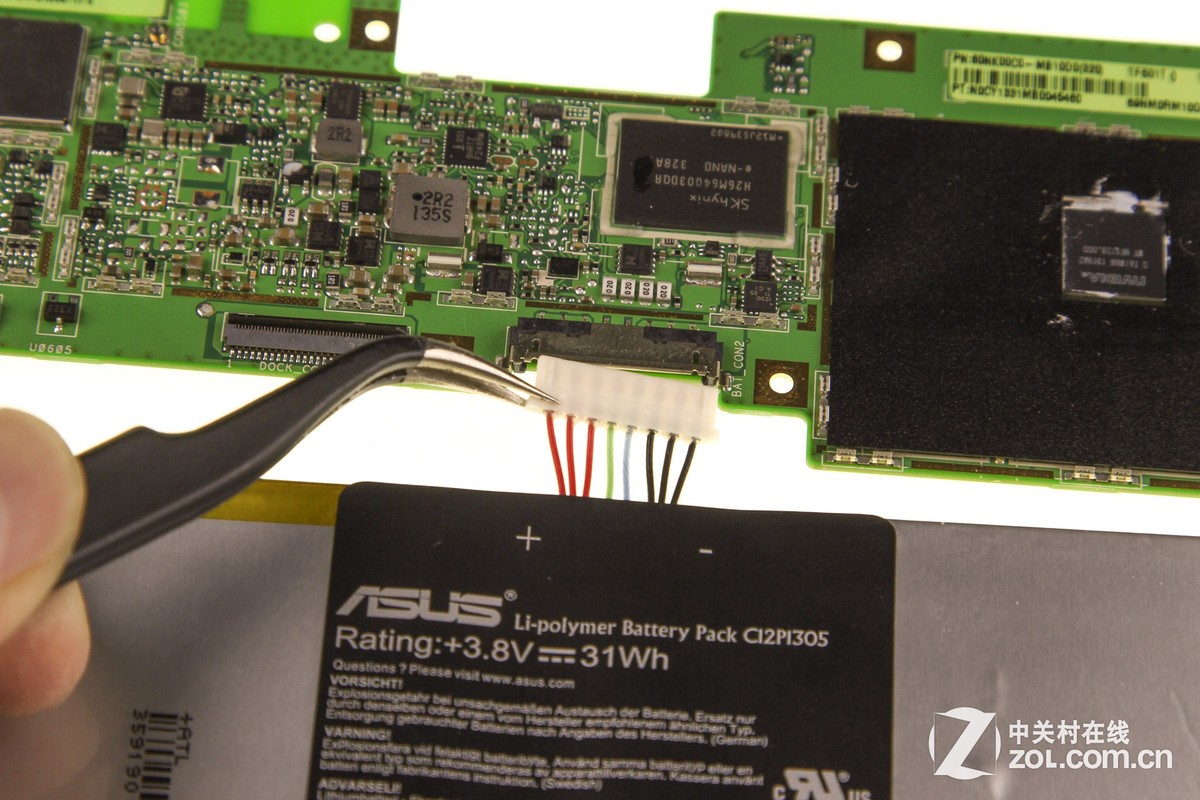

Disconnect the battery power cable from the motherboard.
Disconnect the battery power cable

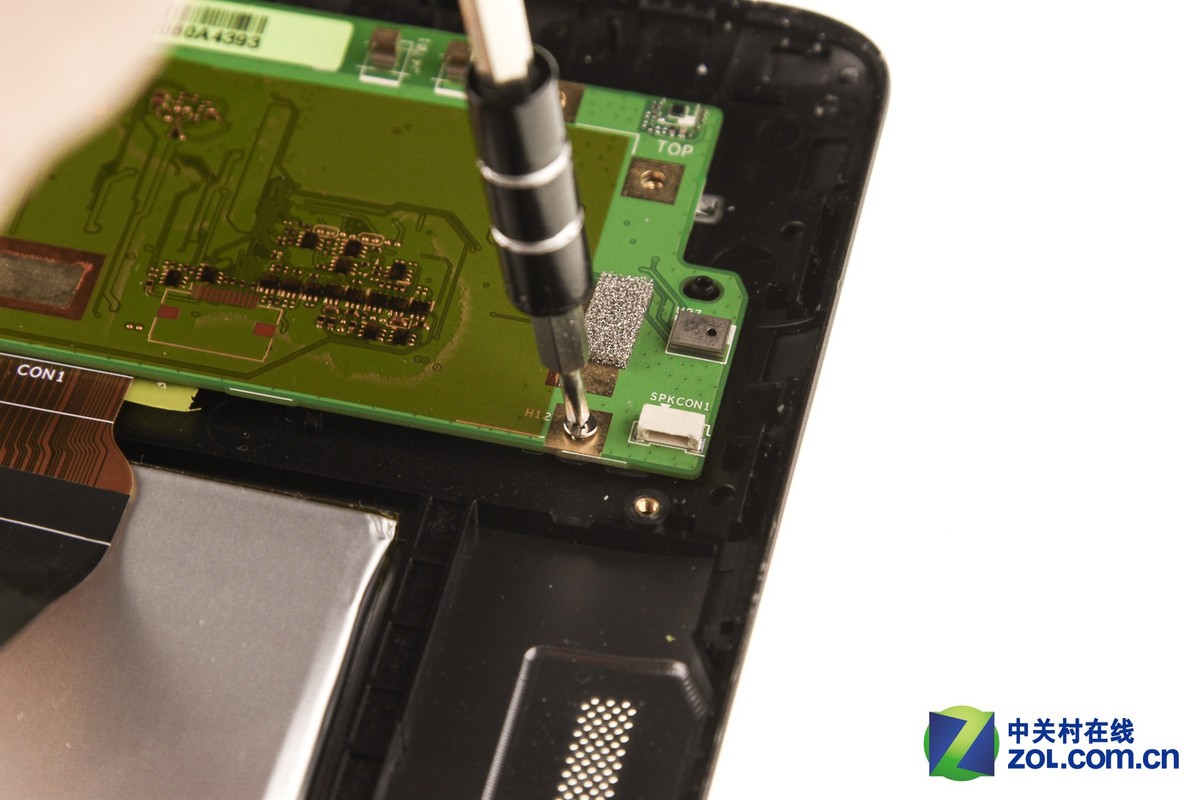

Remove all screws securing the motherboard.
Remove all screws securing the motherboard

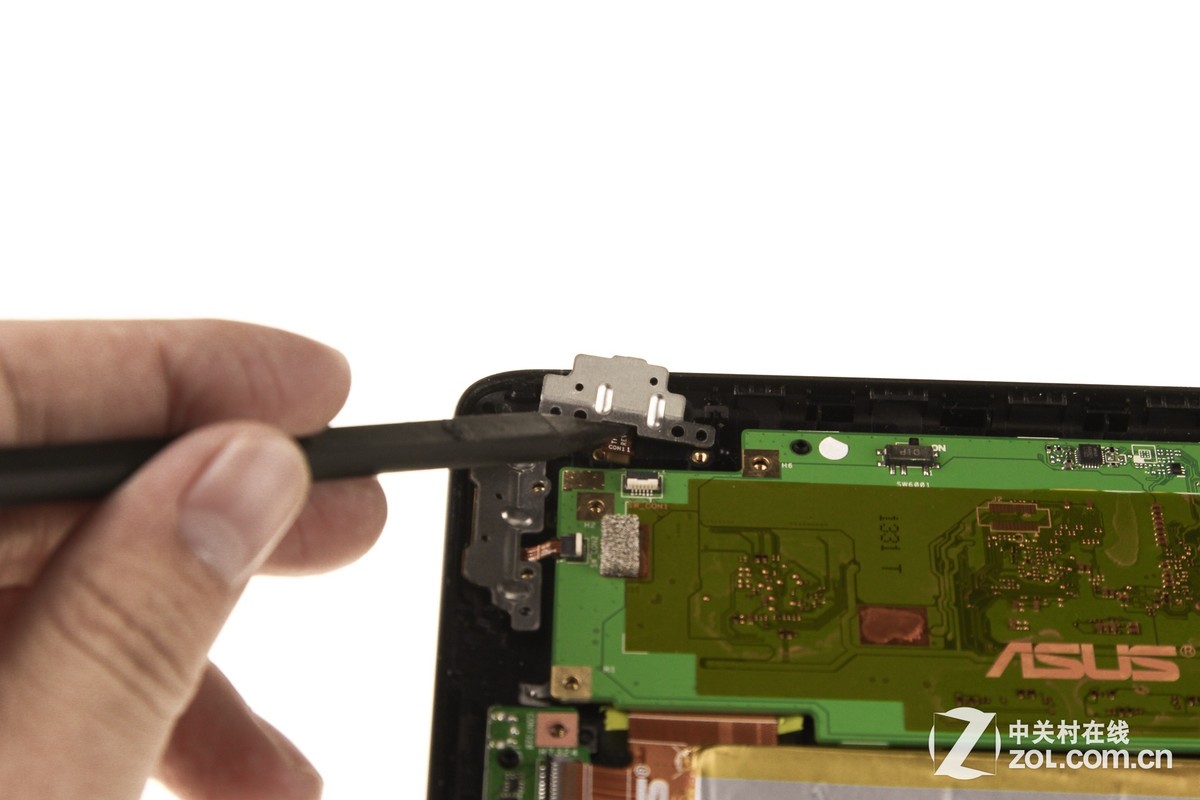

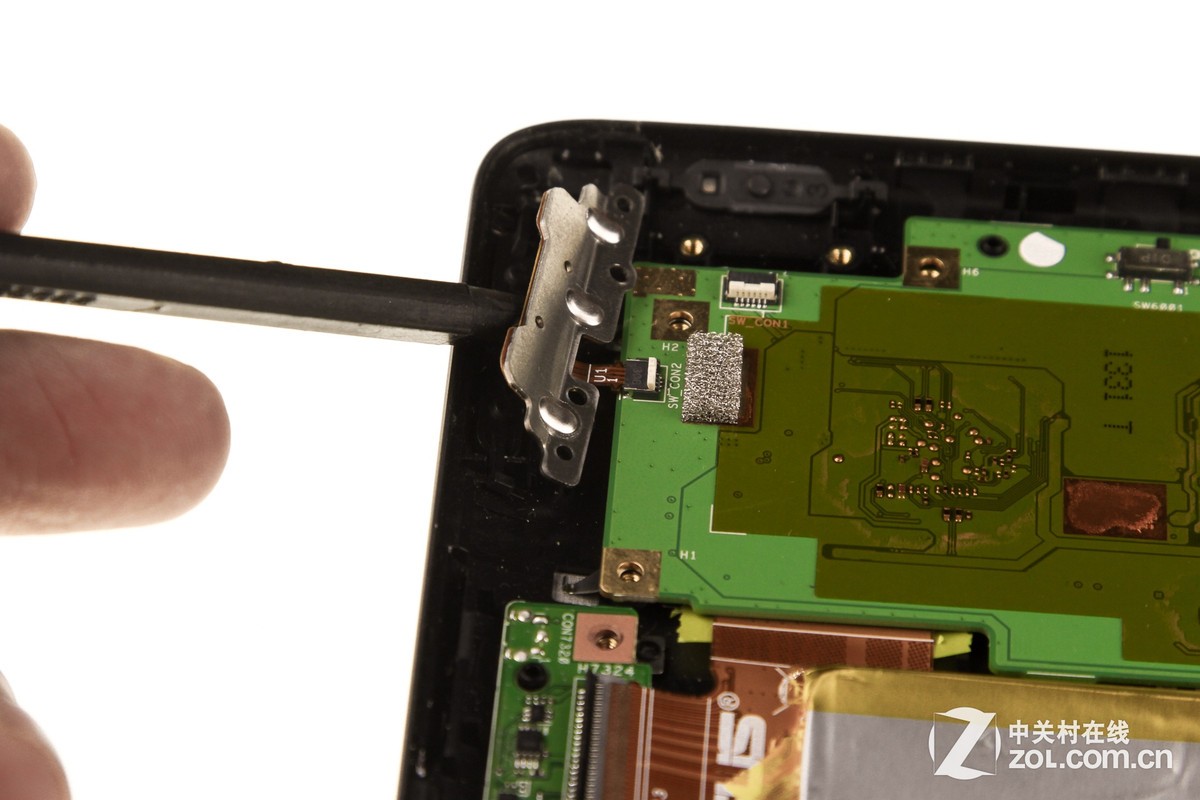

Remove the metal plate securing the motherboard.
Remove the metal plate

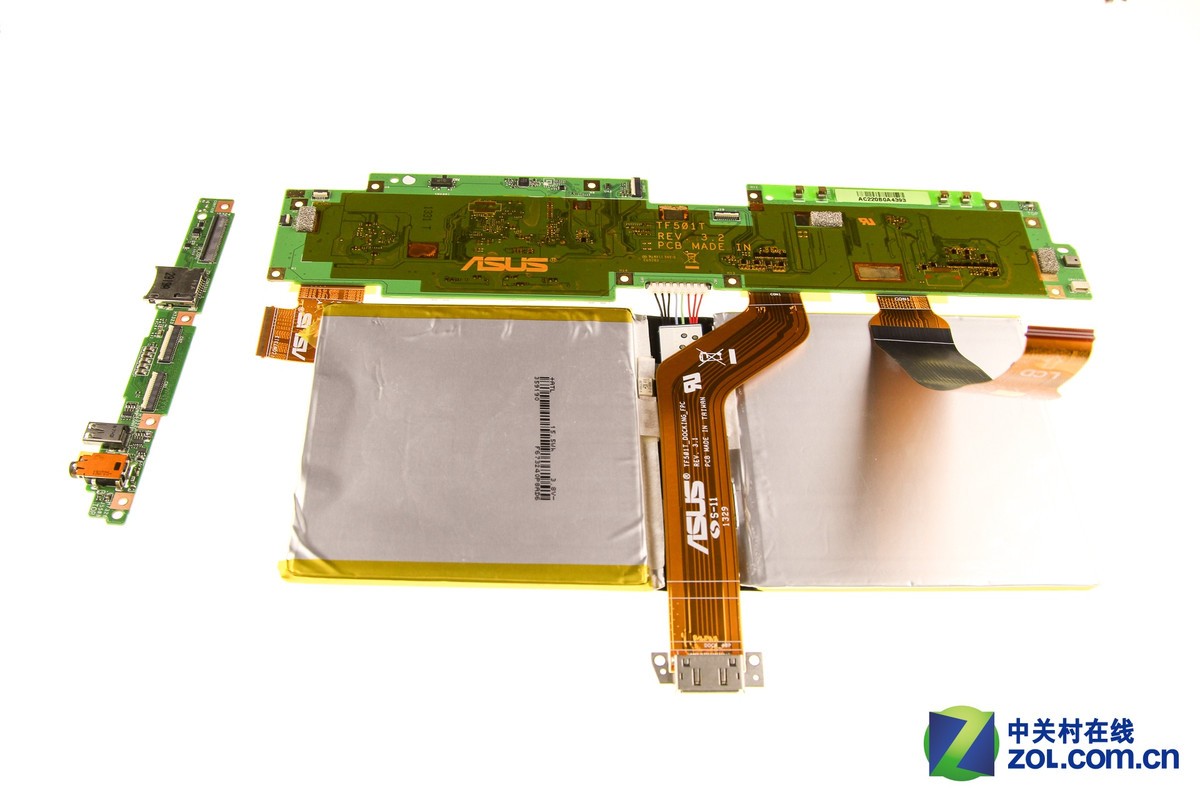

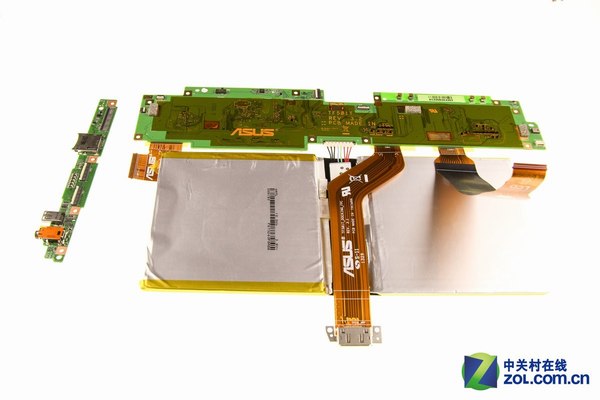

Lift and remove the motherboard with your hands.
Remove the motherboard

Asus Transformer Pad TF701T motherboard

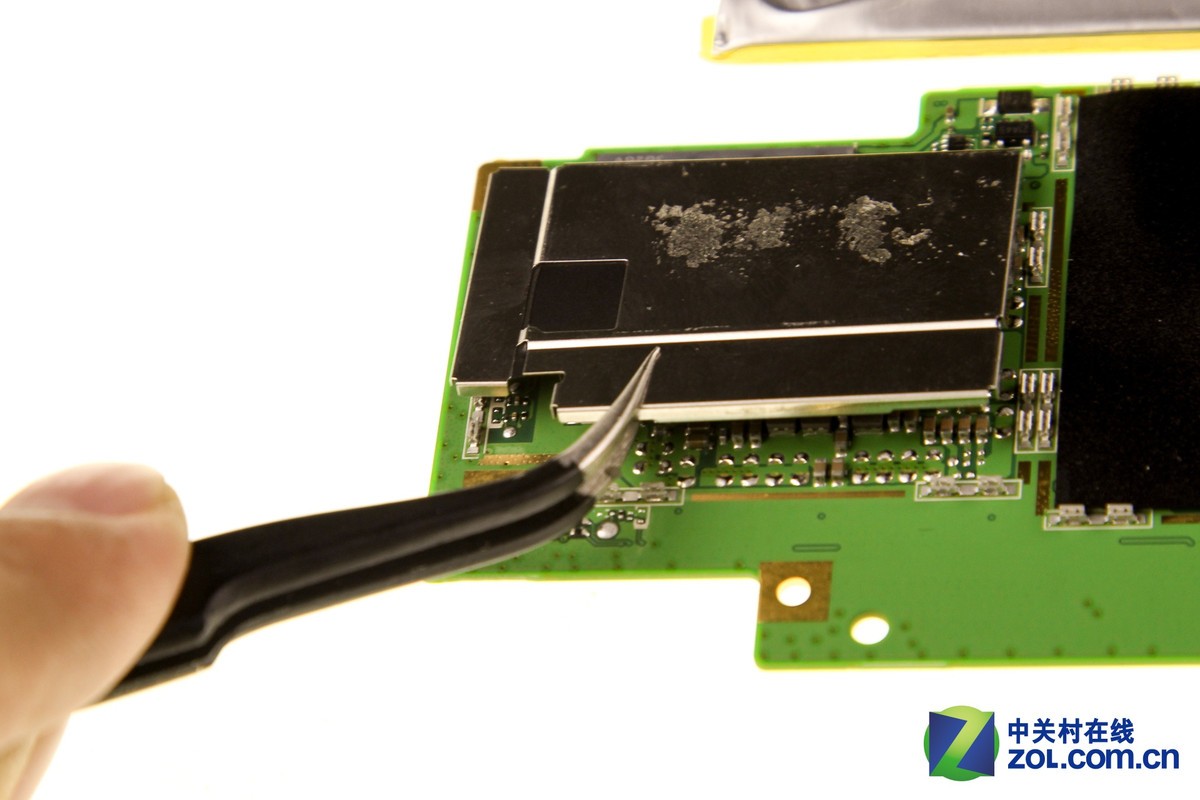

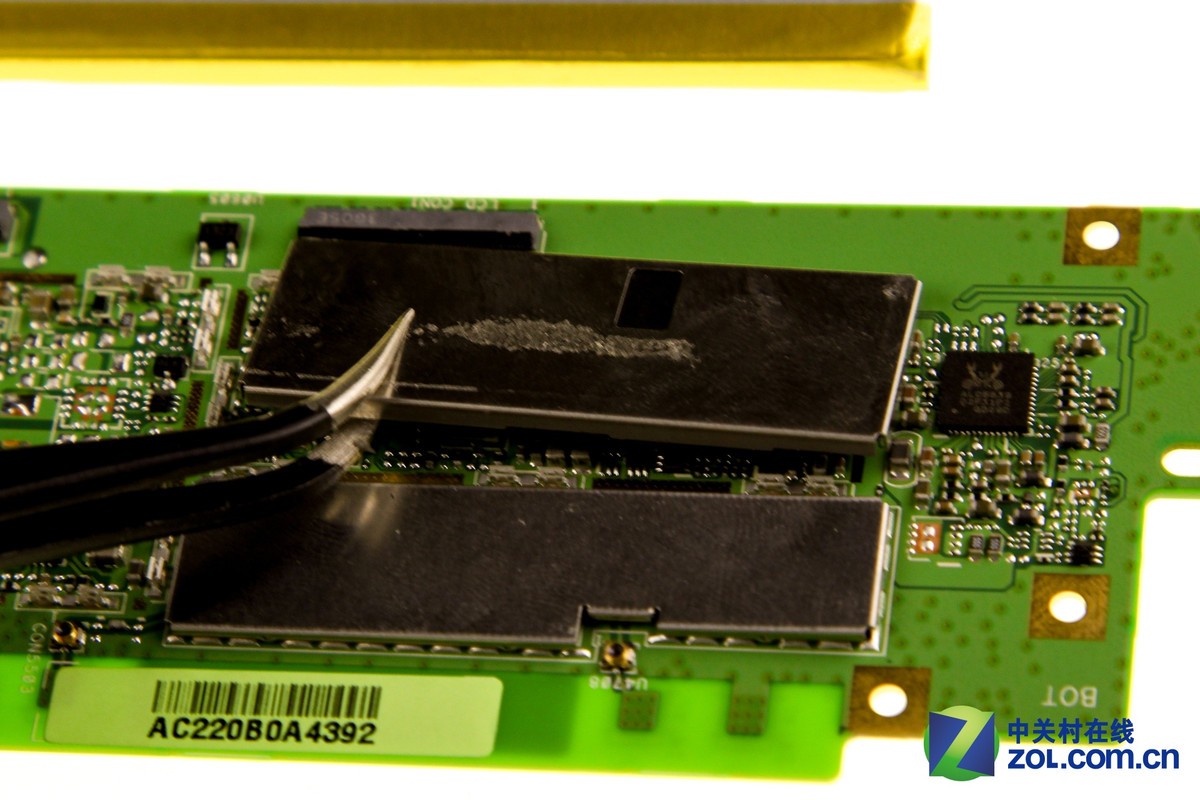

Use tweezers to remove all the metal shields on the motherboard to access the chips.
Remove all the metal shields

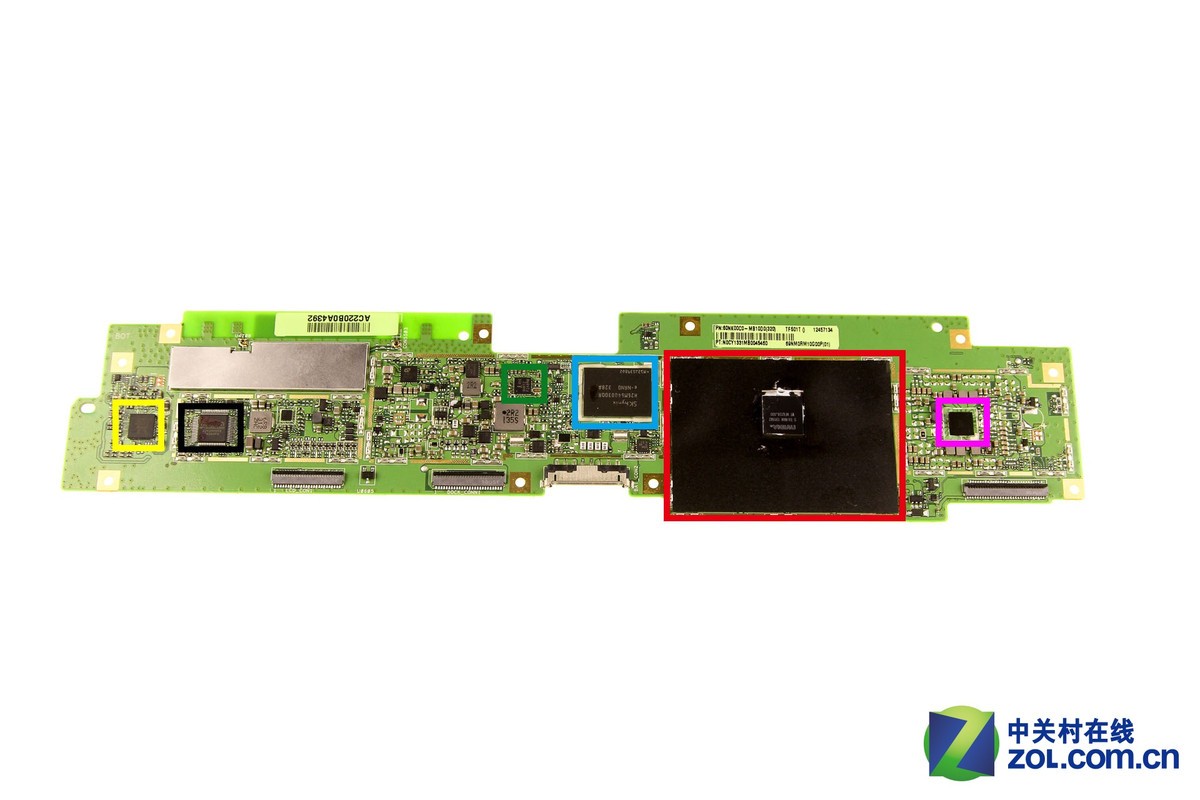

Chips on the motherboard

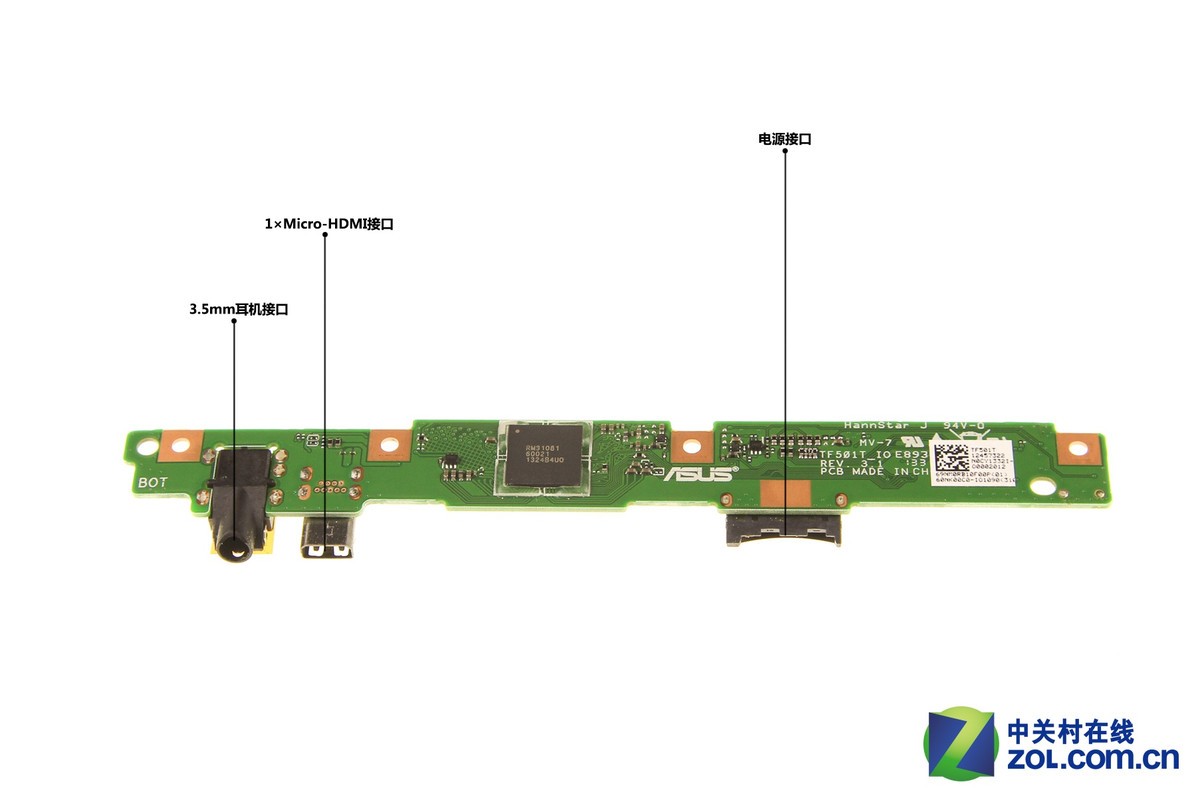

Ports

Source: zol.com.cn
