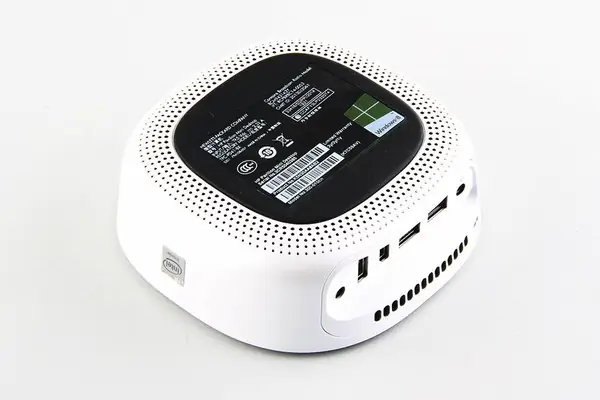

HP Pavilion Mini 300 Disassembly

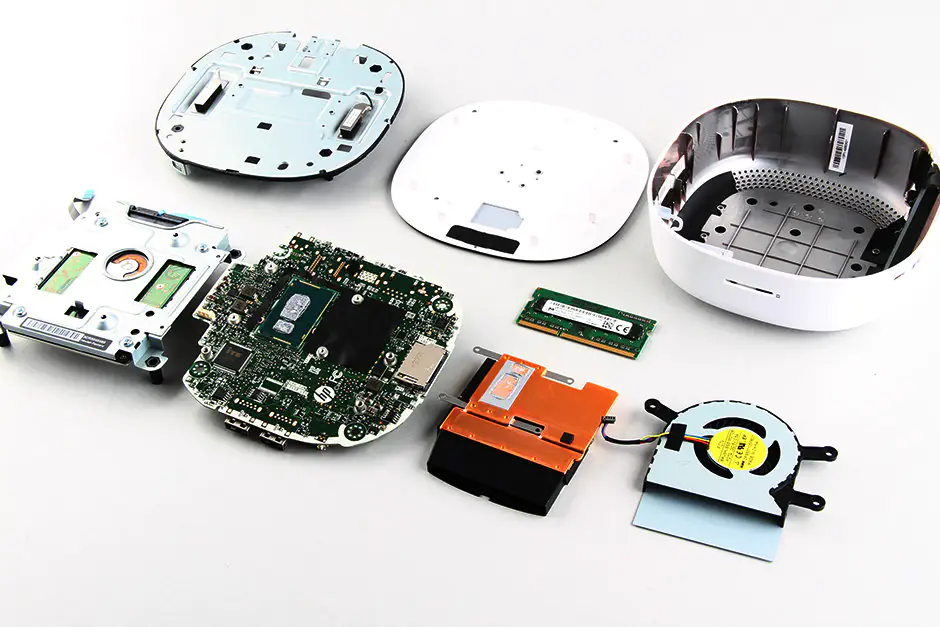

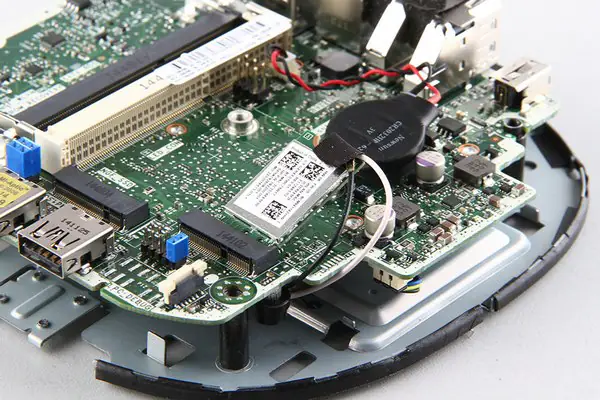

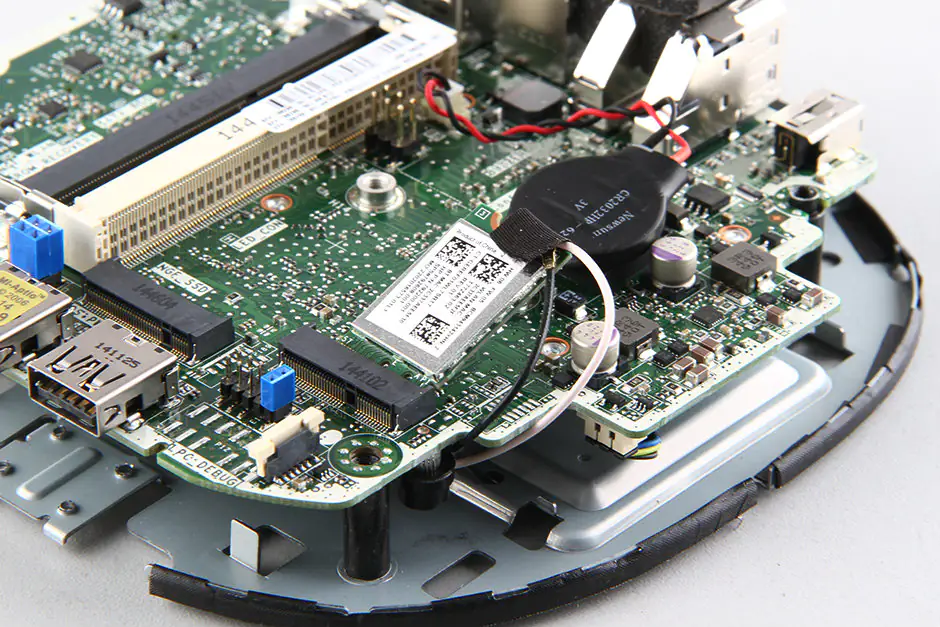

In this guide, I’ll explain how to disassemble HP Pavilion Mini 300 to remove the hard drive, wireless card, heat sink, cooling fan and motherboard. Refer to the guide. You can repair your Pavilion Mini 300.

Want to keep in touch with us? Follow us on Facebook for more repair news.

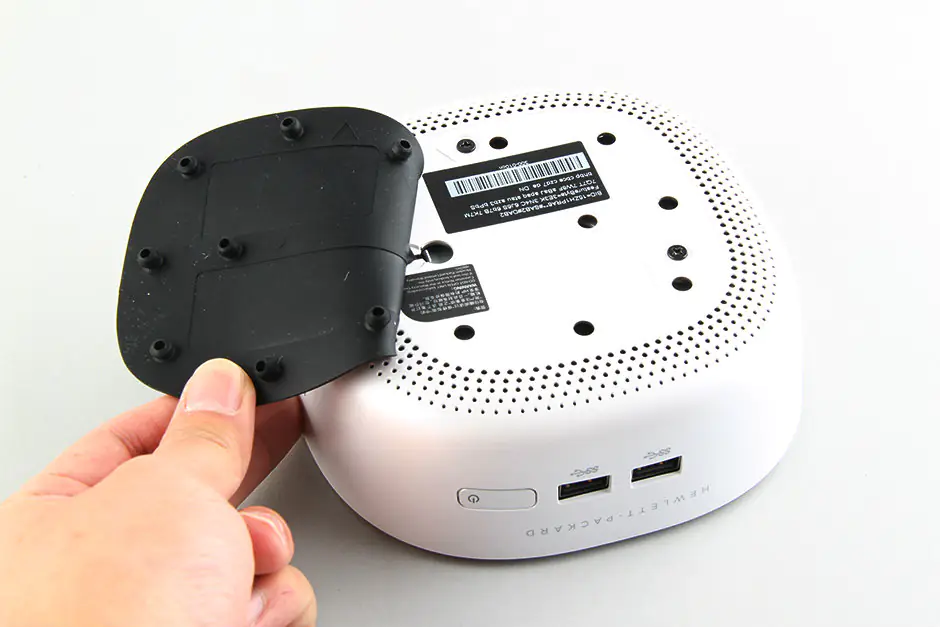

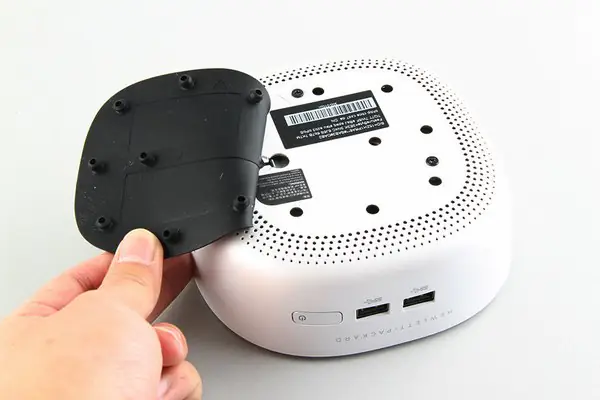

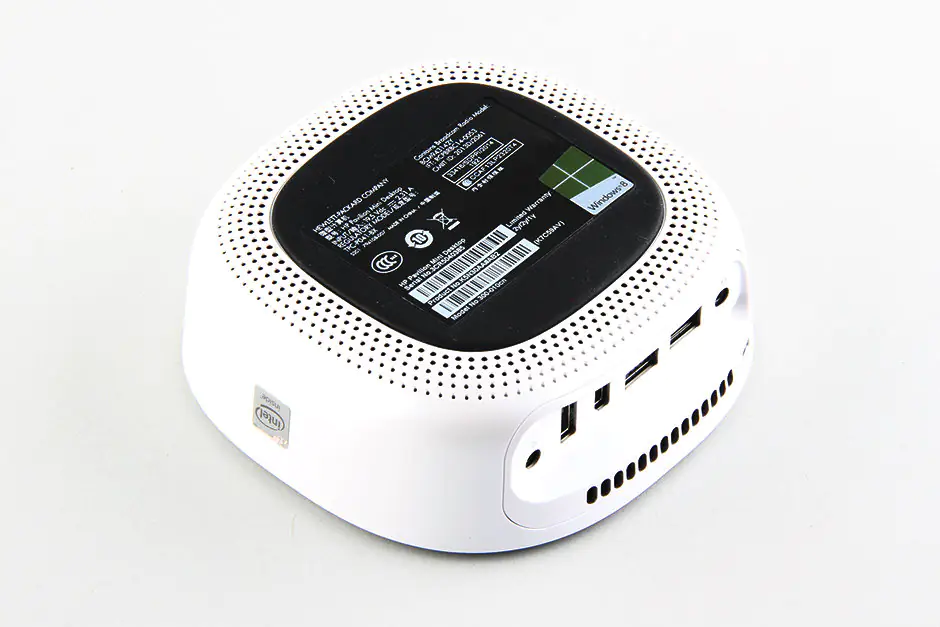

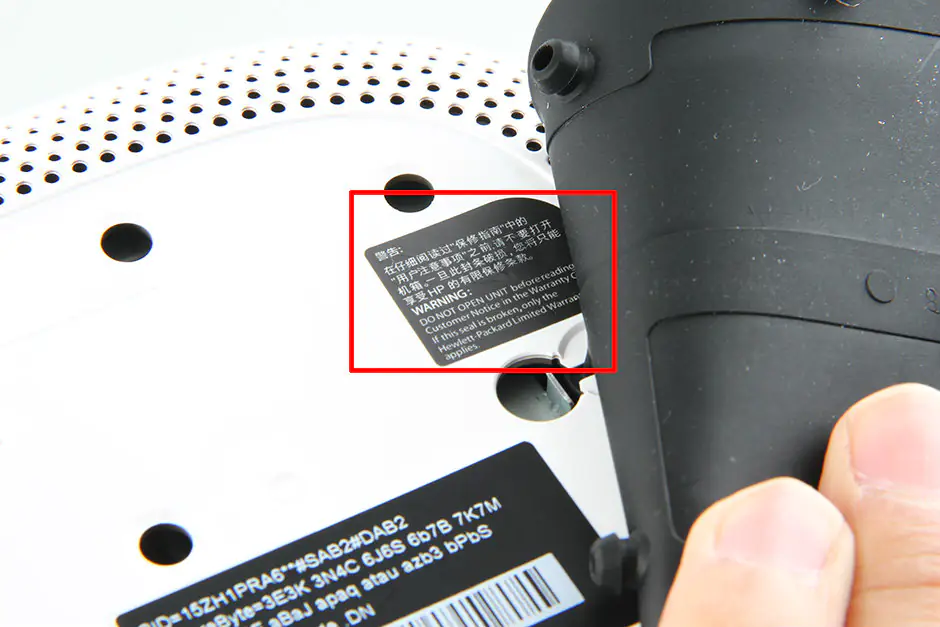

Remove the rubber cover. You can find two screws.
Remove these two screws.

Insert the pry bar to open the back cover.

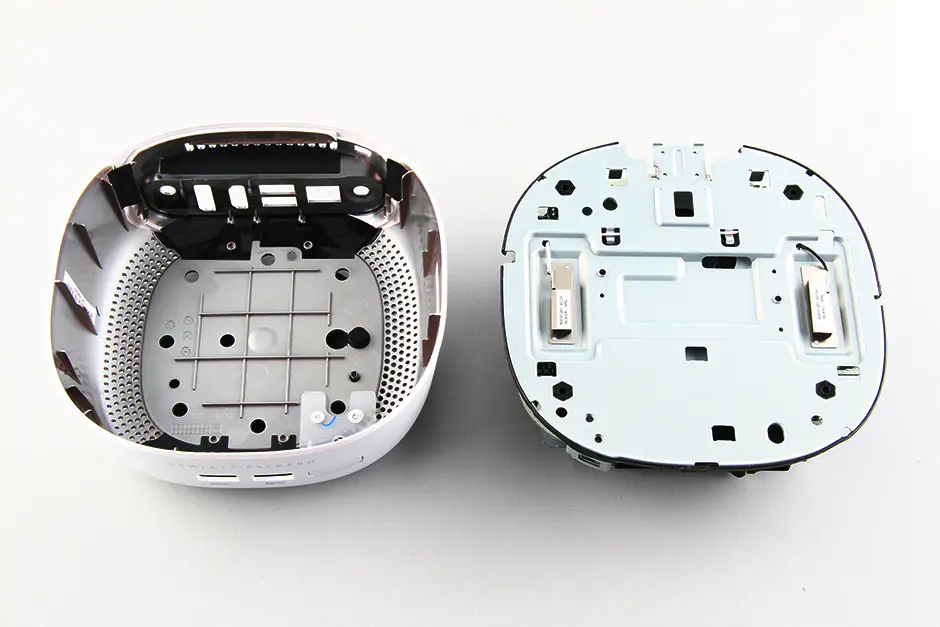

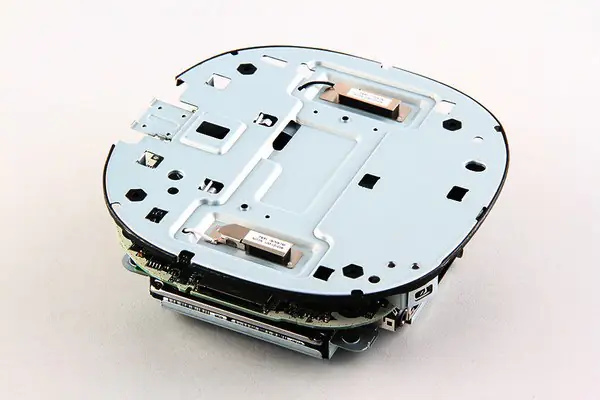

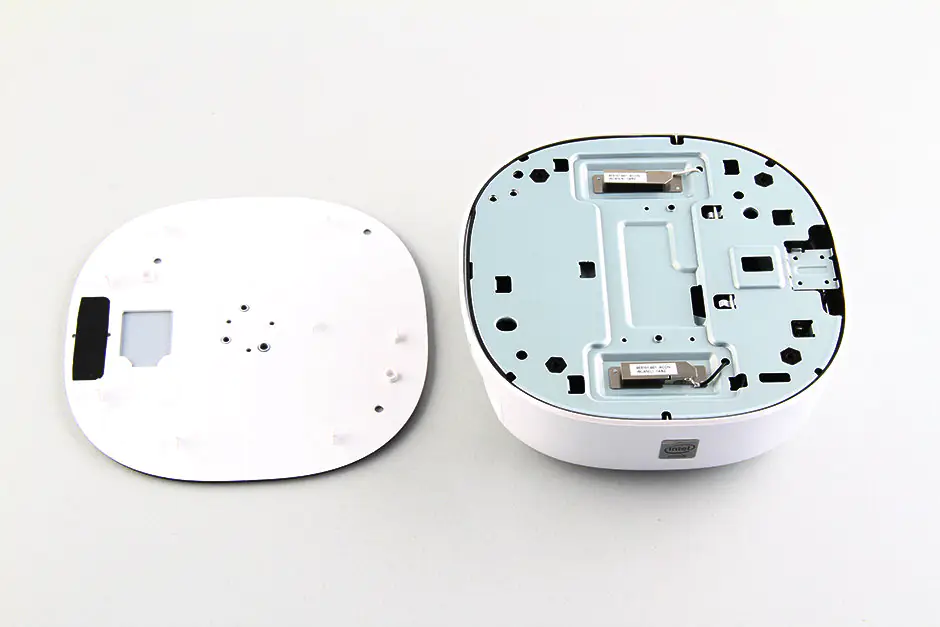

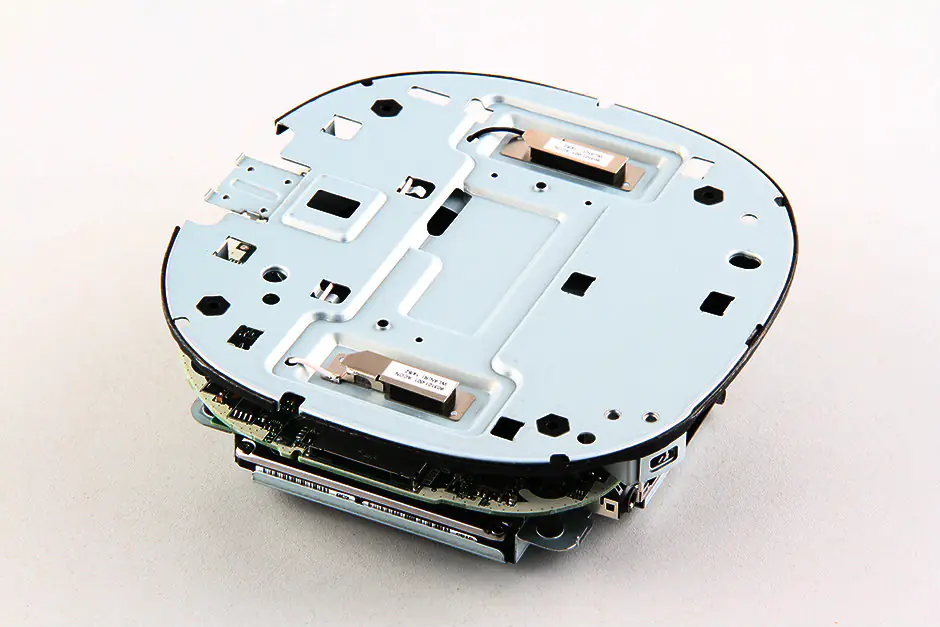

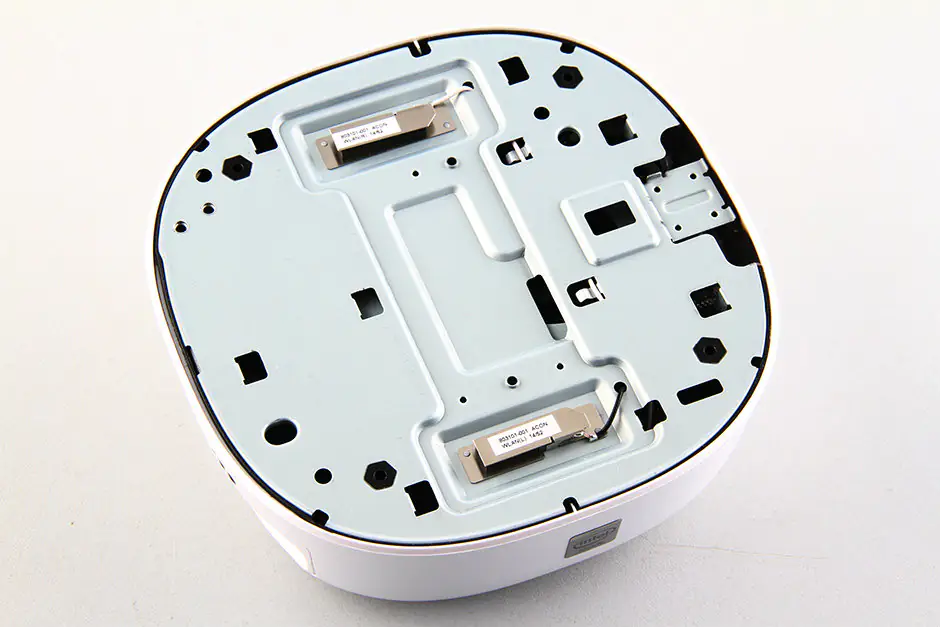

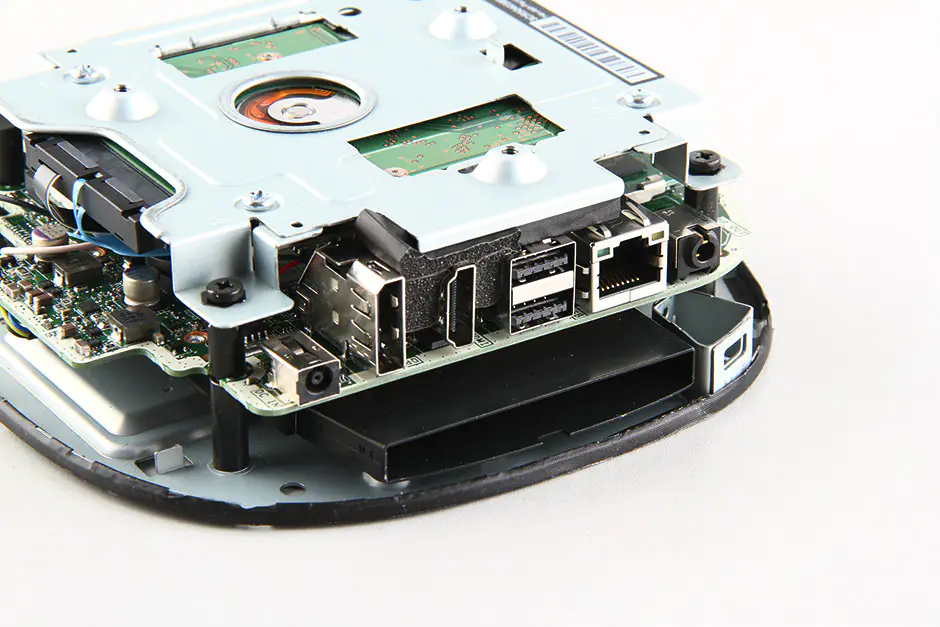

Remove the cover.

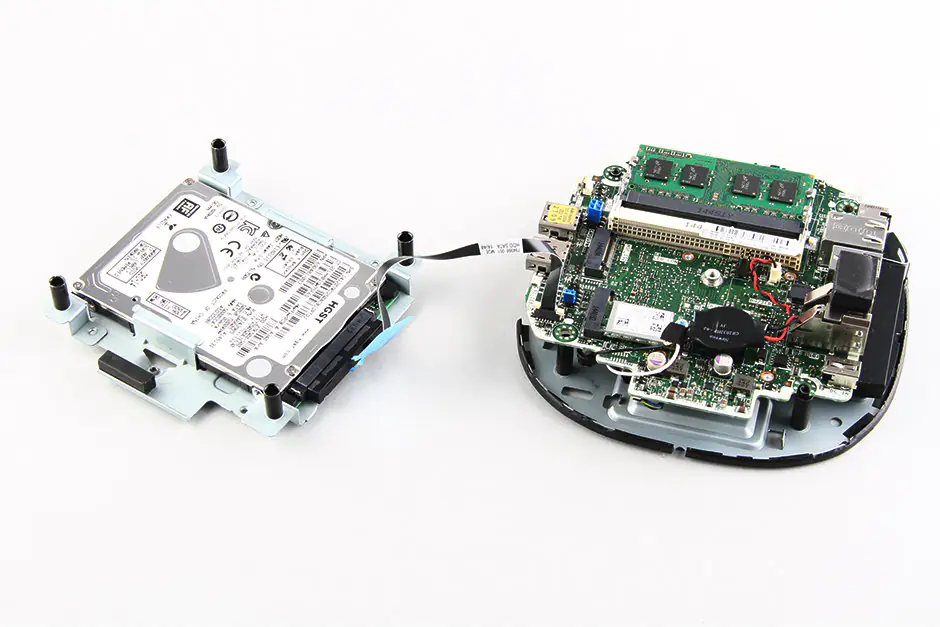

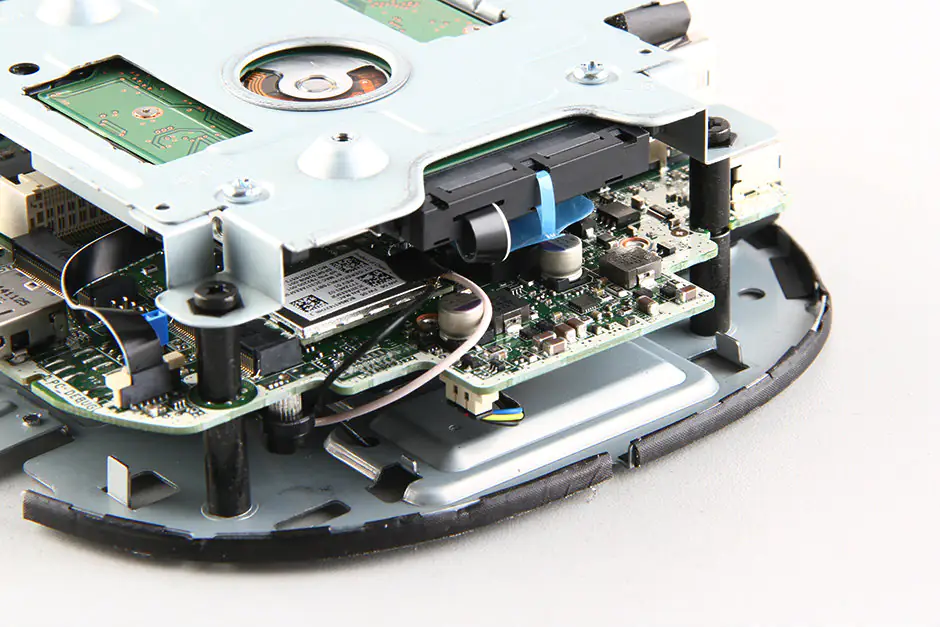

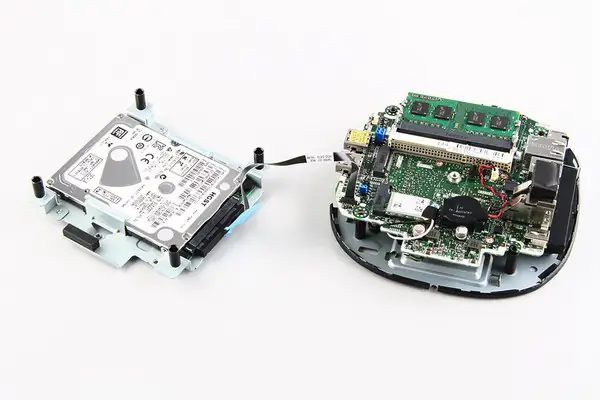

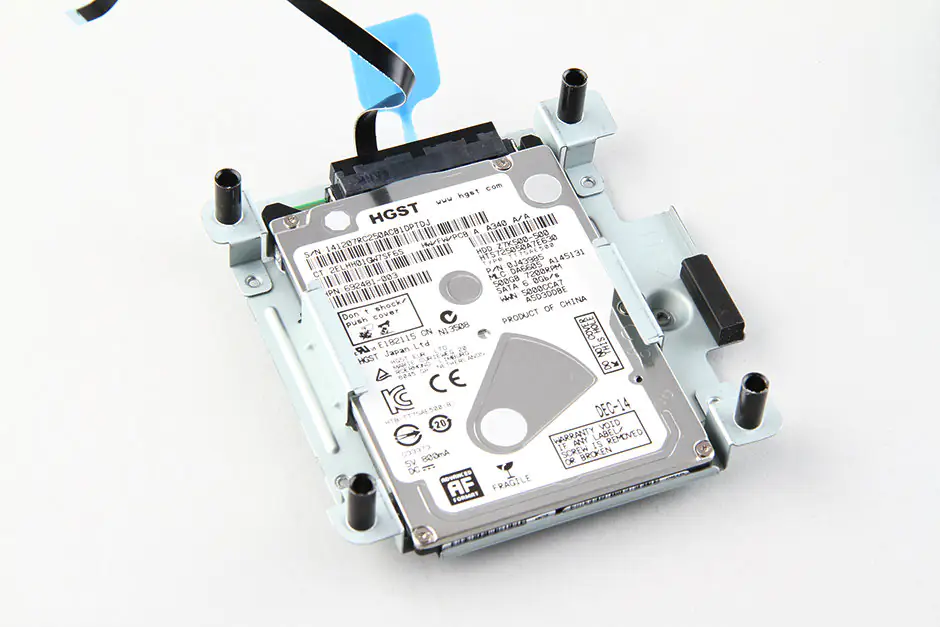

HP Pavilion Mini 300 comes with an HGST 500GB hard drive.

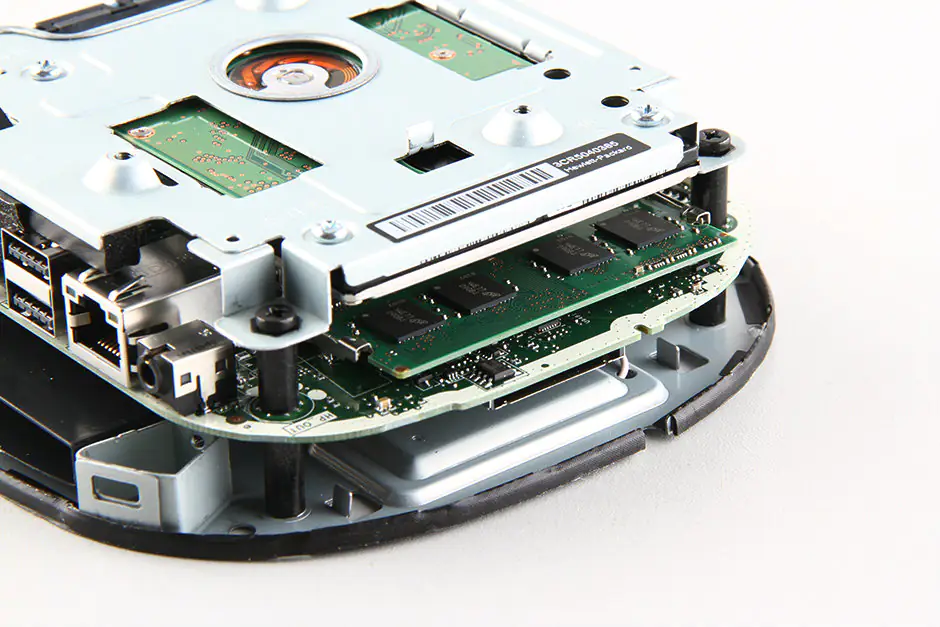

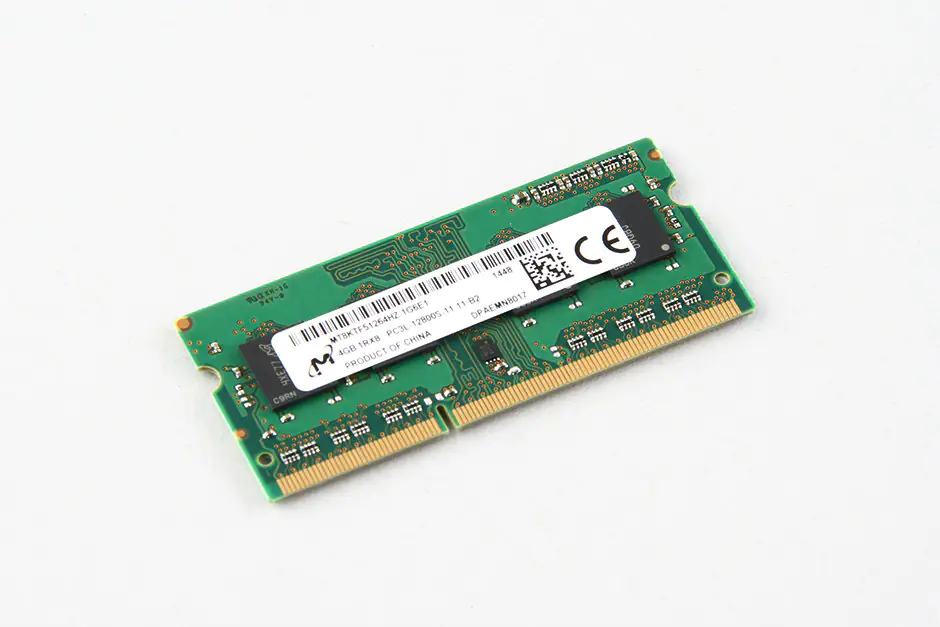

Micron 4GB RAM

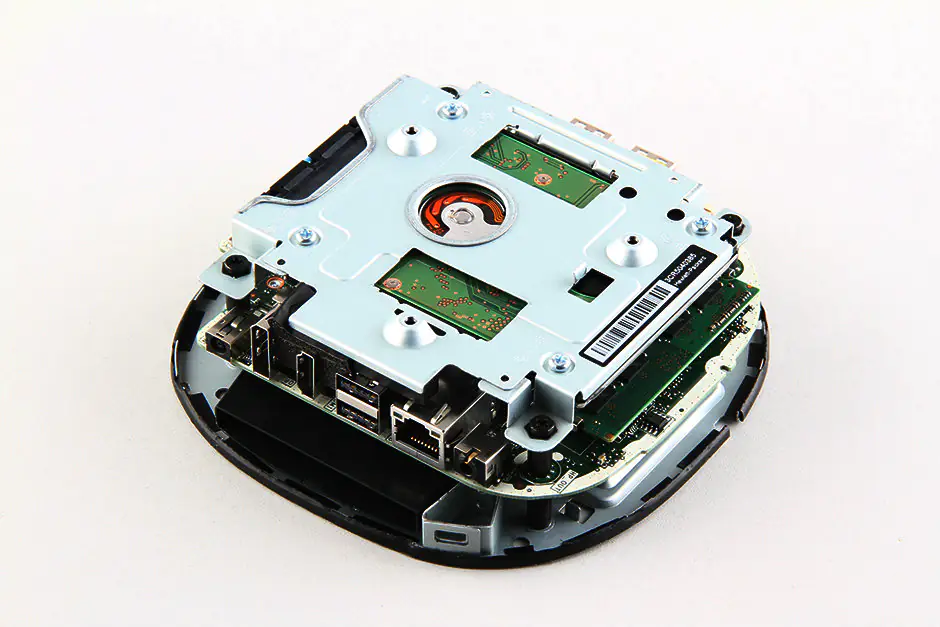

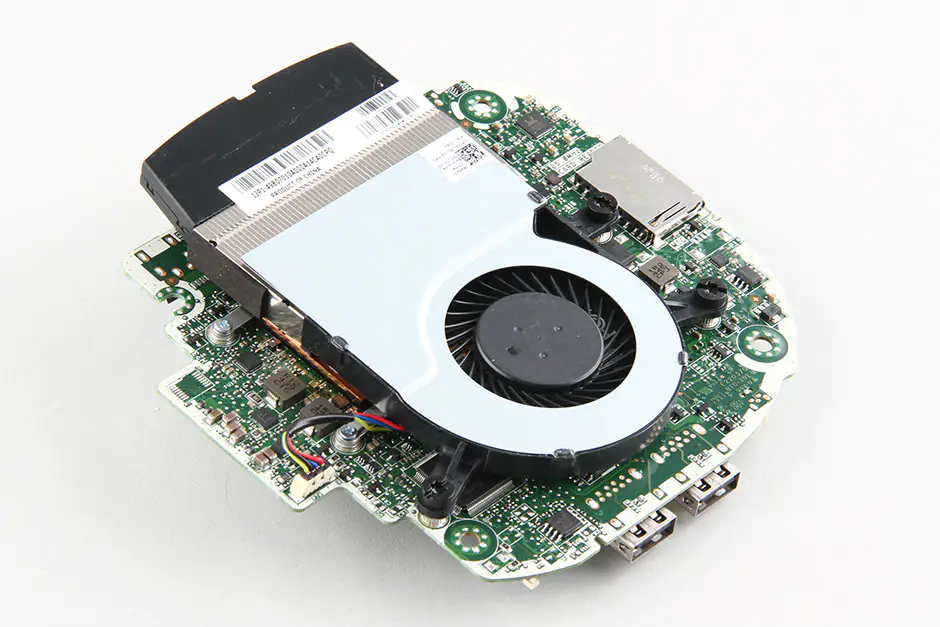

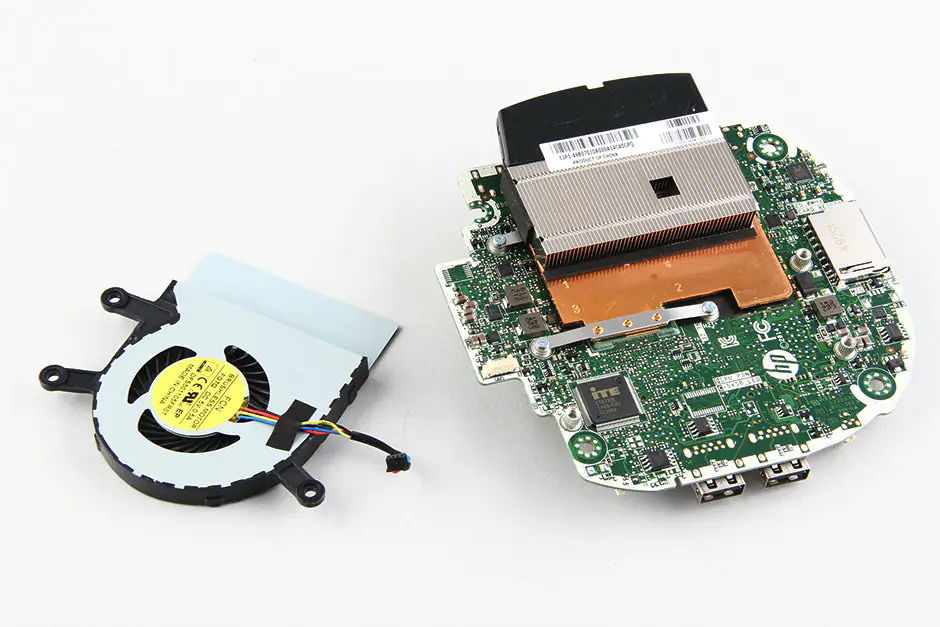

Remove three screws securing the cooling fan.

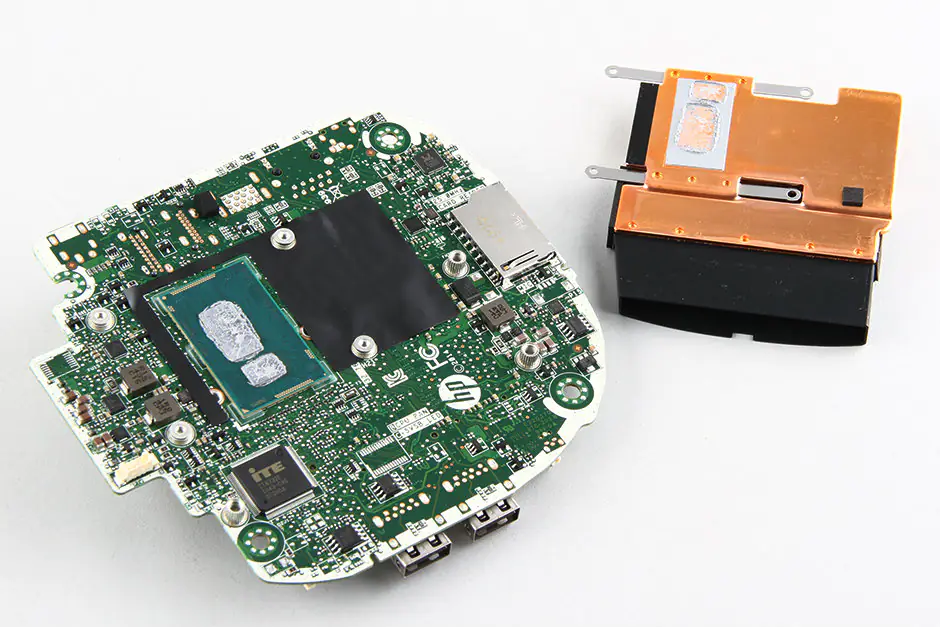

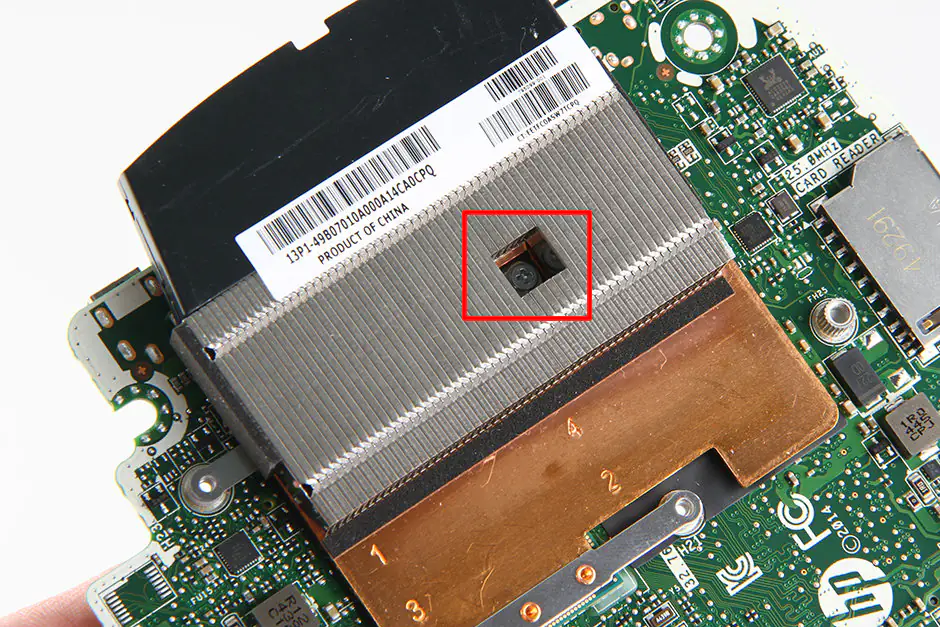

Remove the screw securing the heat sink.
