HP Elite x2 1011 G1 Teardown
In this guide, I will explain how to disassemble the HP Elite x2 1011 G1 to remove the back cover, battery, SSD, camera, cooling fan, and motherboard.
Follow us on Facebook for the latest updates from MyFixGuide.com.

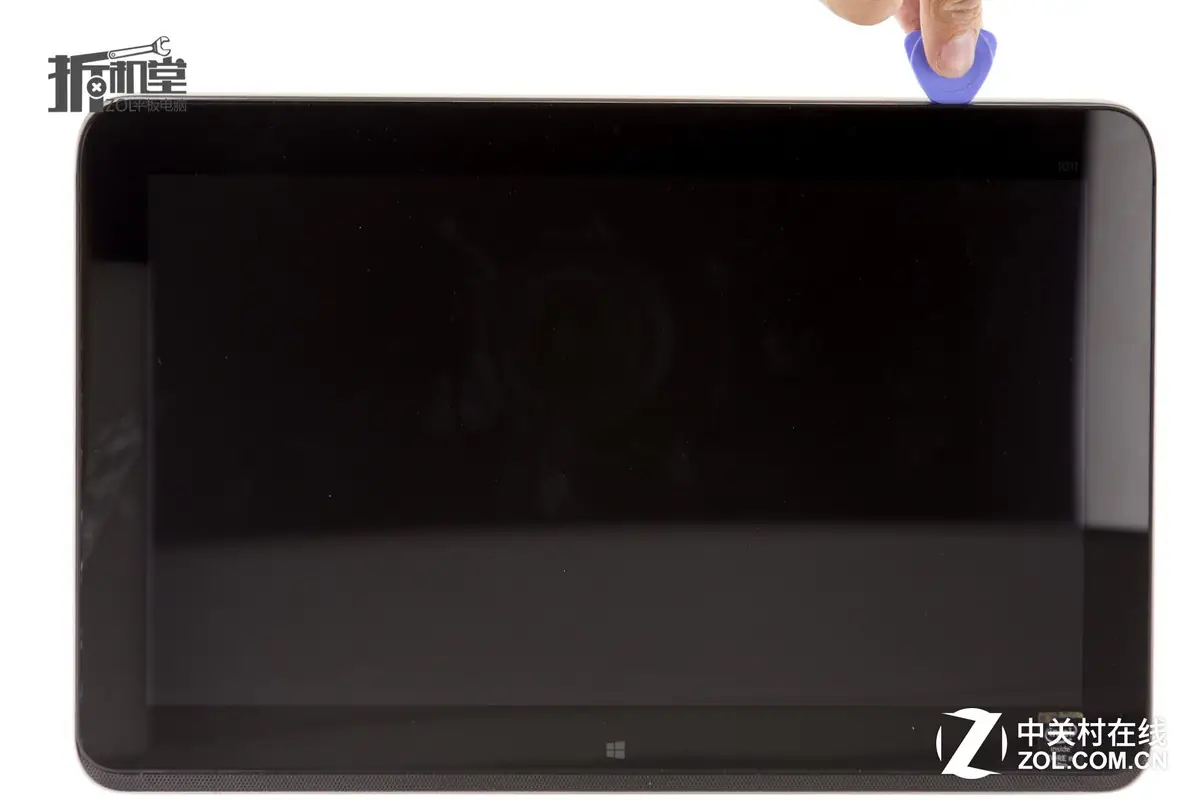

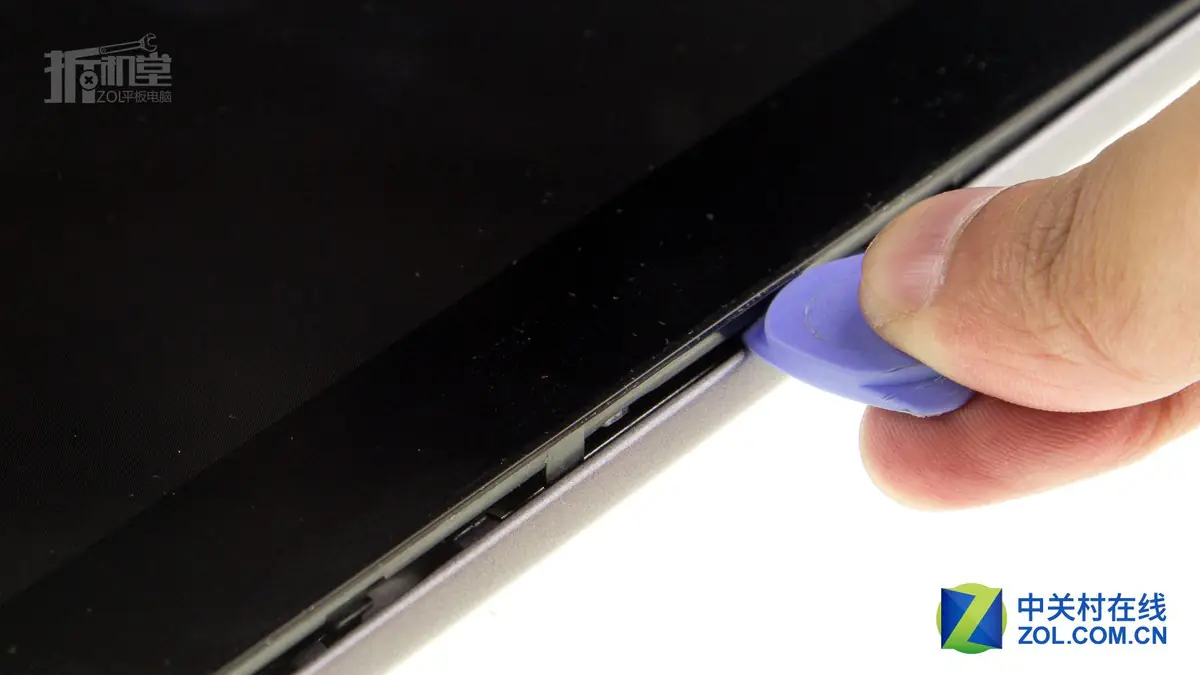

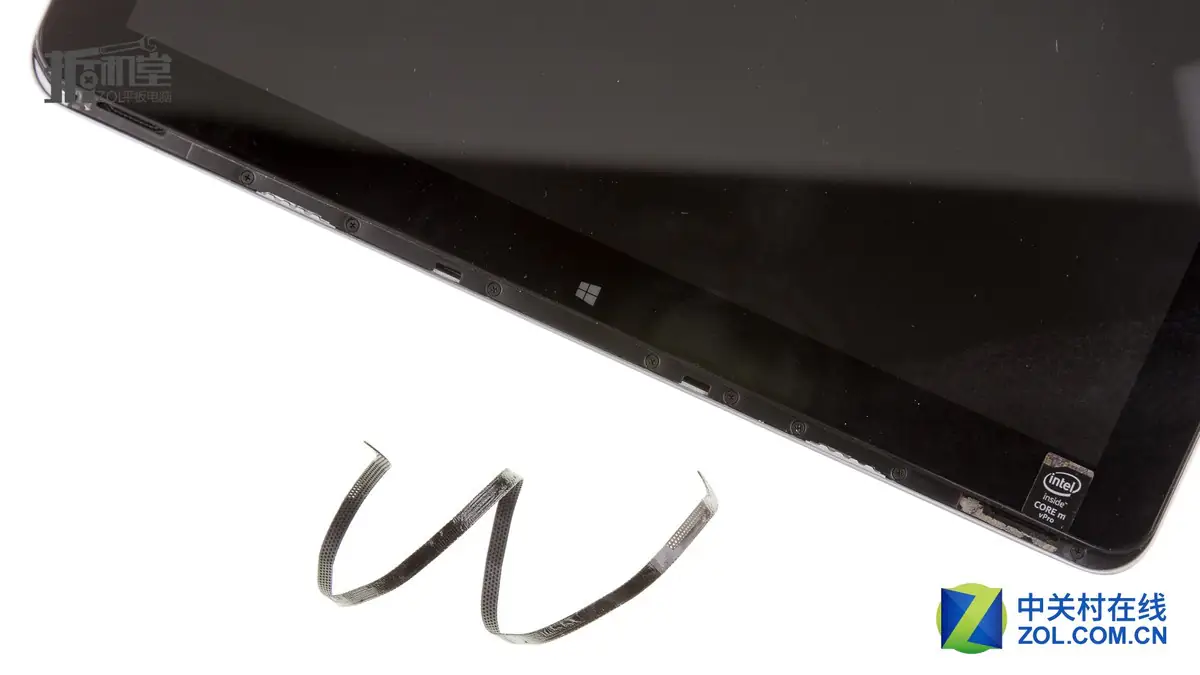

Insert a plastic pick under the screen. Slide the pick to separate the screen from the tablet. On the back of the screen, there are some clips securing it to the bottom cover. Unlock all clips before removing the screen.
Remove the mesh sheet and unscrew the nine hidden screws.
Lift the display with your hand. Be careful. There are some cables connected to the motherboard.

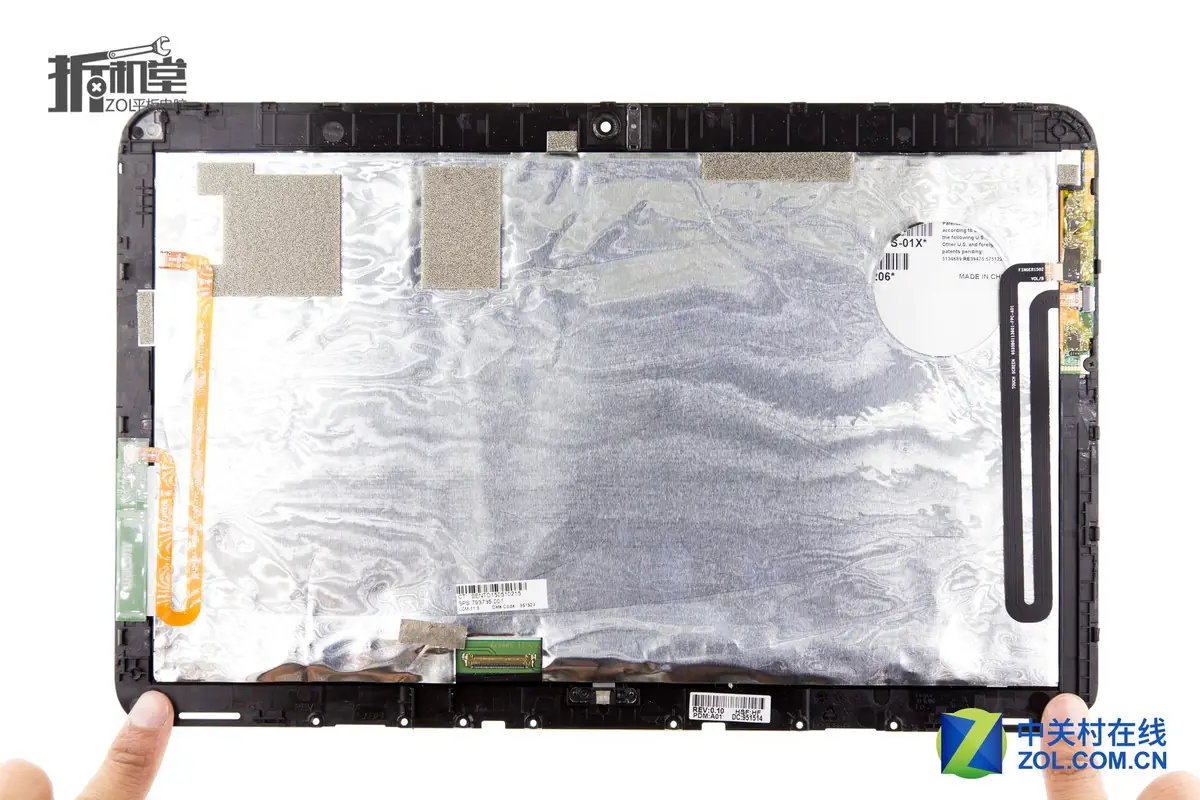

On the back of the display assembly, you can find two cables.
The display assembly was made in China.

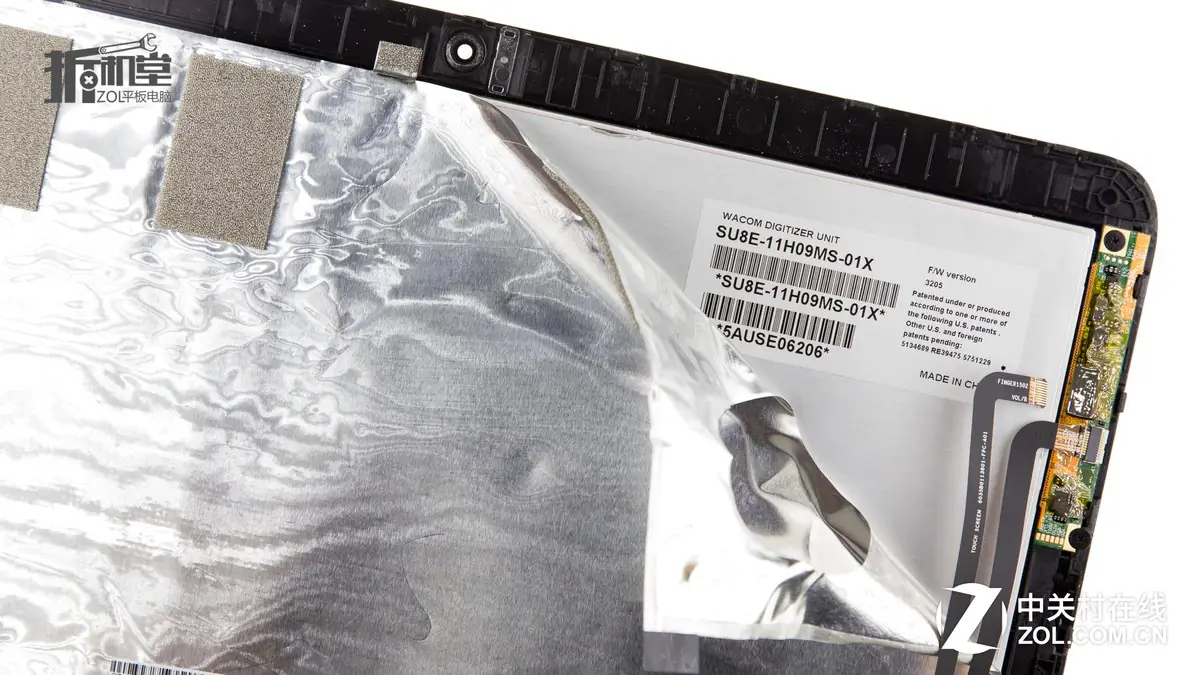

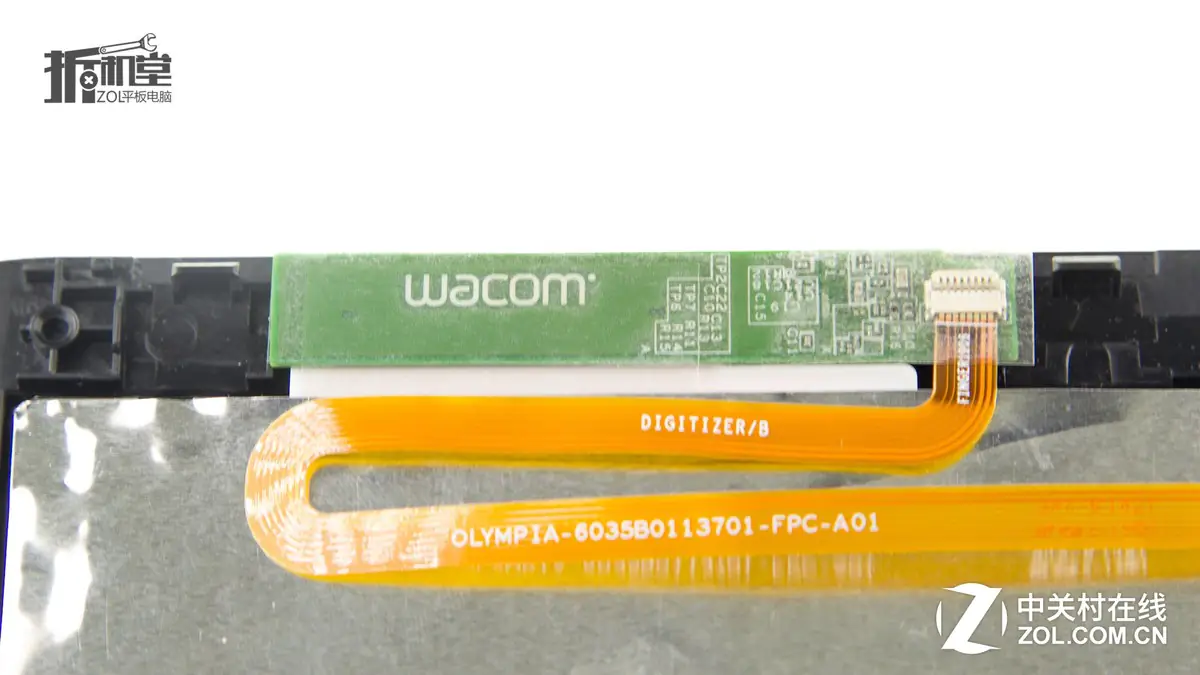

WACOM touch module

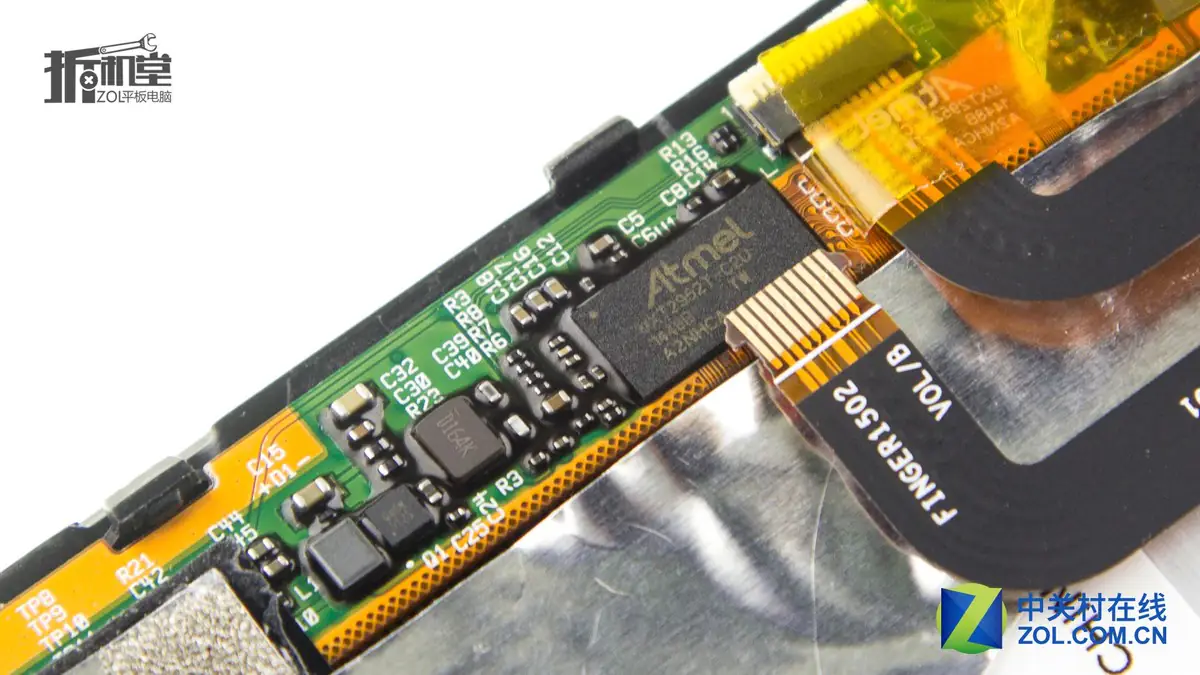

Atmel MXT2952T touch chip

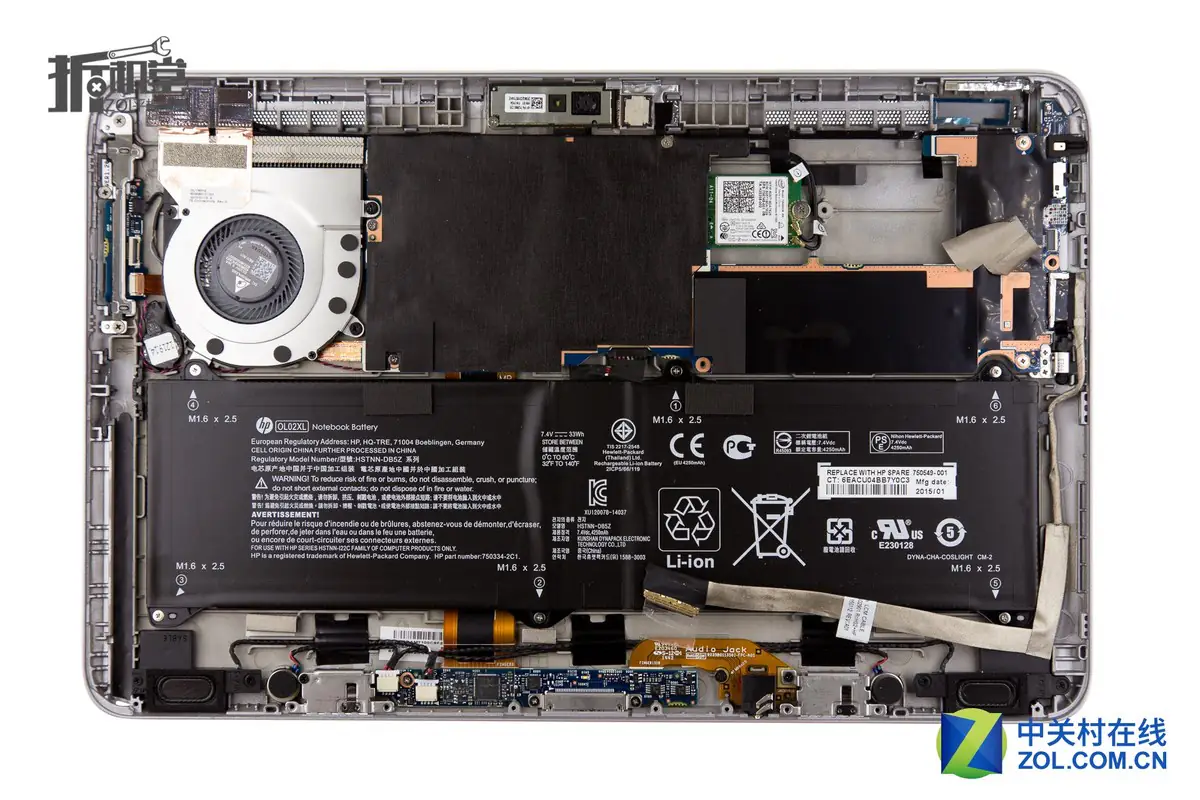

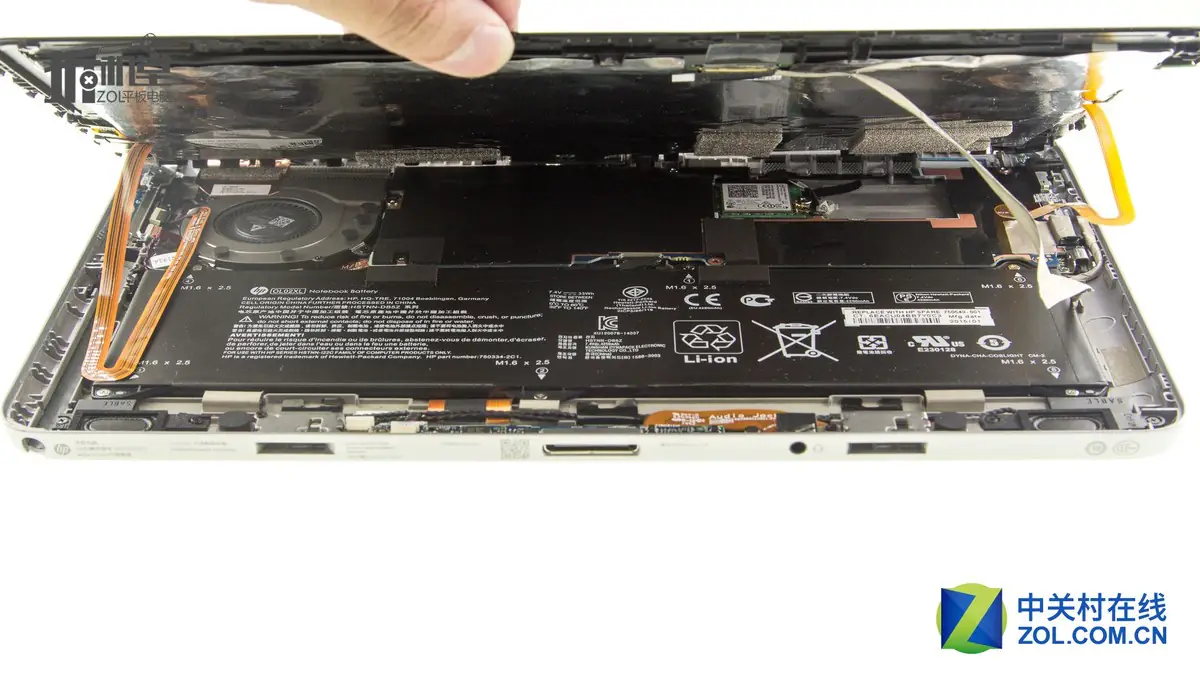

When the display assembly is removed, you can access the battery, speakers, SSD, wireless card, heat sink, and cooling fan.

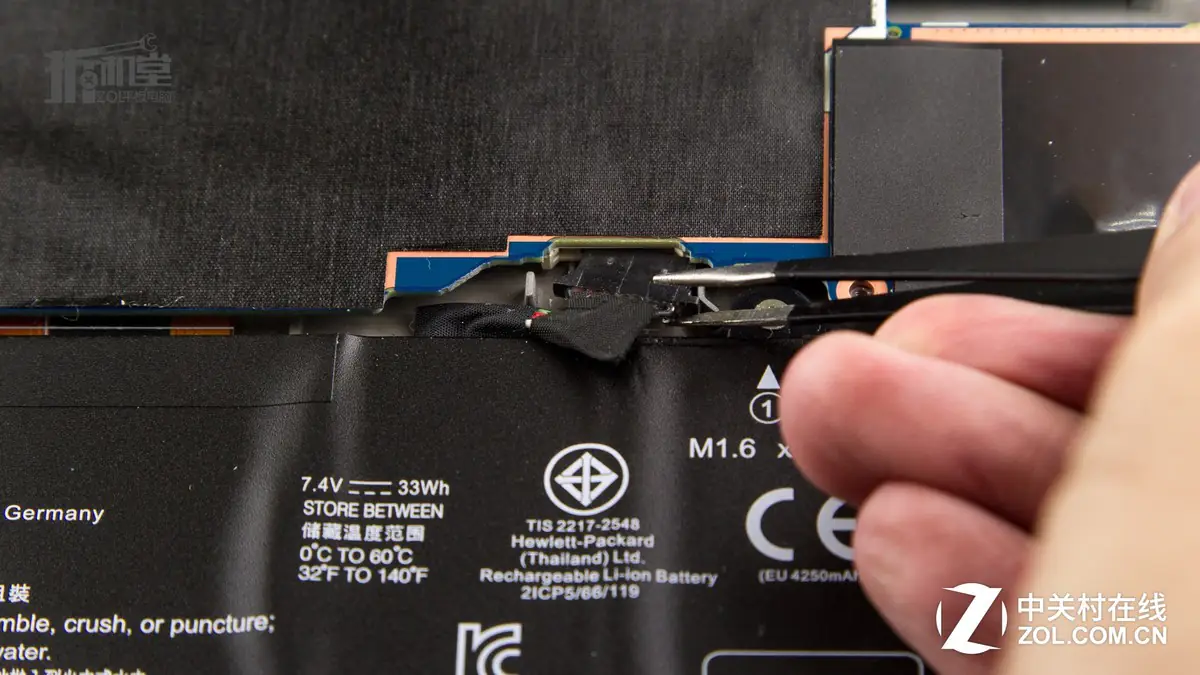

Disconnect the battery power cable from the motherboard.

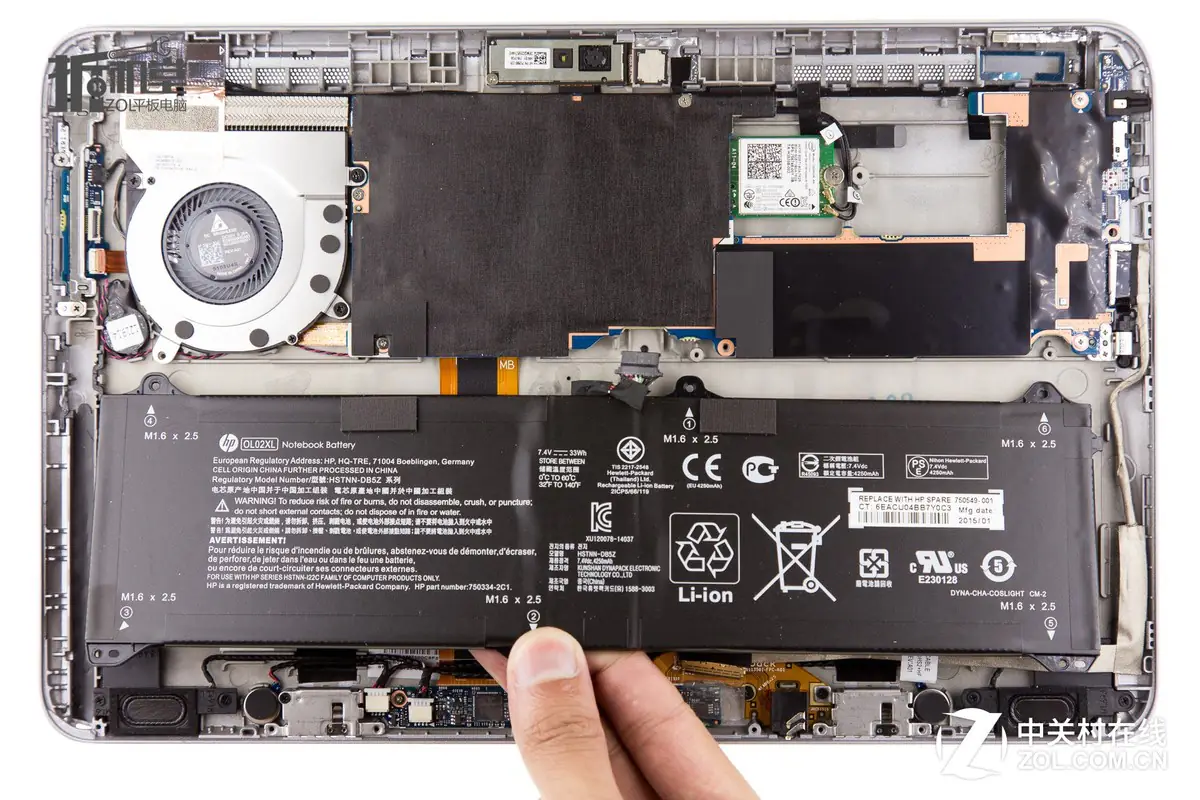

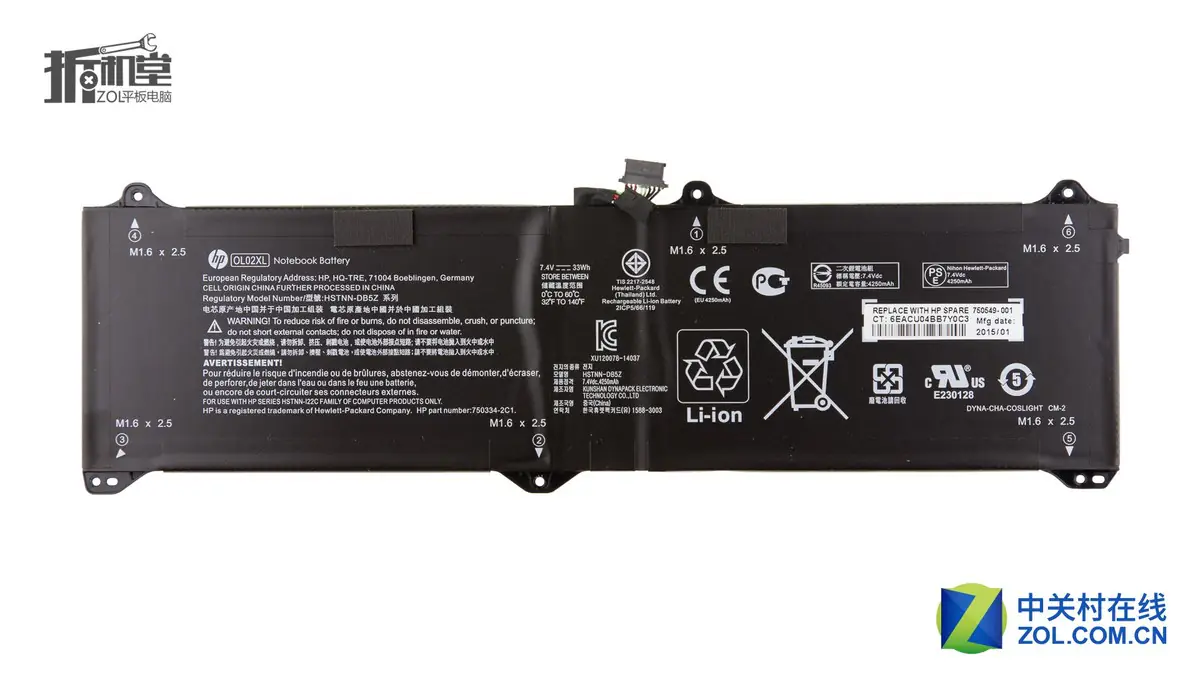

Lift and remove the battery.

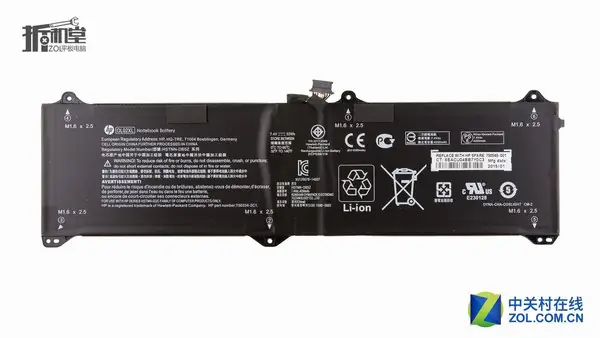

The HP Elite x2 1011 G1 comes with a 33Wh Li-polymer battery, and the HP part numbers are HSTNN-DB5Z and 760649-001.

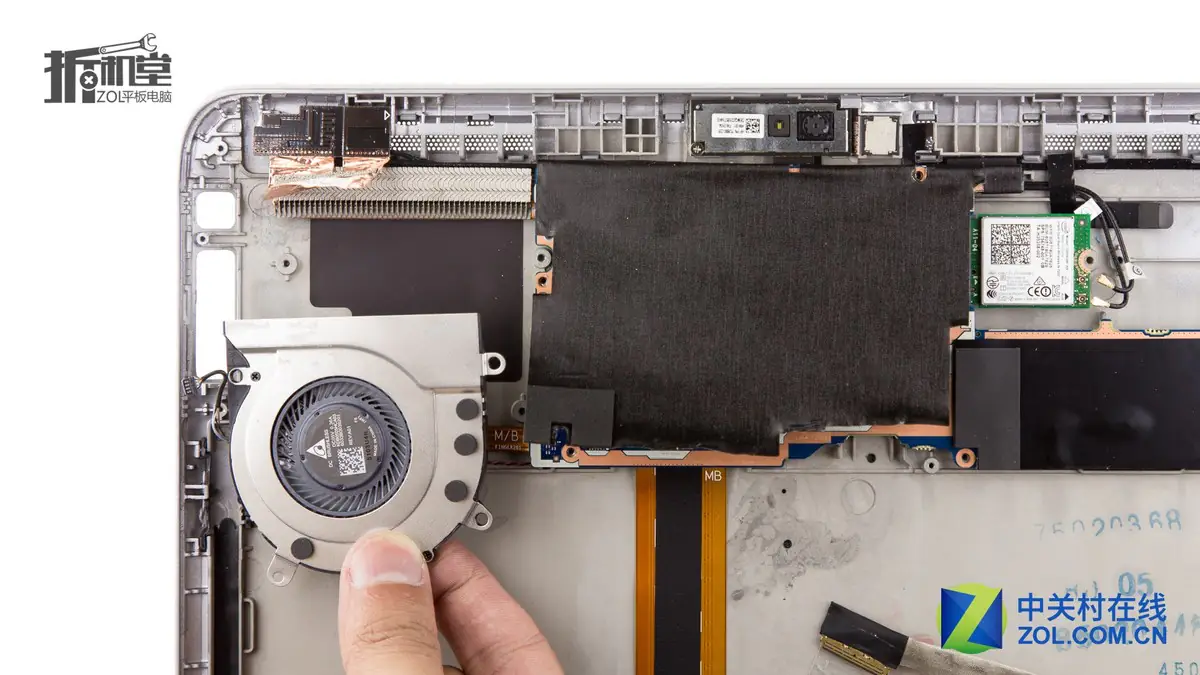

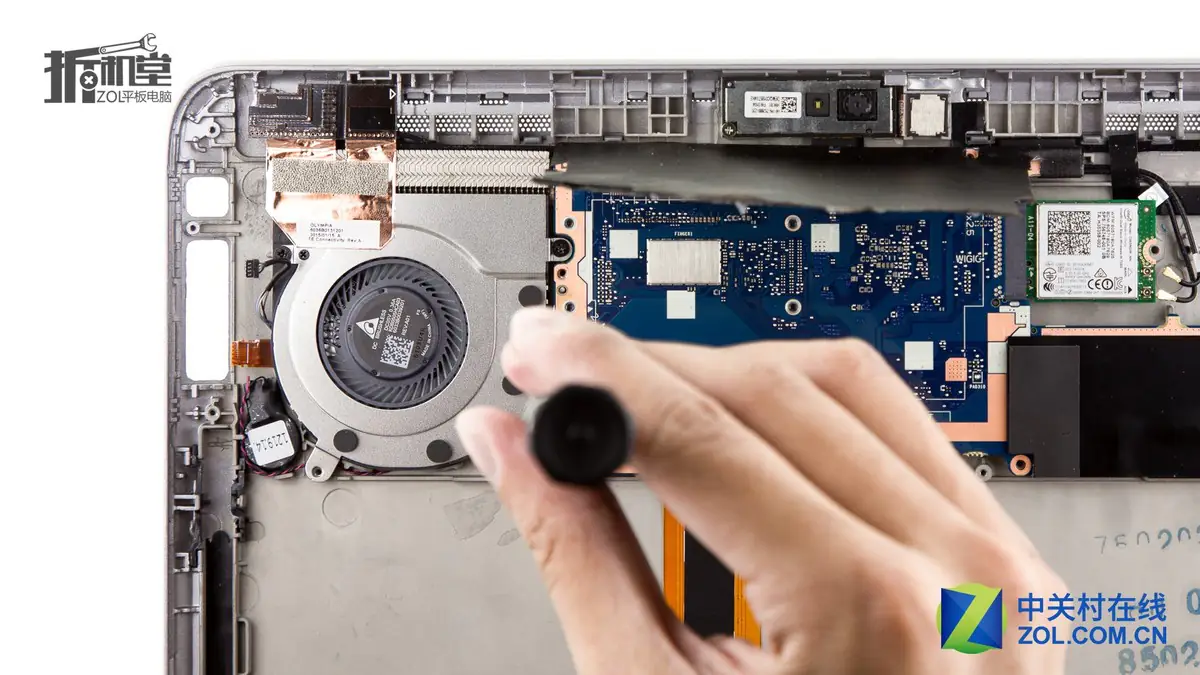

Remove the three screws securing the cooling fan and disconnect the fan cable from the motherboard.
Remove the cooling fan.

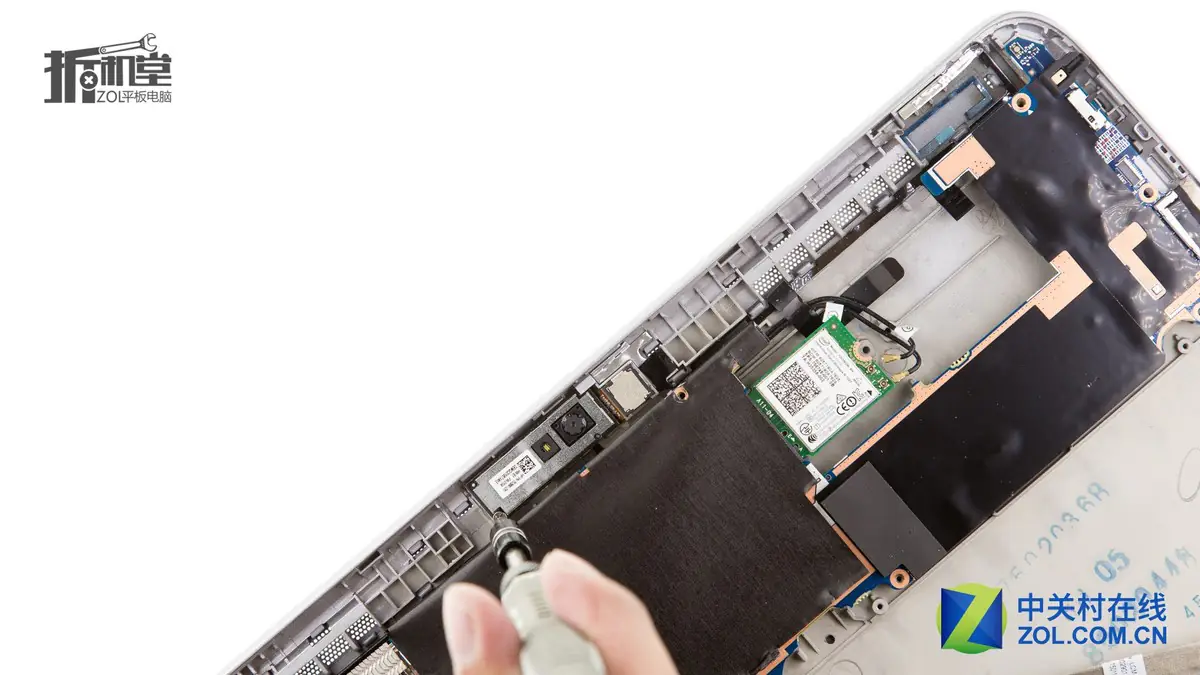

Remove the six screws securing the camera and wireless card module.

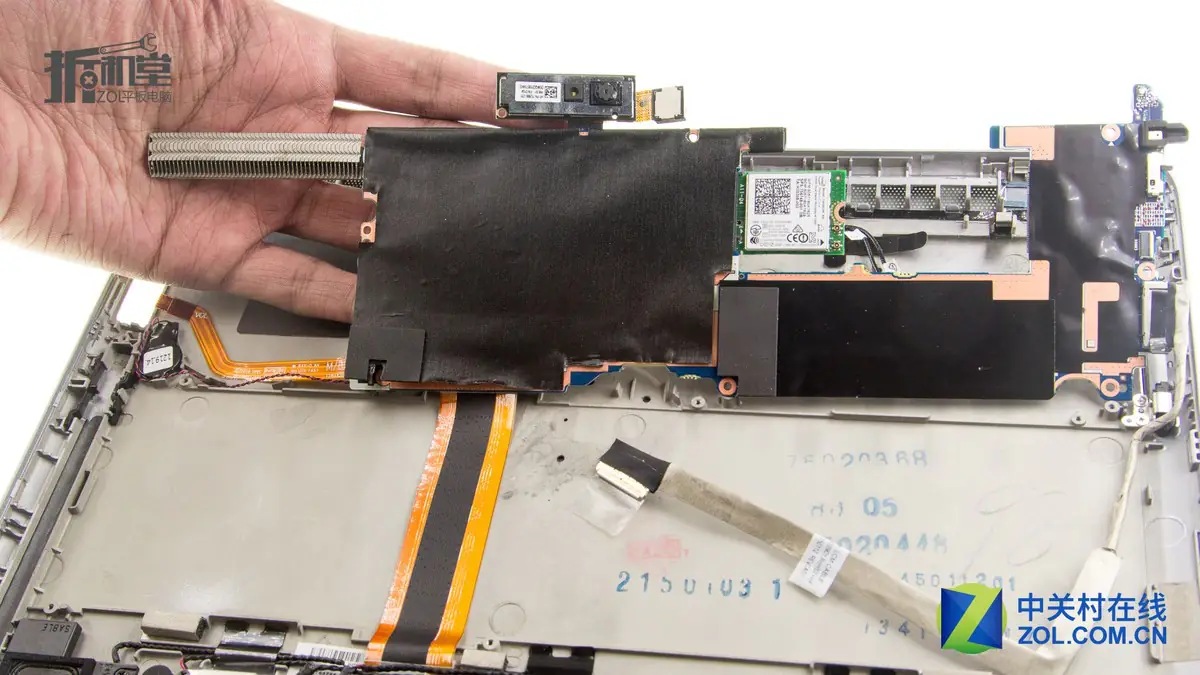

Remove the motherboard.
Remove the four screws securing the heat sink.

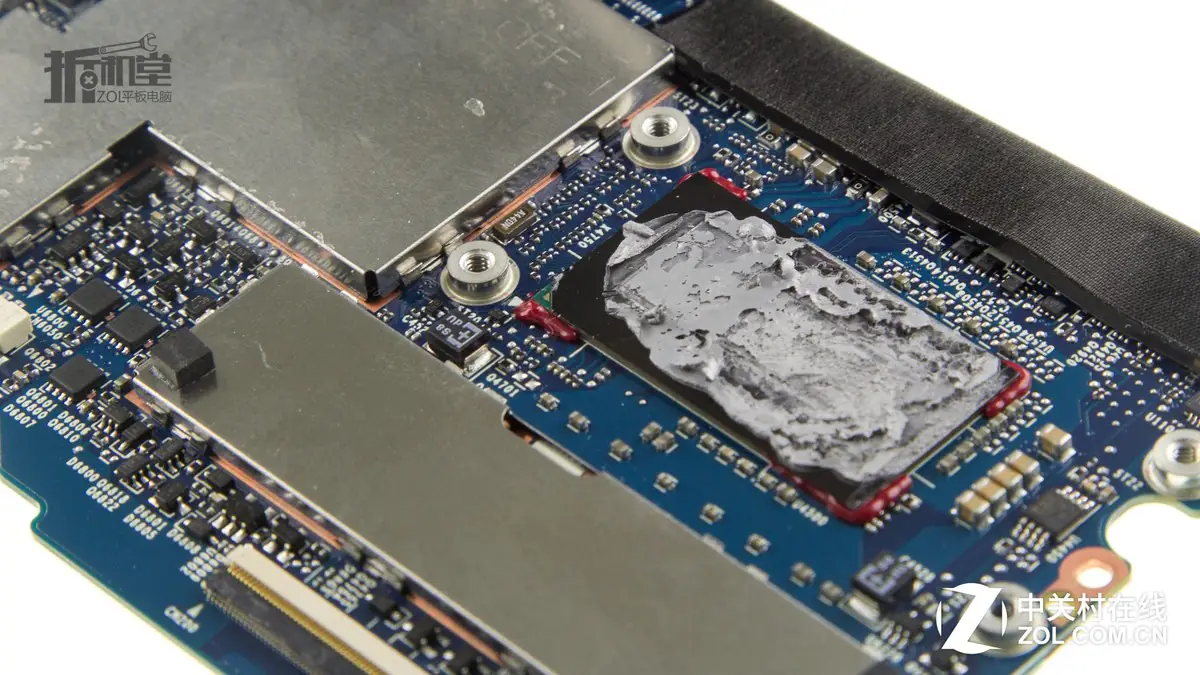

Now you can access the Intel Core M-5Y71 processor.

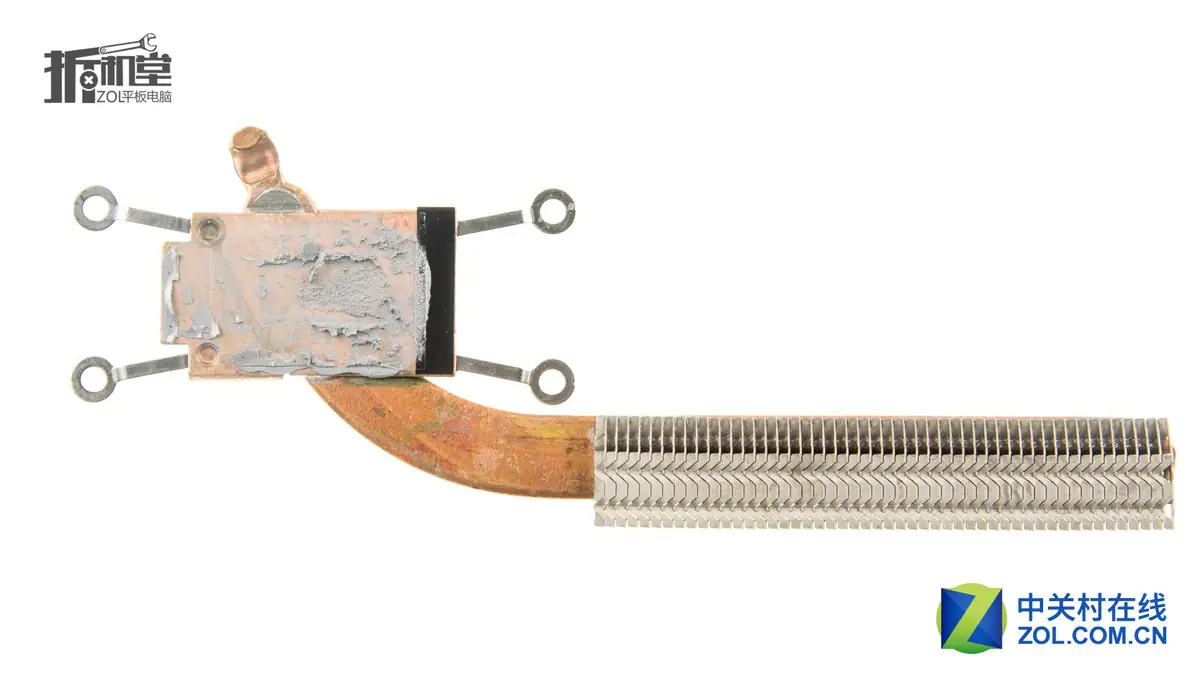

HP Elite x2 1011 G1 heat sink

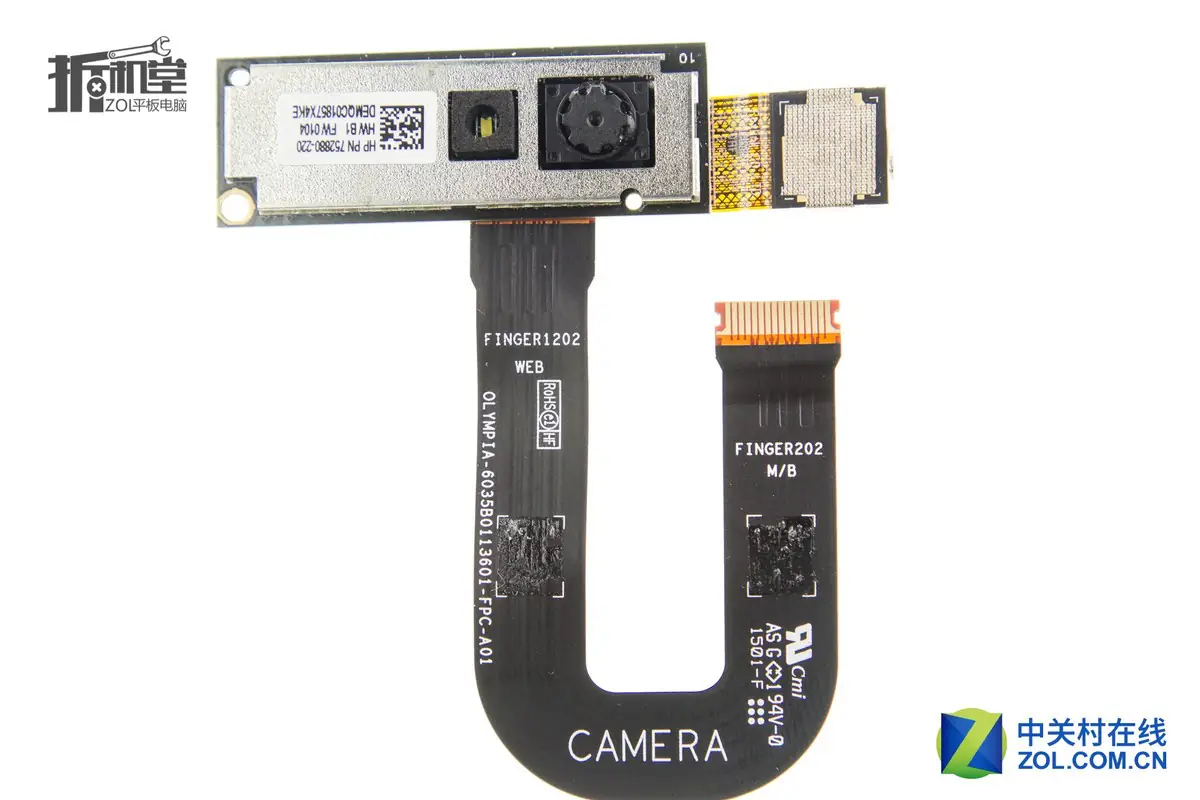

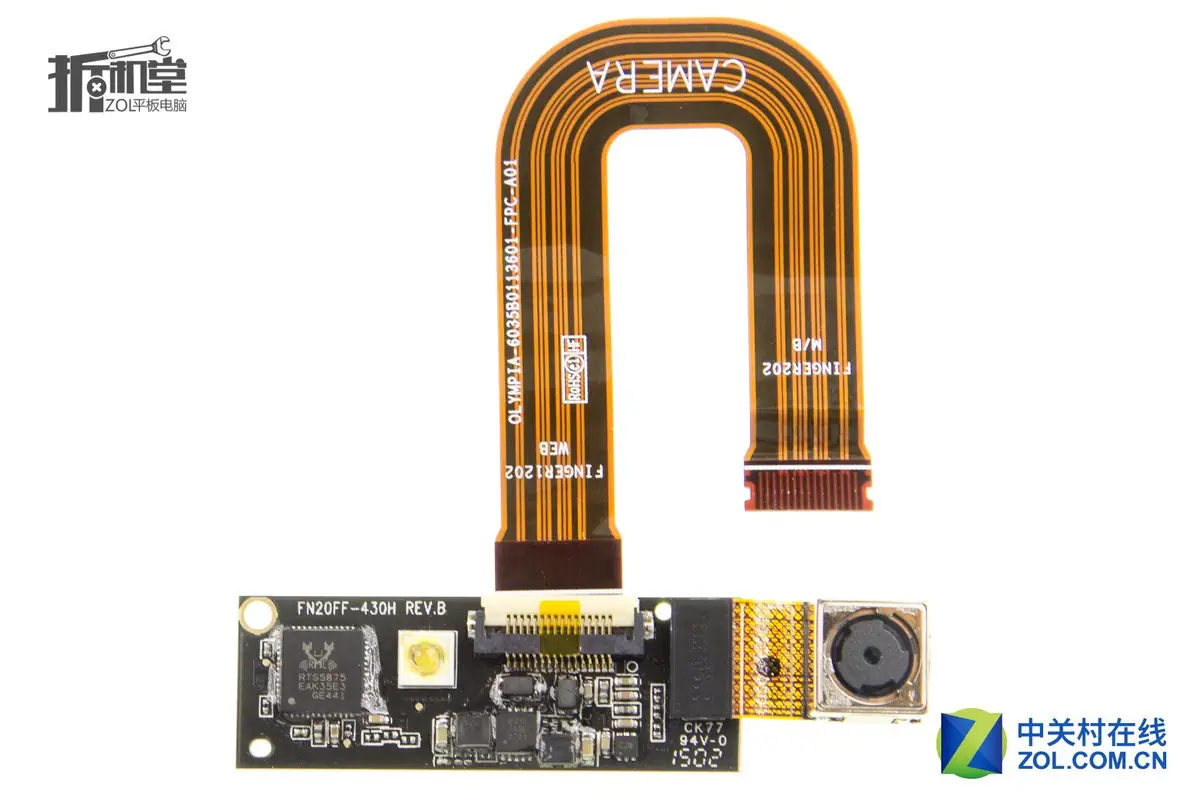

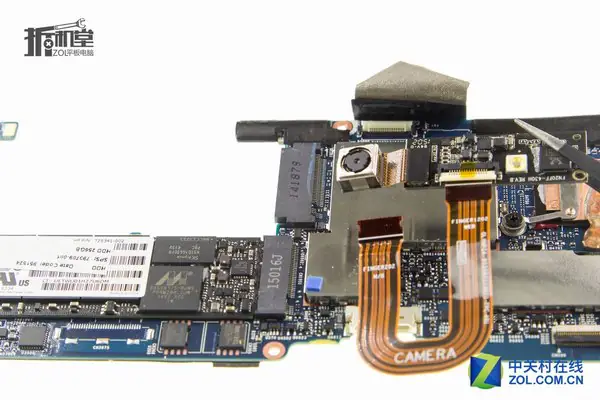

Remove rear and front cameras.
2MP front camera
5MP rear camera

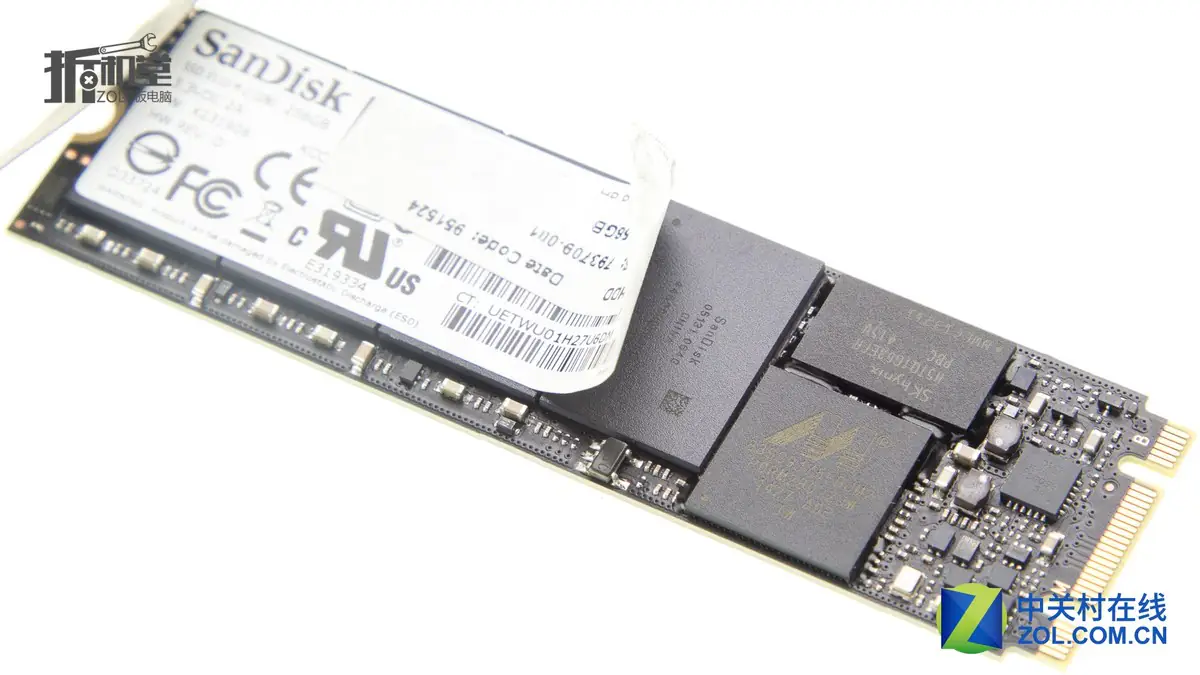

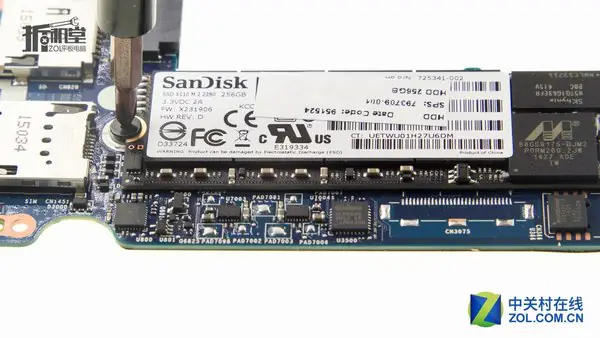

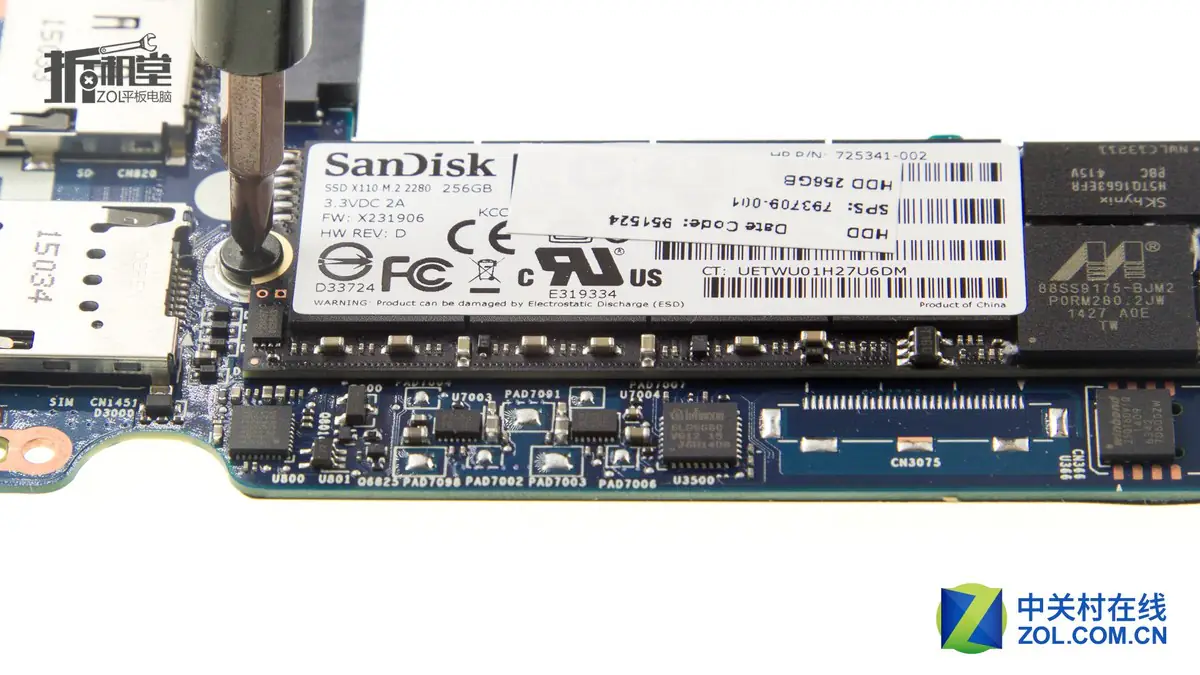

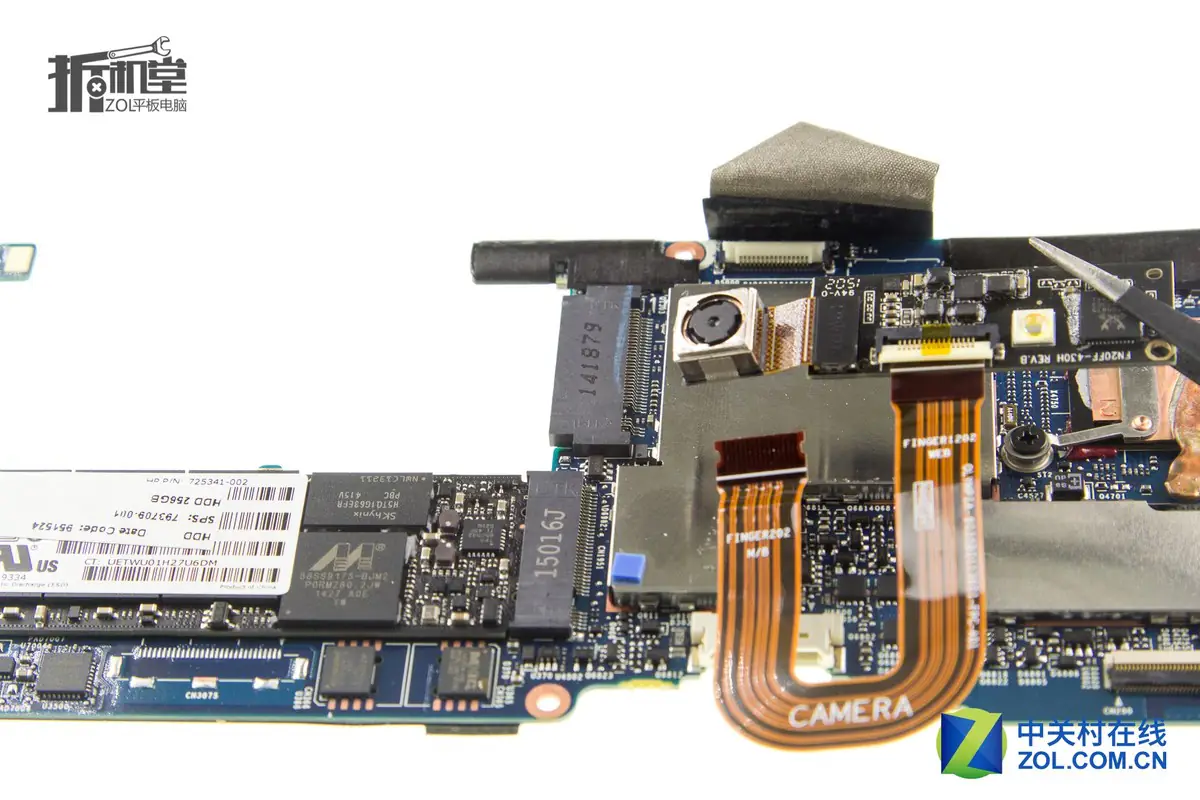

Remove the screw securing the SSD and take it out of its slot.

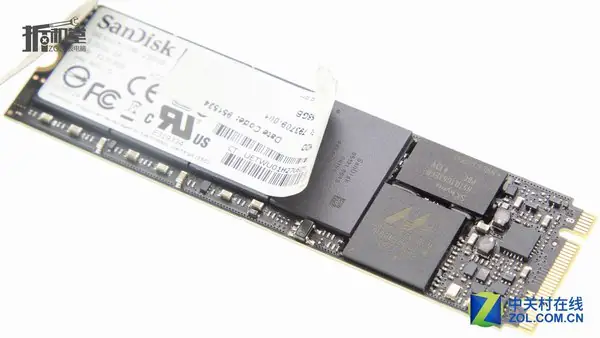

The HP Elite x2 1011 G1 features a SanDisk 256GB M.2 SSD.

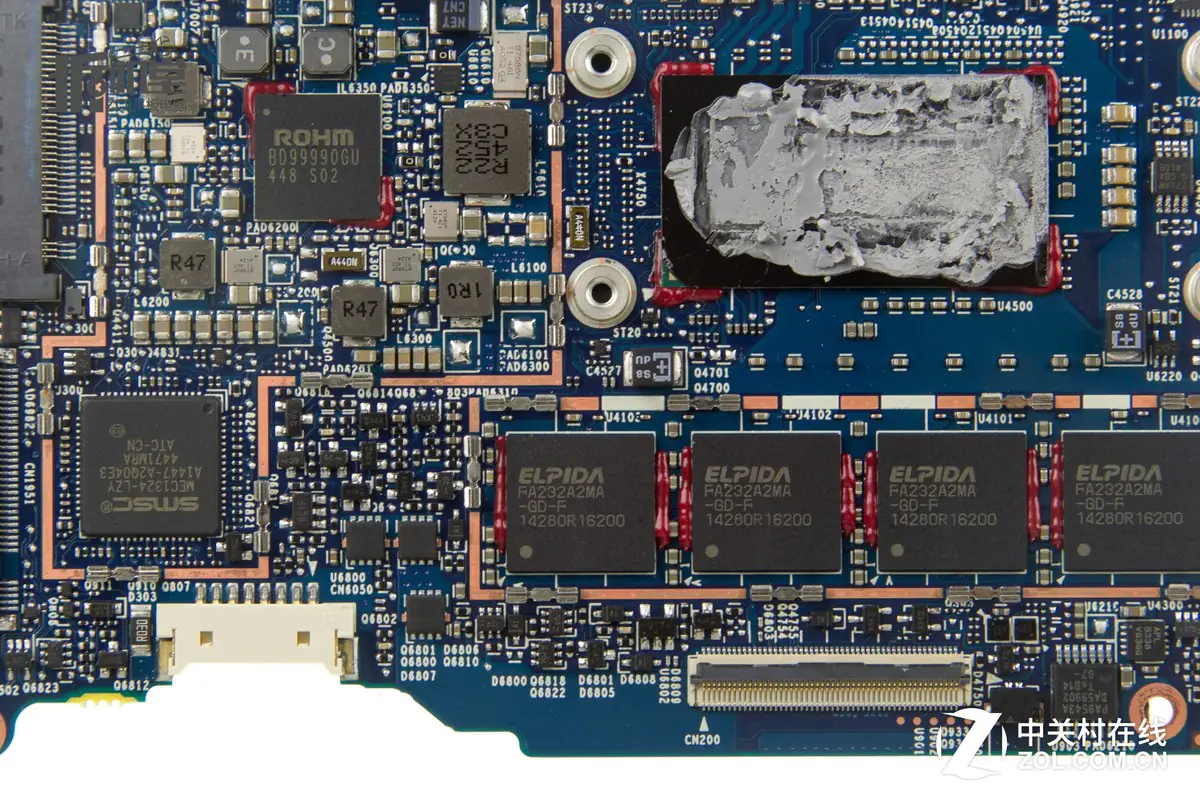

Four Elpida FA232A2MA RAM chips, for a total of 8GB RAM.

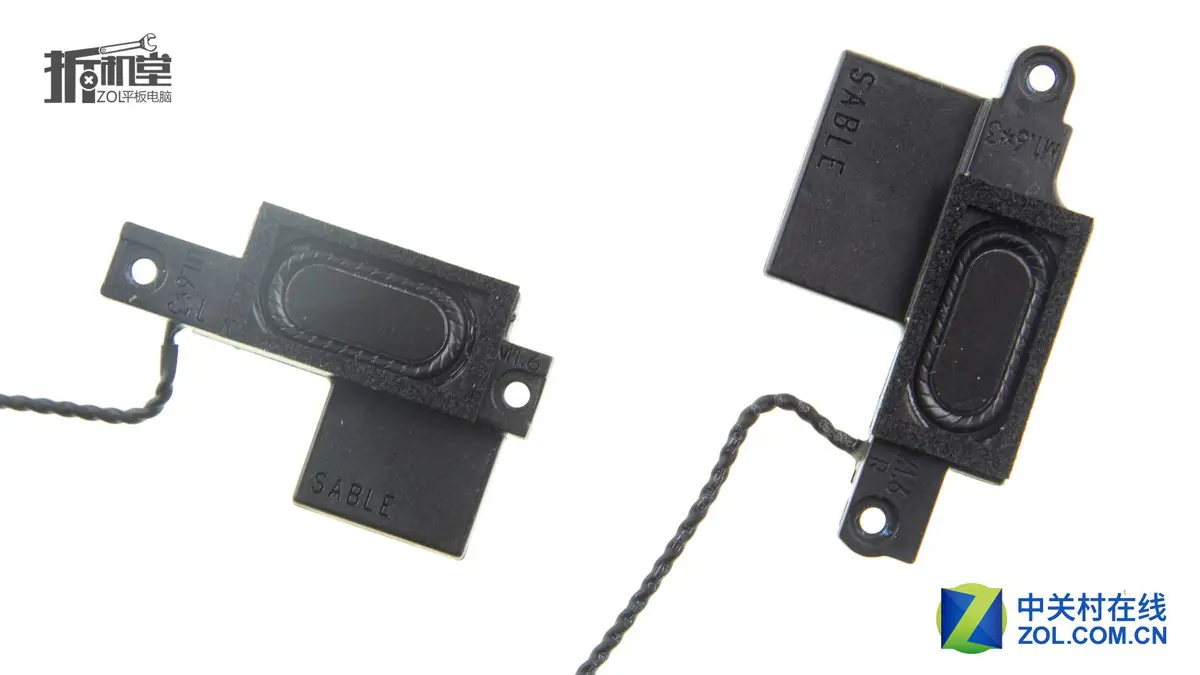

Speaker modules

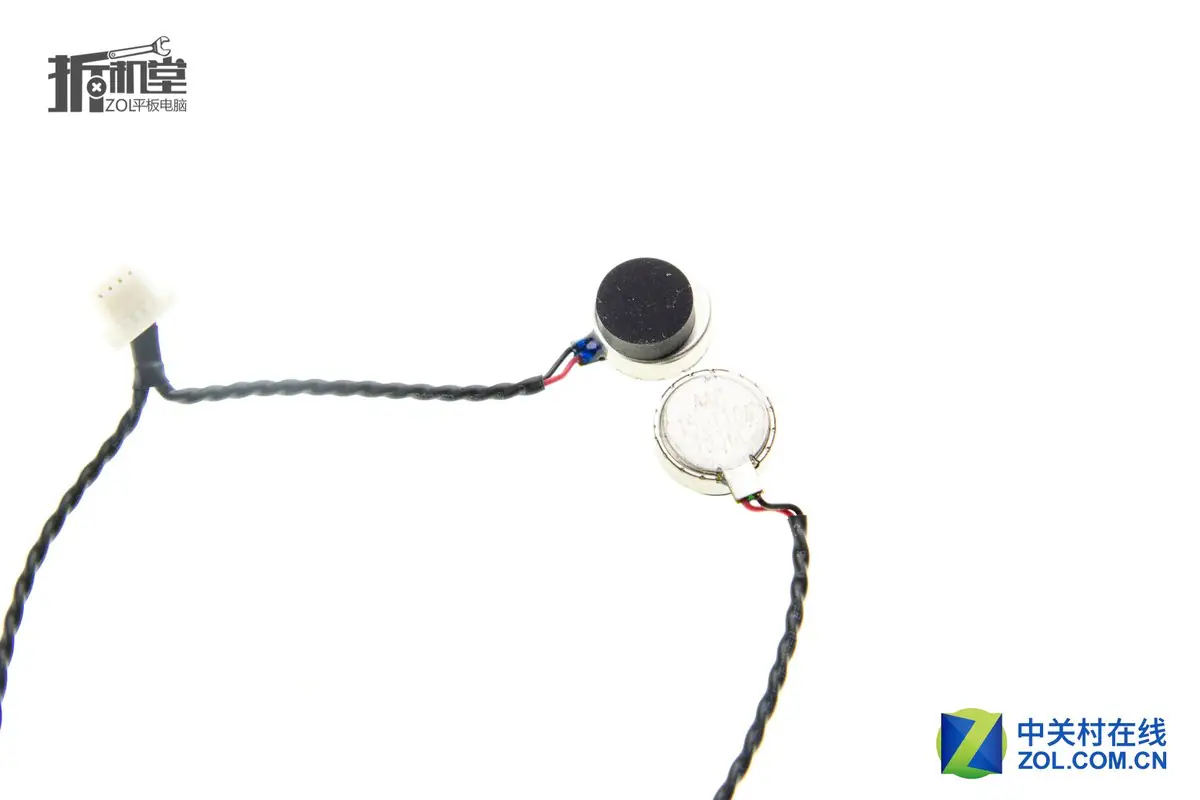

Vibrator

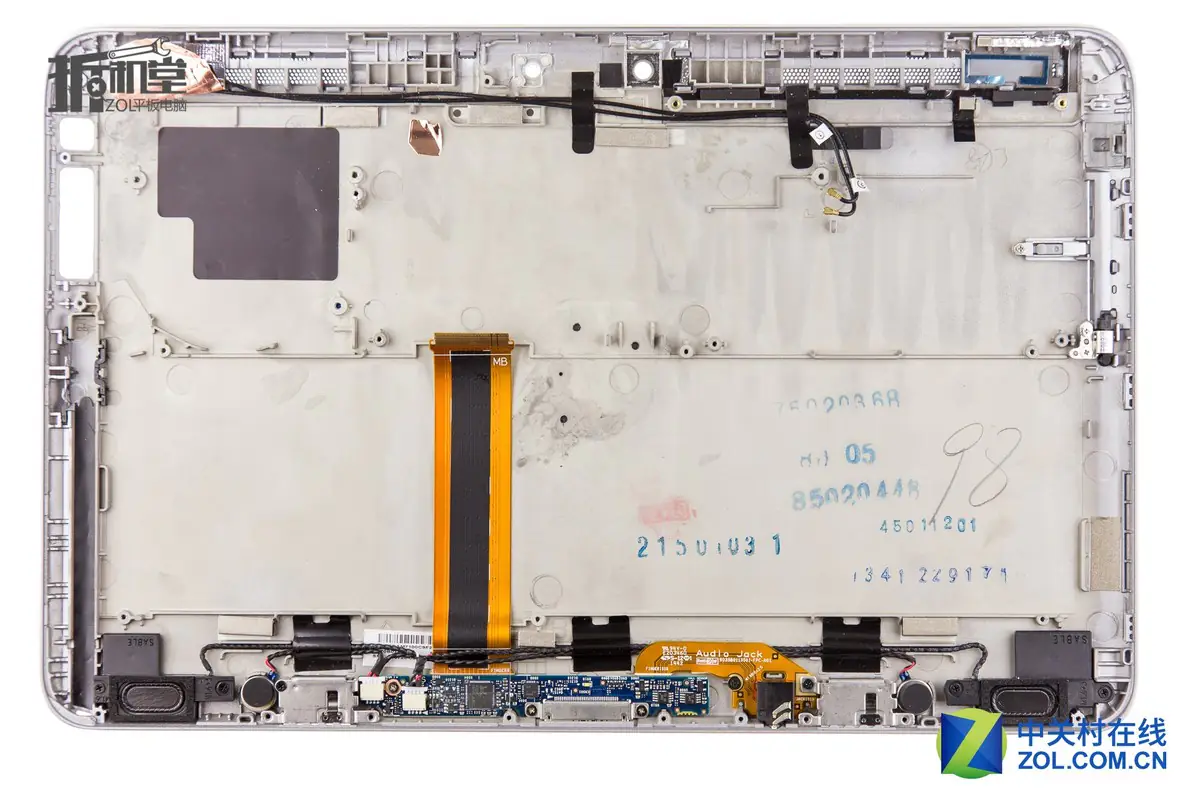

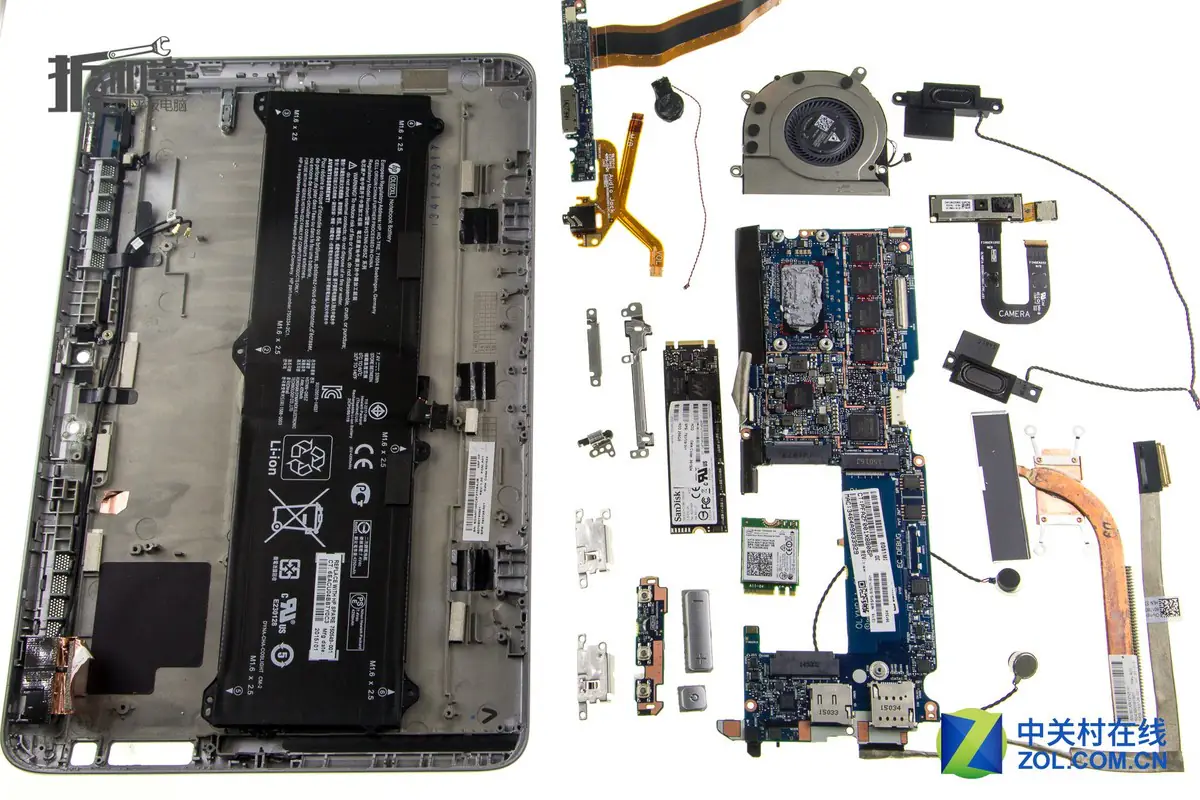

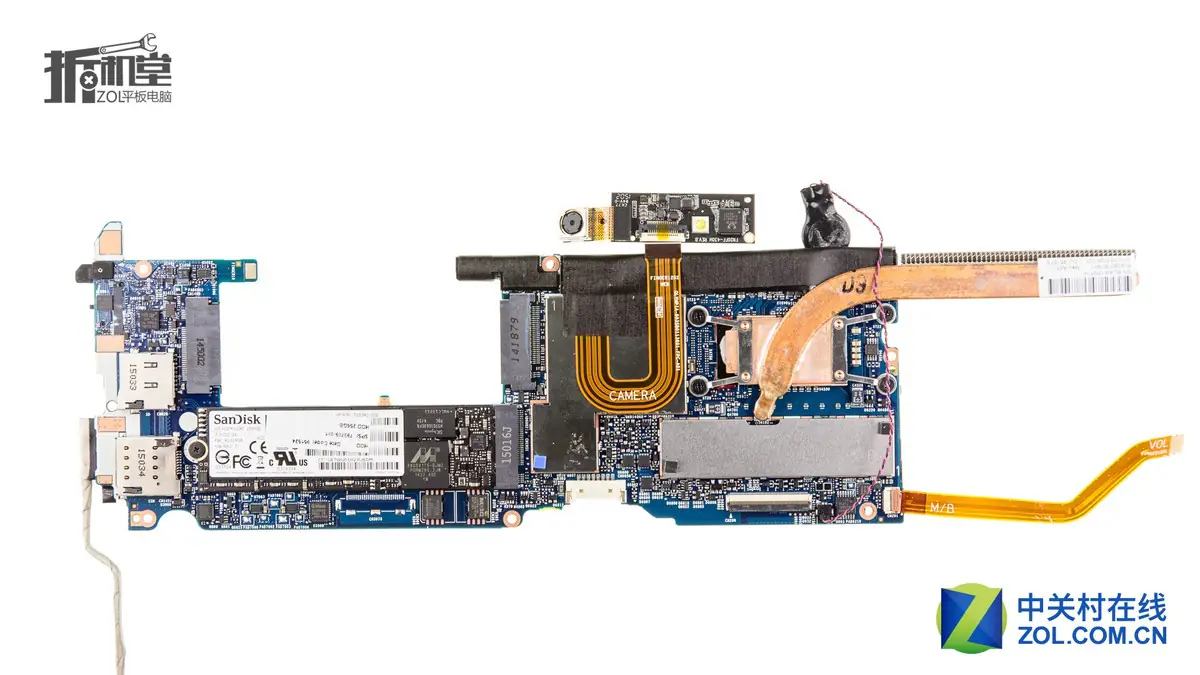

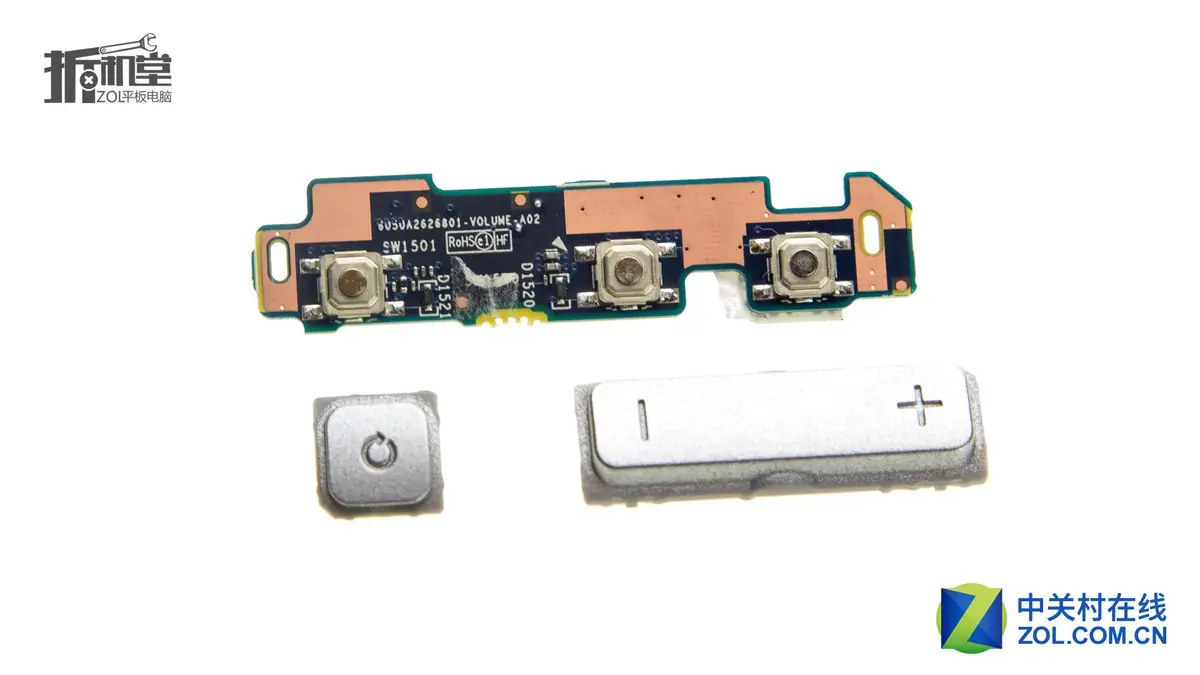

HP Elite x2 1011 G1 internal parts
