Lenovo IdeaPad Z510 Disassembly
In this guide, I will show you how to disassemble the Lenovo IdeaPad Z510 to remove and replace the keyboard, hard drive, DVD drive, wireless card, cooling fan, bottom case, and motherboard.

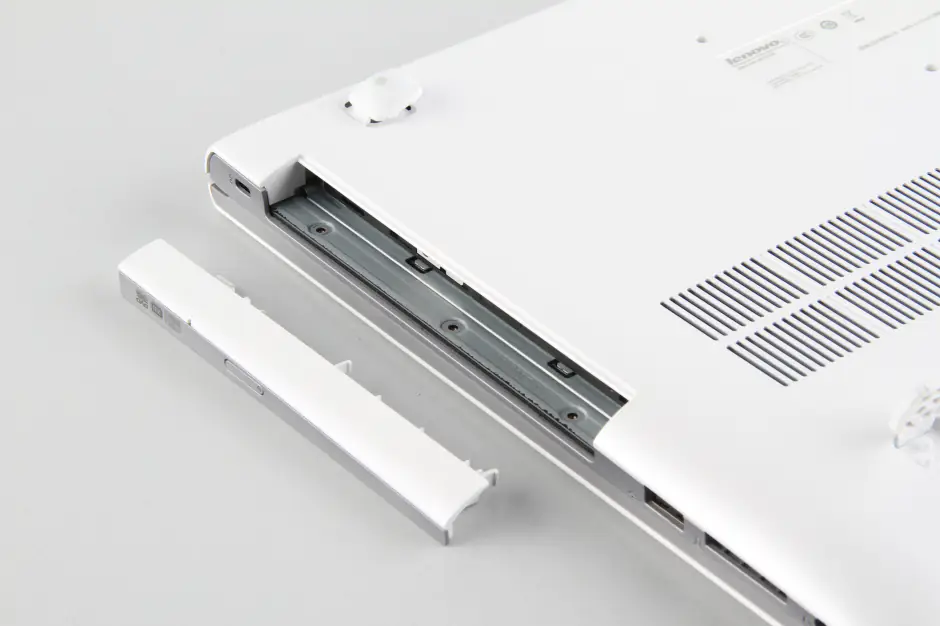

Remove the optical drive cover. There are three screws under the optical drive cover.

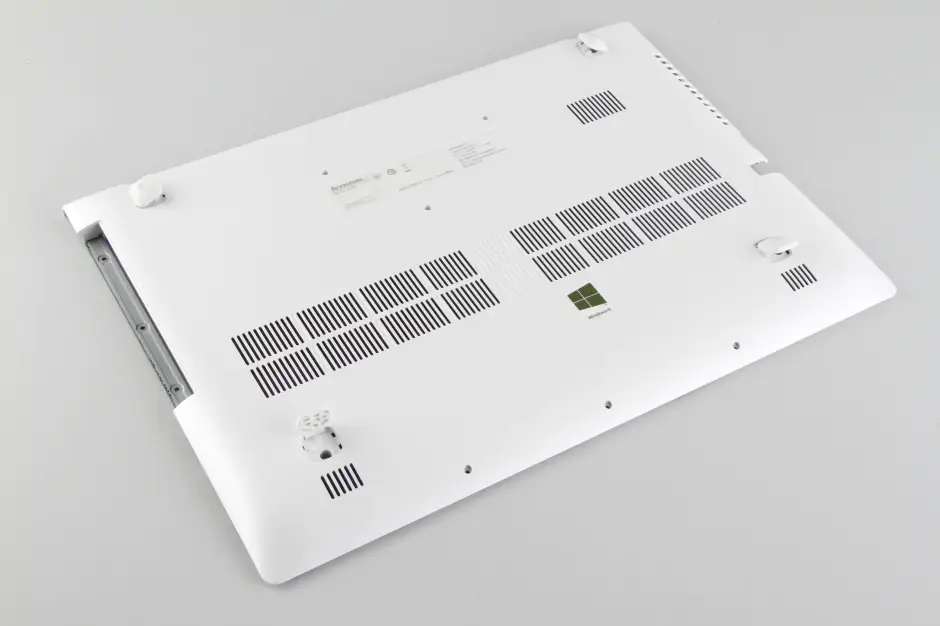

Remove all screws from the bottom case.
Note: There are four screws under the rubber mats. You need to remove these screws.
Turn over the laptop.

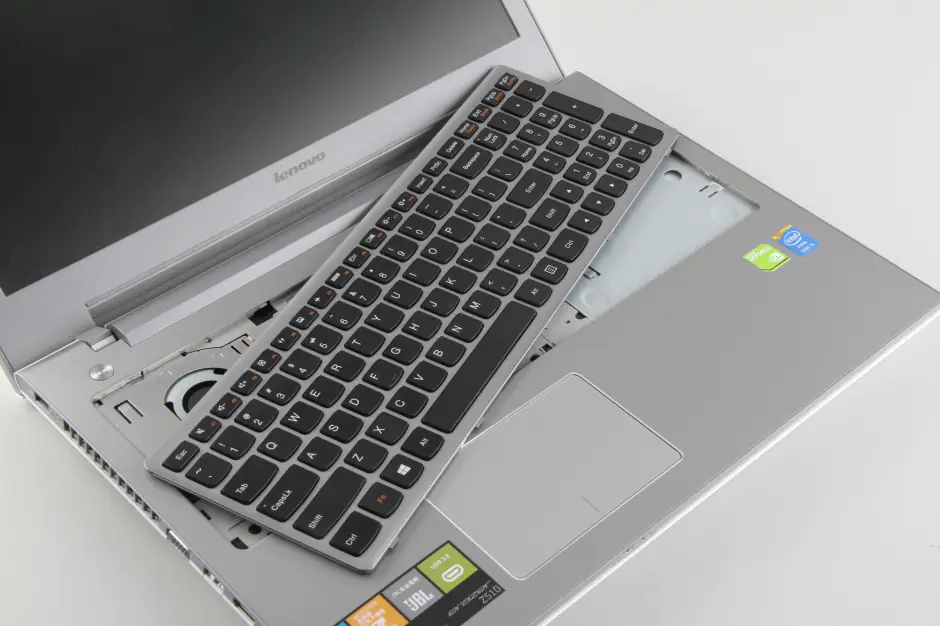

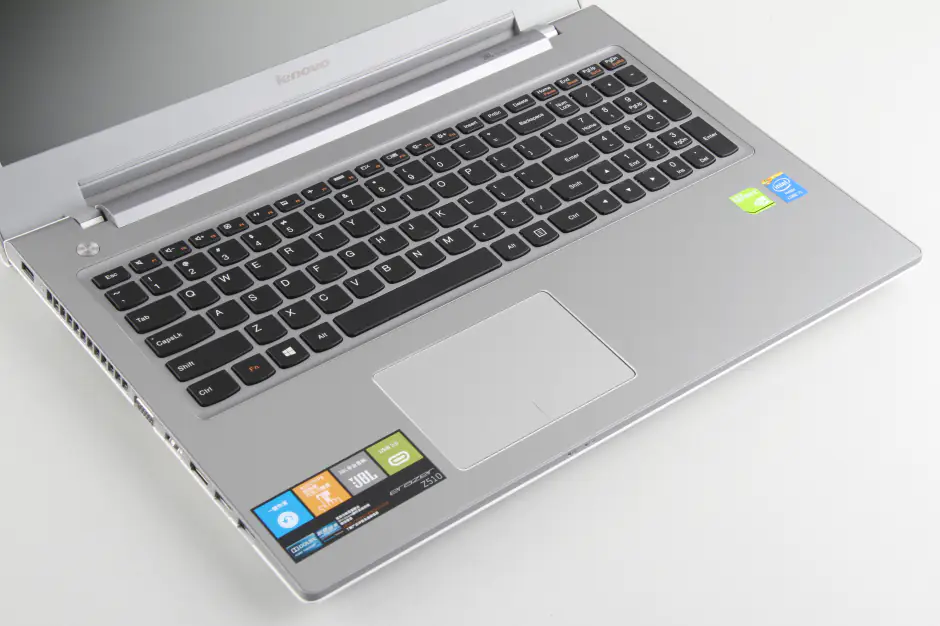

Use a small tool to pry open the top of the keyboard. Turn the keyboard upside down and place it on the palm rest. Use your fingernail to lift the black part of the base, then pull out the keyboard cable.

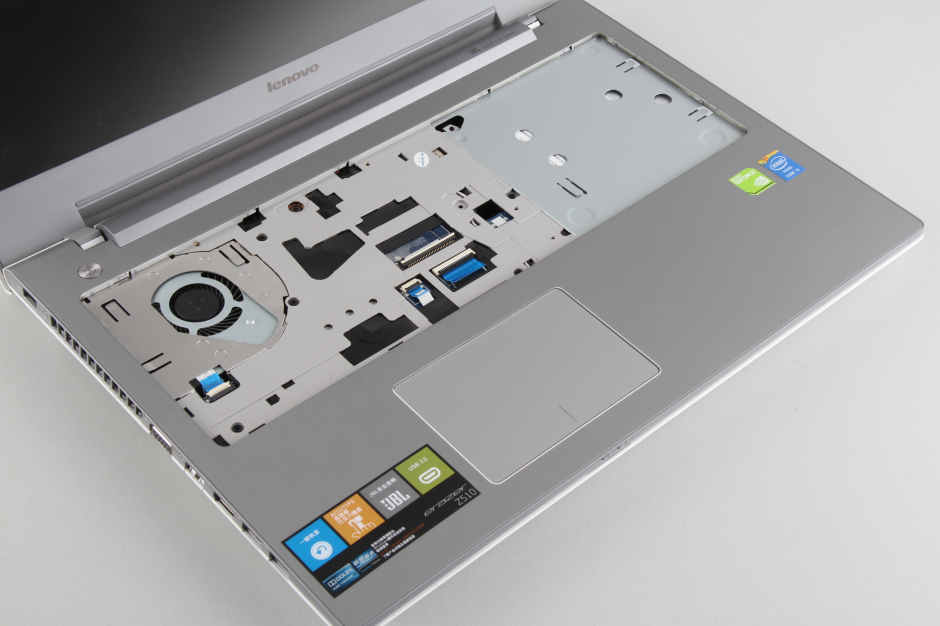

Close-up of the palm rest after removing the keyboard

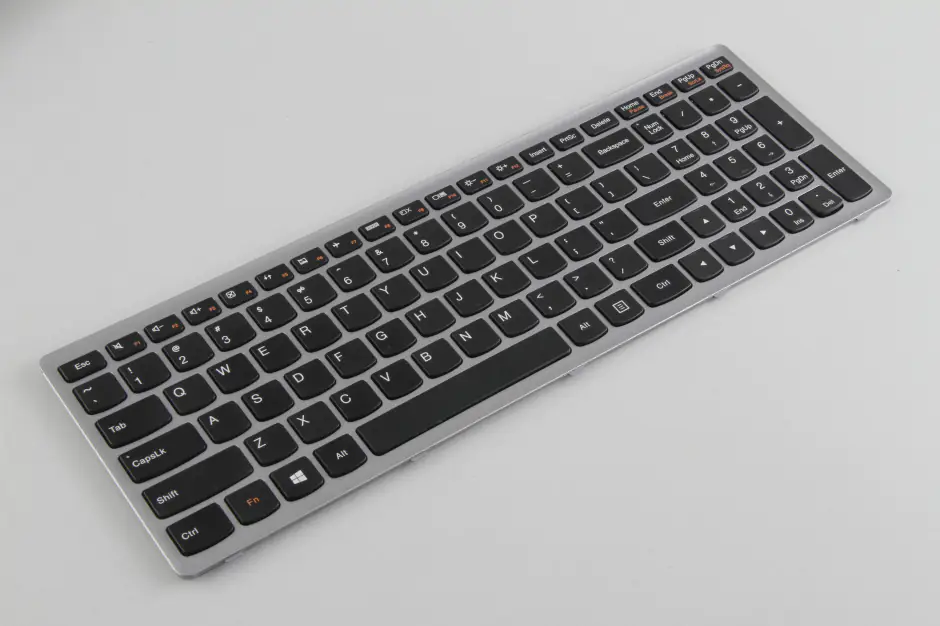

Close-up of the keyboard

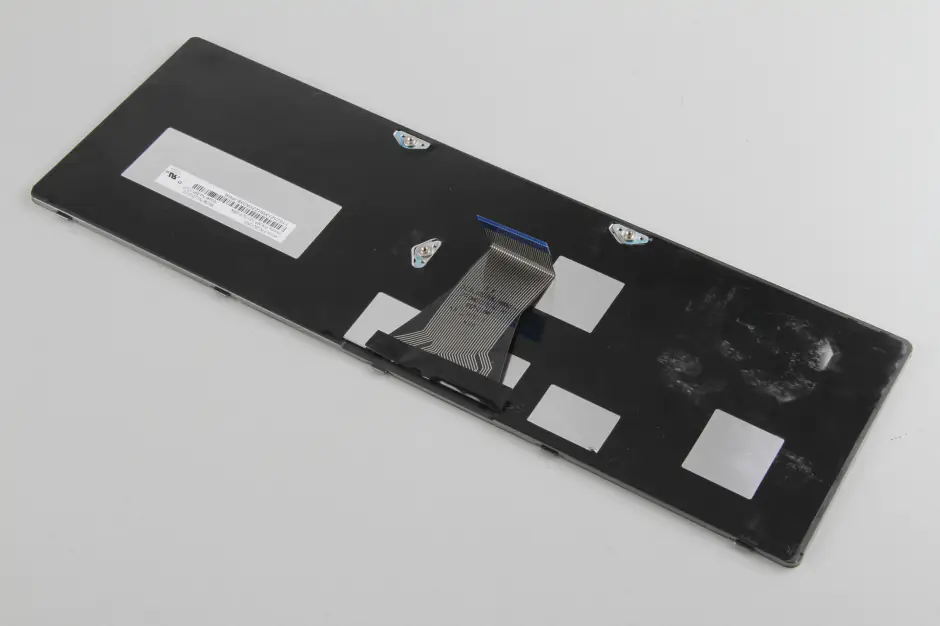

There is no backlight cable on the back of the keyboard, indicating that this keyboard does not have a backlight function.
Insert a pry tool between the bottom cover and the palm rest, and carefully slide the pry tool to detach the bottom cover from the palm rest.

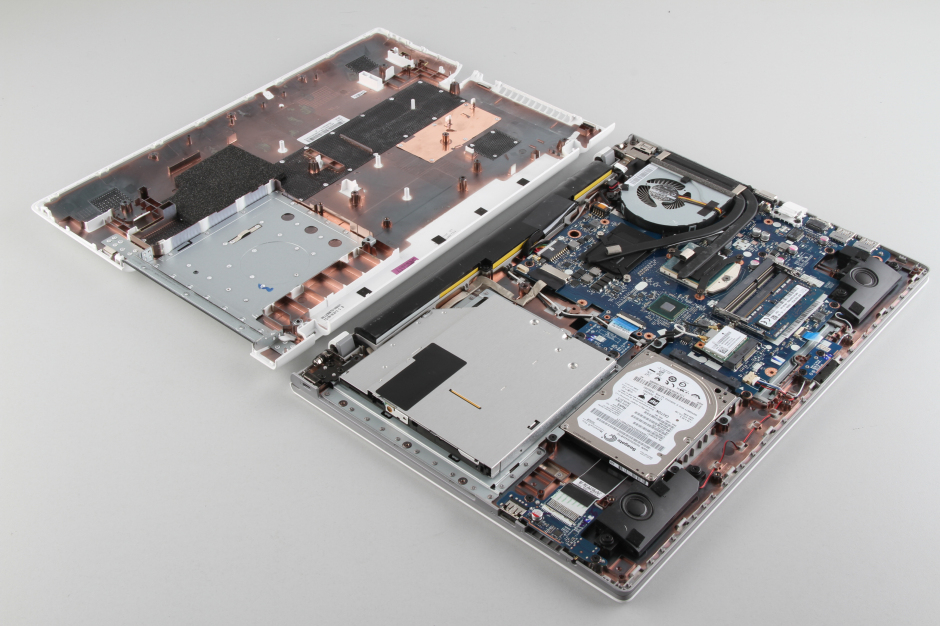

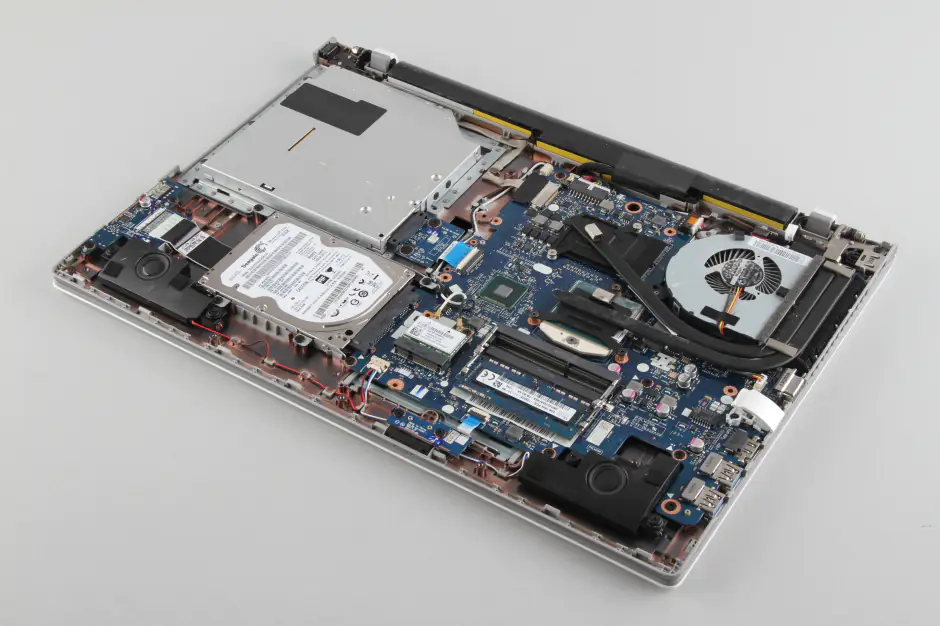

When the bottom case is removed, you can get access to the hard drive, wireless card, speakers, RAM, heat sink, cooling fan, optical drive, and motherboard.

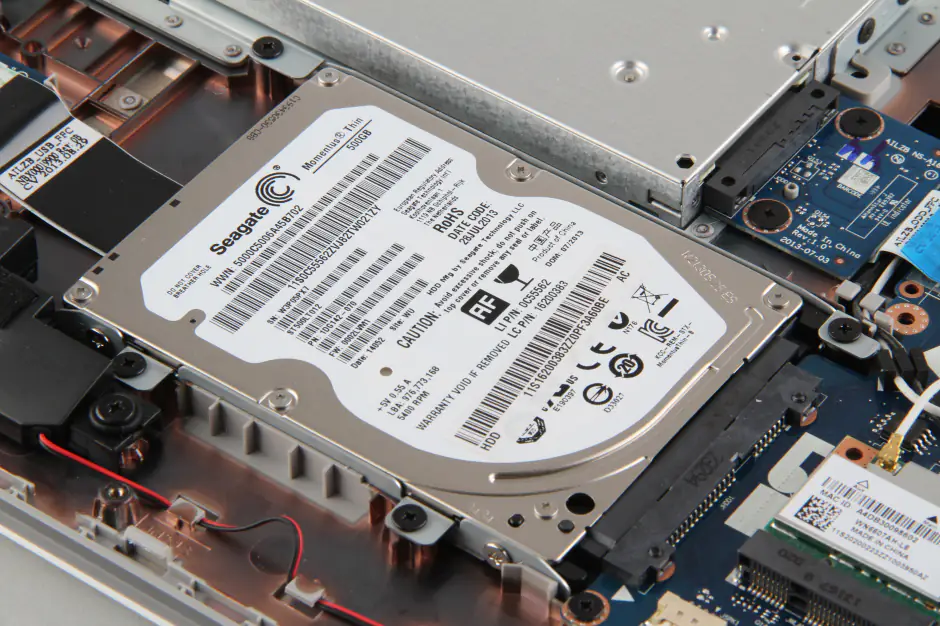

Remove the four screws securing the hard drive module and remove it.

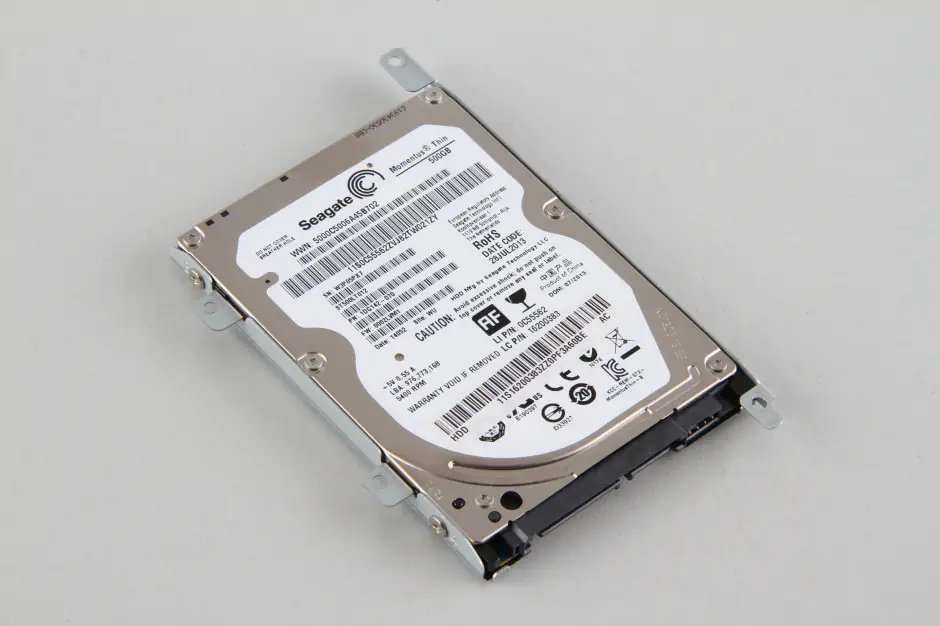

The Lenovo IdeaPad Z510 features a Seagate 500GB 5400RPM hard drive.

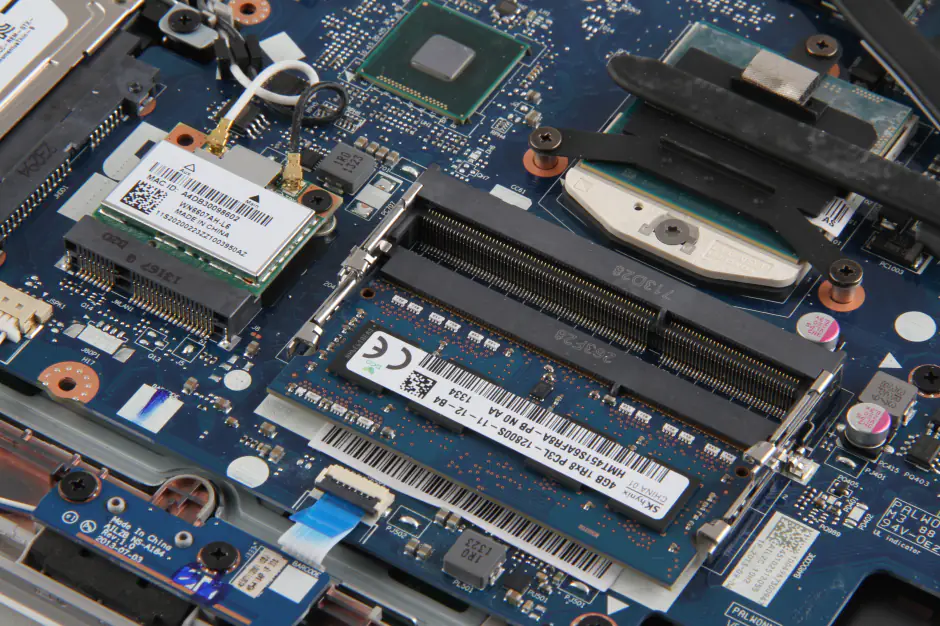

The Lenovo IdeaPad Z510 has two memory slots and comes with one memory module pre-installed, so you can upgrade the memory.

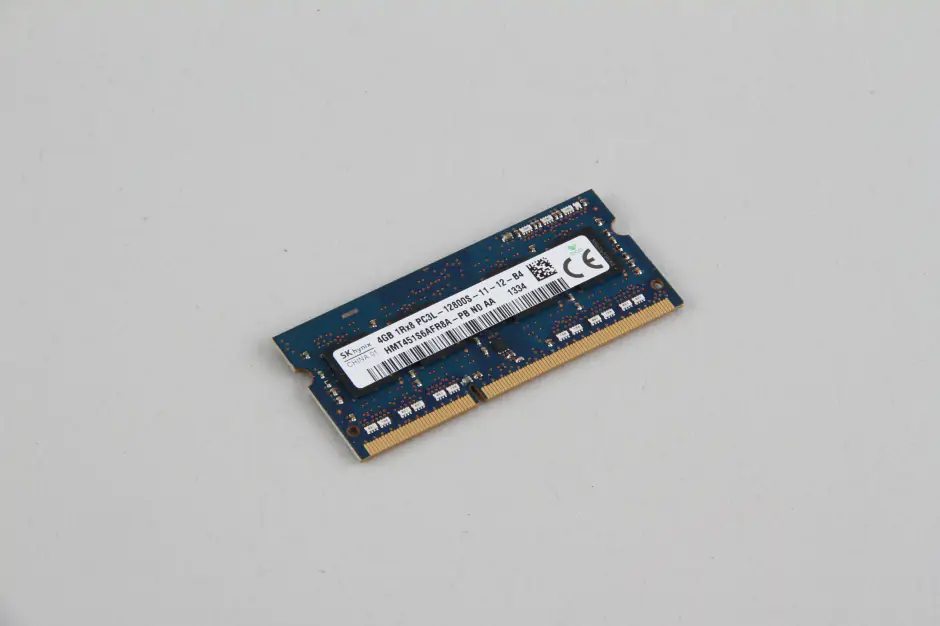

The laptop comes with an SK Hynix 4GB DDR3L-1600MHz memory module.

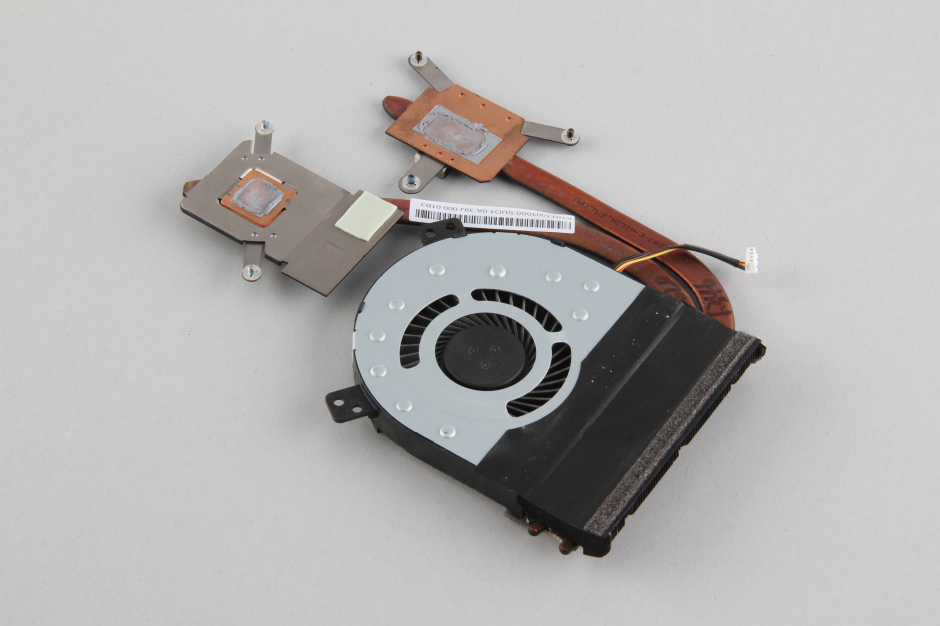

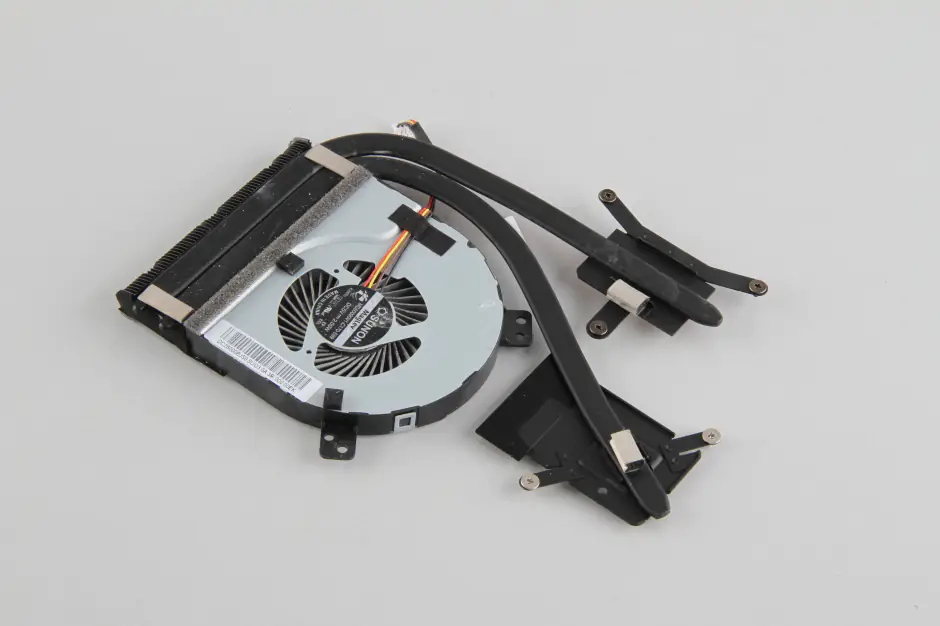

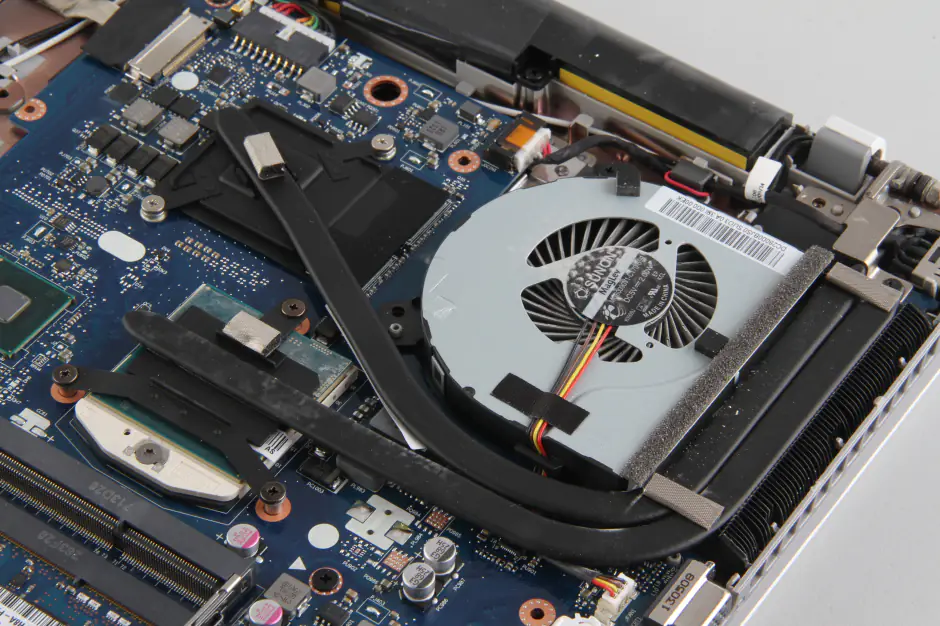

Loosen the five screws securing the heat sink. You can then remove the heat sink and cooling fan.

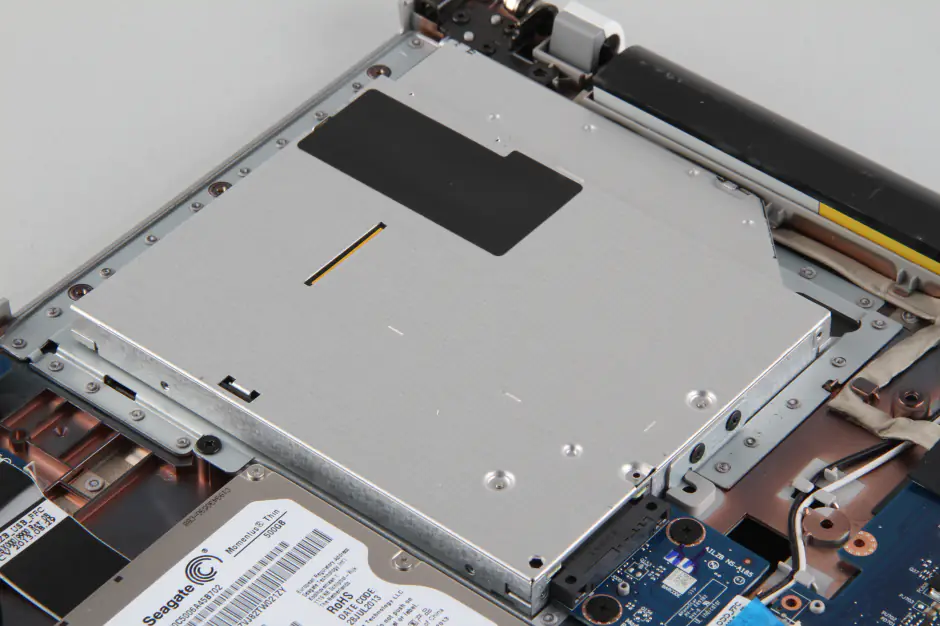

Remove the optical drive.

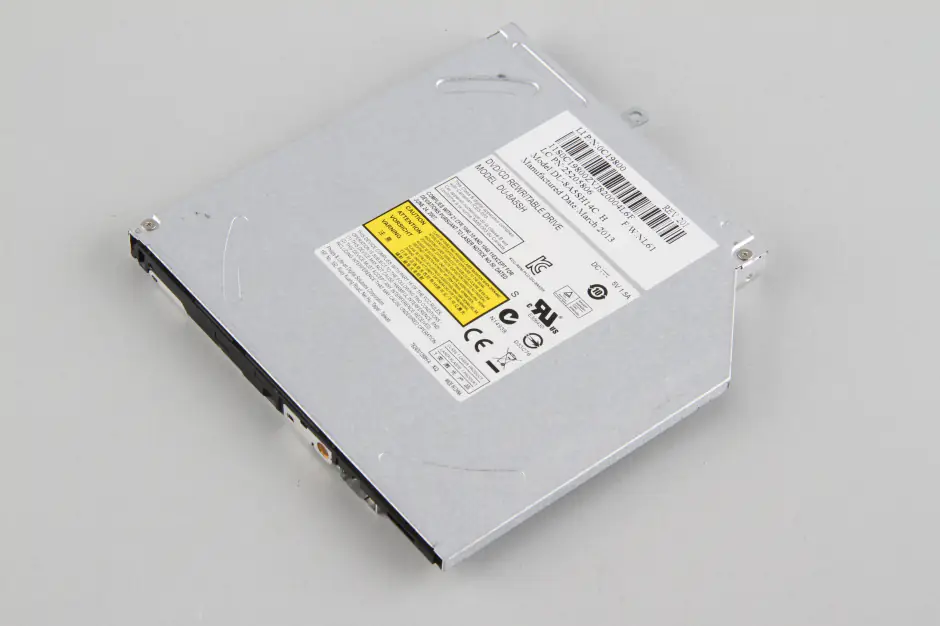

The laptop features a PLDS DS-8A5SH DVD burner.
Disconnect the battery connector from the motherboard, and then remove the battery.

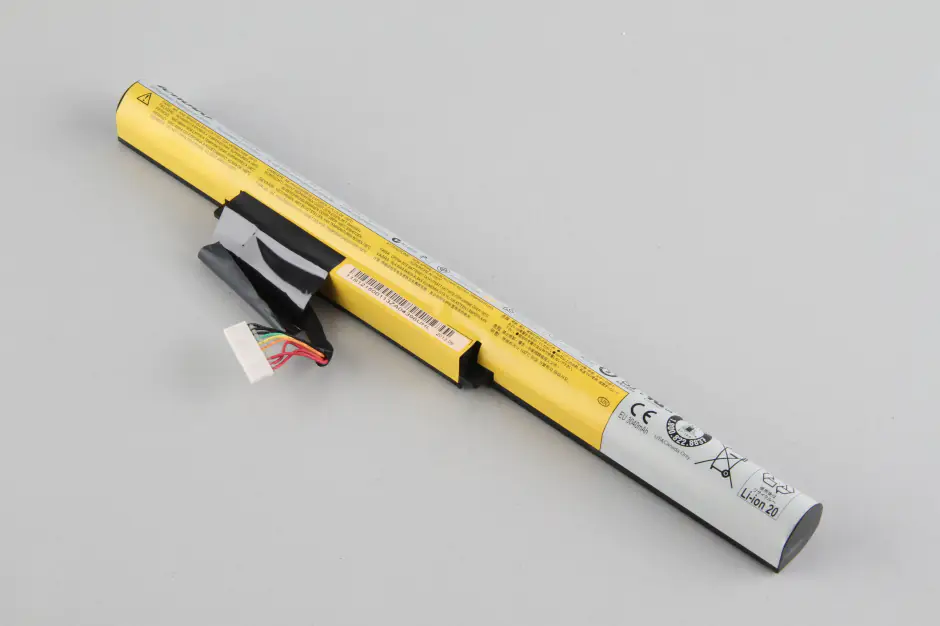

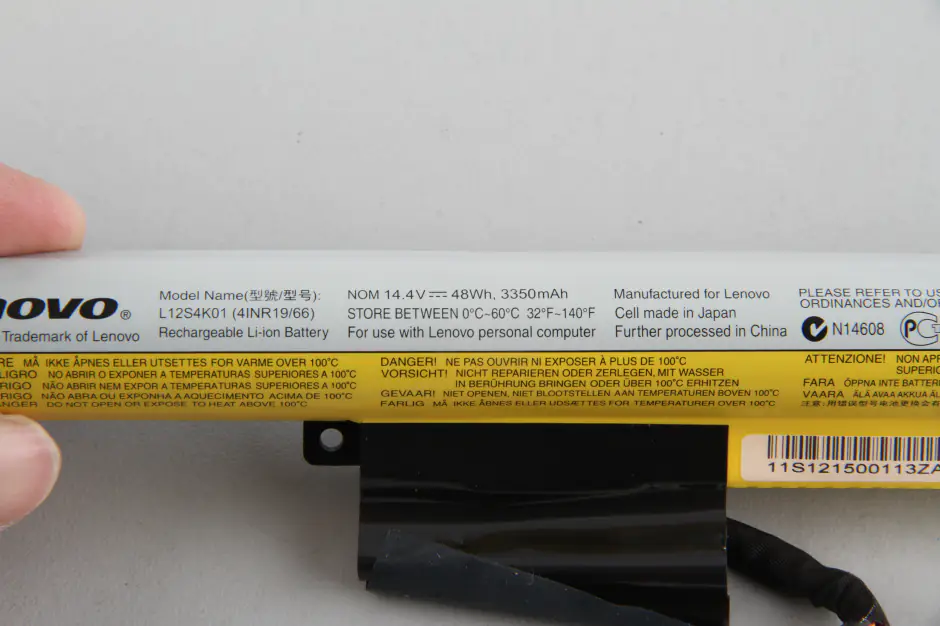

The Lenovo IdeaPad Z510 has a 3350mAh Li-ion battery, Lenovo part number: L12S4K01.

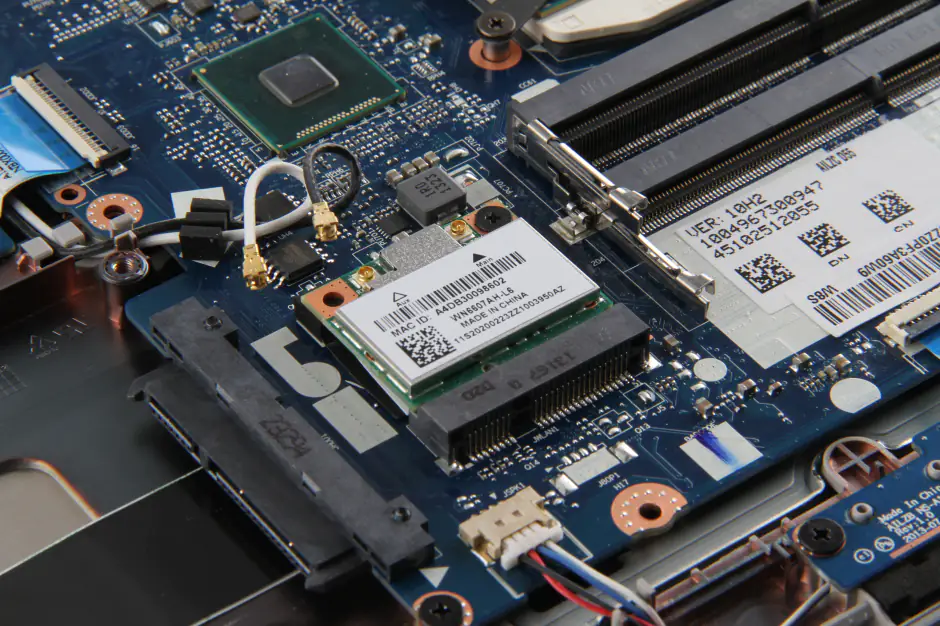

Remove the screw securing the wireless card.
Disconnect two wireless antenna cables and then remove the wireless card.
WN6607AH-L6 wireless card

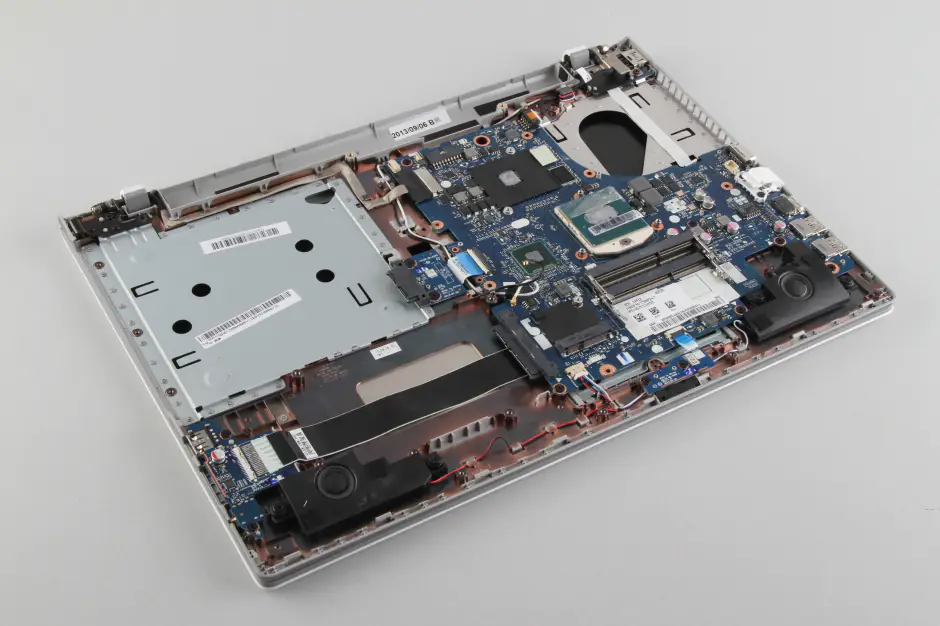

Now remove all screws securing the motherboard.
Disconnect all cables connecting to the motherboard. Lift the motherboard from the left side and carefully remove it.

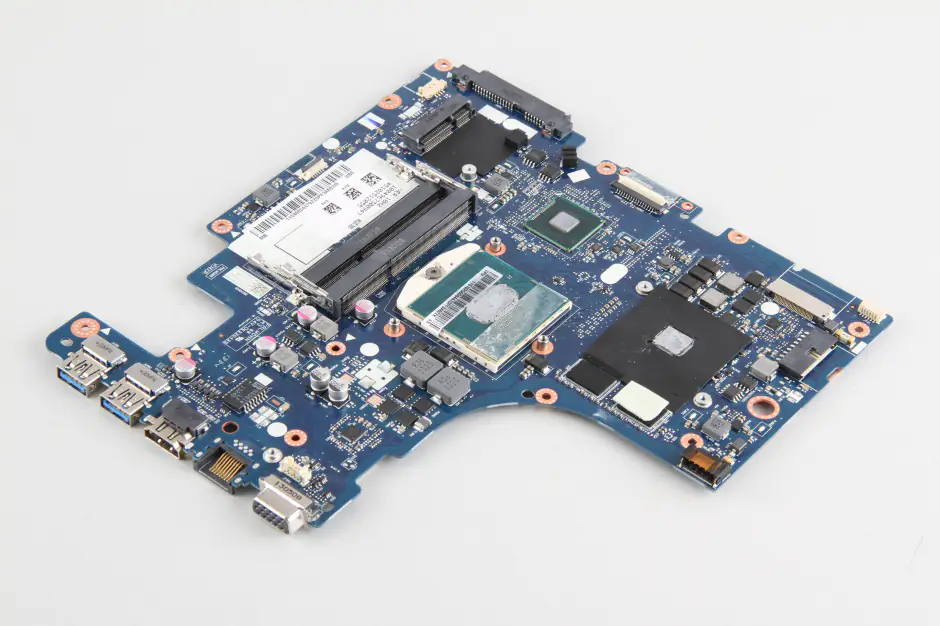

Lenovo IdeaPad Z510 motherboard.

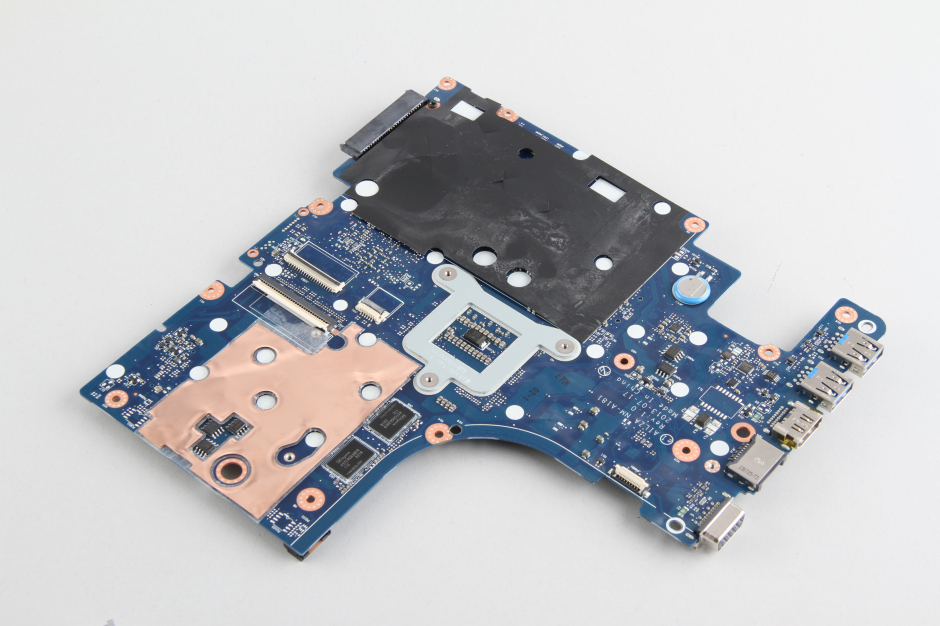

The back of the motherboard.

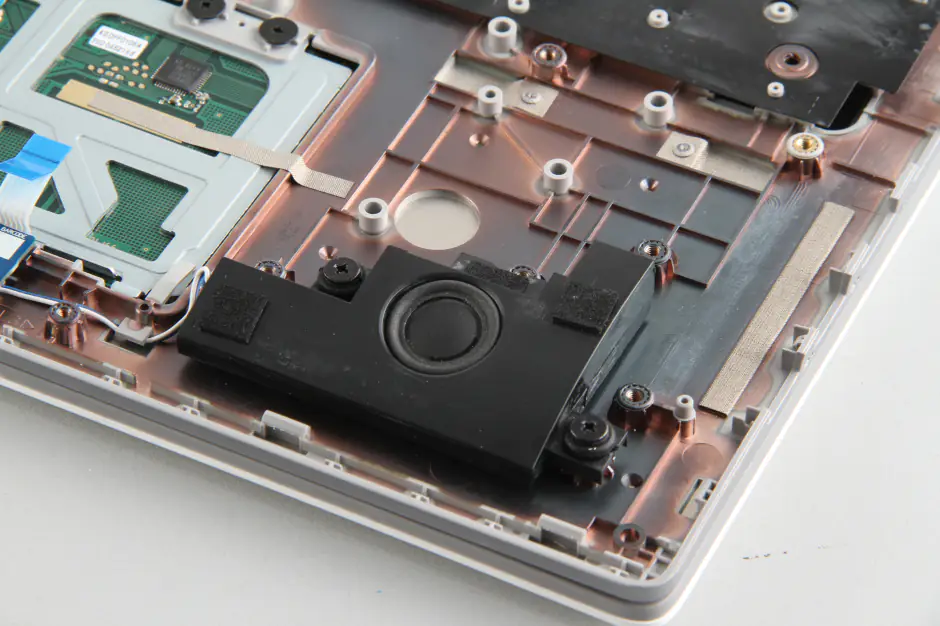

Close-up of the speaker module.

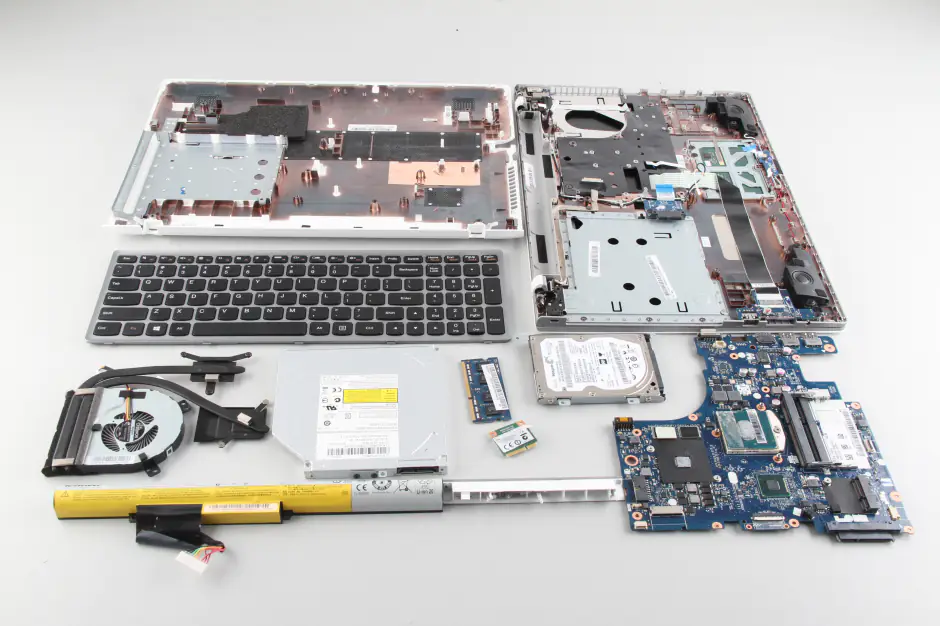

Lenovo IdeaPad Z510 internal parts
