Lenovo ThinkPad T540p Disassembly

In this guide, I’ll explain how to disassemble Lenovo ThinkPad T540p to remove and replace the SSD, keyboard, palm rest, wireless card, RAM, heat sink and cooling fan, speaker, and motherboard.

Follow us on Facebook for the latest updates from the MyFixGuide.com.

Lenovo ThinkPad T540p

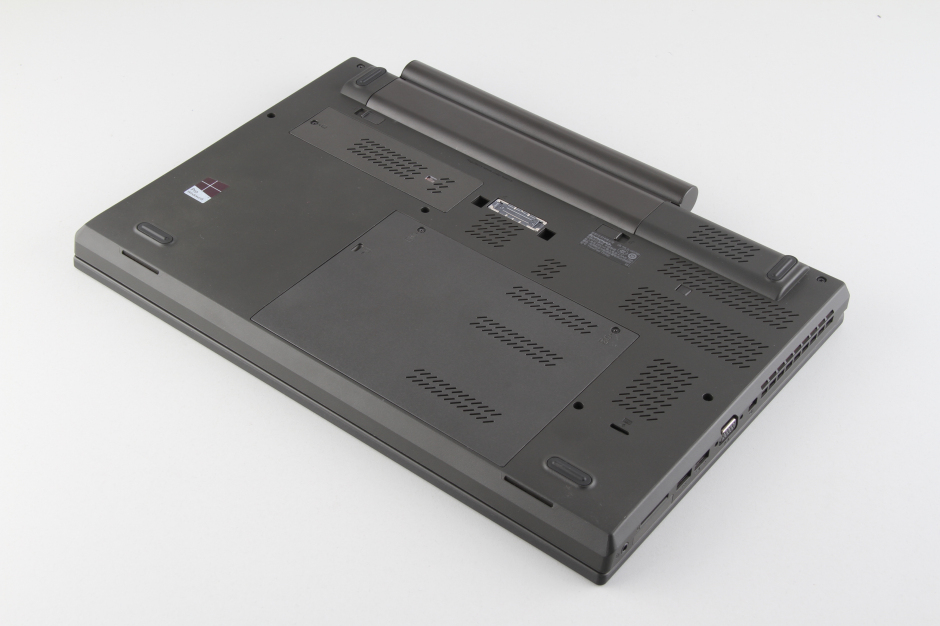

the back of Lenovo ThinkPad T540p

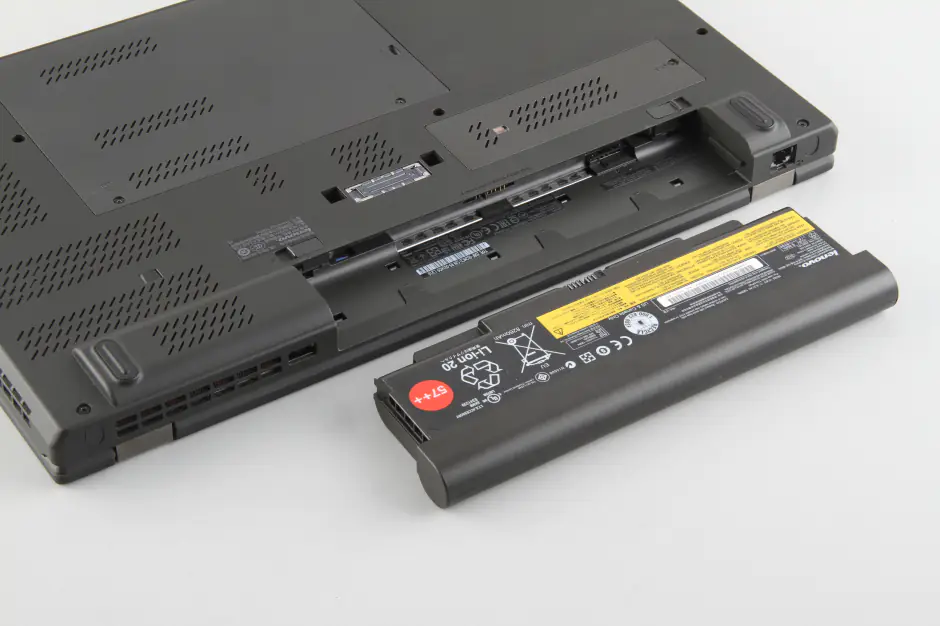

Unlock and remove the battery
remove battery

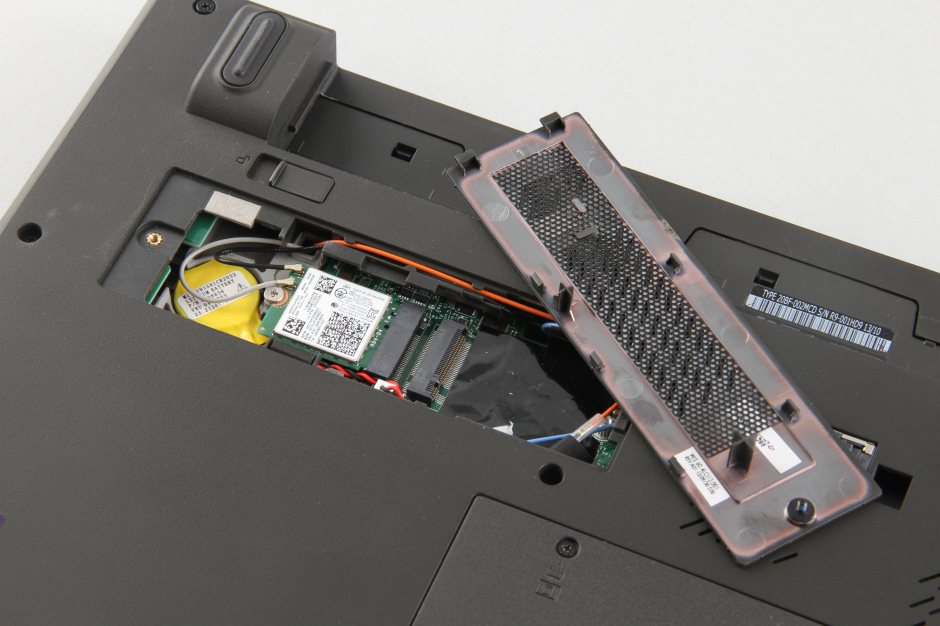

Remove one screw securing wireless card cover and remove the cover. You can access the wireless card and a spare NGFF slot.
remove SSD cover

Disconnect two antennas and remove one screw, you can remove the wireless card.
remove wireless card

Here’s wireless card.
ThinkPad T540p wireless card

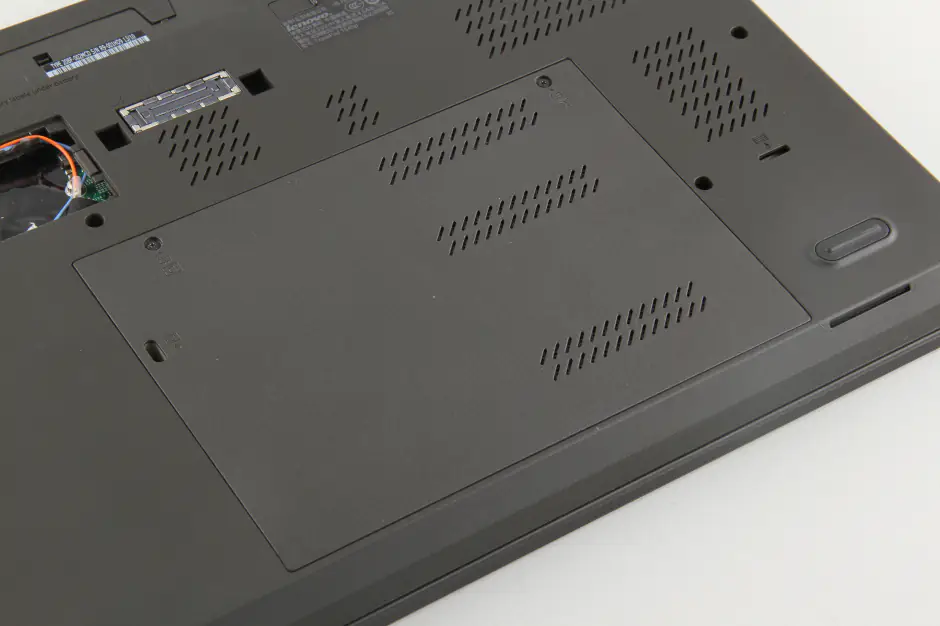

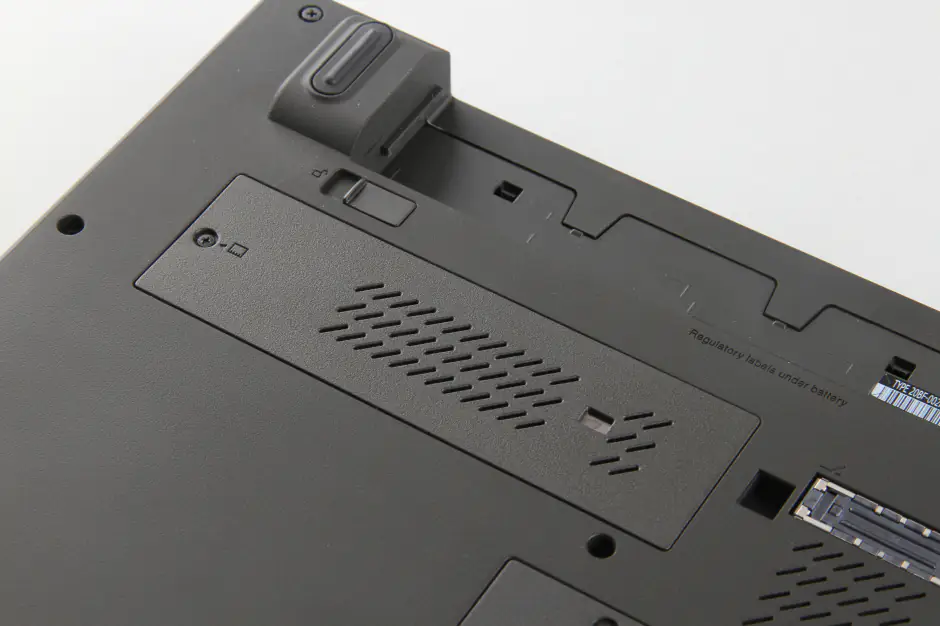

Remove two screws securing the service cover and remove the service cover.
Remove service cover screws

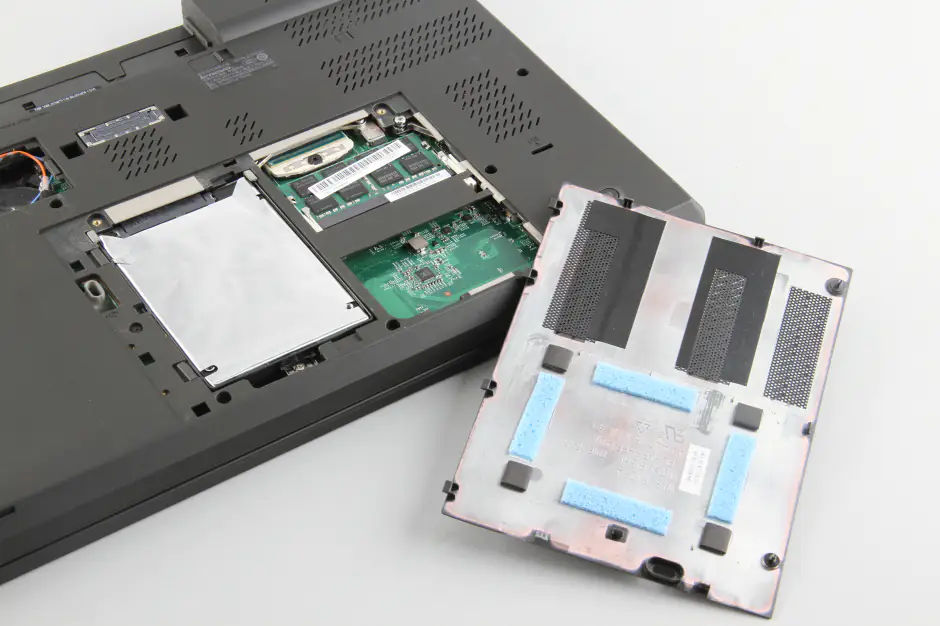

The Lenovo ThinkPad T540p has two memory slots, a mini PCI-E slot (already installed wireless card) and an NGFF SSD slot.
Remove service cover

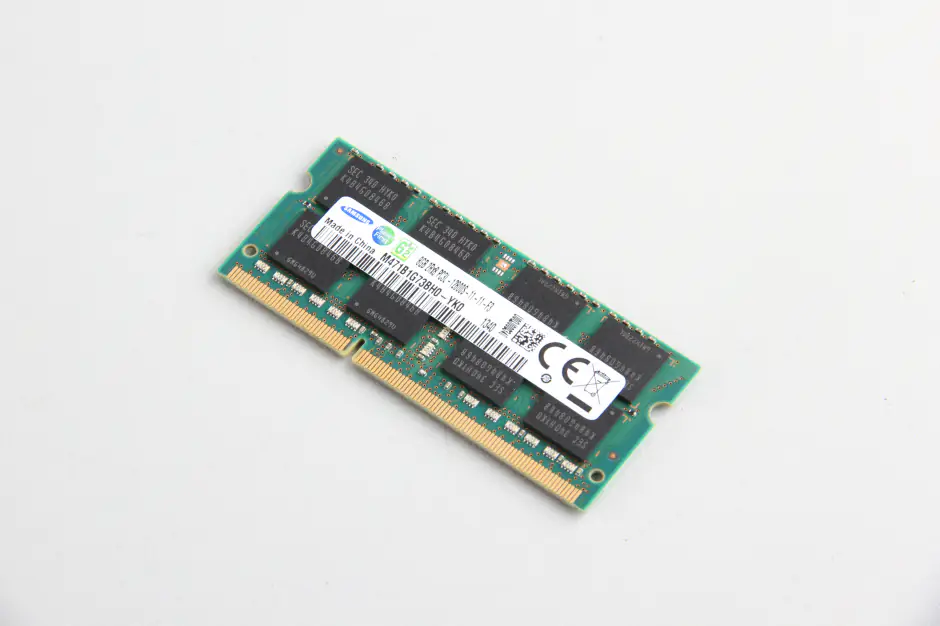

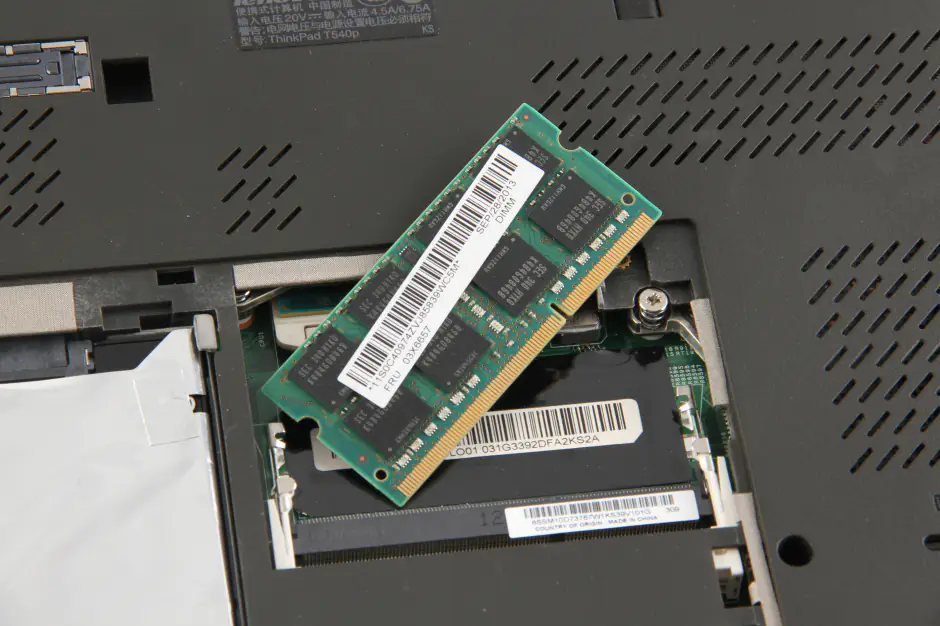

Samsung 8GB PC3L-12800S RAM
Remove RAM memory

Lenovo ThinkPad T540p RAM

Remove one screw securing the SSD and remove it.

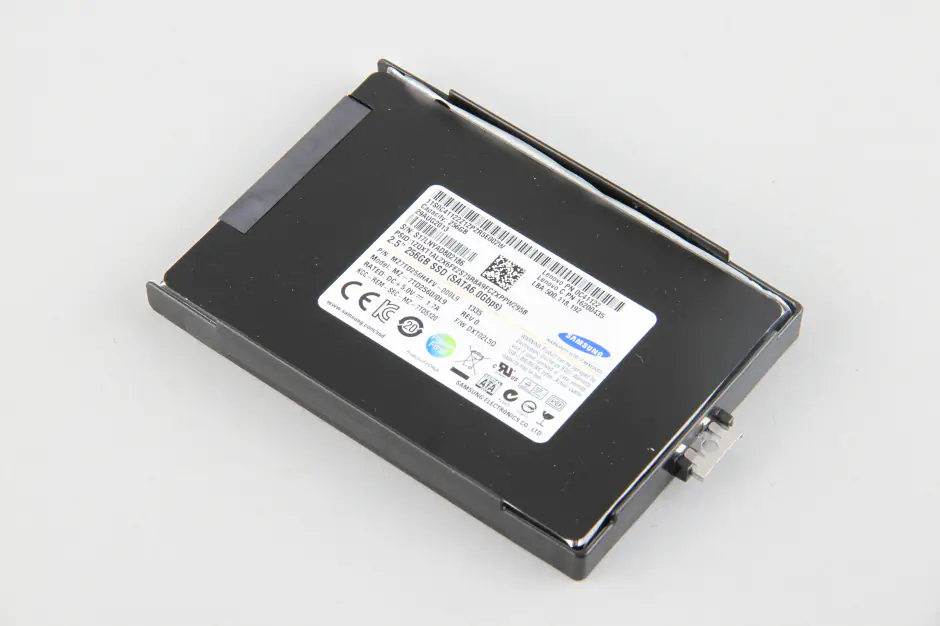

The Lenovo ThinkPad T540p features a Samsung 256G 2.5″ SSD.
Lenovo ThinkPad T540p 2.5 inch SSD
The back of SSD

Remove the screws that hold the optical drive.
Remove optical drive screw

Pull out the optical drive.

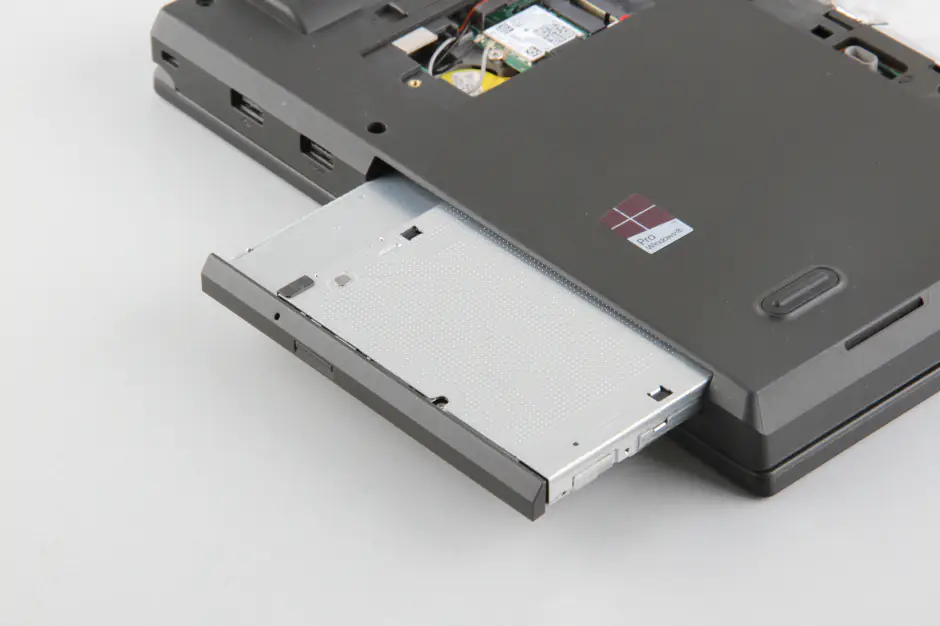

Remove optical drive

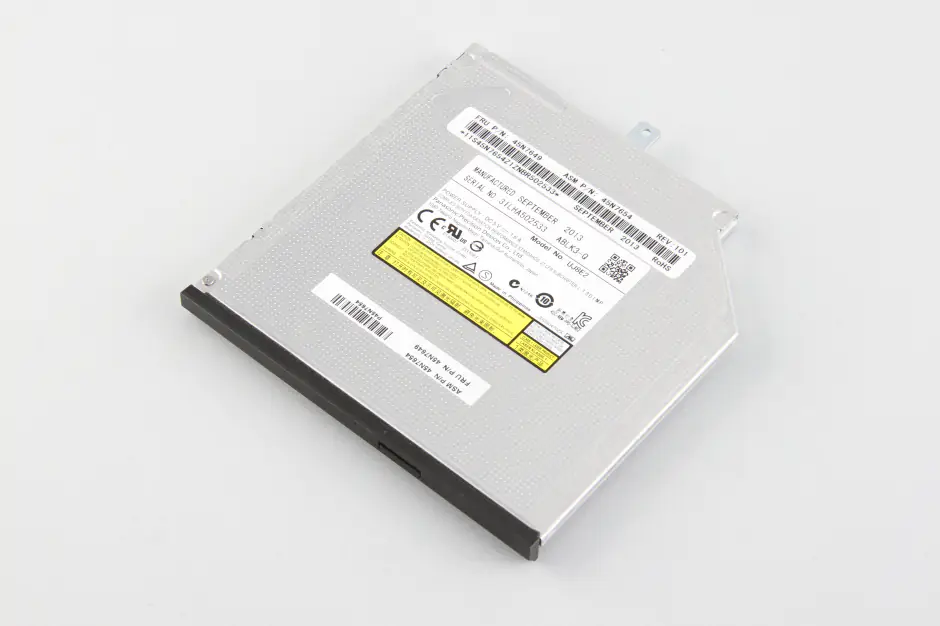

The laptop features a Panasonic UJ-862 9.5mm SATA optical drive.
Lenovo ThinkPad T540p optical drive

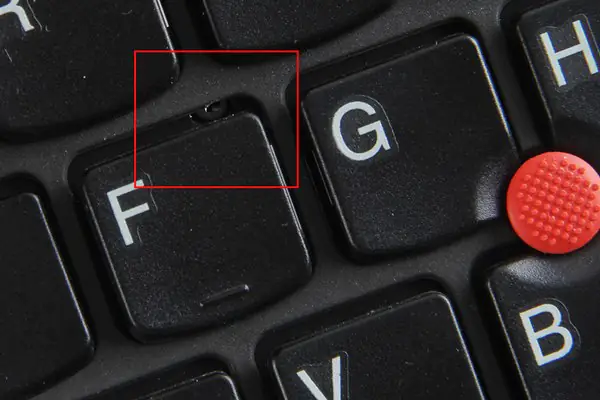

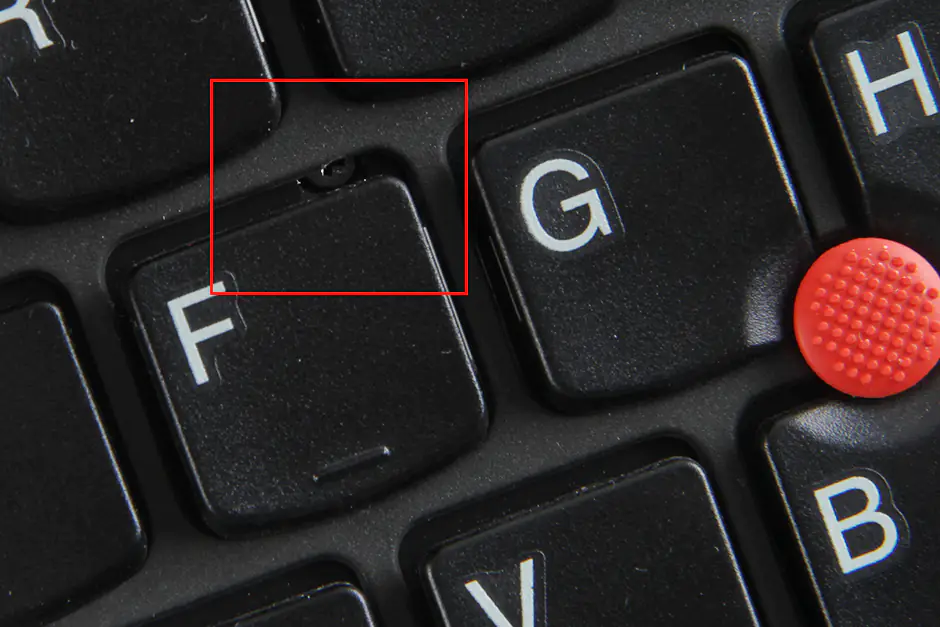

ThinkPad T540p keyboard design is very special, filling the border between their keycaps can slide up and down. Beneath his keyboard has three grooves, through their border between keycaps can be pushed up, after the six screws that secure the keyboard will be revealed, they can be removed individually loosen the keyboard.
Remove keyboard

Remove the keyboard and palm rest.
Remove palm rest

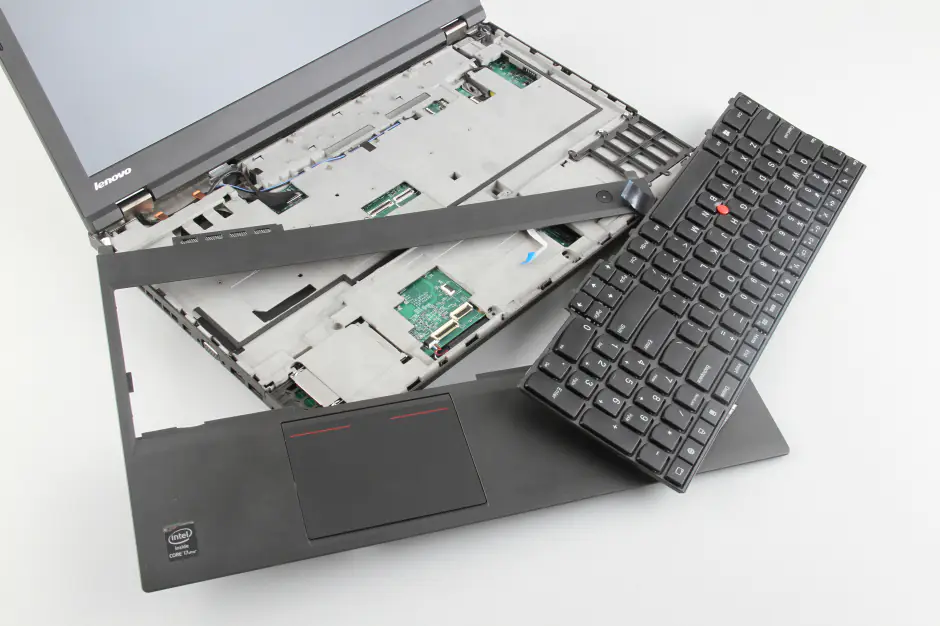

The keyboard has been removed.

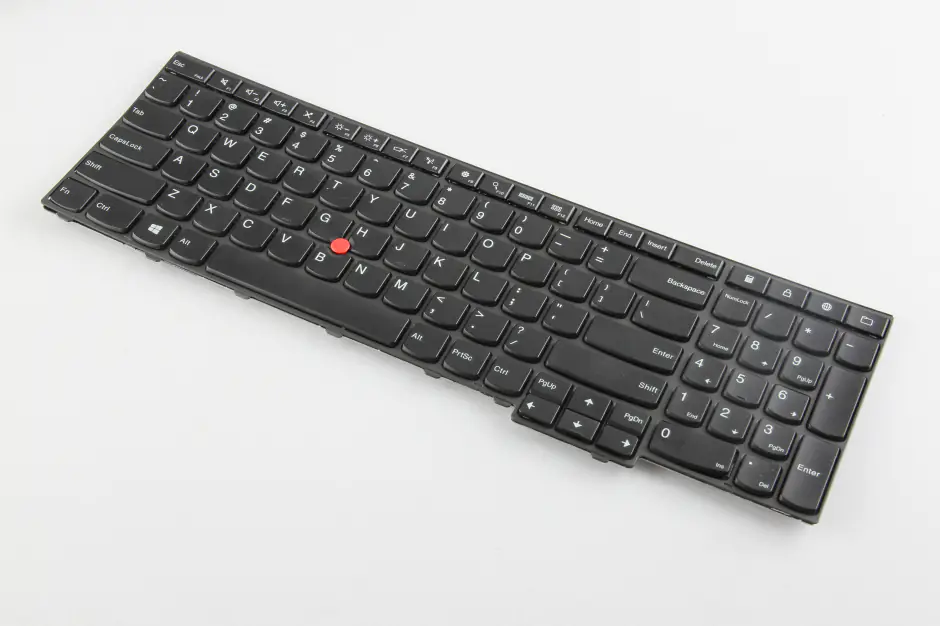

Lenovo ThinkPad T540p keyboard

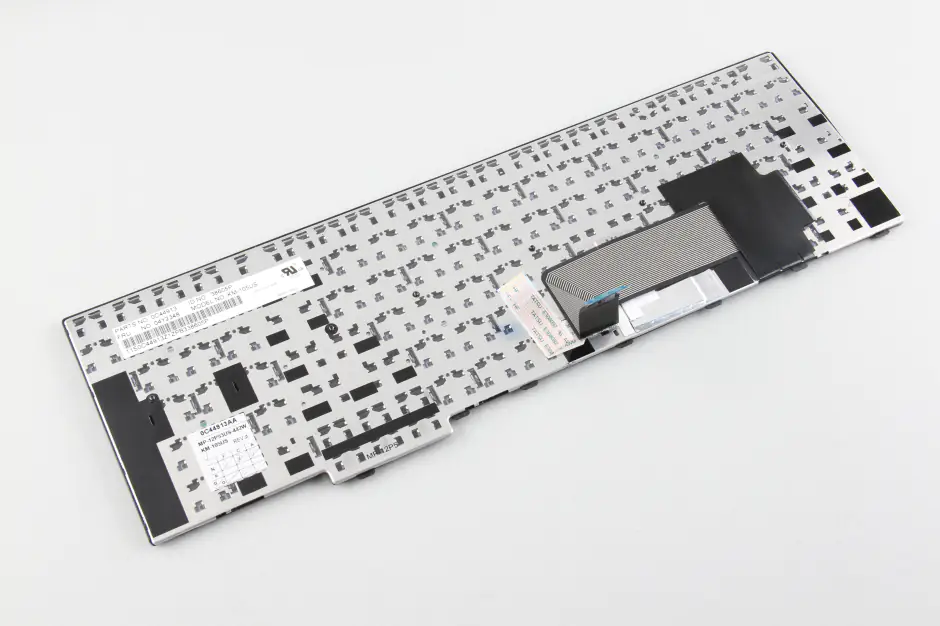

The back of the keyboard

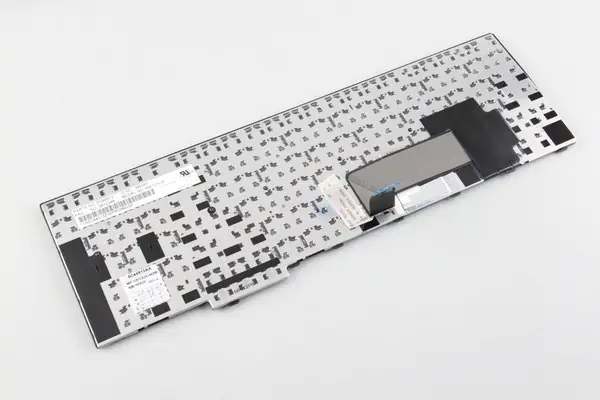

The back of the keyboard

remove roll cage

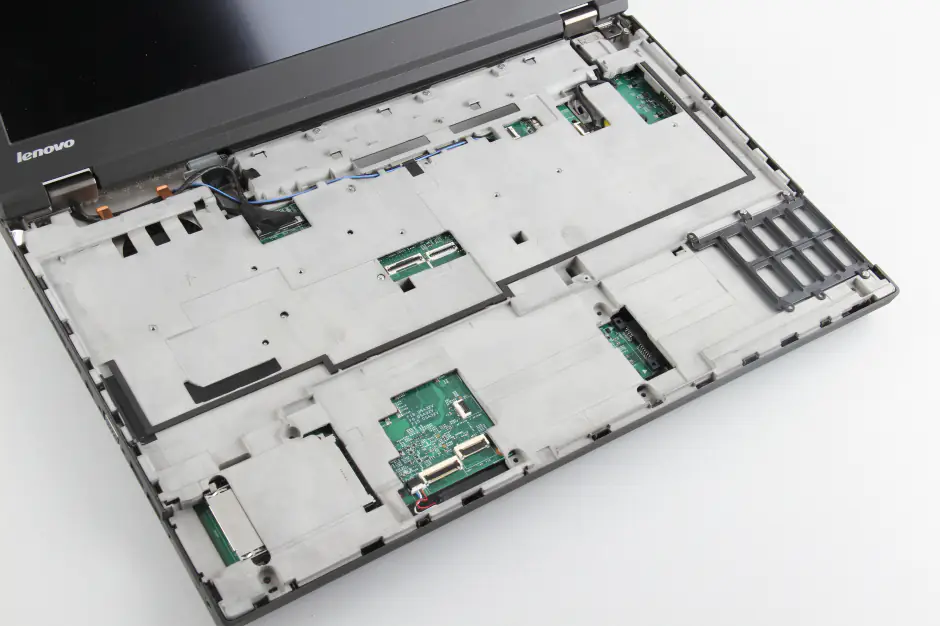

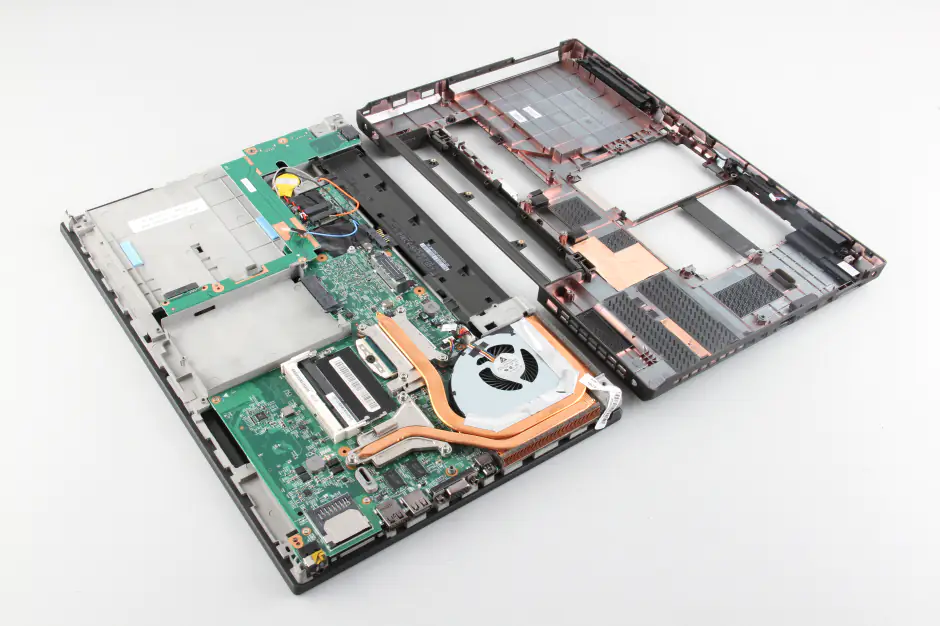

Under the palm rest, you can get access to the heat sink and cooling fan.
roll cage

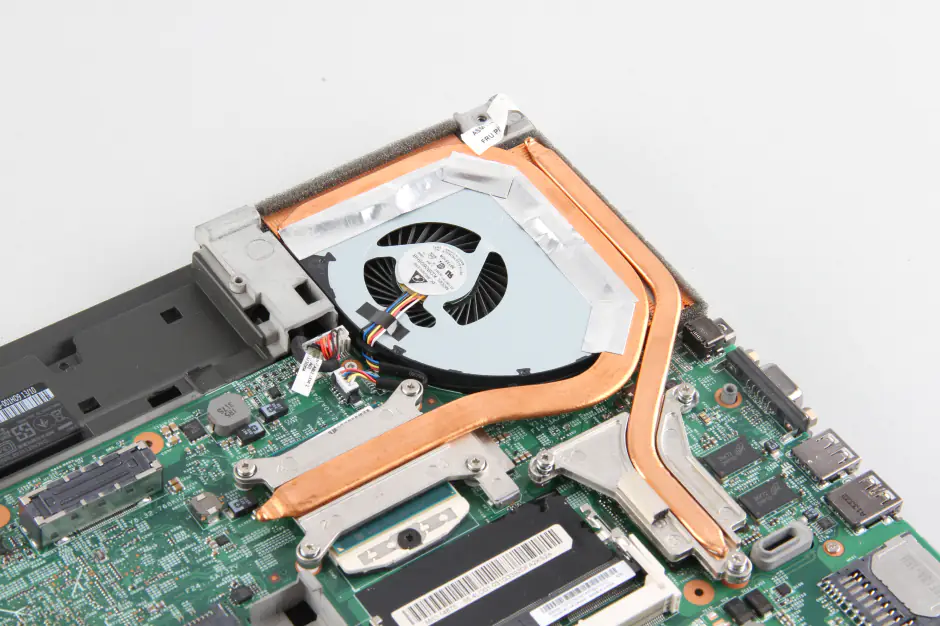

Loosen seven screws securing the heat sink and disconnect the cooling fan cable from the motherboard. You can remove the heat sink and cooling fan.
remove heat sink screws

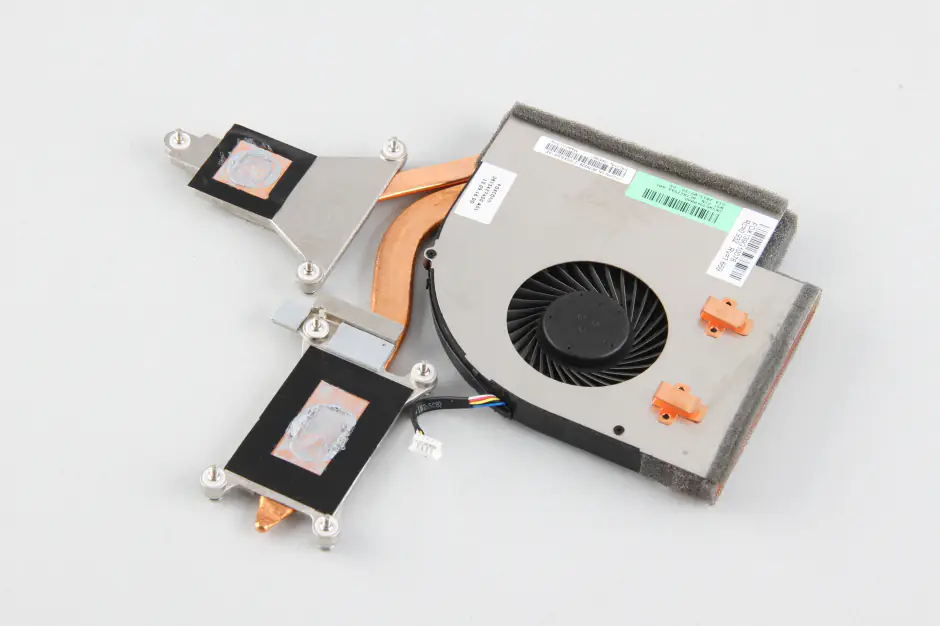

The heat sink and cooling fan
Lenovo ThinkPad T540p heat sink

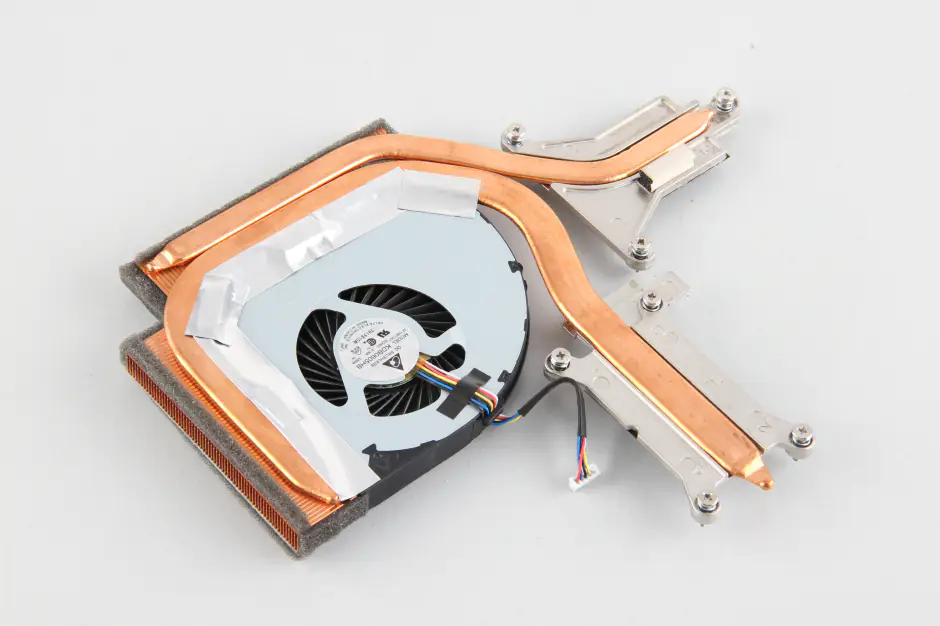

Lenovo ThinkPad T540p cooling fan

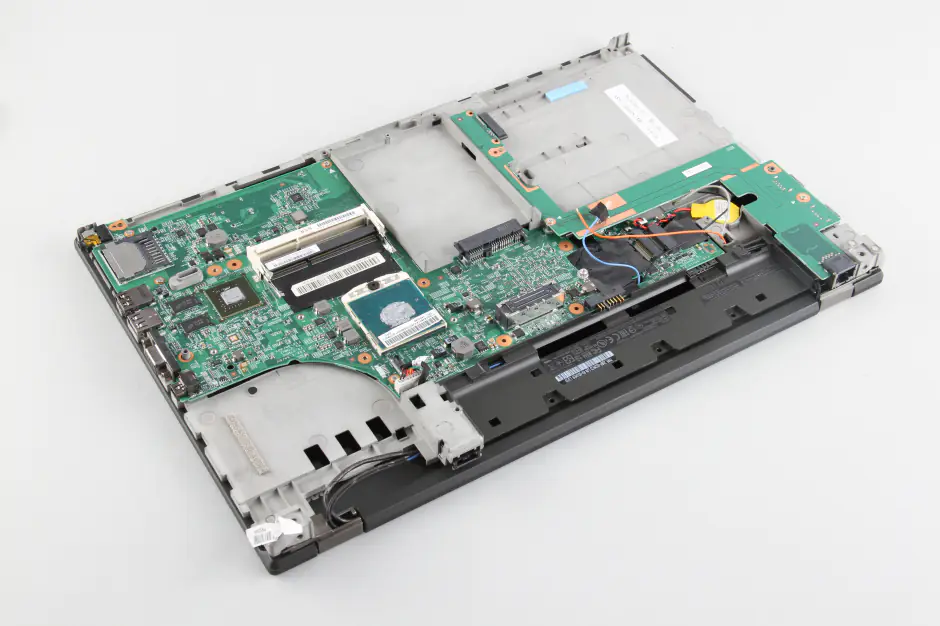

Motherboard
Lenovo ThinkPad T540p motherboard

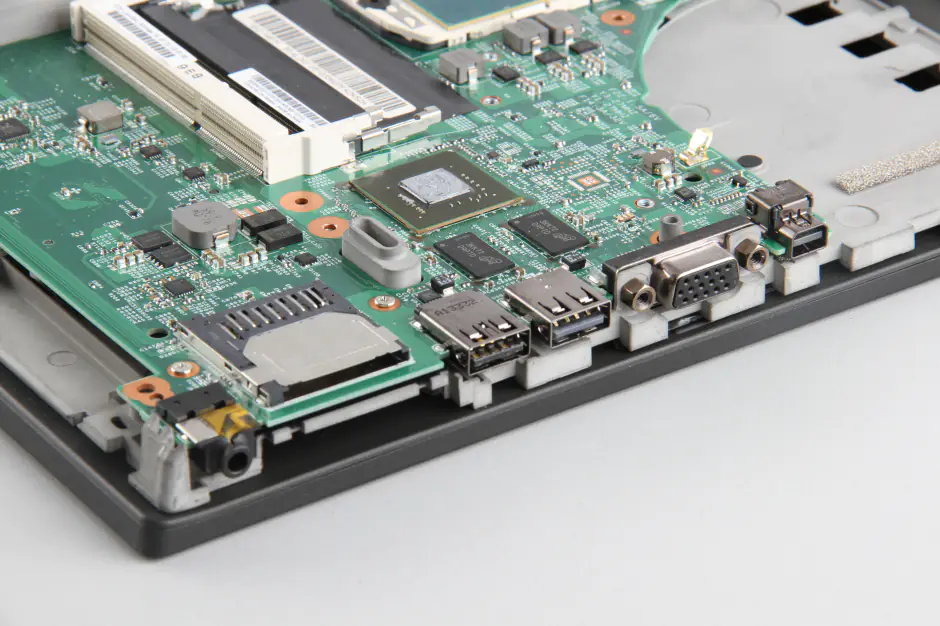

Lenovo ThinkPad T540p ports

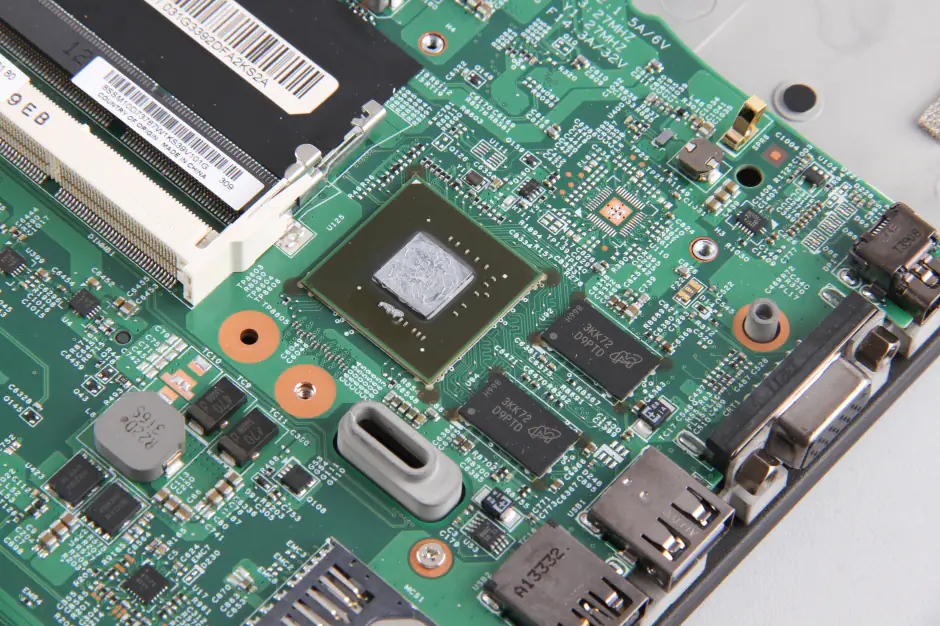

Graphics card
Graphics card

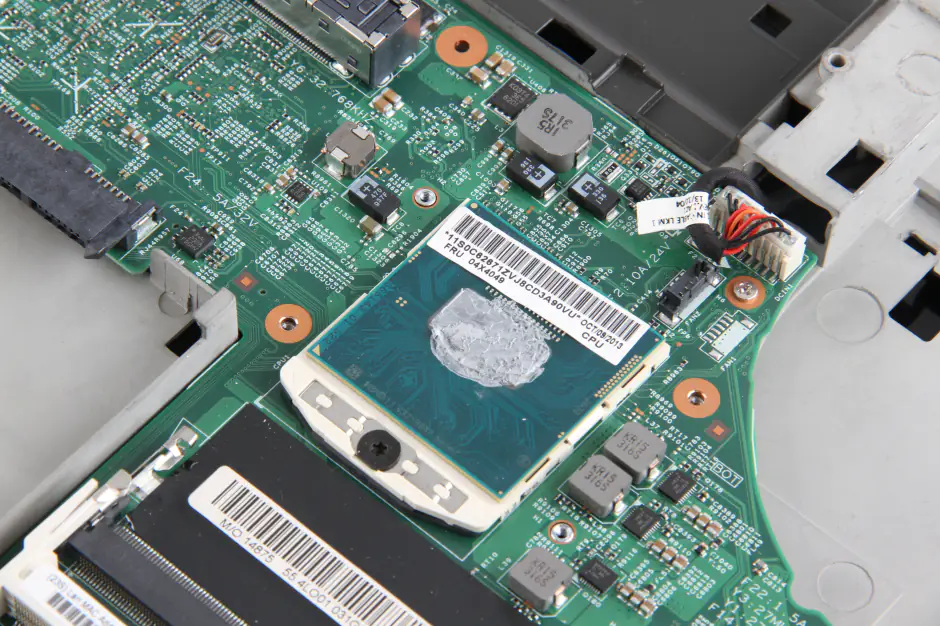

Intel processor
Intel processor

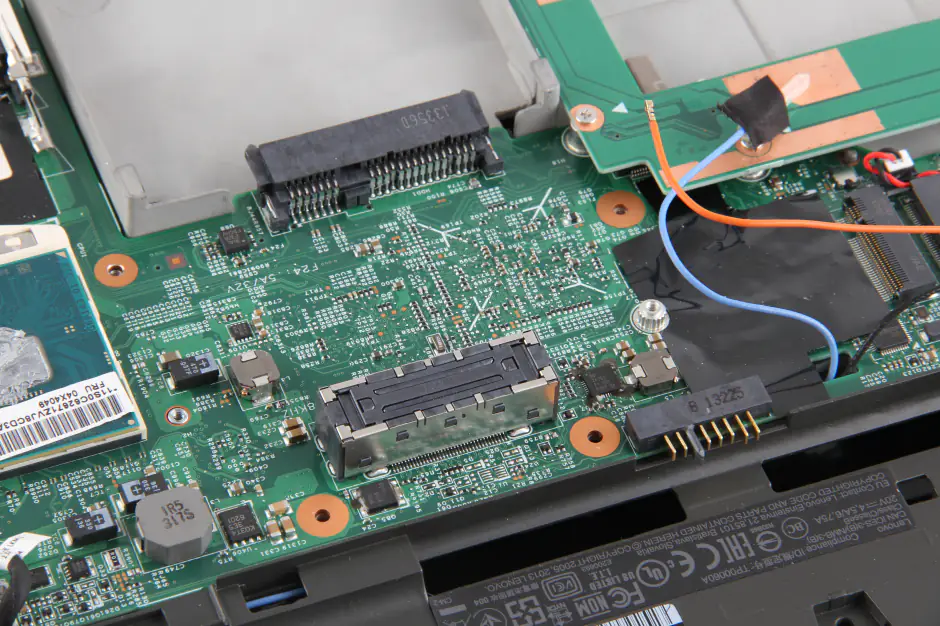

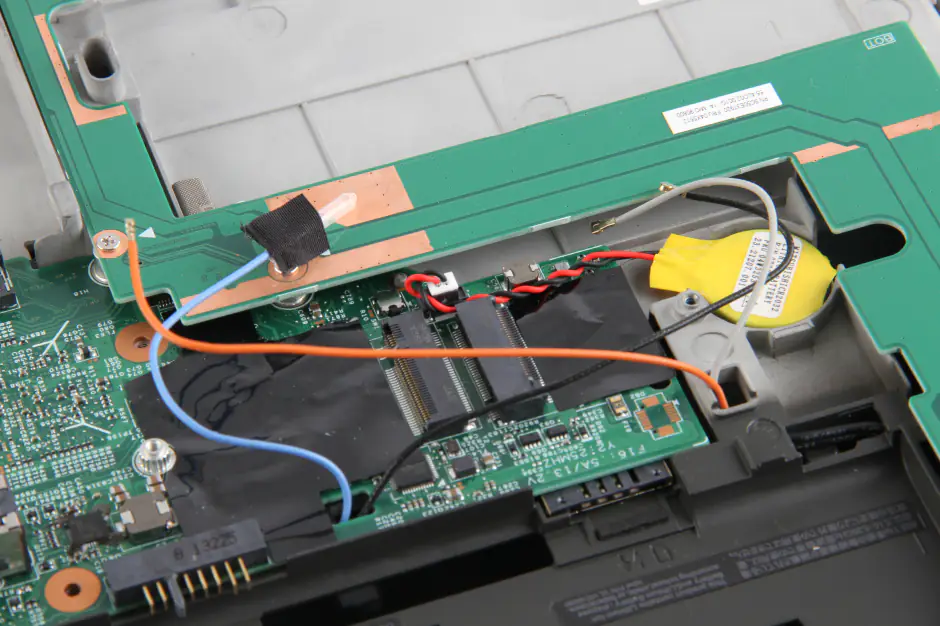

Motherboard part 1

Motherboard part 2

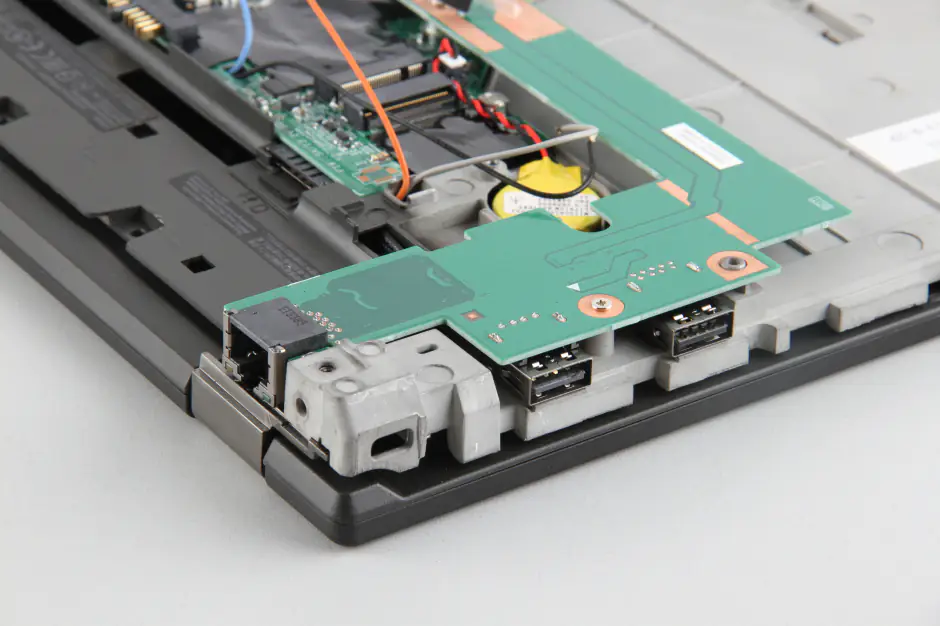

Motherboard part 3

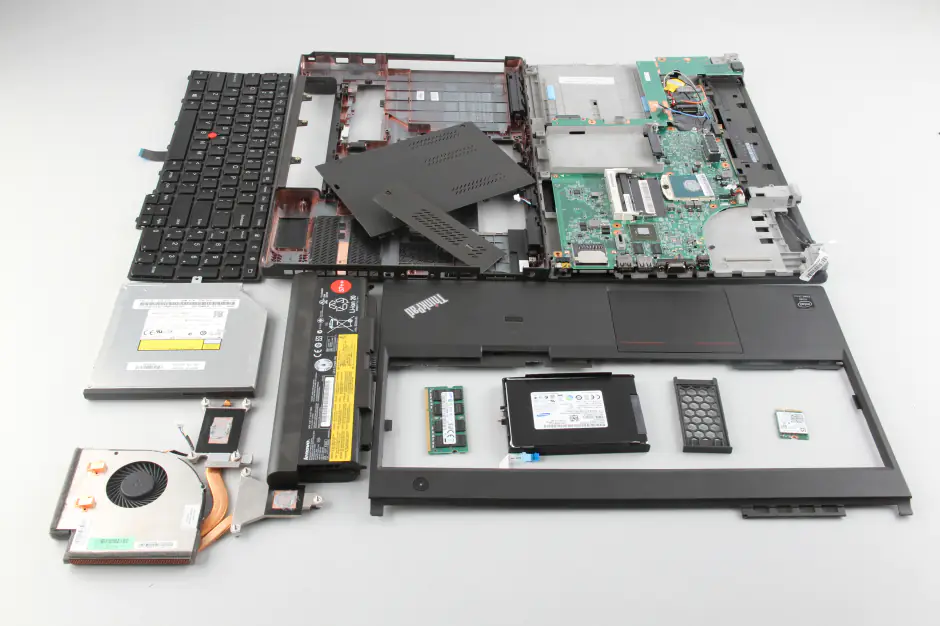

Lenovo ThinkPad T540p internal pictures

For more guides, check out the Lenovo ThinkPad T540p device page.
