Dell Alienware 14 disassembly and SSD, RAM, HDD upgrade options

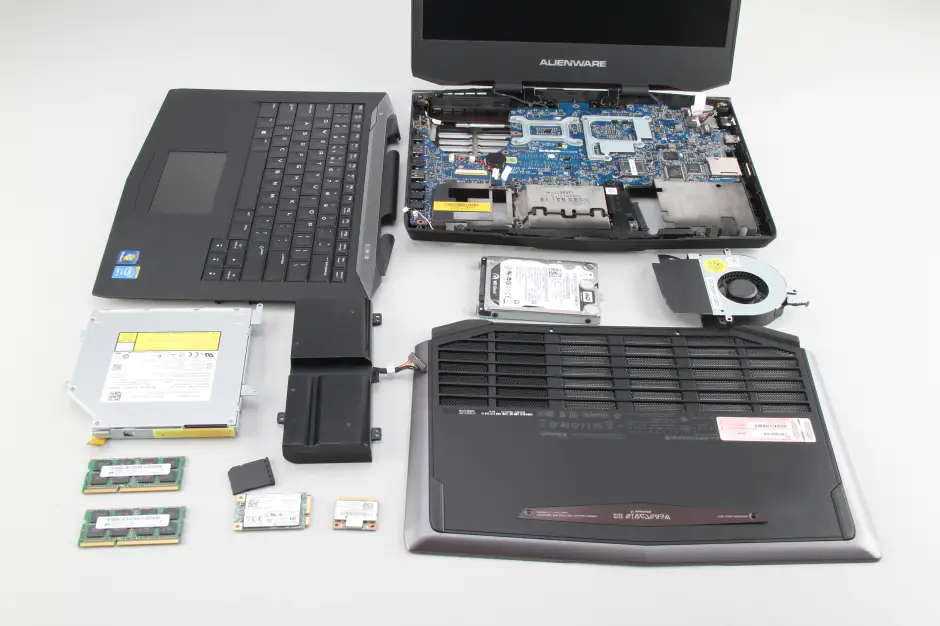

In this guide, I’ll explain how to disassemble Dell Alienware 14 to remove and replace the battery, SSD, keyboard, palm rest, hard drive, wireless card, memory, cooling fan, and motherboard.

Want to be the first to see inside of the latest smartphone and laptop? Follow us on Facebook for the latest teardown news.

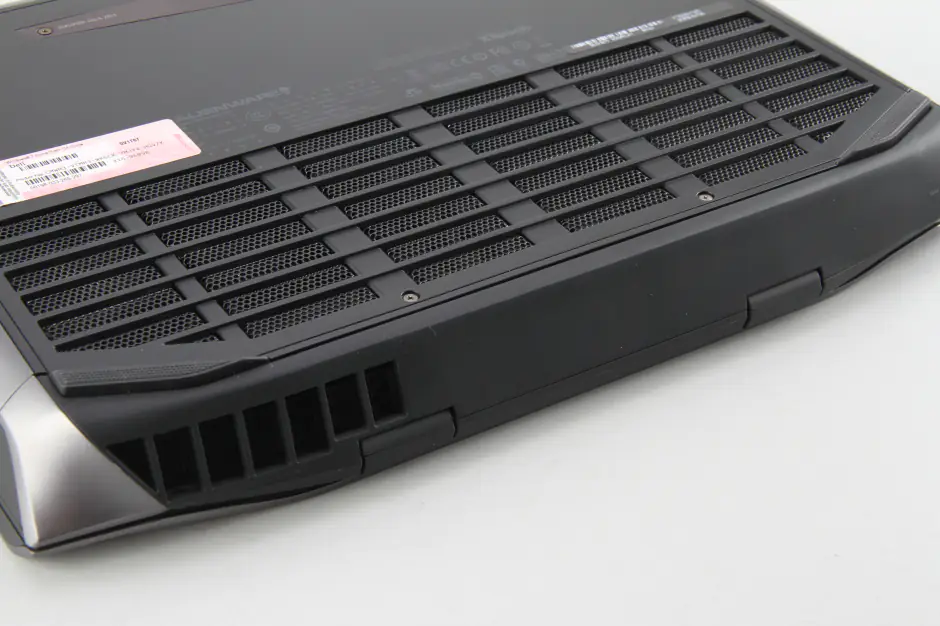

Remove two screws securing the back cover. You can remove the back cover.

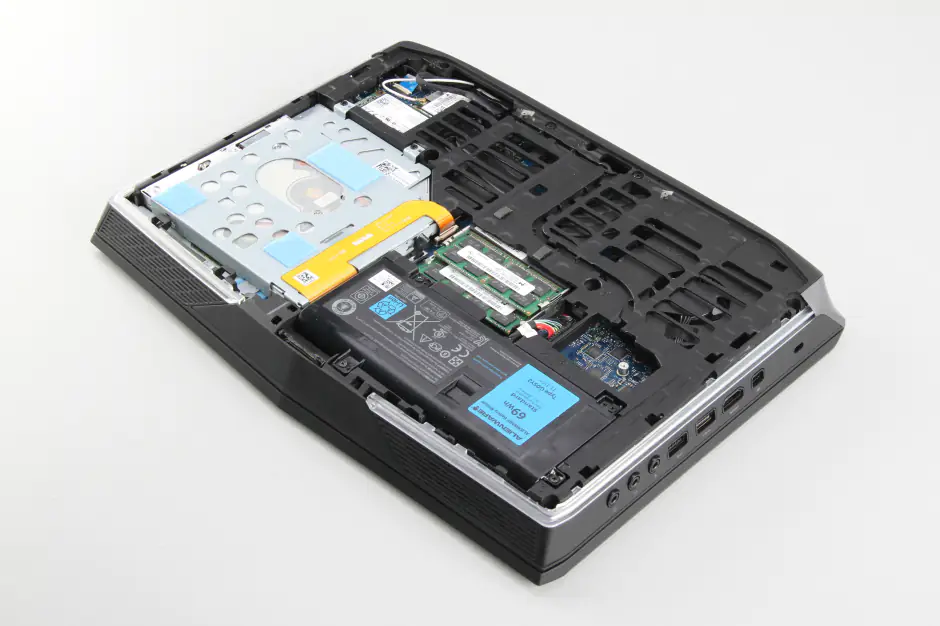

When back cover removed, you can get access to the battery, hard drive, DVD drive, SSD, wireless card, and memory.

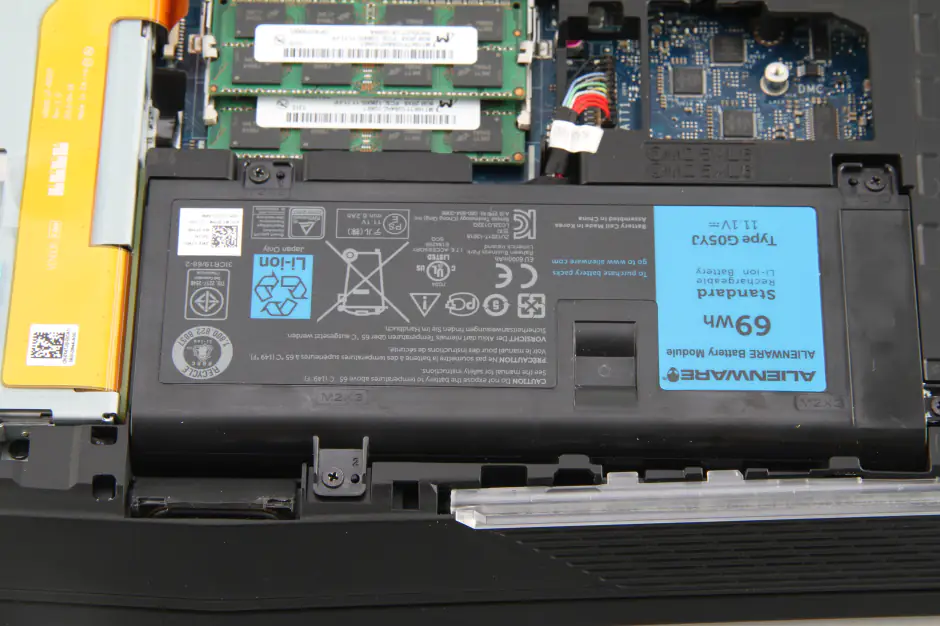

Remove four screws securing the battery.
Disconnect the battery connector from the motherboard. You can remove the battery.

It features an 11.1v, 69wh Li-ion battery. Dell P/N: G05YJ.

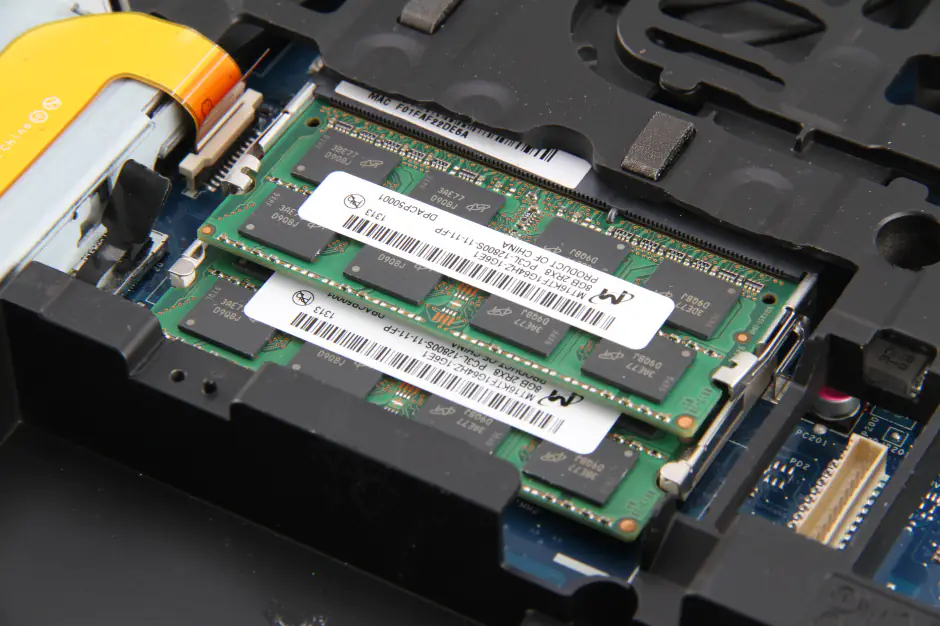

Remove two RAMs.

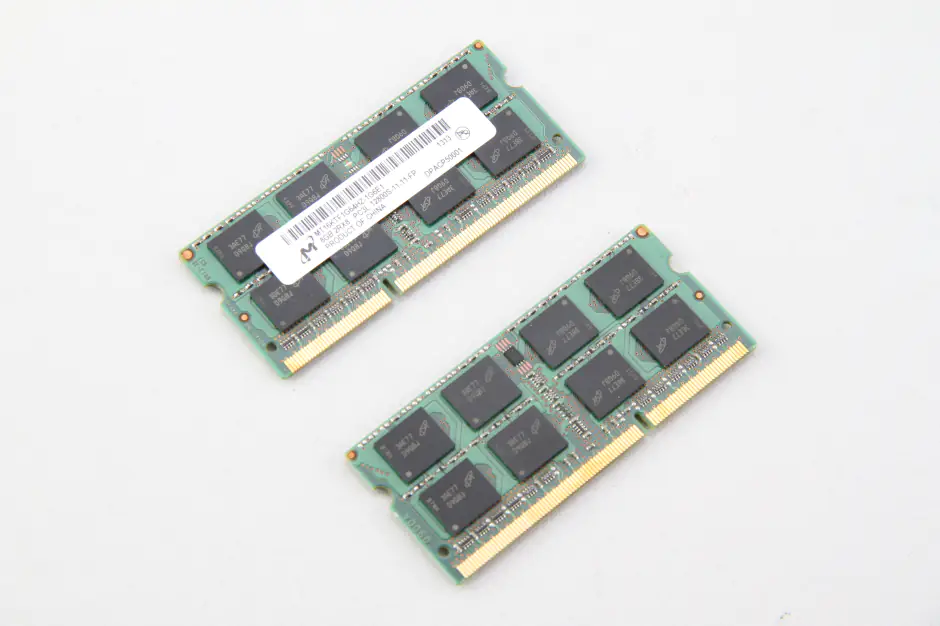

This laptop comes with two Micron 8GB rams.

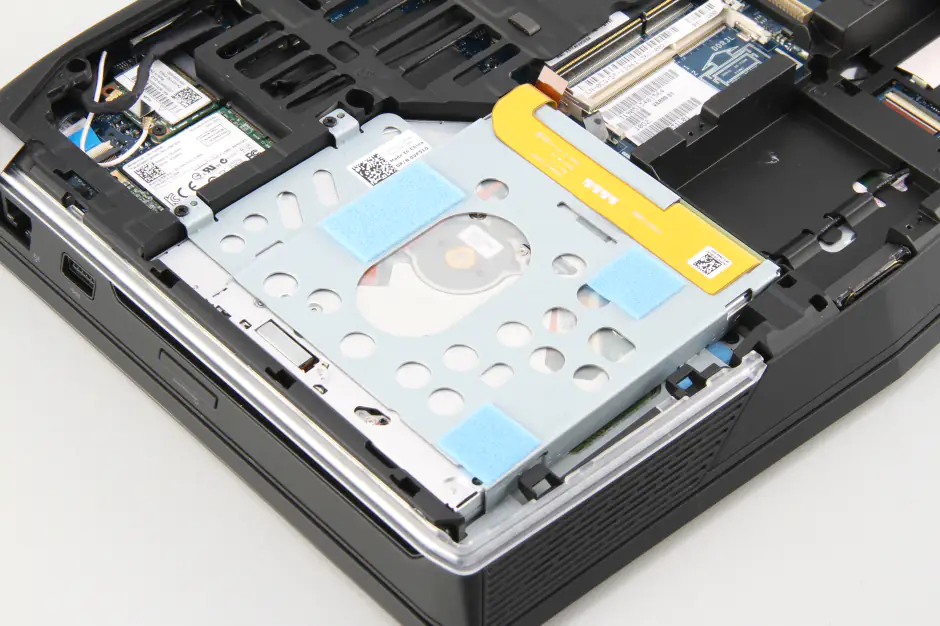

Remove two screws securing the DVD drive and disconnect the yellow cable from the motherboard. You can remove the DVD drive.

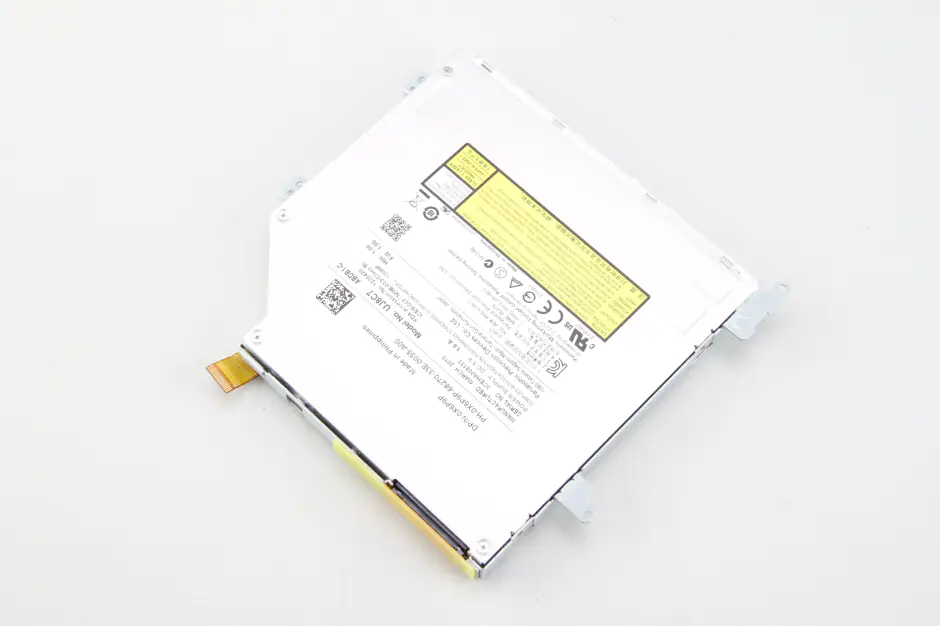

The laptop features a 9.5MM SATA Panasonic UJ8C7 DVD burner.

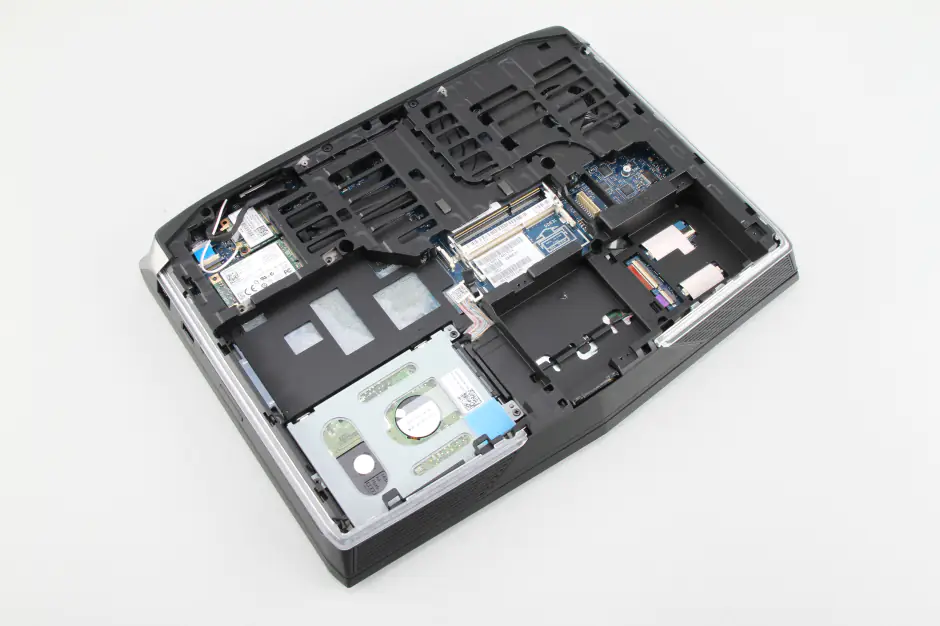

Remove two screws securing the hard drive and slide it to the left. You can remove it.

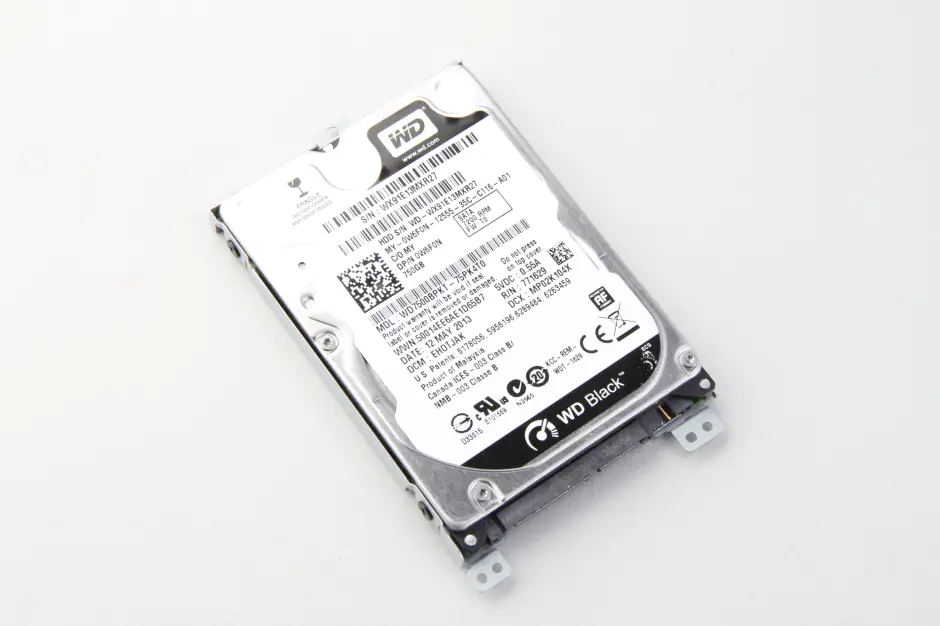

Western Digital 750GB, 7200RPM hard drive

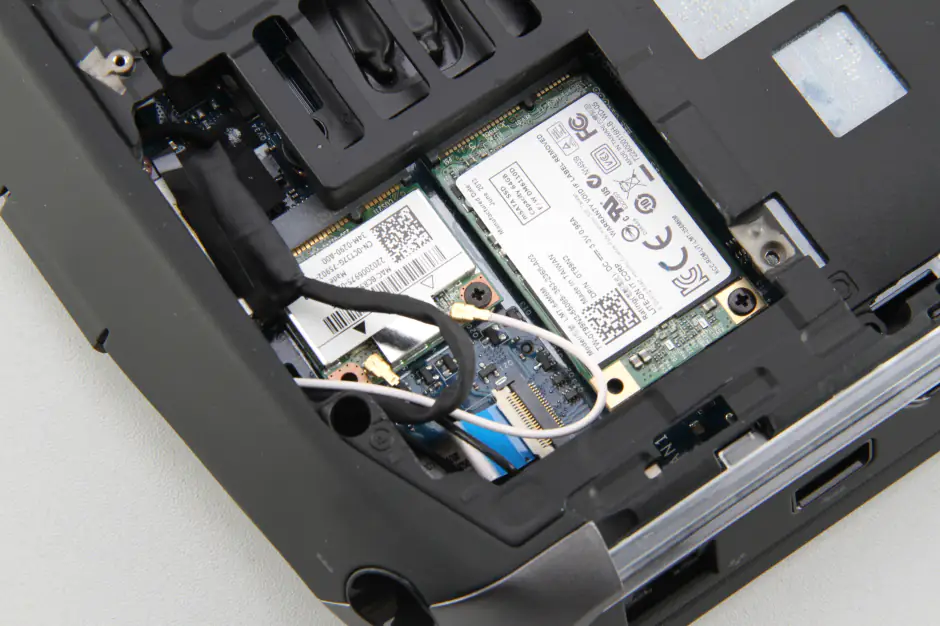

Remove one screw securing the wireless card and unplug two antennas. You can remove the wireless card.

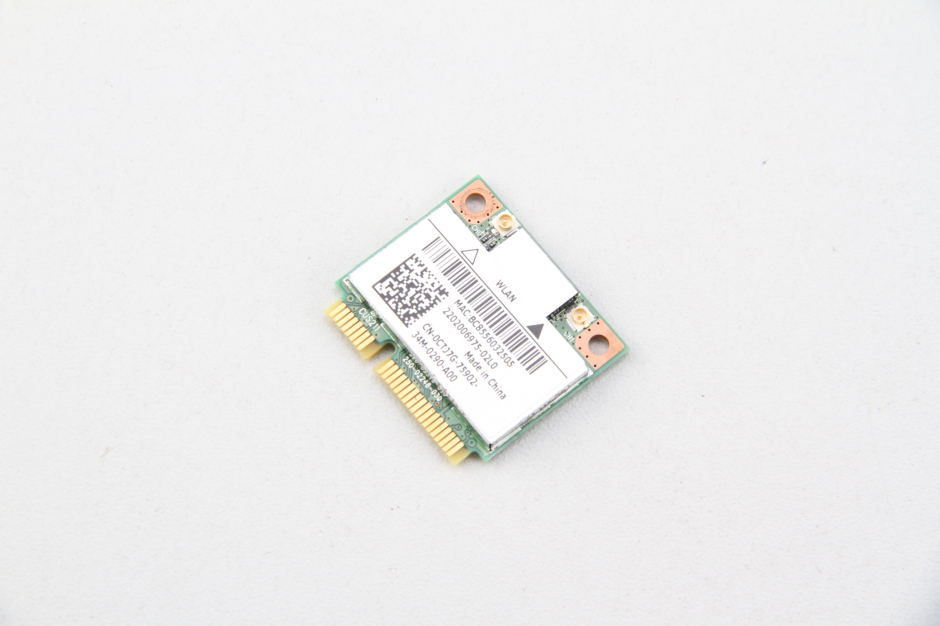

Wireless card

Remove one screw securing the SSD and remove the SSD.

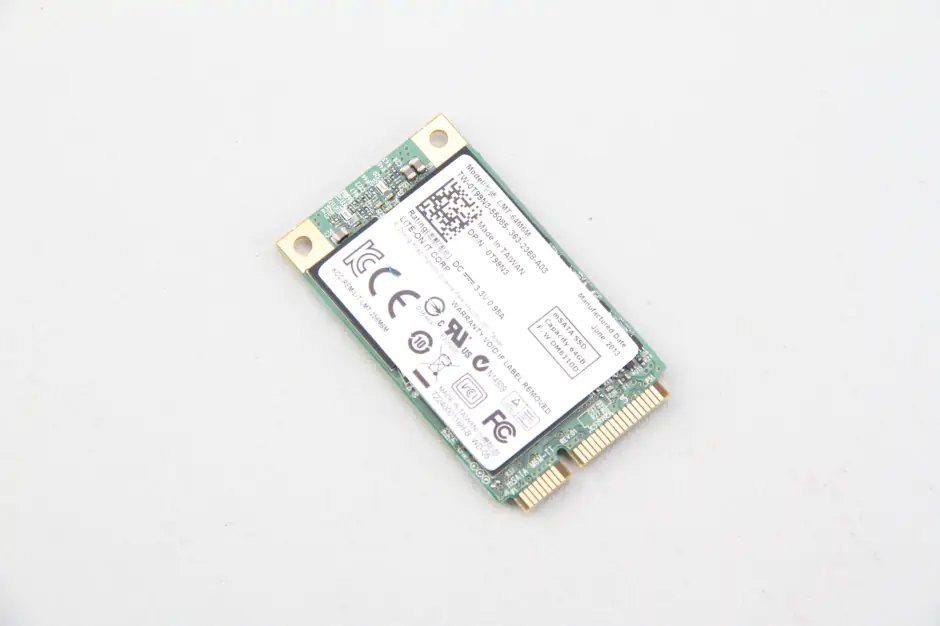

The laptop comes with a Liteon LMT-64M6M 64GB mSATA SSD.

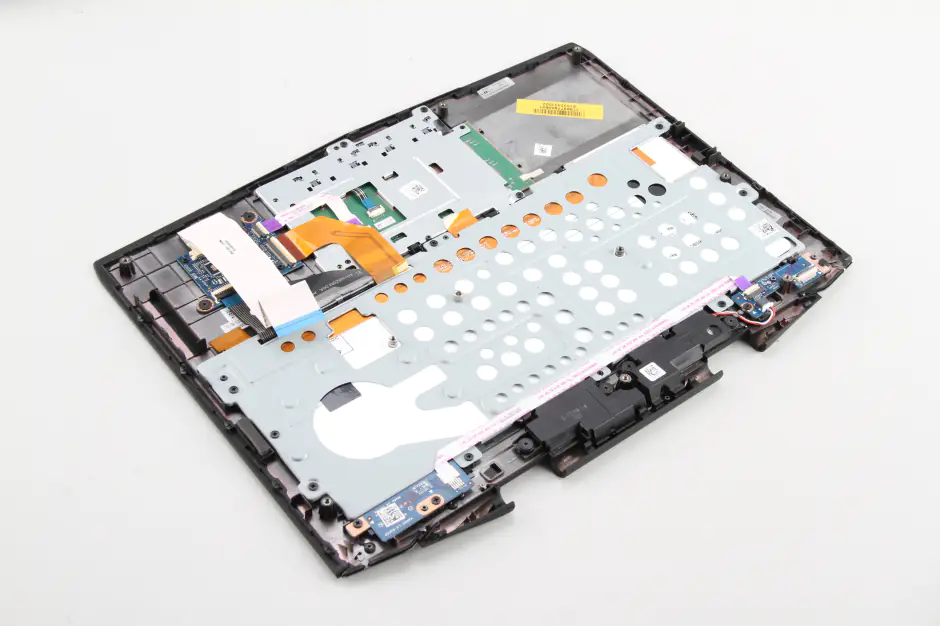

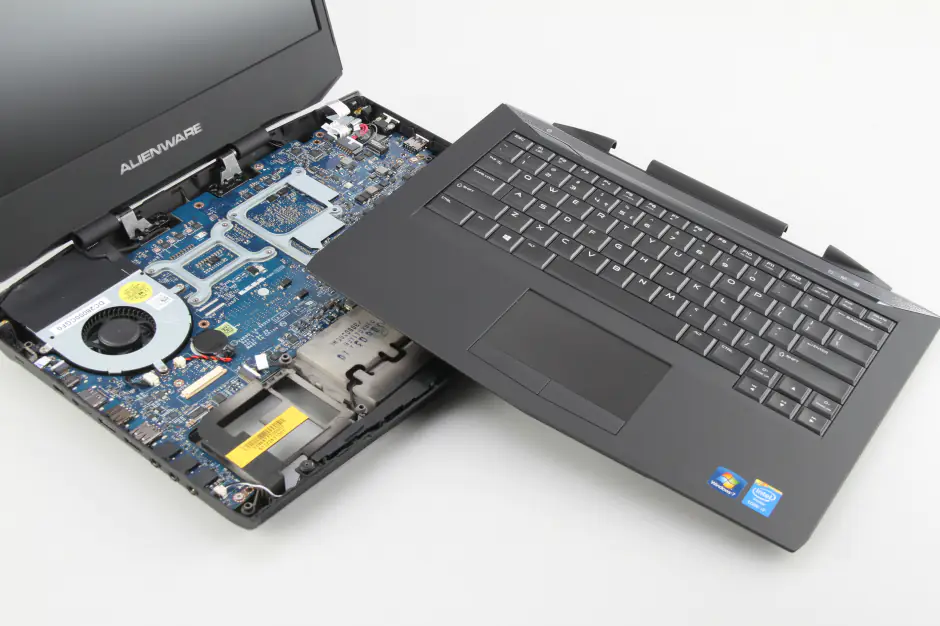

Remove the palm rest.

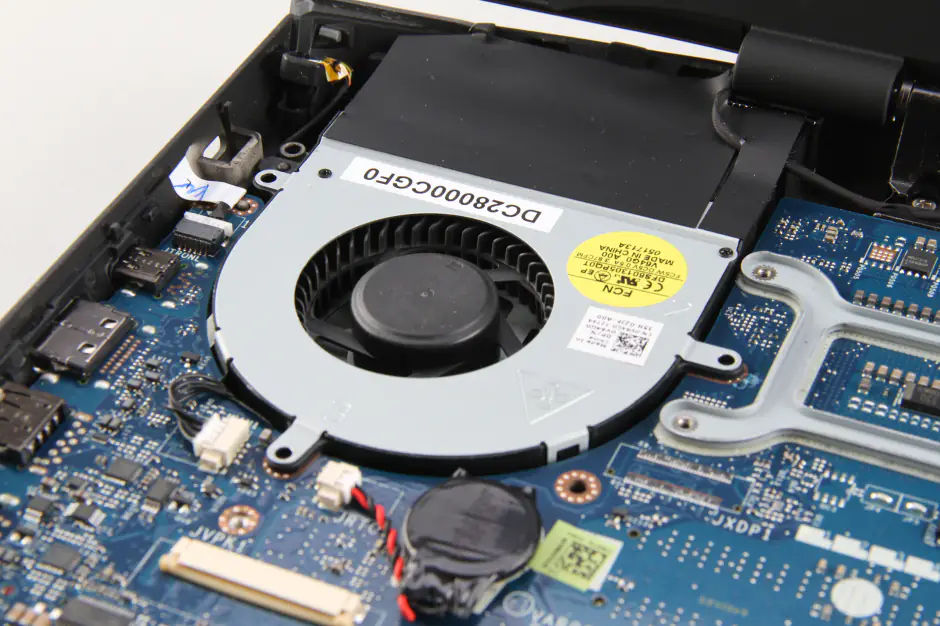

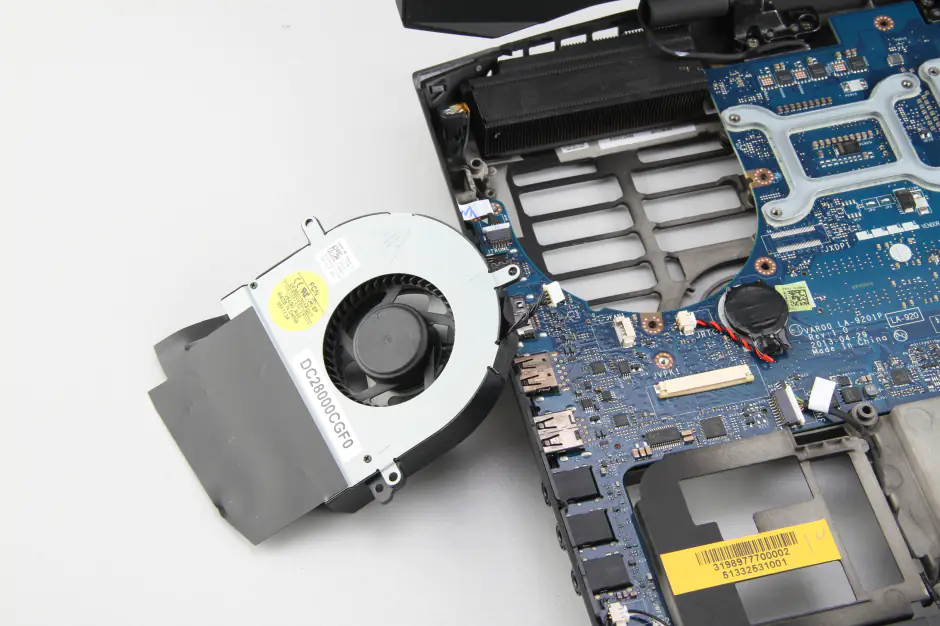

Remove three screws securing the cooling fan.
