Nokia Lumia 830Nokia Mobile PhoneTeardown

Nokia Lumia 830 Disassembly

In this guide, I’ll explain how to disassemble Nokia Lumia 830 to remove the back cover, battery, camera, Speaker, RF cable, screen and motherboard. Refer to this guide. You can repair your Lumia 830.

Looking for more funny teardown? Follow us on Facebook for all the latest repair news.

Specifications
Dimensions: 139.4 x 70.7 x 8.5mm
Weight 150 g
Display: 5.0 inch 720 x 1280 pixels IPS LCD capacitive touchscreen
Card slot: microSD, up to 128 GB
Internal: 16 GB, 1 GB RAM
Rear camera: 10 MP,
Front camera: 0.9 MP, 720p
OS: Microsoft Windows Phone 8.1
Chipset: Qualcomm Snapdragon 400
CPU: Quad-core 1.2 GHz Cortex-A7
GPU: Adreno 305

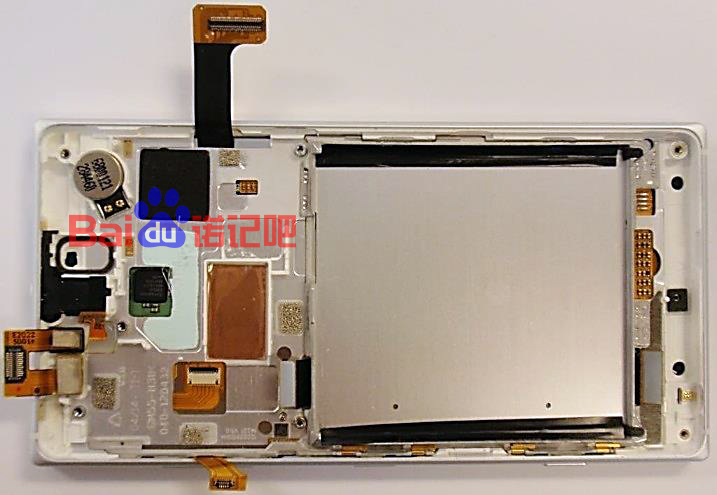

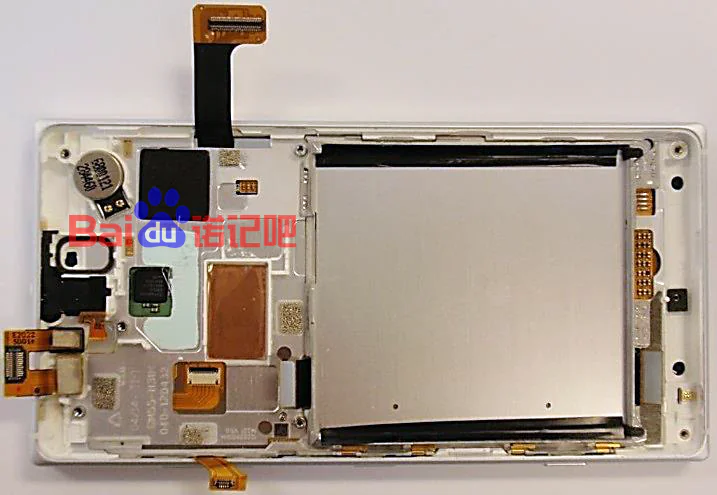

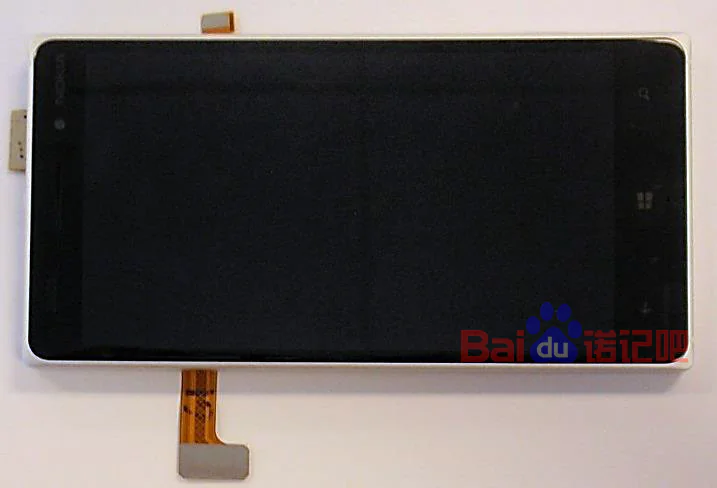

Here’s Nokia Lumia 830 display assembly

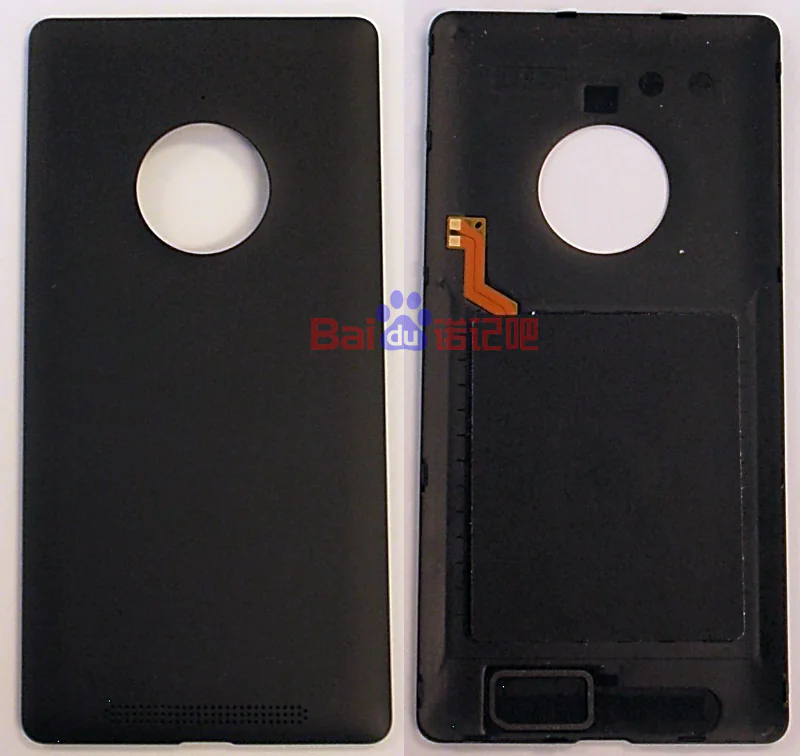

Back cover

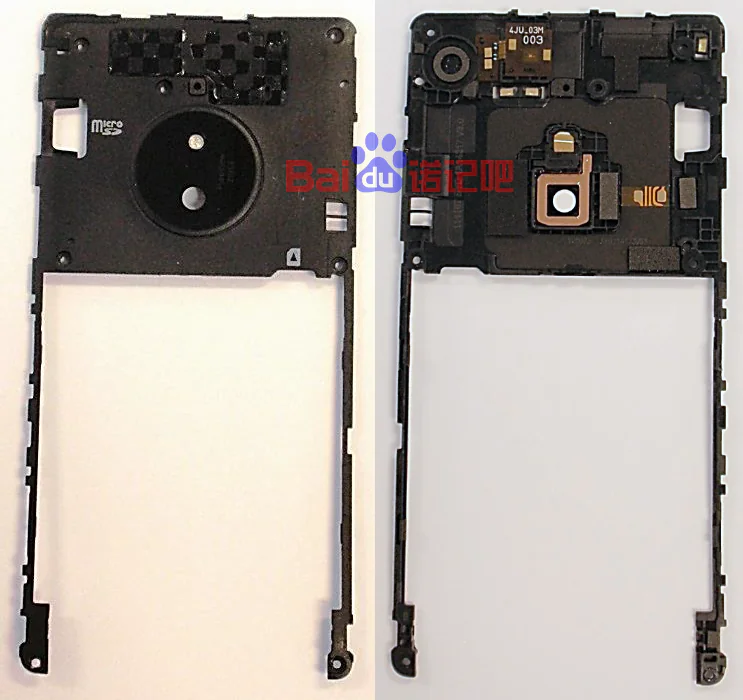

Middle frame

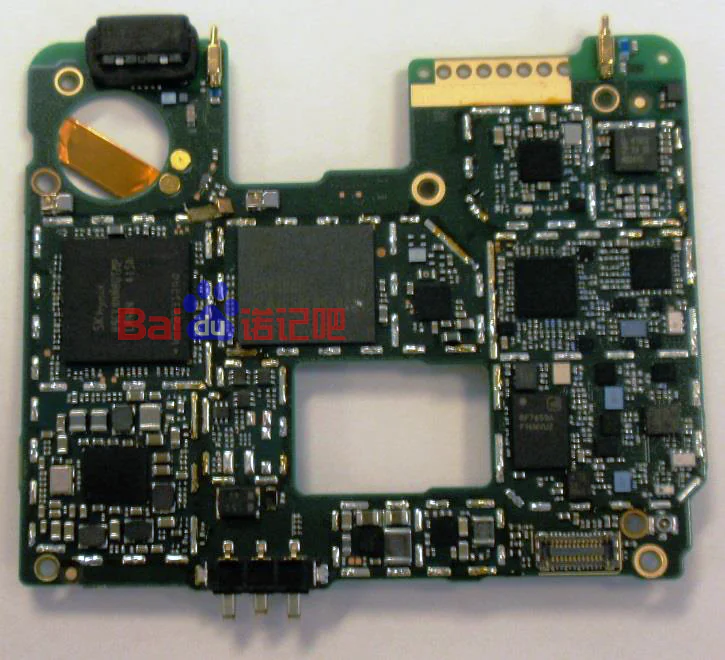

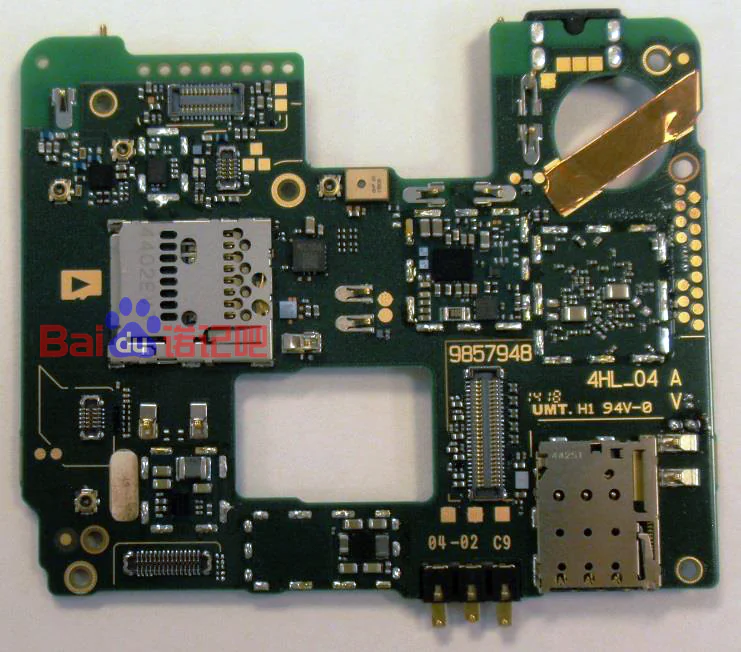

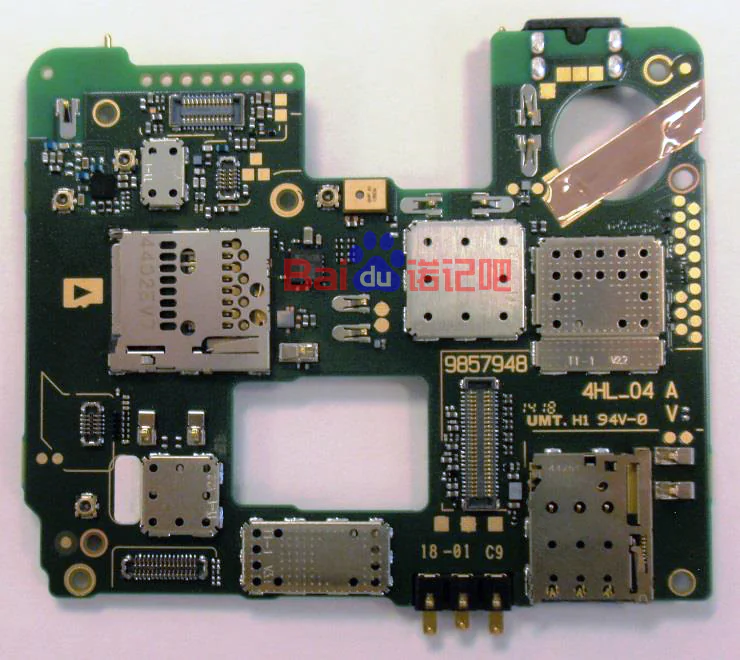

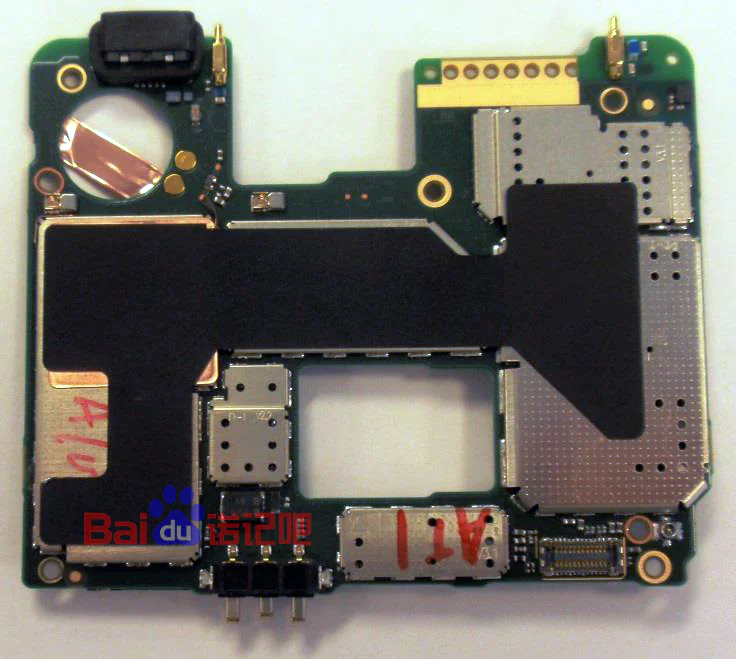

Nokia Lumia 830 motherboard

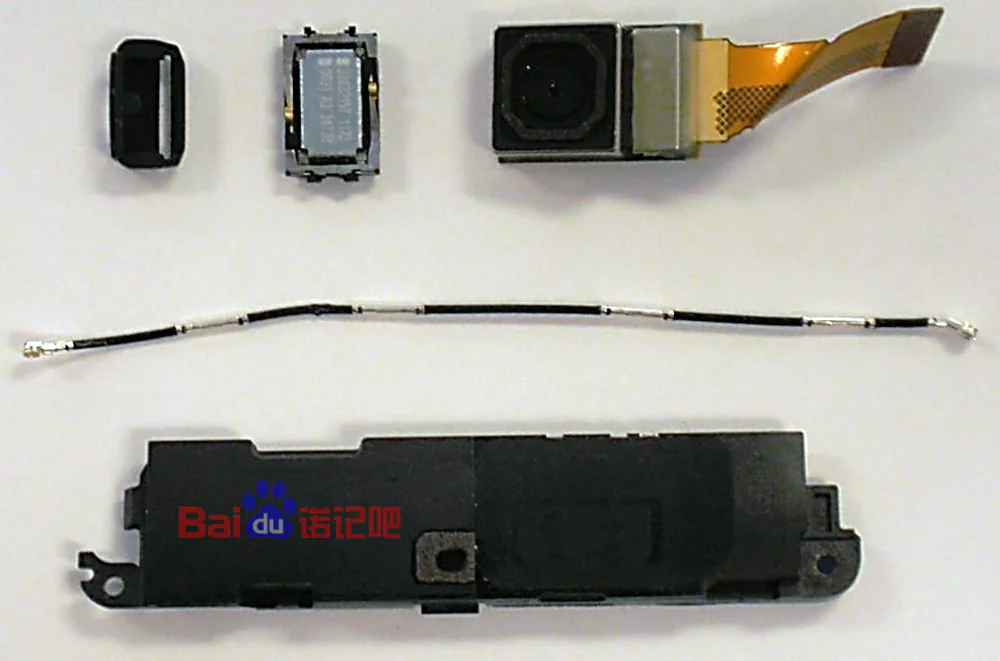

Speaker, RF cable and camera
