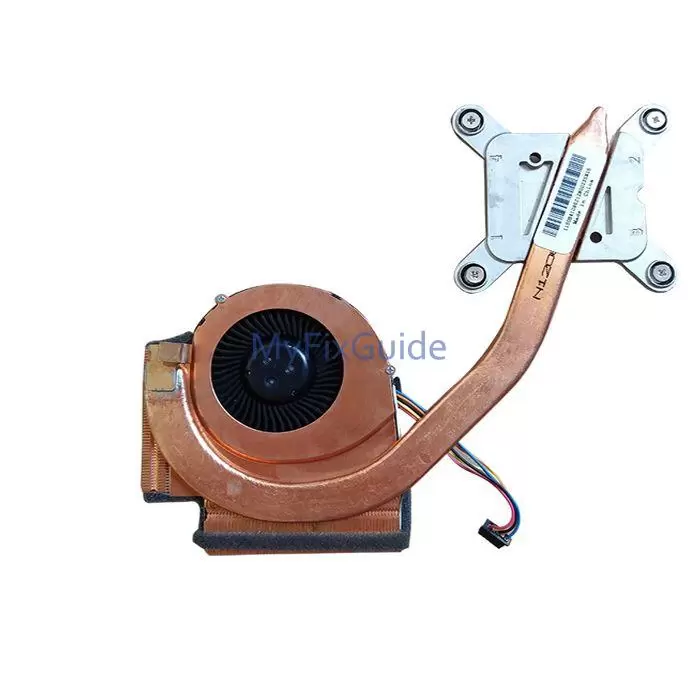

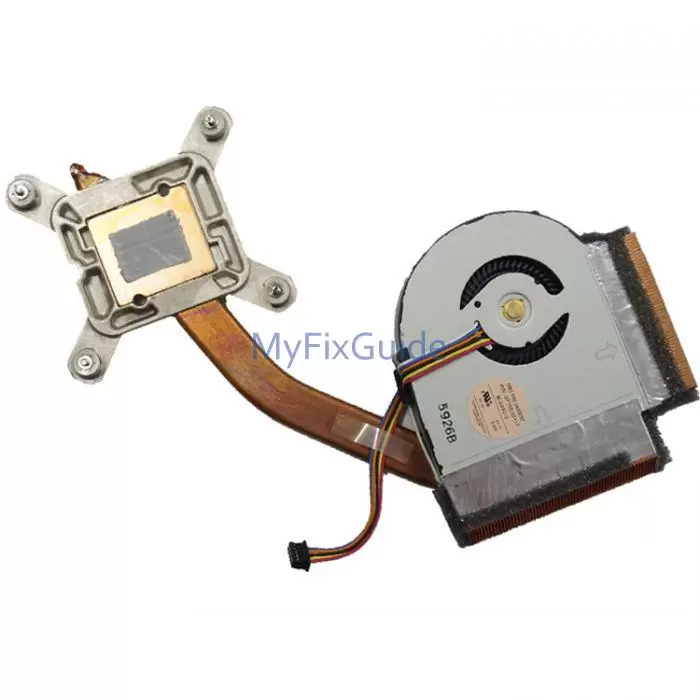

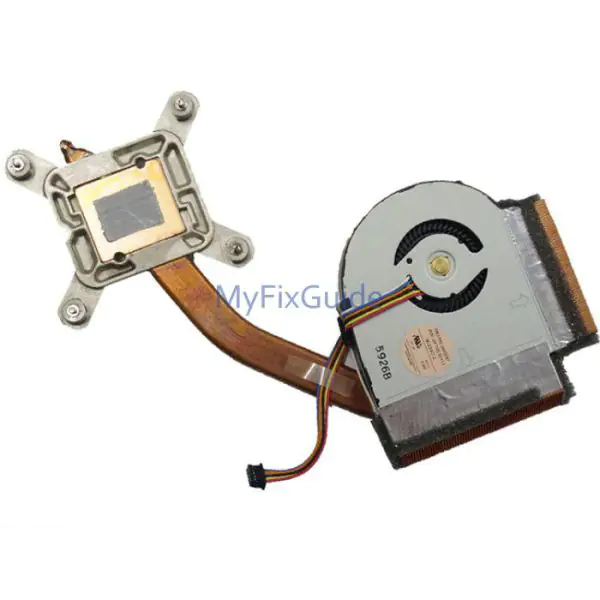

This is a brand new, genuine cooling fan & heatsink for Lenovo ThinkPad T430 T430i laptops and comes with a part number of 04X3787 04W3267 04W3268. The cooling fan & heatsink only compatible with a ThinkPad T430 T430i with an integrated graphics card, be sure to remove your existing cooling fan from your laptop, as each model in a series may be configured differently and use different parts.
Part Number: FRU: 04X3787, 04W3267, 04W3268; P/N: SF10E38117, M-234C-2
Compatible Laptop: ThinkPad T430, ThinkPad T430i
Condition: Brand New
Connector: 5 cables
Warranty: One (1) Year
Notice: The cooling fan & heatsink only compatible with an integrated graphics card, if your ThinkPad T430 with a discrete graphics card, please buy the Cooling Fan for Lenovo ThinkPad T430 T430i 04X3788 04W3269 04W3270. Please click here to learn how to check the graphics card.
How to remove and install tips:
1. To access the ThinkPad T430 cooing fan, you just need to remove two screws securing the memory cover on the bottom, under the cover, remove two screws securing the keyboard.
2. Flip over the laptop and slide the keyboard towards to the screen. Lift up the keyboard and disconnect the keyboard cable you can access the cooling fan.
