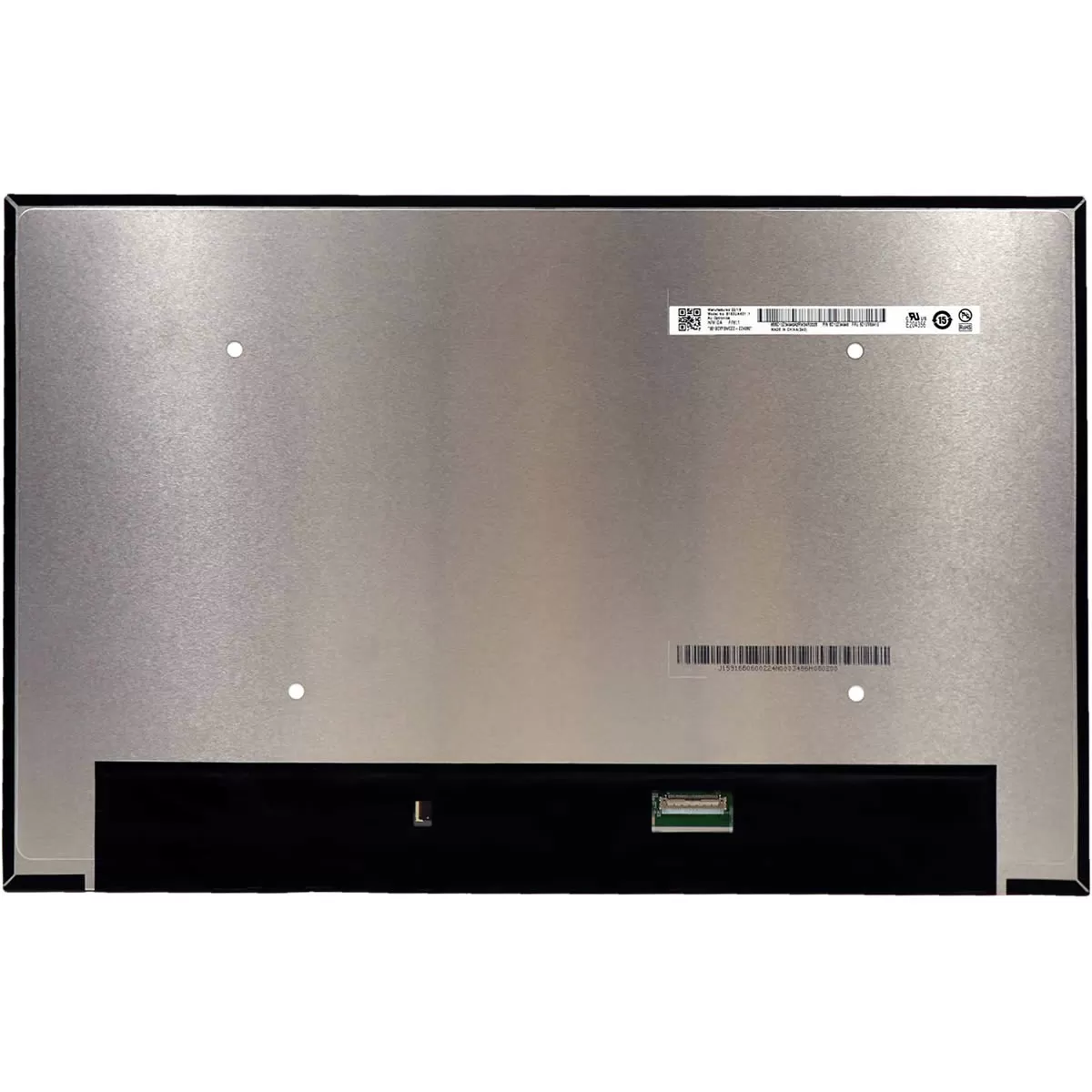

New WUXGA WQXGA Screen for Lenovo ThinkPad T16 Gen 1 2

This is a new WUXGA WQXGA screen for Lenovo ThinkPad T16 Gen 1 2. The screens of this series of laptops have multi specifications. Their resolution, brightness, and color gamut are different; please choose the screen with the same specifications as your original screen in the drop-down menu.

If you don’t know the specification of your screen, please choose any specification to place an order, then take a photo of the bottom cover of your laptop and send it to service@myfixguide.com, we will identify your screen specification.

Features:
1. The screen is a 100% new screen.
2. This screen has the same specifications as your original screen.
3. Each screen is rigorously tested to ensure that it has no bad pixels.

Specifications:
ThinkPad T16 Gen 1
16″, 1920×1200, IPS, 300 nits, 45% NTSC, Anti-glare
16″, 1920×1200, IPS, 300 nits, 45% NTSC, Anti-glare, On-Cell touch
16″, 1920×1200, IPS, 400 nits, 100% sRGB, Anti-glare, Low power
16″, 1920×1200, IPS, 500 nits, 100% sRGB, Anti-glare, On-Cell touch
16″, 2560×1600, IPS, 400 nits, 100% sRGB, Anti-glare

ThinkPad T16 Gen 2
16″, 1920×1200, IPS, 300 nits, 45% NTSC, Anti-glare
16″, 1920×1200, IPS, 300 nits, 45% NTSC, Anti-glare, On-Cell touch
16″, 1920×1200, IPS, 400 nits, 100% sRGB, Anti-glare, Low power

Aspect Ratio: 16:10
Condition: New, no dead pixel
Warranty: One (1) Year

Screen for Lenovo ThinkPad T16 Gen 1 2 Replacement Tips:

1. Make sure the part number, description, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. The LCD bezel is fixed on the LCD back cover with easy-stretch adhesive. Slowly pull out the adhesive, and you can easily remove the screen.
4. Place the LCD screen on the keyboard, disconnect the display cable from the LCD screen to remove the old LCD screen, and then you can install the new screen on your laptop.
5. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen for ThinkPad T16 on the back cover, and install the LCD bezel on your laptop.
