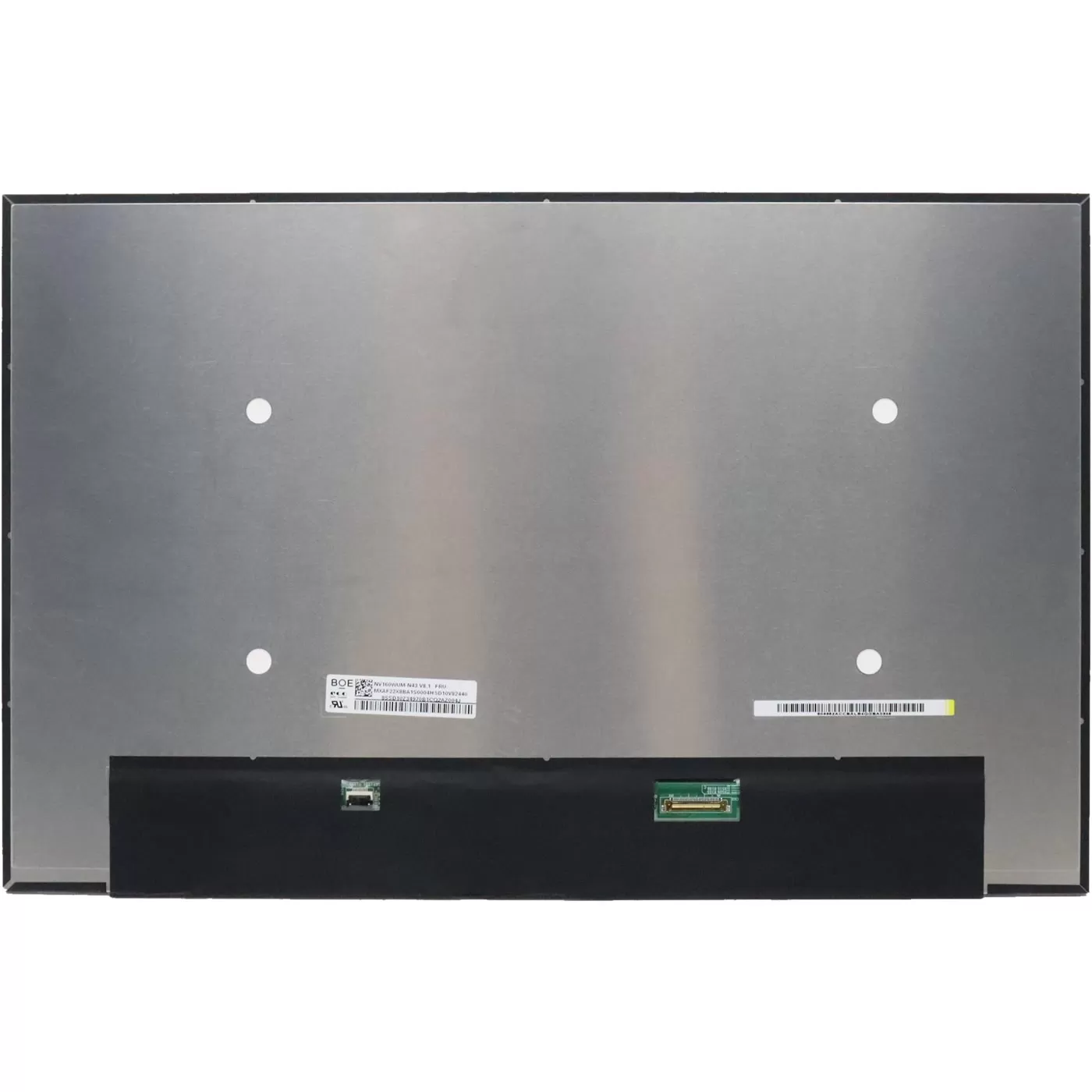

New WUXGA WQXGA Screen for Lenovo ThinkPad P16 Gen 1 2

This is a new WUXGA WQXGA UHD screen for Lenovo ThinkPad P16 Gen 1 2. The screens of the laptop have multiple specifications. Their resolution, brightness, and color gamut are different; please choose the screen with the same specifications as your original screen in the drop-down menu.

Identify your screen specification at https://www.myfixguide.com/store/screen-specification-for-thinkpad-p-series/

If you don’t know the specifications of your screen, please take a photo of the bottom cover of your laptop and send it to service@myfixguide.com, and we will identify your screen specification.

Features:
1. The screen is a 100% new screen.
2. This screen has the same specifications as your original screen.
3. Each screen is rigorously tested to ensure that it has no bad pixels.

Specifications:
ThinkPad P16 Gen 1
16″ 1920×1200 IPS 300nits 100% sRGB Anti-glare
16″ 2560×1600 IPS 400nits 100% sRGB Anti-glare
16″ 3840×2400 IPS 600nits 100% Adobe RGB Anti-glare
16″ 3840×2400 OLED 400nits 100% DCI-P3 Anti-glare Touch (Out Of Stock)

ThinkPad P16 Gen 2
16″ 1920×1200 IPS 300nits 100% sRGB Anti-glare
16″ 2560×1600 IPS 500nits 165Hz 100% sRGB Anti-glare
16″ 3840×2400 IPS 800nits 100% DCI-P3 Anti-glare (Out Of Stock)
16″ 3840×2400 OLED 400nits 100% DCI-P3 Anti-glare Touch (Out Of Stock)

Aspect Ratio: 16:10
Condition: New, no dead pixels
Warranty: One (1) Year

Compatible Part Numbers:
5D11C95899
5D11C95900
5D11C95901
5D11C95902
5D11C95903
5D11C95904
5D11C95905
5D11C95906
5D11C95915
5D11C95916
5D11C95917
5D11C95918
5D11C95919
5D11C95924
5D11C95934
5D11C95935
5D11C95936
5M11H26693
5M11H26699
5M11H26705
5M11H26709
5M11H26715
5M11H26717

Screen for Lenovo ThinkPad P16 Gen 1 2 Replacement Tips:

1. Please make sure the part number, specifications, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. Insert the old card between the screen bezel and the display back cover. Pry up the screen bezel and start separating it from the back cover.
4. Slowly pull out the easy-stretch adhesive under the screen, and you can easily remove the screen.
5. Place the LCD screen on the keyboard, disconnect the display cable from the LCD screen to remove the old LCD screen, and then you can install the new screen on your laptop.
6. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen for ThinkPad P16 on the back cover, and install the LCD bezel on your laptop.
