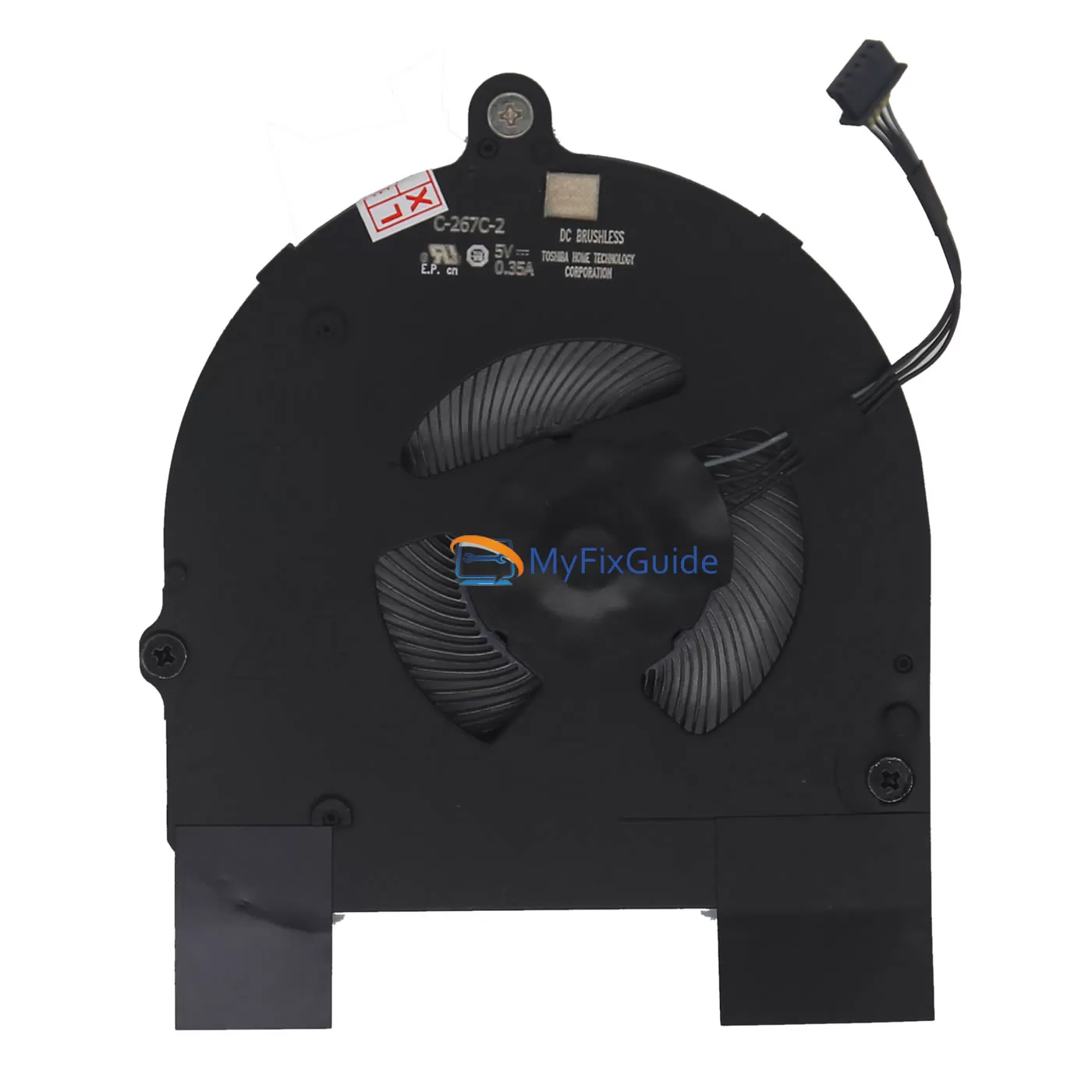

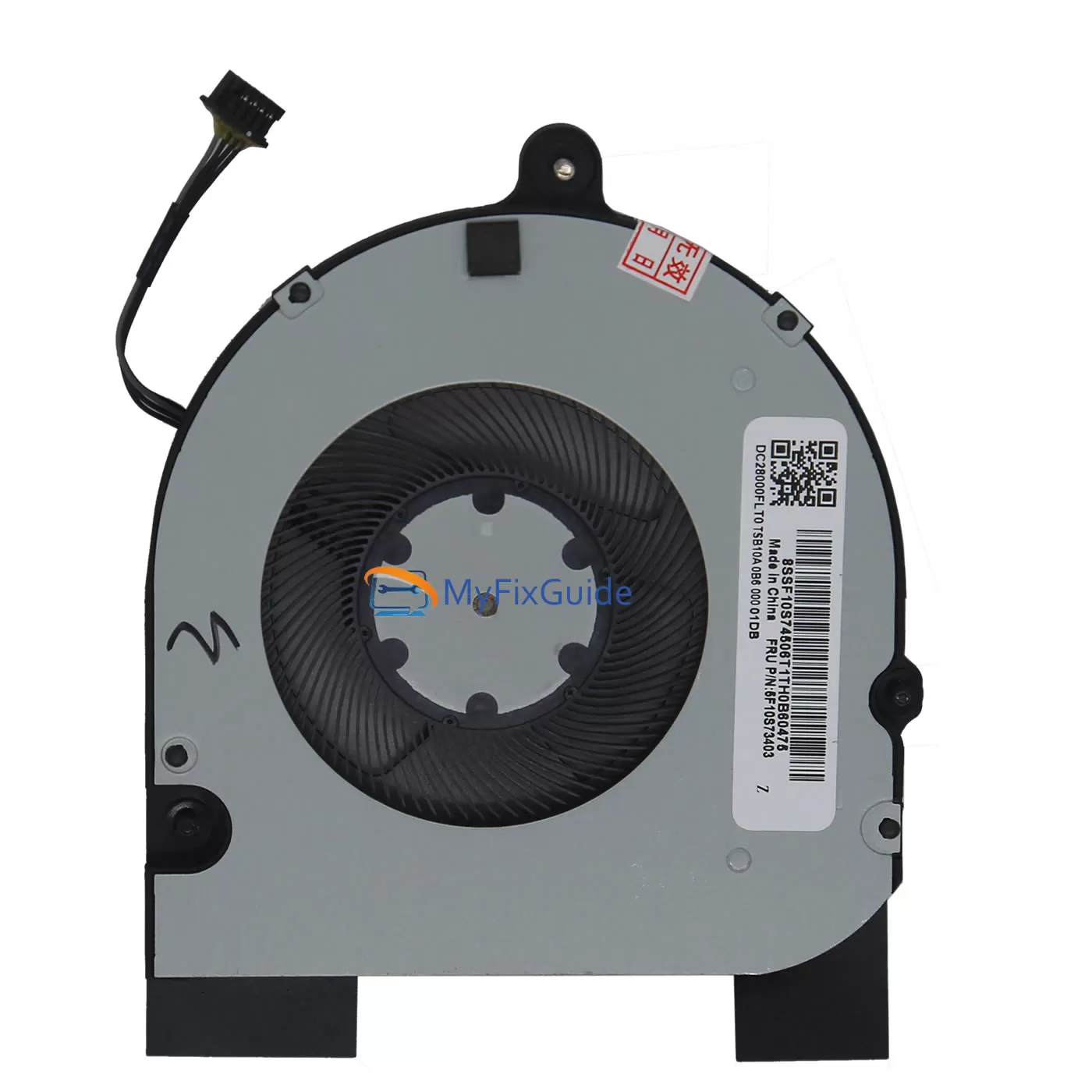

CPU Fan for Lenovo ThinkPad L14 Gen 1, Gen 2 DC28000FLV0, DC28000FLT0, 5F10S73401, 5F10S73403
Please note that this fan is only compatible with L14 Gen 1 and L14 Gen 2 with Intel processors.
Features:
1. This is a brand new, original CPU Fan
2. This fan has 5 wires leading to the connector which attaches to the motherboard.
3. We will test it before ship it out to make sure it works properly.
Specifications:
Input: DV5V
Output: 0.35A
Condition: Original, brand new
Warranty: One (1) Year
Part Number:
5F10S73403
DC28000FLT0
Compatible Part Number:
BAPA0705R5HY008
5F10S73401
DC28000FLV0
Compatible Laptops:
ThinkPad L14 Gen 1 (type 20U1, 20U2)
ThinkPad L14 Gen 2 (Type 20X1, 20X2)
Replacement Tips:
1. Before placing an order, it is recommended that you remove the bottom cover and check the part number of your fan to avoid buying wrong parts.
2. Please compare the image, part number, and shape of your fan and make sure it matches exist cooing fan.
3. When replacing the heatsink and CPU fan, you need to disconnect the battery connector from the motherboard or remove the battery.
