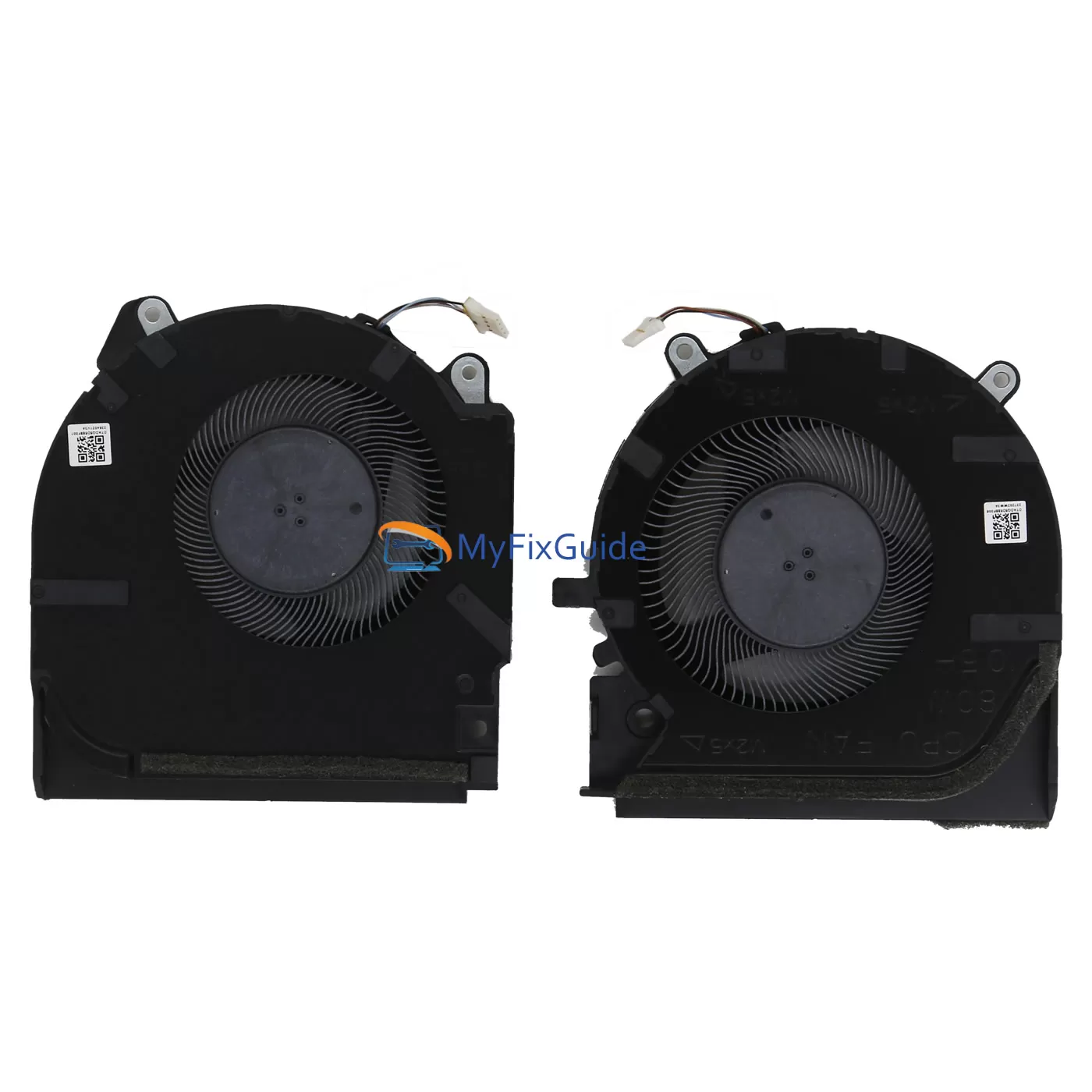

This is a new GPU fan and CPU fan for HP HP Victus 116-e0010nr, 16-e0011wm, 16-e0020nr, 16-e0043nr, 16-e0085cl, 16-e0097nr, 16-e0161nr, 16-e1163nr, 16-e1747nr, 16-e1797nr gaming laptops, it is compatible with M54776-001, and M54775-001. The item includes a CPU fan and a GPU fan.
Note: This fan is available in 60W and 80W, please select your graphics card model in the drop down menu and we will send you the correct fan according to the graphics card model.
Features:
1. You will receive two fans, including a CPU fan and a GPU fan.
2. Before shipping, each fan is strictly tested to ensure that it works properly.
3. This fan has 4 wires leading to the connector which attaches to the motherboard.
4. If you have any questions about this fan, please click Ask a question to submit your question.
Specifications:
Voltage/Current: 5V/0.8A, 5V/0.6A
Condition: Original, New
Warranty: One (1) Year
Compatible Laptops:
Victus 16-e0000 series
Victus 16-e0000np
Victus 16-e0004ns
Victus 16-e0004nt
Victus 16-e0006ur
Victus 16-e0008nl
Victus 16-e0008nt
Victus 16-e0010ca
Victus 16-e0010nf
Victus 16-e0010nr
Victus 16-e0010ns
Victus 16-e0010ur
Victus 16-e0011ns
Victus 16-e0011wm
Victus 16-e0012nt
Victus 16-e0013ur
Victus 16-e0014ur
Victus 16-e0015ns
Victus 16-e0015nt
Victus 16-e0017nl
Victus 16-e0019nf
Victus 16-e0019np
Victus 16-e0020ca
Victus 16-e0020np
Victus 16-e0020nr
Victus 16-e0021nl
Victus 16-e0024ns
Victus 16-e0026ns
Victus 16-e0028nt
Victus 16-e0030ns
Victus 16-e0031ns
Victus 16-e0033nl
Victus 16-e0033ns
Victus 16-e0036ns
Victus 16-e0038na
Victus 16-e0039nl
Victus 16-e0042nl
Victus 16-e0043nr
Victus 16-e0044ur
Victus 16-e0048ns
Victus 16-e0054nl
Victus 16-e0058ns
Victus 16-e0061ur
Victus 16-e0065ng
Victus 16-e0066ur
Victus 16-e0067ns
Victus 16-e0070na
Victus 16-e0070ur
Victus 16-e0073na
Victus 16-e0073nt
Victus 16-e0075cl
Victus 16-e0080ng
Victus 16-e0085cl
Victus 16-e0085nr
Victus 16-e0085ns
Victus 16-e0087ng
Victus 16-e0090ns
Victus 16-e0091ns
Victus 16-e0091ur
Victus 16-e0092ns
Victus 16-e0097nr
Victus 16-e0097ns
Victus 16-e0115nf
Victus 16-e0121nw
Victus 16-e0125nf
Victus 16-e0129nf
Victus 16-e0131nw
Victus 16-e0155nw
Victus 16-e0161nr
Victus 16-e0170nf
Victus 16-e0179ng
Victus 16-e0194nw
Victus 16-e0202nw
Victus 16-e0214nw
Victus 16-e0246nw
Victus 16-e0297nf
Victus 16-e0301nf
Victus 16-e0304nw
Victus 16-e0305nf
Victus 16-e0307nf
Victus 16-e0314nf
Victus 16-e0404nw
Victus 16-e0457ng
Victus 16-e0504nw
Victus 16-e0514na
Victus 16-e0552nd
Victus 16-e0604nw
Victus 16-e0656ng
Victus 16-e0914ng
Victus 16-e1000 series
Victus 16-e1010nt
Victus 16-e1163nr
Victus 16-e1747nr
Victus 16-e1797nr
Victus 16z-e000
and all Victus by HP 16-e series gaming laptops
Compatible P/N:
M54776-001
M54775-001
M75725-001
M75727-001
CPU Fan for HP Victus 16-e0011wm 16-e0020nr 16-e0043nr 16-e0085cl 16-e0097nr 16-e0161nr 16-e1163nr 16-e1747nr 16-e1797nr M75725-001 M75727-001 Replacement Tips:
1. Please compare the image, part number and shape with your fan and make sure it matches your original CPU fan.
2. After you remove the bottom cover, you need to disconnect the battery connector from the motherboard first, and then start removing the fan, this is to avoid static electricity damage to your laptop.
3. You need to remove all screws securing the heatsink and fan, and disconnect the fan cable from the motherboard, then carefully lift and separate the cooling assembly from the motherboard.
4. You need to remove the old thermal grease left on the CPU and GPU with a cleaning cloth, and apply the new thermal grease on CPU and GPU. This step is indispensable so that you can get better heat dissipation performance.
5. You can go to the HP website to download the hardware repair manual for this LAPTOP, and then follow the instructions for replacing the fan in the manual.
