New Backlit Keyboard for Dell XPS 13 9300 9310 0Y78C 00Y78C

This is a brand new backlit keyboard for Dell XPS 13 9300 and Dell XPS 13 9310 with a part number 0Y78C. It is a single keyboard only, without a palm rest.

This keyboard has US English, and UK English options, which you can select it in the drop-down menu.

Features:
1. This is a US keyboard with backlit.
2. We also have Japanese, German, French, Spanish, Italian, French, UK keyboards, please contact us if you need them.

Compatible laptop:
XPS 13 9300
XPS 13 9310

P/N:
US Layout: 00Y78C, PK132Q12A00

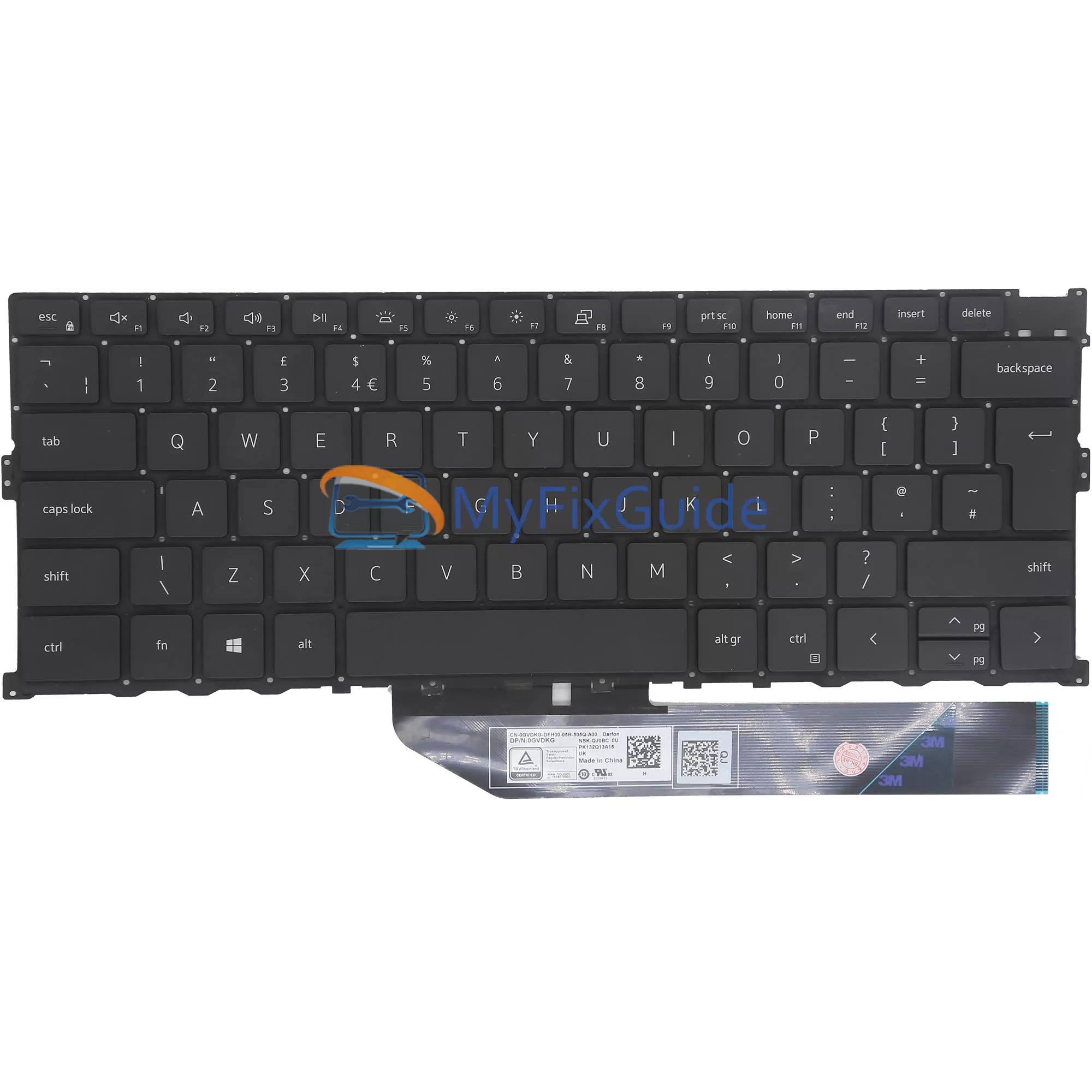

UK Layout: 0GVDKG, NSK-QJ0BC, PK132Q13A15

Specifications:
Layout: US

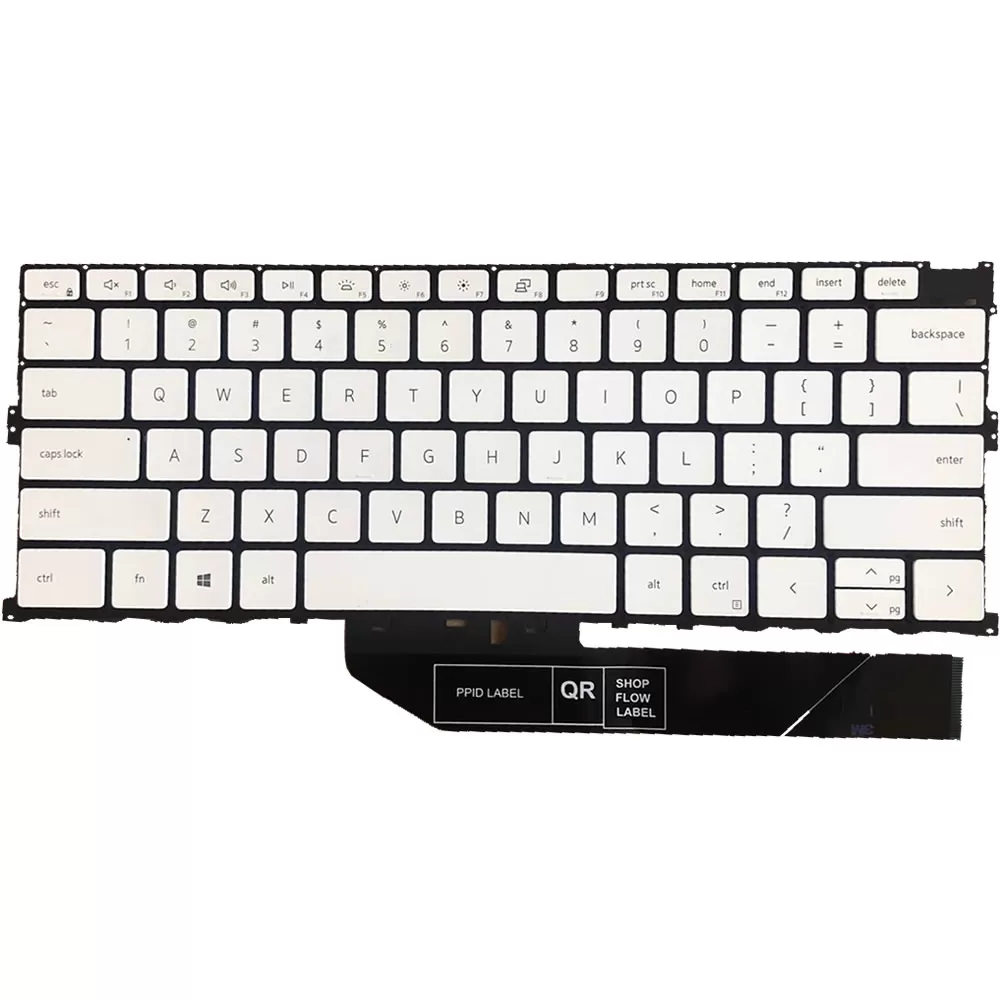

Color: Black, White
Backlit: Yes
Condition: Brand New
Warranty: One (1) Year

Keyboard for Dell XPS 13 9300 9310 00Y78C Replacement Tips:

1. Please verify that the part number, description, and image match the existing keyboard.
2. This business laptop uses a built-in keyboard, you need to remove your top cover from the laptop, and then install this keyboard on your palm rest.
3. Remove the eight screws that secure the bottom cover to the palm rest and keyboard assembly. Use a plastic tool to pry the bottom cover to release the cover
from the palm rest.
4. To ensure that the computer is not damaged by static electricity, please disconnect the battery cable from the motherboard after removing the bottom cover.
5. Then remove the battery, SSD, heatsink, CPU fan, display assembly, motherboard, and all components covering the keyboard.
6. Remove the keyboard from the palm rest and install the new keyboard on your palm rest.
