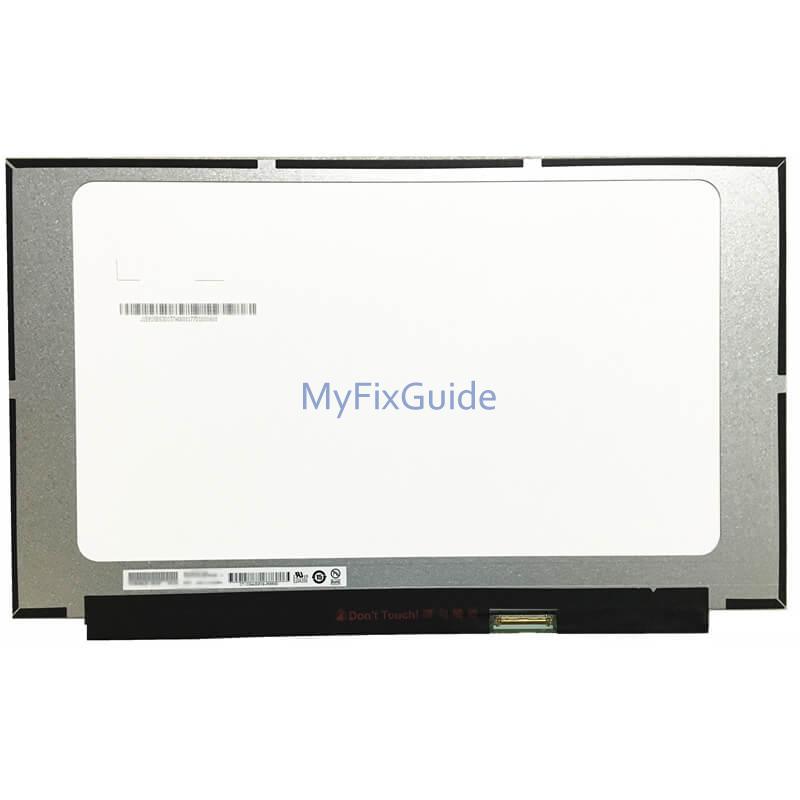

This is a brand new FHD touchscreen for L25333-001. The touchscreen with a resolution of 1920X1080 and is compatible with HP Pavilion 15-cs0042nr, Pavilion 15-cs0051cl, Pavilion 15-cs0052cl, Pavilion 15-cs0059nr, Pavilion 15-cs0073cl laptops.
Note:
1. This is a brand new screen with Touch on cell.
2. It is only compatible with an HP Pavilion 15-cs series laptop with a resolution of 1920×1080.
Compatible Part Number:
L25333-001
Specifications:
Size: 15.6-inch Touchscreen
Resolution: WUXGA (1920×1080) Full HD
Surface Type: Glossy
Backlight type: LED
Connector: 40 pin
Condition: Brand New, No dead pixel
Warranty: One (1) Year
Compatible laptop:
Pavilion 15-cs0003ca
Pavilion 15-cs0008ca
Pavilion 15-cs0010ds
Pavilion 15-cs0024cl
Pavilion 15-cs0025cl
Pavilion 15-cs0032cl
Pavilion 15-cs0034cl
Pavilion 15-cs0041nr
Pavilion 15-cs0042cl
Pavilion 15-cs0042nr
Pavilion 15-cs0052cl
Pavilion 15-cs0053cl
Pavilion 15-cs0064cl
Pavilion 15-cs0069nr
Pavilion 15-cs0073cl
Pavilion 15-cs0079nr
Pavilion 15-cs0085cl
Pavilion 15-cs0093ca
Pavilion 15-cs1065cl
Pavilion 15-cs2021cl
Pavilion 15-cs2073cl
Pavilion 15-cs2073nr
Pavilion 15-cs2079nr
Note
1. Before you start to replace the screen, please remove the bottom cover and disconnect the battery connector from the motherboard.
2. If you don’t have experience in replacing laptop parts, please take your laptop to the repair shop to replace the screen.
3. With the battery connector is unplugged, insert your fingers and the LCD bezel and release the top edge, left edge, right edge and bottom edge of the LCD bezel from the screen.
4. Disconnect the cable from the camera module. And then swing the top edge of the touchscreen up and forward until it rests upside down on the keyboard.
5. Release the adhesive strip that secures the LCD cable connector to the screen. Now, you can remove the screen from your laptop.
