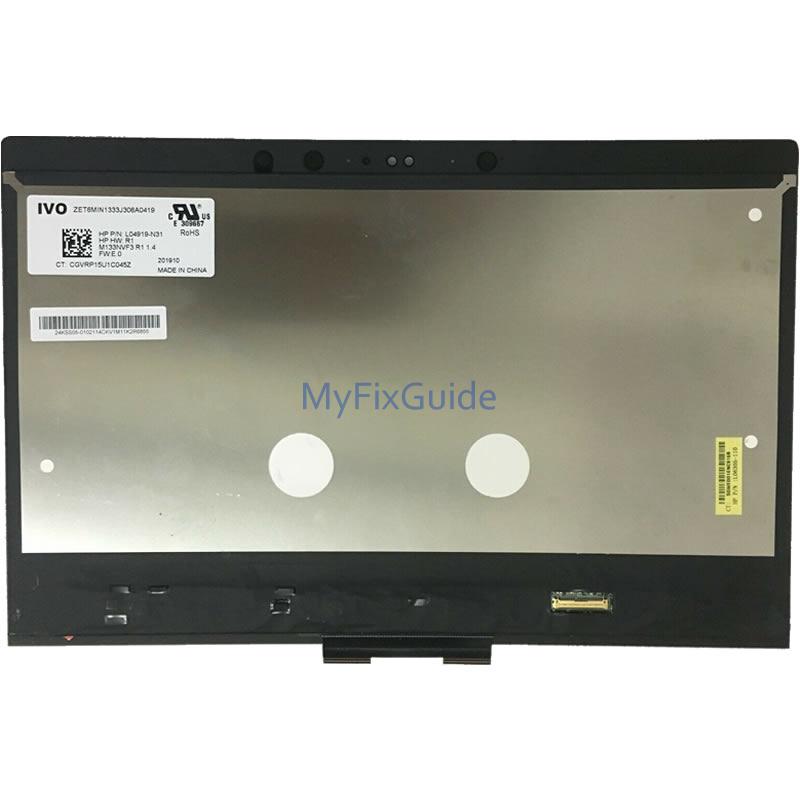

This is a brand new touchscreen assembly for HP EliteBook x360 1030 G3. It features a brightness of 700 units and is compatible with part numbers L31869-001 and L31871-001.
Features:
1. It is a 100% brand new touchscreen assembly.
2. The touchscreen assembly includes the LCD screen and front glass touch digitizer; the frame and touch control board is not included.
Specifications:
Size: 13.3-inch TouchScreen Assembly
Resolution: FHD (1920 x 1080)
Backlight Type: LED
Surface Type: Matte
Video Connector: 40 pin
Brightness: 700 nits
Condition: brand new, no dead pixel
Warranty: One (1) Year
Tips:
1. Before placing an order, please make sure your LCD model, brightness, and connector match our specifications. Otherwise, it may not be compatible with your notebook.
2. This is not a complete upper half component. You need to remove the frame and touch control board from your old screen and install it on the new touch screen.
3. It is very easy to replace this touch screen. You need to shut down your laptop and disconnect the battery cable from the motherboard.
4. Insert a plastic pick between the touch screen and the back cover and slide the plastic pick to remove the touch screen from the back cover
5. Disconnect the video cable from the LCD screen, now use a hairdryer to heat the frame and remove it from the touch screen
6. Apply new double-sided tape to the frame, and then install the new touch screen to the frame.
7. Now install the new touch screen assembly on your back cover.
