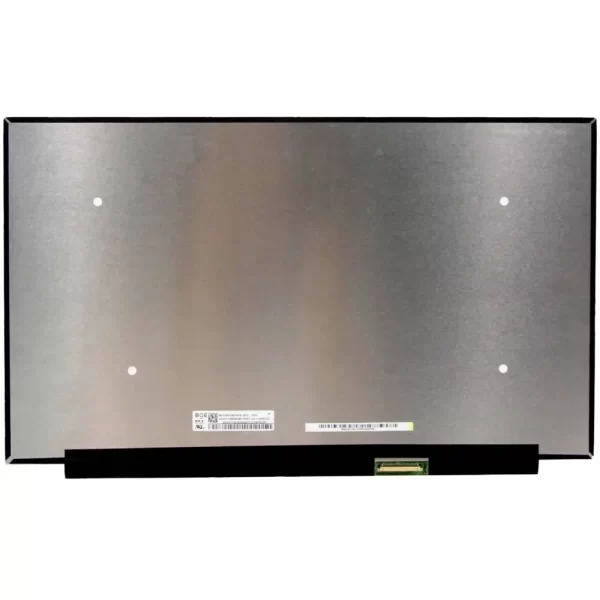

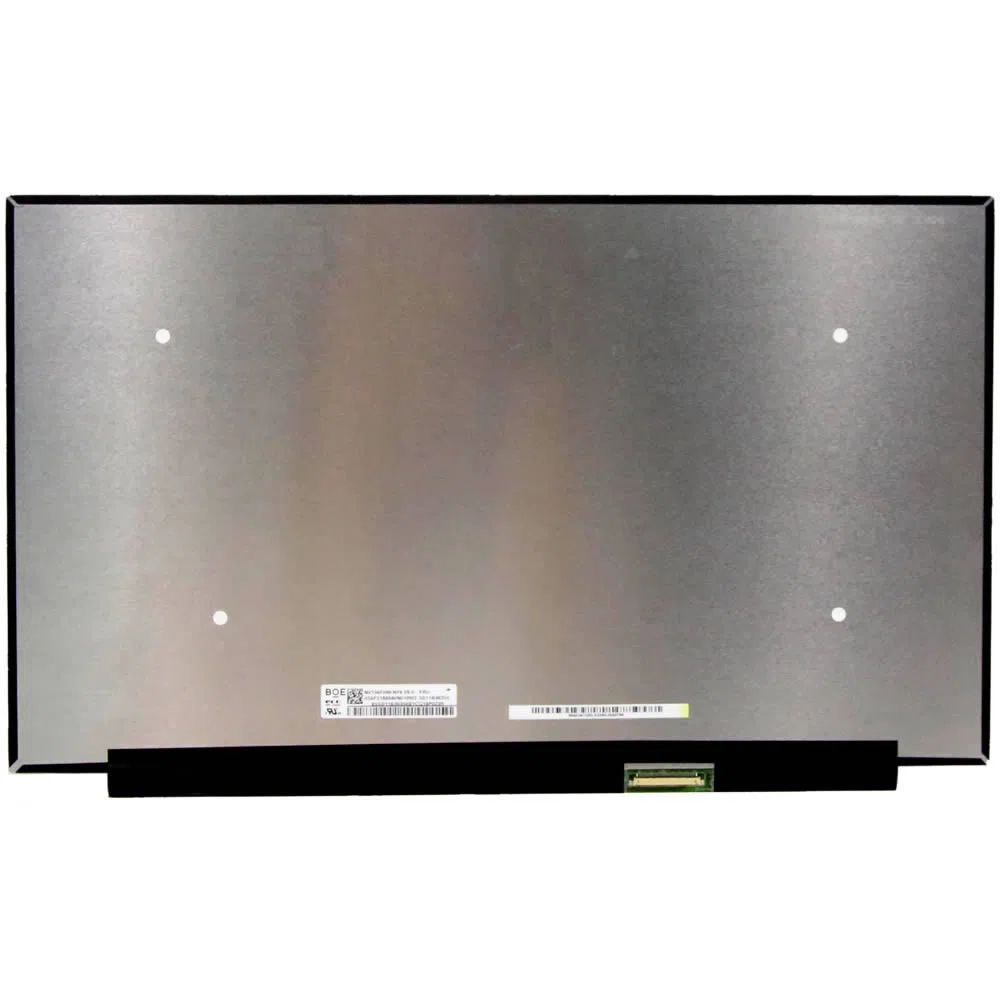

This is a new 165Hz 240Hz 480Hz screen for Alienware m16 R1 gaming laptops. There are 3 screen specifications for this laptop: FHD+ (1920×1200), 480Hz; QHD+ (2560×1600), 165Hz; QHD+ (2560×1600), 240Hz, please select your screen specs from the drop-down menu.
How to identify your original screen specification at https://www.myfixguide.com/store/determine-screen-specifications/
If you don’t know how to check your original screen specs, please send your laptop serial number and service TAG to service@myfixguide.com
Features:
1. It is a 100% new screen. It has the same specifications as your original screen.
2. Each screen is rigorously tested to ensure that it works fine.
Compatible Laptops:
Alienware m16 R1
Specifications:
16″ 1920×1200 IPS 480Hz 300nits 100% sRGB Anti-Glare
16″ 2560×1600 IPS 165Hz 300nits 100% DCI-P3 Anti-Glare
16″ 2560×1600 IPS 240Hz 300nits 100% DCI-P3 Anti-Glare
Surface Type: Matte, Anti-Glare
Condition: New
Dead Pixel Policy: No Dead Pixel
Warranty: One (1) Year
Screen for Alienware m16 R1 Replacement Tips:
1. Make sure the part number, description, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. The LCD bezel is fixed on the LCD back cover with easy-stretch adhesive. Slowly pull out the adhesive and you can easily remove the screen.
4. Place the LCD screen on the keyboard, disconnect the display cable from the LCD screen to remove the old LCD screen, and then you can install the new screen on your laptop.
5. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen on the back cover, and install the LCD bezel on your laptop.
6. Please download the hardware maintenance manual for the laptops from Dell official website, then follow the steps in the manual to replace the screen.
