New WUXGA WQXGA Screen for Asus ROG Zephyrus M16 2022 GU603ZX GU603ZW GU603ZM GU603ZE

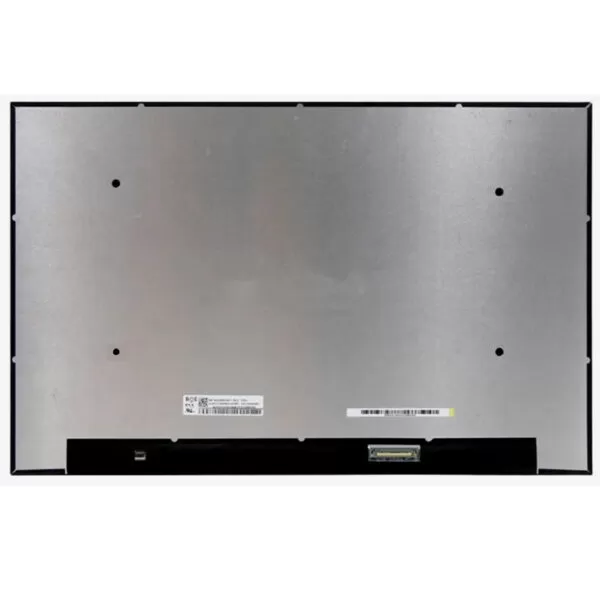

This is a new WUXGA WQXGA screen for Asus ROG Zephyrus M16 2022 GU603ZX GU603ZW GU603ZM GU603ZE gaming laptops. The screen of Asus ROG Zephyrus M16 2022 has two resolutions, please select the correct resolution in the drop-down menu.

Identify your original screen resolution at https://www.myfixguide.com/store/determine-screen-specifications/

If you don’t know the screen resolution, please contact us via service@myfixguide.com

Features:
1. The screen is a 100% new screen.
2. This screen has the same specifications as your original screen.
3. Each screen is rigorously tested to ensure that it has no dead pixels.

Compatible Laptops:
16″ 1920×1200 IPS 500nits 165Hz 100% sRGB Anti-glare, fit below models
GU603ZE-LS000 Series
GU603ZM-059W
GU603ZM-LS000 Series
GU603ZM-M16.I73060
GU603ZX-001W
and more models with 1920×1200 165Hz screen

16″ 2560×1600 IPS 500nits 165Hz 100% DCI-P3 Anti-glare, fit below models
GU603ZE-K8000 Series
GU603ZM-K8000 Series
GU603ZW-008W
GU603ZW-098W
GU603ZW-K8000 Series
GU603ZW-M16.I93070T
GU603ZW-XS91-CA
GU603ZX-056W
GU603ZX-K8000 Series
GU603ZX-XS92-CA
GU603ZX-XS97
and more models with 2560×1600 165Hz screen

Specifications:
16″ 1920×1200 IPS 500nits 165Hz 100% sRGB Anti-glare
16″ 2560×1600 IPS 500nits 165Hz 100% DCI-P3 Anti-glare
Touch: Non-Touch
Connector: 40 pins
Aspect Ratio: 16:10
Condition: New, No Dead Pixels
Warranty: One (1) Year

Asus ROG Zephyrus M16 2022 GU603ZX GU603ZW GU603ZM GU603ZE Replacement Tips:

1. Please make sure the part number, specifications, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. Insert the old card between the screen bezel and the display back cover. Pry up the screen bezel and start separating it from the back cover.
4. Slowly pull out the easy-stretch adhesive under the screen, and you can easily remove the screen.
5. Place the LCD screen on the keyboard, disconnect the display cable from the LCD screen to remove the old LCD screen, and then you can install the new screen on your laptop.
