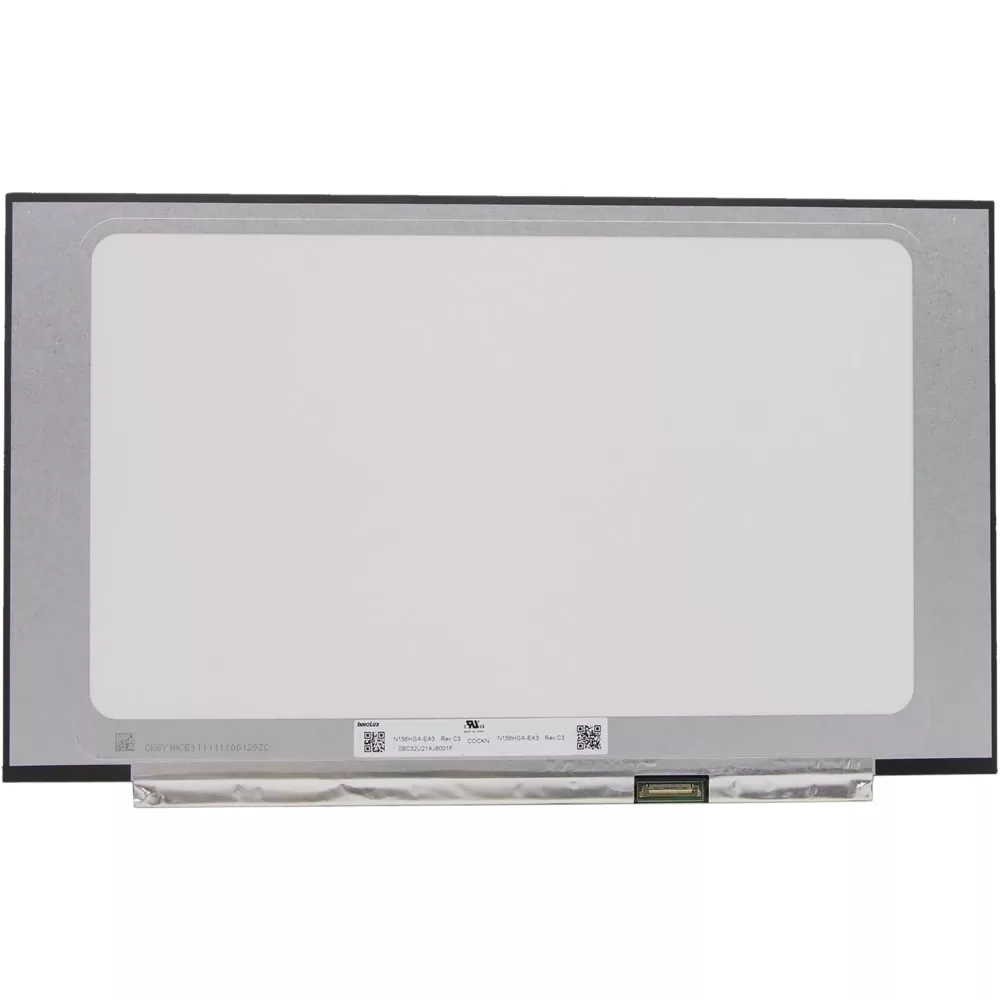

This is a new FHD WQHD screen for Asus TUF Gaming F15 2022 FX507ZC FX507ZE FX507ZM FX507ZR gaming laptops. The screen of the Asus ROG FX507 has four specifications; please select the correct resolution in the drop-down menu.
Note: The two screens with 1920 x 1080 and 144Hz are compatible with each other, so if you have a 1920 x 1080, 144Hz screen, you can choose either one.
If you don’t know the screen specifications, please contact us via service@myfixguide.com
Features:
1. The screen is a 100% new screen.
2. This screen has the same specifications as your original screen.
3. Each screen is rigorously tested to ensure that it has no dead pixels.
Specifications:
15.6″, 1920×1080, IPS, 250nits, 144Hz, 62.5% sRGB, Anti-glare
15.6″, 1920×1080, IPS, 250nits, 144Hz, 100% sRGB, Anti-glare
15.6″, 1920×1080, IPS, 300nits, 300Hz, 100% sRGB, Anti-glare
15.6″, 2560×1440, IPS, 300nits, 165Hz, 100% DCI-P3, Anti-glare
Touch: Non-Touch
Connector: 40 pins
Aspect Ratio: 16:9
Condition: New, No Dead Pixels
Warranty: One (1) Year
Replacement Tips:
1. Please make sure the part number, specifications, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. Insert the old card between the screen bezel and the display back cover. Pry up the screen bezel and start separating it from the back cover.
4. Slowly pull out the easy-stretch adhesive under the screen, and you can easily remove the screen.
5. Place the LCD screen on the keyboard, disconnect the display cable from the LCD screen to remove the old LCD screen, and then you can install the new screen on your laptop.
6. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen on the back cover and install the LCD bezel on your laptop.
