New Screen for Lenovo 5D11B36353 5D11B36354 5D11B36357 5D11C99358 5D11D08013 5D11D69629 5D11D96482 5D11D96861 5D11J12408

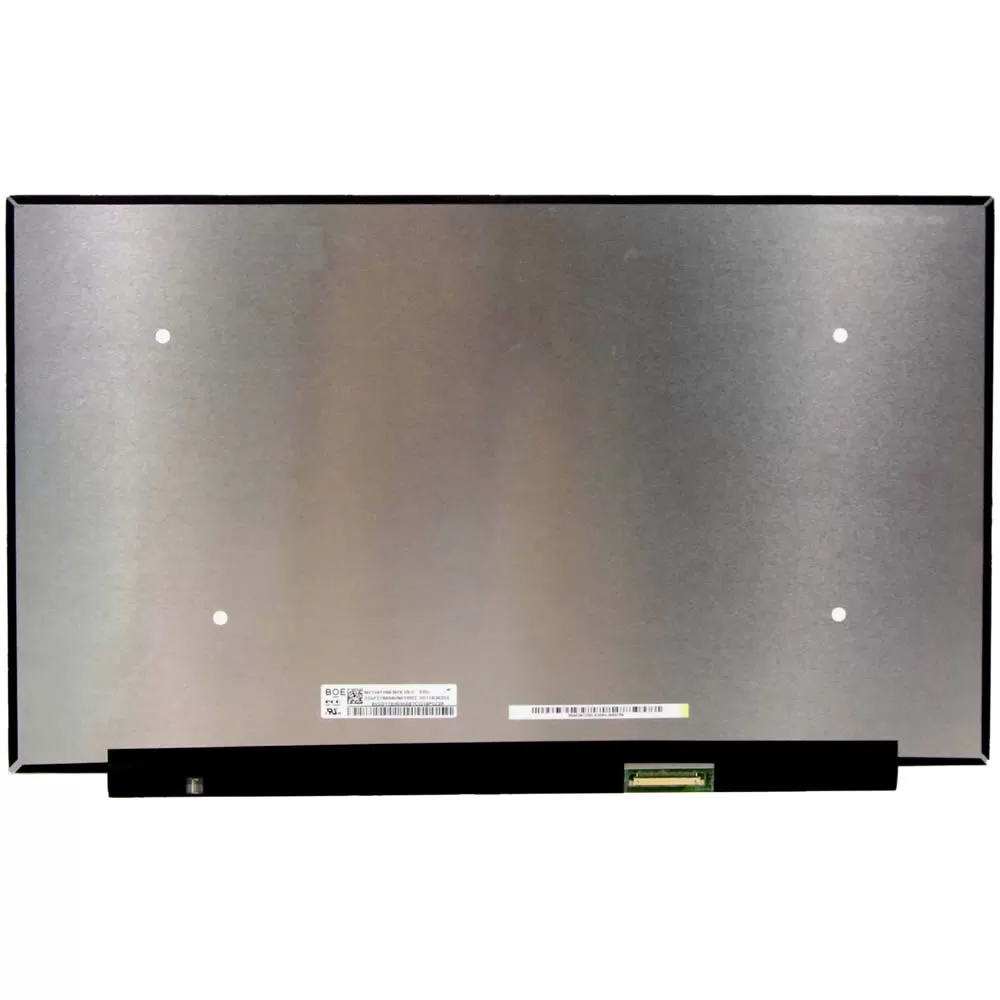

This is a new Screen for Lenovo 5D11B36353, 5D11B36354, 5D11B36357, 5D11C99358, 5D11D08013, 5D11D69629, 5D11D96482, 5D11D96861, and 5D11J12408. This screen has a brightness of 300 nits, a resolution of 1920×1080, a color gamut of 100% sRGB, a 40-pin connector and a 165Hz refresh rate.

Features:
1. It is a 100% new screen.
2. This screen has the same specifications as your original screen.
3. Each screen is rigorously tested to ensure that it has no bad pixels.

Part Number:
5D11B36353
5D11B36354
5D11B36357
5D11C99358
5D11D08013
5D11D69629
5D11D96482
5D11D96861
5D11J12408

These 9 part numbers are all compatible with each other, we will randomly send a part number based on stock, if you need a specific part number, please indicate it in the order notes.

Specifications:
Size: 15.6-inch IPS Screen
Resolution: FHD 1920×1080
Touch: Non-Touch
Backlight Type: LED
Connector: 40 pins
Refresh Rate: 165Hz
Brightness: 300 nits
Color Gamut: 100% sRGB
Backlight Type: LED
Aspect Ratio: 16:9
Contrast Ratio: 1000:1
Surface Type: Matte, Anti-Glare
Condition: New, No Dead Pixels
Warranty: One (1) Year

Compatible Laptops
IdeaPad Gaming 3 15ARH7
IdeaPad Gaming 3 15IAH7
Ideapad Gaming 3-15ACH6
IdeaPad Gaming 3-15IHU6
Legion 5 15ACH6
Legion 5 15ACH6A
Legion 5 15ARH7
Legion 5 15ARH7H
Legion 5 15IAH7
Legion 5 15IAH7H
Legion 5 15IMH6
Legion 5 15ITH6
Legion 5 15ITH6H
Legion S7 15ACH6

Screen for Lenovo 5D11B36353 5D11B36354 5D11B36357 5D11D08013 5D11J12408 5D11D69629 5D11D96482 5D11D96861 Replacement Tips:

1. Make sure the part number, description, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. The screen is fixed on the LCD back cover with easy-stretch adhesive. Slowly pull out the adhesive and you can easily remove the screen.
4. Place the screen on the keyboard, disconnect the display cable from the screen to remove the old screen, and then you can install the new screen on your laptop.
5. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen on the back cover, and install the LCD bezel on your laptop.
