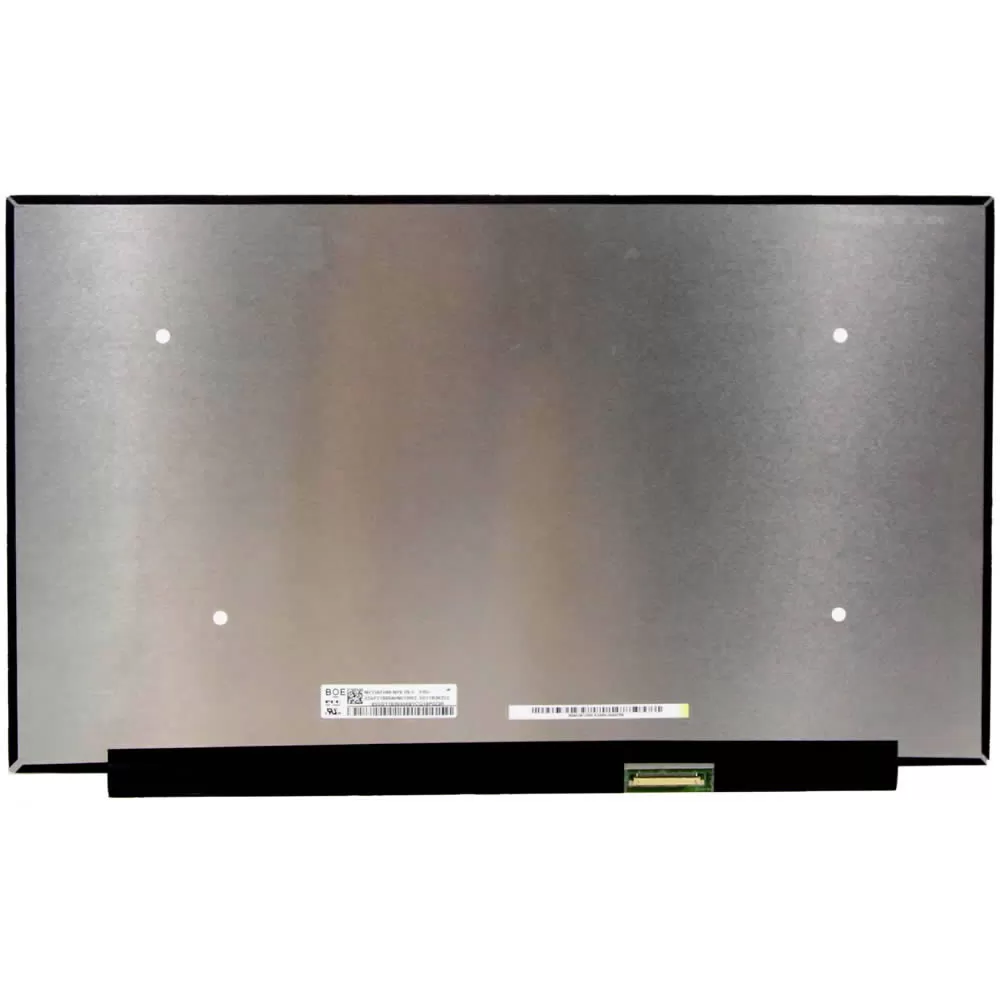

This is a new 16″ 1920×1200 LCD module Screen for Lenovo 5D11C95899 5D11C95900 5D11C95901. This screen has 1920×1200 resolution, 300 nits brightness, 100% sRGB color gamut, and a 30-pin connector.
Features:
1. It is a 100% new screen. It has the same specifications as your original screen.
2. Each screen is rigorously tested to ensure that it works fine.
Compatible Laptops:
ThinkPad P16 Gen 1
ThinkPad P16 Gen 2
Part Number:
5D11C95901
Compatible Part Number:
5D11C95899
5D11C95900
Specifications:
Size: 16-inch IPS Screen LCD Module
Resolution: WUXGA (1920×1200)
Touch: Non-Touch
Connector: 30 pins
Brightness: 300 nits
Refresh Rate: 60Hz
Backlight Type: LED
Aspect Ratio: 16:10
Contrast Ratio: 1200:1
Color Gamut: 100% sRGB
Surface Type: Matte, Anti-Glare
Condition: New
Dead Pixel Policy: No Dead Pixel
Warranty: One (1) Year
Screen for Lenovo 5D11C95899 5D11C95900 5D11C95901 Replacement Tips:
1. Make sure the part number, description, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. The LCD bezel is fixed on the LCD back cover with easy-stretch adhesive. Slowly pull out the adhesive and you can easily remove the screen.
4. Place the LCD screen on the keyboard, disconnect the display cable from the LCD screen to remove the old LCD screen, and then you can install the new screen on your laptop.
5. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen on the back cover, and install the LCD bezel on your laptop.
