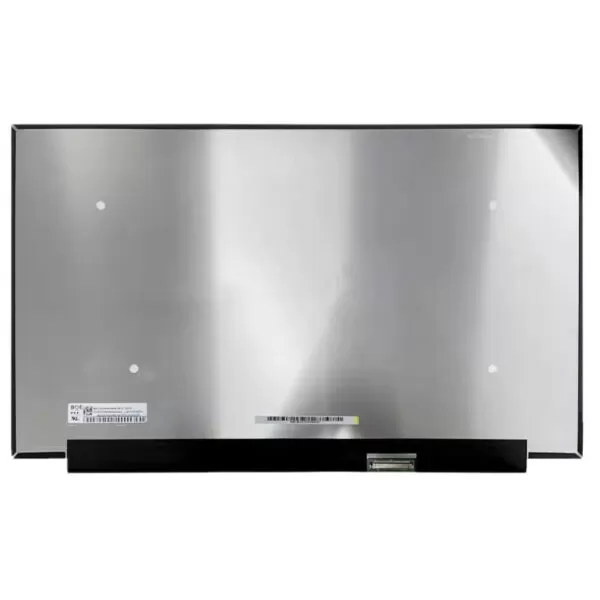

New 15.6″ WQHD 165Hz Screen for Lenovo 5D11D04810 5D11D04807 5D11D04809

This is a new Screen for Lenovo 5D11D04810, 5D11D04807, and 5D11D04809. This screen has a brightness of 350 nits, a resolution of 2560×1440, a color gamut of 100% sRGB, a 40-pin connector and a 165Hz refresh rate.

All three part numbers are compatible with each other, we will randomly send a part number based on stock, if you need a specific part number, please indicate it in the order notes.

Features:
1. It is a 100% new screen.
2. This screen has the same specifications as your original screen.
3. Each screen is rigorously tested to ensure that it has no bad pixels.

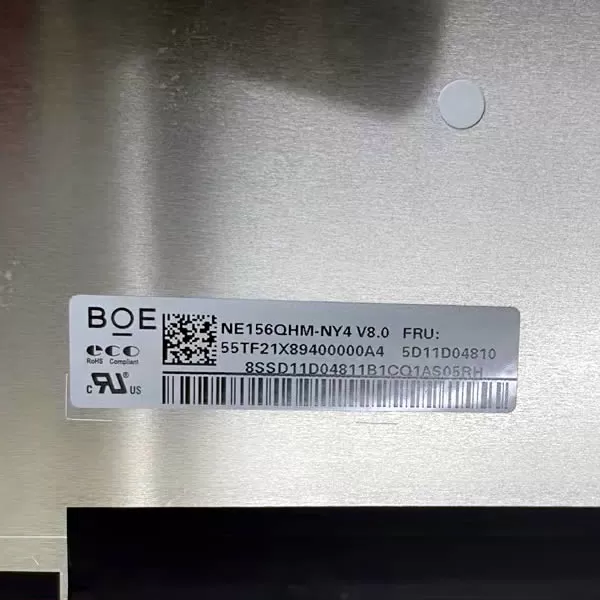

Part Number:
5D11D04810
5D11D04807
5D11D04809

Specifications:
Size: 15.6-inch IPS Screen
Resolution: WQHD 2560×1440
Touch: Non-Touch
Backlight Type: LED
Connector: 40 pins
Refresh Rate: 165Hz
Brightness: 350 nits
Color Gamut: 100% sRGB
Backlight Type: LED
Aspect Ratio: 16:9
Contrast Ratio: 1200:1
Surface Type: Matte, Anti-Glare
Condition: New, No Dead Pixels
Warranty: One (1) Year

Compatible Laptops
IdeaPad Gaming 3 15ARH7
IdeaPad Gaming 3 15IAH7
Legion 5 15ACH6
Legion 5 15ACH6A
Legion 5 15ARH7
Legion 5 15ARH7H
Legion 5 15IAH7
Legion 5 15IAH7H
Legion 5 15ITH6
Legion 5 15ITH6H
LOQ 15APH8
LOQ 15IRH8

Screen for Lenovo 5D11D04807 5D11D04810 5D11D04809 Replacement Tips:

1. Make sure the part number, description, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. The screen is fixed on the LCD back cover with easy-stretch adhesive. Slowly pull out the adhesive and you can easily remove the screen.
4. Place the screen on the keyboard, disconnect the display cable from the screen to remove the old screen, and then you can install the new screen on your laptop.
5. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen on the back cover, and install the LCD bezel on your laptop.
