New 16″ WUXGA 165Hz Screen for Lenovo 5D11H29626 5D11H29628 5D11H29636

$199.99

In stock

$ USD
  • $ USD
  • € EUR
  • £ GBP
  • $ AUD
  • $ CAD
  • kr. DKK
  • $ NZD
  • kr NOK
  • CHF CHF
  • kr SEK
  • ¥ JPY
  • $ SGD
  • Ft HUF
  • zł PLN
  • ₪ ILS
  • ฿ THB
  • $ MXN
  • ₱ PHP
Guaranteed Safe Checkout

trust symbols

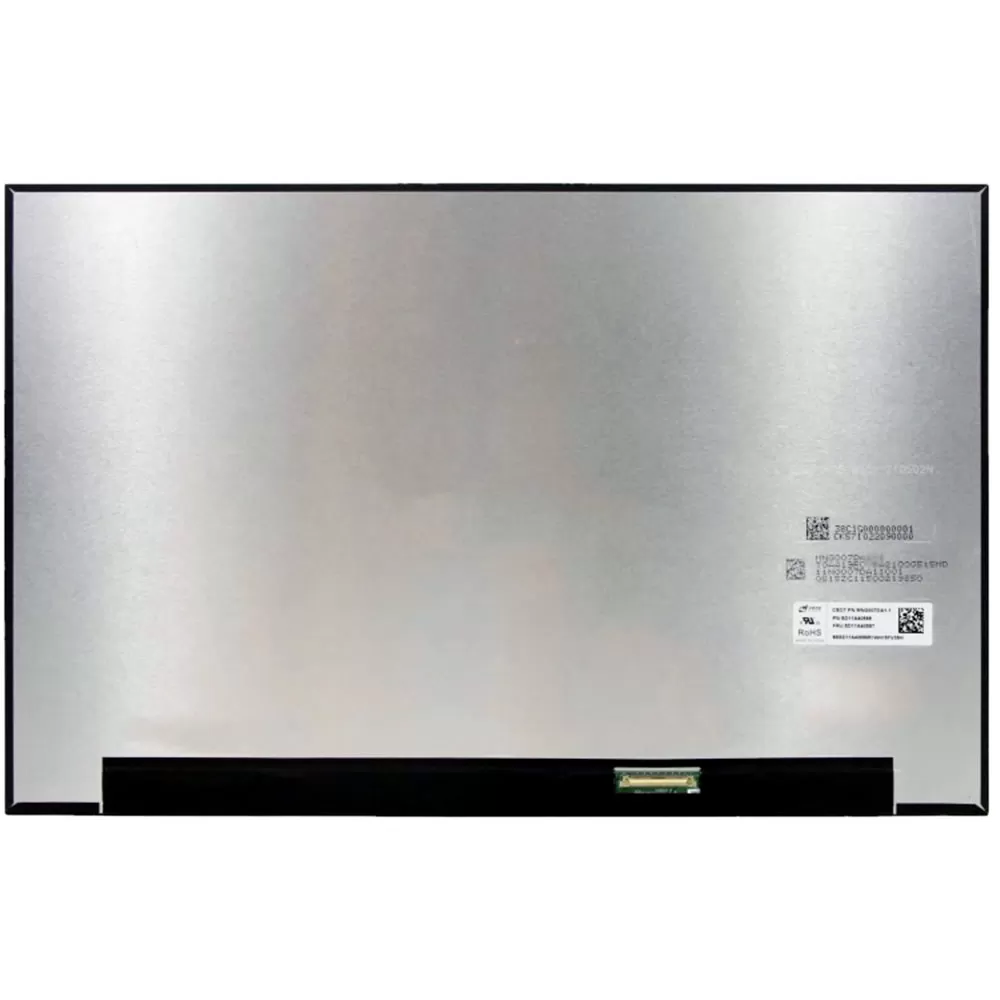

This is a new 16″ WUXGA Screen for Lenovo 5D11H29626, 5D11H29628, and 5D11H29636. This screen has a brightness of 350 nits, a resolution of 1920×1200, a color gamut of 100% sRGB, a 40-pin connector and a 165Hz refresh rate.

Features:
1. It is a 100% new screen.
2. This screen has the same specifications as your original screen.
3. Each screen is rigorously tested to ensure that it has no bad pixels.

Part Number:
5D11H29626
5D11H29628
5D11H29636

These 3 part numbers are all compatible with each other, we will randomly send a part number based on stock, if you need a specific part number, please indicate it in the order notes.

Specifications:
Size: 16-inch IPS Screen
Resolution: WUXGA 1920×1200
Touch: Non-Touch
Backlight Type: LED
Connector: 40 pins
Refresh Rate: 165Hz
Brightness: 350 nits
Color Gamut: 100% sRGB
Backlight Type: LED
Aspect Ratio: 16:10
Contrast Ratio: 1000:1
Surface Type: Matte, Anti-Glare
Condition: New, No Dead Pixels
Warranty: One (1) Year

Compatible Laptops
Legion 5 Pro 16ARH7
Legion 5 Pro 16ARH7H
Legion 5 Pro 16IAH7
Legion 5 Pro 16IAH7H
Legion S7 16ARHA7
Legion S7 16IAH7

Screen for Lenovo 5D11H29626 5D11H29636 5D11H29628 Replacement Tips:

1. Make sure the part number, description, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. The screen is fixed on the LCD back cover with easy-stretch adhesive. Slowly pull out the adhesive and you can easily remove the screen.
4. Place the screen on the keyboard, disconnect the display cable from the screen to remove the old screen, and then you can install the new screen on your laptop.
5. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen on the back cover, and install the LCD bezel on your laptop.
