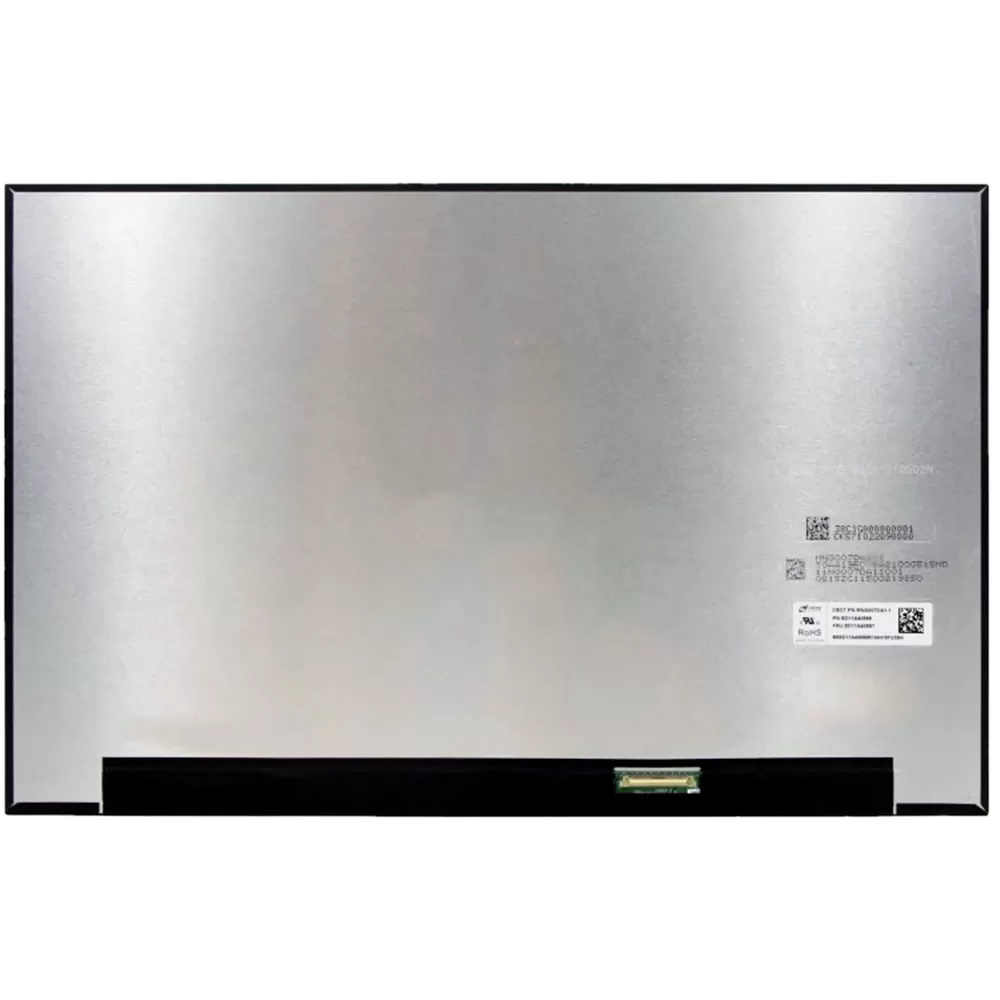

This is a new 16″ WQXGA Screen for Lenovo 5D11J38192, 5D11J38182, and 5D11J38194. This screen has a brightness of 500 nits, a resolution of 2560×1600, a color gamut of 100% sRGB, a 40-pin connector and a 240Hz refresh rate.
Features:
1. It is a 100% new screen.
2. This screen has the same specifications as your original screen.
3. Each screen is rigorously tested to ensure that it has no bad pixels.
Part Number:
5D11J38192
5D11J38182
5D11J38194
These 3 part numbers are all compatible with each other, we will randomly send a part number based on stock, if you need a specific part number, please indicate it in the order notes.
Specifications:
Size: 16-inch IPS Screen
Resolution: WQXGA 2560×1600
Touch: Non-Touch
Backlight Type: LED
Connector: 40 pins
Refresh Rate: 240Hz
Brightness: 500 nits
Color Gamut: 100% sRGB
Backlight Type: LED
Aspect Ratio: 16:10
Contrast Ratio: 1200:1
Surface Type: Matte, Anti-Glare
Condition: New, No Dead Pixels
Warranty: One (1) Year
Compatible Laptops
Legion 5 Pro 16ARH7H
Legion 5 Pro 16IAH7H
Legion 7 16ARHA7
Legion 7 16IAX7
Legion S7 16ARHA7
Legion S7 16IAH7
Screen for Lenovo 5D11J38192 5D11J38194 5D11J38182 Replacement Tips:
1. Make sure the part number, description, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. The screen is fixed on the LCD back cover with easy-stretch adhesive. Slowly pull out the adhesive and you can easily remove the screen.
4. Place the screen on the keyboard, disconnect the display cable from the screen to remove the old screen, and then you can install the new screen on your laptop.
5. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen on the back cover, and install the LCD bezel on your laptop.
