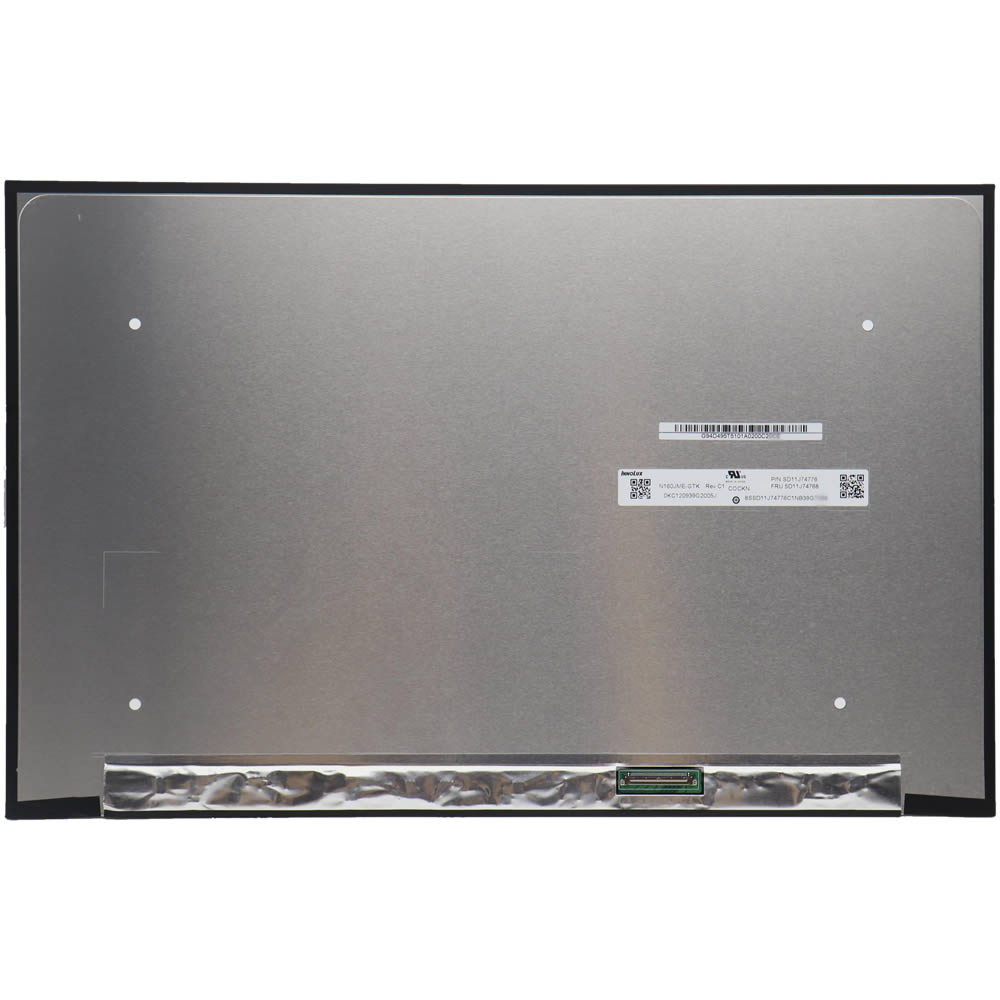

New 16″ WUXGA 144Hz Screen for Lenovo 5D11J74772 5D11J74773 5D11J74768

This is a new 16″ WQXGA Screen for Lenovo 5D11J74772, 5D11J74773, and 5D11J74768. This screen has a brightness of 350 nits, a resolution of 1920×1200, a color gamut of 45% NTSC, a 40-pin connector, and a 144Hz refresh rate.

Features:
1. The screen is a 100% new screen.
2. This screen has the same specifications as your original screen.
3. Each screen is rigorously tested to ensure that it has no bad pixels.

Part Number:
5D11J74768

Compatible Part Numbers:
5D11J74772
5D11J74773

Specifications:
Size: 16-inch IPS Screen
Resolution: WUXGA (1920×1200)
Touch: Non-Touch
Backlight Type: LED
Connector: 40 pins
Refresh Rate: 144Hz
Brightness: 350 nits
Color Gamut: 45% NTSC
Backlight Type: LED
Aspect Ratio: 16:10
Surface Type: Matte, Anti-Glare
Condition: New, No Dead Pixels
Warranty: One (1) Year

Compatible Laptops
Legion Slim 5 16APH8
Legion Slim 5 16IRH8
LOQ 16APH8
LOQ 16IRH8

Replacement Tips:
1. Make sure the part number, description, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. The LCD bezel is fixed on the LCD back cover with easy-stretch adhesive. Slowly pull out the adhesive, and you can easily remove the screen.
4. Place the LCD screen on the keyboard, disconnect the display cable from the LCD screen to remove the old LCD screen, and then you can install the new screen on your laptop.
5. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen on the back cover and install the LCD bezel on your laptop.
