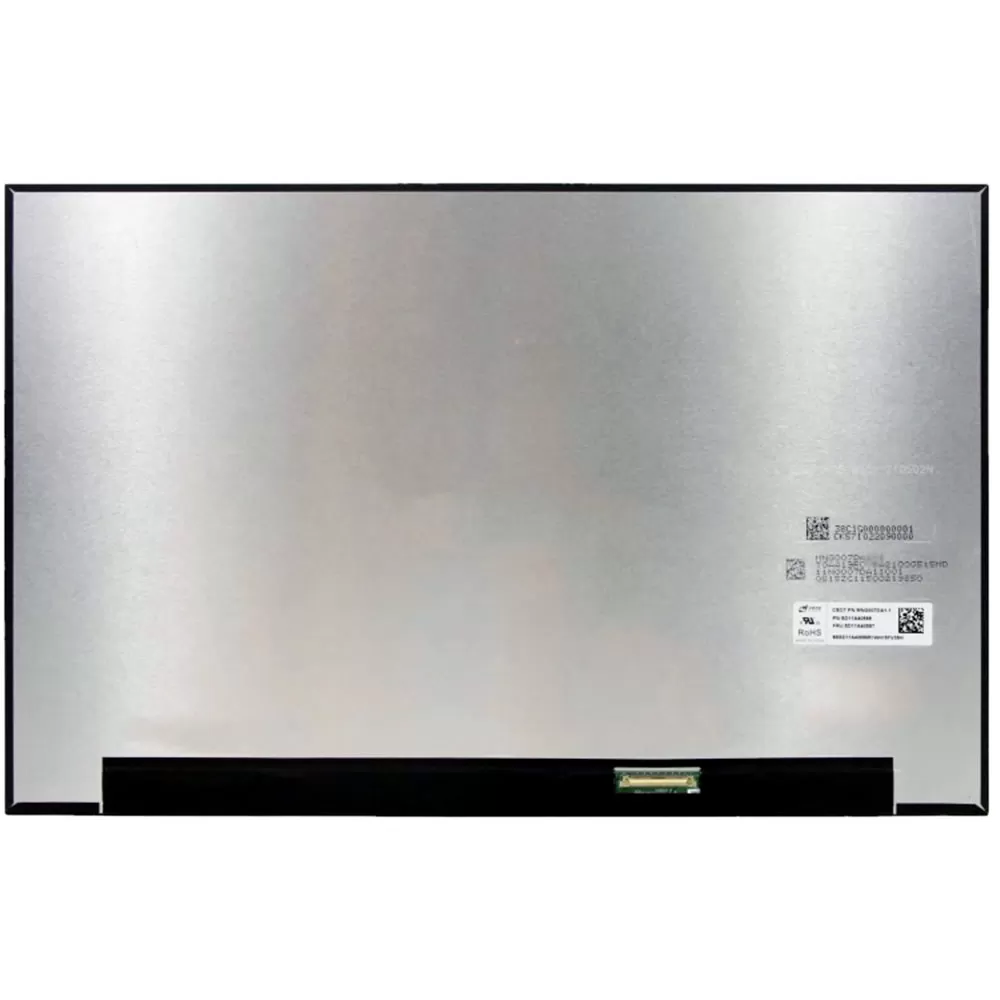

This is a new 16″ WQXGA Screen for Lenovo Lenovo 5D11L55822, 5D11L55816, and 5D11L55831. This screen has a brightness of 500 nits, a resolution of 2560×1600, a color gamut of 100% sRGB, a 40-pin connector and a 240Hz refresh rate.
Features:
1. The screen is a 100% new screen.
2. This screen has the same specifications as your original screen.
3. Each screen is rigorously tested to ensure that it has no bad pixels.
Part Number:
5D11L55822
Compatible Part Numbers:
5D11L55816
5D11L55831
Specifications:
Size: 16-inch IPS Screen
Resolution: WQXGA (2560×1600)
Touch: Non-Touch
Backlight Type: LED
Connector: 40 pins
Refresh Rate: 240Hz
Brightness: 500 nits
Color Gamut: 100% sRGB
Backlight Type: LED
Aspect Ratio: 16:10
Surface Type: Matte, Anti-Glare
Condition: New, No Dead Pixels
Warranty: One (1) Year
Compatible Laptops
Legion Slim 5 16APH8
Legion Slim 5 16IRH8
Legion Slim 7 16IRH8
Screen for Lenovo 5D11L55822 5D11L55831 5D11L55816 Replacement Tips:
1. Make sure the part number, description, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. The LCD bezel is fixed on the back cover with easy-stretch adhesive. Slowly pull out the adhesive and you can easily remove the screen.
4. Place the screen on the keyboard, disconnect the display cable from the screen to remove the old screen, and then you can install the new screen on your laptop.
5. You can first connect the LCD cable to your screen, then start the laptop to check that your screen is working properly, then fix the screen on the back cover, and install the LCD bezel on your laptop.
