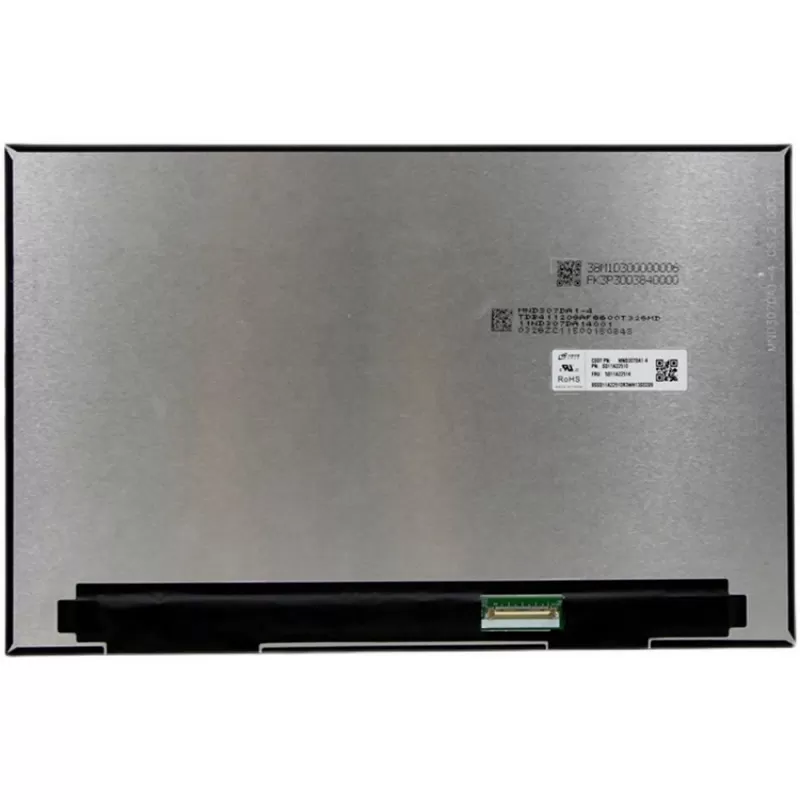

New FHD WUXGA Screen for Lenovo ThinkPad L13 Gen 1 2 3 4

This is a new screen for Lenovo ThinkPad L13 Gen 1 2 3 4. The screens of the laptop have multiple specifications. Their resolution, brightness, and color gamut are different; please choose the screen with the same specifications as your original screen in the drop-down menu.

Identify your original screen specification at https://www.myfixguide.com/store/screen-specification-for-lenovo-thinkpad-x13/

Features:
1. The screen is a 100% new screen.
2. This screen has the same specifications as your original screen.
3. Each screen is rigorously tested to ensure that it has no bad pixels.

Specifications:
ThinkPad L13 Gen 1
13.3″ 1366×768 TN 250nits 45% NTSC Anti-glare
13.3″ 1920×1080 IPS 250nits 45% NTSC Anti-glare
13.3″ 1920×1080 IPS 300nits 72% NTSC Anti-glare Touch

ThinkPad L13 Gen 2
13.3″ 1366×768 TN 250nits 45% NTSC Anti-glare
13.3″ 1920×1080 IPS 250nits 45% NTSC Anti-glare
13.3″ 1920×1080 IPS 300nits 72% NTSC Anti-glare Touch

ThinkPad L13 Gen 3
13.3″ 1920×1200 IPS 300nits 45% NTSC Anti-glare
13.3″ 1920×1200 IPS 300nits 100% sRGB Anti-glare
13.3″ 1920×1200 IPS 300nits 72% NTSC Anti-glare Touch
13.3″ 1920×1200 IPS 500nits 72% NTSC Anti-glare (Out Of Stock)

ThinkPad L13 Gen 4
13.3″ 1920×1200 IPS 300nits 45% NTSC Anti-glare
13.3″ 1920×1200 IPS 300nits 100% sRGB Anti-glare
13.3″ 1920×1200 IPS 300nits 72% NTSC Anti-glare Touch
13.3″ 1920×1200 IPS 400nits 100% sRGB Anti-glare Low power (Out Of Stock)

Aspect Ratio: 16:9, 16:10
Condition: New, no dead pixels
Warranty: One (1) Year

Compatible Part Numbers:
02DA368
02DA370
02DA371
02DA373
02HL700
02HL701
02HL707
02HL710
02HL714
5D10V82415
5D10V82416
5D10V82422
5D10V82452
5D10W46483
5D11A22492
5D11A22504
5D11A22517
5D11B91458
5D11C89618
5D11D34354
5D11D34355
5D11D34358
5D11D34360
5D11D69574
5D11E22832
5D11G97711
5D11G99894
5D11H80308

Screen for Lenovo ThinkPad L13 Gen 1 2 3 4 Replacement Tips:

1. Please make sure the part number, specifications, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. Insert the old card between the screen bezel and the display back cover. Pry up the screen bezel and start separating it from the back cover.
4. Slowly pull out the easy-stretch adhesive under the screen, and you can easily remove the screen.
4. Place the LCD screen on the keyboard, disconnect the display cable from the LCD screen to remove the old LCD screen, and then you can install the new screen on your laptop.
5. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen for ThinkPad L13 on the back cover, and install the LCD bezel on your laptop.
