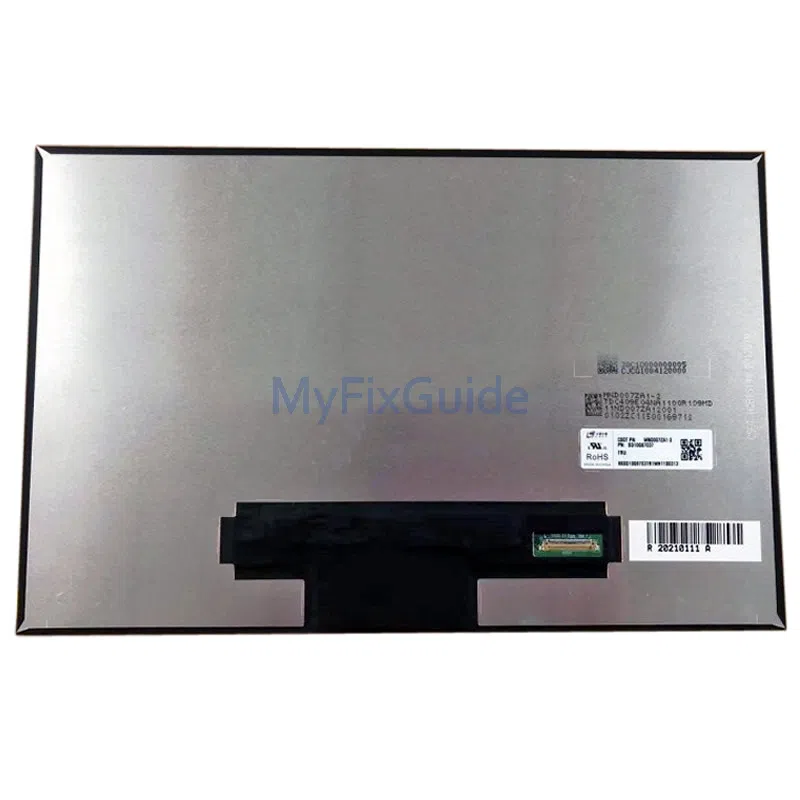

This is a new screen for Lenovo ThinkPad X1 Nano Gen 1 2 3. The screens of the laptop have multiple specifications. Their resolution, brightness, and color gamut are different; please choose the screen with the same specifications as your original screen in the drop-down menu.
Identify your original screen specification at https://www.myfixguide.com/store/screen-specification-for-lenovo-thinkpad-x1-carbon/
Features:
1. The screen is a 100% new screen.
2. This screen has the same specifications as your original screen.
3. Each screen is rigorously tested to ensure that it has no bad pixels.
Specifications:
X1 Nano Gen 1
13″ 2160×1350 IPS 450nits 100% sRGB Anti-glare
13″ 2160×1350 IPS 450nits 100% sRGB Anti-glare Touch (Out Of Stock)
X1 Nano Gen 2
13″ 2160×1350 IPS 450nits 100% sRGB Anti-glare
13″ 2160×1350 IPS 450nits 100% sRGB Anti-glare Touch (Out Of Stock)
X1 Nano Gen 3
13″ 2160×1350 IPS 450nits 100% sRGB Anti-glare (Out Of Stock)
13″ 2160×1350 IPS 450nits 100% sRGB Anti-glare Touch (Out Of Stock)
Aspect 16:10
Condition: New, no dead pixels
Warranty: One (1) Year
Compatible Part Numbers:
5M10X63649
5M10X63650
5M10X63651
5M10X63652
5M10X63653
5M10X63654
5M10X63655
5M10X63656
5M10X63658
5M10X63659
5M10X63660
5M10X63661
5M11D12263
5M11D12264
5M11D12292
5M11D12293
5M11D12294
5M11D12295
5M11D12330
5M11D12333
5M11D12334
5M11D12335
5M11L99162
Screen for Lenovo ThinkPad X1 Nano Gen 1 2 3 Replacement Tips:
1. Please make sure the part number, specifications, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. Insert the old card between the screen bezel and the display back cover. Pry up the screen bezel and start separating it from the back cover.
4. Slowly pull out the easy-stretch adhesive under the screen, and you can easily remove the screen.
5. Place the LCD screen on the keyboard, disconnect the display cable from the LCD screen to remove the old LCD screen, and then you can install the new screen on your laptop.
6. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen for ThinkPad X1 Nano on the back cover, and install the LCD bezel on your laptop.
