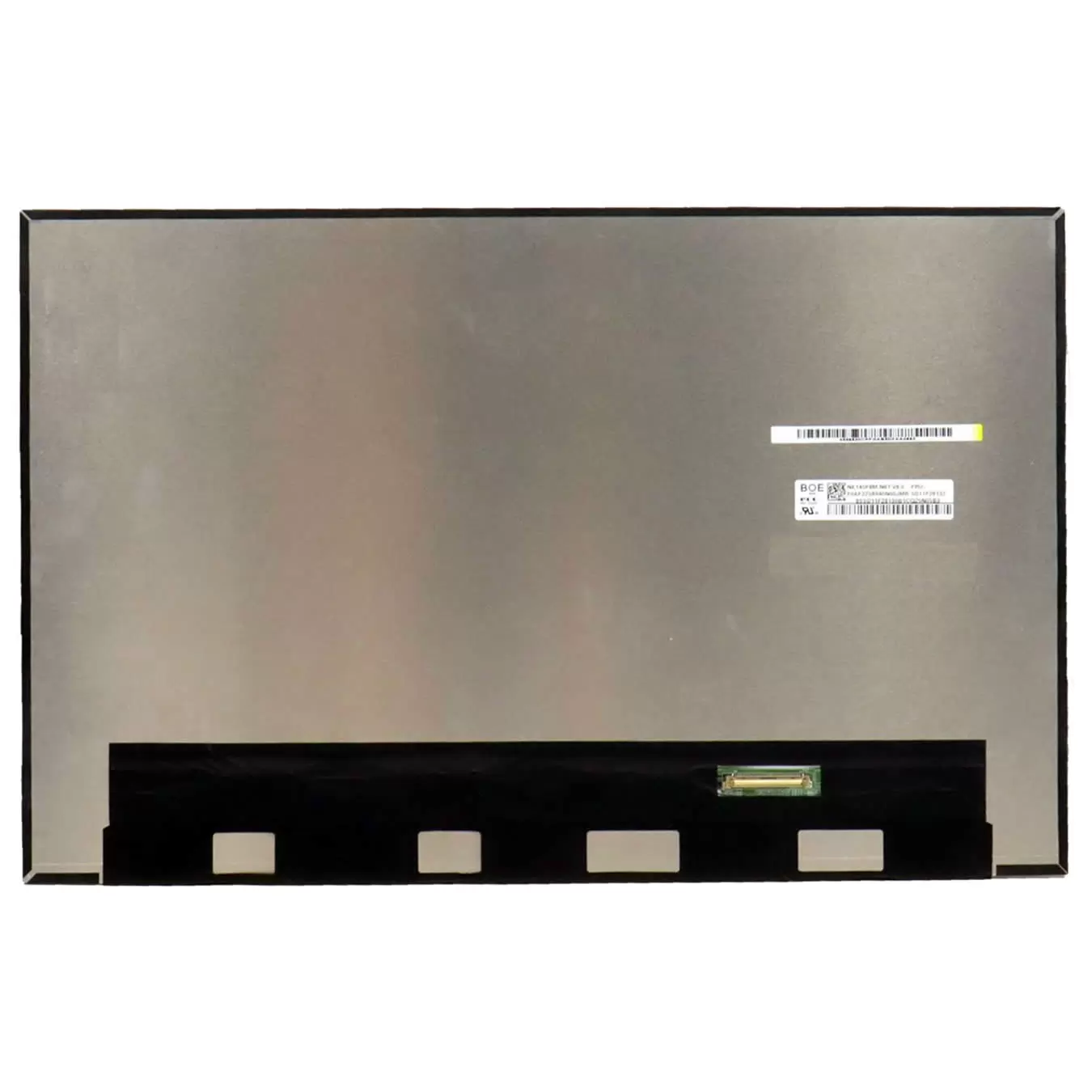

This is a new 3K screen for Lenovo Yoga Slim 7 ProX 14ARH7 and Yoga Slim 7 ProX 14IAH7 laptops. This laptop’s screen comes in 3 specifications, please confirm your screen specifications before placing your order.
Note: This screen has a matte surface (Anti-glare), it is not compatible with glossy screens (with glass, or touch + glass). If your screen has glass or touch, please do not place an order.
If you don’t know the specification of your screen, please take a photo of the bottom cover of your laptop and send it to service@myfixguide.com, we will identify your screen specification.
We’re giving away 2 easy-stretch adhesives shipped with the screen.
Features:
1. The screen is a 100% new screen.
2. This screen has the same specifications as your original screen.
3. Each screen is rigorously tested to ensure that it has no dead pixels.
P/N:
5D10S39876, 5D10S39981
Compatible P/N:
5D10S39981
5D10S39875
5D10S39890
5D10S40002
Specifications:
Size: 14.5-inch IPS Screen
Resolution: 3072×1920
Touch: Non-Touch
Backlight Type: LED
Connector: 40 pins
Refresh Rate: 120Hz
Brightness: 400 nits
Color Gamut: 100% sRGB
Aspect Ratio: 16:10
Surface Type: Matte, Anti-Glare
Condition: New, No Dead Pixels
Warranty: One (1) Year
Screen for Lenovo Yoga Slim 7 ProX 14ARH7 14IAH7 Replacement Tips:
1. Please make sure the part number, specifications, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. Insert the old card between the screen bezel and the display back cover. Pry up the screen bezel and start separating it from the back cover.
4. Slowly pull out the easy-stretch adhesive under the screen, and you can easily remove the screen.
5. Place the LCD screen on the keyboard, disconnect the display cable from the screen to remove the old screen, and then you can install the new screen on your laptop.
6. Glue the two easy-to-pull adhesives to the LCD back cover, insert the screen cable into the connector of the screen and fix it, and then fix the screen on the LCD back cover.
7. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen for Yoga Slim 7 ProX 14ARH7 14IAH7 on the back cover, and install the LCD bezel on your laptop.
