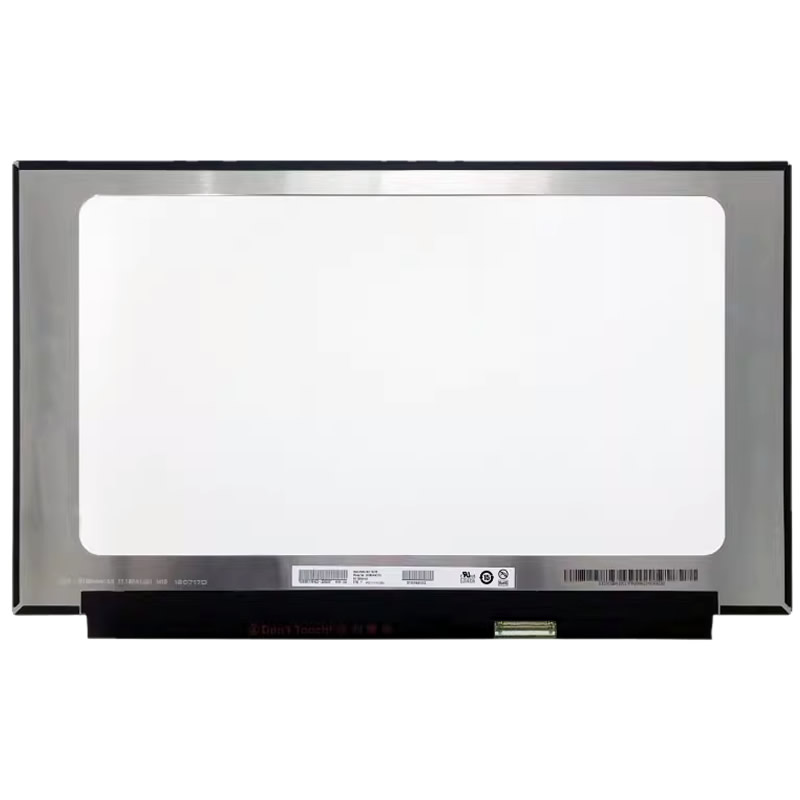

This is a new 144Hz Screen for MSI Katana 15 B12UCXK B12UDXK B12VEK B12VFK B12VGK B13UDXK B13VEK B13VFK B13VGK gaming laptops. This screen comes with 1920 x 1080 resolution, 250 nits brightness, 144Hz refresh rate and 45% NTSC color gamut.
Features:
1. It is a 100% new screen. It has the same specifications as your original screen.
2. Each screen is rigorously tested to ensure that it has no bad pixels.
Specifications:
Size: 15.6-inch IPS Screen
Resolution: FHD (1920×1080)
Touch: Non-Touch
Connector: 40 pins
Brightness: 250 nits
Refresh Rate: 144Hz
Backlight Type: LED
Aspect Ratio: 16:9
Contrast Ratio: 800:1
Color Gamut: 45% NTSC
Surface Type: Matte, Anti-Glare
Condition: New
Warranty: One (1) Year
Compatible laptop:
Katana 15 B12UCXK
Katana 15 B12UDXK
Katana 15 B12VEK
Katana 15 B12VFK
Katana 15 B12VGK
Katana 15 B13UDXK
Katana 15 B13VEK
Katana 15 B13VFK
Katana 15 B13VGK
Screen for MSI Katana 15 Replacement Tips:
1. Make sure the specification, description, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. The LCD bezel is fixed on the LCD back cover with easy-stretch adhesive. Slowly pull out the adhesive and you can easily remove the screen.
4. Place the LCD screen on the keyboard, disconnect the display cable from the LCD screen to remove the old LCD screen, and then you can install the new screen on your laptop.
5. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen on the back cover, and install the LCD bezel on your laptop.
