Anker PowerPort+5 USB-C charger teardown

package
It comes with Anker’s classic package.

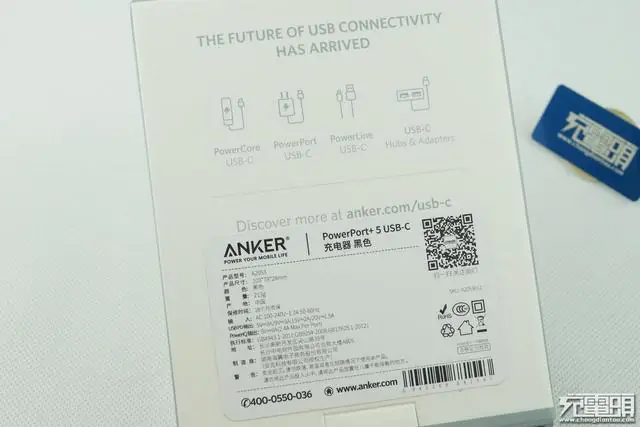

specification
The power supply’s specification on the back of the box is elaborate.

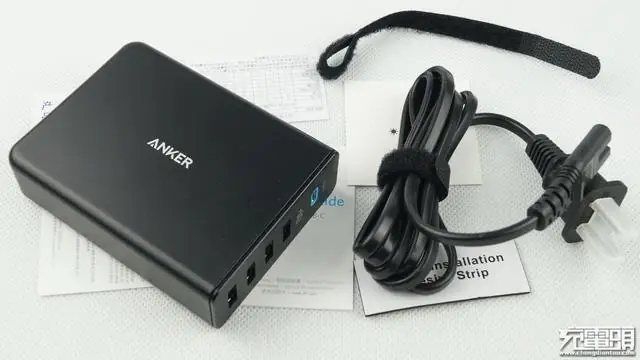

power cord
The power supply’s accessory is the power cord.
design on the front
design on the back
The power supply has a brief design both on its front and back.

output port
The black metal wire drawing panel brings good texture. The conspicuous blue PD output port is on the top. Below the PD output port lie four Power IQ USB output sockets.
AC input
The AC input is universal.
round angles
The power supply’s round angles bring a good touch feeling.
top cover
The top cover adopts the ultrasonic welding technique.
power supply circuit
power supply circuit

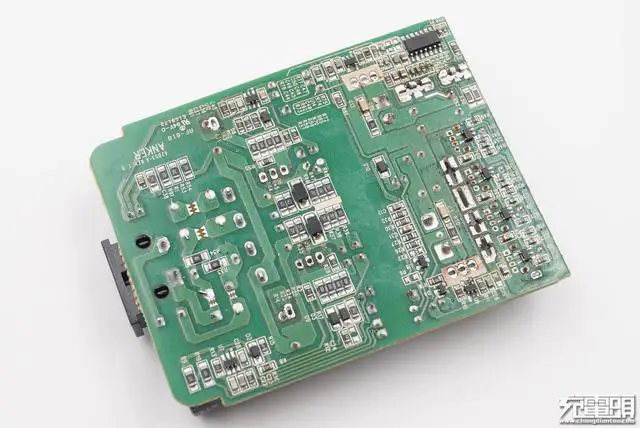

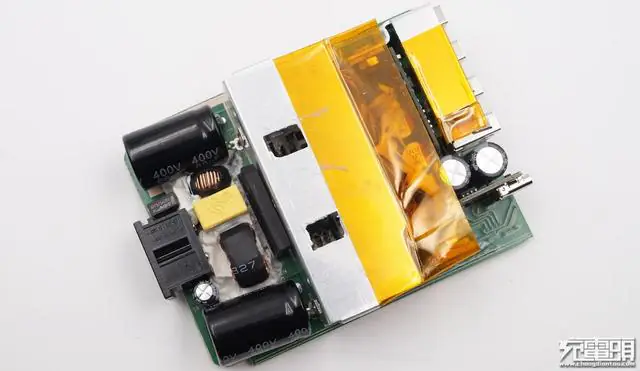

Two sides of the power supply circuit.
AC input protection circuit and EIMI circuit

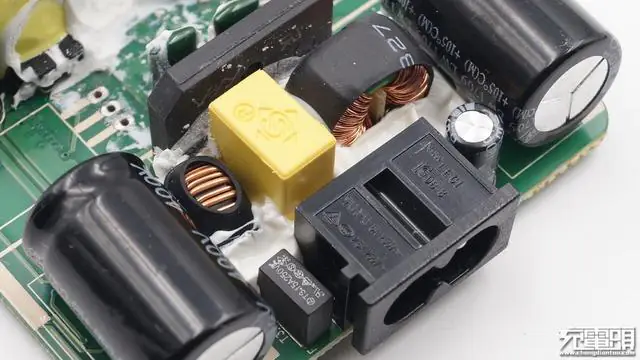

These are the AC input protection circuit and the EIMI circuit.
main capacitors

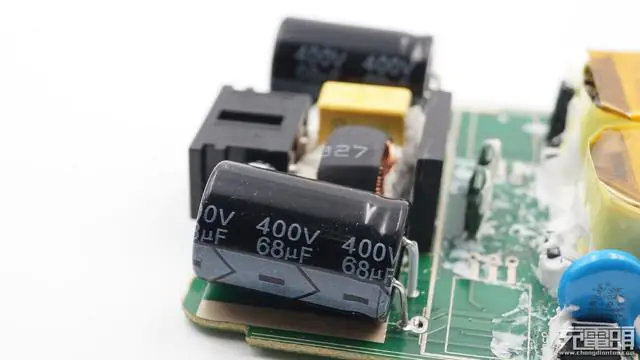

The two main capacitors have the same specification.

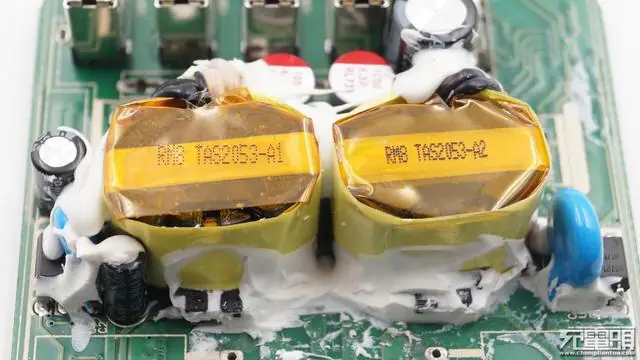

Two transformers
Two transformers

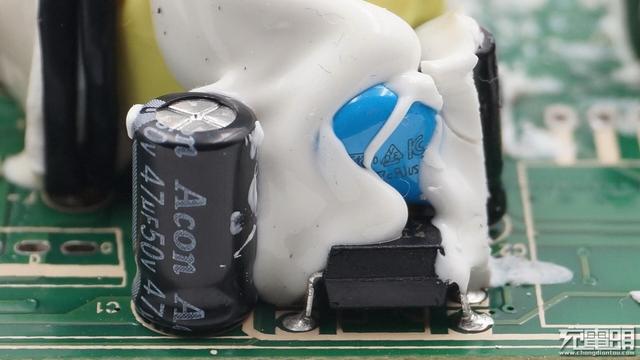

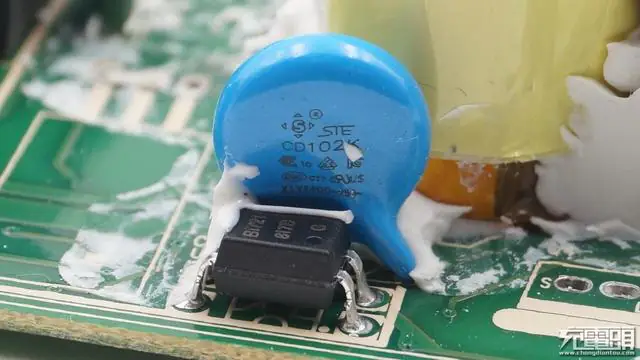

blue anti-interference capacitor
blue anti-interference capacitor
There are two blue anti-interference capacitors.
USB socket

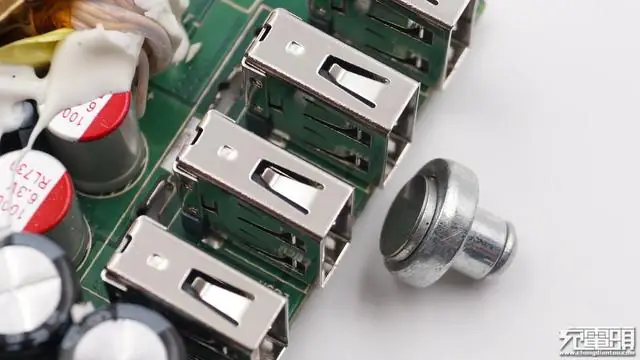

Four USB sockets

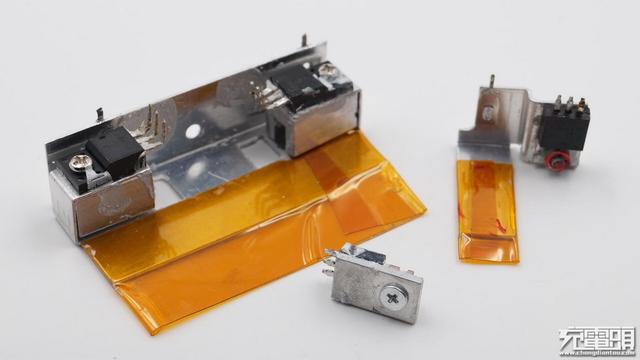

Remove the pipe
Remove the pipe with thermal foils. The biggest thermal foils are two PWM MOS.
JCS7N65FB
JCS7N65FB.

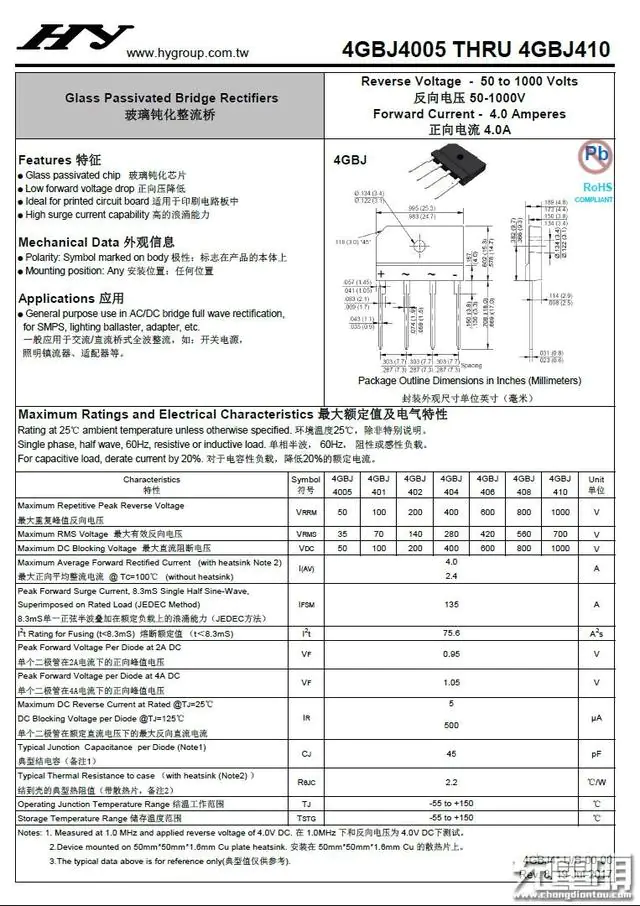

HY GBJ410
Two PWM MOS share the same bridge rectifier- HY GBJ410.

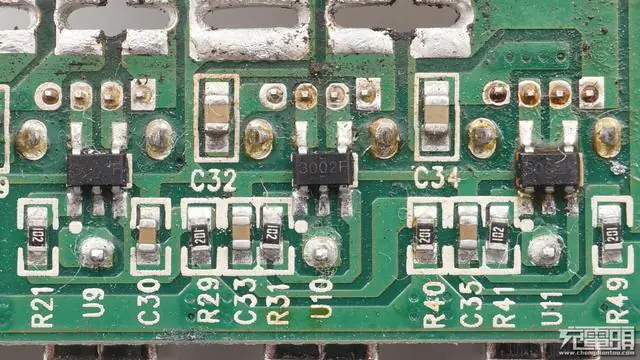

CW3002F

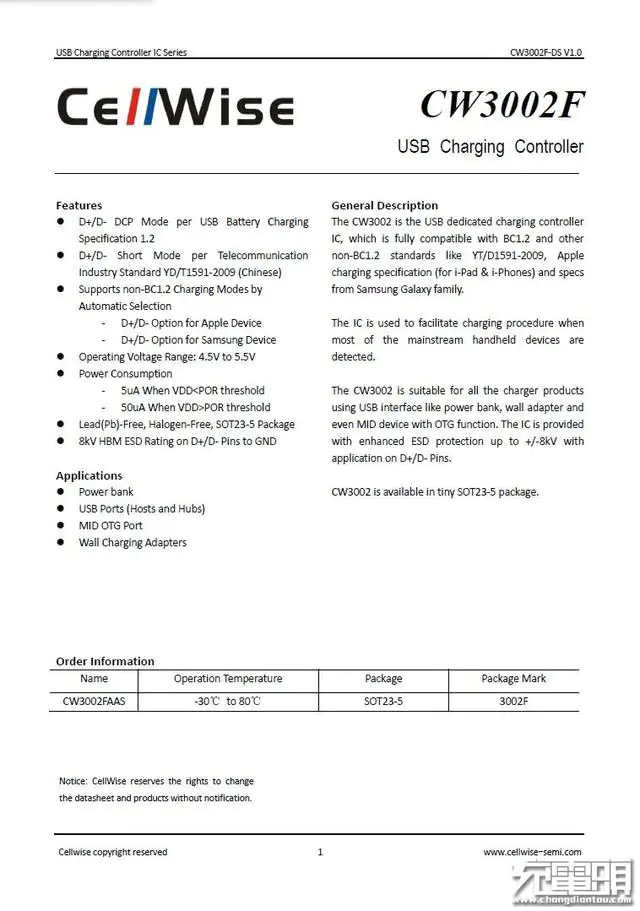

It is the USB intelligent sensor IC- cellwise-semi CW3002F.
CW3002F

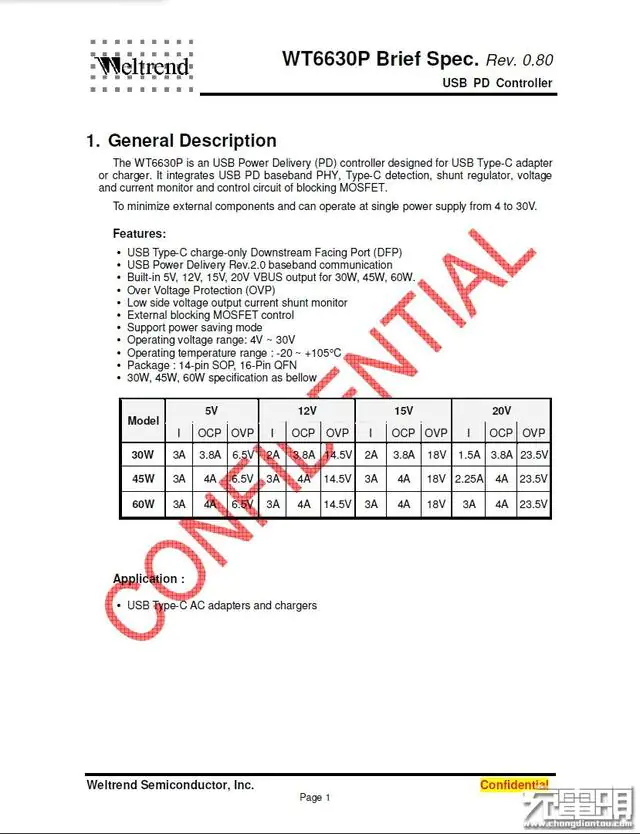

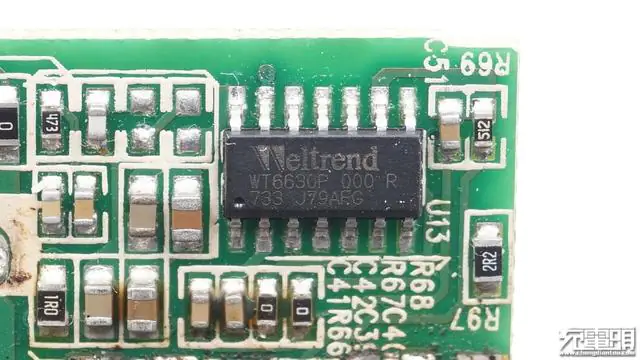

It is the PD output controller- Weltrend WT6630p.
Weltrend WT6630p
Weltrend WT6630p
NCE01H11

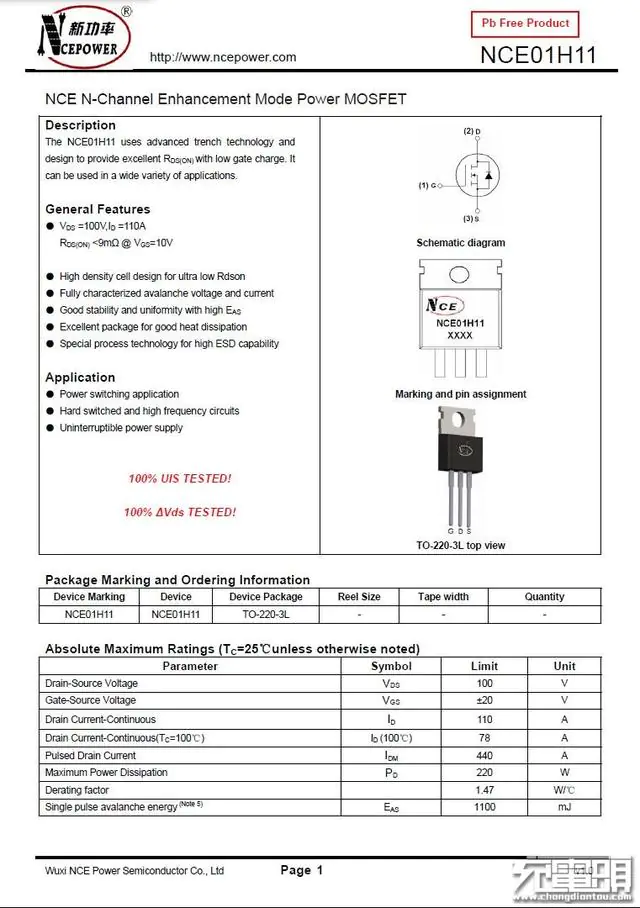

PD output synchronous rectifier MOS. NCE01H11.
NCE01H11

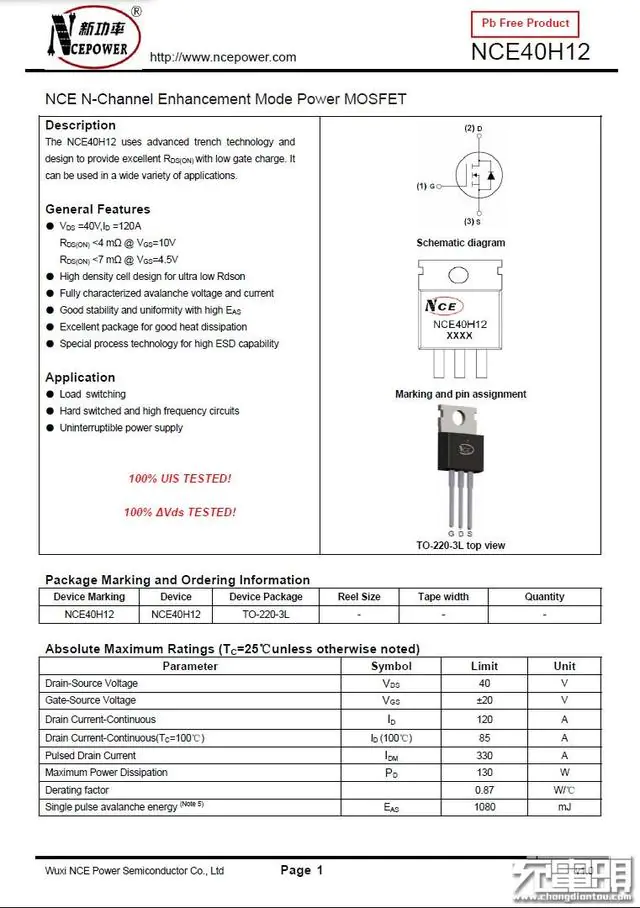

NCE40A12
USB output synchronous rectifier MOS. NCE40A12.
NCE40A12

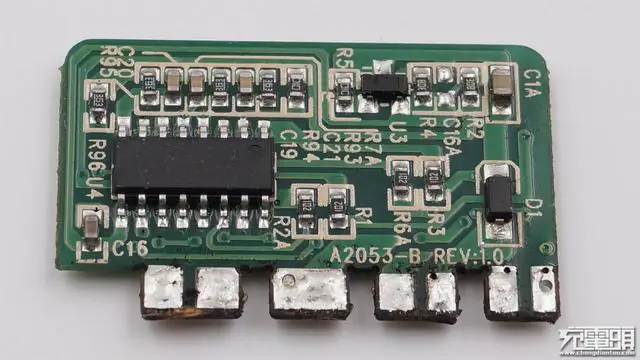

daughterboard
daughterboard

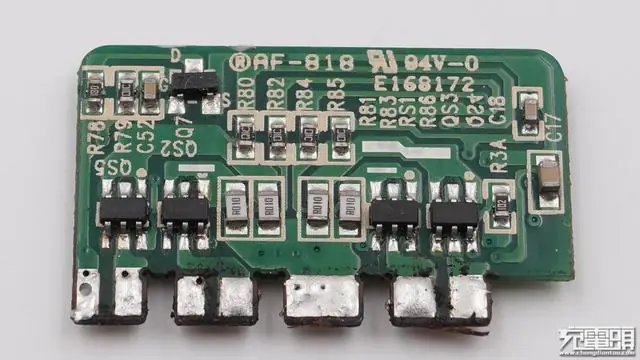

The USB output protects two sides of the daughterboard.

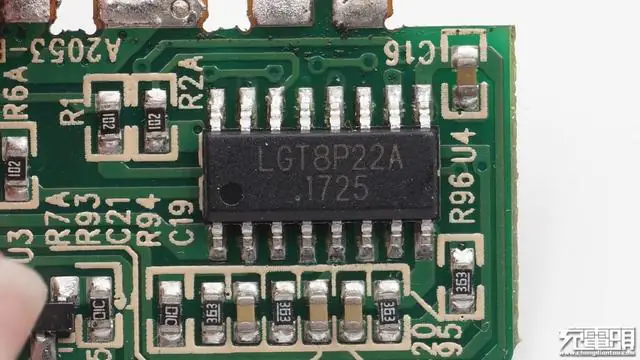

LGT8P22A
It is a single chip – LGT8P22A.

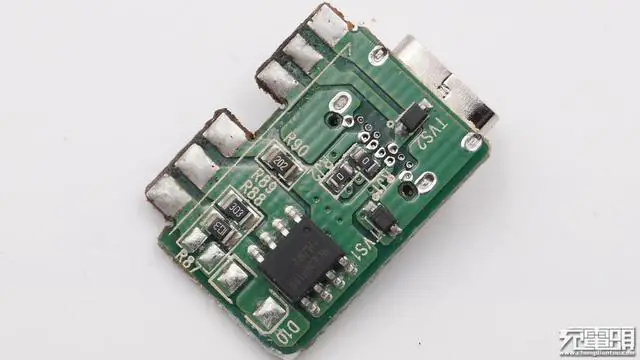

USB Type-C port’s daughterboard
USB Type-C port’s daughterboard

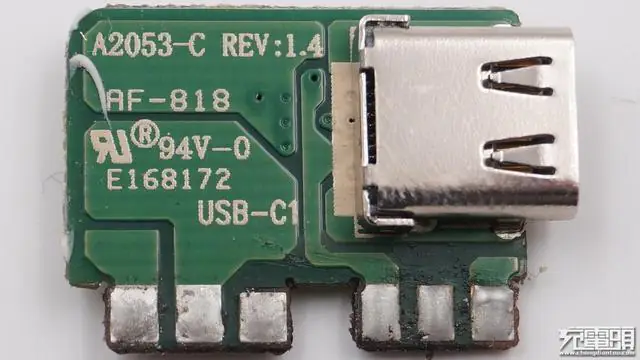

Two sides of the USB Type-C port’s daughterboard.

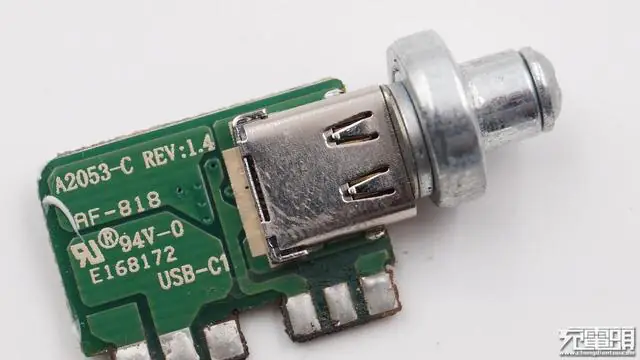

USB Type-C socket
USB Type-C socket

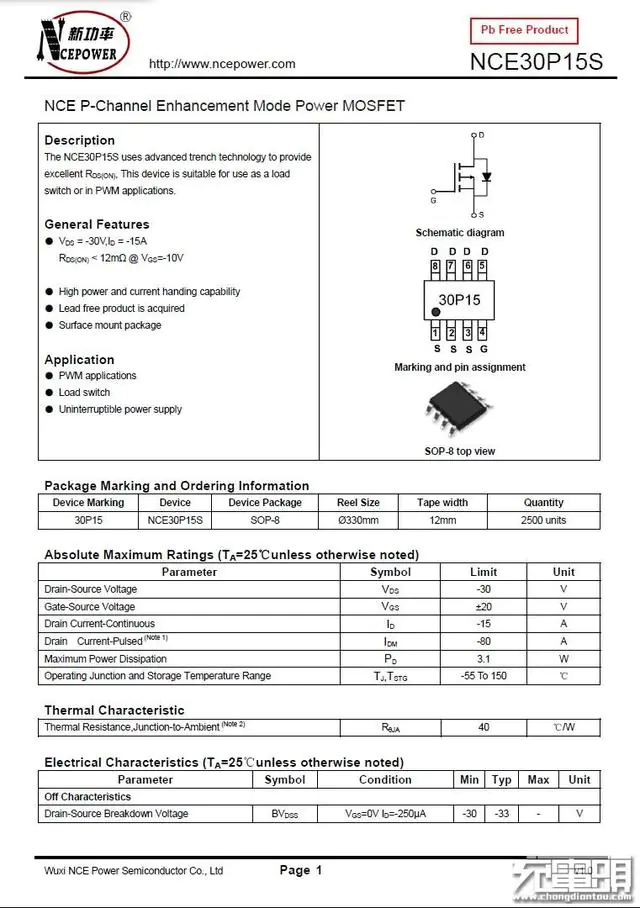

NCE30P15S

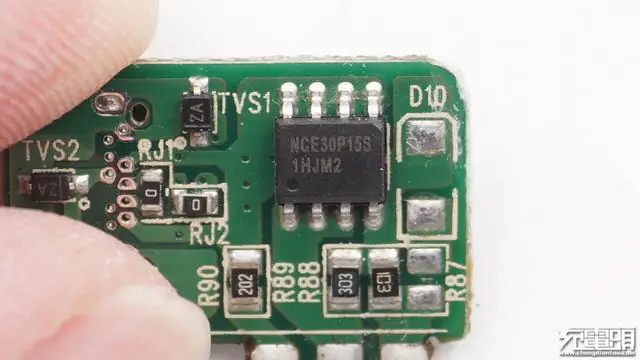

The USB Type-C output protects MOS. NCE30P15S.
NCE30P15S

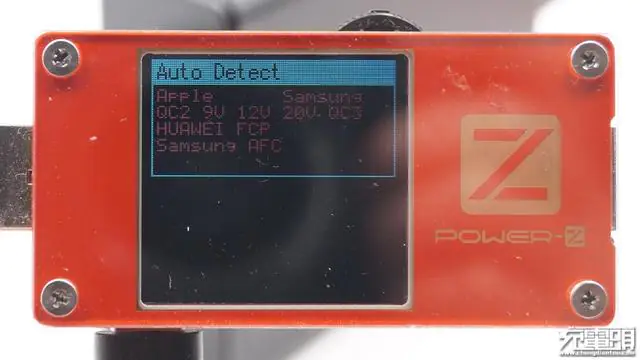

USB port
After using the Power-Z to start the fast charge mode, we found that four USB ports only support Apple BC1.2.
maximum current

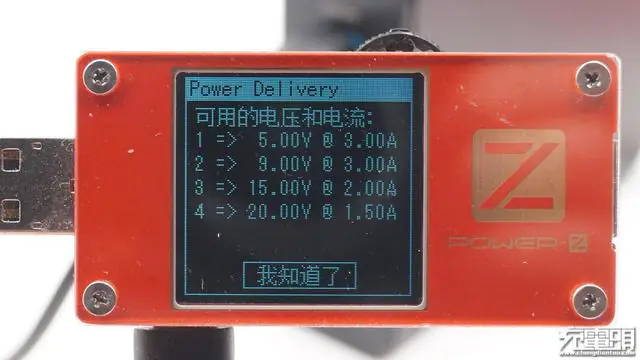

Use the Power-Z to start the USB Type-C port’s PD mode, and the results show the maximum currents that different voltage supports under the PD mode. The results are the same as the specifications on the package.
Type C port
Use the Power-Z to start fast charge mode, and we find that the USB Type C port doesn’t support popular fast charge modes.
