Dell G16 7630 Review (Core i9-13900HX, RTX 4070)

Today, we’ll be reviewing the Dell G16 7630, which is a new addition to the Dell G series. This laptop is powered by an Intel Core i9-13900HX processor, NVIDIA RTX 4070 graphics, 16GB of DDR5 RAM, and a 1TB PCIe 4.0 SSD, making it a powerful performer. It also comes with a 16-inch 2.5K display and supports a 240Hz refresh rate for an exceptional gaming experience.

Specifications

Screen 16″ QHD+ (2560 x 1600) 240Hz, 3ms, 100% DCI-P3, ComfortView+, G-SYNC
Processor Intel Core i9-13900HX (36 MB cache, 24 cores, 32 threads, up to 5.40 GHz)
Wireless Connection Intel Wi-Fi 6 AX201, 2×2, 802.11ax wireless card, Bluetooth
Graphics card NVIDIA GeForce RTX 4070, 8 GB GDDR6
Memory 16 GB: 2 x 8 GB, DDR5, 4800 Mhz
Storage 1 TB, M.2, PCIe NVMe, SSD
Camera 720p at 30 fps HD RGB camera, dual-array microphones
Ports 1x 3.5 mm headset port
1x RJ45 port
3x USB Type-A 3.2 Gen 1 ports
1x HDMI 2.1 port
1x Thunderbolt 4 port
Battery 6-Cell, 86Wh, 330W AC adapter
OS Windows 11 Home, Windows 11 Pro
Weight 6.3 lb (2.87 kg)

Design

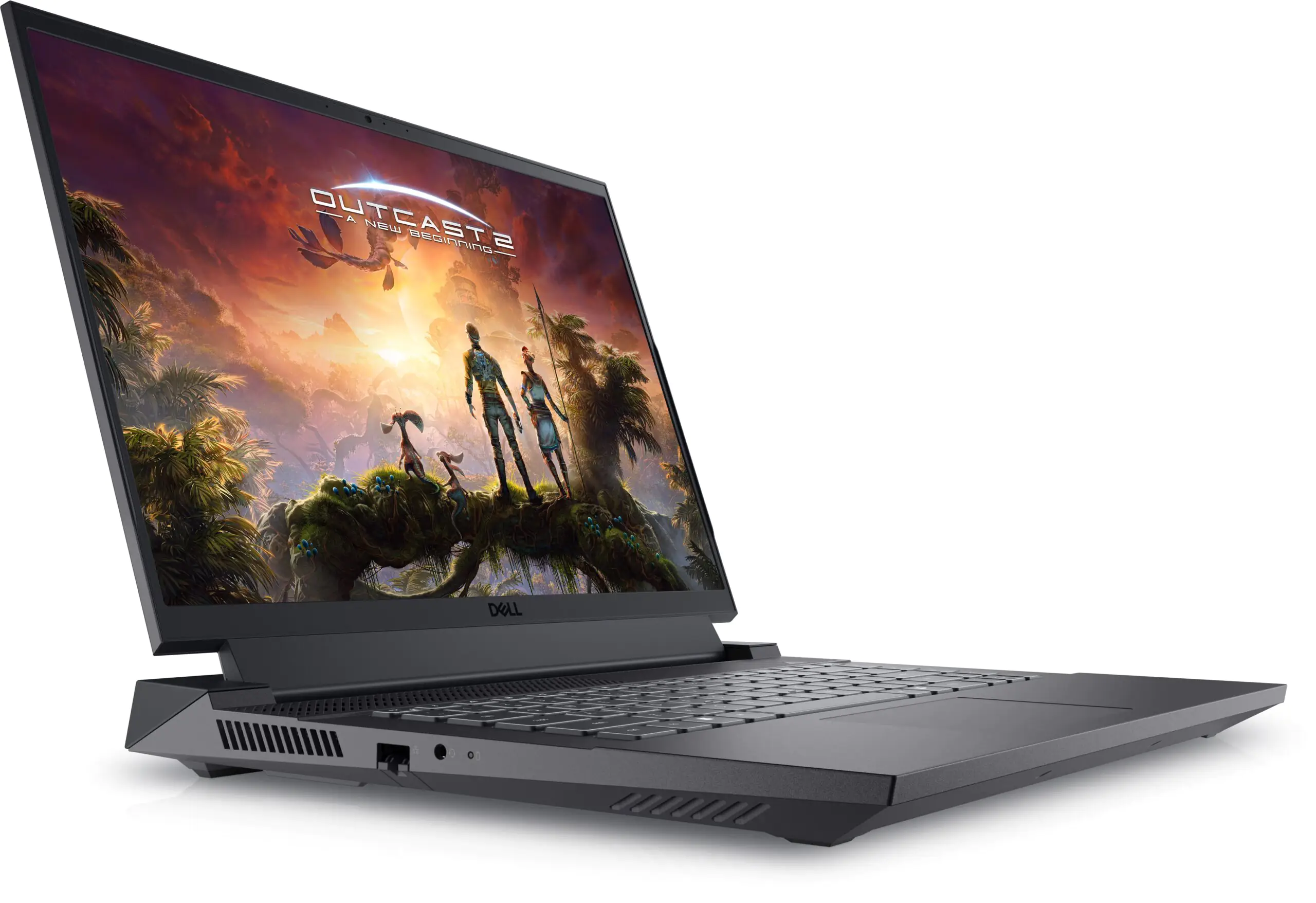

Dell G16 7630 Body
Image Credit: Dell

The laptop has a distinctive G logo on the left side, indicating that it is part of Dell’s G series. Upon opening the laptop, users are greeted with a wide 16-inch display with plastic bezels. Both the left and right bezels are very narrow, while the top and bottom bezels are slightly wider.

The dimensions of this notebook are 357 x 288.7 x 25.65 mm, and it weighs around 2.87 kg. The Dell G16 7630 is available in two different colors: black and white. The model under review comes in black. Both colors are attractive, and how to choose them depends mainly on the personal preference of the buyer.

Display

The Dell G16 7630 features a 16-inch IPS display with a 16:10 aspect ratio, 2560 x 1600 resolution, 240Hz refresh rate, and a fast 3ms response time. These display attributes indicate that the laptop can provide a high-end visual experience.

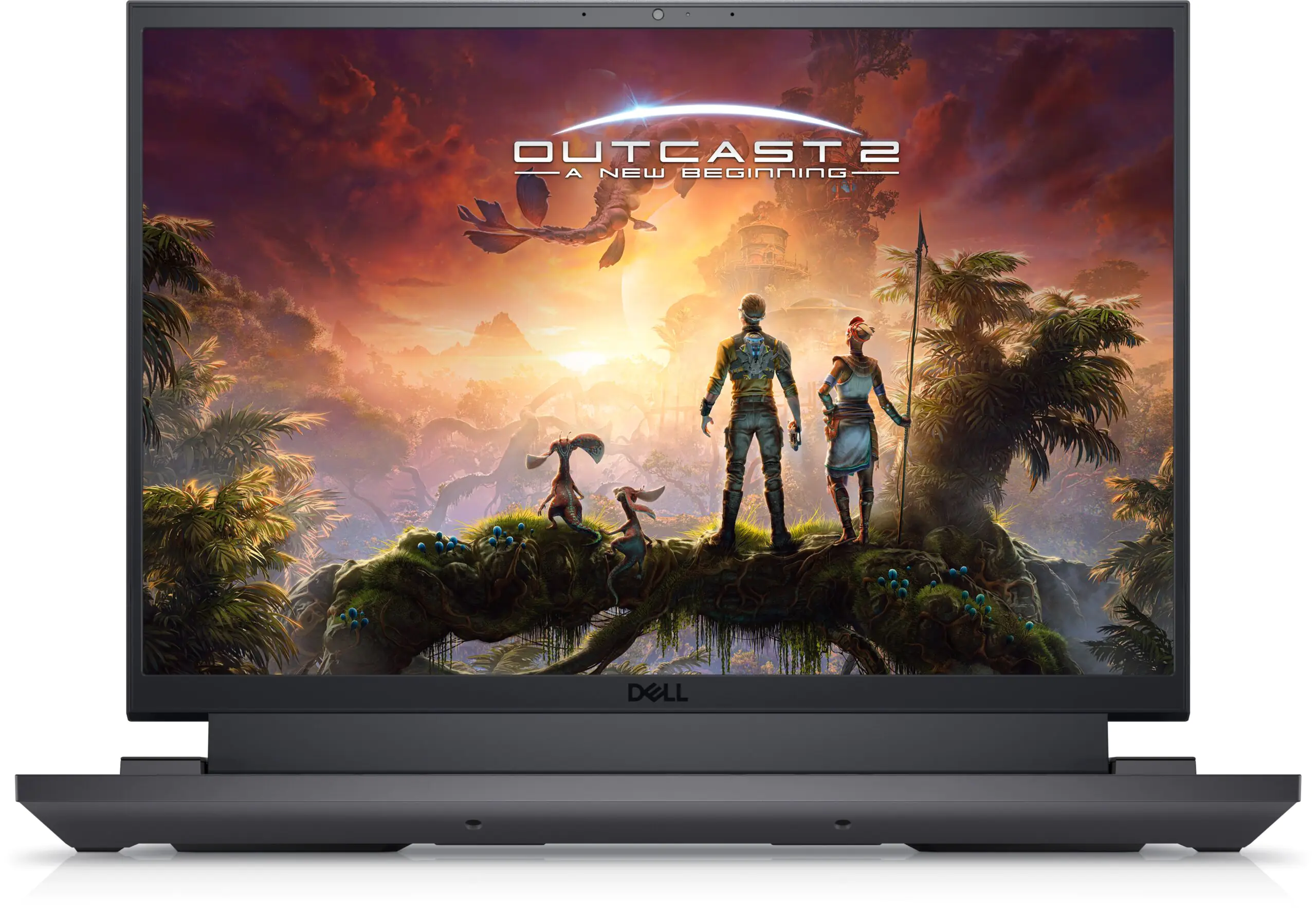

Dell G16 7630 Display
Image Credit: Dell

The laptop also boasts ComfortView+ and NVIDIA G-Sync certifications. The ComfortView+ certification is a testament to the laptop’s hardware-level anti-blue light filtering capability, which effectively reduces harmful blue light without causing color distortion or yellowing. It also supports anti-glare technology to ensure a pleasurable and eye-friendly viewing experience for avid gamers.

The one drawback of this screen is its low brightness of 300 nits. This gaming laptop alone is designed primarily for indoor use, where this level of brightness is usually sufficient.

We tested this screen with Spyder X. The results show that the performance of this screen is impressive, with full coverage of 100% of the sRGB color gamut, 90% of the AdobeRGB color gamut, and 99% of the DCI-P3 color gamut. It has an average Delta E of 1.12, a minimum of 0.24, and a maximum of 1.87. Such a wide color gamut ensures color accuracy in everyday use, resulting in a more immersive visual experience. It also meets the needs of image and video editing, making it ideal for professional graphic designers.

Screen Test Results

sRGB 100%
Adobe RGB 90%
DCI-P3 99%
Maximum Brightness 300nits
Average Delta E 1.12
Minimum Delta E 0.24
Maximum Delta E 1.87



The upper bezel of the display also features an RGB webcam that is capable of recording video smoothly at 720p resolution and 30 frames per second. The upper bezel also integrates dual array microphones to ensure a great experience for video conferencing and online interactions.

Keyboard and TouchPad

The Dell G16 7630 comes with a 1-zone RGB backlit keyboard. This full-size keyboard has a very comfortable key pitch and also includes full-size arrow keys. If you look closely, you’ll see that the keyboard is a Cherry MX mechanical keyboard, which is also used in Dell Alienware and Dell G series products.

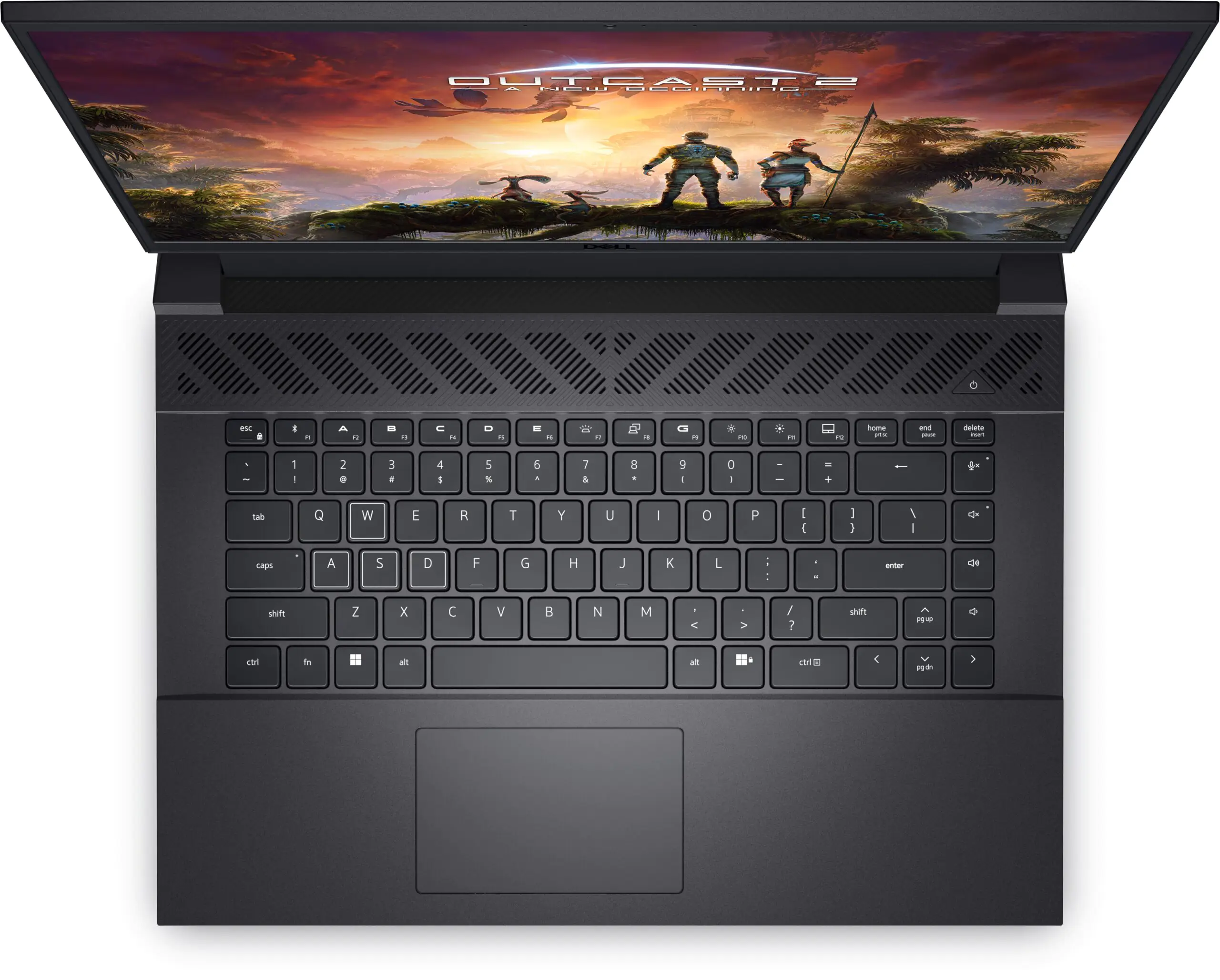

Dell G16 7630 Keyboard
Image Credit: Dell

The keyboard has a key travel of 1.8 mm. After a long period of use, the typing experience is very comfortable, and the crisp sound when pressing the keys is also satisfying.

The keyboard of the Dell G16 7630 also offers RGB adjustable backlighting. Users can adjust the backlight color to create unique lighting effects. A standout feature of the keyboard is the F9 button, which also serves as the Game Shift macro key. When activated, the key boosts the fan speed to its maximum speed, prompting a seamless transition to dynamic performance mode for the CPU. This feature ensures more processing power when facing challenging gaming scenarios or handling CPU-intensive tasks.

The Dell G16 7630 comes with a wide touchpad that enhances the overall navigation experience. The large size of the touchpad facilitates precise and smooth cursor control.

Ports

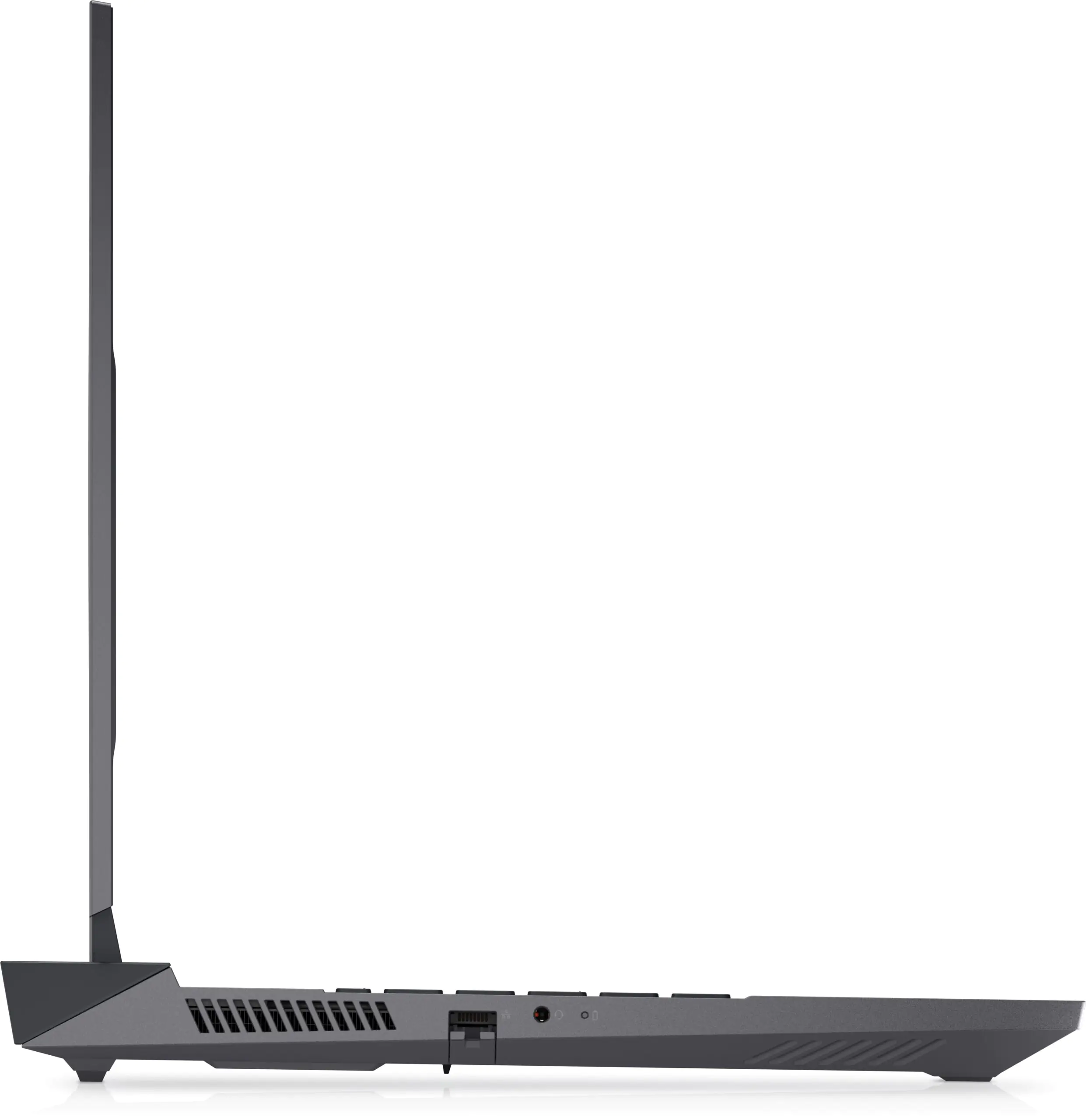

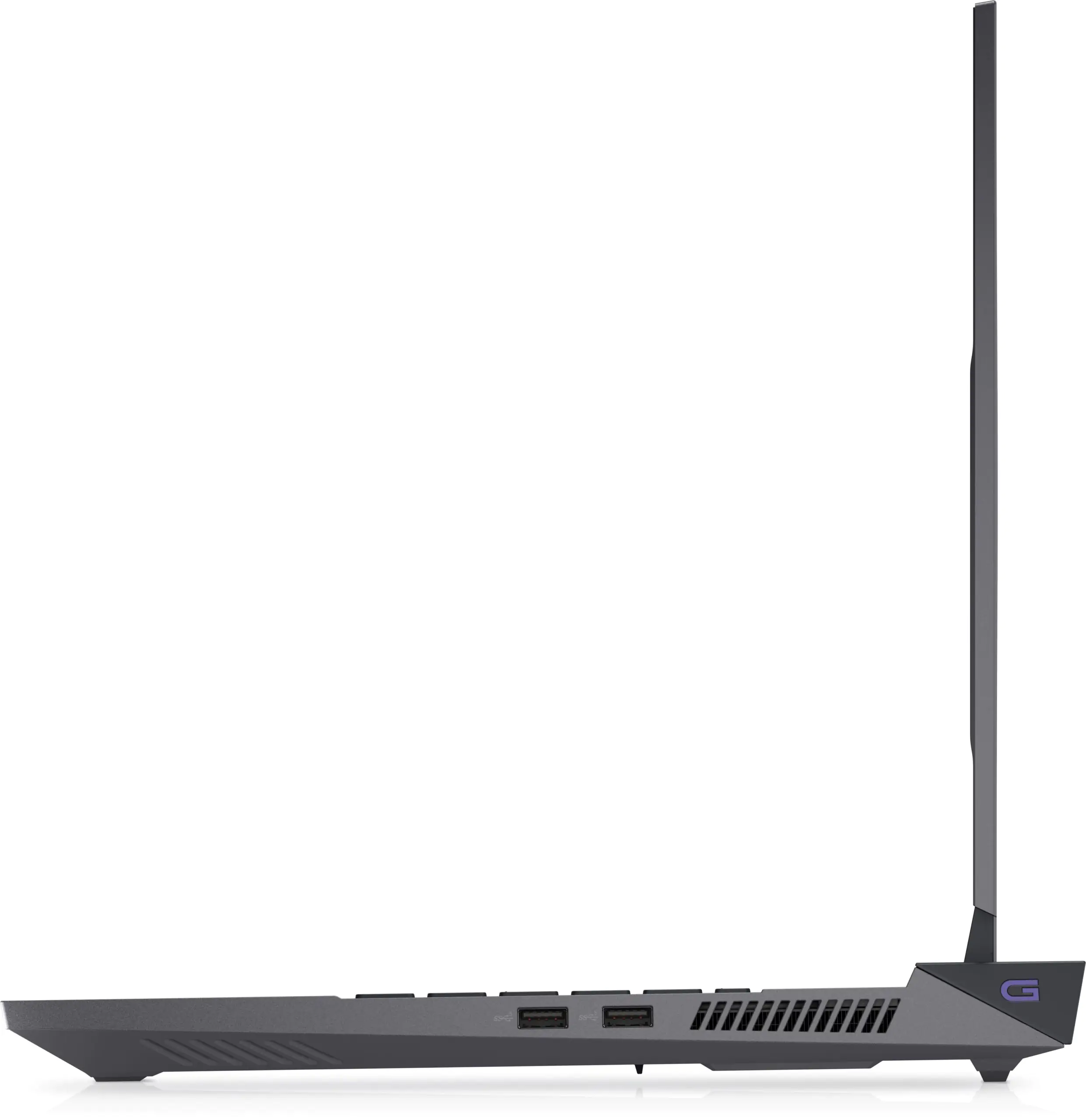

On the right side, the laptop comes with two USB Type-A 3.2 Gen 1 ports. On the back, there is a USB Type-C Thunderbolt 4 port with DisplayPort support, an HDMI 2.1 port, a USB Type-A 3.2 Gen 1 port, and a charging port. On the left side, there is an RJ45 port and a 3.5mm audio jack. These ports ensure compatibility with a wide range of devices.

It’s worth noting that the Thunderbolt 4 Type-C port is exclusive to models with the RTX 4070 graphics. In contrast, models with RTX 4050 and RTX 4060 graphics feature USB Type-C 3.2 Gen 2 ports.

Battery and Charging

The Dell G16 7630 comes with a 6-cell 86Wh battery. The model number of this battery is 69KF2. It is rated at 11.4V and has a capacity of 7,167mAh.

According to the official specifications, the laptop is capable of delivering about 5 hours and 40 minutes of battery life. This official measurement was achieved using the BAPCo MobileMark 2018 battery test application. In our Modern Office test using the PCMark 10 app, we achieved 3 hours and 25 minutes of battery life.

Dell also comes with a 330W AC adapter. This powerful adapter not only ensures continuous power but also speeds up the charging process, providing you with the convenience of faster charging.

RAM and SSD

The model we reviewed has a Core i9-13900HX CPU and 16GB of RAM. However, the model in this review comes with 16GB of RAM. The 16GB memory is dual-channel DDR5 memory consisting of two 8GB memory modules.

After removing the back cover, you can see that this laptop has two RAM slots, but the maximum supported memory capacity is still not specified. In our memory tests using the AIDA64 cache and memory benchmarks, we achieved impressive results: read speeds of 71,247 MB/s and a latency of 92.4 ns.

The Dell G16 7630 comes with a 1TB PCIe 4.0 SSD manufactured by SK Hynix. Such a storage capacity should be enough for general usage, and the laptop offers an additional slot for SSD upgrades that can increase the storage capacity.

In SSD performance tests using CrystalDiskMark, we obtained the following results: a sequential write speed of 5,039.72 MB/s, a sequential read speed of 4,701.98 MB/s, a random write speed of 588.76 MB/s, and a random read speed of 555.15 MB/s.

CPU Benchmark

The Dell G16 7630 is available with two processor options: the first is the Core i7-13650HX, and the second is the Core i9-13900HX. The model with the Core i7 processor is less expensive, while the model we reviewed (with the Core i9 processor) is quite expensive. With 8 high-performance cores and 16 energy-efficient cores, this processor delivers a total of 32 threads for superior multi-core performance. It also comes with 36MB of L3 cache, which further enhances performance. The CPU benchmark results are as follows:

Cinebench R15: 4,529 multi-core score

Cinebench R20: 813 pts on single-core and 11,135 pts on multi-core

Cinebench R23: 2,099 pts on single-core and 25,598 pts on multi-core

GPU Benchmark

In addition to the Intel Core i9-13900HX processor, this notebook also comes with RTX 4070 graphics. The Dell G16 offers other graphics card options, including the RTX 4050 and RTX 4060, which are also more affordable when paired with the Core i7-13650HX processor.

This graphics card uses an advanced 5nm manufacturing process and comes with 8GB of GDDR6 video memory with a 128-bit bus width. The GPU operates at 1395MHz and can be dynamically boosted to 1695MHz. For more details on GPU performance, see the benchmark results.

3DMark Time Spy: 12,157 GPU score and 12,231 total core

3DMark Fire Strike: 30,007 GPU score and 25,191 total score

RTX 4070 (in Dell G16 7630) vs RTX 4060 Comparison
RTX 4070 RTX 4060
3DMark Time Spy 12,157 12,231
3DMark Fire Strike 30,007 25,191

Gaming Test

During the playtesting phase, we selected two AAA games, and the benchmark results are as follows.

League of Legends: At 2.5K resolution, the Dell G16 7630 averaged a staggering 236fps, ensuring a smooth gaming experience.

The Witcher 3: With ray tracing enabled, the average frame rate of the laptop remains at 64fps. When DLSS3 is enabled, frame rates can reach 90-100fps. This technology enhances gaming performance by providing visual fidelity and smoothness.

These results highlight the laptop’s superior performance in handling high-load games, as well as the added benefits of a high-end processor.

Heat Dissipation and Stress Testing

The Dell G16 7630 features an advanced cooling system. The cooling system comes with four heat pipes and two cooling fans. It also features Vapor Chamber and Element 31 materials, which work together to ensure efficient cooling performance.

Compared to traditional heat pipes, the Vapor Chamber significantly increases the heat exchange area and enhances heat dissipation efficiency. The addition of liquid metal further improves heat conduction and plays a crucial role in reducing core temperatures. Users can press the G key (F9) to activate G mode and unleash higher thermal performance.

In preparation for the joint testing of the CPU and GPU, we measured their respective maximum power consumption. The CPU has a peak power consumption of 115W, and the GPU has a peak power consumption of 140W.

Dual Stress Test: In the dual stress test, we used G mode for best performance, and we observed a stable power consumption of 195W. The room temperature of the test environment is maintained at 27.5°C. After nearly 30 minutes of rigorous testing, the temperature of the laptop reached 46.4°C, which is the highest temperature around the laptop’s air vents. This result highlights the laptop’s efficient heat dissipation capabilities, ensuring effective thermal management even under demanding conditions.

Summary

The Dell G16 7630 features a Core i9-13900HX processor and RTX 4070 GPU to meet the needs of all types of users. Its 16-inch 2.5K display, Cherry MX mechanical keyboard, and ports make it suitable for gamers, students, and professionals. The advanced cooling system keeps it cool even during demanding tasks. It is priced at $2,000, making it an excellent value for money. Although the price of the Dell G16 7630 may seem high, it is still a good value considering its powerful hardware and feature set. For those on a budget, there is also the Core i7-13650HX variant, which is even more affordable at $1,250, providing a compelling option for users looking for a balance of performance and budget.
