Huawei P10 Battery Removal & Replacement

In this guide we are going to show you how to remove and replace the battery on Huawei P10 smartphone. These removal instructions have be made into 6 easy to follow steps. In order to remove the battery, you need to remove the back cover and disconnect the battery connector, main FPC and display cable from the motherboard.

Teardown is what we do! Follow us on Facebook for the latest repair news.

The full teardown of the Huawei P10 can be found here.

Repair Tools Needed:
0.8 pentalobe screwdriver
Phillips #000 Screwdriver
Suction cup
Pick
Spudger
Tweezers
SIM Card Eject Tool

1. Removing the SIM card tray and two Pentalobe screws


First of all, switch off your phone and remove the SIM card tray.

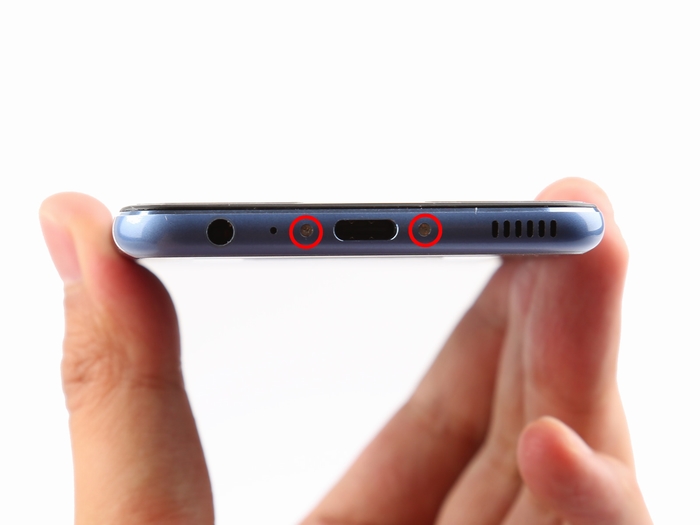

Remove the two Pentalobe screws located at the bottom next to the device’s USB Type-C port.

2. Removing the back cover


Use a suction cup to separate the display unit from the back cover.

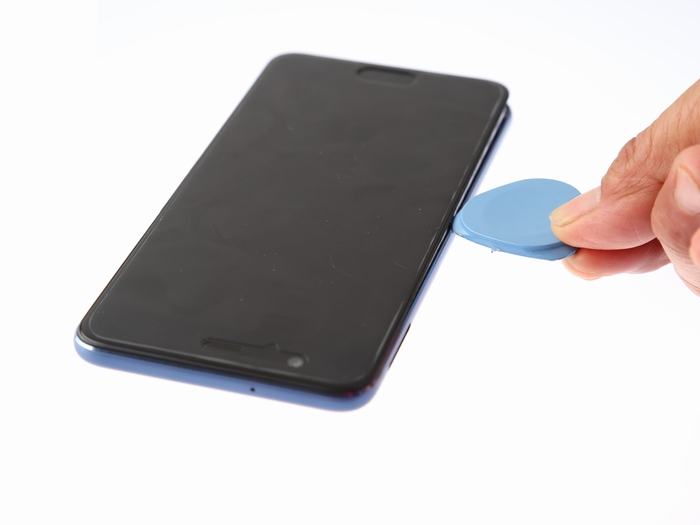

Lift up the display a little bit with a suction cup and insert a pick.

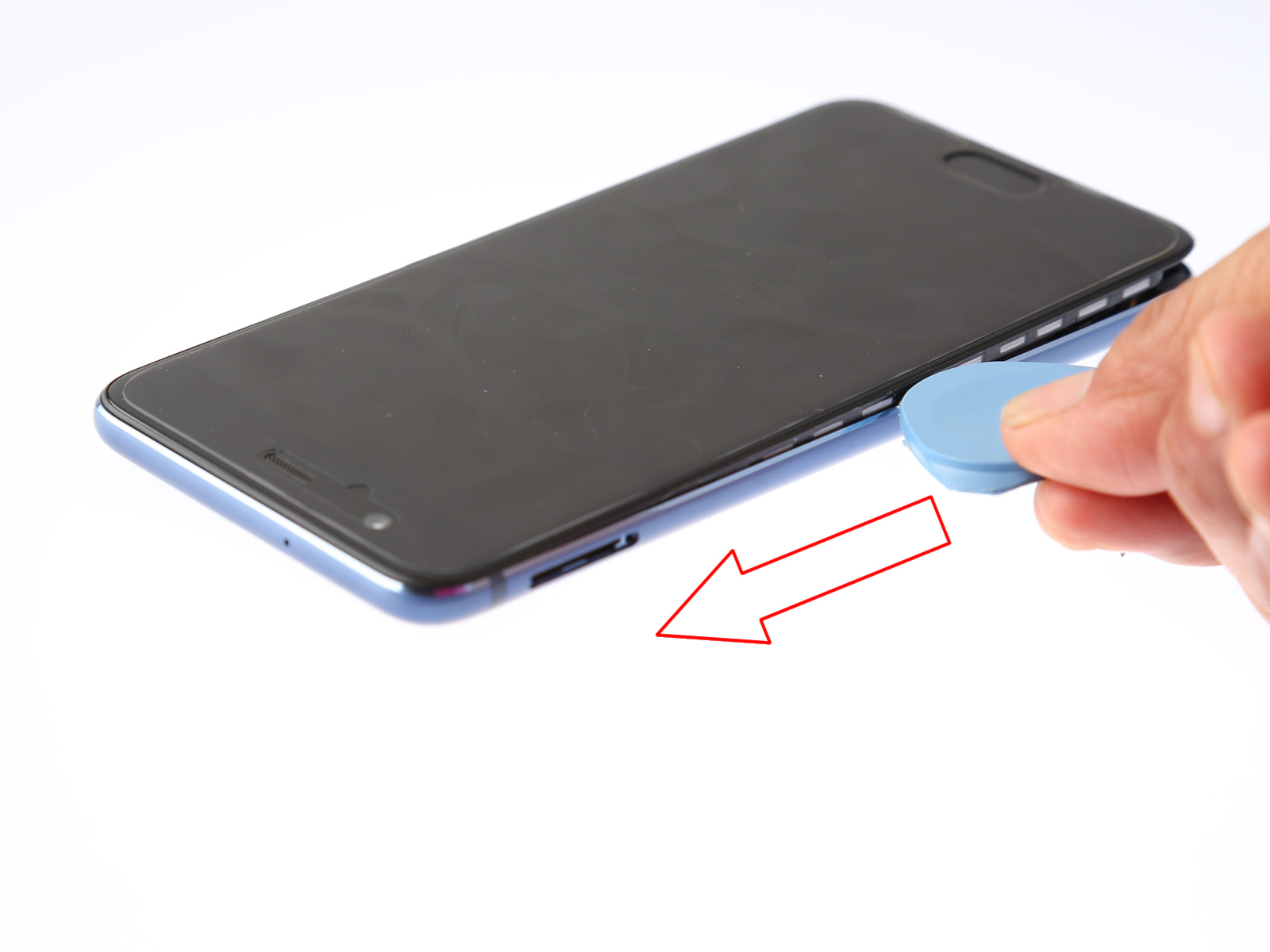

Slide the pick along the display edge on both sides.

Don’t remove the back cover completely yet. The power button and volume button cable is still connected to the motherboard.

3. Disconnect the power button and volume button cable

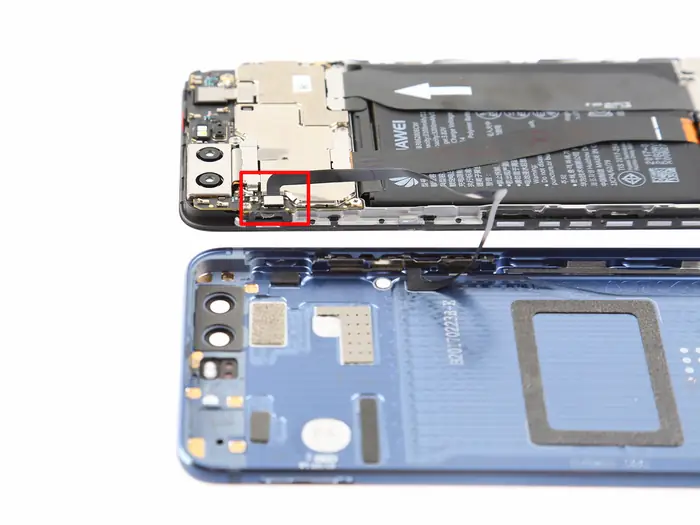

Disconnect the power button and volume button cable using a spudger.

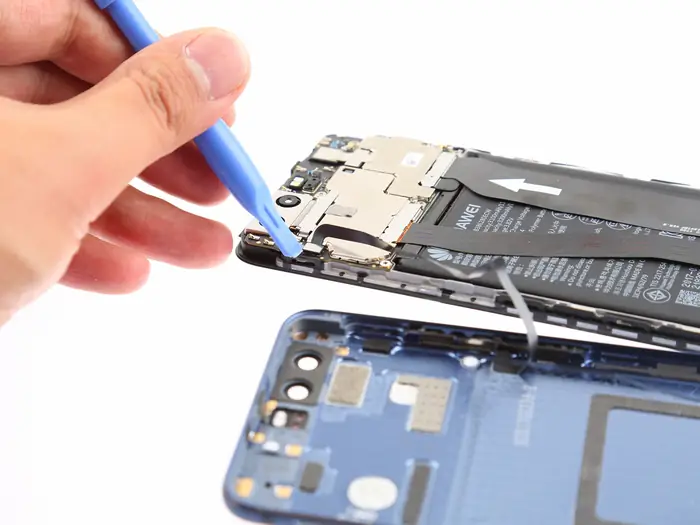

Once the cable disconnected, you can remove the back cover completely.

4. Disconnect the battery connector

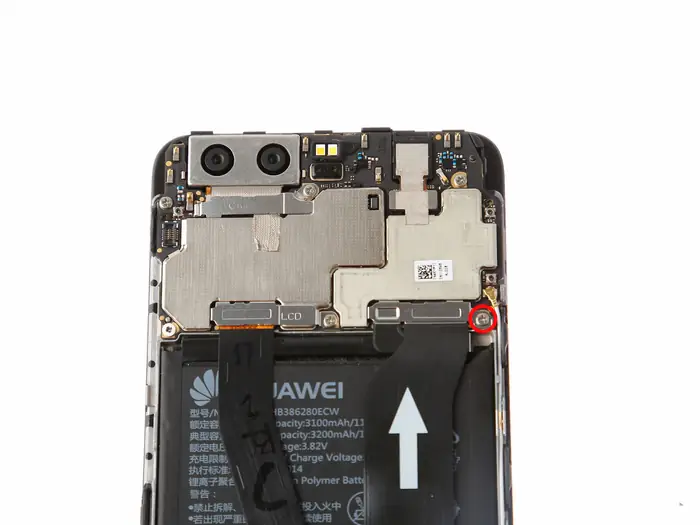

Remove one screw securing the metal sheet.

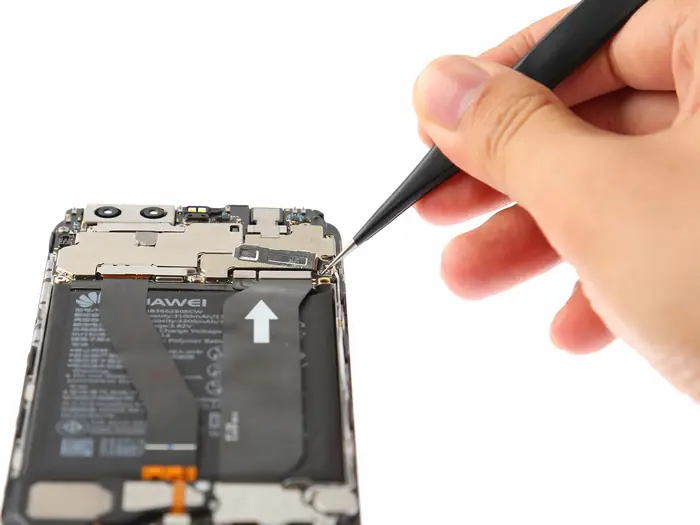

Remove the metal sheet with a tweezers.

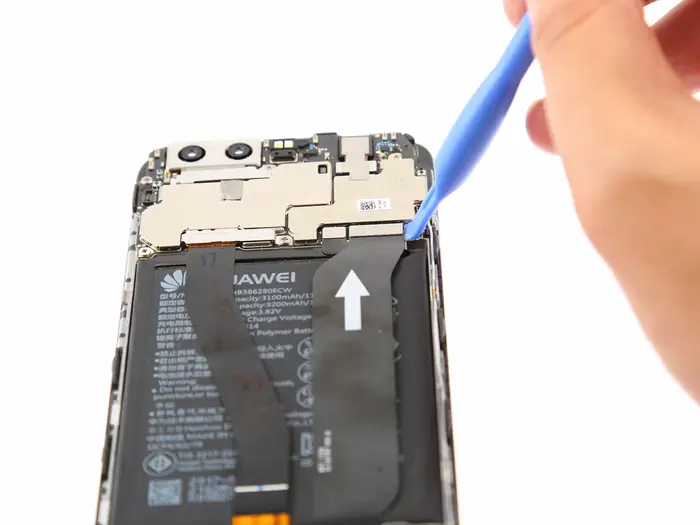

Disconnect the main FPC from the motherboard with a spudger

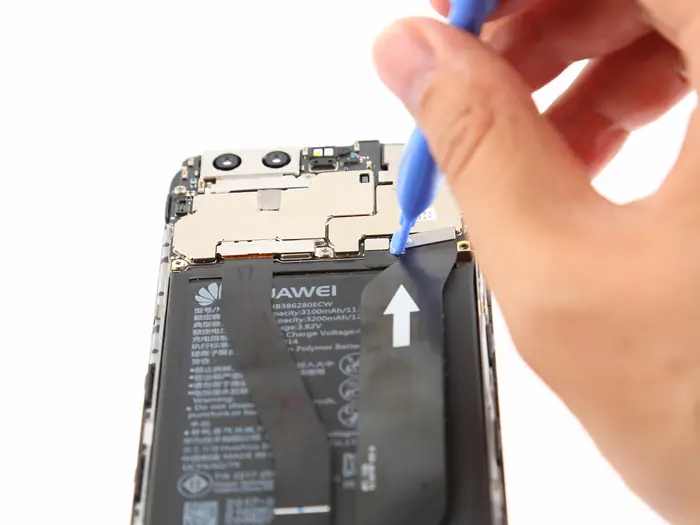

Disconnect the battery connector from the motherboard with a spudger.

5. Disconnect the display cable

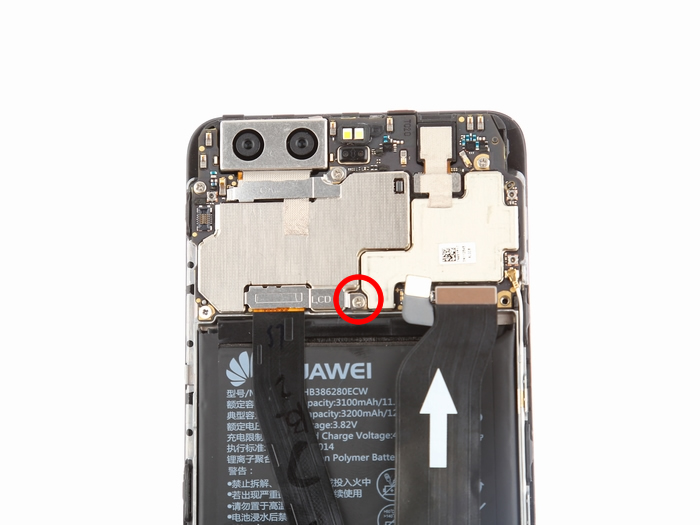

Remove the Phillips #000 screw securing the metal sheet to the midframe.

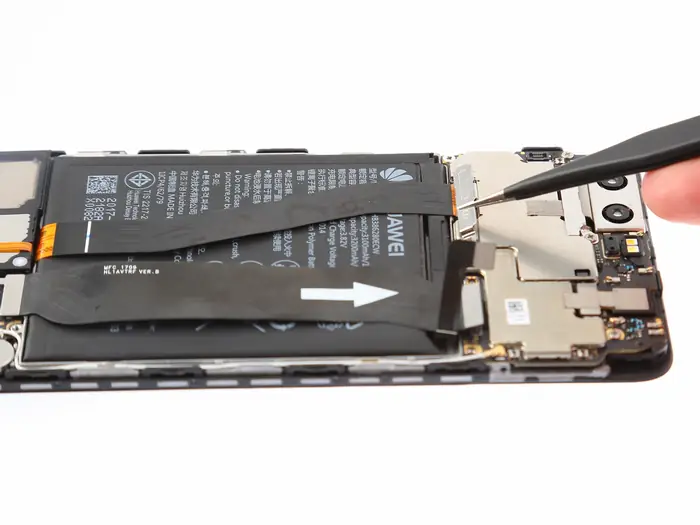

Remove the metal sheet with a tweezers.

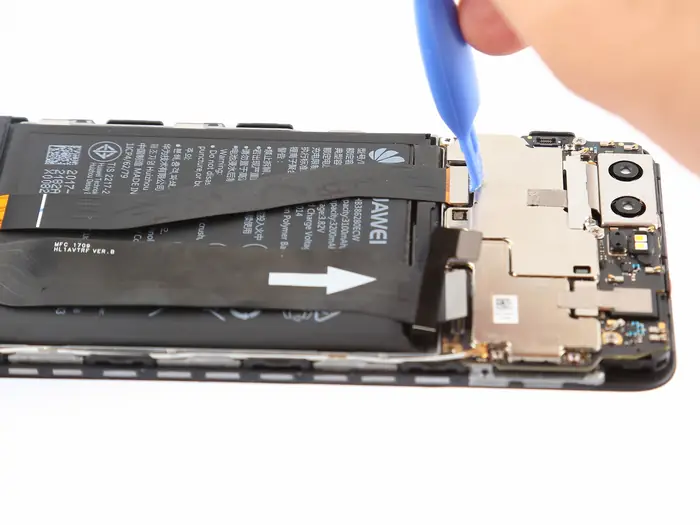

Disconnect the display cable from the motherboard.

6. Removing the battery


Uncover the ends of the adhesive pull tabs to get a good grip on them.

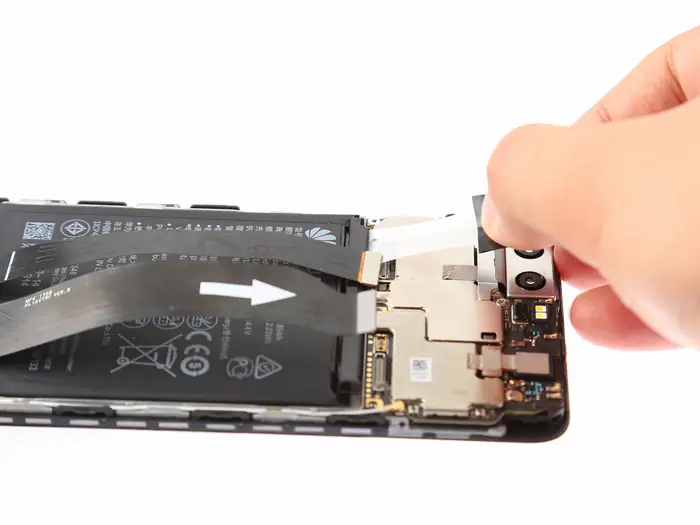

Pull the adhesive tabs in a slow constant movement to free the battery.

There is only one cable running directly underneath the battery.

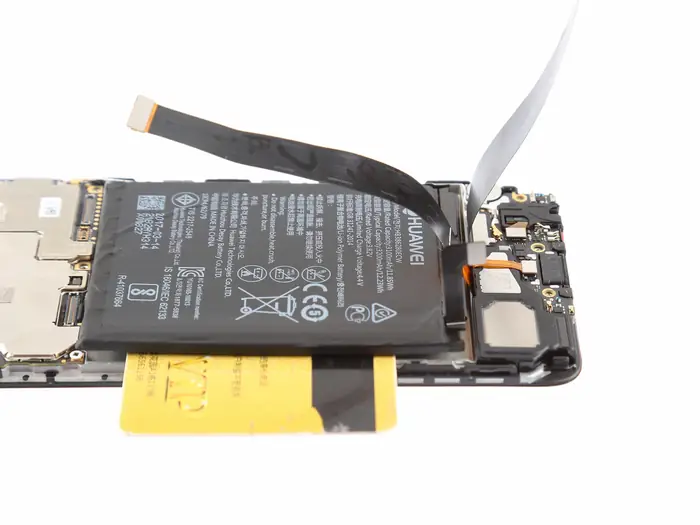

Insert a card under the battery to separate the battery.

On the other side of the battery, there is a double-sided adhesive fixed battery.

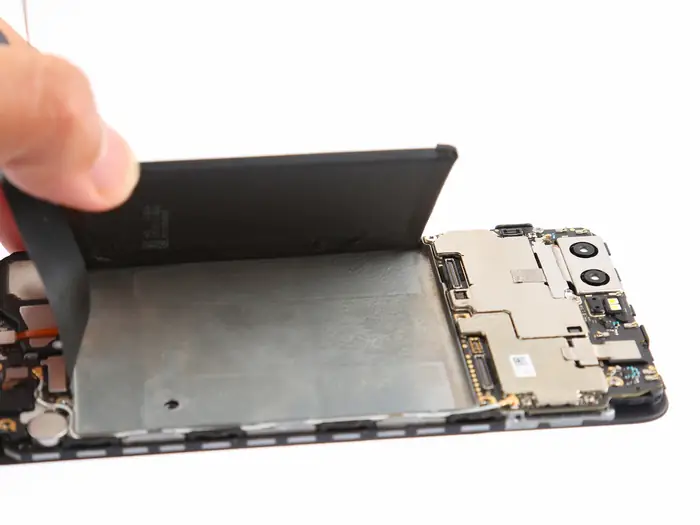

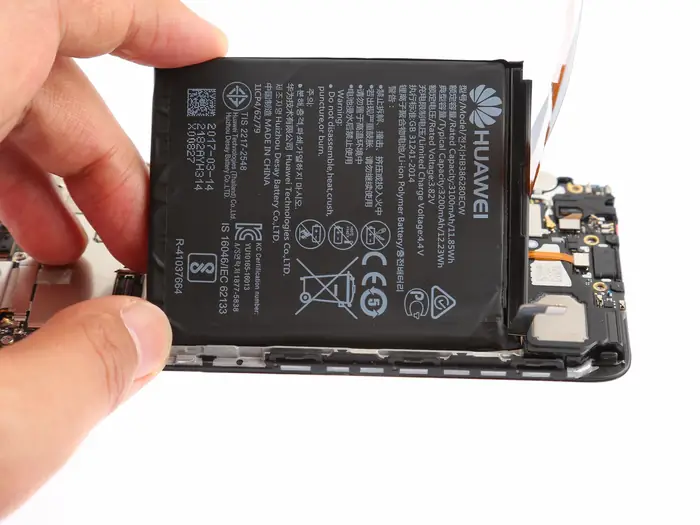

Lift up the battery and remove it.

You can find the full Huawei P10 Teardown here. Other parts replacement tutorial please visit the P10 repair guide category.
