Xiaomi Mi 3 Disassembly

In this guide, I will explain how to disassemble the Xiaomi Mi 3 to remove the back cover, battery, rear camera, front camera, speaker, Power button, screen, and motherboard.

Looking for more funny teardowns? Follow us on Facebook for all the latest repair news.

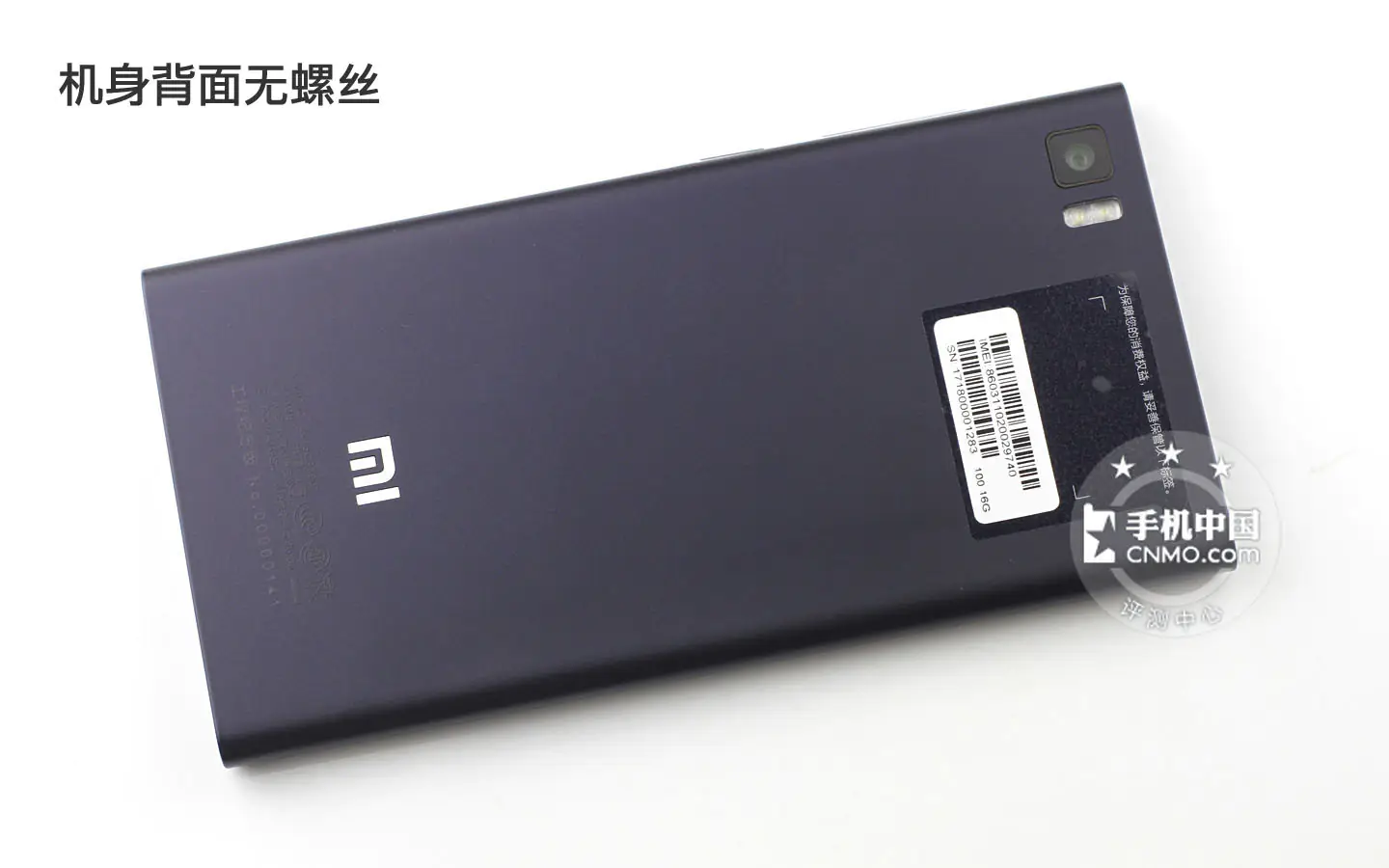

There is no screw on the back cover.
Xiaomi Mi 3

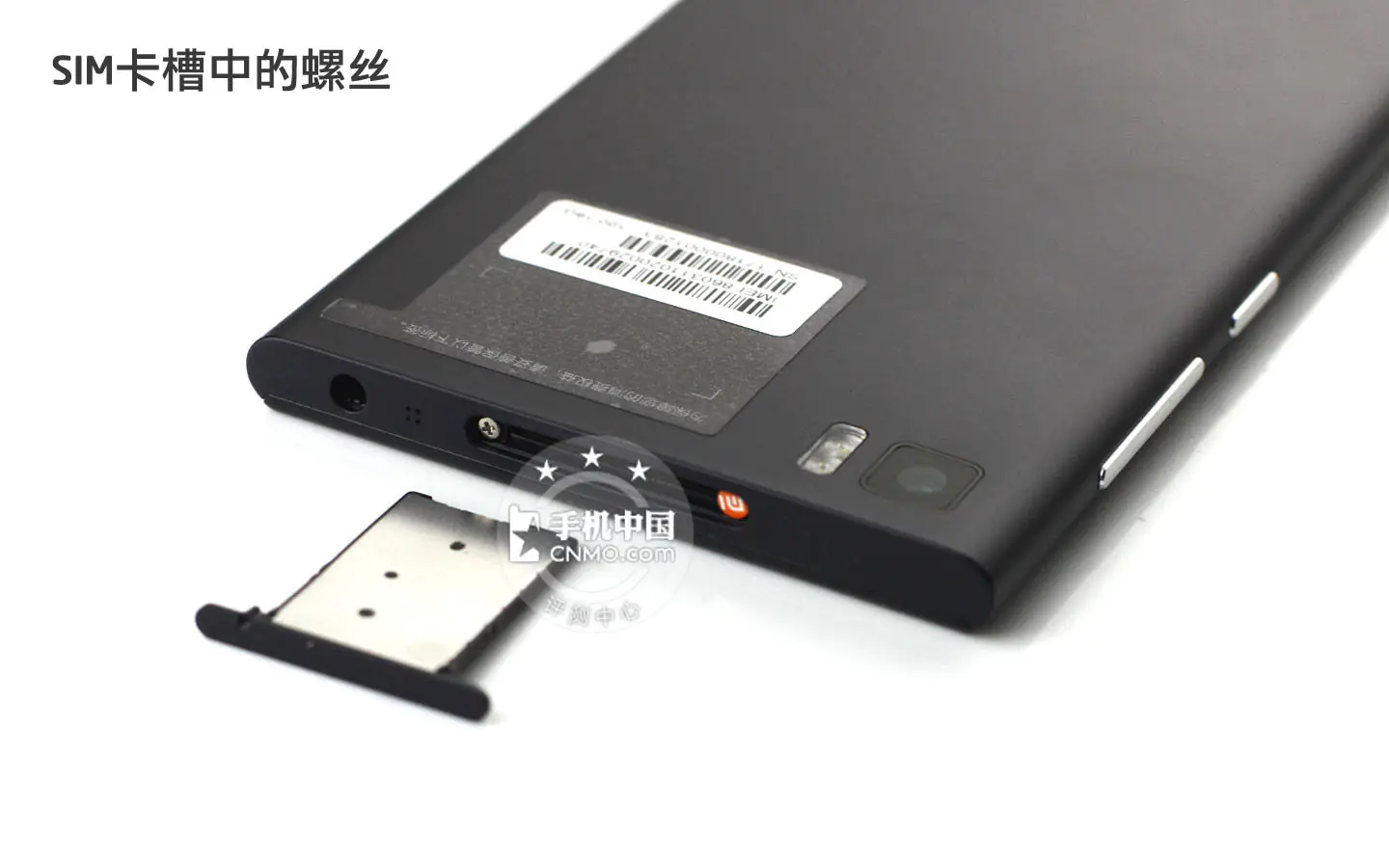

Remove the SIM card. There are two screws on the SIM card slot. Remove two screws. One of the screws is covered with a sticker. If the sticker is damaged, the warranty will be void.
Remove the SIM card

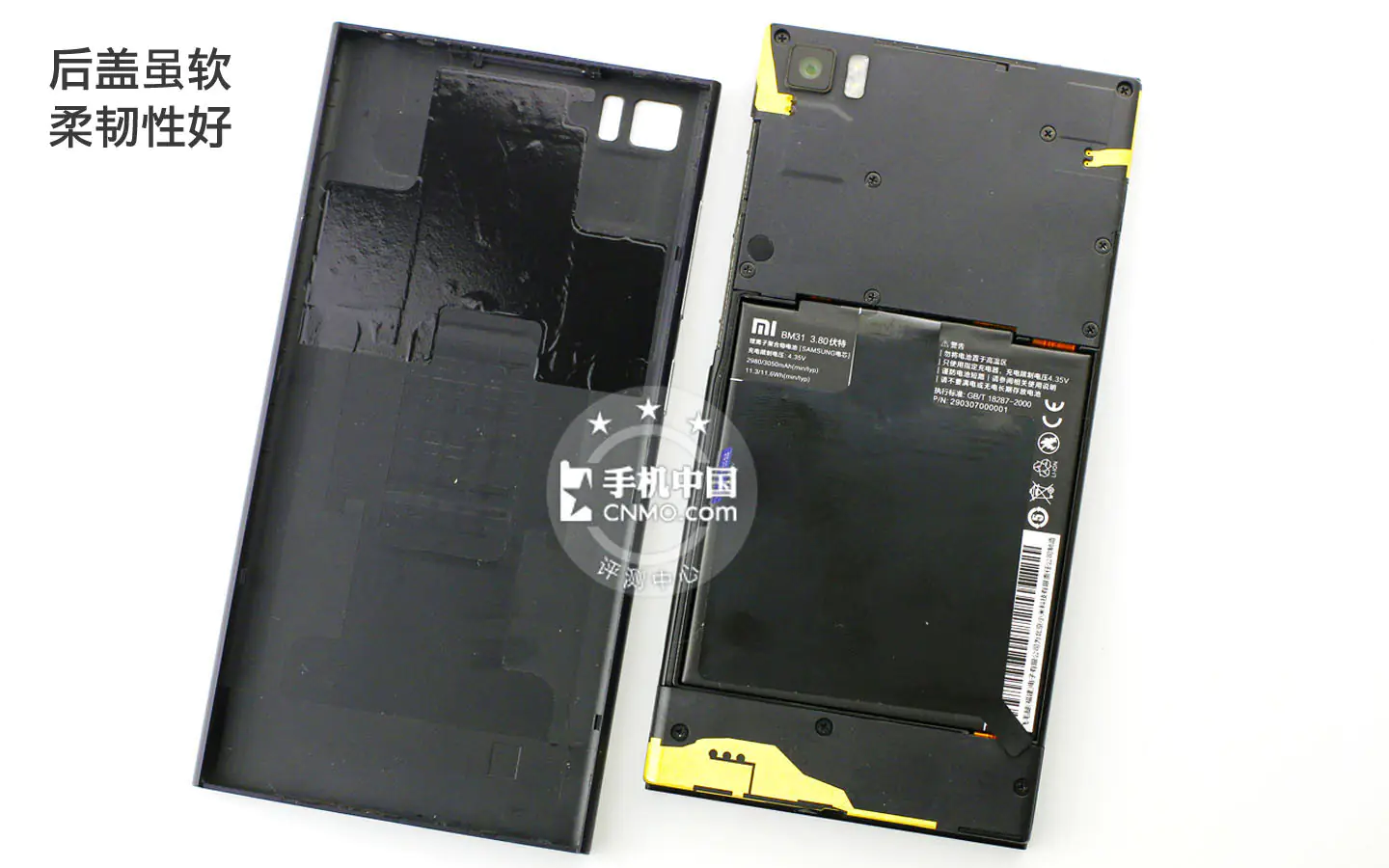

Pry up and remove the back cover.
Remove the back cover

Remove the eleven screws securing the middle frame to the motherboard.
Remove the eleven screws

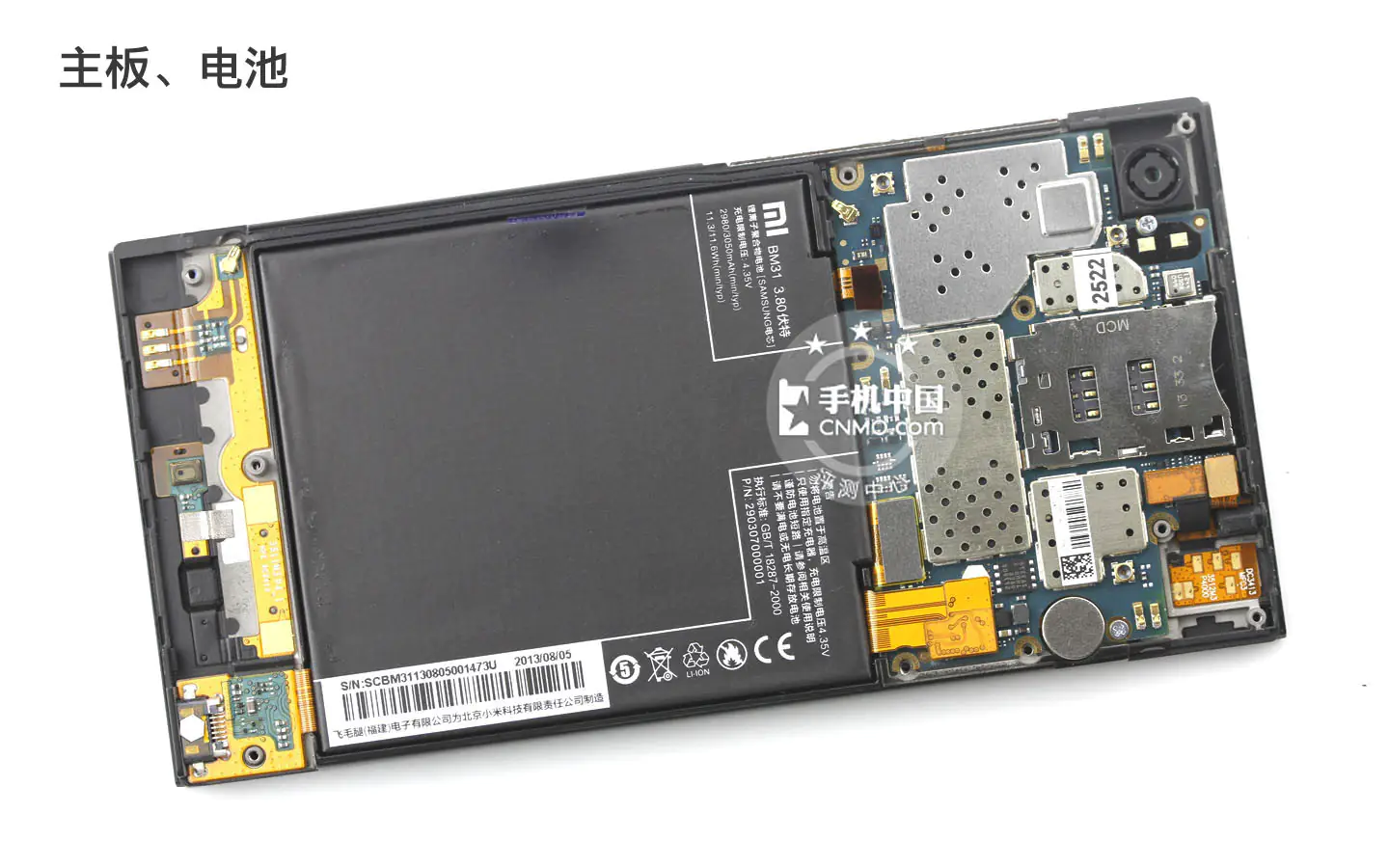

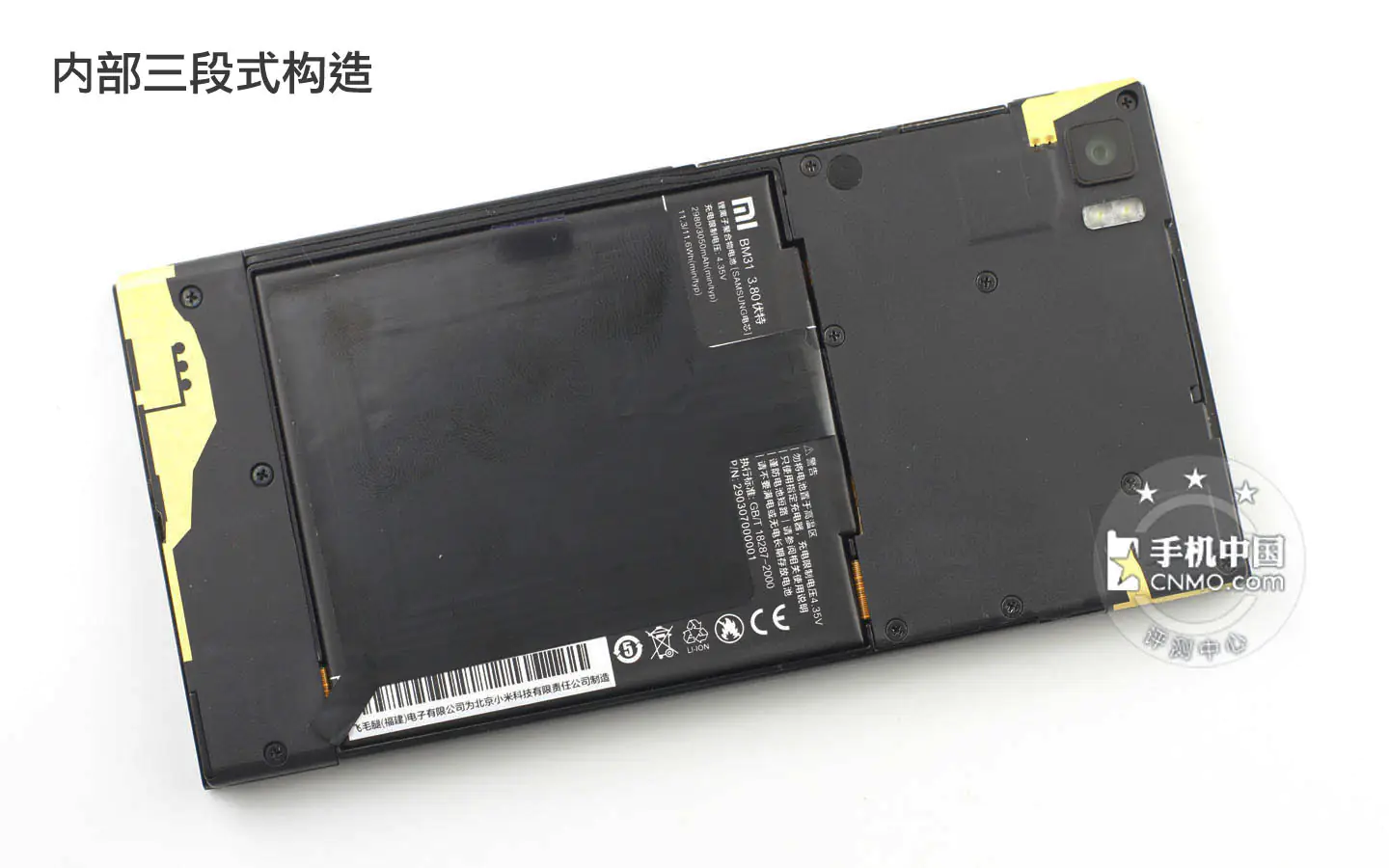

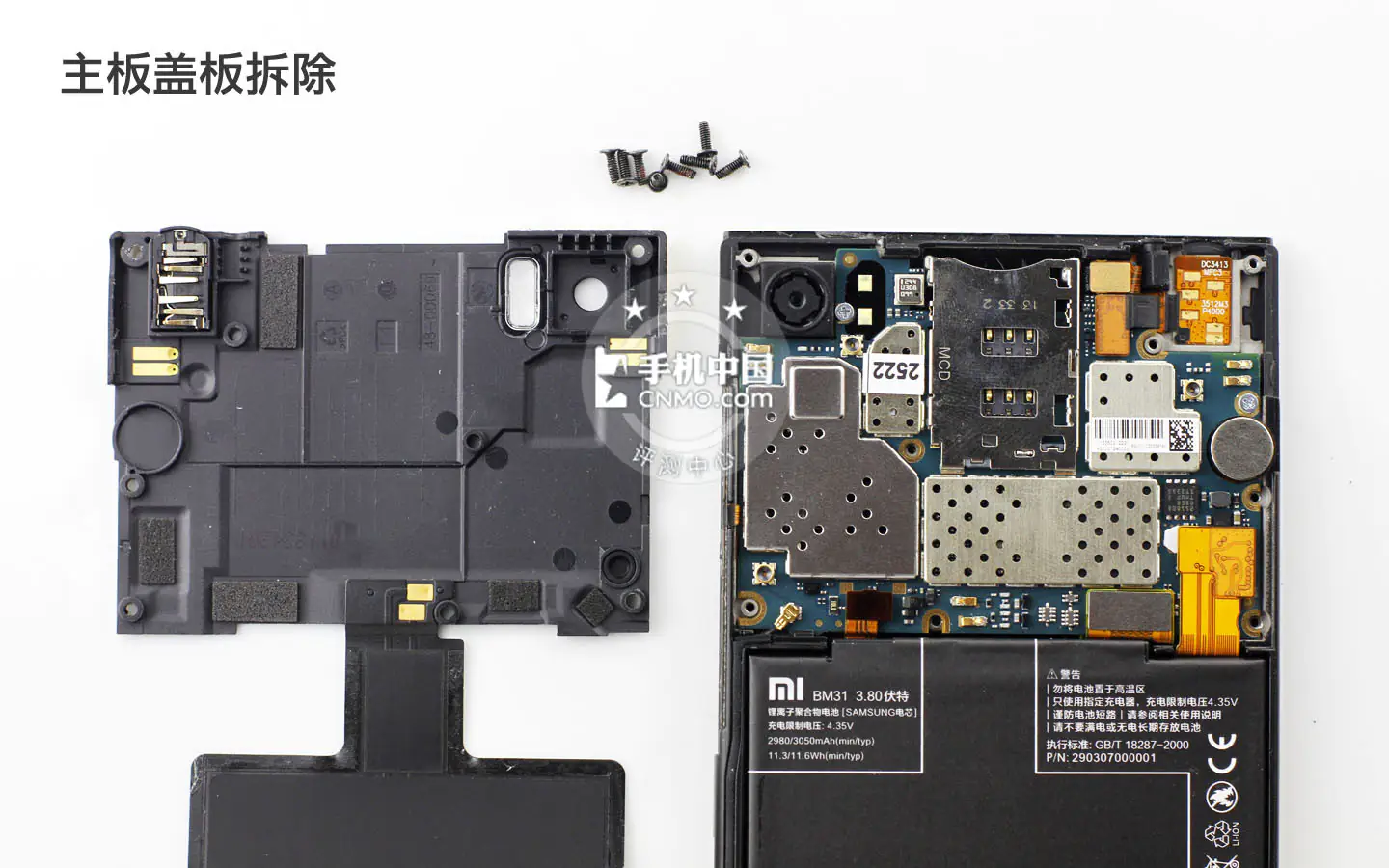

Insert a pry tool under the middle frame. Slide the pry tool to separate the middle frame from the phone. You can access the motherboard and battery.
Separate the middle frame

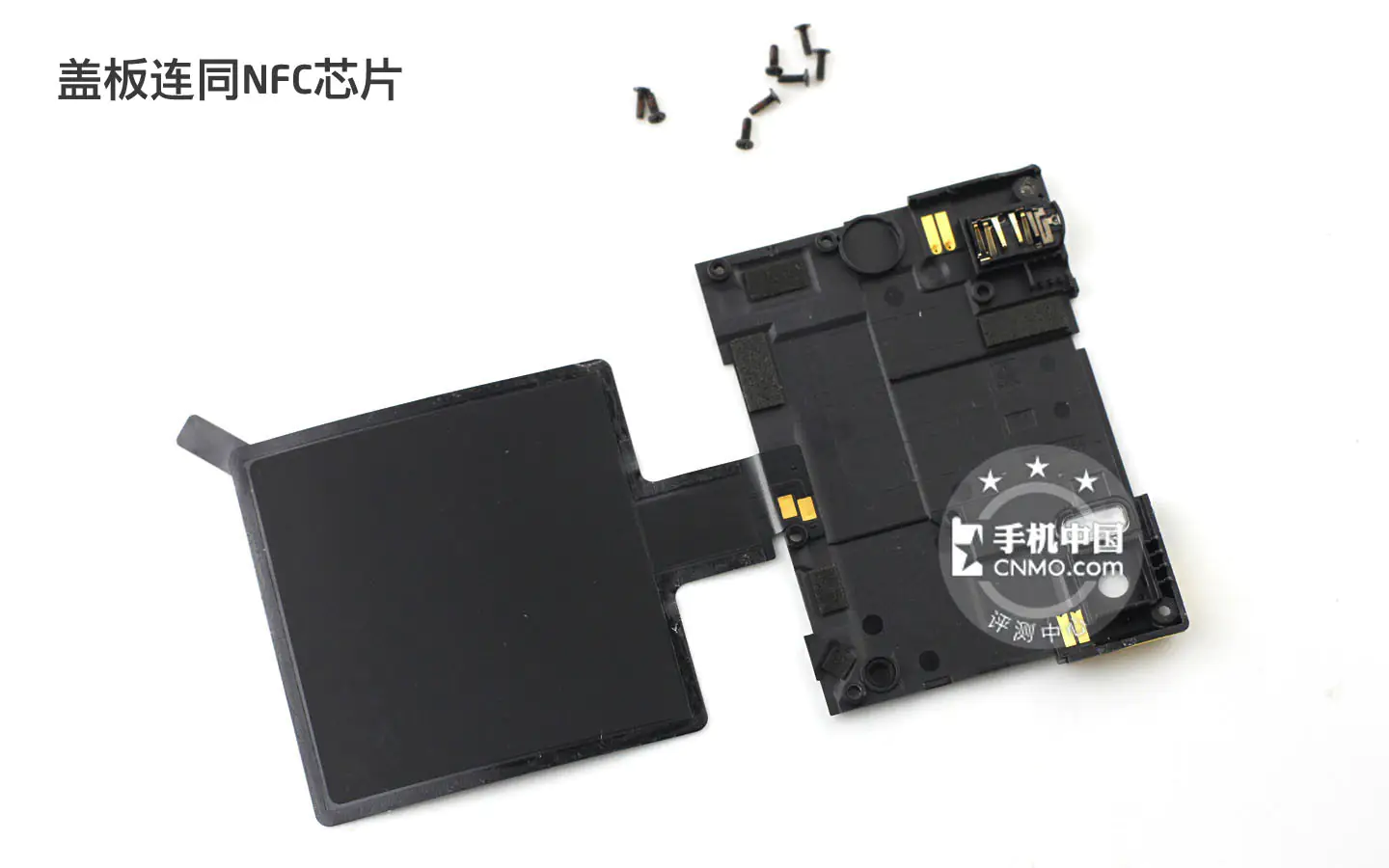

The NFC chip is connected to the middle frame and is covered above the battery.
Middle frame

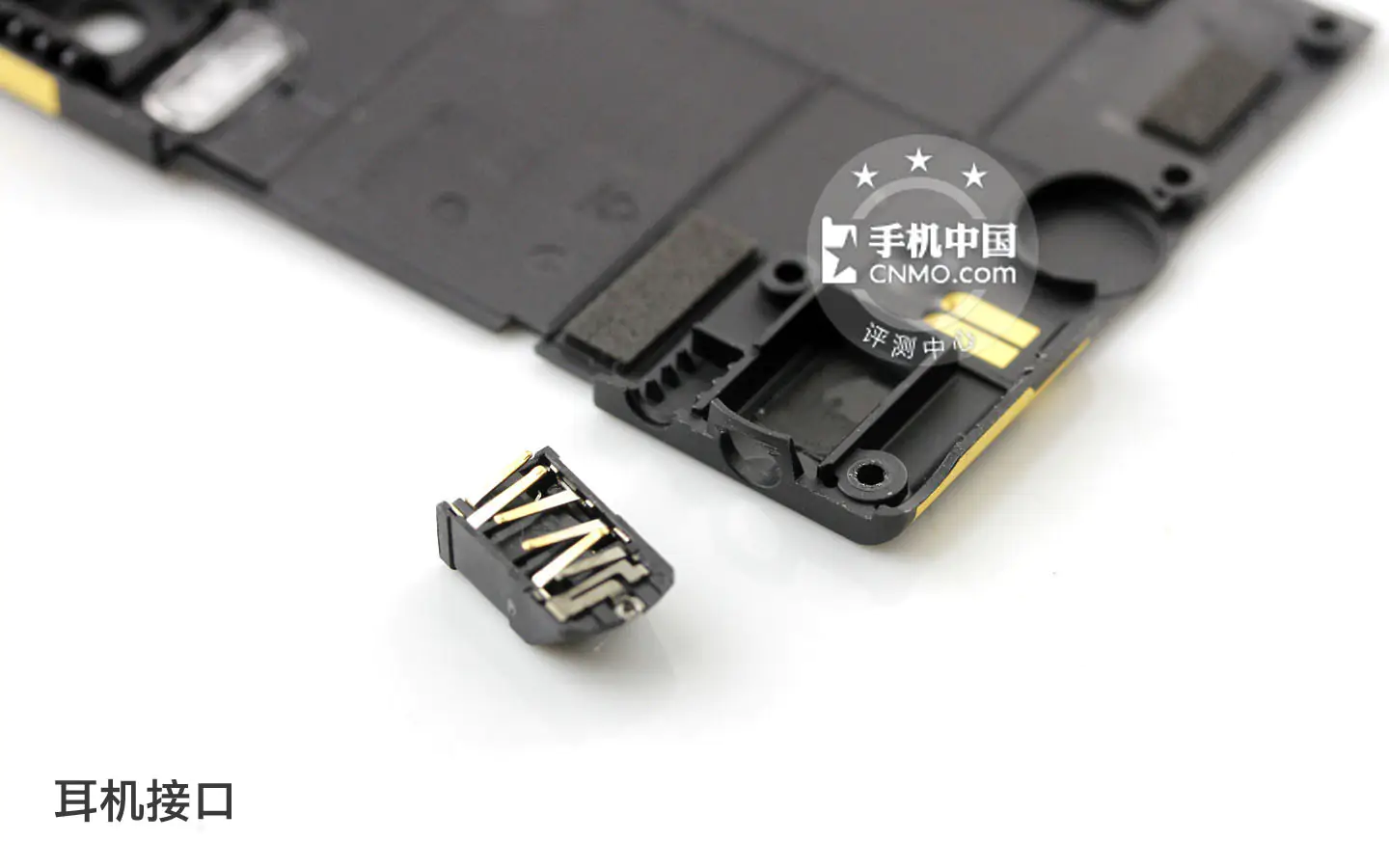

The middle frame integrated a 3.5mm headphone jack.
3.5mm headphone jack

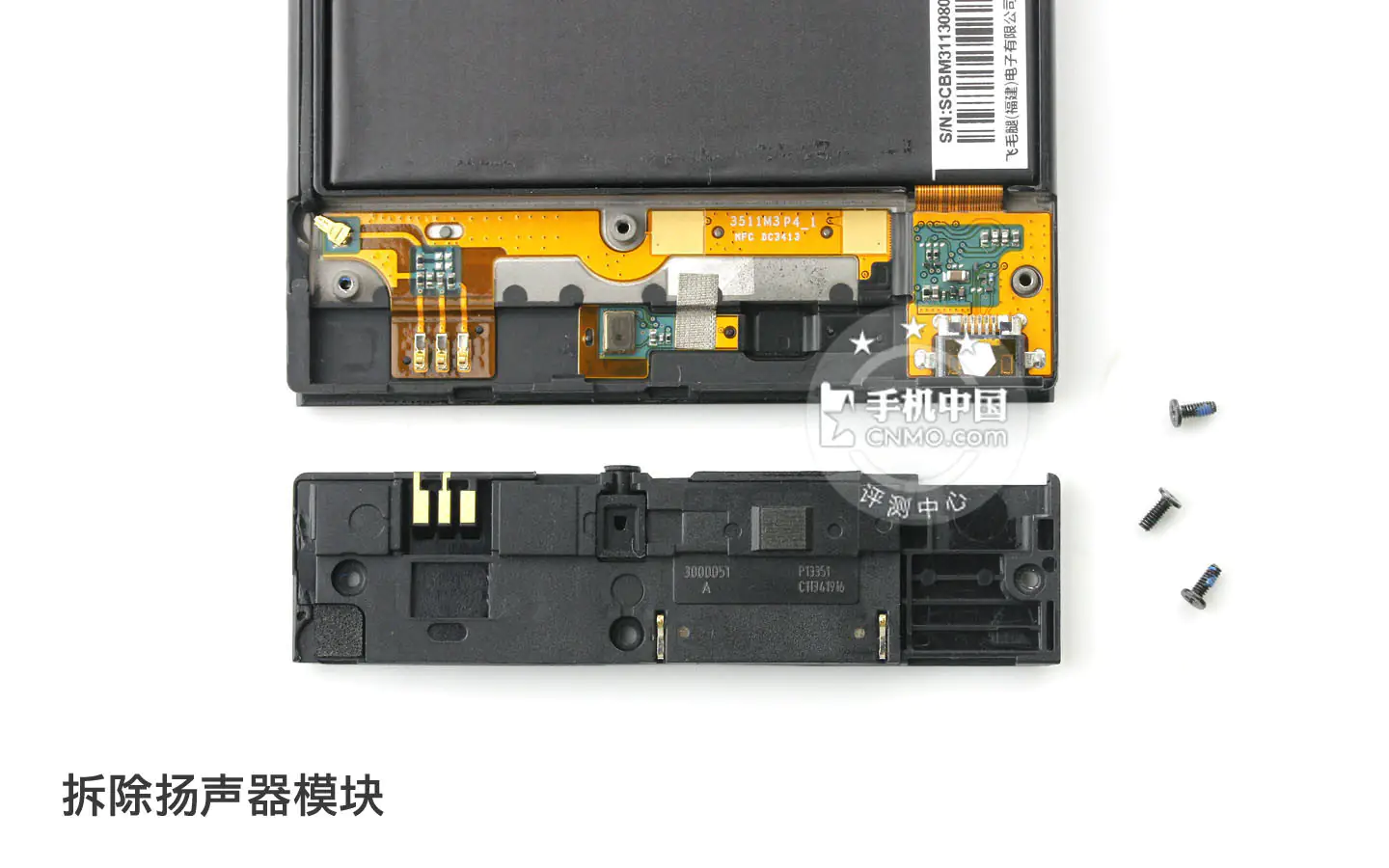

Remove the three screws securing the speaker module.
Remove the speaker

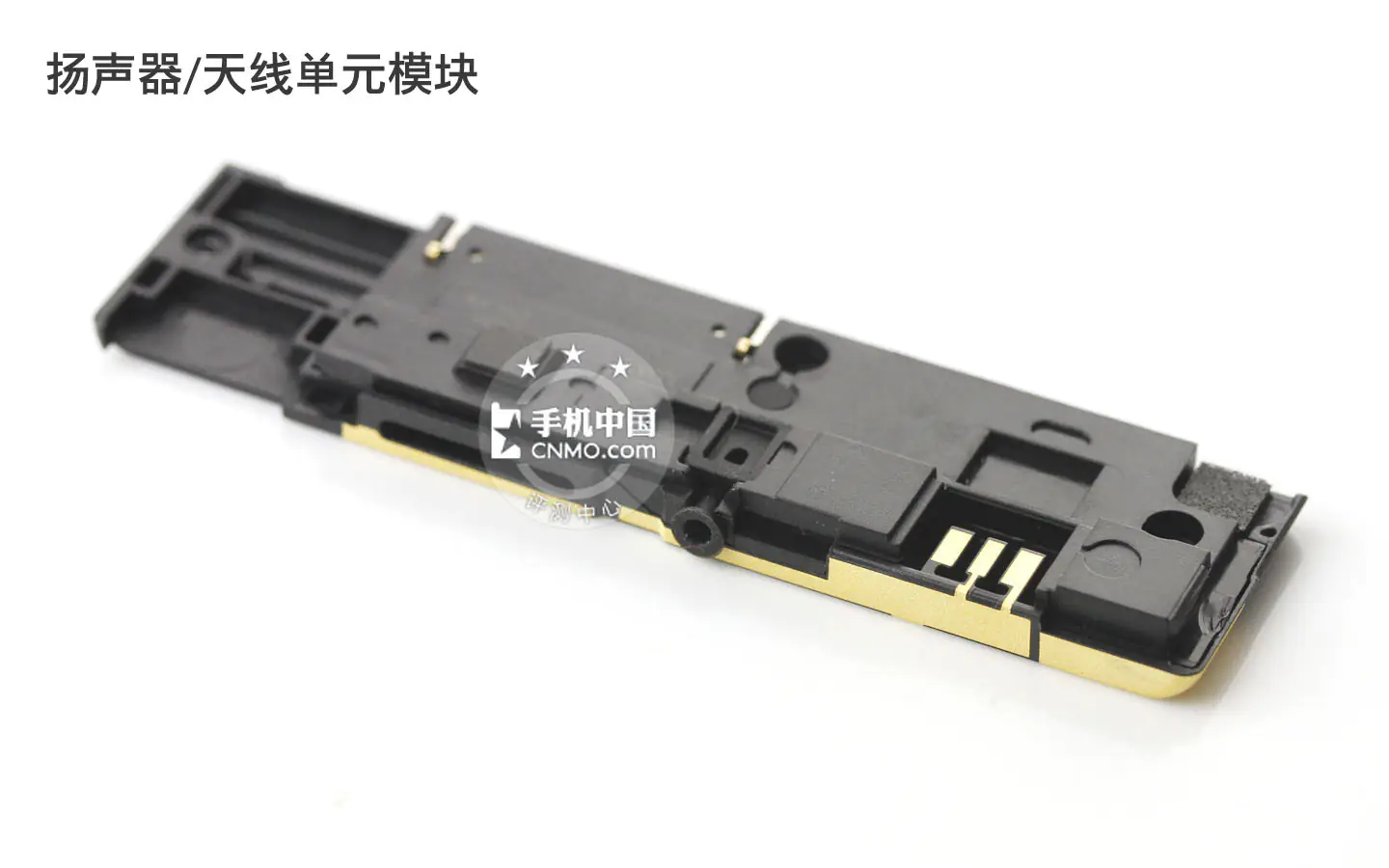

Speaker module
Speaker

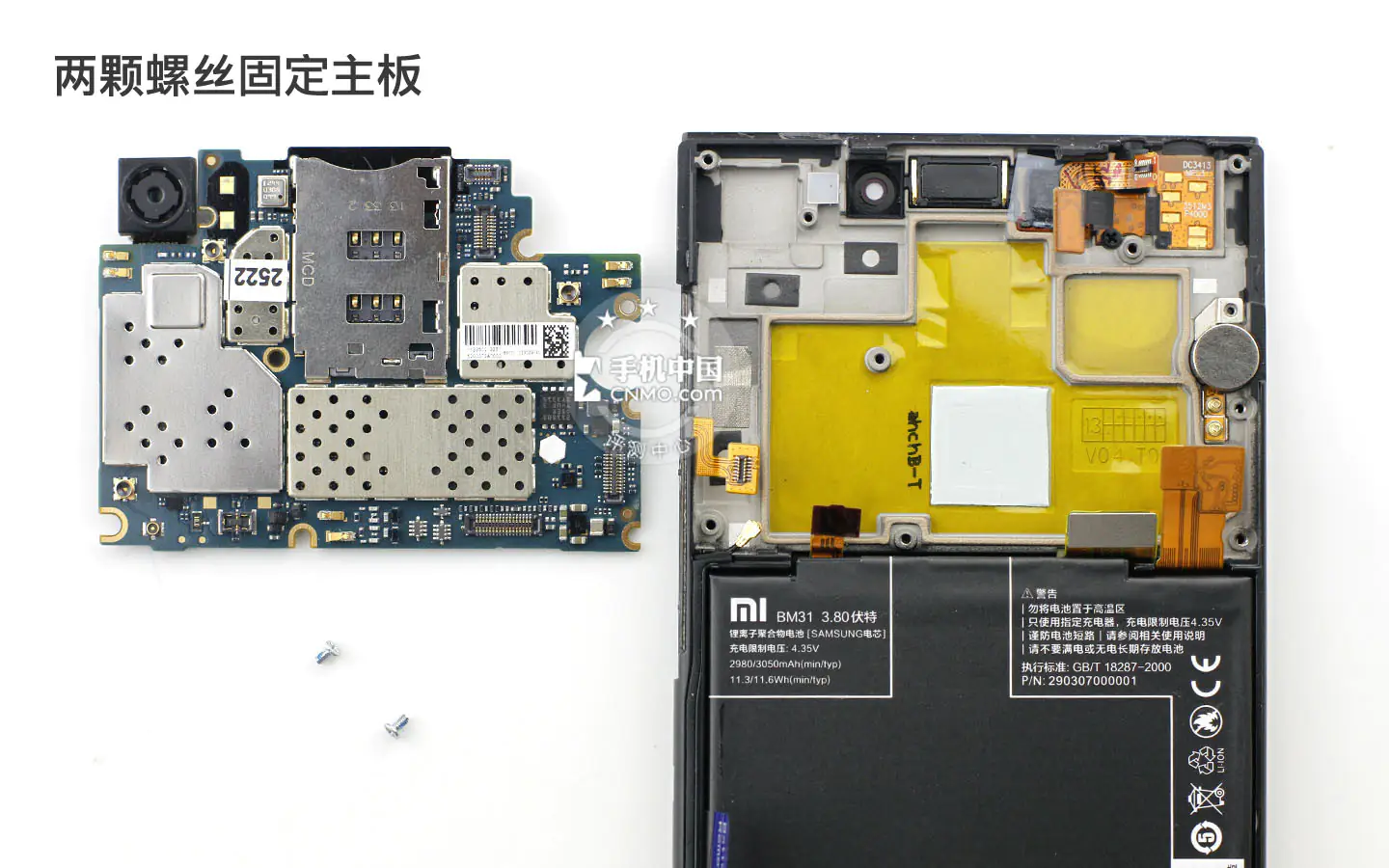

Remove the two screws securing the motherboard and disconnect the three cables.
Remove the two screws

The Xiaomi Mi3 motherboard has been removed.
Xiaomi Mi3 motherboard

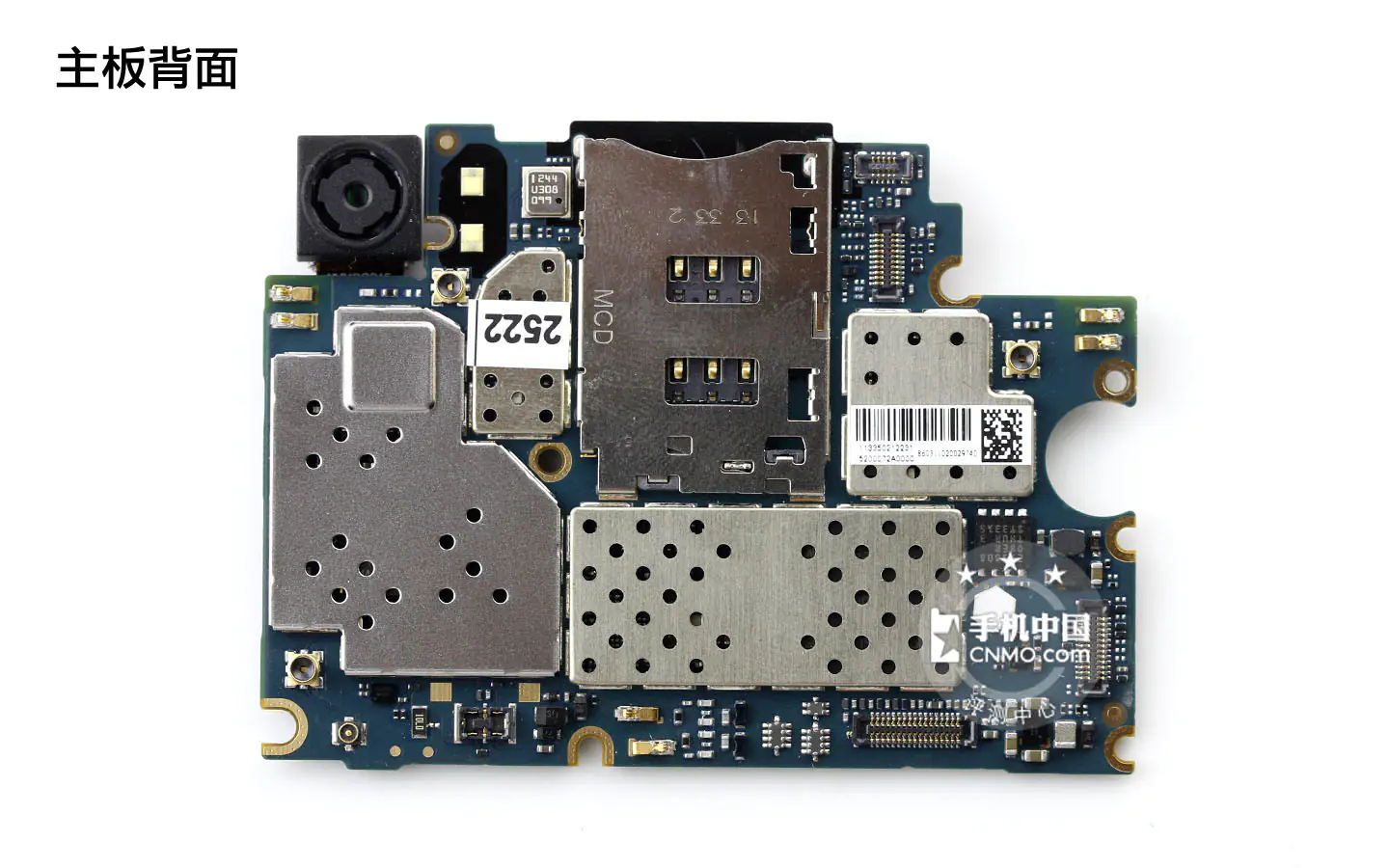

The back of the motherboard
The back of the motherboard

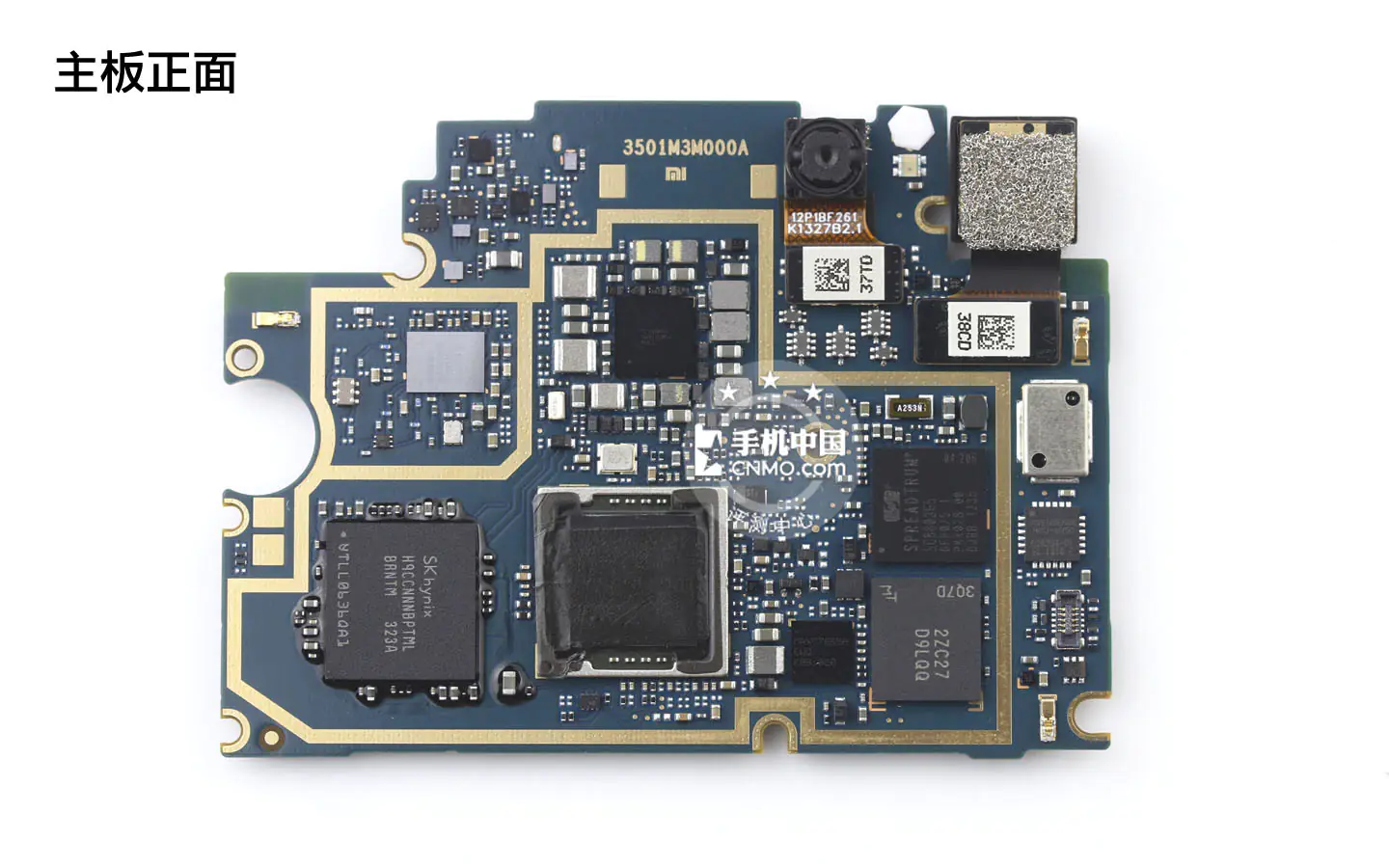

The front of the motherboard
The front of the motherboard

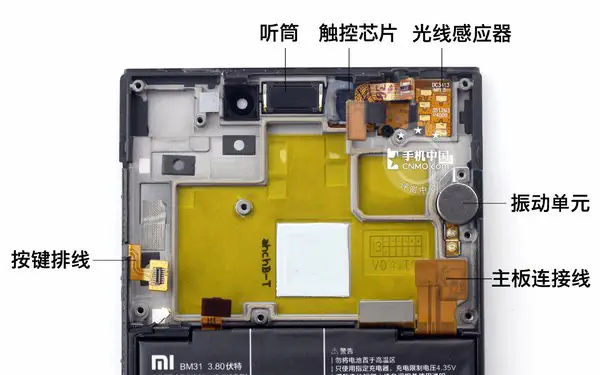

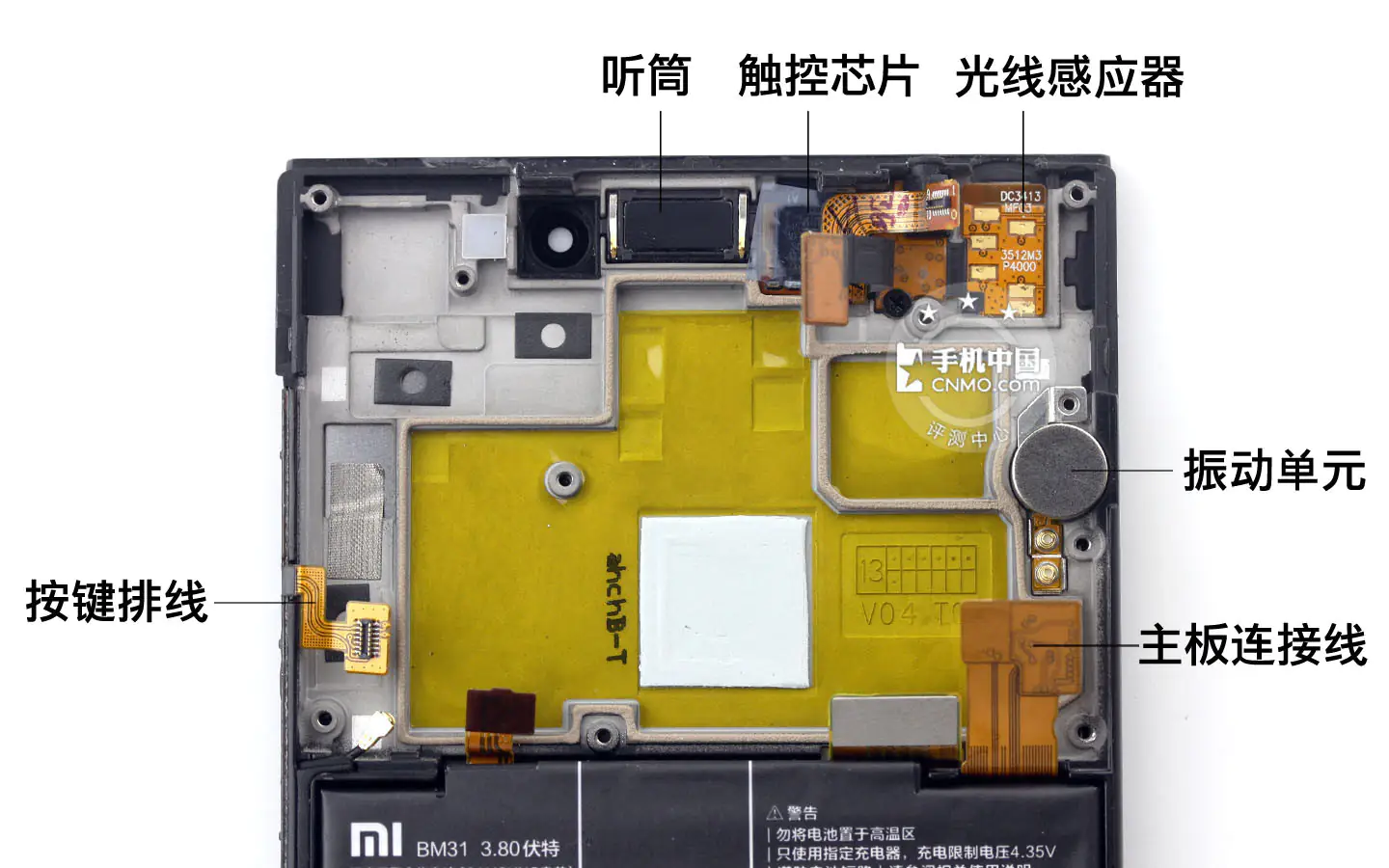

Handset, touch chip, light sensor, and vibrator.
Handset, touch chip, light sensor, and vibrator

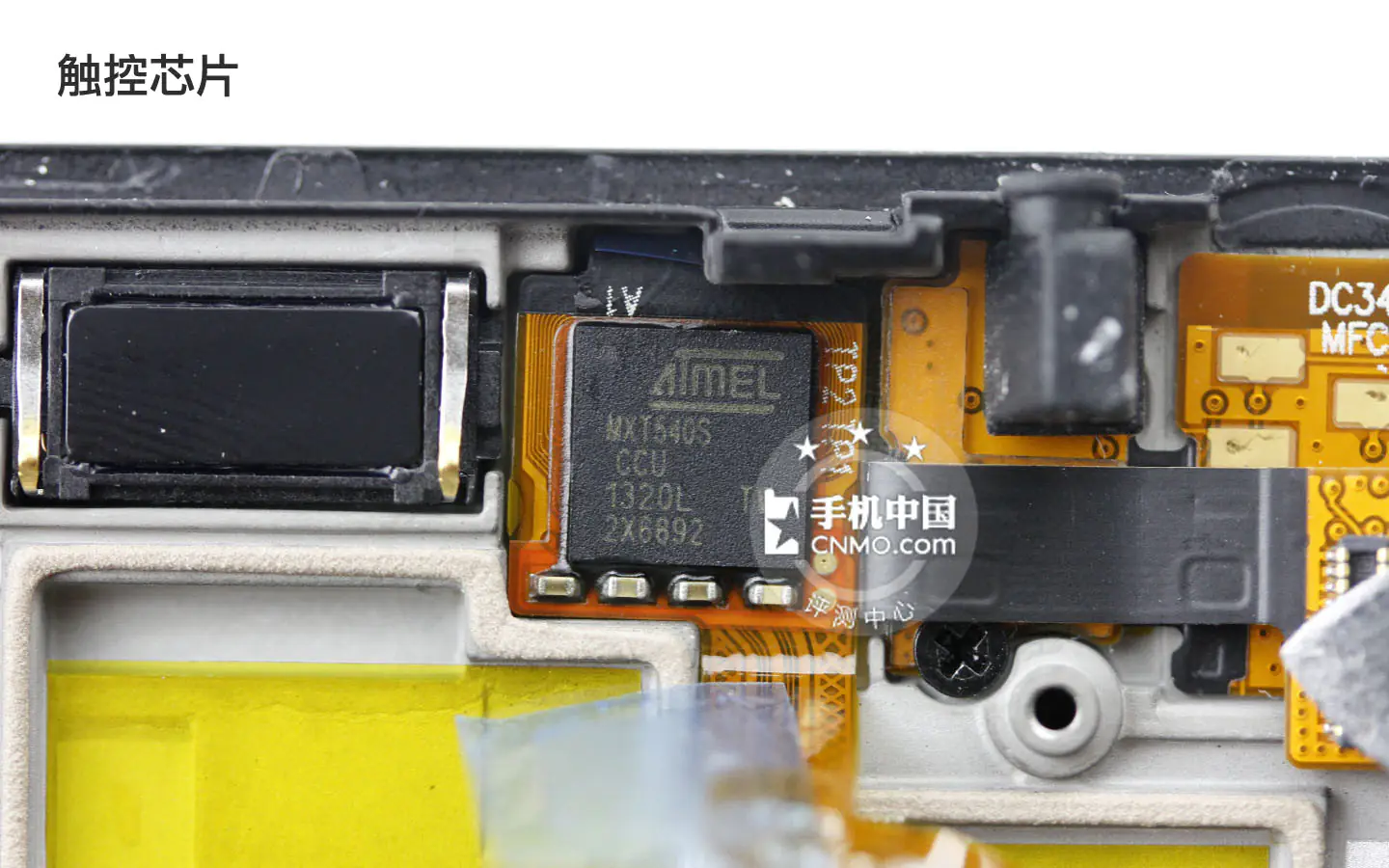

The ATMEL MXT540S touch chip is responsible for managing the touch screen and recognizing user actions.
ATMEL MXT540S

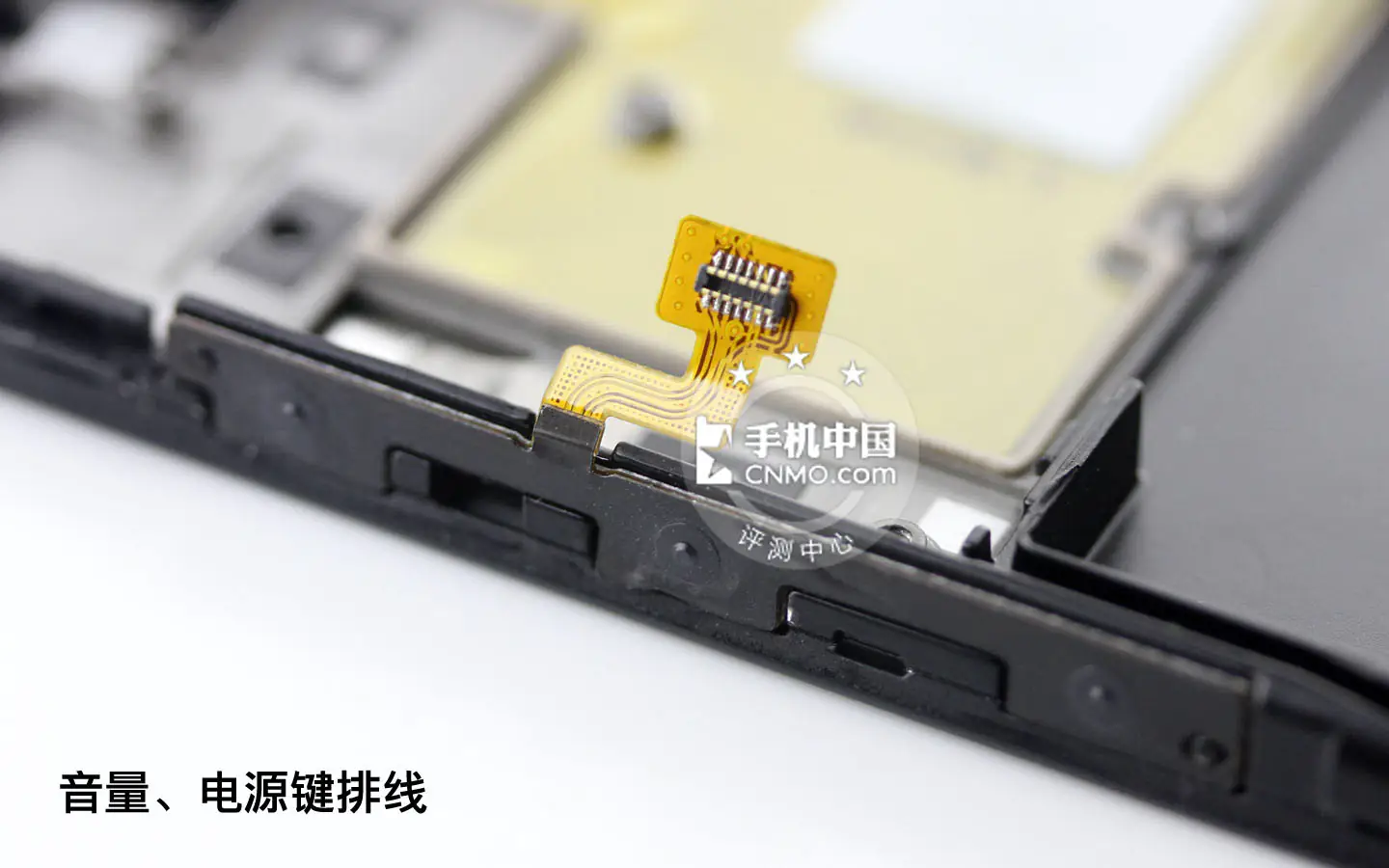

Volume and power button cable
Volume and power button cable

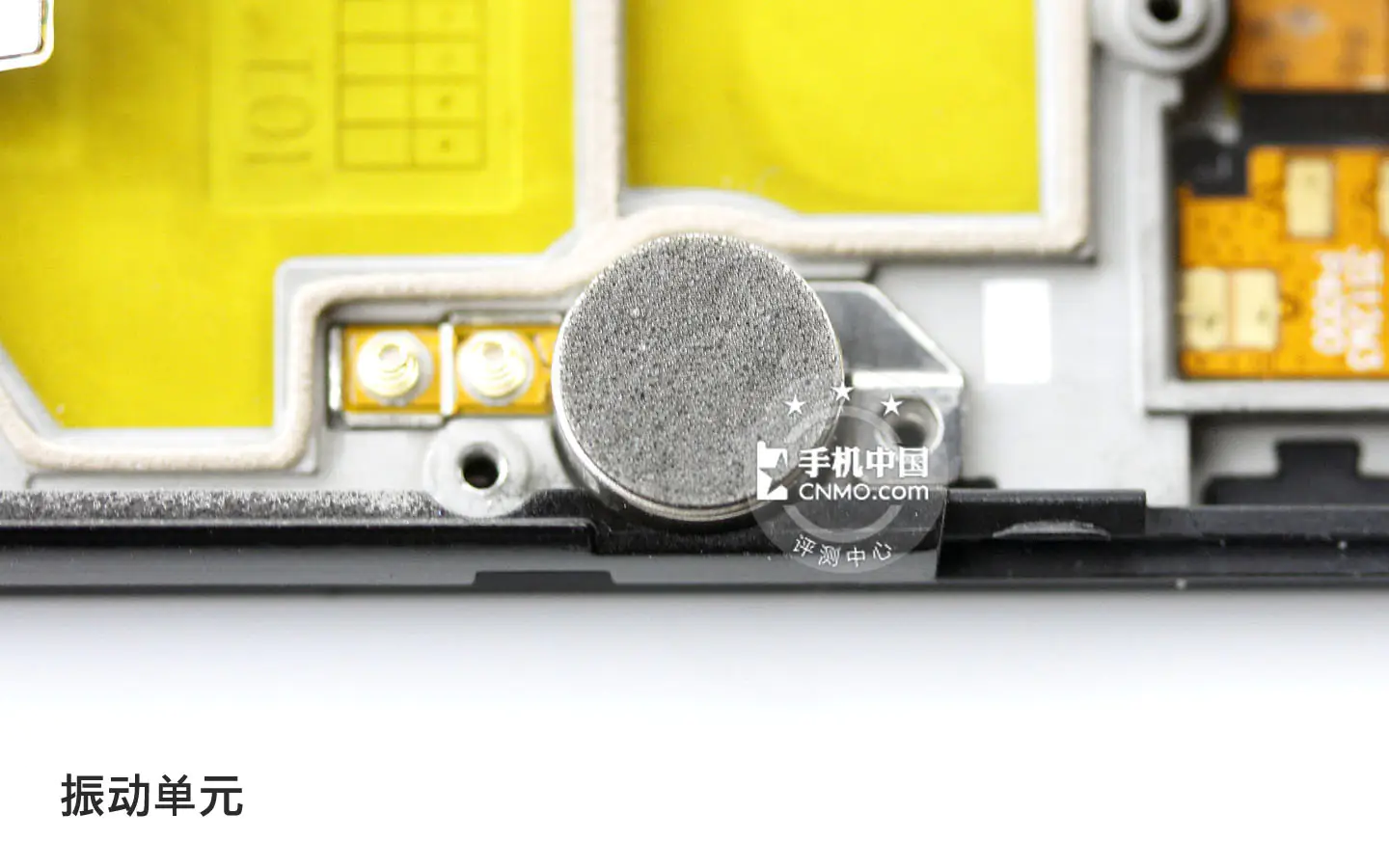

The vibrator is connected to the motherboard through two spring contacts and is fixed with double-sided tape.
Vibrator

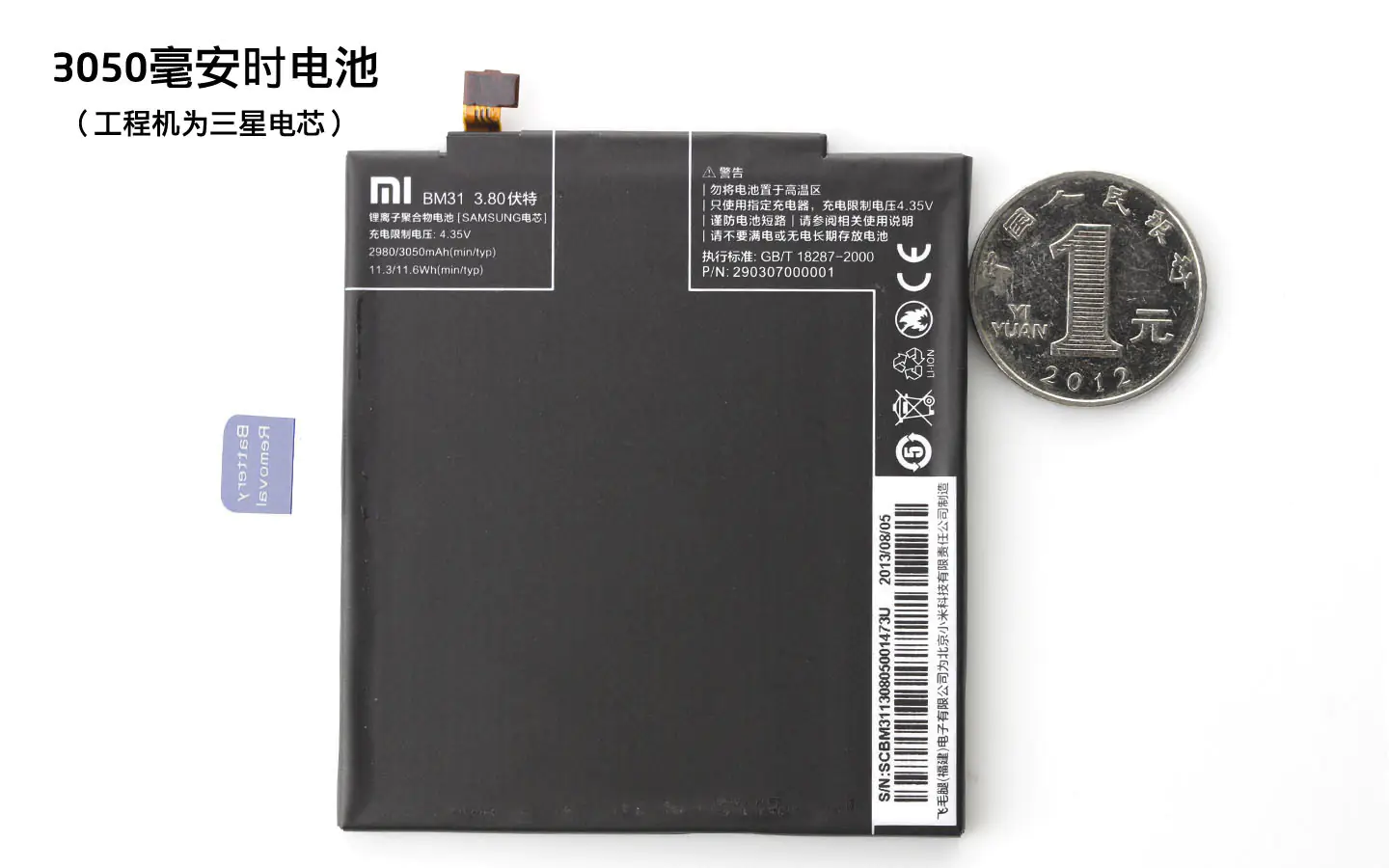

The Xiaomi Mi 3 features a 3050mAh battery, and the battery cell comes from Samsung.
Xiaomi Mi 3 battery

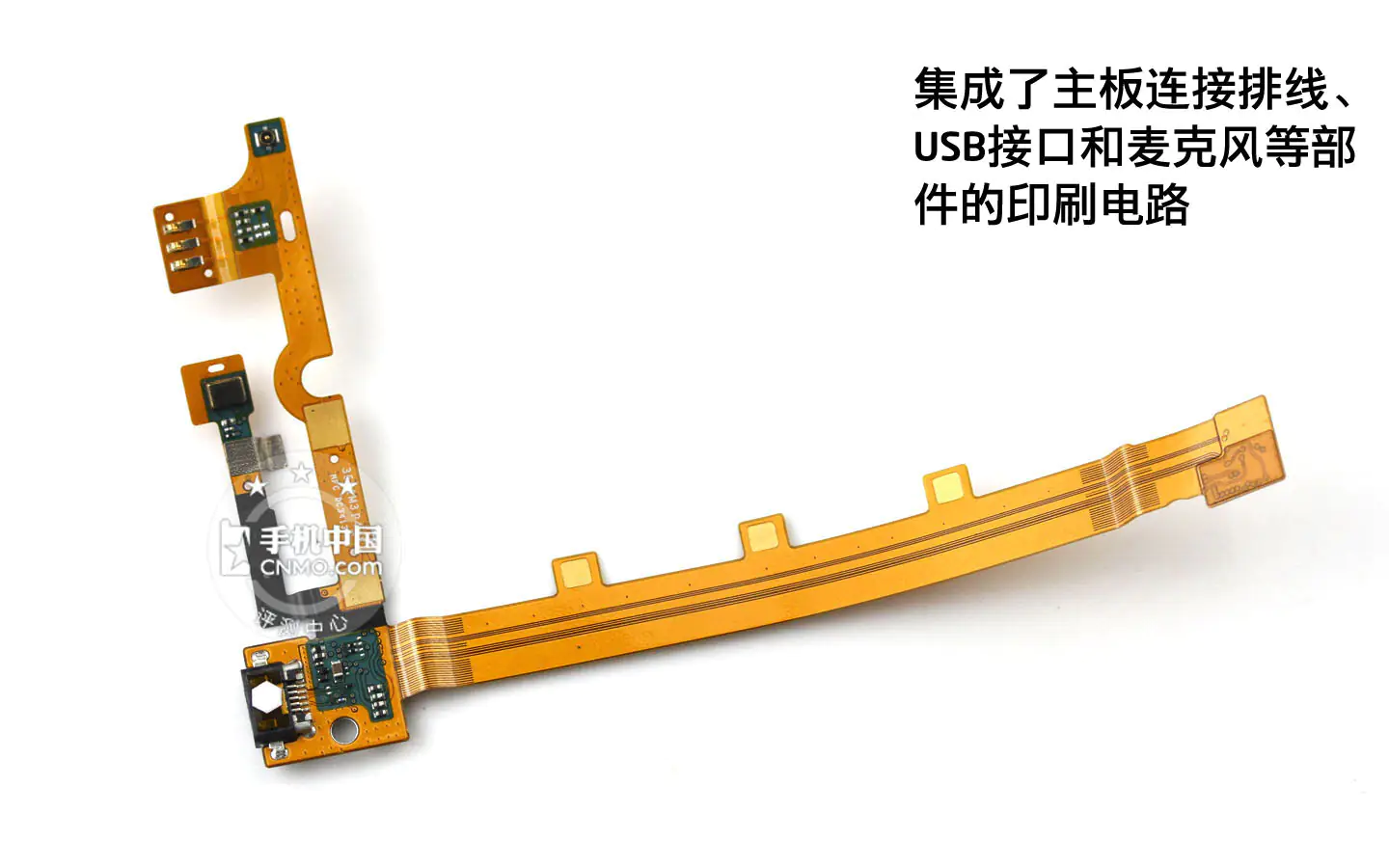

The flexible circuit board integrates the motherboard connection cable, USB port, microphone, and other components.
Flexible circuit board

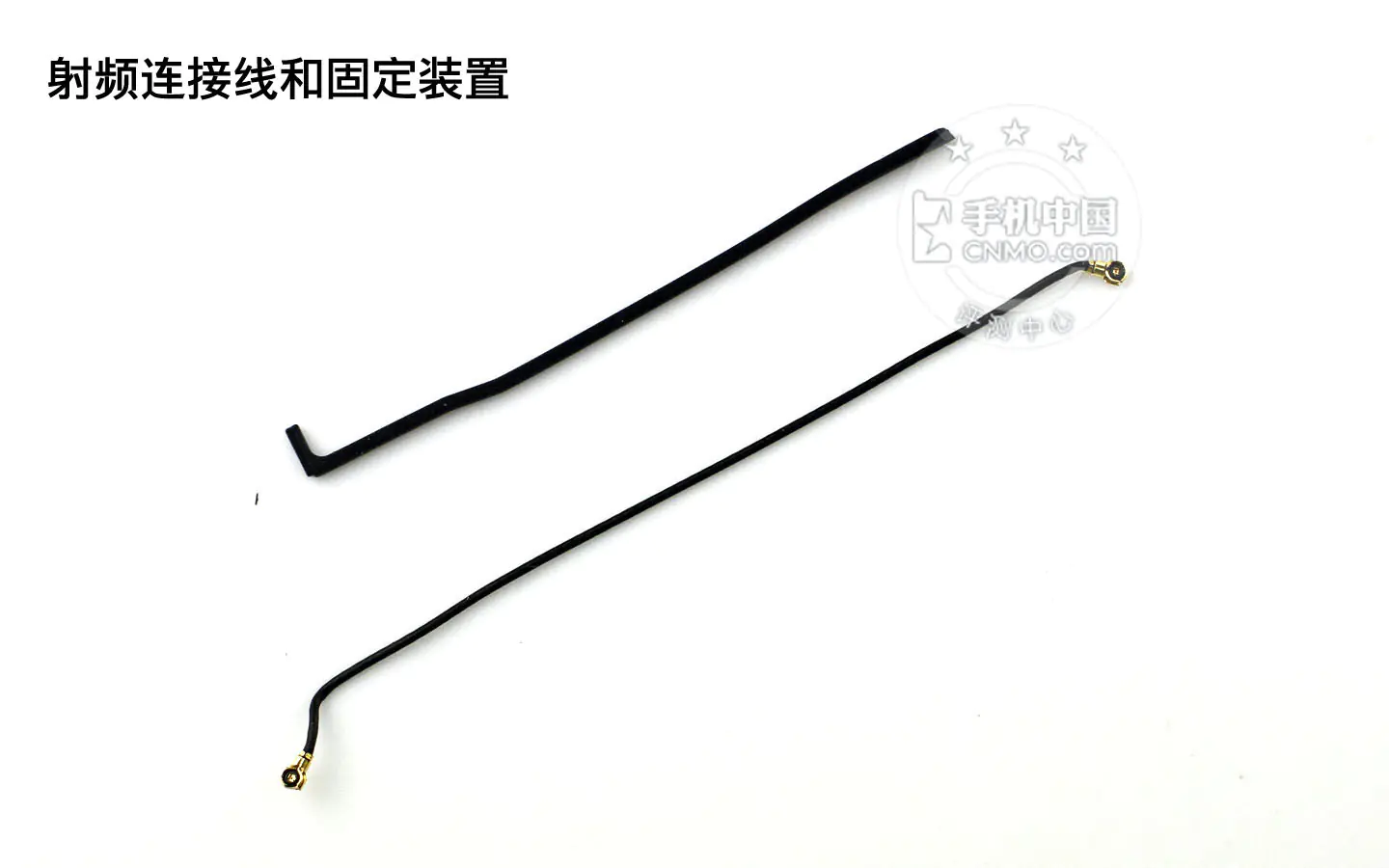

The RF cable on the Xiaomi 3 is secured with rubber strips. The rubber material can insulate the signal, ensuring that signal transmission is not affected. Additionally, the rubber strips offer a more secure hold for the RF cable.
RF cable

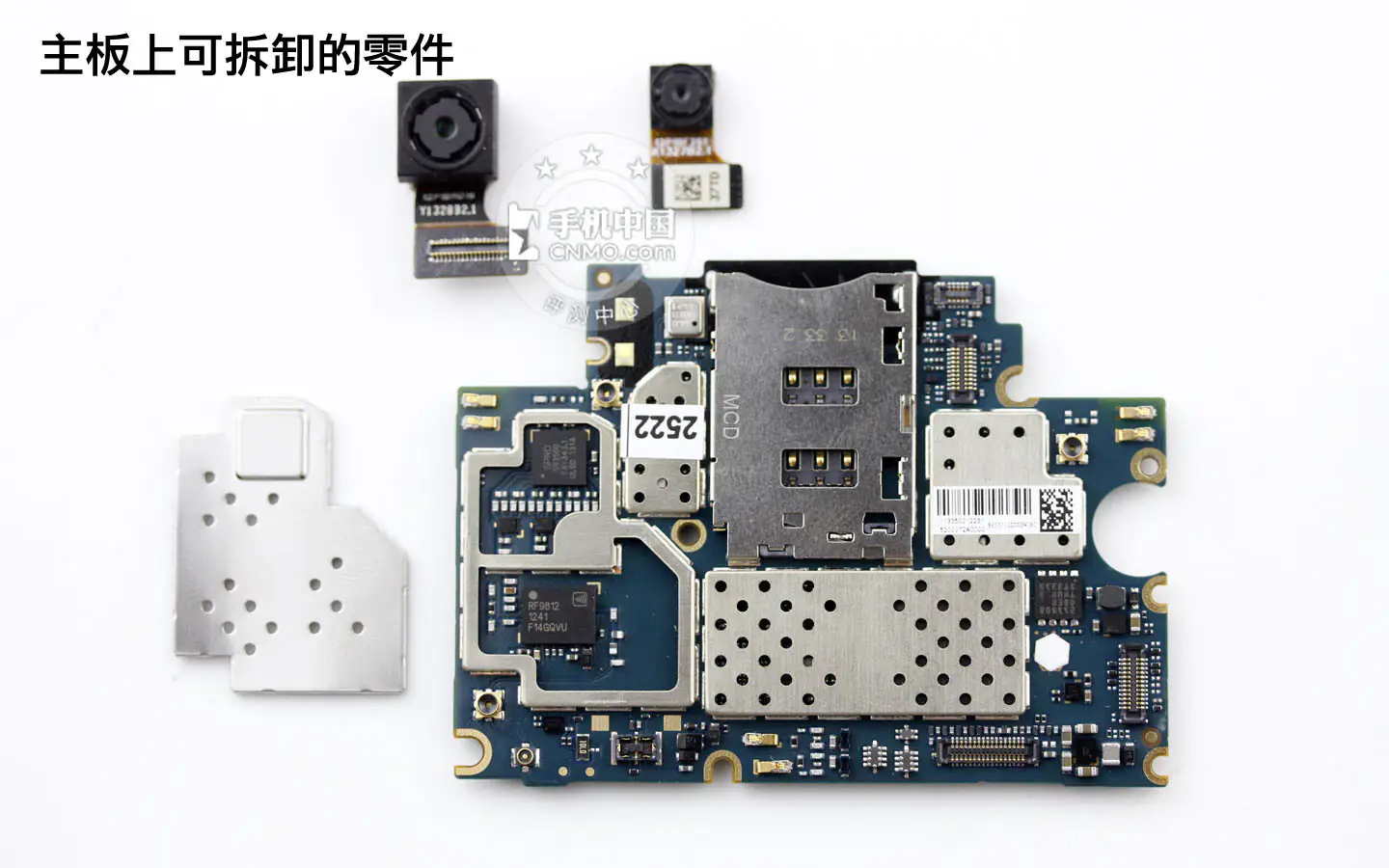

Remove the two cameras and metal shields.
Remove the two cameras

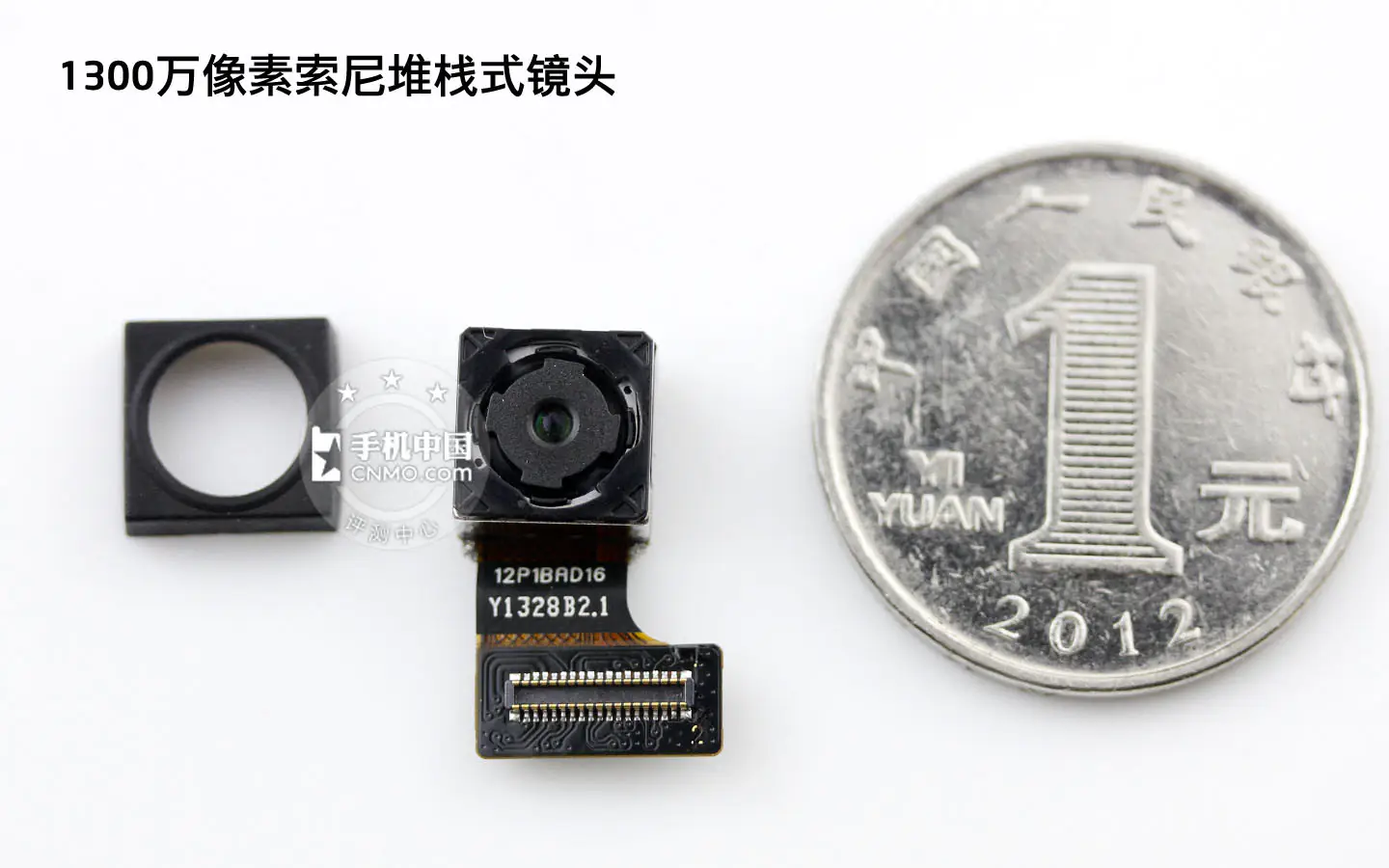

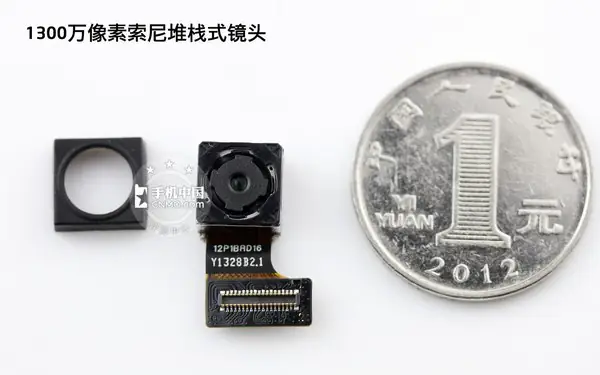

Rear camera: 13MP Sony camera, F2.2
Rear camera

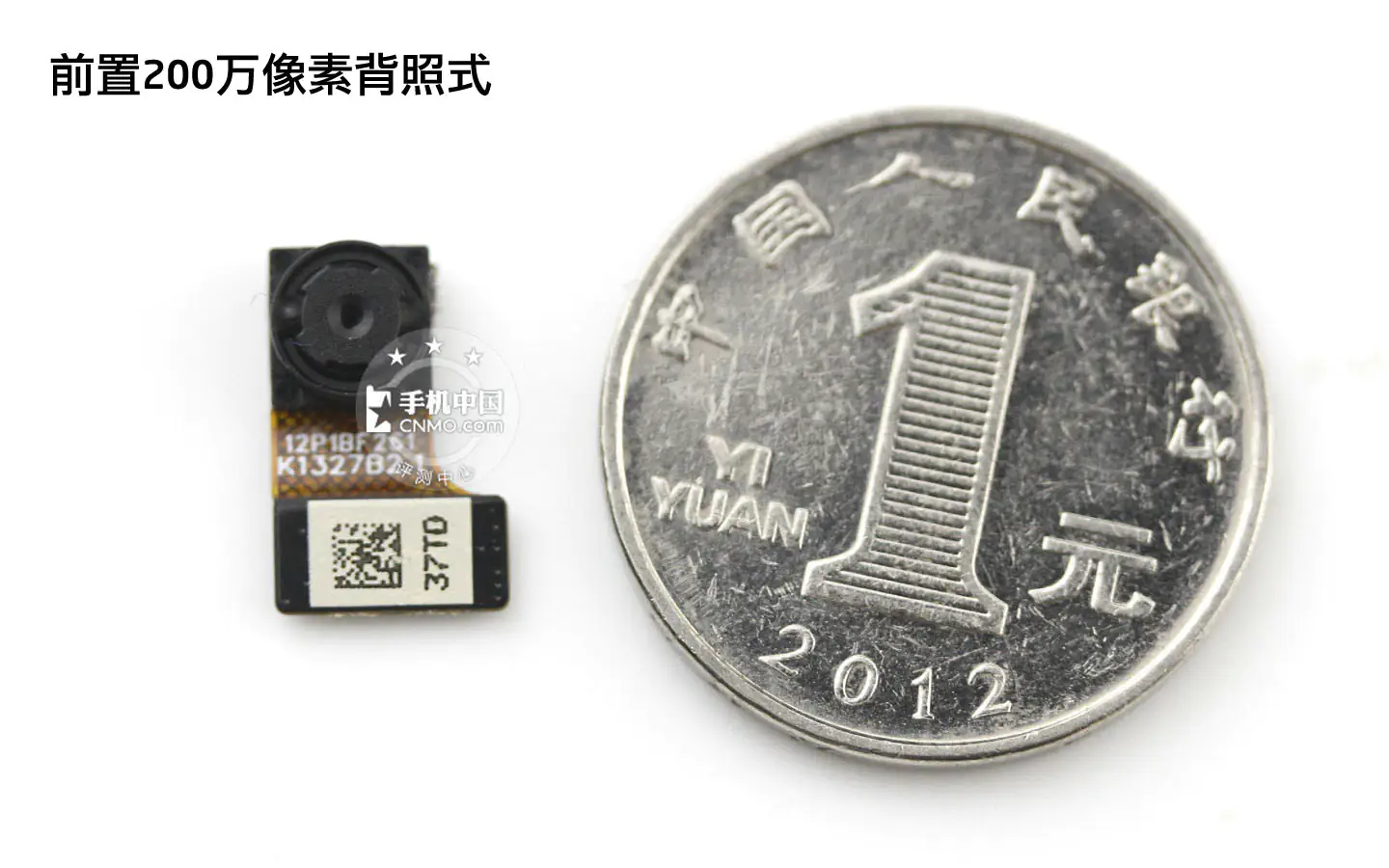

Front Camera
Front Camera

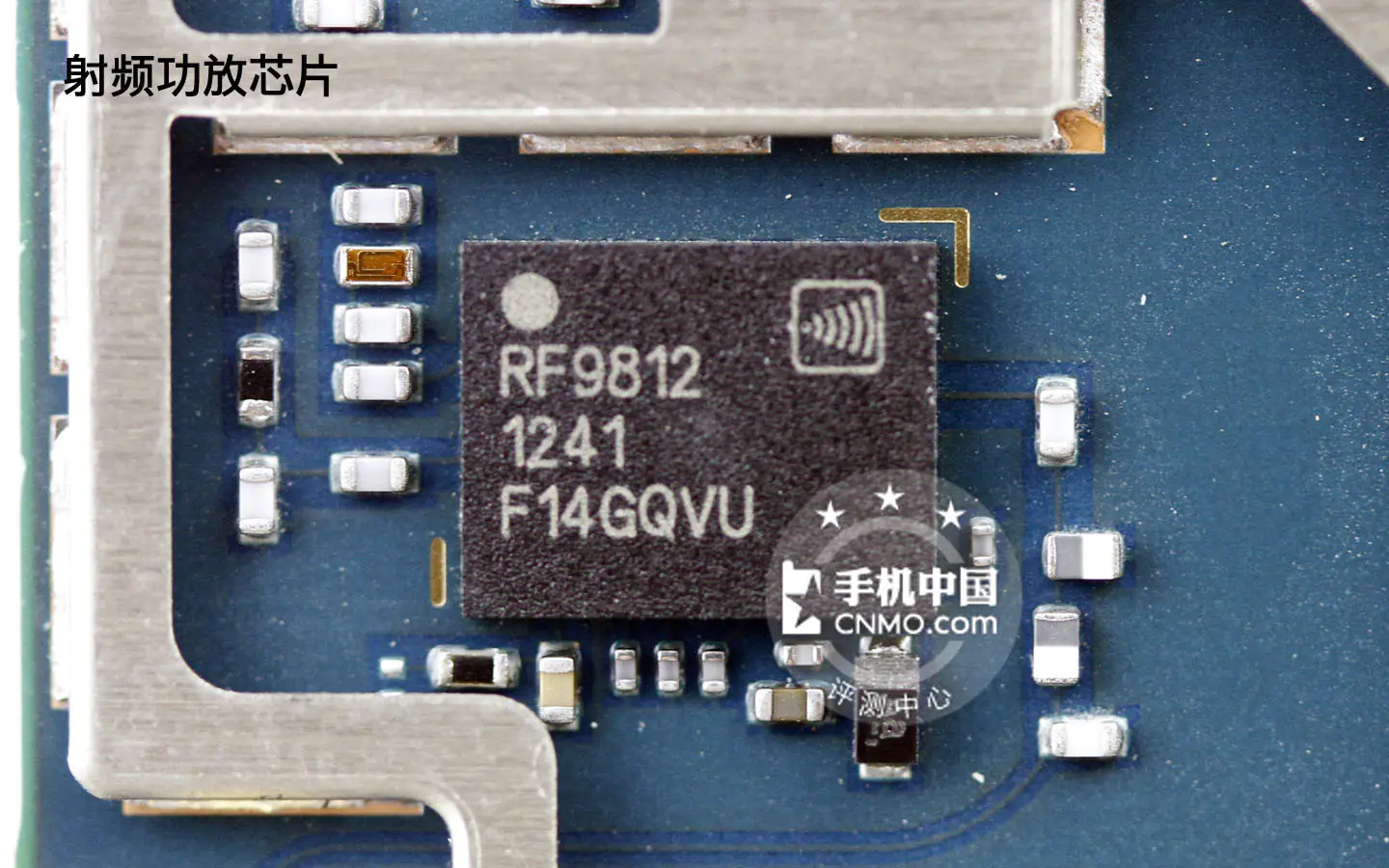

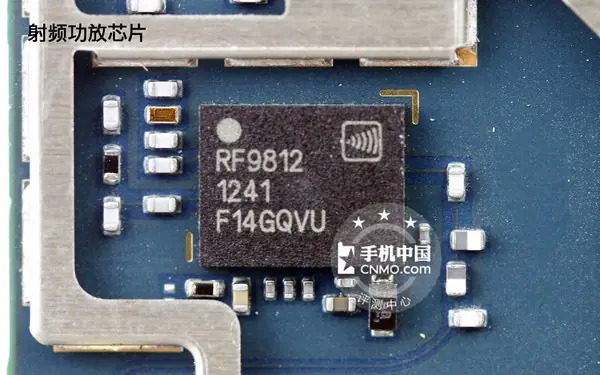

RF9812 RF amplifier chip
RF9812

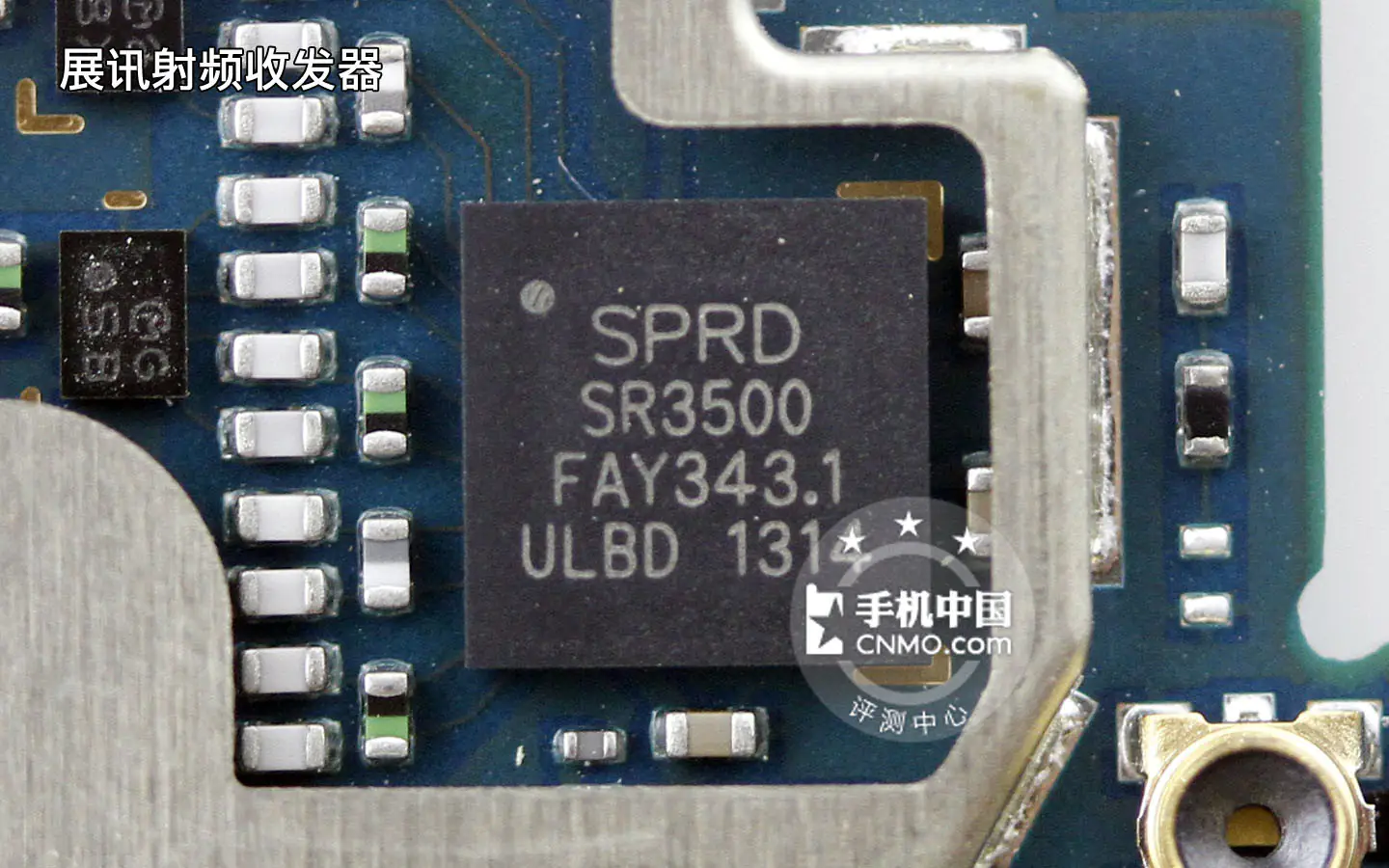

SPRD SR3500 RF Transceiver
SPRD SR3500

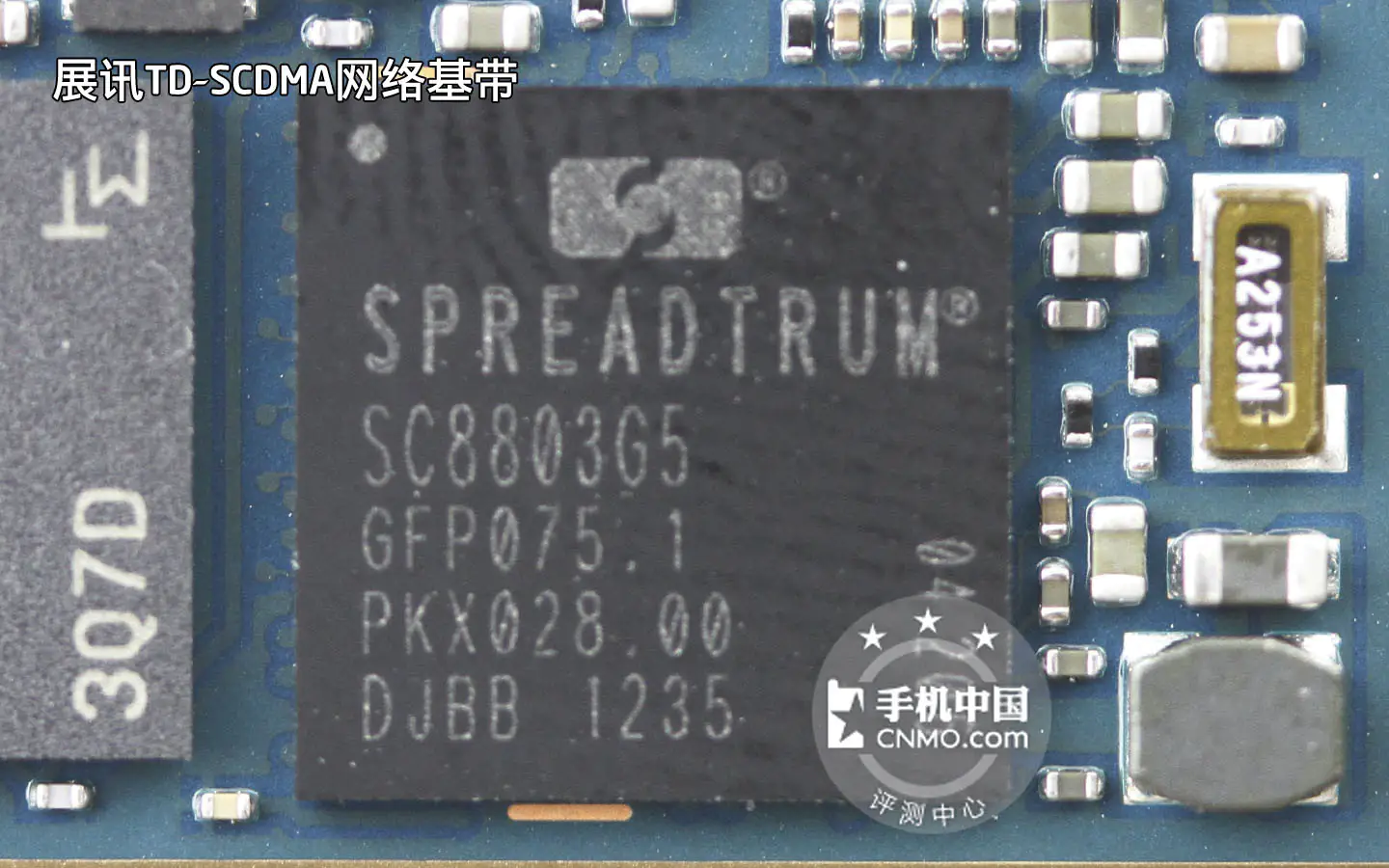

SPREADTRUM SC8803G5 TD-SCDMA network baseband chip
SPREADTRUM SC8803G5

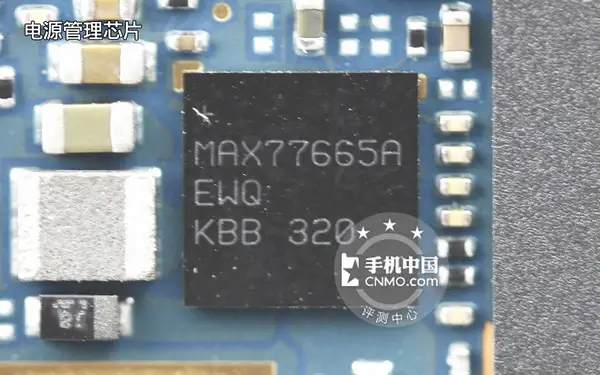

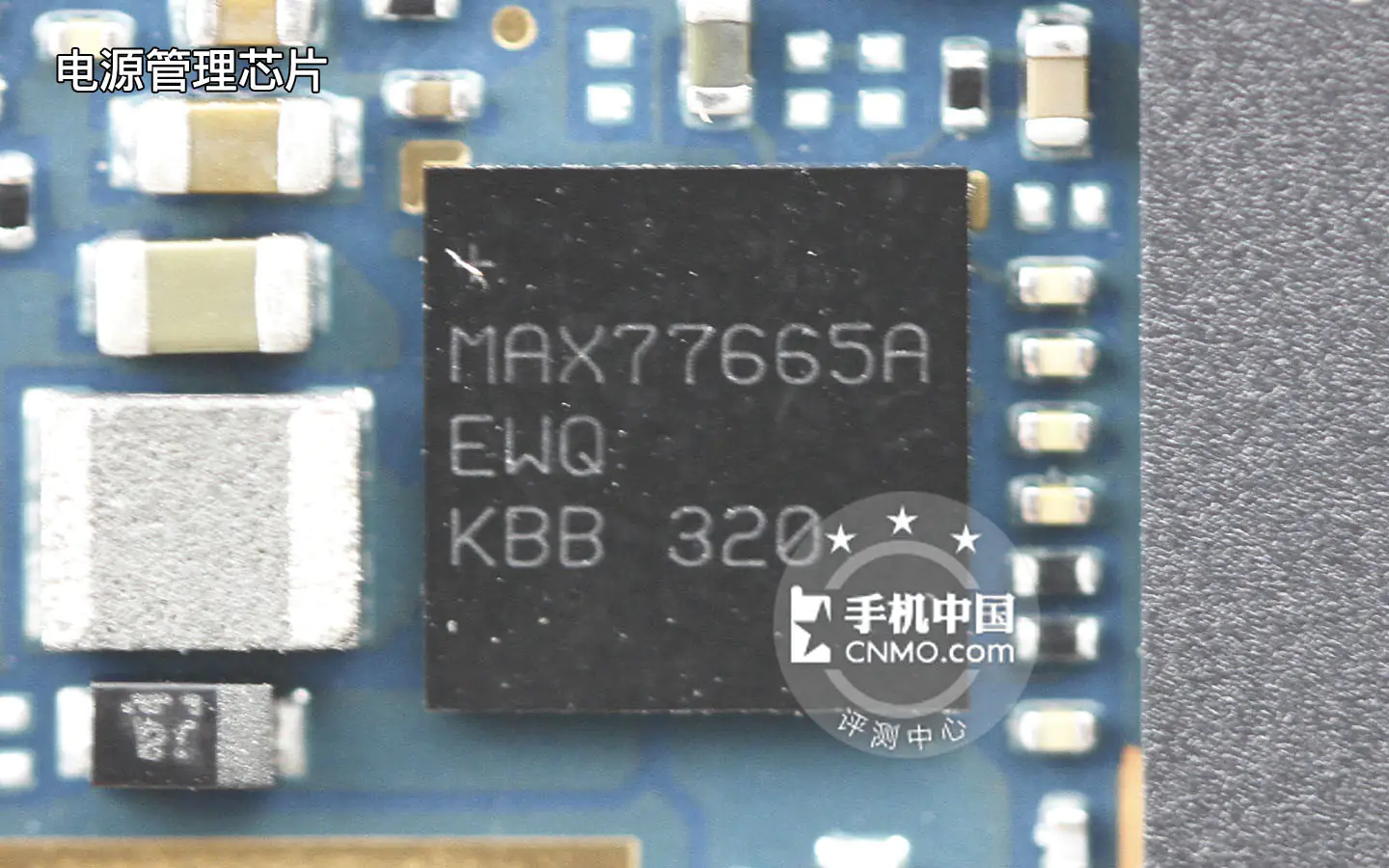

MAX77665A power management chip
MAX77665A

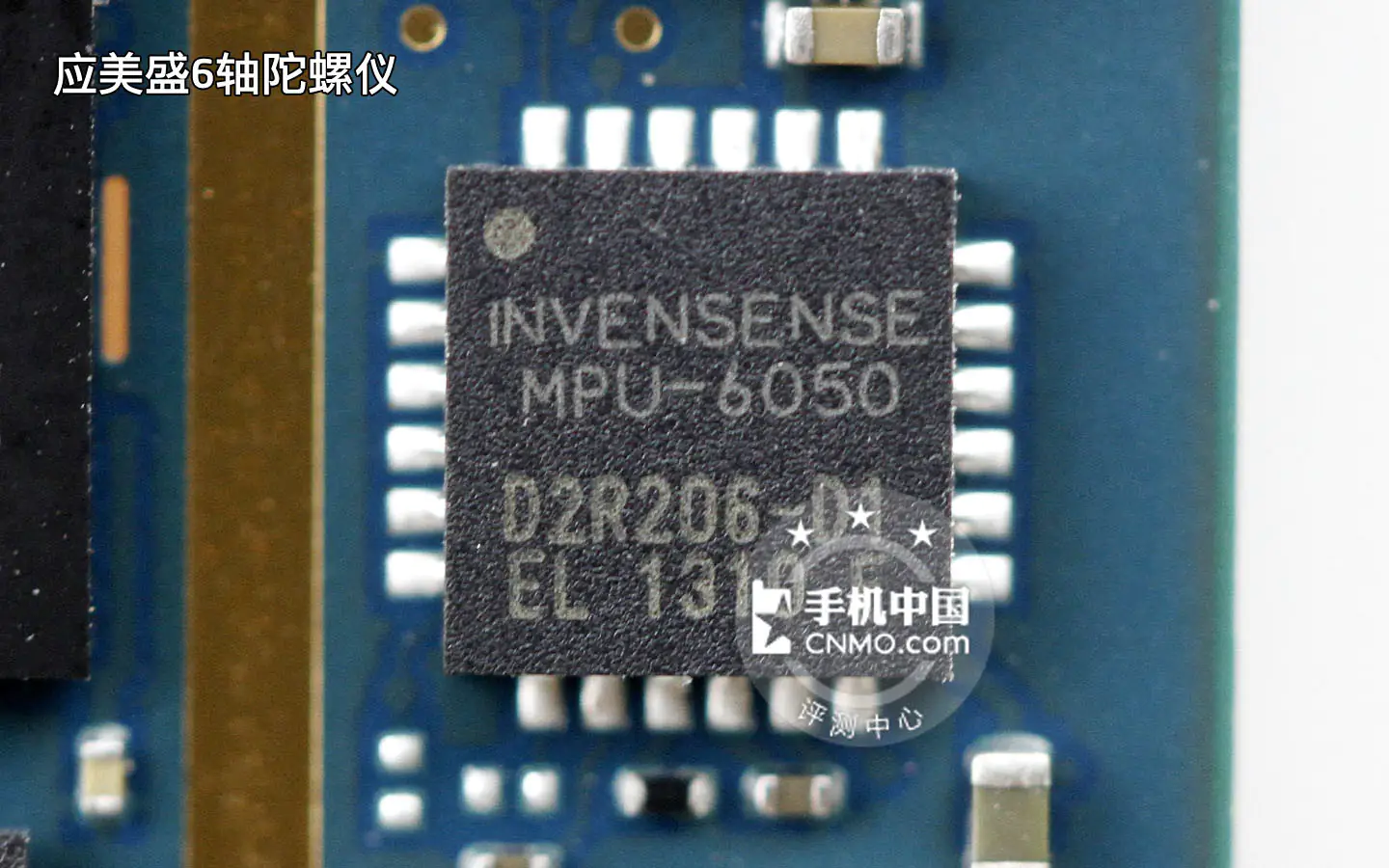

INVENSENSE MPU 6050 gyroscope chip
INVENSENSE MPU 6050

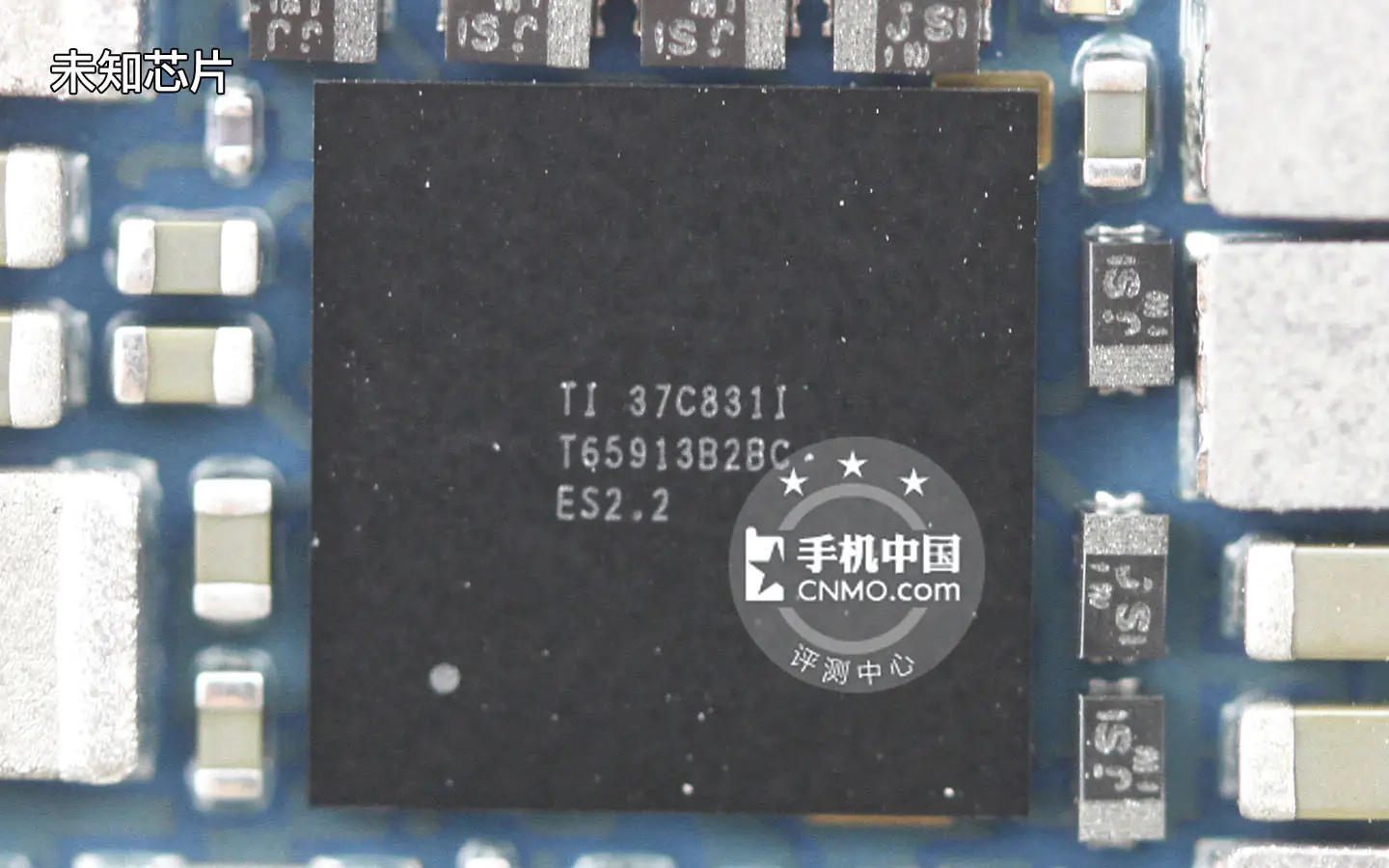

TI 37C8311 chip
TI 37C8311

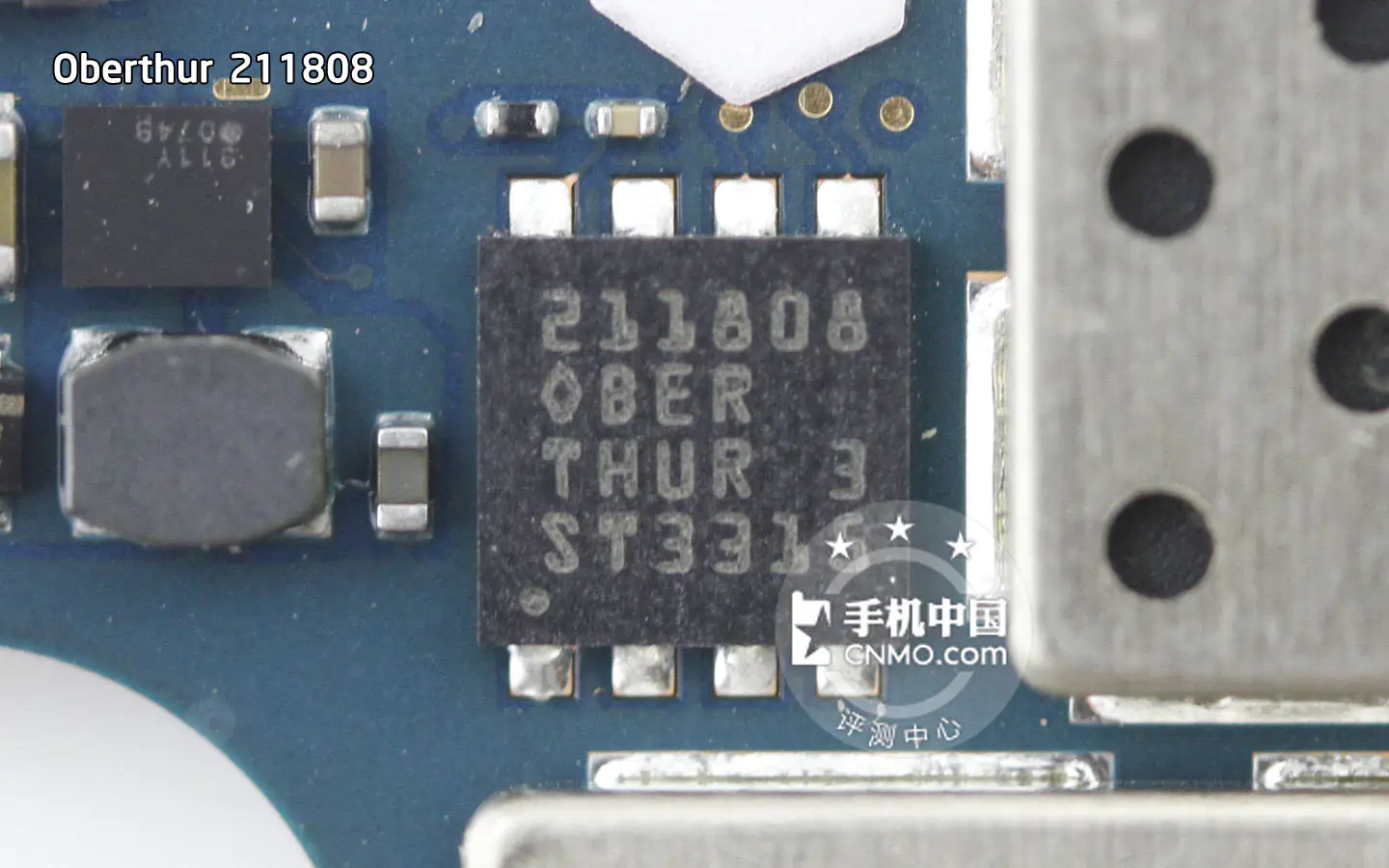

Oberthur 211808 chip
Oberthur 211808

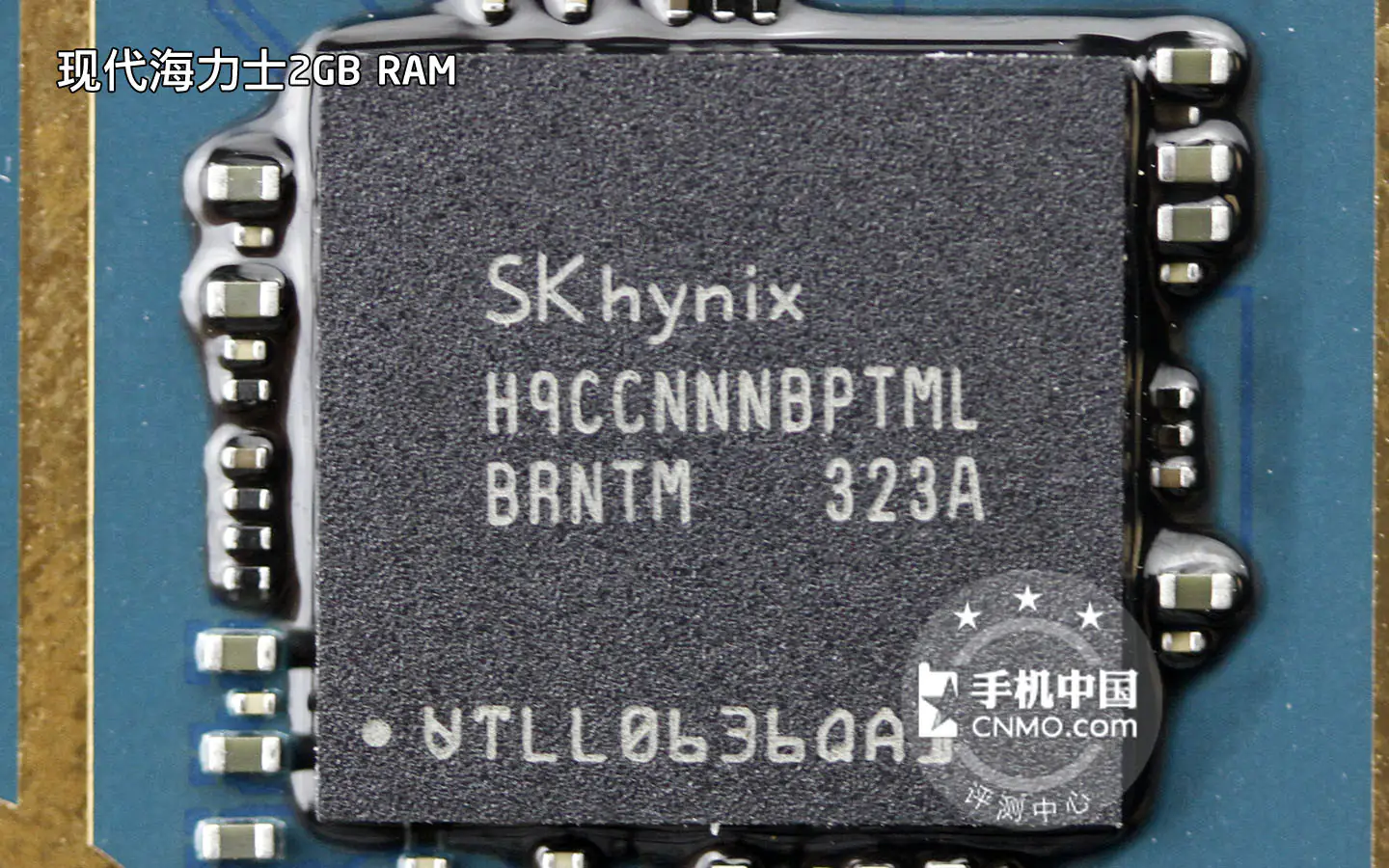

SK Hynix 2GB RAM
SK Hynix 2GB RAM

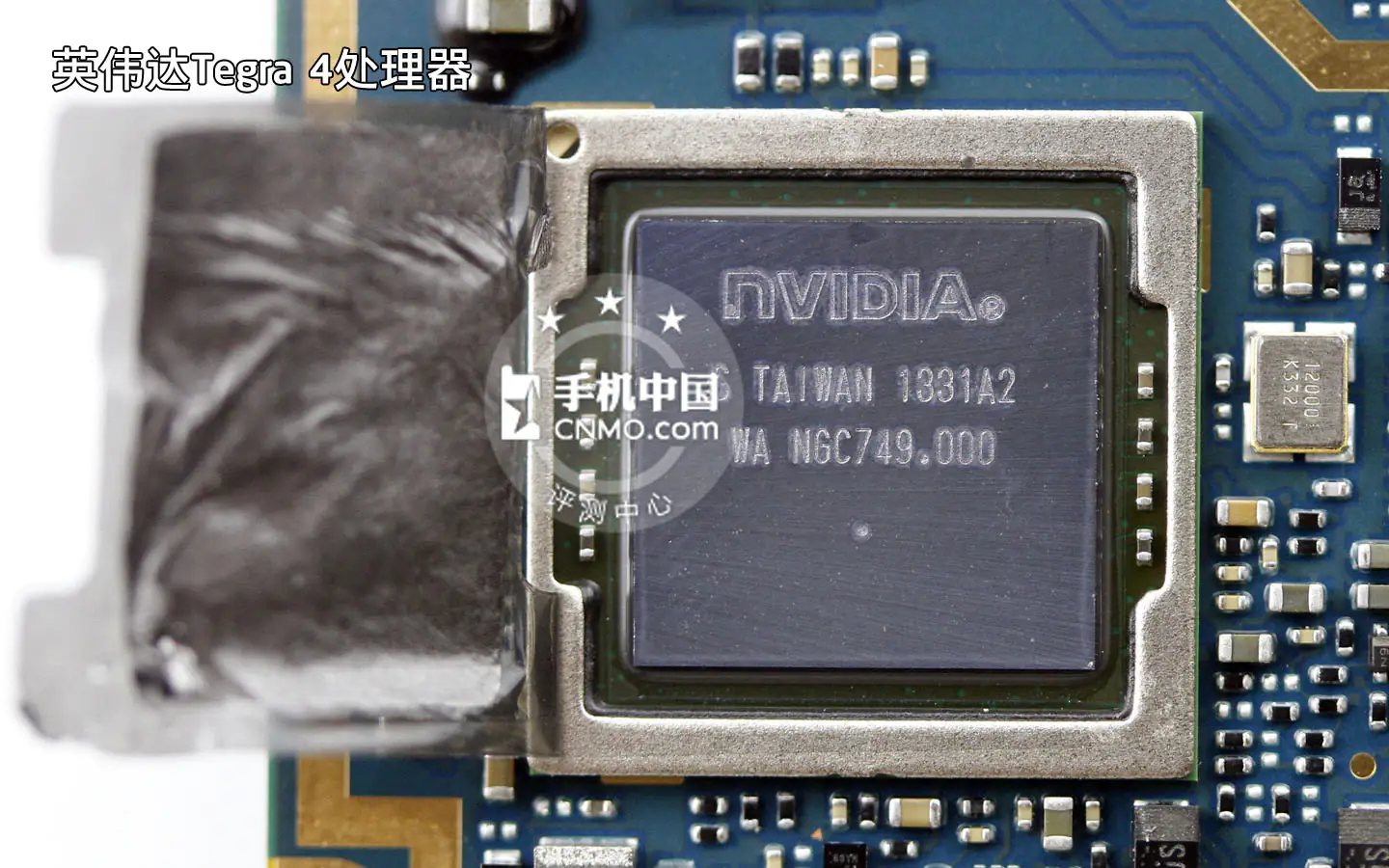

Nvidia Tegra 4 processor
Nvidia Tegra 4

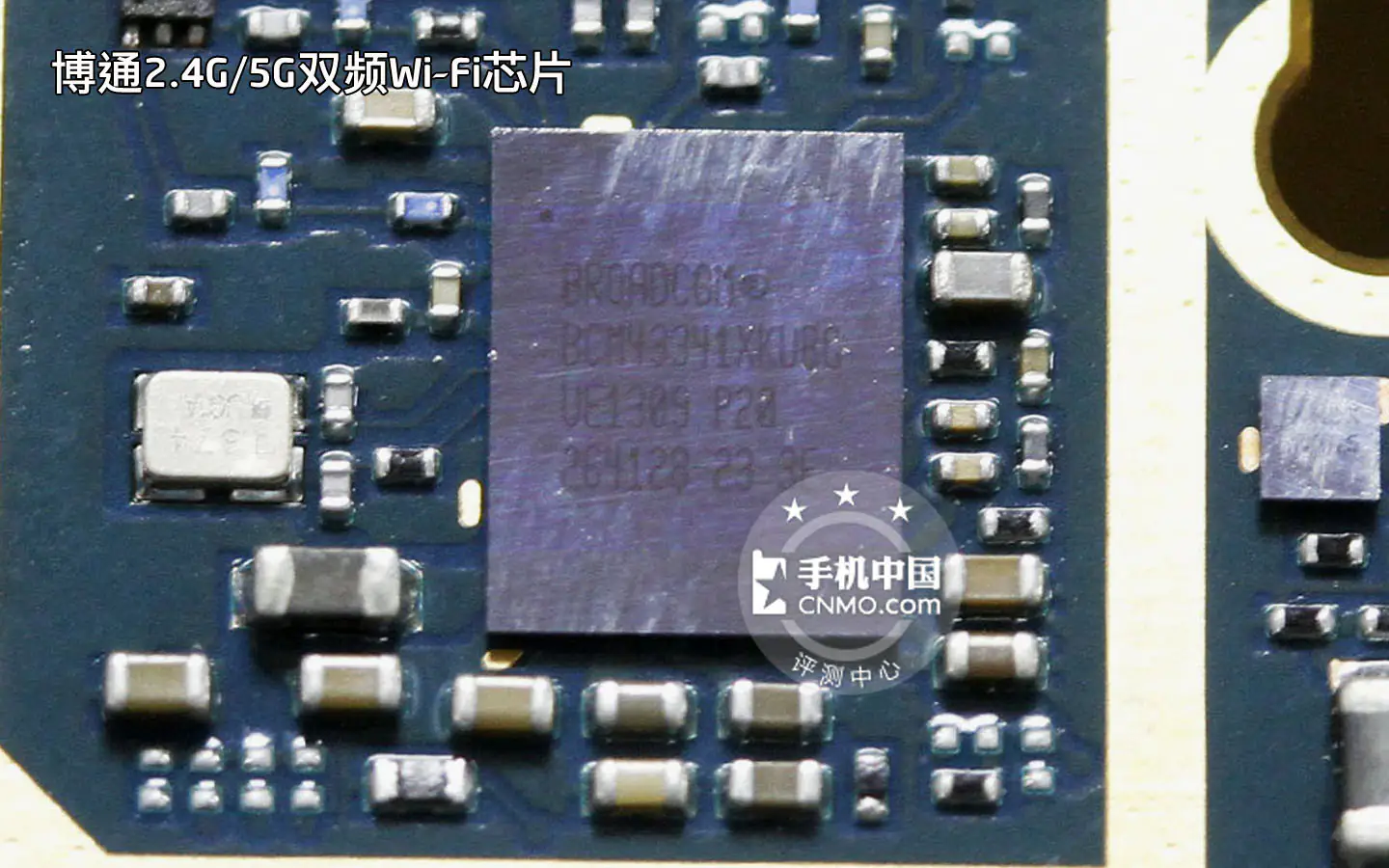

Broadcom Wi-Fi chip
Broadcom Wi-Fi chip
