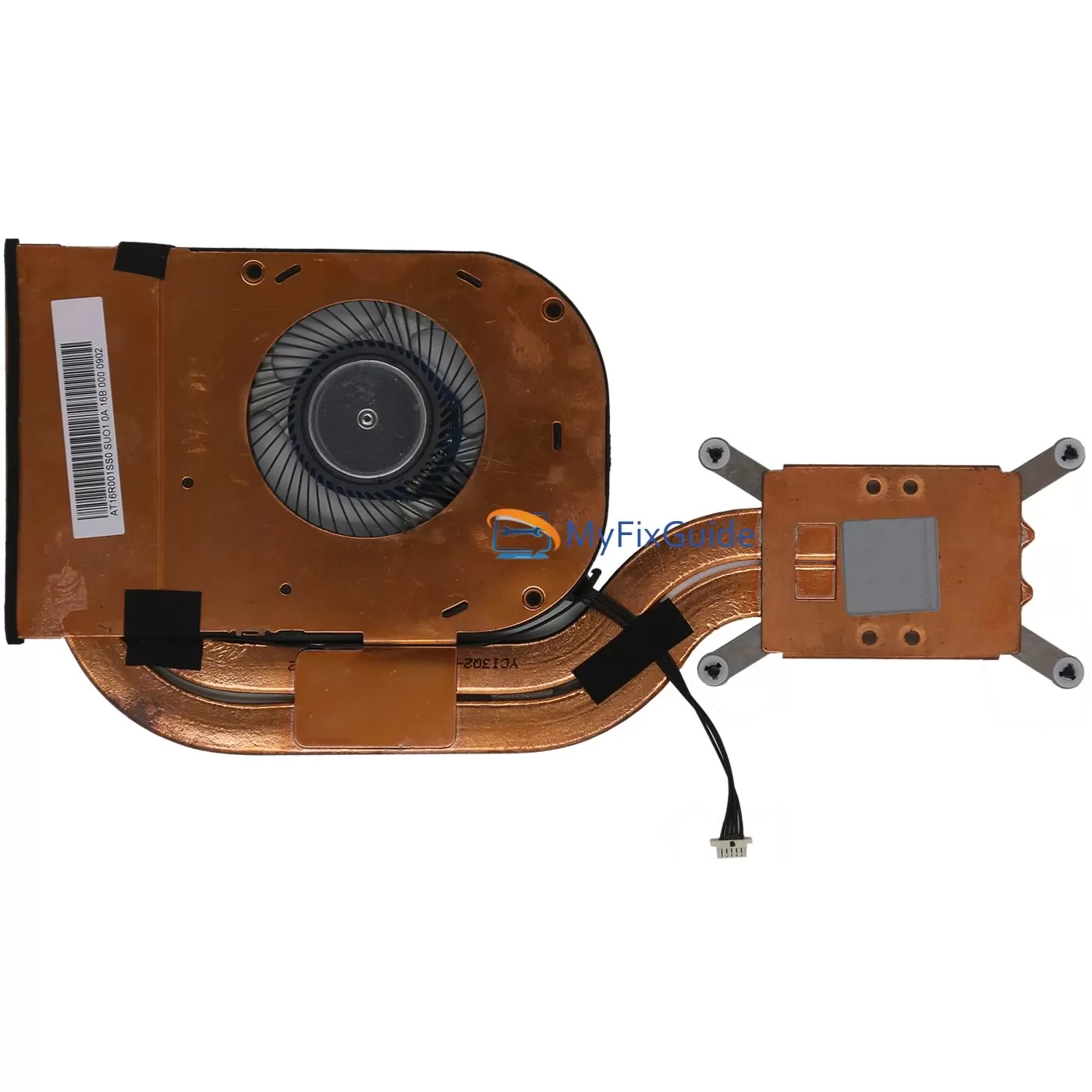

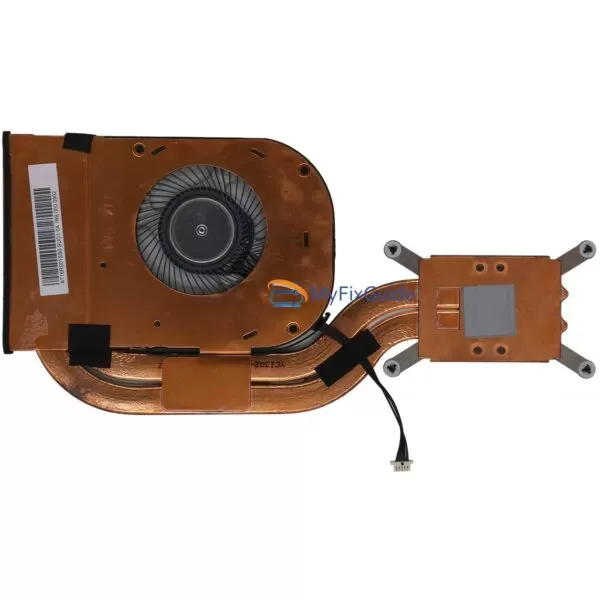

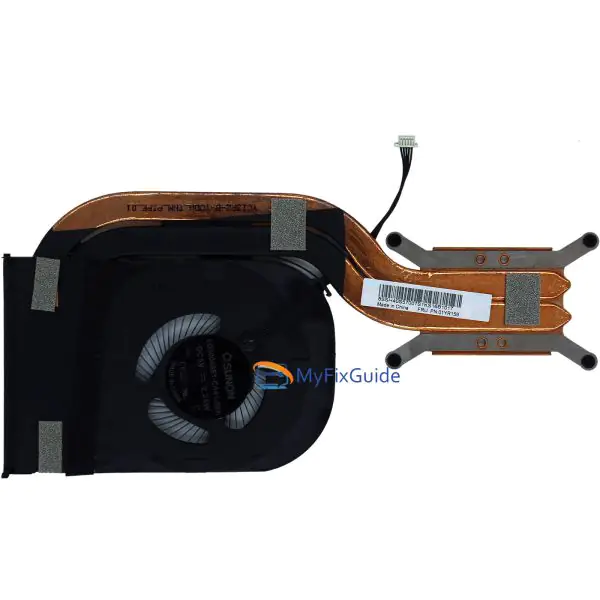

This is a brand new heatsink CPU fan assembly for Lenovo ThinkPad X1 Carbon 6th Gen 2018. The item with part number 01YR159, it is compatible with 01YR204, and 01YR203.
1. The item includes the heatsink and CPU fan.
2. It has six wires that connect to the motherboard.
Sub Part Number:
Condition: brand new, Original
Warranty: One (1) Year
Lenovo ThinkPad X1 Carbon 6th Gen 2018 (20KG, 20KH)
1. Before you start to replace the fan, please turn on your laptop and enter the bios, then disable the internal battery.
2. Please remove all screws that securing the bottom cover to the laptop, then insert a plastic tool under the bottom cover, move the tool to unlock the latches of the bottom cover.
3. With the bottom cover removed, please disconnect the battery cable from the system board.
4. Disconnect the fan cable from the motherboard and loosen all screws securing the heatsink, then you can take out the heatsink/fan assembly.
