This is a brand new UHD screen for Lenovo ThinkPad X1 Carbon 8th Gen 2020. It is compatible with part numbers 5D10V82348, SD10Q67017, NE140QUM-N61, MNE001EA1-1, 5D10V82349, and SD10Q67019.
Note:
1. The screen is a 100% NEW screen with the original part number.
2. It features Dolby Vision and 500 nits brightness.

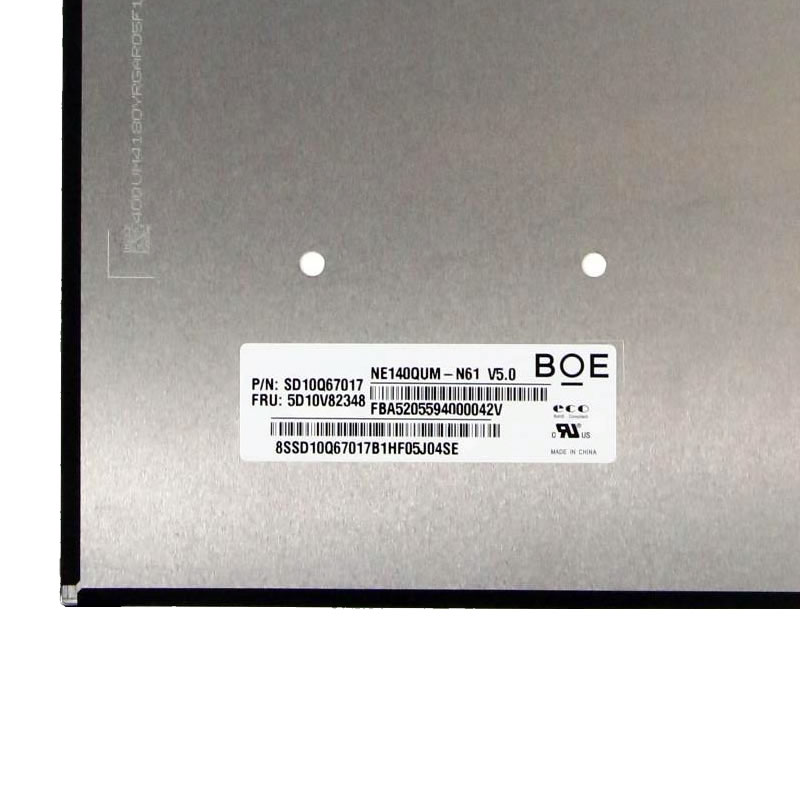

Part Number:
FRU: 5D10V82348
P/N: SD10Q67017
Model: NE140QUM-N61
Compatible Part Number:
5D10V82349
MNE001EA1-1
Specifications:
Size: 14.0-inch IPS Screen
Resolution: UHD (3840 x 2160)
Backlight Type: LED
Brightness: 500 nits
Refresh Rate: 60Hz
Video Connector: 40-pin socket
Condition: Brand new, no dead pixel
Warranty: One (1) Year
Compatible laptop:
ThinkPad X1 Carbon 8th Gen (Type 20U9, 20UA)
ThinkPad T14s (Type 20T0, 20T1)
ThinkPad T14 Gen 1 (type 20S0, 20S1)
UHD Screen for Lenovo ThinkPad T14 T14s 5D10V82348 5D10V82349 NE140QUM-N61 MNE001EA1-1 Replacement Tips:
1. Make sure the part number, description, and image match your old screen on your laptop.
2. To replace your screen, please turn on your laptop and enter BOIS, then disable the built-in battery. Please note that this step cannot be omitted, otherwise it may cause damage to your laptop.
3. The LCD bezel of this laptop is fixed on the LCD back cover with glue. Please heat it with a hairdryer and then try to remove the LCD bezel.
4. If you are not a professional laptop repairer, I do not recommend that you replace it by yourself, please go to the repair shop to find a qualified person to replace the UHD screen for you.
