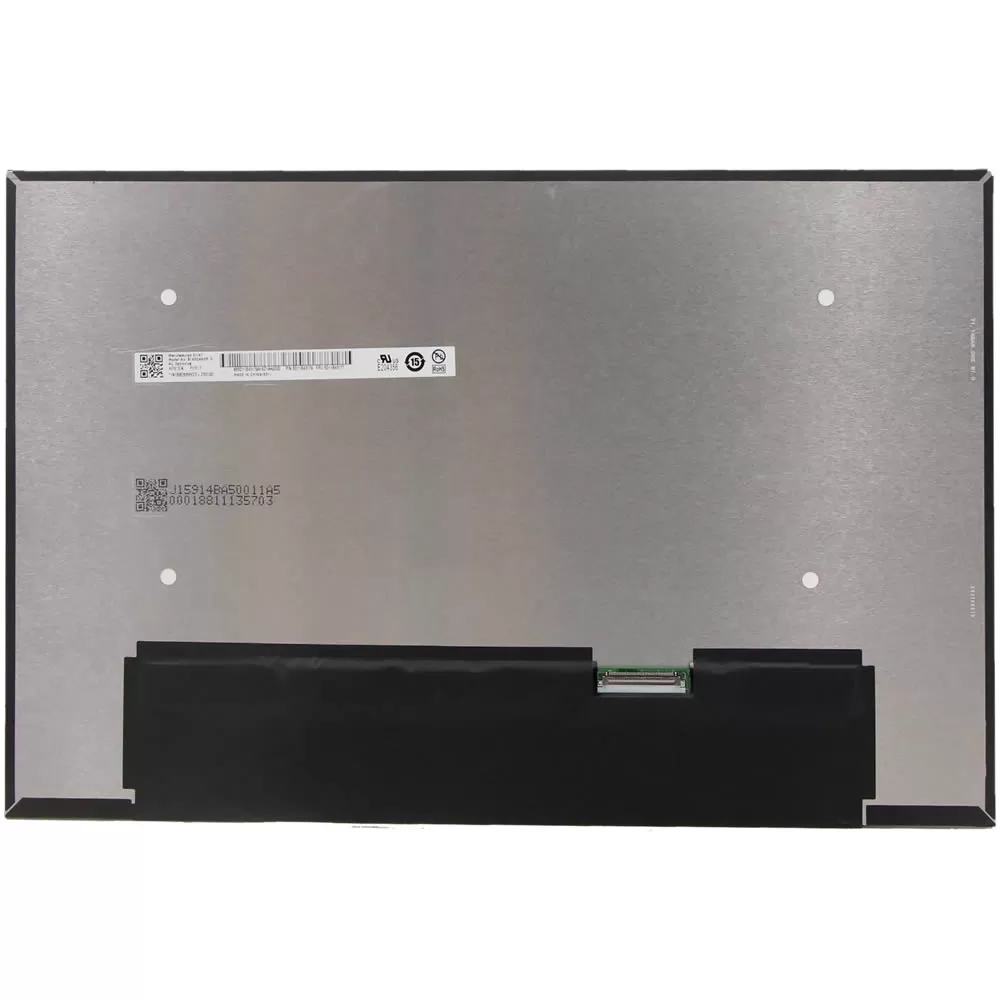

This is a new Screen for Lenovo 5D11G99892, 5D11B43177, 5D11B43178, 5D11B43181, and 5D11F27016. These 5 part numbers are all compatible with each other; we will send one of the part numbers randomly according to the stock; if you need to specify the part number, please indicate the part number in the order notes.
Features:
1. It is a 100% new screen.
2. Each screen is rigorously tested to ensure that it has no bad pixels.
Part Number:
5D11G99892
5D11B43177
5D11F27016
5D11B43178
5D11B43181
Specifications:
Size: 14.0-inch IPS Screen
Resolution: WUXGA+ (2240×1400)
Touch: Non-Touch
Connector: 40 pins
Brightness: 300 nits
Refresh Rate: 60Hz
Backlight Type: LED
Aspect Ratio: 16:10
Contrast Ratio: 1500:1
Color Gamut: 100% sRGB
Surface Type: Matte, Anti-Glare
Condition: New, no dead pixel
Warranty: One (1) Year
Compatible laptop:
ThinkPad E14 Gen 5
ThinkPad P14s Gen 3
ThinkPad P14s Gen 4
ThinkPad T14 Gen 3
ThinkPad T14 Gen 4
ThinkPad T14s Gen 3
ThinkPad T14s Gen 4
Replacement Tips:
1. Make sure the part number, description, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. The LCD bezel is fixed on the LCD back cover with easy-stretch adhesive. Slowly pull out the adhesive, and you can easily remove the screen.
4. Place the LCD screen on the keyboard, disconnect the display cable from the LCD screen to remove the old LCD screen, and then you can install the new screen on your laptop.
5. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen on the back cover and install the LCD bezel on your laptop.
