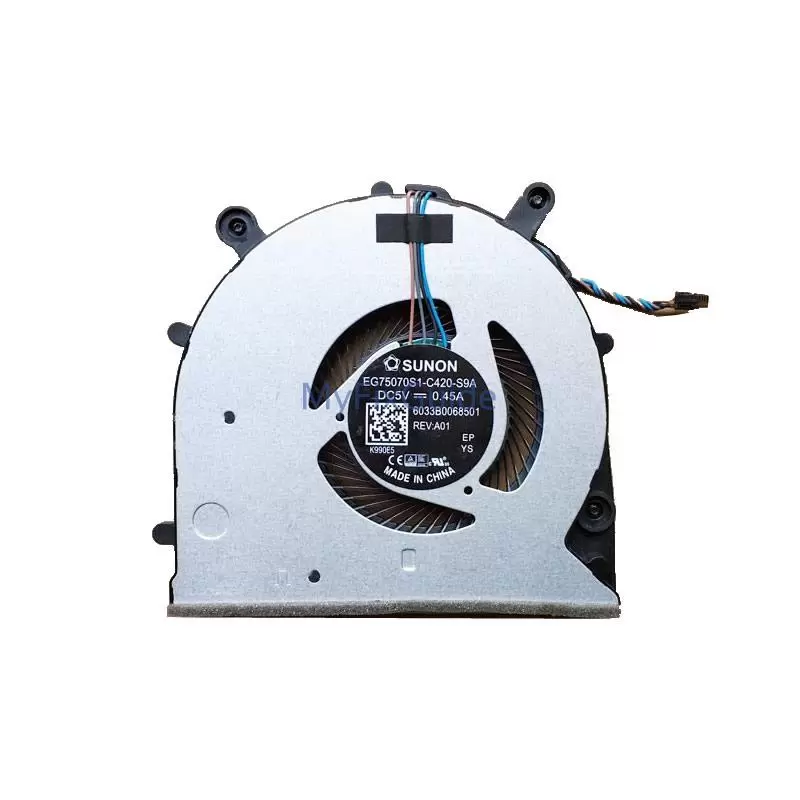

It is a brand new, original CPU Fan for HP ProBook 650 G4 with the part number of L09584-001 and 6033B0060801. This fan is manufactured by SUNON and it is compatible with all ProBook 650 G4 series laptop.
1. it is a cooling fan only, the heatsink is not included.
2. The CPU fan has four wires that connect to the motherboard.
3. There are two screws attached to the fan.
Condition: Original, brand new
Warranty: One (1) Year
HP ProBook 650 G4
1. To replace the fan on ProBook 650 G4, please shut down your laptop and remove all the screws securing the bottom cover. Using a plastic tool pry the bottom cover up to remove it
2. Disconnect the battery connector from the motherboard.
3. Loosen the Phillips screw that secures the optical drive to the laptop and slides the optical drive out of the laptop.
4. Loosen two screws and disconnect the fan cable from the system board.
5. Now you can take out the fan. Please make sure the L09584-001 is on your original fan.
