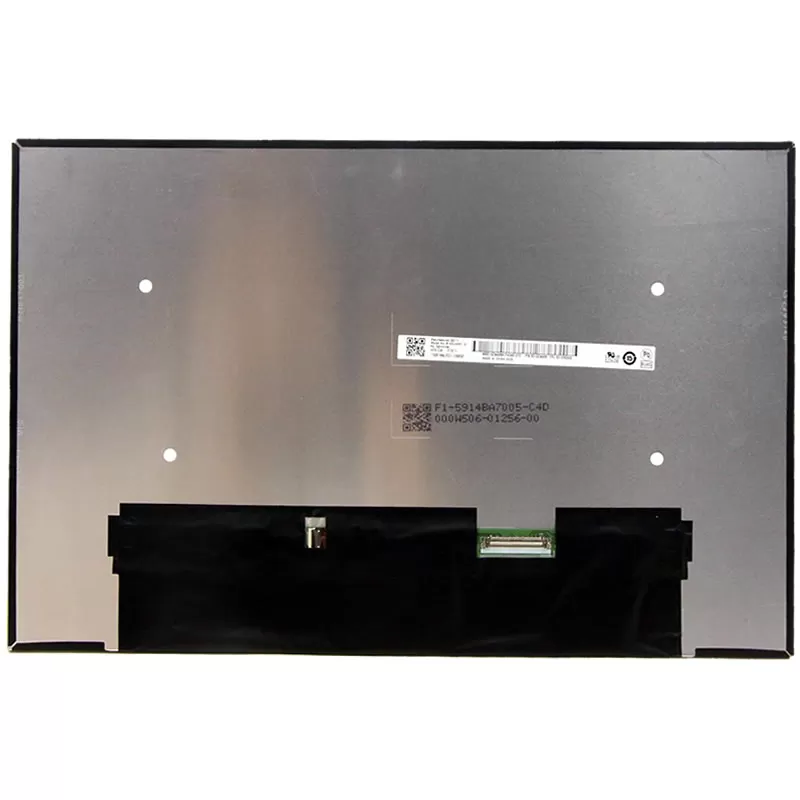

This is a new WUXGA On-Cell touchscreen. This page lists 4 models, B140UAK01.2, NV140WUM-T02, N140JCN-EEL, and R140NW4D R5, which are compatible with each other; please select the model you need from the drop-down menu.
This touchscreen has a resolution of 1920 x 1200, a brightness of 300 nits, and a color gamut of 45% NTSC.
This touch screen is compatible with ThinkPad T14 T14s P14s Gen 3 and ThinkPad T14 T14s P14s Gen 4 laptops.
Features:
1. It is a 100% new screen.
2. Each screen is rigorously tested to ensure that it has no bad pixels.

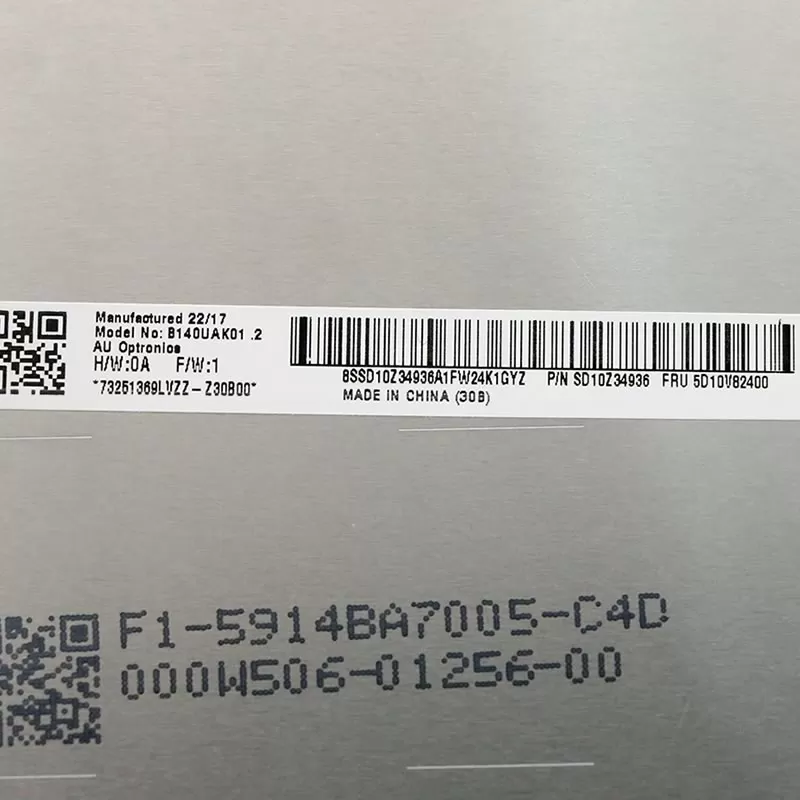

Part Number:
B140UAK01.2
N140JCN-EEL
NV140WUM-T02
R140NW4D R5
Specifications:
Size: 14.0-inch IPS Touchscreen
Resolution: FHD+ (1920 x 1200, WUXGA)
Touch: Touch
Connector: 40 pins
Brightness: 300 nits
Refresh Rate: 60Hz
Backlight Type: LED
Aspect Ratio: 16:10
Contrast Ratio: 700:1
Color Gamut: 45% NTSC
Surface Type: Matte, Anti-Glare
Condition: New, no dead pixel
Warranty: One (1) Year
Compatible laptop:
ThinkPad P14s Gen 3
ThinkPad P14s Gen 4
ThinkPad T14 Gen 3
ThinkPad T14 Gen 4
ThinkPad T14s Gen 3
ThinkPad T14s Gen 4
B140UAK01.2 N140JCN-EEL NV140WUM-T02 R140NW4D R5 Replacement Tips:
1. Make sure the part number, description, and image matches the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. The LCD bezel is fixed on the LCD back cover with easy-stretch adhesive. Slowly pull out the adhesive, and you can easily remove the screen.
4. Place the LCD screen on the keyboard, disconnect the display cable from the LCD screen to remove the old LCD screen, and then you can install the new screen on your laptop.
