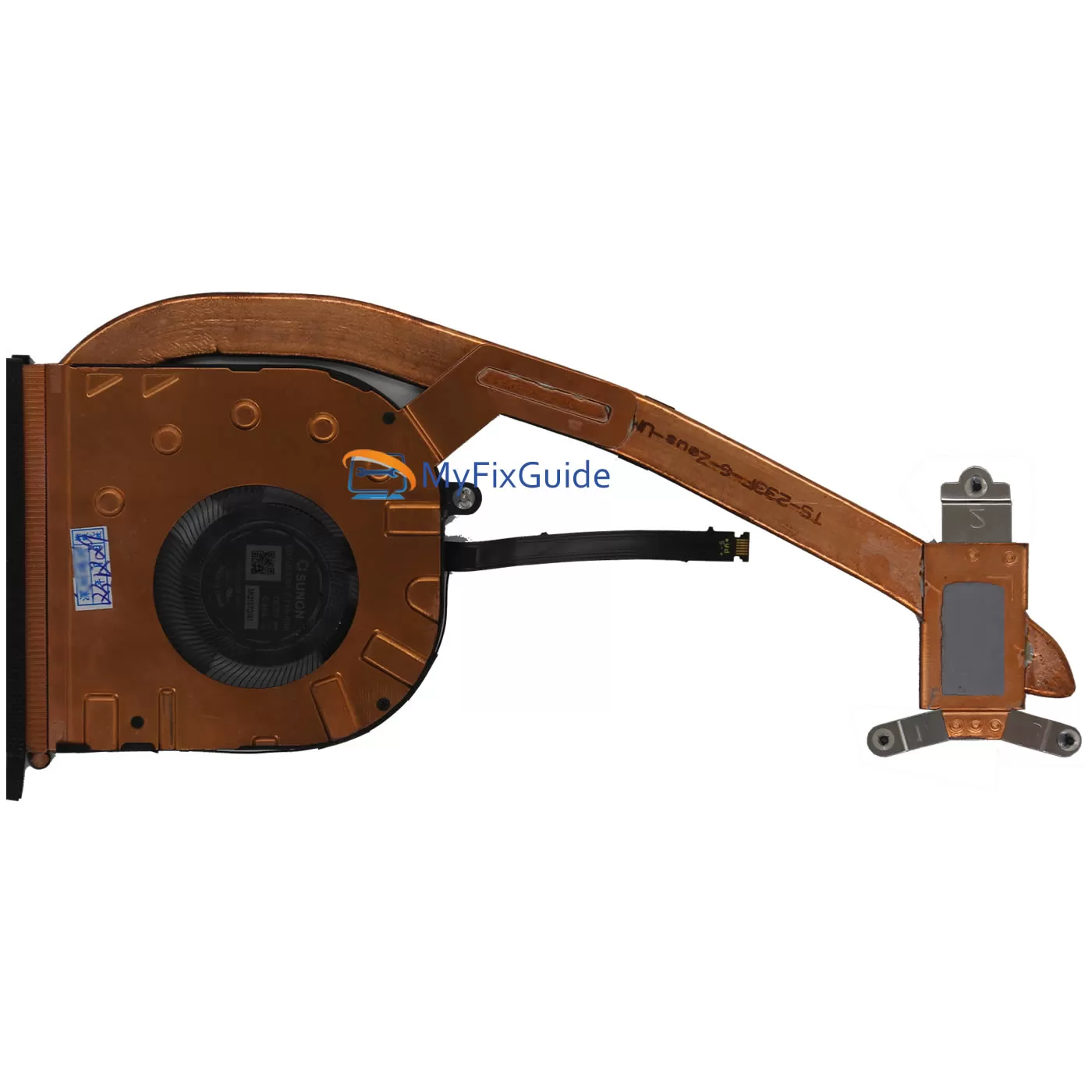

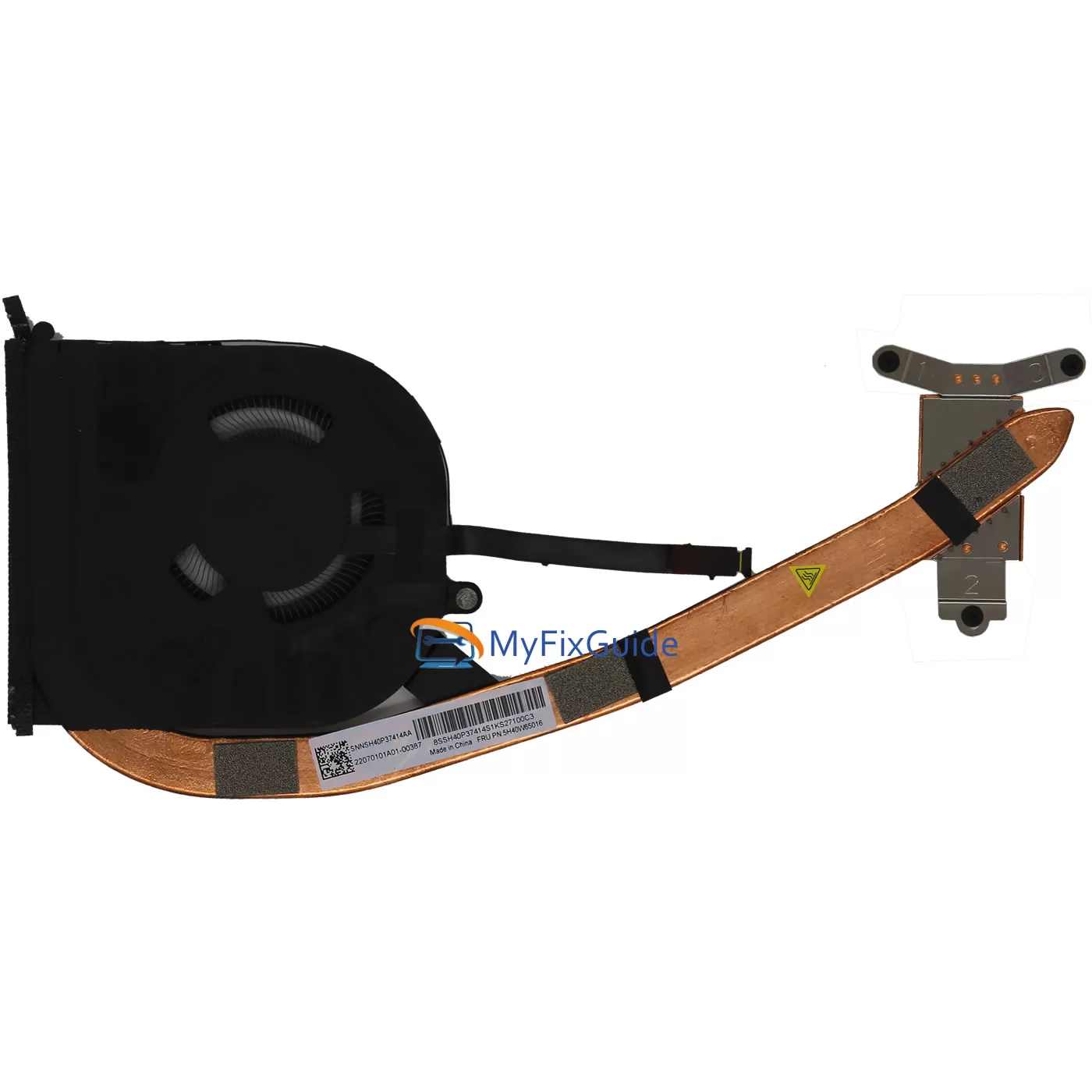

This is a brand new heatsink with CPU fan for ThinkPad X1 Nano Gen 1. This fan comes with part number 5H40W65016, it is compatible with 5H40W65015.
Features:
1. This is a brand new CPU Fan with heatsink.
3. Before shipping, each fan is strictly tested to ensure that it works properly.
4. This fan has 1 wires leading to the connector which attaches to the motherboard.

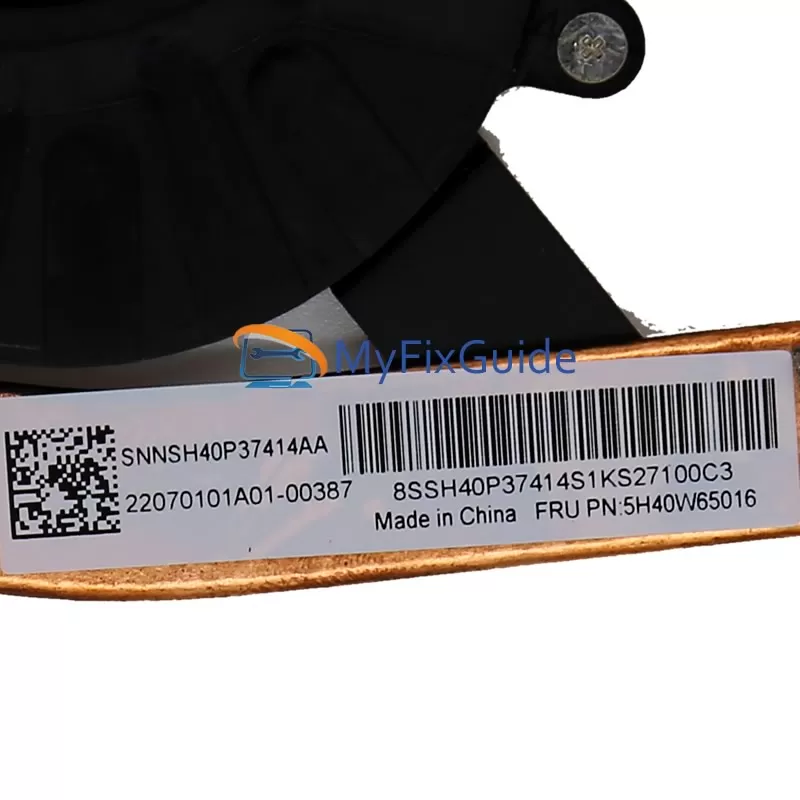

P/N:
5H40W65016
Compatible P/N:
5H40W65015
Compatible Laptop:
X1 Nano Gen 1 (Type 20UN 20UQ)
Specifications:
Voltage: 5V
Electric Current: 0.45A
Condition: New
Warranty: One (1) Year
CPU Fan for Lenovo ThinkPad X1 Nano Gen 1 5H40W65016 5H40W65015 Replacement Tips:
1. Please compare the image, part number, and shape with your fan and make sure it matches your existing CPU fan.
2. When replacing the CPU fan, you need to disconnect the battery connector from the motherboard to protect your laptop from being damaged by static electricity.
3. Loosen the 4 screws that hold the heatsink and fan in place, then you can easily remove it.
4. This fan already has thermal grease on it, so you don’t need to buy new thermal grease.
5. You need to remove the old thermal grease left on the processor with a cleaning cloth.
