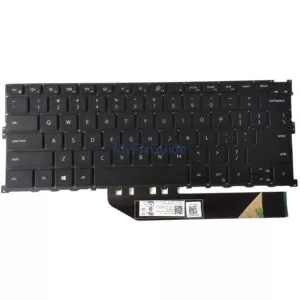

New Backlit Keyboard for Dell XPS 15 9500, XPS 17 9700 0MV93T MV93T

This is a new backlit keyboard for Dell XPS 15 9500 and Dell XPS 17 9700. It is a single keyboard only, without a palm rest.

Features:
1. This is a US keyboard with a backlit.
2. We also have Japanese, German, French, Spanish, Italian, French, and UK keyboards; please contact us if you need them.

P/N:

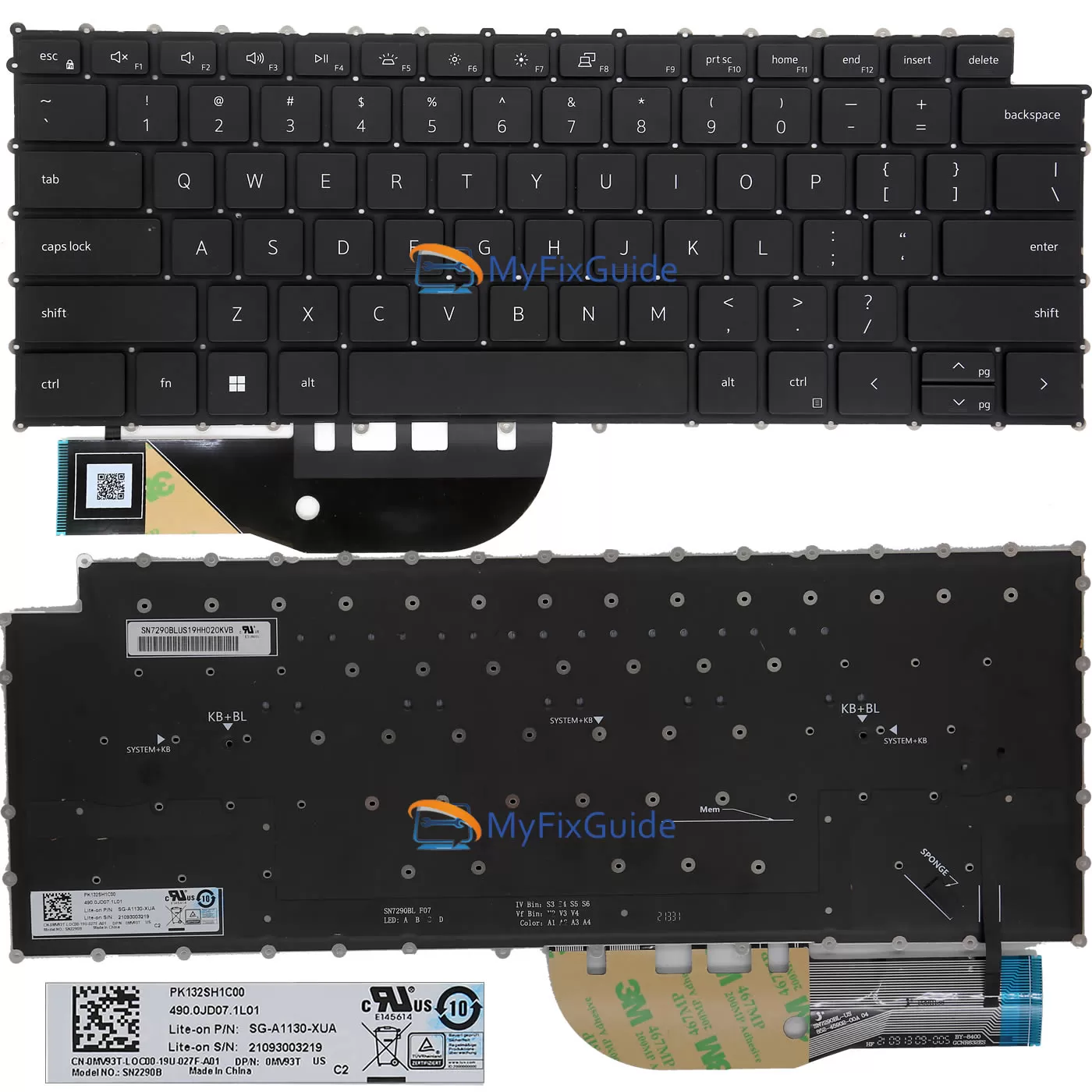

Black, US: 0MT93T, PK132SH1C00, 490.0JD07.1L01, SG-A1130-XUA

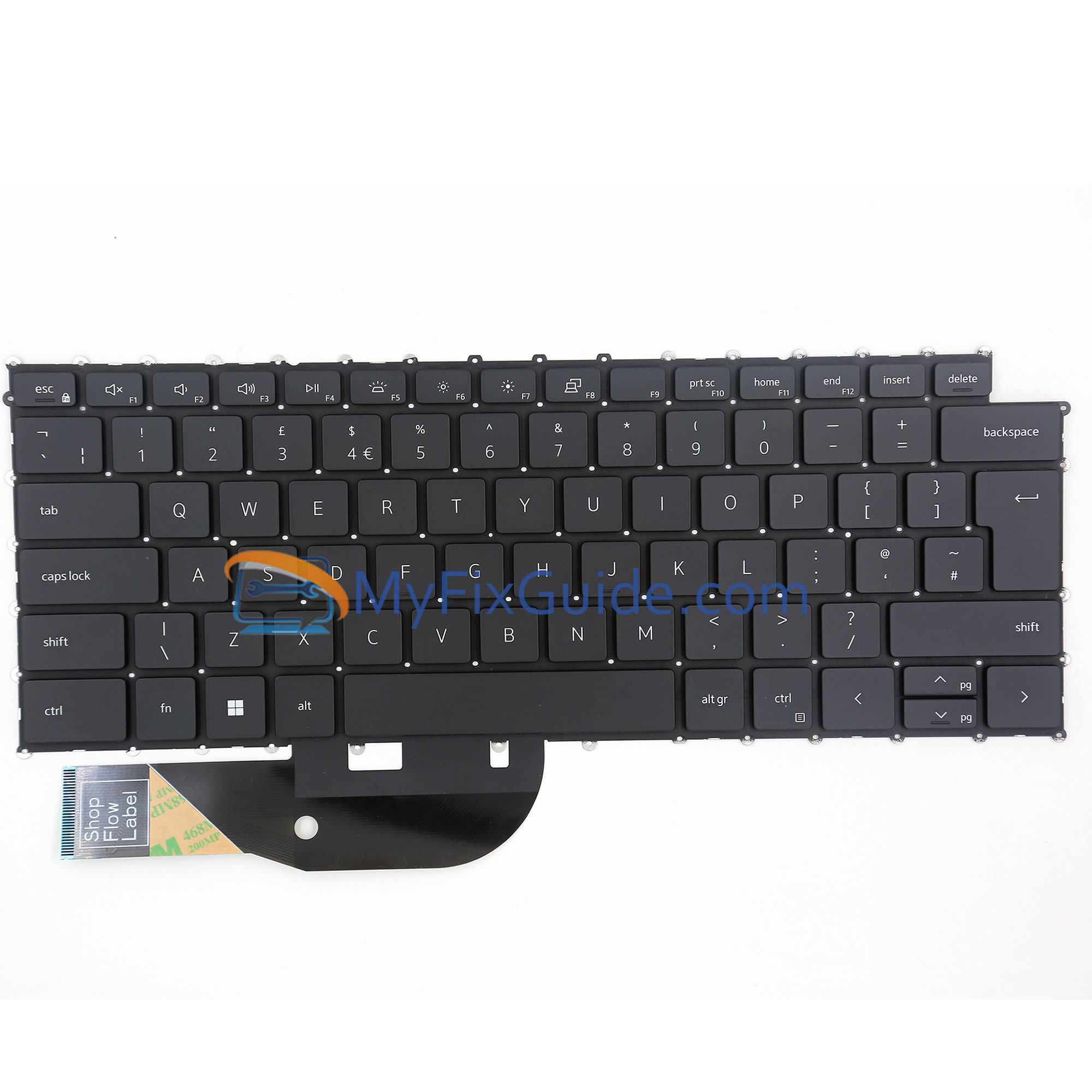

Black, UK: 0K3VC4, PK132SH1C16, 490.0JD07.1L0U, SG-A1130-2BA

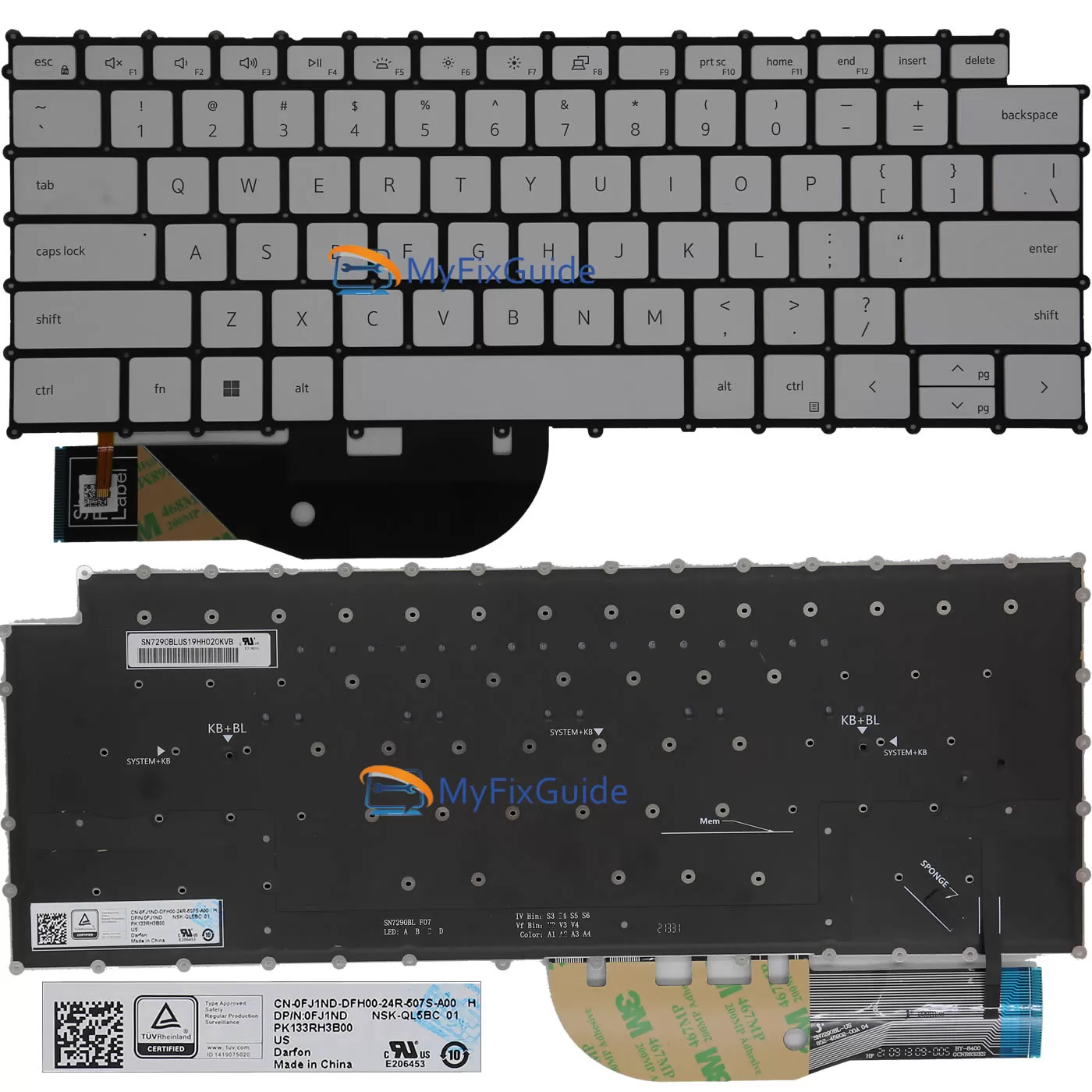

White, US: 0FJ1ND, PK133RH3B00, NSK-QL5BC 01

Specifications:
Layout: US
Color: Black, White
Backlit: Yes
Condition: New, Original
Warranty: One (1) Year

Compatible Laptops:
XPS 15 9500
XPS 17 9700

Replacement Tips:
1. Please verify that the part number, description, and image match the existing keyboard.
2. This business laptop uses a built-in keyboard. You need to remove your palm rest from the laptop and then install the keyboard on your palm rest.
3. Remove the eight screws that secure the bottom cover to the palm rest and keyboard assembly. Use a plastic tool to pry the bottom cover to release the cover
from the palm rest.
4. Then remove the battery, SSD, heatsink, CPU fan, display assembly, motherboard, and all components covering the keyboard.
5. Remove the keyboard from the palm rest and install the keyboard for XPS 15 9500 on your palm rest.
