BOE NT133WHM-N45

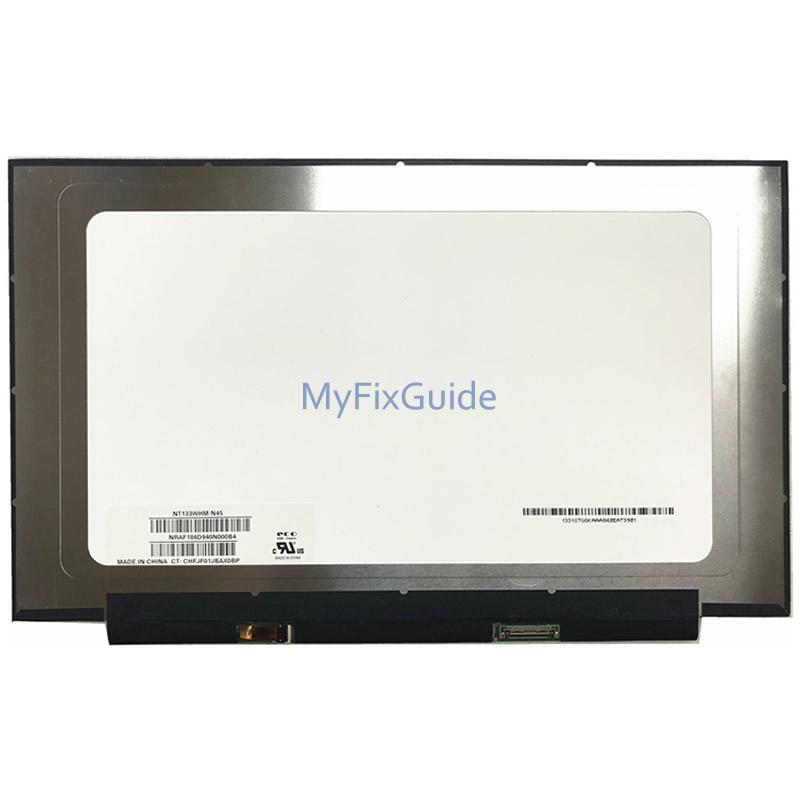

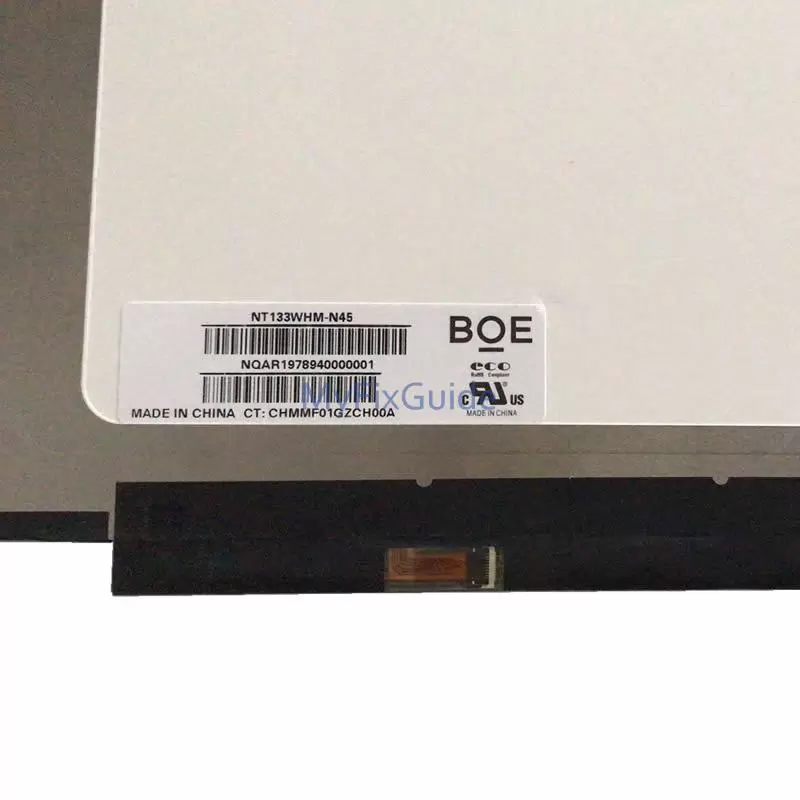

This is a genuine, brand new BOE NT133WHM-N45 screen with a resolution of 1366×768. The item is an LCD screen only, without a touch digitizer. It is not compatible with a laptop with a touch screen.

Features:
1. It is a 100% brand new, original screen.
2. This is a narrow edge LCD screen with a resolution of 1366×768.
3. It features a brightness of 220 nits.

Part Number:
NT133WHM-N45

Specifications:
Size: 13.3-inch Screen
Resolution: WXGA (1366×768)
Backlight Type: LED
Surface Type: Matte
Video Connector: 30 pin, eDP
Refresh Rate: 60Hz
Brightness: 220 cd/m²
Contrast Ratio: 500:1
Condition: Original, brand new, no dead pixel
Warranty: One (1) Year

Compatible Laptop:
Acer, HP, Dell, Lenovo, etc

Tips:
The NT133WHM-N45 is a 13.3-inch TFT-LCD screen from BOE. It is equipped with the WLED backlight, including the LED backlight driver, no touch function. This product has an operating temperature of 0 to 50 ° C and a storage temperature of -20 to 60 ° C. It has a display resolution of 1366 (RGB) × 768 (WXGA), an aspect ratio of 16: 9 (width: height), and pixels are arranged in RGB vertical strips. Its display area size is 293.42 (W) × 164.97 (H) mm. In terms of the backlight, this product uses WLED light-emitting side-type light source. The service life of the light source is 15K hours. It uses eDP (1 Lane) signal interface, a total of 30 pins, the driving voltage is 3.3V, and the typical vertical refresh rate is 60Hz.
